tall wood bedframe
! Tools Required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as: cardboard or carpet to protect fi nish.
! Proper assembly of this item requires 2 people.
! Twin bedframe will include one set of slats as shown. Other bed sizes will include 2 sets of slats
Hardware
assembly instructions
A
B
C
D
E
allen key 1x
spring washer
42x (full, queen, king, cal. king)
32x (twin)
fl at washer
18x (full, queen, king, cal. king)
8x (twin)
u-washer 8x
F
long bolt M6 x 40mm
10x (full, queen, king, cal. king)
G
long bolt M6 x 50mm 16x
H
dowel 8x
I
barrel nut
6x (full, queen, king, cal. king)
09.19.09
short bolt M6 x 20mm 16x
Page 1 of 8
Parts
tall wood bedframe
assembly instructions
end railsside rails
center support center legs corner support
stals debsgel renroc
09.19.09
Page 2 of 8
tall wood bedframe
assembly instructions
1. Fasten the side rails to the end rails by inserting dowel (H) in the pre-drilled holes and by inserting long
bolts M6 x 50mm (G), spring washer (B), and u-washer (D) as shown. Tighten bolts using allen key (A).
09.19.09
Page 3 of 8
tall wood bedframe
assembly instructions

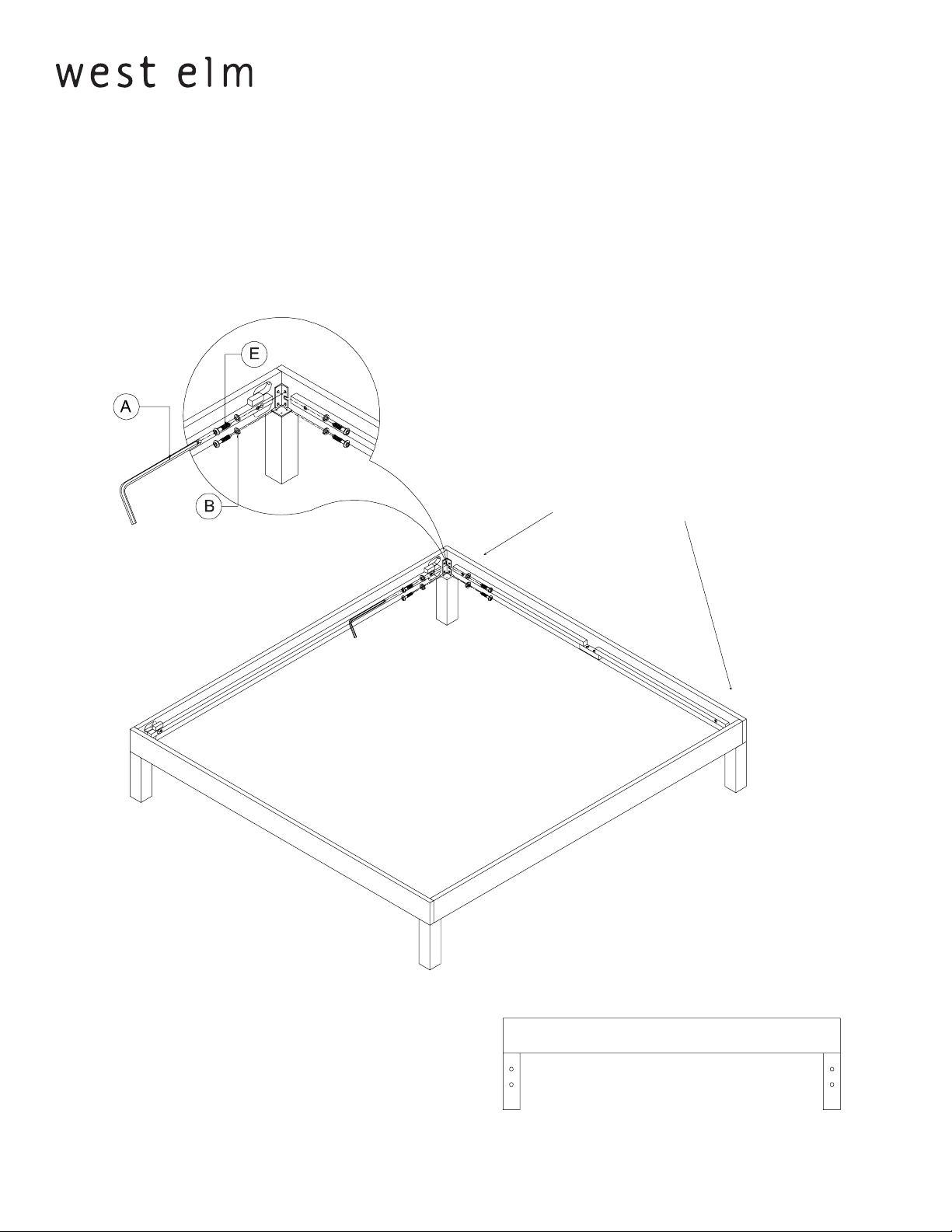

2. Fasten the legs to the bed frame using short bolts M6 x 20mm (E) and spring washers (B) as shown. Tighten bolts using allen key (A).
Note: The legs for the head of the bed have
insert nuts for attaching the headboard.
09.19.09
head of bed
Page 4 of 8
washer (C) as shown. Tighten bolts using allen key (A).
tall wood bedframe
assembly instructions
at
09.19.09
Page 5 of 8
tall wood bedframe
assembly instructions
NOTE: For the twin bedframe skip ahead to step 7.
4. Insert barrel nuts (I) into the pre-drilled holes of the center legs. Attach the center support to the center
at washers (C). Tighten bolts with allen key
(A).
09.19.09
Page 6 of 8

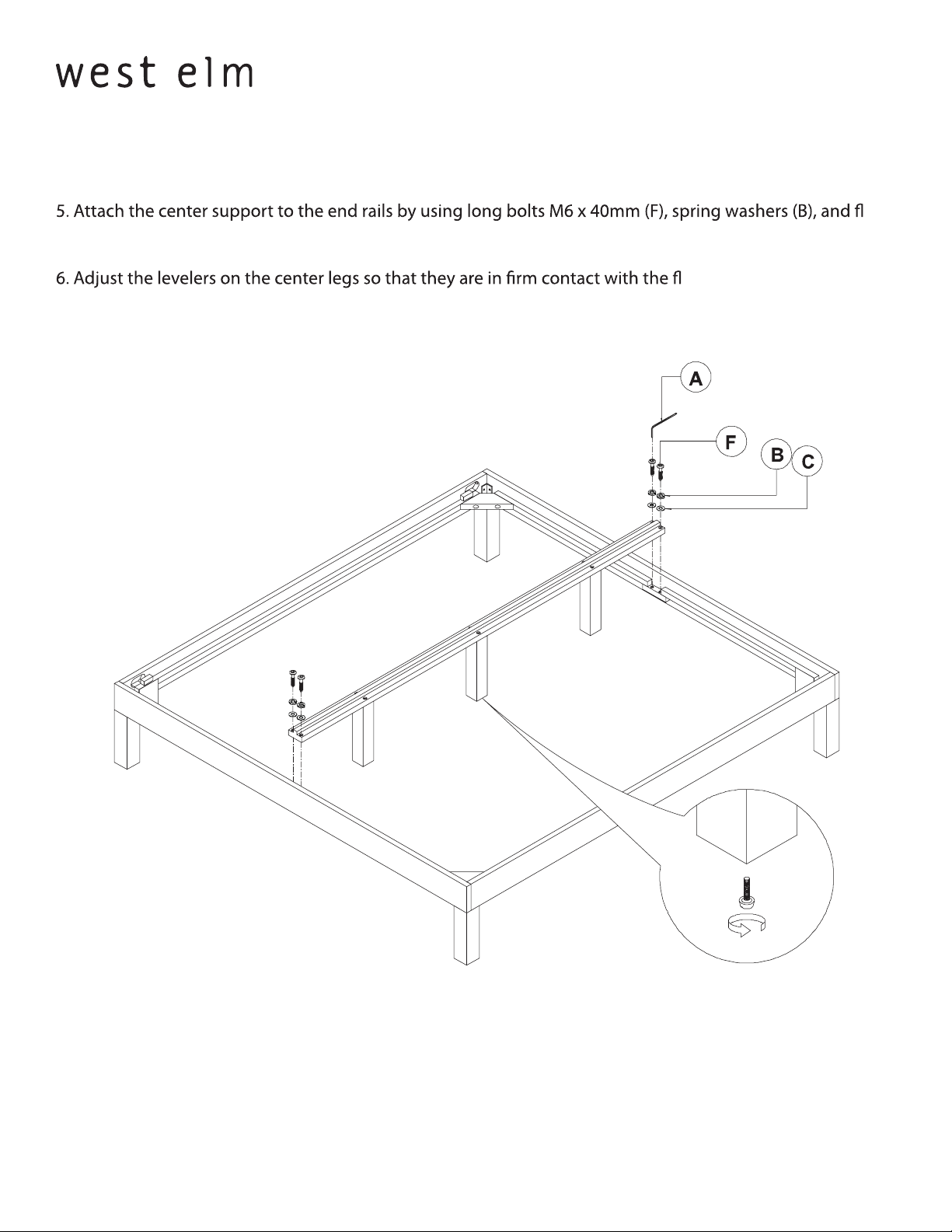

washers (C) as shown. Tighten using allen key (A).
tall wood bedframe
assembly instructions
at
oor.
09.19.09
Page 7 of 8
tall wood bedframe
assembly instructions
NOTE: For full, queen or king size frames, two sets of slats are used as shown. For twin size one set of slats is
used.
7. Carefully set slats into frame as shown.
09.19.09
Page 8 of 8
