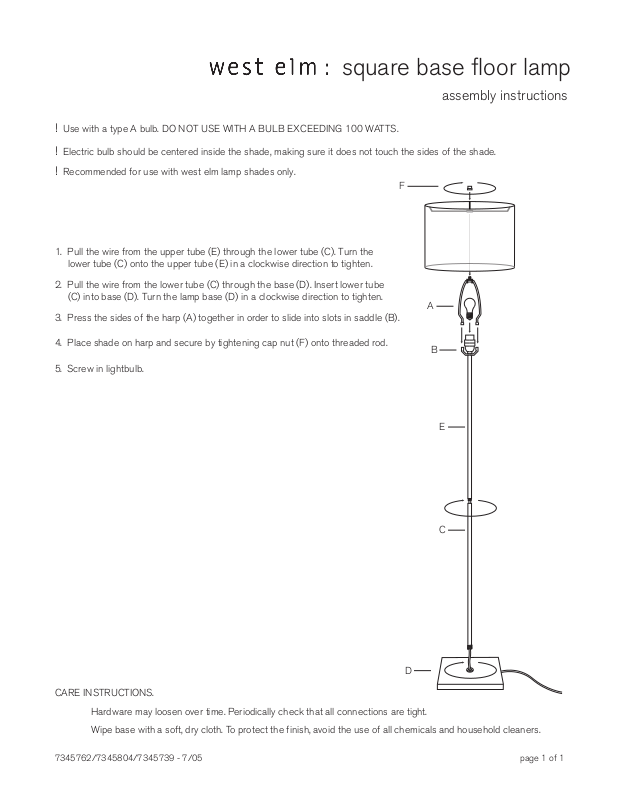

West Elm Square Base Floor Lamp Assembly Instruction

: square base floor lamp

assembly instructions

! Use with a type A bulb. DO NOT USE WITH A BULB EXCEEDING 100 WATTS.

! Electric bulb should be centered inside the shade, making sure it does not touch the sides of the shade.

! Recommended for use with west elm lamp shades only.

F

1. Pull the wire from the upper tube (E) through the lower tube (C). Turn the
lower tube (C) onto the upper tube (E) in a clockwise direction to tighten.

2. Pull the wire from the lower tube (C) through the base (D). Insert lower tube
(C) into base (D). Turn the lamp base (D) in a clockwise direction to tighten.

3. Press the sides of the harp (A) together in order to slide into slots in saddle (B).

A

4. Place shade on harp and secure by tightening cap nut (F) onto threaded rod.

5. Screw in lightbulb.

B

E

C

CARE INSTRUCTIONS.

Hardware may loosen over time. Periodically check that all connections are tight.

Wipe base with a soft, dry cloth. To protect the finish, avoid the use of all chemicals and household cleaners.

7345762/7345804/7345739 - 7/05

D

page 1 of 1
