Page 1

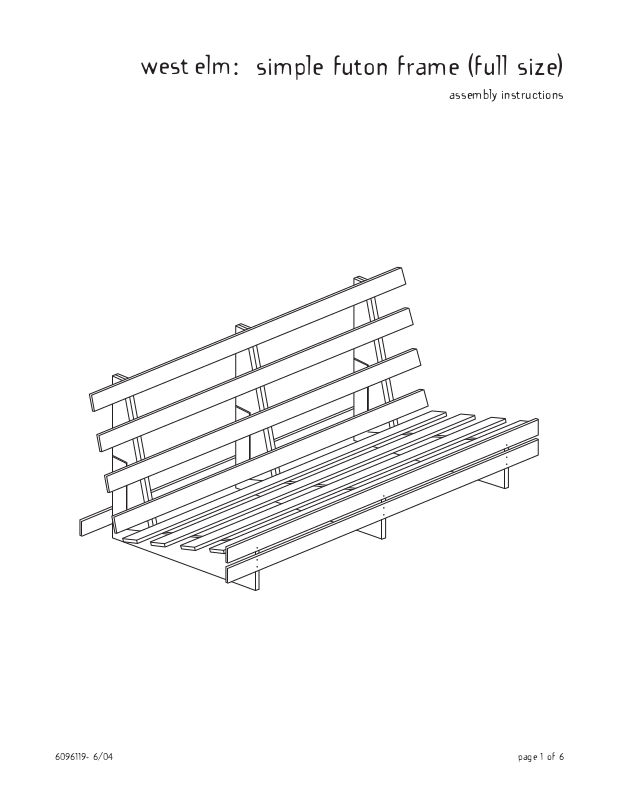

: simple futon frame (full size)
assembly instructions
6096119- 6/04
page 1 of 6
Page 2
seat deck
back deck
: simple futon frame (full size)
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly
is complete.
! Assemble this item on a soft surface, such as cardboard
or carpet, to protect the finish.
front slat (2x)
seat deck leg (3x)
leg slat
back deck leg (3x)
A
bolt: 7/16”DIA x 2 3/8”
B
bolt: 7/16”DIA x 1 1/2”
12x
D
C
E
15x
metal washer
15x
F
6096119- 6/04
nut
15x
wrench
1x
allen key
1x
page 2 of 6
Page 3
: simple futon frame (full size)
assembly instructions

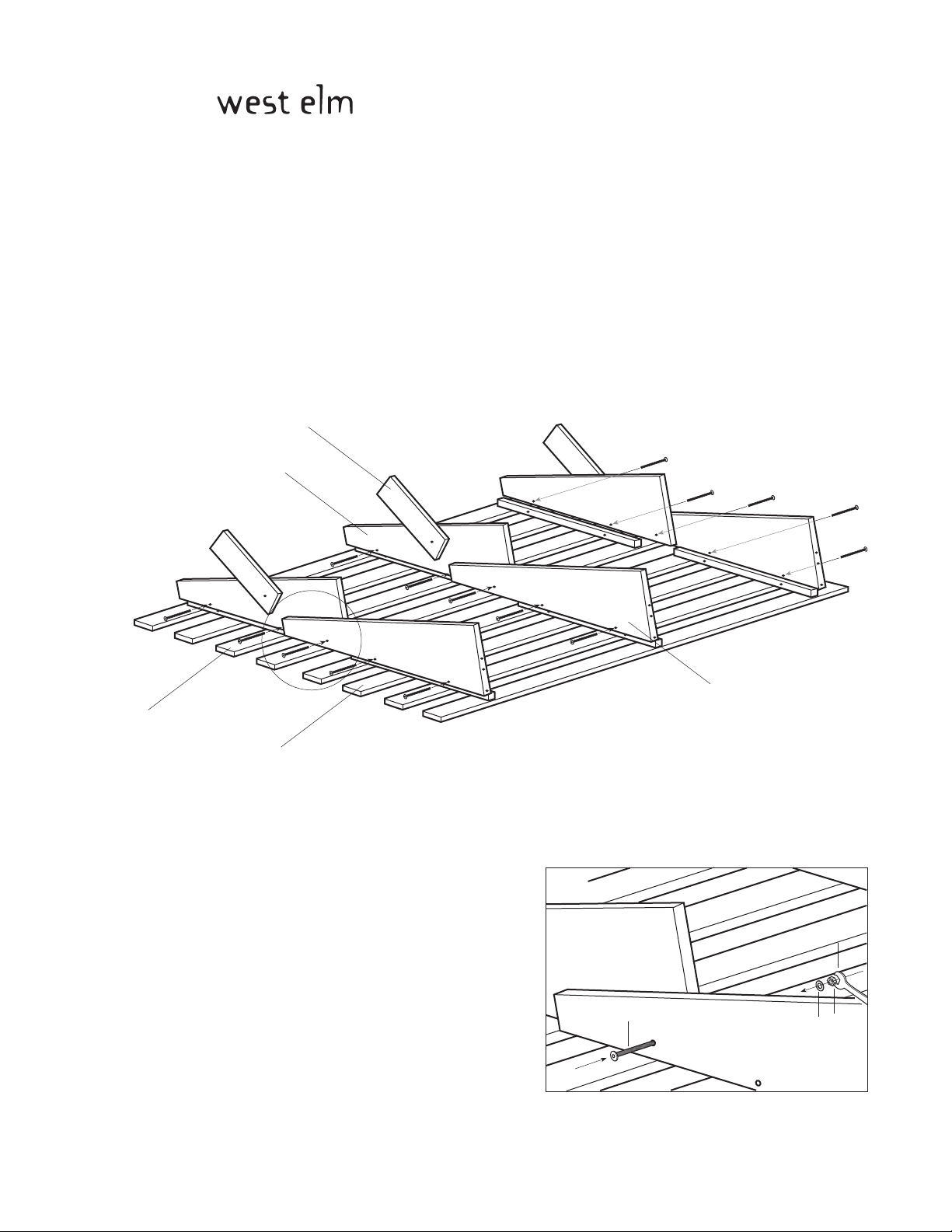

1. Stickers on the seat and back deck indicate where each leg should be attached. Simply match the leg sticker
with the identical deck sticker to assemble the legs (i.e. A1 with A1). Align hardware as shown and tighten.
leg slat
back deck leg
back deck
seat deck
15x
seat deck leg
F
A
D
C
6096119- 6/04
page 3 of 6
Page 4
: simple futon frame (full size)
2. Attach leg slat to the small leg on back deck leg by screwing bolt (B) into the recessed nut.
assembly instructions
leg slat
small leg
back deck leg
6096119- 6/04
3x
B
page 4 of 6
Page 5
: simple futon frame (full size)
assembly instructions

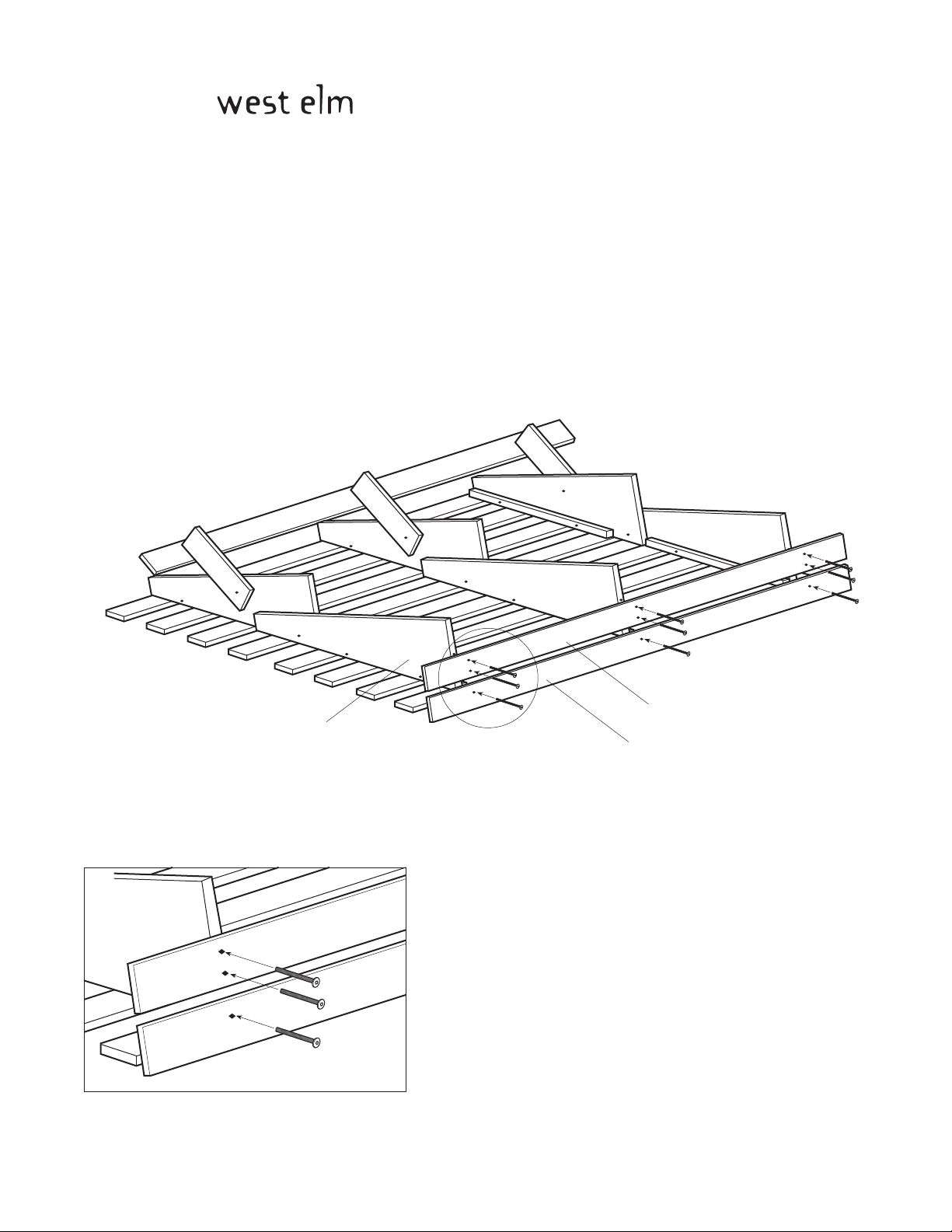

3. Assemble front slat A and front slat B to seat deck leg by screwing bolt (B) into the recessed nut.
NOTE. Front slat A has a single hole to attach to each seat deck leg,
while front slat B has two holes.
9x
front slat B
seat deck leg
front slat A
CARE INSTRUCTIONS. Hardware may loosen over time.
Periodically check that all connections
are tight.
Wipe with a soft, dry cloth. To protect
the finish, avoid the use of all chemicals
and household cleaners.
6096119- 6/04
page 5 of 6
Page 6

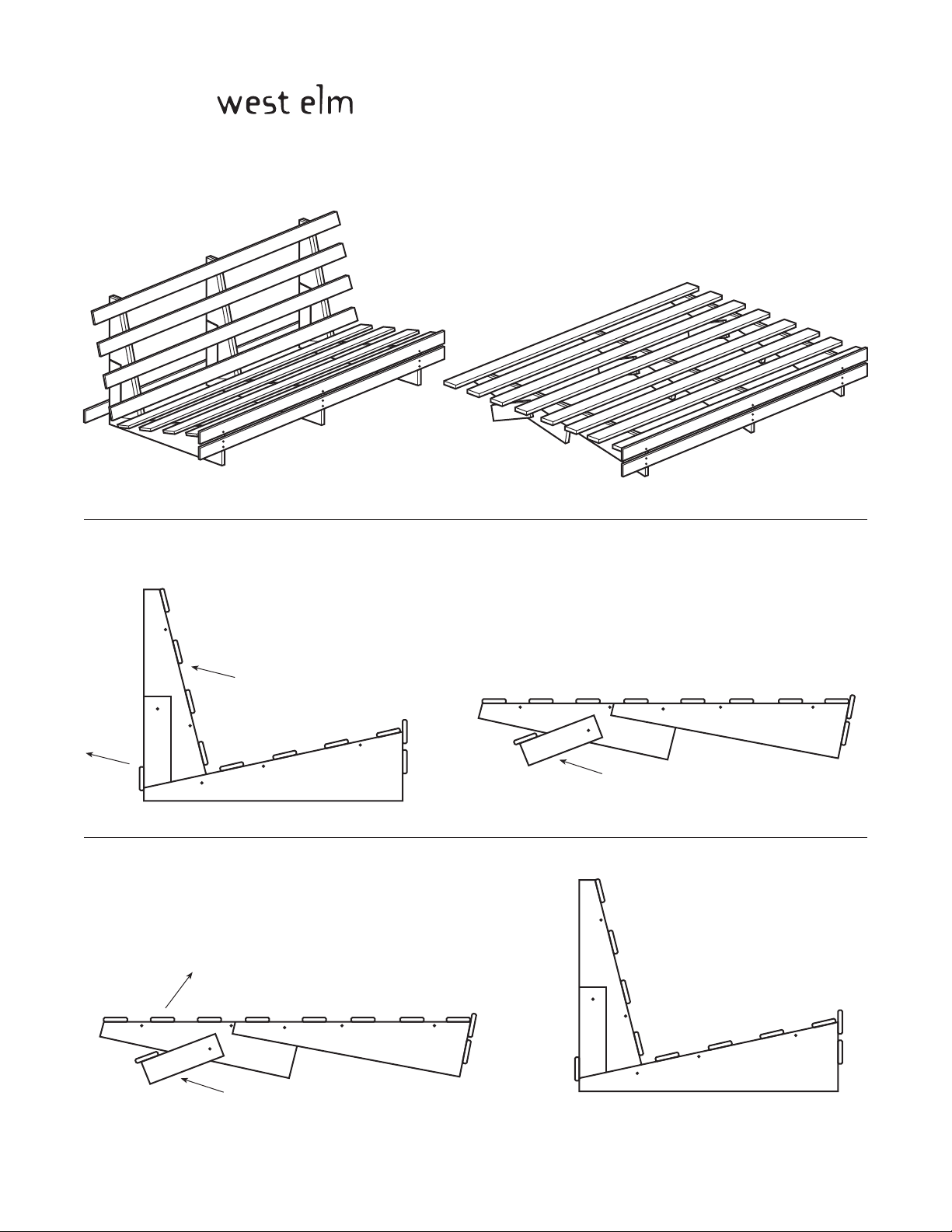

SOFA TO BED POSITION:
: simple futon frame (full size)
operating instructions
BED TO SOFA POSITION:
fold up back deck.
fold down back deck.
fold out small leg.
fold in small leg.
6096119- 6/04
page 6 of 6
