: rolling storage unit 3x2
assembly instructions
4579728/4579736/6875579/9740887- 3/05
page 1 of 9
: rolling storage unit 3x2
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect the nish.
! Proper assembly of this piece requires two people.
assembly instructions
A
bolt: 5/16”DIA x 3”
B
metal washer
8x
D
allen key
1x
C
E
8x
lock washer
screw: 5/16”DIA x 1”
8x
20x
F
4579728/4579736/6875579/9740887- 3/05
snap-lock
6x
page 2 of 9
1. Place one of the two side panels on its side as shown.
2. Insert dowels on shelf into holes on the side panel.
: rolling storage unit 3x2
assembly instructions
4579728/4579736/6875579/9740887- 3/05
page 3 of 9
: rolling storage unit 3x2
3. Repeat step 2 and attach an inner panel to the other side of the shelf.
assembly instructions
4579728/4579736/6875579/9740887- 3/05
page 4 of 9
: rolling storage unit 3x2

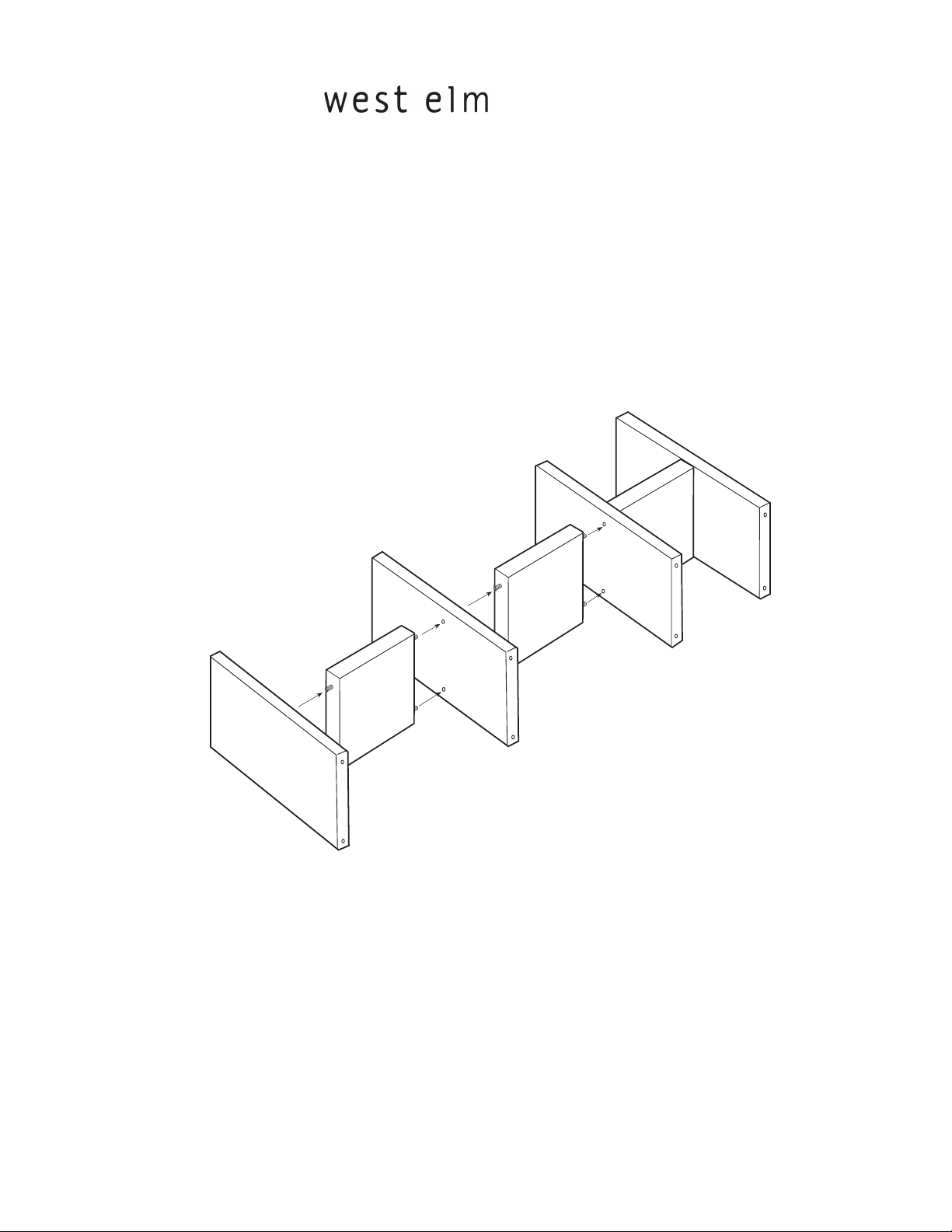

4. Repeat these steps with the remaining inner panel, side panel and shelves as shown below.
assembly instructions
4579728/4579736/6875579/9740887- 3/05
page 5 of 9
: rolling storage unit 3x2
assembly instructions

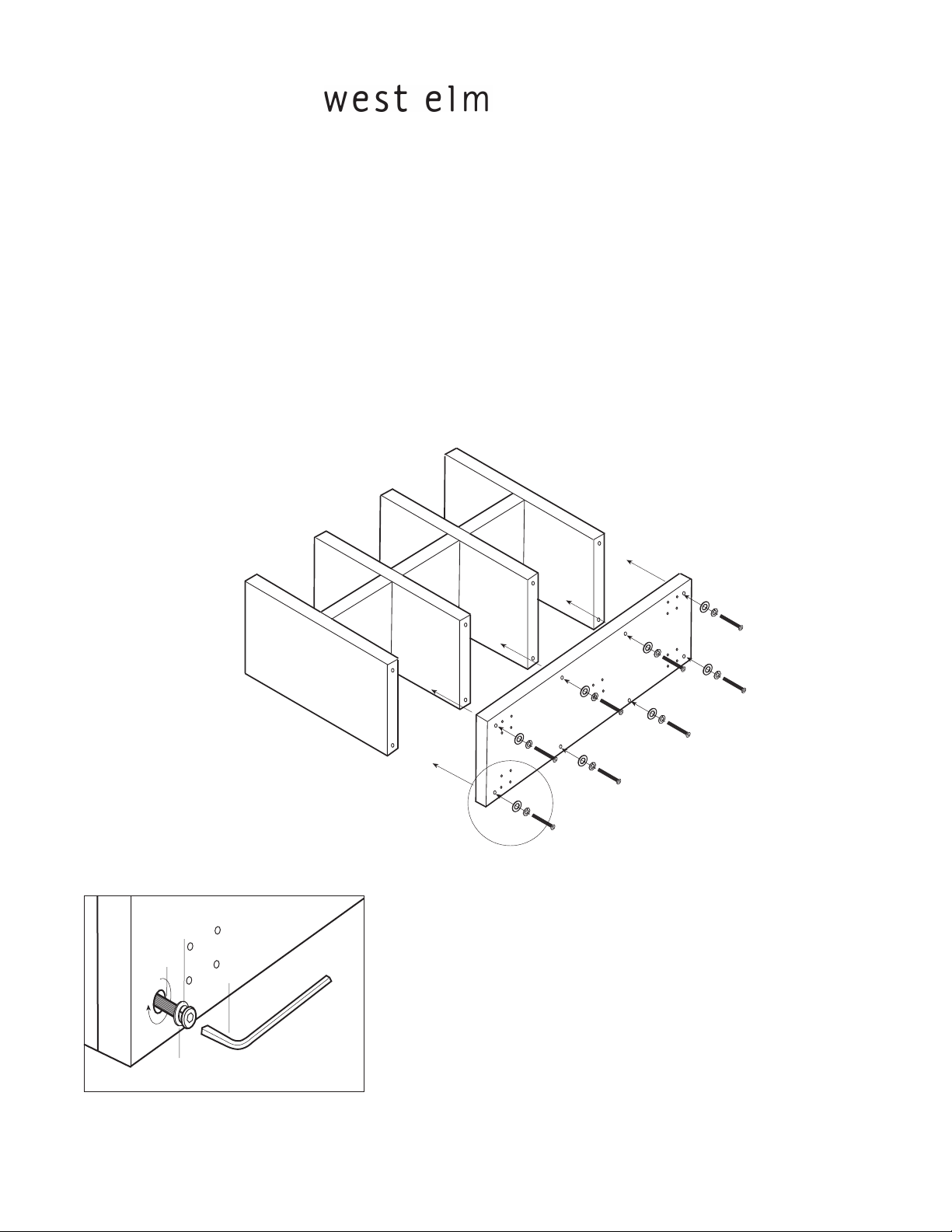

5. Attach the bottom panel to the side and inner panels with bolts (A), metal washers (B) and lock washers (C).
Tighten with the allen key (D).
C
A
D
B
4579728/4579736/6875579/9740887- 3/05
8x
page 6 of 9
: rolling storage unit 3x2
assembly instructions
6. (OPTIONAL) Attach the 5 casters to the bottom panel with screws (E). Place 4 locking casters at corners and 1
non-locking caster in center. Tighten with philips head screwdriver.
E
4579728/4579736/6875579/9740887- 3/05
5x
page 7 of 9
: rolling storage unit 3x2
assembly instructions
7. Set the storage unit upright.
8. Using a philips head screwdriver, screw snap-locks (F) into holes on top of side and inner panels.
4579728/4579736/6875579/9740887- 3/05
6x
F
page 8 of 9
: rolling storage unit 3x2
assembly instructions
10. Align the holes on the top panel with the snap-lock pegs on the top of the inner and side panels. Ensure fingers and
body parts are clear of the connecting pieces. Firmly press down on the top panel until each peg snaps into place.
While this is a secure connection for assembly, this item should not be lifted by the top panel for your safety, as it could
disengage from the rest of the shelving unit.
Snap-lock (patent pending) technology, exclusive to west elm, is used in this product to enable quick and easy assembly
without visible hardware.
CARE INSTRUCTIONS. Hardware may loosen over time. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect the finish, avoid the use of all chemicals
and household cleaners.
4579728/4579736/6875579/9740887- 3/05
page 9 of 9
