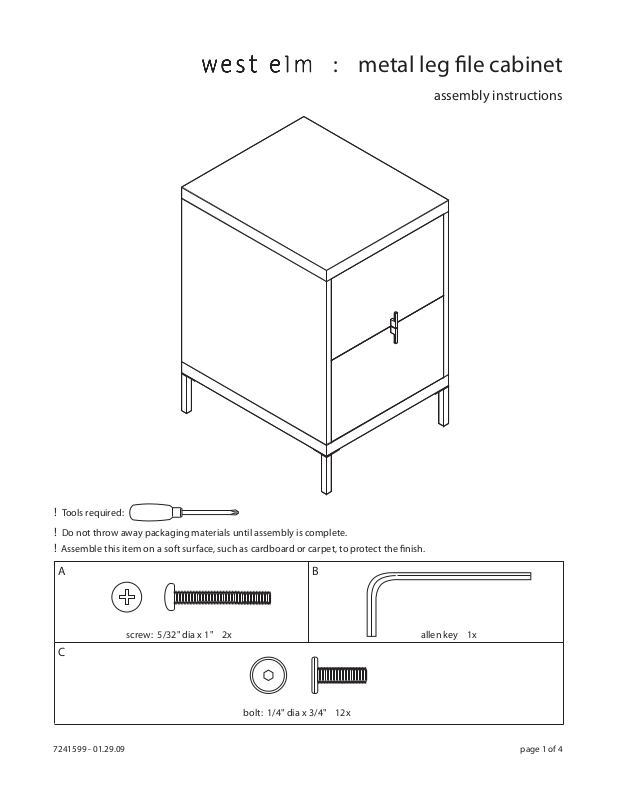

: metal leg le cabinet
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect the nish.
A
screw: 5/32" dia x 1" 2x
C
bolt: 1/4" dia x 3/4" 12x
7241599 - 01.29.09
B
allen key 1x
page 1 of 4
: metal leg le cabinet
assembly instructions
1. Carefully place the cabinet upside down on a soft surface. Align legs with pre-drilled holes in cabinet bottom as
shown. Insert bolt (C) through holes in leg mounting plates, into pre-drilled holes in cabinet bottom, and tighten using
allen key (B).
7241599 - 01.29.09
B
C
12x
page 2 of 4
: metal leg le cabinet
assembly instructions
2. Align back-side of handles with pre-drilled holes in drawers as shown. Insert screw (A) through pre-drilled hole in
back-side of drawer and into handle. Tighten with philips head screwdriver.
7241599 - 01.29.09
A
2x
page 3 of 4
: metal leg le cabinet
assembly instructions
3. [OPTIONAL] Insert front le folder support in the pre-cut slot in drawer as shown. Depending on the width of the le
folders you plan on using, insert second le folder support in one of the two pairs of rear slots as slows.
CARE INSTRUCTION
Hardware may loosen over time. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
7241599 - 01.29.09
page 4 of 4
