A B
metal canopy bed
assembly instructions
allen key 1x
C
medium bolt :1/4” dia by 3/4” 32x (24x for twin only)
E
at washer 40x (24x for twin only)
G
nut 4x (full, queen, king, cal. king only)
D
F
H
socket screw: 1/4” dia by 3/4” 28x
lock washer 36x (24x for twin only)
wrench 1x (full, queen, king, cal. king only)
stopper 8x
(4x for twin only)
I
short bolt: 1/4” dia by 3/8” 4x (full, queen, king, cal. king only)
Page 1 of 97895949/7895881/7895832/7895808/7895352—03/06
! Do not throw away packaging materials until assembly is complete.
uprights (head)
uprights (foot)
center support
center legs
end rails (bottom)
foot rails
side rails (top)
end rails (top)
side rails (bottom)
bed slats
left + right corner bracket (x2)
! Assemble this item on a soft surface, such as cardboard or carpet, to protect nish.
! Proper assembly of this item requires 2 people.
metal canopy bed
assembly instructions
(full, queen, king, cal. king only)
(full, queen, king, cal. king only)
bed slats
(full, queen, king, cal. king have 2 sets, twin has 1 set)
(full, queen, king, cal. king only)
Page 2 of 97895949/7895881/7895832/7895808/7895352—03/06
metal canopy bed
assembly instructions

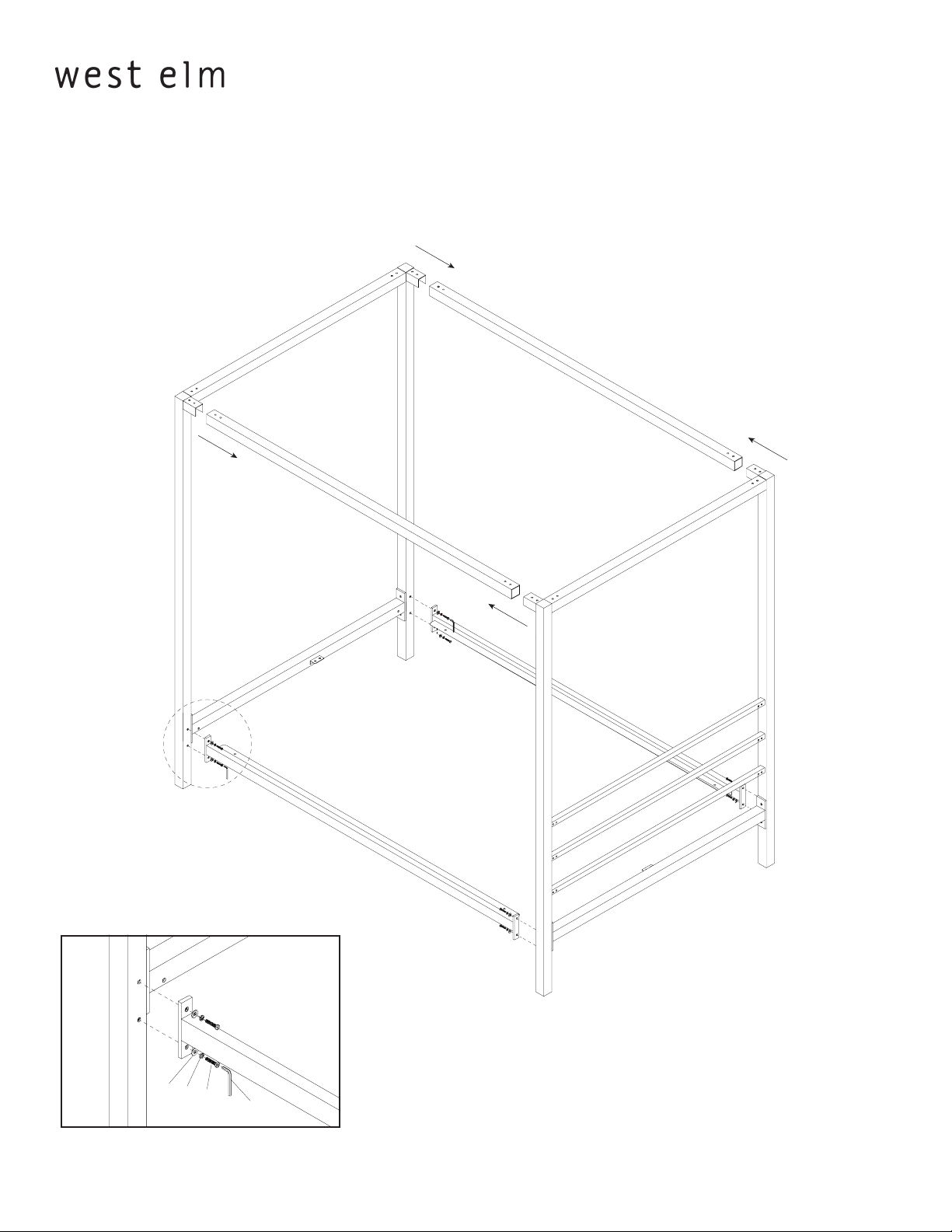

1. Slide top end rails and foot rails onto brackets on uprights as shown. Fasten foot rails using socket screws (B) and tighten with
allen key (A).
2. Fasten bottom end rails using at washer (E), lock washer (D), and medium bolt (C) in order as shown.
B
A
A
C
D
E
Page 3 of 97895949/7895881/7895832/7895808/7895352—03/06
metal canopy bed
assembly instructions
3. Slide top side rails onto brackets on uprights. Fasten bottom side rails to uprights using at washers (E), lock washers (D), and
medium bolt (C) in order as shown. Tighten using allen key (A).
E
D
C
A
Page 4 of 97895949/7895881/7895832/7895808/7895352—03/06

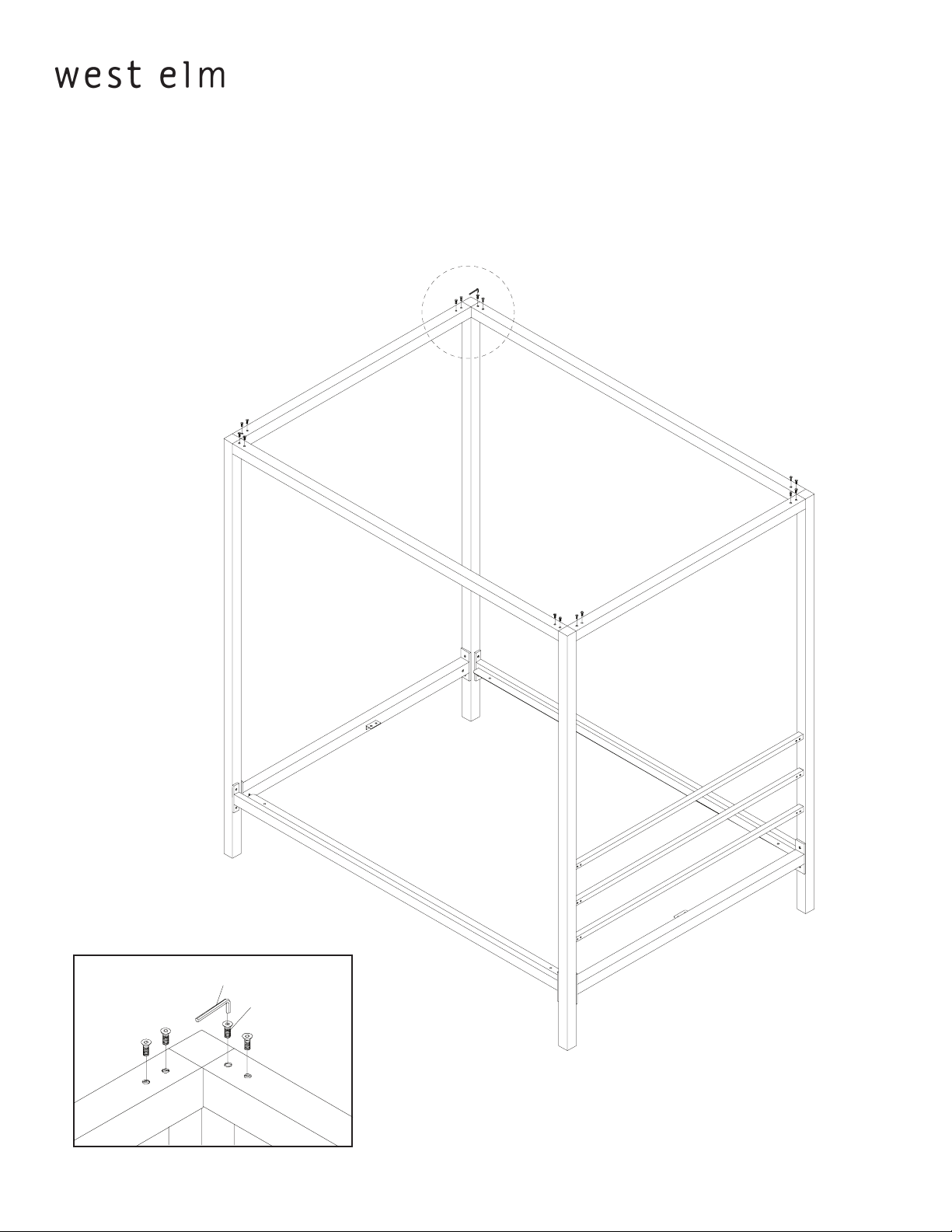

4. Fasten top rails to uprights using socket screws (B). Tighten using allen key (A).
metal canopy bed
assembly instructions
A
B
Page 5 of 97895949/7895881/7895832/7895808/7895352—03/06
metal canopy bed
assembly instructions
steps 5-7 are for full, queen king, and cal. king beds only. for twin beds skip to step 8
5. Fasten center legs to center support using medium bolt (C), lock washer (D), at washers (E), and nut (G) in order as shown.
Tighten using allen key (A) and wrench (F).
A
C
D
E
E
G
F
Page 6 of 97895949/7895881/7895832/7895808/7895352—03/06
metal canopy bed
assembly instructions
steps 5-7 are for full, queen king, and cal. king beds only. for twin beds skip to step 8

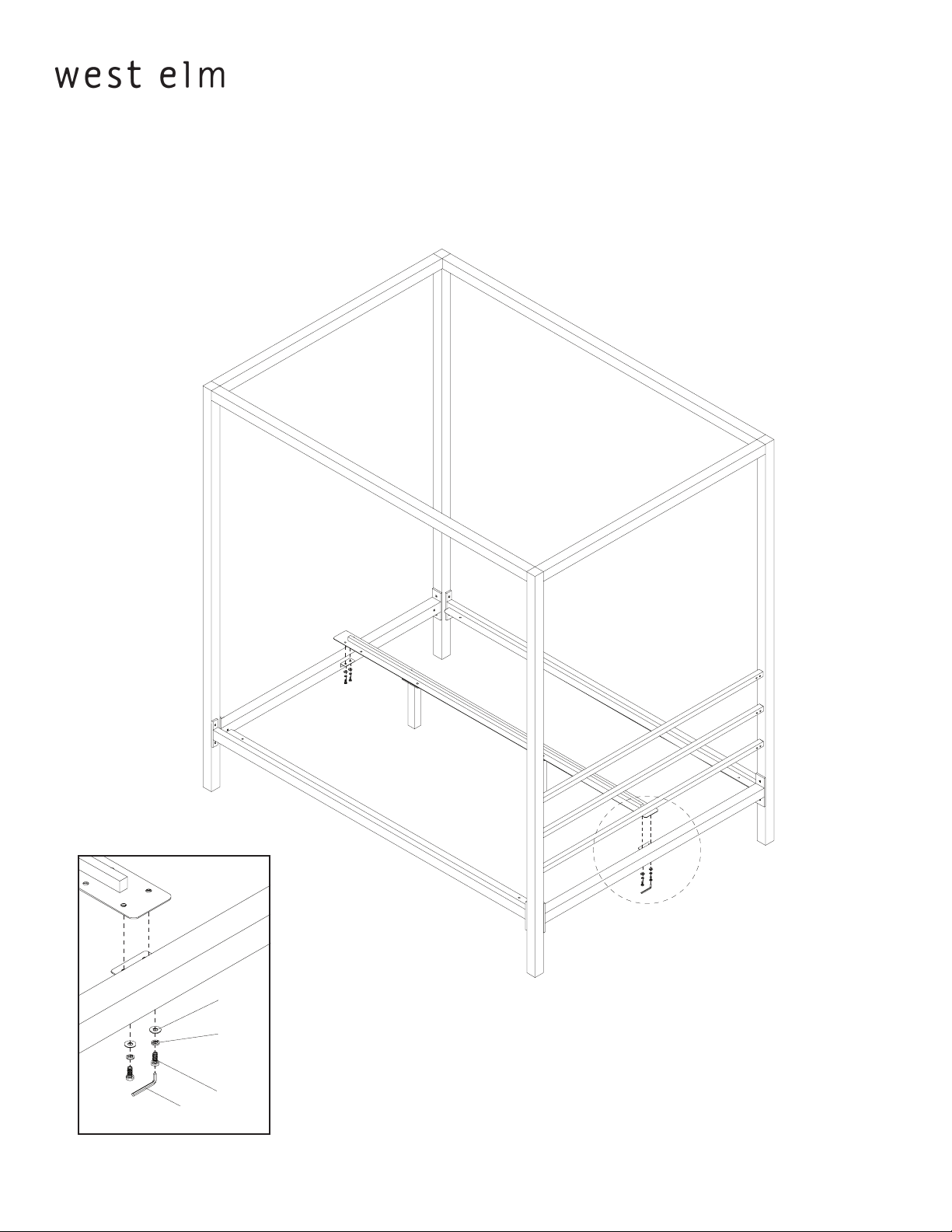

6. Fasten center support to end rails using bolt (I), lock washer (D), and at washer (E) in order as shown. Tighten using allen key
(A).
A
E
D
I
Page 7 of 97895949/7895881/7895832/7895808/7895352—03/06
metal canopy bed
assembly instructions
7. Fasten stoppers (H) to center rail using at washer (E), lock washer (D), and medium bolt (C) in order as shown. Tighten using
allen key (A).
8. Fasten stoppers (H) to bottom side rails and fasten corner brackets to bottom rails using at washers (E), lock washer (D), and
medium bolt (C) in order as shown. Tighten using allen key (A).
Step 7
C
A
H
D
Step 8
H
E
E
E
D
D
C
A
C
A
Page 8 of 97895949/7895881/7895832/7895808/7895352—03/06
9. Set slats into place.
metal canopy bed
assembly instructions
CARE INSTRUCTION
Hardware may loosen over time. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
Page 9 of 97895949/7895881/7895832/7895808/7895352—03/06
