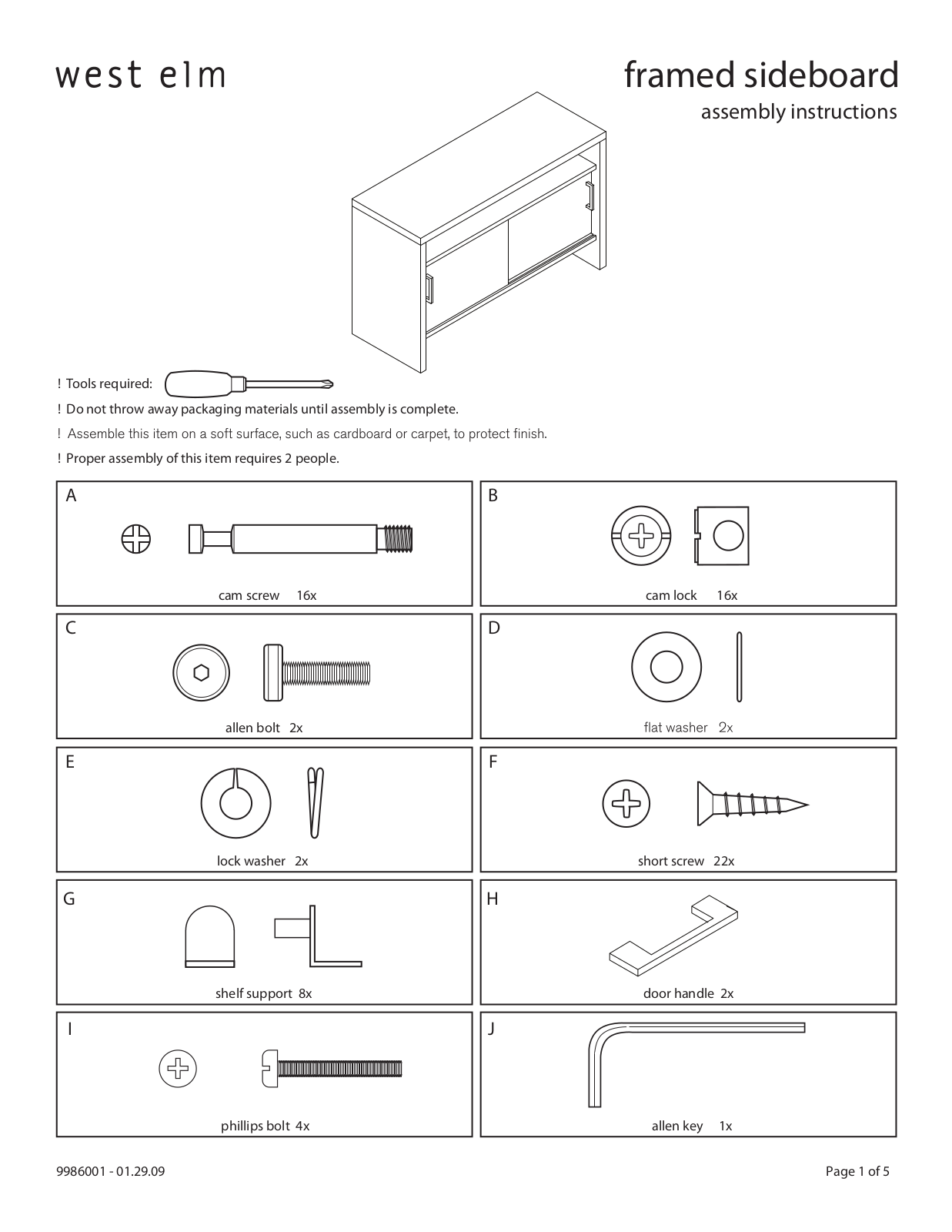

! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Proper assembly of this item requires 2 people.
A B
framed sideboard
assembly instructions
cam screw 16x cam lock 16x
C D
allen bolt 2x
E F
lock washer 2x
G H
I J
short screw 22x
door handle 2xshelf support 8x
allen key 1xphillips bolt 4x
Page 1 of 59986001 - 01.29.09
framed sideboard
assembly instructions

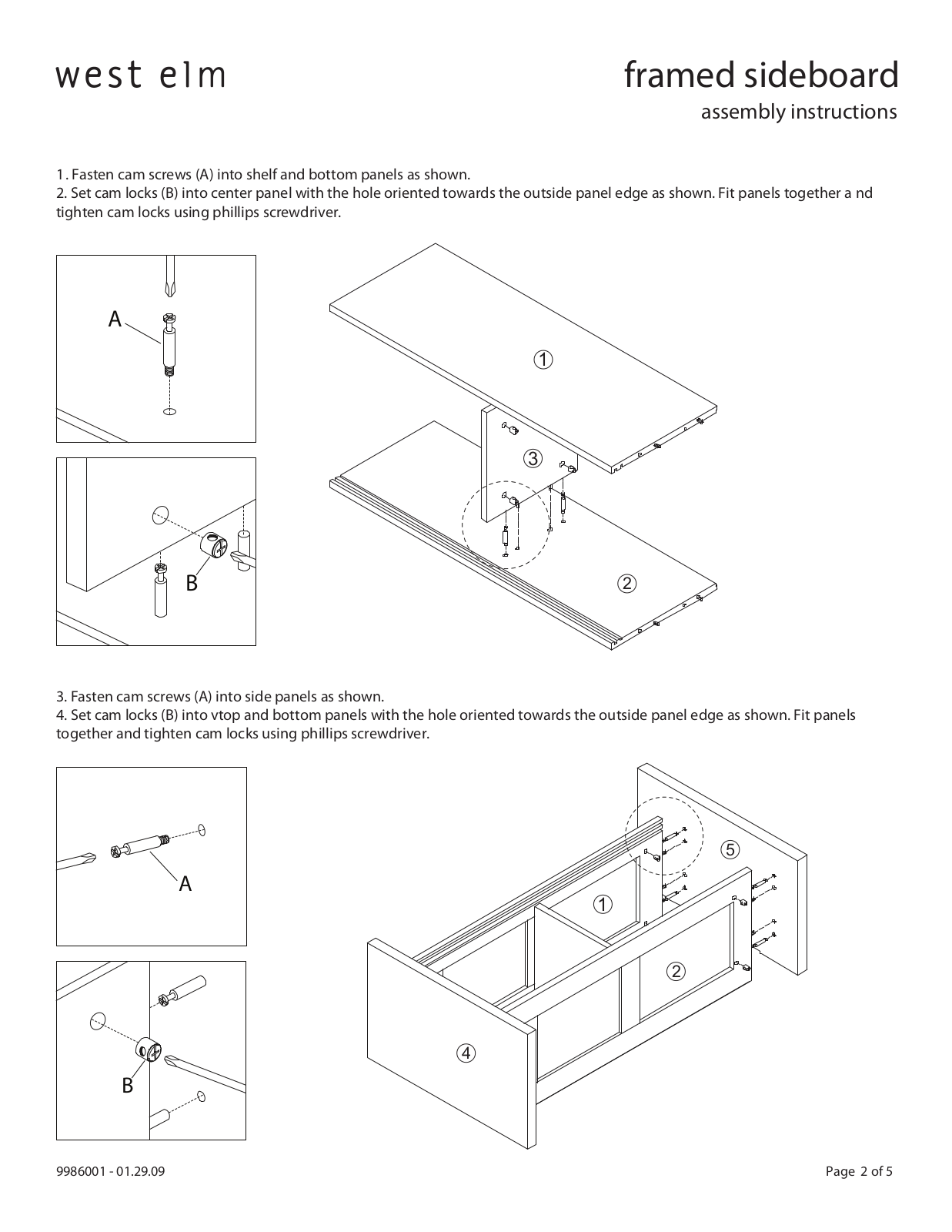

1. Fasten cam screws (A) into shelf and bottom panels as shown.
2. Set cam locks (B) into center panel with the hole oriented towards the outside panel edge as shown. Fit panels together a nd
tighten cam locks using phillips screwdriver.
A
1
3
B
3. Fasten cam screws (A) into side panels as shown.
4. Set cam locks (B) into vtop and bottom panels with the hole oriented towards the outside panel edge as shown. Fit panels
together and tighten cam locks using phillips screwdriver.
2
5
A
1
2
4
B
Page 2 of 59986001 - 01.29.09

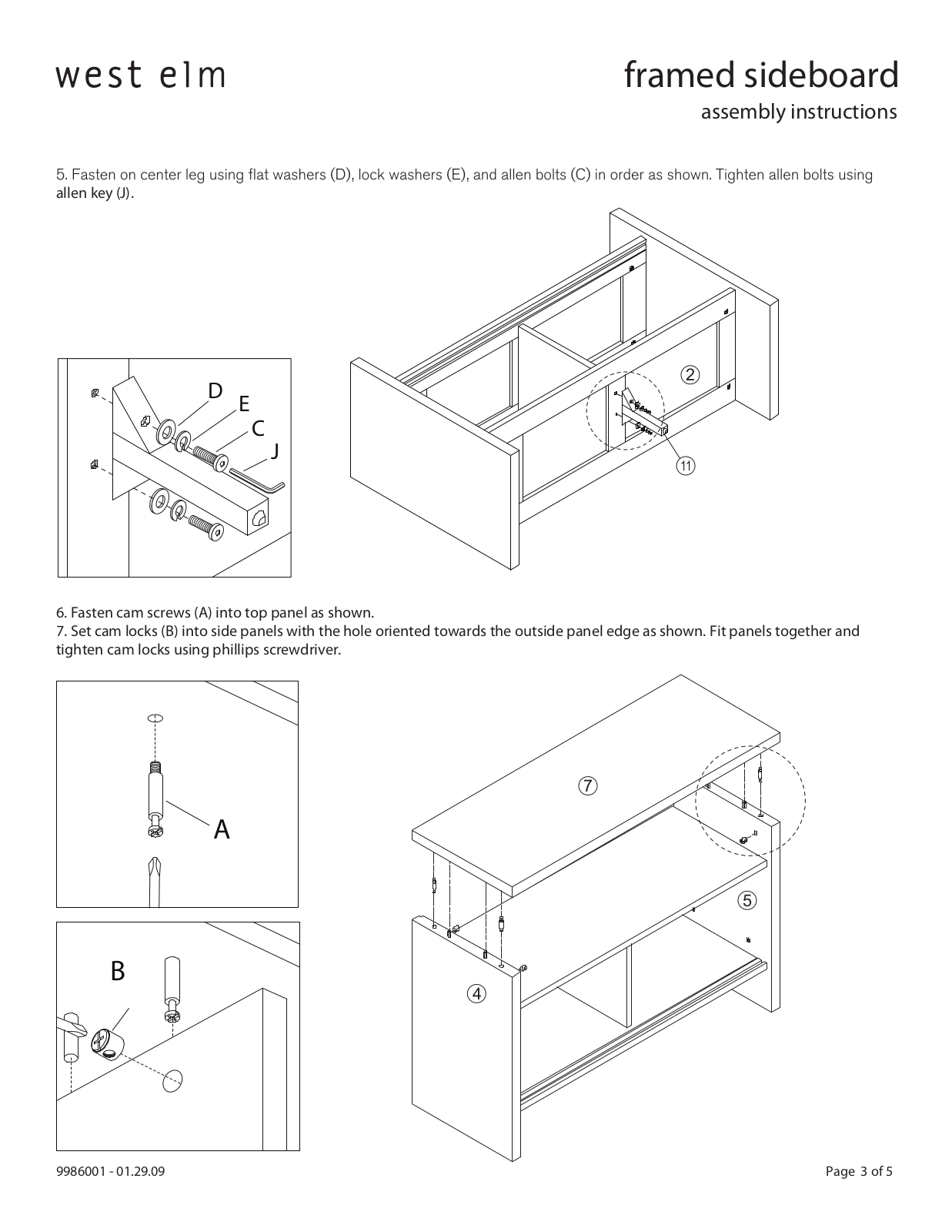

allen key (J).
D
framed sideboard
assembly instructions
2
E
C
J
11
6. Fasten cam screws (A) into top panel as shown.
7. Set cam locks (B) into side panels with the hole oriented towards the outside panel edge as shown. Fit panels together and
tighten cam locks using phillips screwdriver.
7
A
5
B
4
Page 3 of 59986001 - 01.29.09
framed sideboard

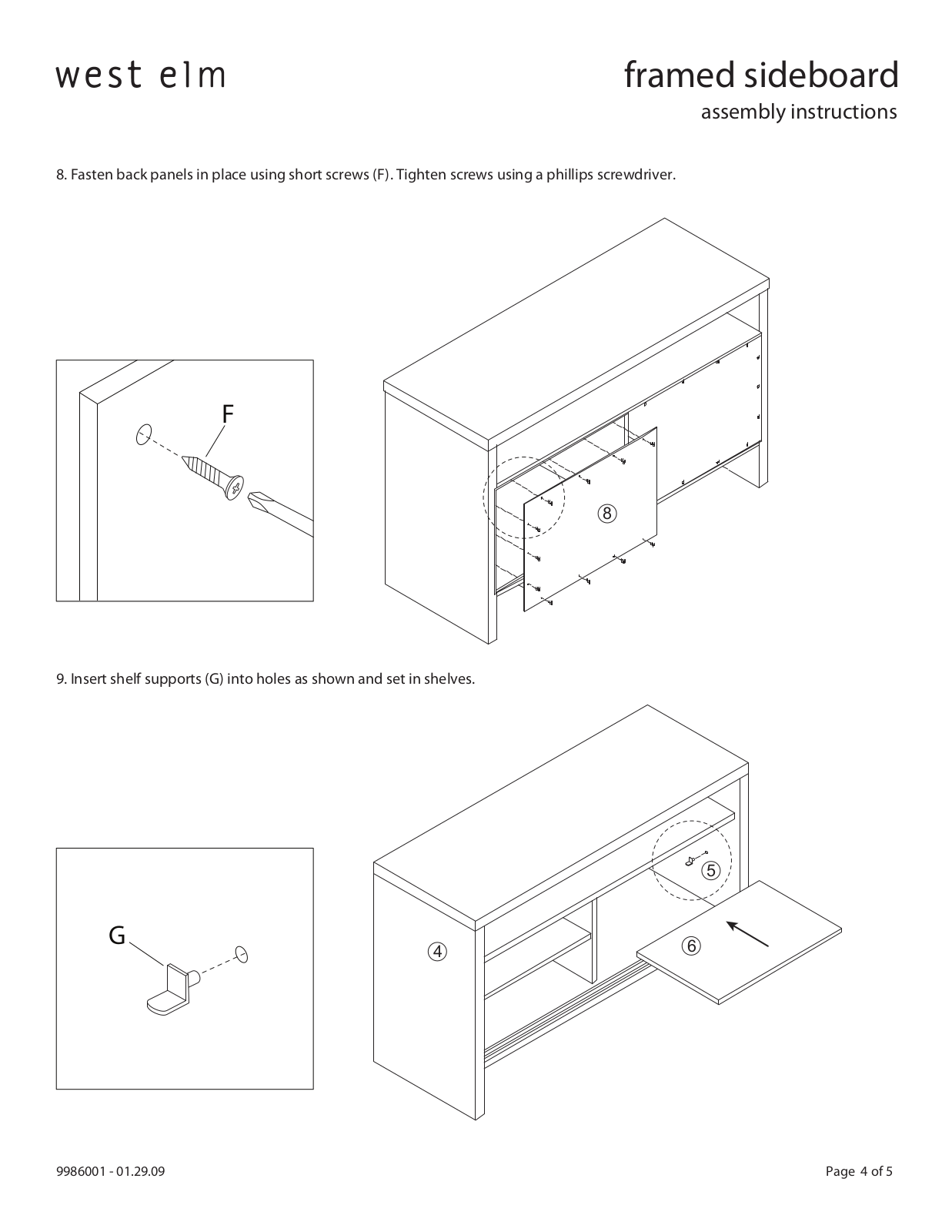

8. Fasten back panels in place using short screws (F). Tighten screws using a phillips screwdriver.
F
8
assembly instructions
9. Insert shelf supports (G) into holes as shown and set in shelves.
G
4
5
6
Page 4 of 59986001 - 01.29.09
framed sideboard

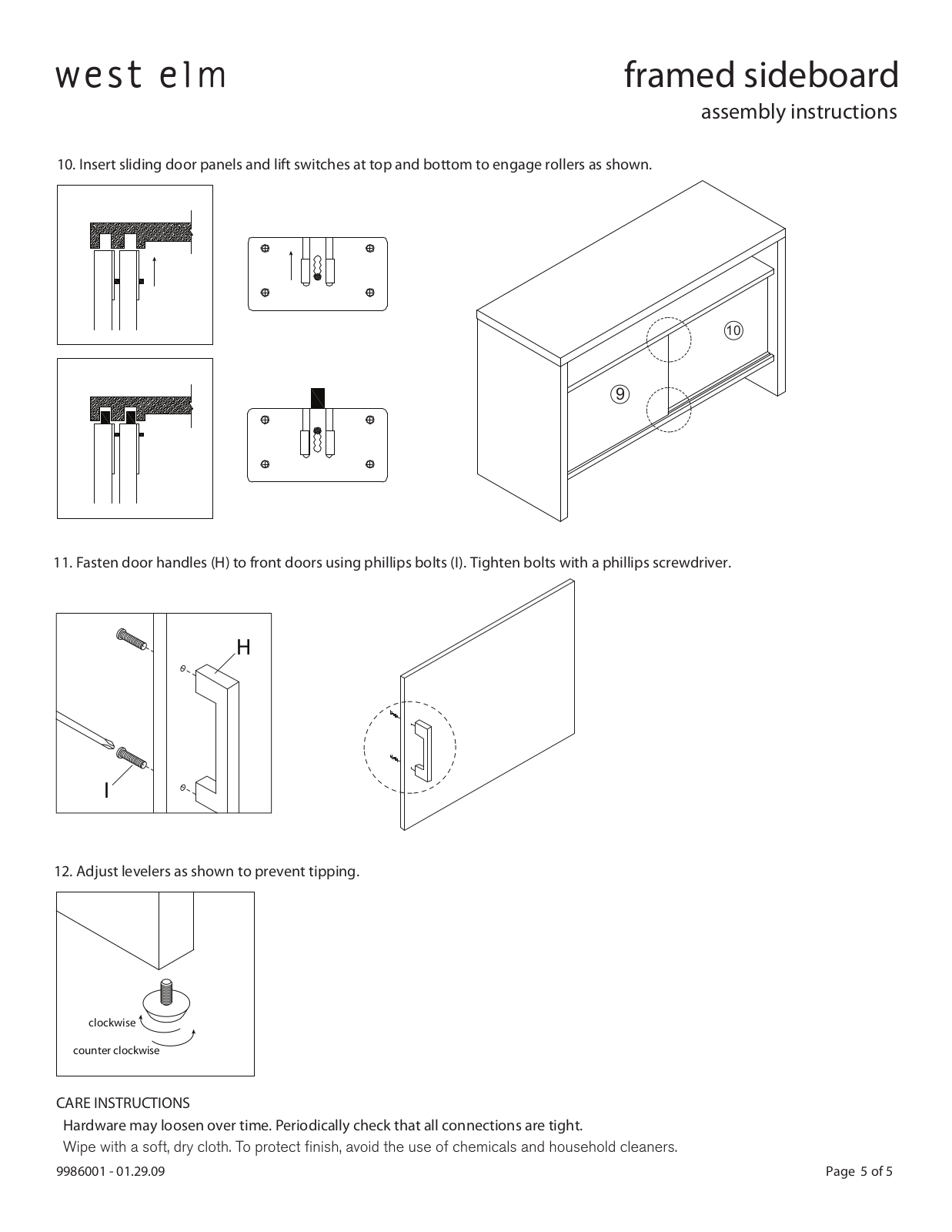

10. Insert sliding door panels and lift switches at top and bottom to engage rollers as shown.
9
assembly instructions
10
11. Fasten door handles (H) to front doors using phillips bolts (I). Tighten bolts with a phillips screwdriver.
H
I
12. Adjust levelers as shown to prevent tipping.
clockwise
counter clockwise
CARE INSTRUCTIONS
Hardware may loosen over time. Periodically check that all connections are tight.
Page 5 of 59986001 - 01.29.09
