West Elm Diamond Tufted Headboard Assembly Instruction

diamond tufted headboard
! Tools supplied: ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as: cardboard or carpet to protect fi nish. ! Proper assembly of this item requires 2 people.
assembly instructions
A
B
C
D
bolt 6mm x 70mm 4x
lock washer 16x
at washer 16x
E
F
G
bolt 6mm x 63mm 8x
cap nut 8x
nut 4x
bolt 6mm x 90mm 4x
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 1 of 7
1. Choose the legs that match your bed frame.
diamond tufted headboard
assembly instructions
shown. Tighten with supplied allen key.
at washer (C), and cap nuts (F), in order as
F
B
C
E
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 2 of 7
diamond tufted headboard
Attaching the headboard to the west elm wood bed frame.
1. Align hardware as shown and tighten with supplied tools.
assembly instructions
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 3 of 7
diamond tufted headboard

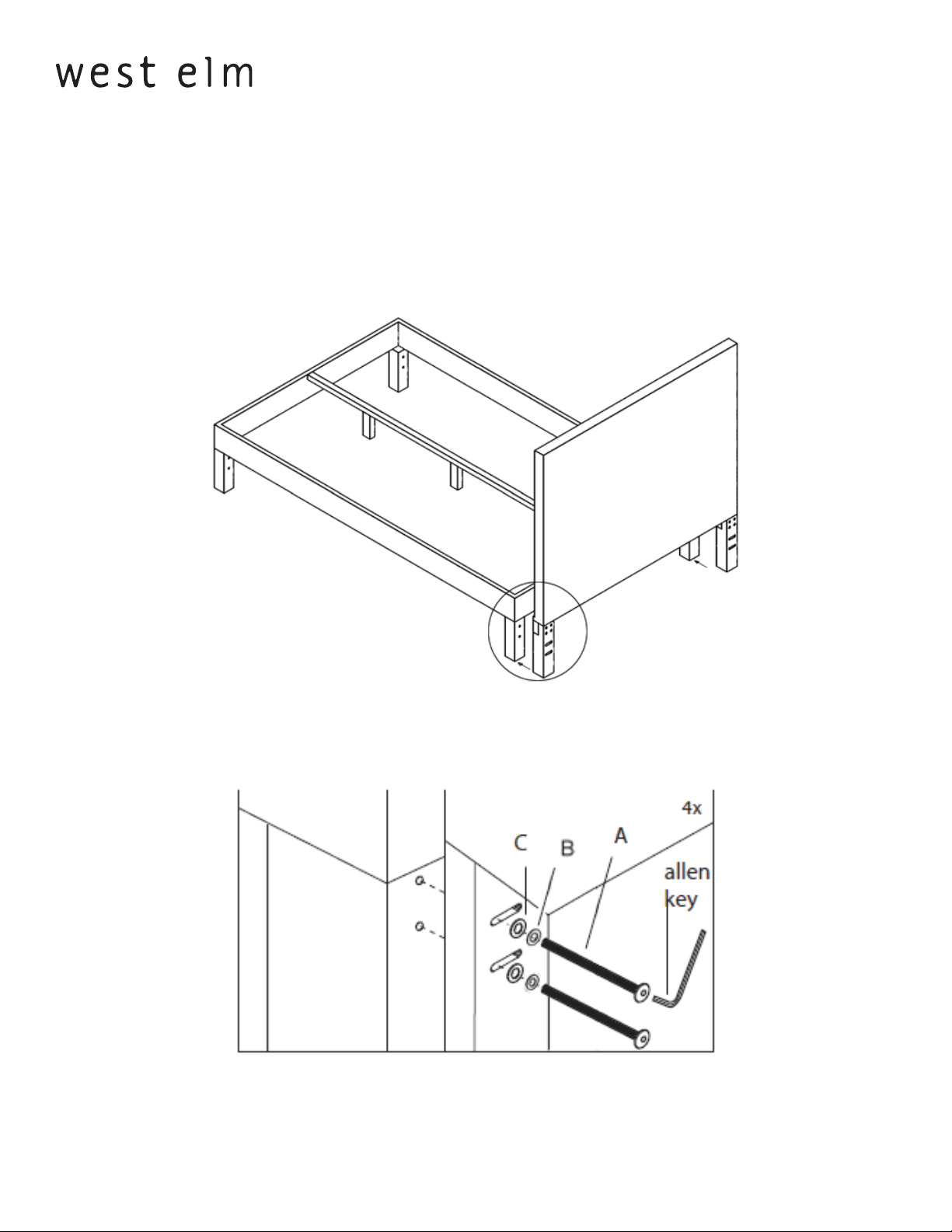

Attaching the headboard to the tall wood bed frame.
1. Align hardware as shown and tighten with supplied tools.
assembly instructions
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 4 of 7
diamond tufted headboard

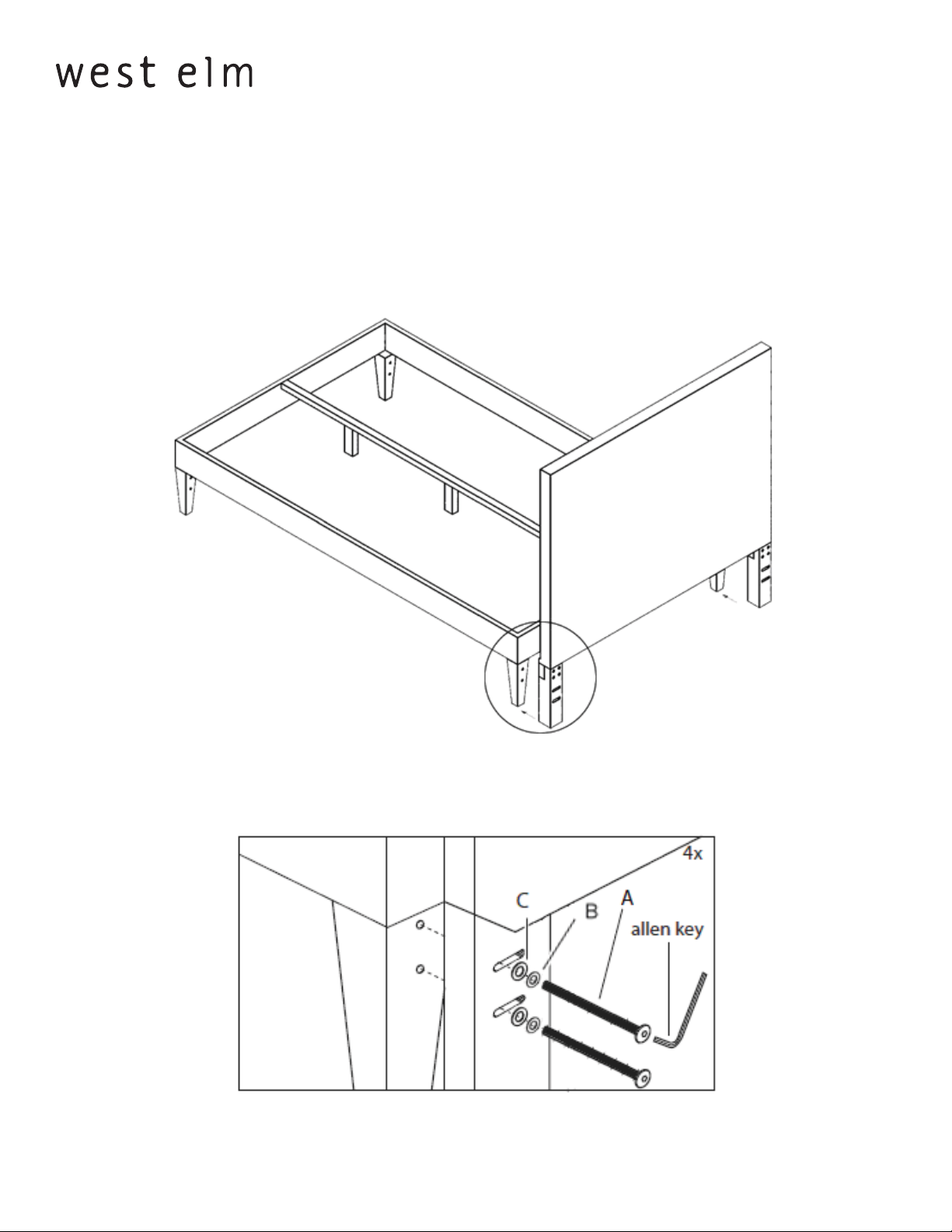

Attaching the headboard to the narrow leg bed frame.
1. Align hardware as shown and tighten with supplied tools.
assembly instructions
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 5 of 7
diamond tufted headboard

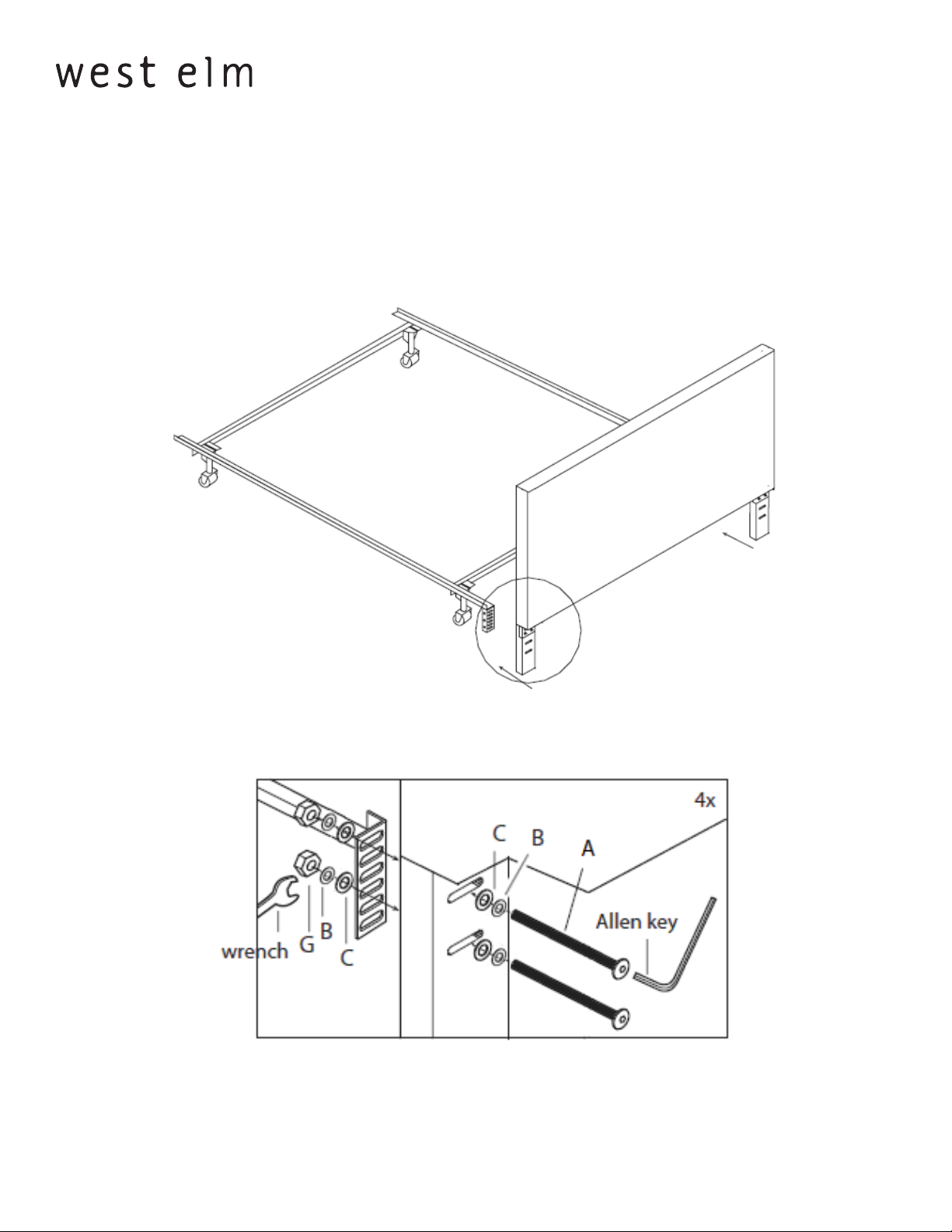

Attaching headboard to metal bed frame for box spring and mattress.
1. Align hardware as shown and tighten with supplied tools.
assembly instructions
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 6 of 7
diamond tufted headboard

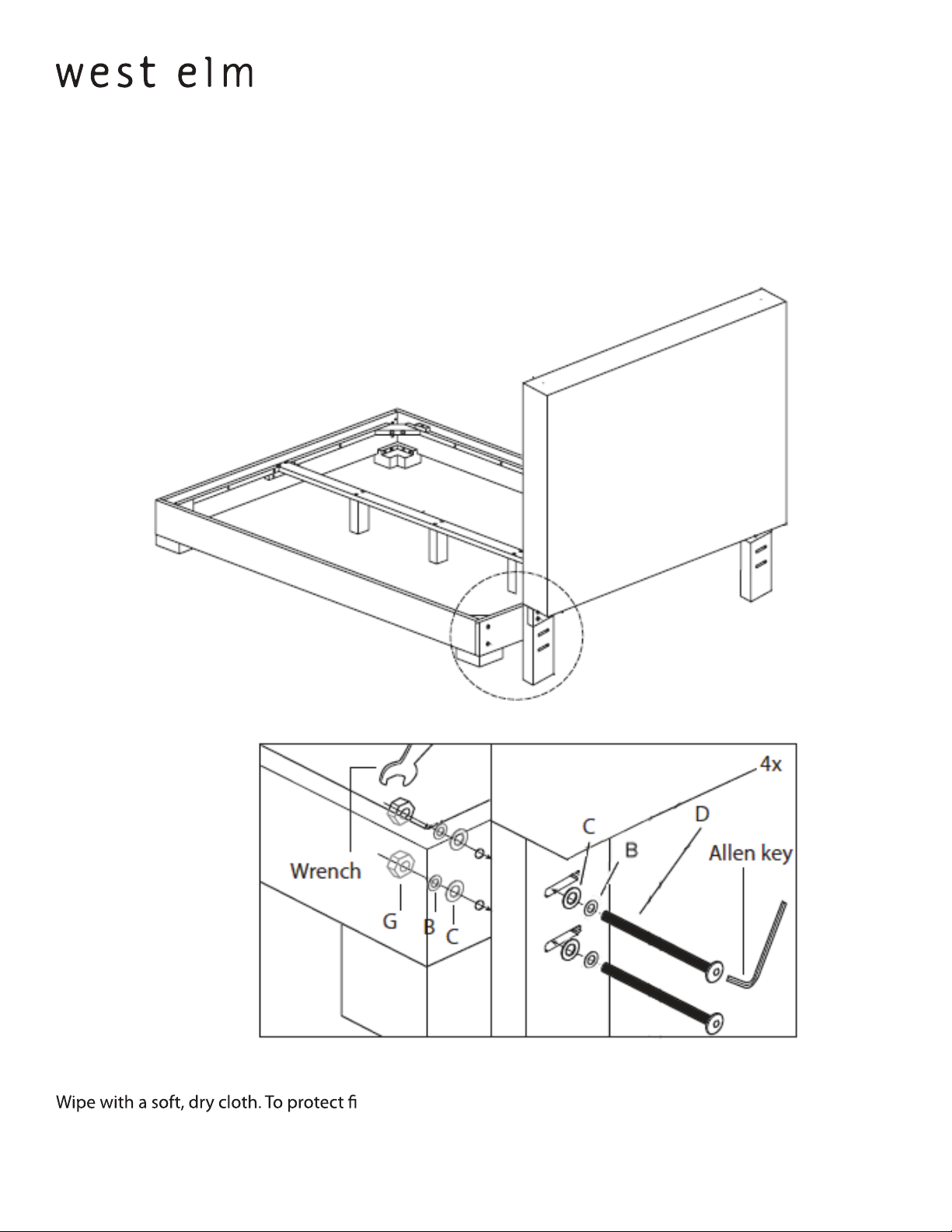

Attaching the headboard to the chunky wood bed frame.
1. Align hardware as shown and tighten with supplied tools.
assembly instructions
CARE INSTRUCTIONS Hardware may loosen over time. Periodically check that all connections are tight.
nish, avoid the use of chemicals and household cleaners.
1605518/1605484/1605500/1605492/1605476-08.25.09
Page 7 of 7
