corner leg coffee table
assembly instructions
! Tools supplied:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect fi nish.
! Proper assembly of this item requires 2 people.
Hardware
A
bolts 6mm x 30mm 64x
C
angle bracket 8x
B
D
bolt 6mm x 40mm 8x
corner bracket 8x
Page 1 of 69356007 - 01.06.09
corner leg coffee table
assembly instructions
1. Align the left and right legs so that the mitered sides touch like the drawing shows. Insert corner bracket
(D) into the slots on both ends. Insert bolt (A) through the corner bracket (D). Tighten with supplied
hex key. DO NOT OVERTIGHTEN!
A
D
Left and right legs
Page 2 of 69356007 - 01.06.09
corner leg coffee table
assembly instructions
2. Attach angle brackets (C) onto the sides of the assembled legs. Insert bolt (A) throught the bracket
into the legs. Tighten with supplied hex key. DO NOT OVERTIGHTEN.
C
A
Page 3 of 69356007 - 01.06.09
corner leg coffee table
assembly instructions

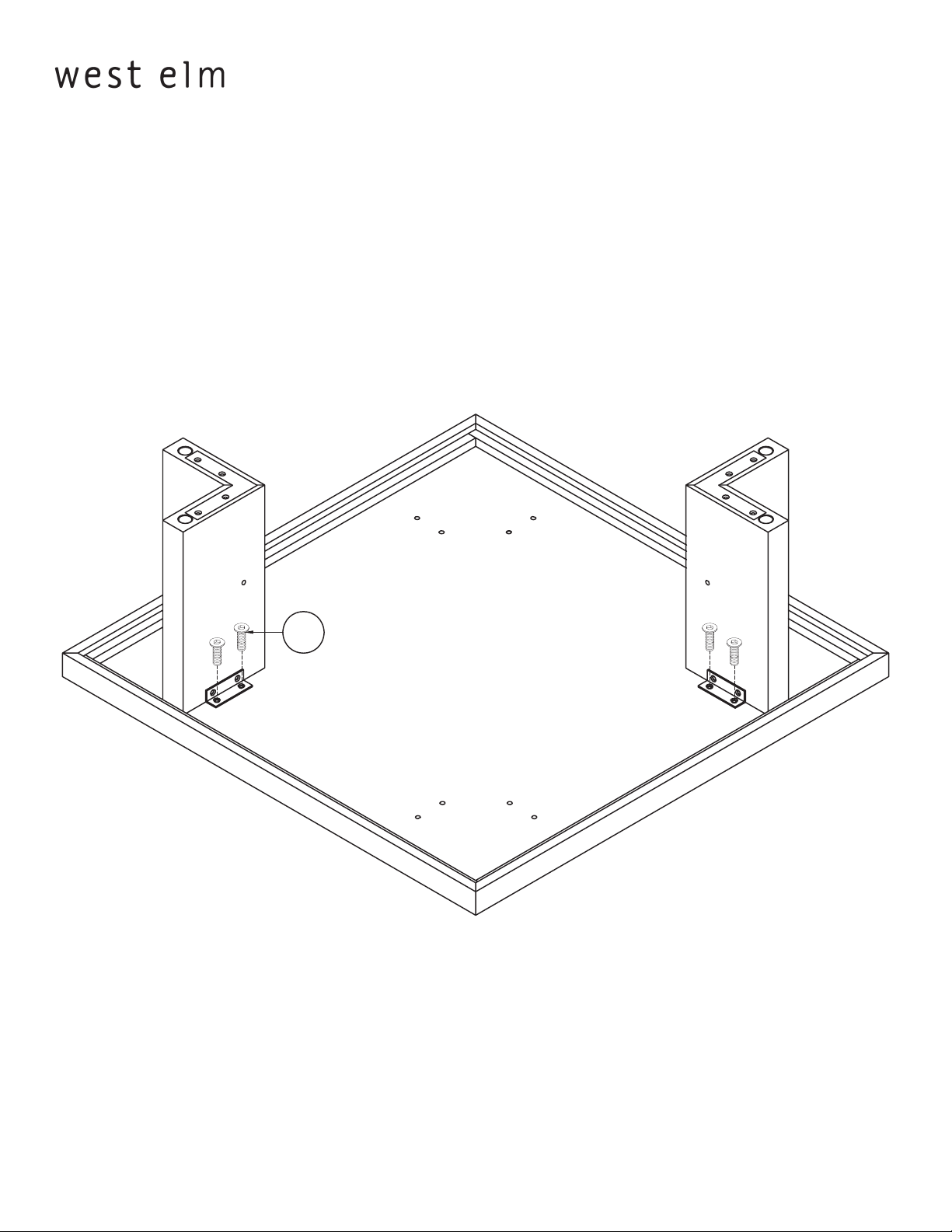

3. lay the top panel face down on a clean smooth surface such as carpet or cardboard. Align 2 leg assemblies
at opposite corners like the drawing shows. Insert bolt (A). Tighten with supplied hex key.
A
Page 4 of 69356007 - 01.06.09
corner leg coffee table
assembly instructions

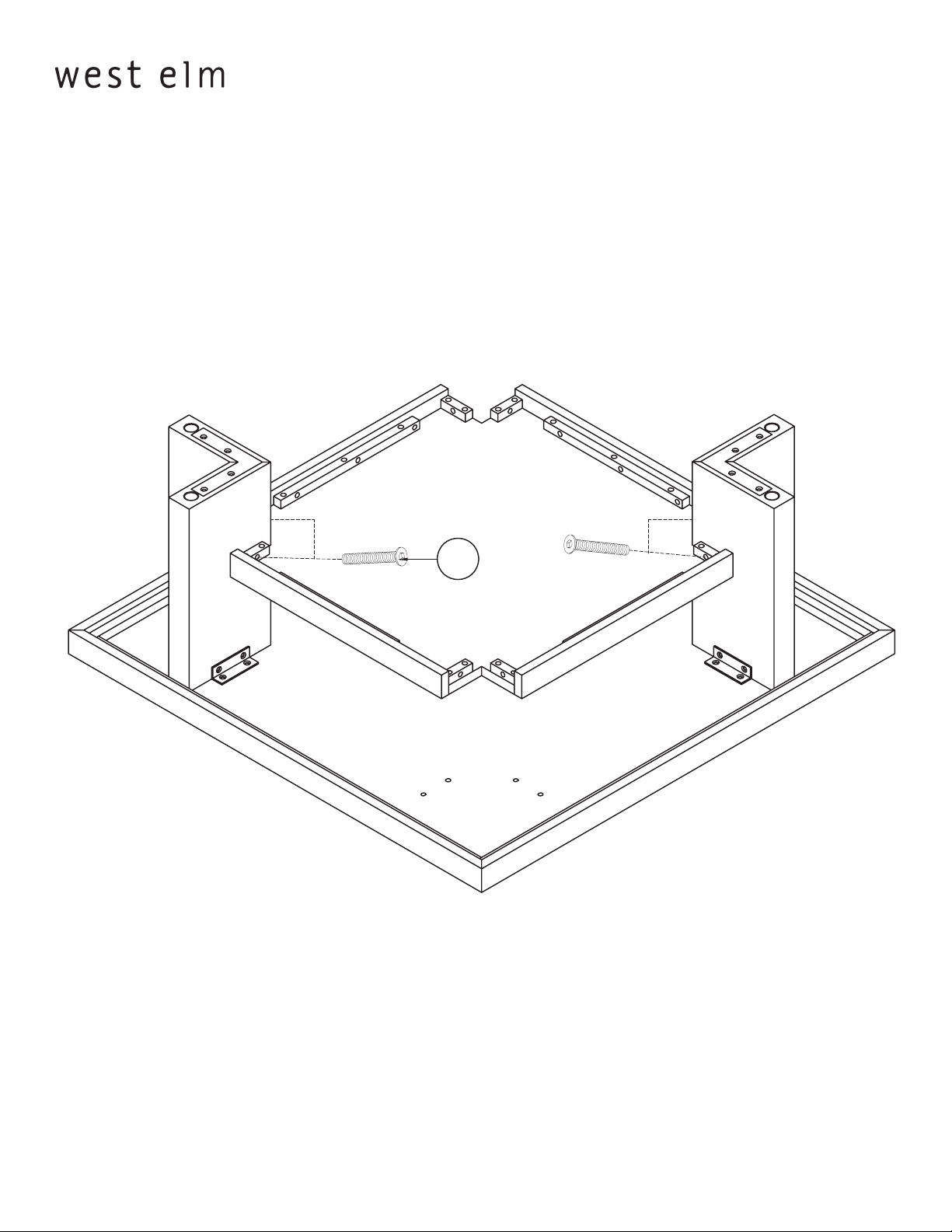

4. Align shelf with holes on leg assemblies. Insert bolt (B). Tighten with supplied hex key.
B
Page 5 of 69356007 - 01.06.09
corner leg coffee table
assembly instructions

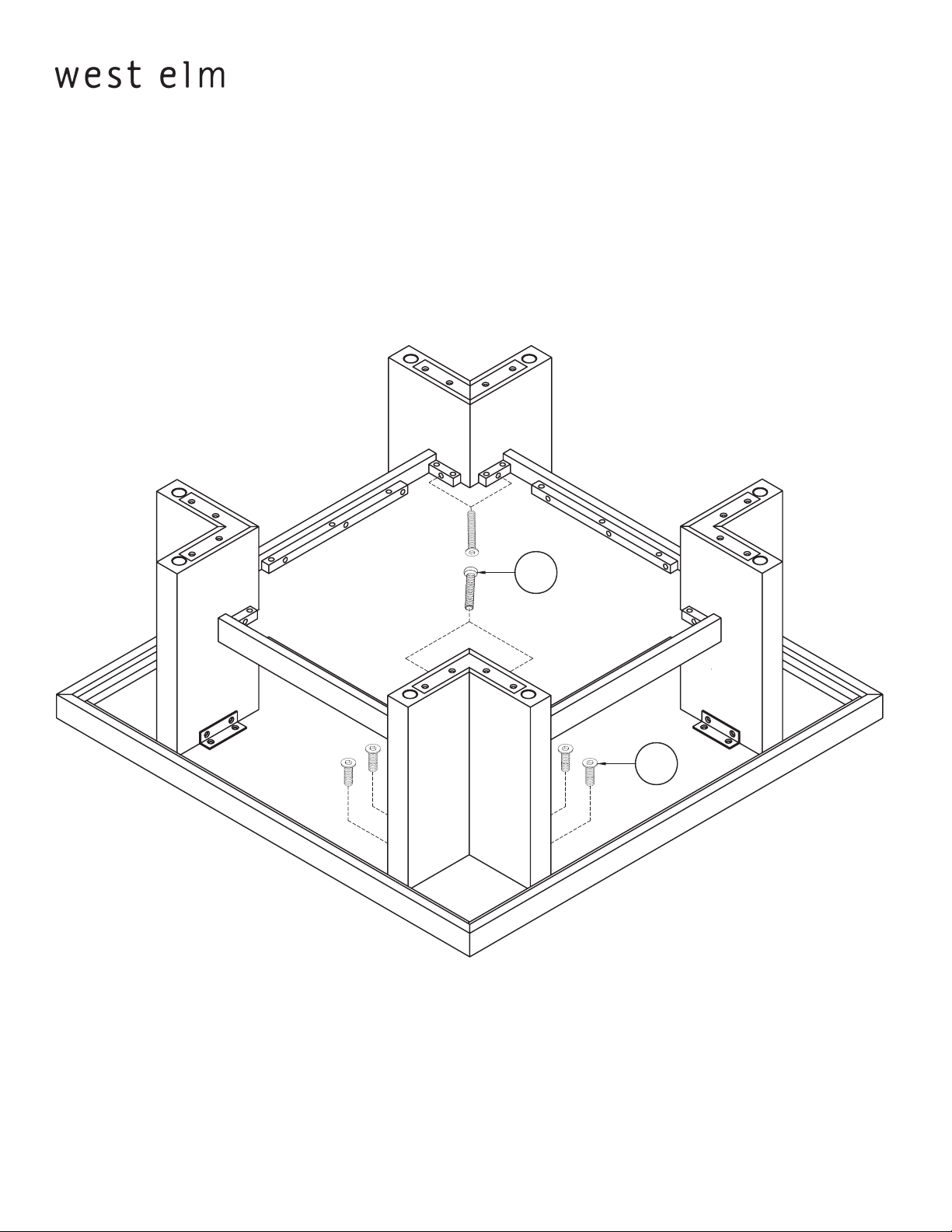

5. Attach the other 2 leg assemblies wth bolt (A). Tighten with supplied hex key. Insert bolt (B) through
cleats on shelf and into legs. Tighten with supplied hex key. DO NOT OVERTIGHTEN!
B
A
CARE INSTRUCTIONS
Hardware may loosen overtime. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
Page 6 of 69356007 - 01.06.09
