chunky upholstered bed frame
assembly instructions
5581566/5592795/5581574/5592753/5581582/5592787/
5581590/5592779/5581608/5592746 - 05.23.08
Page 1 of 5
chunky upholstered bed frame
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect fi nish.
! Proper assembly of this item requires 2 people.
Hardware
AB
bolt 6mm x 40mm 24x
spring washer x24
CD
fl at washer 24x
cam bolt 8x
EF
cam lock 8x
bolt 8mm x 30mm 10x
G
allen key 4mm 1x
5581566/5592795/5581574/5592753/5581582/5592787/
5581590/5592779/5581608/5592746 - 05.23.08
Page 2 of 5
chunky upholstered bed frame
assembly instructions
1. Screw in cam bolts (D) into holes in side rails as shown in drawing. Insert cam locks (E) into head rail as
shown.
side rail
D
E
2. Screw in cam bolts (D) into holes in foot rail as shown in drawing. Insert cam locks (E) into side rails as
shown. Tighten cam lock with screwdriver.
head rail
side rail
side rail
foot rail
5581566/5592795/5581574/5592753/5581582/5592787/
5581590/5592779/5581608/5592746 - 05.23.08
head rail
side rail
D
E
Page 3 of 5
chunky upholstered bed frame
assembly instructions

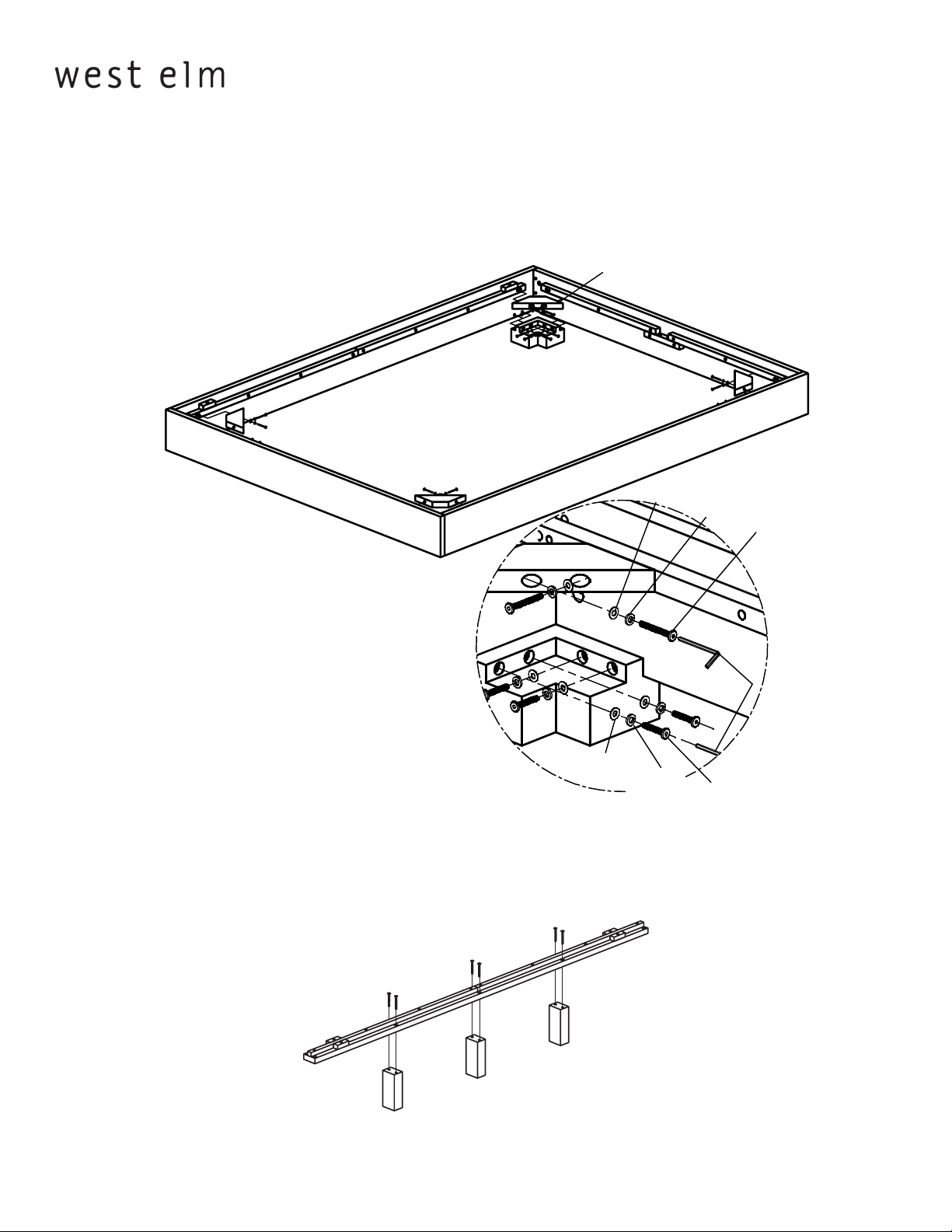

3. Install feet in each corner. Insert 4 bolts (A) 6mm x 40mm through spring washers (B), at washers (C)
and into top of foot. Tighten with allen key (G). Repeat on all 4 corners.
4. Install corner blocks in each corner. Insert 2 bolts (A) 6mm x 40mm through spring washers (B) , at
washers (C) and into corner block. Tighten with allen key (G). Repeat on all 4 corners.
corner block
C
Foot
5. Align the holes in the top of the feet with the holes in the center rail. Insert bolts 8mm x 30 mm (F) and
tighten with supplied allen key (G).
C
B
F
B
A
A
F
F
5581566/5592795/5581574/5592753/5581582/5592787/
5581590/5592779/5581608/5592746 - 05.23.08
Page 4 of 5
chunky upholstered bed frame
assembly instructions
6. Align center rail into the center of the head and foot rails as shown. Install 2 bolts 8mm x 30 mm (F) in
each end. Tighten with the supplied allen key (G)
G
F
7. Lay in bed slats. (full, queen, king, cal king have 2 sets/ twin has 1 set)
CARE INSTRUCTIONS
Hardware may loosen overtime. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
Upholstery: Spot clean only.
