West Elm Chunky Square Wall Mirror Assembly Instruction

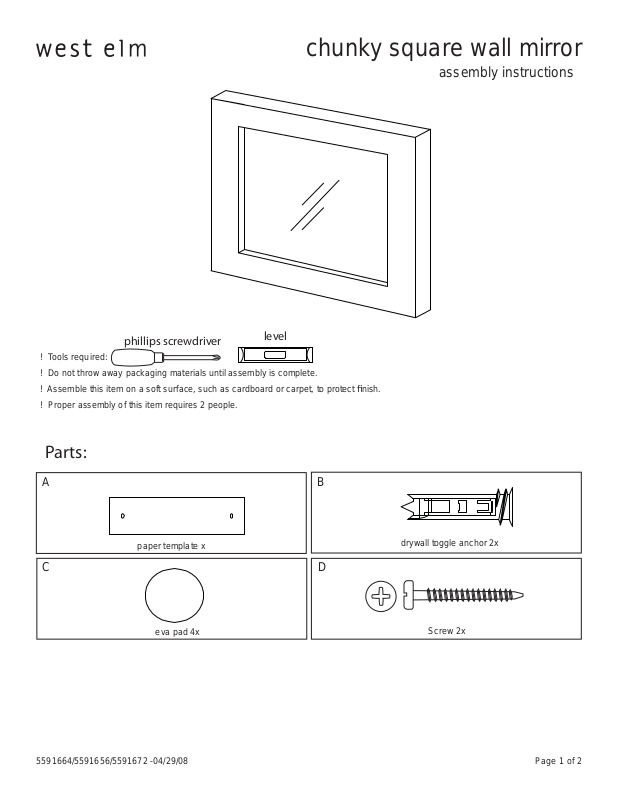

chunky square wall mirror

assembly instructions

phillips screwdriver

! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect fi nish.
! Proper assembly of this item requires 2 people.

level

Parts:

AB

drywall toggle anchor 2x

C

paper template x

D

eva pad 4x

Screw 2x

Page 1 of 25591664/5591656/5591672 -04/29/08

1. Place the template at the desired location on wall and
ensure that the template is level. Using a pencil, mark the
locations on the wall as shown. This is where the hardware
will be inserted.

2. Using a Philip’s head screwdriver, insert the drywall toggle
anchors (A) into the wall at the insertion points. Press and turn
clockwise until anchors are  ush with the wall.

chunky square wall mirror

assembly instructions

A

B

D

3. Insert screws (B) into the anchors or at the insertion points,
leaving approximately 1/2” between the back of the screw
head and the wall.

4. Align keyhole notches over the screw heads.

5. Slide the mirror down until it rests on the screws. Tighten
or loosen screws as needed to  t the shelf snugly against the
wall.

CARE INSTRUCTIONS
Hardware may loosen overtime. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect  nish, avoid the use of chemicals and household cleaners.

Page 2 of 25591664/5591656/5591672 -04/29/08
