bergen closet wide 1 drawer
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect nish.
assembly instructions
A B
cam screw 12x
C
small cam lock 4x
E
small dome screw 2x
H
drawer handle with screws 1x
L
large cam lock 8x
D
wooden dowel 8x
F
smalll screw 6x
K
drawer glide 2x
M
O
large screw 4x
mounting plate 1x
felt pad 6x
Page 1 of 69181330 / 9181314 - 04/07
bergen closet wide 1 drawer
Left
bottom edge
3rd hole from the front
K
F
1st hole from the back
K
F
bottom edge
Right
assembly instructions
1. Attach drawer glides (K) to side panels using small screws (F) as shown. The FRONT of each drawer glide should be fastened
through the third round hole from the front of the glide. The BACK of each drawer glide should be fastened through the rst round
hole from the back of the glide.
2. Insert large cam locks (B) into holes of side panels. Turn cam locks with a phillips screwdriver so that the arrow on top is
pointing out.
3. With a hammer gently tap wooden dowels (D) into holes in side of panels.
B
D
Page 2 of 69181330 / 9181314 - 04/07
bergen closet wide 1 drawer
assembly instructions
4. Insert cam screws (A) into top and bottom panels as shown and tighten with phillips screwdriver.
A
5. Fasten side panels to bottom panel. The bottom panel is indicated with a “Made in Denmark” sticker. Fit cam screws into cam
locks and tighten using a phillips screwdriver.
6. Slide back panel into groove. Make sure panel slides all the way into the bottom panel groove.
Page 3 of 69181330 / 9181314 - 04/07
bergen closet wide 1 drawer
assembly instructions

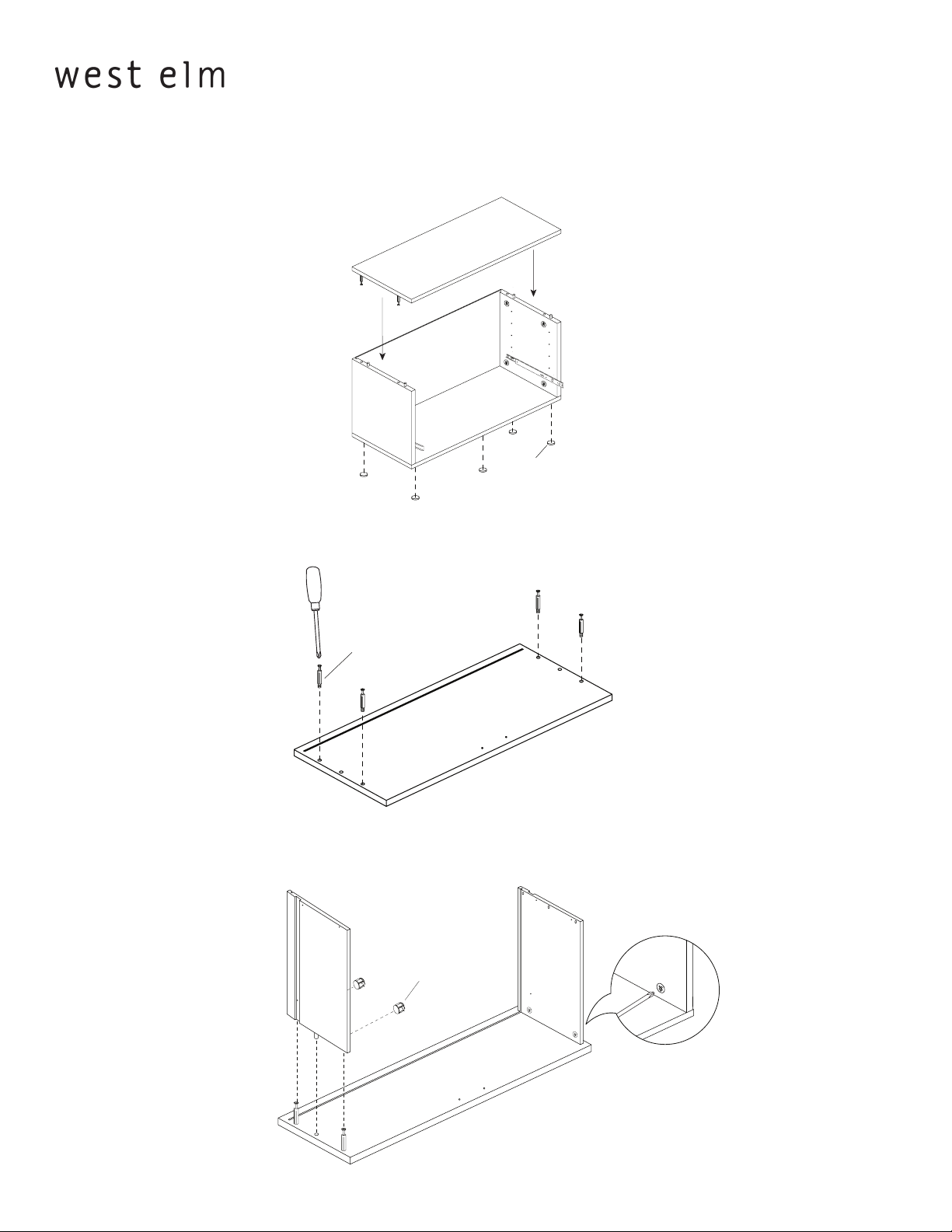

7. Fasten top panel to side panels. Fit cam screws into cam locks and tighten using phillips screwdriver. Attach felt pads (O) to
base.
O
8. Insert cam screws (A) into drawer front panel as shown and tighten with phillips screwdriver.
A
9. Fasten drawer side panels to drawer front panel. Insert small cam locks (C) into side panels. Fit cam screws into cam locks and
tighten using phillips screwdriver.
C
Page 4 of 69181330 / 9181314 - 04/07
bergen closet wide 1 drawer
assembly instructions
10. Slide drawer bottom panel into grooves as shown. Gently insert back panel into sides and secure using large screws (L).
Tighten screws with a phillips screwdriver.
L
11. Pull out drawer glides and t drawers into drawer glides. Fasten drawer to glide from inside the drawer using small dome
screws (E).
12. Fasten handle (H) to drawer using the 2 screws supplied with each handle.
H
E
Page 5 of 69181330 / 9181314 - 04/07
bergen closet wide 1 drawer
F
M
assembly instructions
13. Multiple units can be attached together as shown using small screws (F) and mounting plates (M).
CARE INSTRUCTIONS
Hardware may loosen over time. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
Page 6 of 69181330 / 9181314 - 04/07
