basic futon
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish.
! Proper assembly of this item requires 2 people.
Parts
AB
7/16” x 1 1/2” 12x
15x
C
7/16” x 2 3/8” 15x
D
15x
E
1x
F
1x
Page 1 of 66096119 - 04.29.10
basic futon
assembly instructions
seat deck 1x
leg slat 1x
seat deck leg 3x
back deck 1x
front slat A
front slat B
front slat 2x
back deck leg 3x
Page 2 of 66096119 - 04.29.10
basic futon
assembly instructions

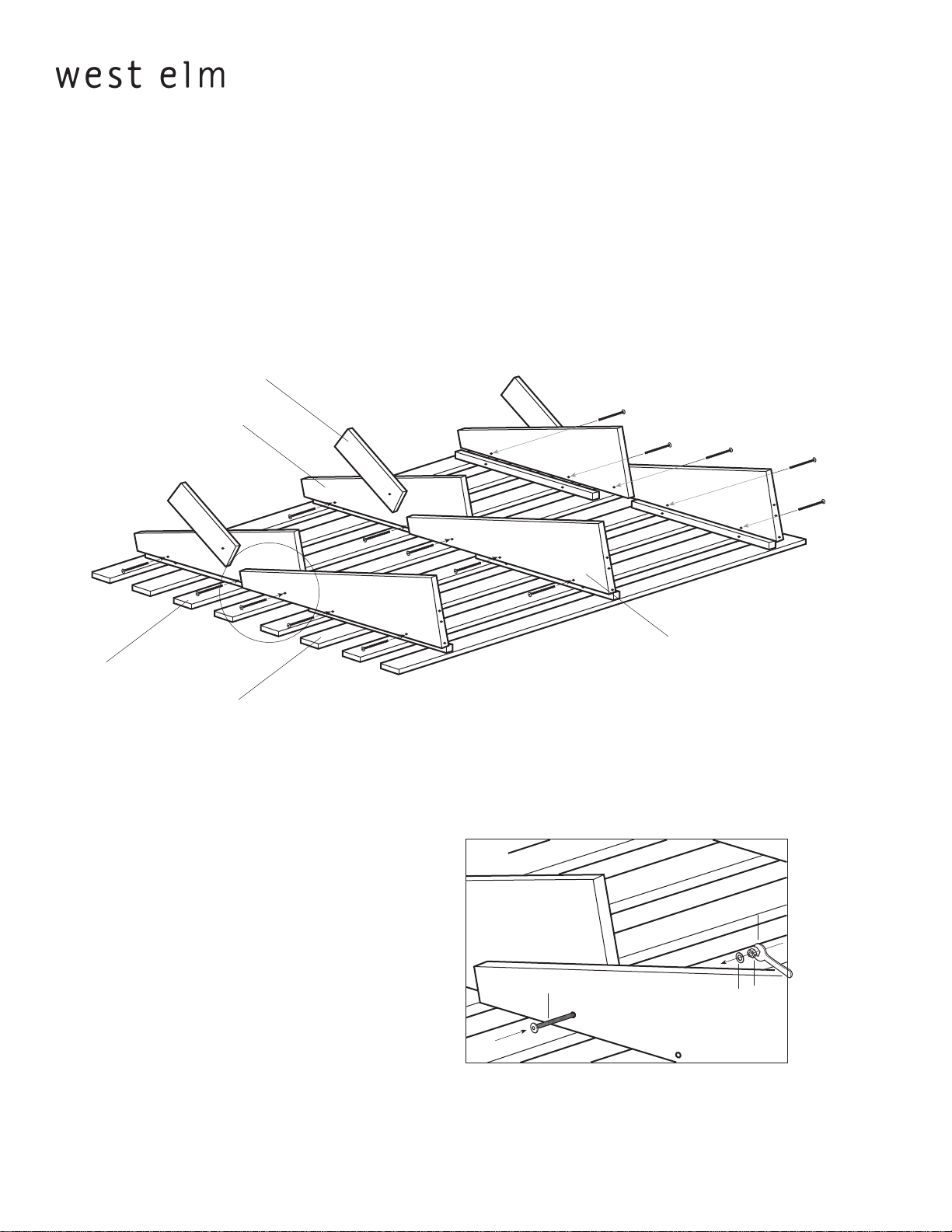

1. Lay the back deck and the seat deck on a clean smooth surface such as carpet or cardboard. Stickers on
the seat deck and the back deck indicate where each leg should be attached. Simply match the leg sticker
with the identical deck sticker to assemble the legs. Insert bolt (A), washer (C), and nut (D). Tighten with
wrench (F).
leg slat
back deck leg
back deck
slat deck
15x
F
A
D
C
Page 3 of 66096119 - 04.29.10
basic futon
assembly instructions
2. Align leg slat to the small leg on back deck leg. Insert bolt (B). Tighten with supplied hex key (E).
leg slat
small leg
back deck leg
3x
B
Page 4 of 66096119 - 04.29.10
basic futon
assembly instructions
3. Align front slat A and front slat B to the seat deck. Insert Bolt (B), tighten with supplied hex key (E)
seat deck leg
front slat B
front slat A
9x
Page 5 of 66096119 - 04.29.10
SOFA TO BED POSITION:
basic futon
assembly instructions
fold down back deck.
BED TO SOFA POSITION:
fold up back deck.
fold in small leg.
fold out small leg.
CARE INSTRUCTIONS
Hardware may loosen overtime. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
Page 6 of 66096119 - 04.29.10
