apex bookshelf
assembly instructions
! Tool required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet to
protect nish.
! Proper assembly of this item requires 2 people.
Hardware included:
G
J
Cam bolt 24x
Parts included:
Bolt M6x50 10x
K
Cam base 24x
I
Flat washer 10x Lock washer 10x
allen key 1x
H
9333360/9335217 Page 1 of 5
apex bookshelf
assembly instructions
1. Assemble rail (B) to posts (A) and (C) by aligning dowels on rail (B) with pre-drilled holes on posts (A) and (C).
Tighten bolts (G) with allen key. Insert cam bolt (J) into pre-installed insert nuts in posts (A) and (C). Tighten
all cam bolts (J) with phillips head screw driver. Repeat steps for second assembly.
C
B
2. Assemble rail (F) with two rails (E) by aligning wooden dowels on rail (F) with pre-frilled holes on rail (E). Put
bolts (G) with allen key.
9333360/9335217 Page 2 of 5
apex bookshelf
assembly instructions

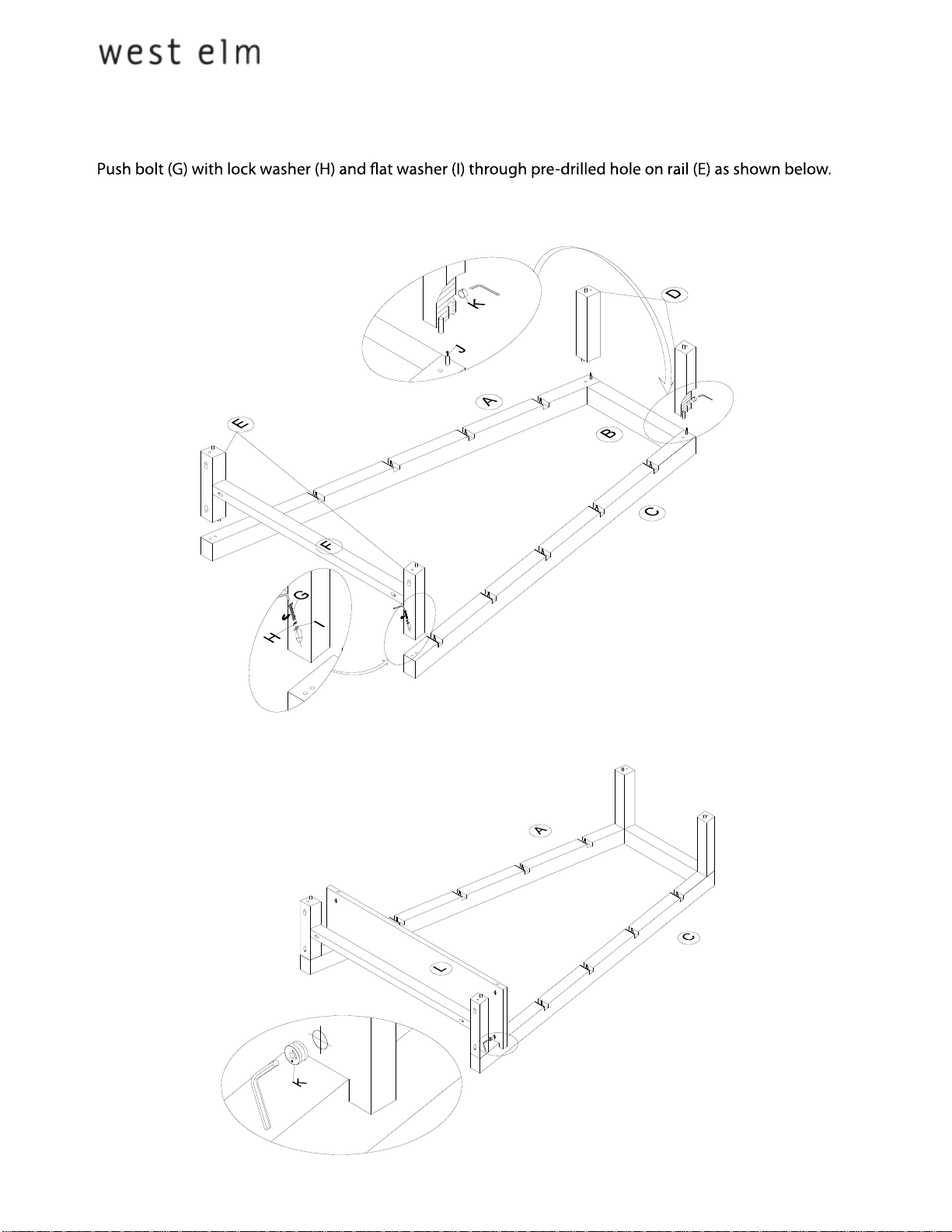

3. Assemble rails (E) to posts (A) and (C) by aligning dowels on rails (E) to pre-drilled holes on posts (A) and (C).
Tighten bolts (G) with allen key. Assemble rails (D) to the other end of posts (A) and (C) by aligning dowels
on rails (D) to pre-drilled holes on posts (A) and (C). Insert cam house (K) in pre-drilled hole in rail (D) as shown
below. Tighten cam houses with allen key.
4. Align pre-drilled holes in shelf (L) with cam bolts (J) pn posts (A) and (C). Put cam house (K) in pre-drilled holes
under shelf (L). Tighten cam houses (K) with allen key.
9333360/9335217 Page 3 of 5
5. Repeat for the rest of the shelves with the order as shown below.
apex bookshelf
assembly instructions
6. Carefully lift the other post assembly onto partially assembled bookcase. Align post assembly with shelves
and securely fasten all connections as noted in previous steps. With two adults turn the bookcase to an
upright position.
CARE INSTRUCTIONS
Hardware may loosen over time. Periodically check to make sure all connections are tight.
Wipe with a soft dry cloth. To protect the nish, avoid the use of chemicals and household cleaners.
9333360/9335217 Page 4 of 5
apex bookshelf
assembly instructions
9333360/9335217 Page 1 of 5
