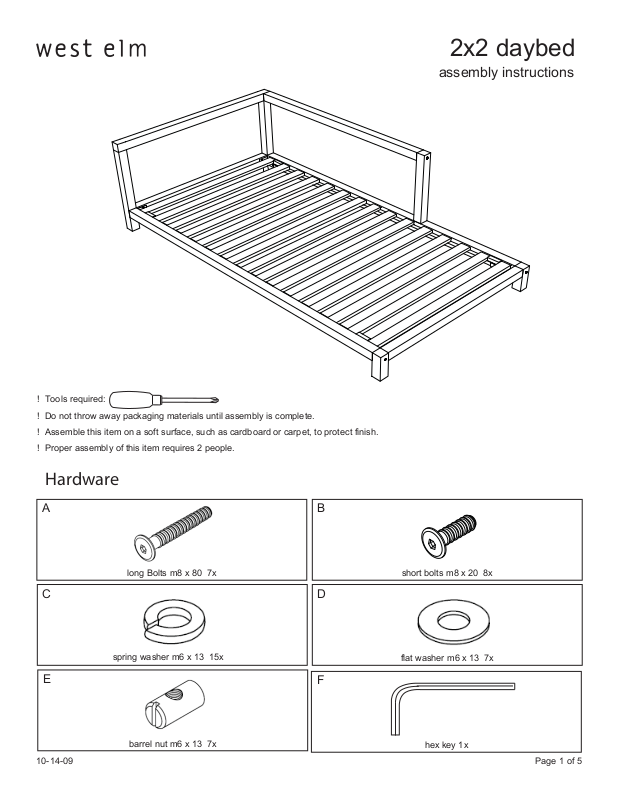

2x2 daybed
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish.
! Proper assembly of this item requires 2 people.
Hardware
BA
C
spring washer m6 x 13 15x
E
D
F
x8 02 x 8m stlob trohsx7 08 x 8m stloB gnol
flat washer m6 x 13 7x
barrel nut m6 x 13 7x
hex key 1x
Page 1 of 510-14-09
2x2 daybed
assembly instructions
1. Align front rail and the back rail with the end frame as shown. Notice the hole in the back rail
and its location. This rail must be installed like the drawing shows. Insert bolt (A), spring washer (C),
at washer (D) thru the end frame. Insert barrel nut (E) into pre-drilled holes in the side rails.
Tighten with supplied hex key (F).
2. Insert bolt (B), and spring washer (C) into metal brackets in the end of the side rails.
Tighten with hex key (F).
C
E
A
D
end frame
front rail
C
B
back rail
Hole
Page 2 of 510-14-09
3. Repeat steps 1&2 to the other end of the bedframe.
2x2 daybed
assembly instructions
C
back rail
C
B
front rail
E
D
A
Page 3 of 510-14-09
2x2 daybed
assembly instructions
4. Position upper rail to end frame assembly and support rail as shown. Insert barrel nuts (E) into pre-drilled
at washers
(D) as shown. Tighten bolts using hex key (F).
oors.
C
A
E
upper rail
end frame
D
support rail
E
D
C
A
Page 4 of 510-14-09
6. Carefully lay slats into bedframe.
2x2 daybed
assembly instructions
CARE INSTRUCTIONS
Hardware may loosen overtime. Periodically check that all connections are tight.
nish, avoid the use of chemicals and household cleaners.
