WESTECH S7 User Manual

WESTECH S7

ANDROID SMART PHONE

User Manual

Copyright © 2015 WESTECH Media Technologies Ltd. WESTECH Media Technologies Ltd, 27

Old Gloucester Street, London, WC1N 3AX Registered Company Number: 08757885

This user manual that can be downloaded for free from the WESTECH

website:

www.westech.media/user-manuals

If you would like any advice or assistance with regard to any part of your

device please contact WESTECH via their website or by email:

[email protected]

All WESTECH products come with a 1 year warranty. This means that if your

product becomes faulty within one year of purchase we will repair or replace

your product. Full details of our warranty can be found on our website:

www.westech.media/termsandconditions

1

Table of
Contents

Basics

4 Read me first

6 Package contents

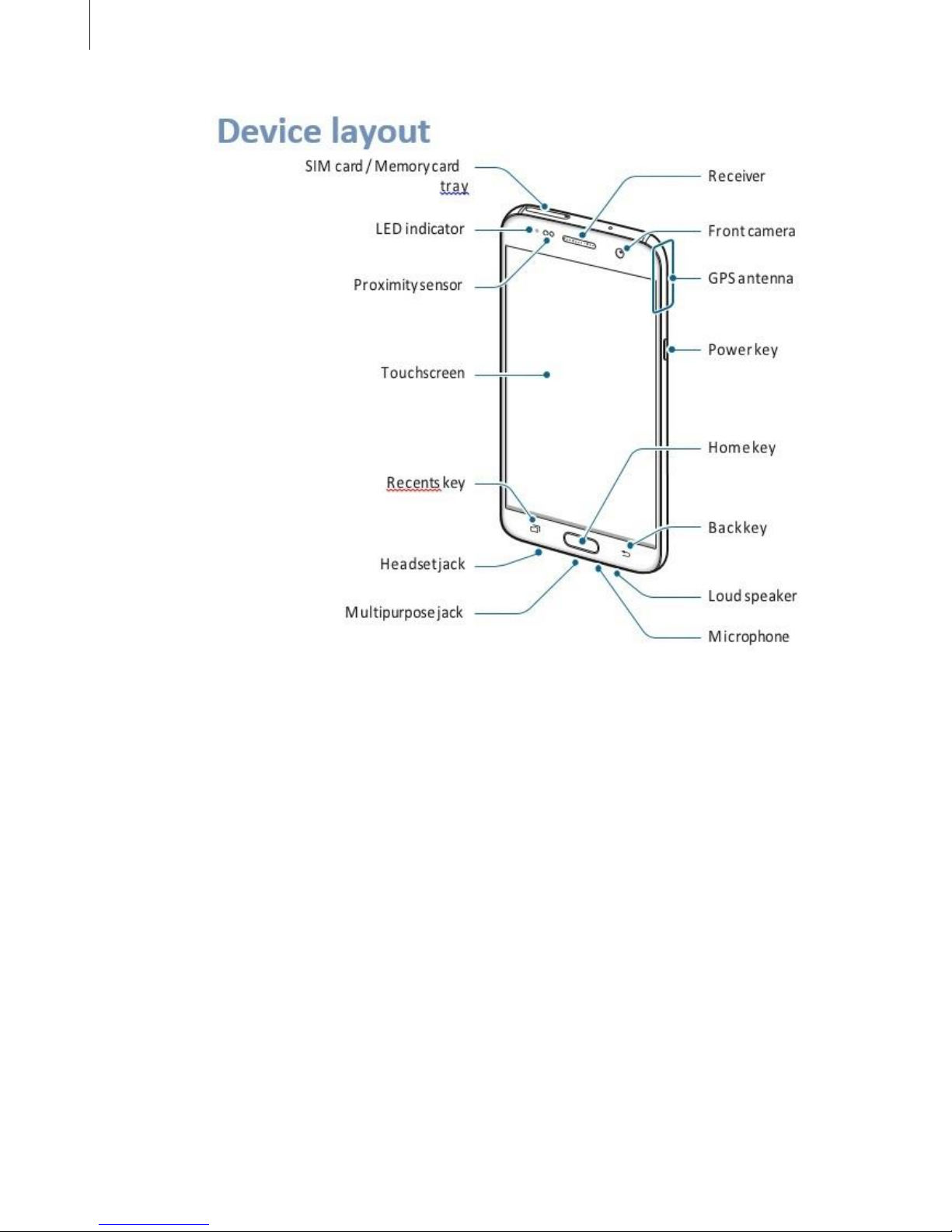

7 Device layout

9 Battery
15 SIM or USIM card (nano-SIM card)
21 Memory card (microSD card)

24 USB connector
25 Turning the device on and off

25 Touchscreen
28 Home screen
34 Lock screen
36 Notification panel
38 Entering text

41 Screen capture
42 Opening apps

42 Multi window
46 WESTECH account
48 Transferring data from your

previous device
51 Device and data management
53 Quick connect

57 Sharing features
58 Emergency mode

Applications

59 Installing or uninstalling apps
61 Phone

65 Contacts
68 Messages
71 Internet

73 Email
74 Camera
95 Gallery
94 Blank

101 WESTECH Gear
102 Game Launcher
105 S Planner
106 S Health

109 S Voice
111 Voice Recorder
113 My Files

113 Memo
114 Clock
115 Calculator
116 Google apps

Table of Contents

Settings

118 Introduction
118 Wi-Fi
120 Bluetooth
122 Flight mode

122 Mobile hotspot and

tethering

2

123 Data usage
124 SIM card manager (dual SIM

models)

125 Mobile networks

125 Blank
128 More connection settings
130 Smart Manager

132 Applications
133 Sounds and vibration
134 Notifications
134 Do not disturb
135 Display
136 Advanced features
137 Wallpaper
138 Themes

138 Home screen
138 Lock screen and security

143 Privacy and safety
147 Easy mode

147 Accessibility
148 Accounts
148 Backup and reset
149 Language and input
150 Battery
150 Storage
151 Date and time

151 User manual
151 About device

Appendix

152 Accessibility
167 Troubleshooting

3

Basics

Read me first

Please read this manual before using the device to ensure safe and proper use.

• Descriptions are based on the device’s default settings.

• Parts of this manual may not apply directly to the phone you have purchased and

may be dependent on additional hardware and software not supplied by WESTECH.

• Some content may differ from your device depending on the region, service

provider, model specifications, or device’s software.

• Content (high quality content) that requires high CPU and RAM usage will affect the

overall performance of the device. Apps related to the content may not work

properly depending on the device’s specifications and the environment that it is

used in.

• WESTECH is not liable for performance issues caused by apps supplied by providers

other than WESTECH.

• WESTECH is not liable for performance issues or incompatibilities caused by edited

registry settings or modified operating system software. Attempting to customise
the operating system may cause the device or apps to work improperly.

• Software, sound sources, wallpapers, images, and other media provided with this

device are licensed for limited use. Extracting and using these materials for
commercial or other purposes is an infringement of copyright laws. Users are
entirely responsible for illegal use of media.

• You may incur additional charges for data services, such as messaging, uploading

and downloading, auto-syncing, or using location services depending on your data
plan. For large data transfers, it is recommended to use the Wi-Fi feature.

• Default apps that come with the device are subject to updates and may no longer be

supported without prior notice. If you have questions about an app provided with
the device, contact a WESTECH. For user-installed apps, contact service providers.

• Modifying the device’s operating system or installing softwares from unofficial

sources may result in device malfunctions and data corruption or loss. These actions
are violations of your WESTECH licence agreement and will void your warranty.

Basics

4

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Package contents

Check the product box for the following items:

• Device

• Quick start guide

• The items supplied with the device and any available accessories may vary

depending on the region or service provider.

• The supplied items are designed only for this device and may not be

compatible with other devices.

• Appearances and specifications are subject to change without prior notice.

• You can purchase additional accessories from your local WESTECH retailer.

Make sure they are compatible with the device before purchase.

• Use only WESTECH-approved accessories. Using unapproved accessories may

cause the performance problems and malfunctions that are not covered by
the warranty.

• Availability of all accessories is subject to change depending entirely on

manufacturing companies. For more information about available accessories,
refer to the WESTECH website.

Basics

5

Basics

6

•Connectivity problems and battery drain may occur in the following situations:

– If you attach metallic stickers on the antenna area of the device
– If you attach a device cover made with metallic material to the device
– If you cover the device’s antenna area with your hands or other objects

while using certain features, such as calls or the mobile data connection

• Using a WESTECH-approved screen protector is recommended. Unapproved
screen protectors may cause the sensors to malfunction.

Keys

Key Function

Power

• Press and hold to turn the device on or off.

• Press to turn on or lock the screen.

Basics

7

Recents

• Tap to open the list of recent apps.

• Tap and hold to launch the split screen view.

Home

• Press to turn on the screen while the screen is locked.

• Press to return to the Home screen.

• Press and hold to launch Google.

Back

• Tap to return to the previous screen.

• Tap and hold to access additional options for the

current screen.

Volume

• Press to adjust the device volume.

Battery

Charging the battery

Charge the battery before using it for the first time or when it has been unused for
extended periods.

Use only WESTECH-approved chargers, batteries, and cables. Unapproved
chargers or cables can cause the battery to explode or damage the device.

1 Connect the USB cable to the USB power adaptor, and then plug the end of the USB

cable into the multipurpose jack.

Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.

Basics

8

2 Plug the USB power adaptor into an electric socket.
3 After fully charging, disconnect the device from the charger. First unplug the charger

from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a

power switch, so you must unplug the charger from the electric socket when not
in use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.

Viewing the remaining charging time

While charging, open the Home screen and tap Apps → Settings → Battery.

The actual charging time may vary depending on the status of your device and the

charging conditions. The remaining charging time may not be displayed when you
charge the device in very cold or very hot conditions.

Reducing the battery consumption

Your device provides various options that help you conserve battery power.

• Optimise the device using the Smart manager.

• When you are not using the device, switch to sleep mode by pressing the Power key.

• Activate power saving mode.

• Close unnecessary apps.

• Deactivate the Bluetooth feature when not in use.

• Deactivate the Wi-Fi feature when not in use.

• Deactivate auto-syncing of apps that need to be synced, such as emails.

• Decrease the backlight time.

• Decrease the screen brightness.

Battery charging tips and precautions

• When the battery power is low, the battery icon appears empty.

• If the battery is completely discharged, the device cannot be turned on immediately

when the charger is connected. Allow a depleted battery to charge for a few
minutes before turning on the device.

Basics

9

• If you use multiple apps at once, network apps, or apps that need a connection to

another device, the battery will drain quickly. To avoid losing power during a data
transfer, always use these apps after fully charging the battery.

• Using a power source other than the charger, such as a computer, may result in a

slower charging speed due to a lower electric current.

• The device can be used while it is charging, but it may take longer to fully charge the

battery.

• If the device receives an unstable power supply while charging, the touchscreen

may not function. If this happens, unplug the charger from the device.

• While charging, the device and the charger may heat up. This is normal and should

not affect the device’s lifespan or performance. If the battery gets hotter than usual,

the charger may stop charging.

• If you charge the device while the multipurpose jack is wet, the device may be

damaged.
Thoroughly dry the multipurpose jack before charging the device.

• If the device is not charging properly, contact WESTECH.

• While charging the battery when the device is turned off, the icon appears on the

screen.

• You cannot use the built-in fast charging feature when you charge the

battery using a standard battery charger.

• If the device heats up or the ambient air temperature rises, the charging speed may

decrease automatically. This is a normal operating condition to prevent damage to
the device.

Power saving mode

Save the battery power by limiting the device’s functions.
On the Home screen, tap Apps → Settings → Battery → Power saving mode, and then

tap the switch to activate it.
To automatically activate power saving mode when the remaining battery power

reaches the preset level, tap Start power saving and select an option.

Ultra power saving mode

Use this mode to extend the device’s battery power. In ultra power saving mode, the

device performs the following:

Basics

10

• Displays colours on the screen as grey tones.

• Restricts the available apps to essential and selected apps only.

• Deactivates the mobile data connection when the screen turns off.

• Deactivates the Wi-Fi and Bluetooth features.

On the Home screen, tap Apps → Settings → Battery → Ultra power saving mode, and
then tap the switch to activate it.

To deactivate ultra power saving mode, tap MORE → Disable Ultra power saving mode.

The usage time left shows the time remaining before the battery power runs

out. Usage time left may vary depending on your device settings and
operating conditions.

SIM or USIM card (nano-SIM card)

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

Use caution not to lose or let others use the SIM or USIM card. WESTECH is not

responsible for any damages or inconveniences caused by lost or stolen cards.

• Dual SIM models: In some areas, data transfer speeds may be slower if two

SIM cards are inserted in the device than when one SIM card is inserted.

• Some LTE services may not be available depending on the service provider.

For more information about service availability, contact your service provider.

► Single SIM models:

Basics

11

► Dual SIM models:

Basics

12

1 Insert the ejection pin into the hole on the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device

may be damaged.

2 Pull out the tray gently from the tray slot.
3 ► Single SIM models: Place the SIM or USIM card on the tray with the gold-

coloured contacts facing downwards.
► Dual SIM models: Place the SIM or USIM card on the tray with the gold-coloured

contacts facing downwards.

Place the primary SIM or USIM card on the tray 1 ( 1 ) and the secondary SIM or
USIM card on the tray 2 ( 2 ).

Basics

13

4 Gently press the SIM or USIM card into the tray to secure it.

If the card is not fixed firmly into the tray, the SIM card may leave or fall out of

the tray. 5 Insert the tray back into the tray slot.

• If you insert the tray into your device while the tray is wet, your device may

be damaged. Always make sure the tray is dry.

• Fully insert the tray into the tray slot to prevent liquid from entering your device.

Correct card installation

► Single SIM models:

Nano-SIM
card

microSD card

►

• Use only a nano-SIM card.

• You cannot insert a nano-SIM card and a microSD card in tray 2 at the same

time.

• If you have any trouble inserting your Nano SIM or Memory card contact WESTECH.

Damage to this mechanism is not covered by warranty.

Basics

14

Removing the SIM or USIM card

1 Insert the ejection pin into the hole on

the tray to loosen the tray.

2 Pull out the tray gently from the tray

slot. 3 Remove the SIM or USIM

card. ► Single SIM models:

► Dual SIM models:

Basics

15

4 Insert the tray back into the tray slot.

Activating SIM or USIM cards

On the Home screen, tap Apps → Settings → SIM card manager. Select a SIM or USIM
card and tap the switch to activate it.

Customising SIM or USIM cards

On the Home screen, tap Apps → Settings → SIM card manager and select a SIM or
USIM card to access the following options:

• Icon: Change the icon of the SIM or USIM card.

• Name: Change the display name of the SIM or USIM card.

• Network mode: Select a network type to use with the SIM or USIM card.

Setting preferred SIM or USIM cards

When two cards are activated, you can assign voice calls, messaging, and data services
to specific cards.

On the Home screen, tap Apps → Settings → SIM card manager and set the feature
preferences for your cards in Preferred SIM card.

Memory card (microSD card)

Installing a memory card

Your device accepts memory cards with maximum capacities of 200 GB. Depending on
the memory card manufacturer and type, some memory cards may not be compatible
with your device.

• Some memory cards may not be fully compatible with the device. Using an

incompatible card may damage the device or the memory card, or corrupt the
data stored in it.

• Use caution to insert the memory card right-side up.

• The device supports the FAT and the exFAT file systems for memory cards.

When inserting a card formatted in a different file system, the device asks to
reformat the memory card.

• Frequent writing and erasing of data shortens the lifespan of memory cards.

Basics

16

• When inserting a memory card into the device, the memory card’s file

directory appears in the My Files → SD card folder.

Basics

17

1 Insert the ejection pin into the hole on the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the

device may be damaged. 2 Pull out the tray gently from the tray slot.

When you remove the tray from the device, the mobile data connection will be

disabled.

3 Place a memory card on the tray 2 with the gold-

coloured contacts facing downwards.

Basics

18

4 Gently press the memory card into the tray to secure

it. 5 Insert the tray back into the tray slot.

• If you insert the tray into your device while the tray is wet, your device

may be damaged. Always make sure the tray is dry.

• Fully insert the tray into the tray slot to prevent liquid from entering your device.

Removing the memory card

Before removing the memory card, first unmount it for safe removal.
On the Home screen, tap Apps → Settings → Storage → SD card →

Unmount. 1 Insert the ejection pin into the hole on the tray to loosen the

tray.

2 Pull out the tray gently from the tray slot.
3 Remove the memory card.
4 Insert the tray back into the tray slot.

Do not remove the memory card while the device is transferring or accessing

information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. WESTECH is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device.
Format the memory card on the device.

Basics

19

On the Home screen, tap Apps → Settings → Storage → SD card → Format →
FORMAT.

Before formatting the memory card, remember to make backup copies of all

important data stored in the memory card. The manufacturer’s warranty does

not cover loss of data resulting from user actions.

USB connector

With the supplied USB connector (On-The-Go Adaptor), you can transfer data from
other mobile devices or connect USB peripheral devices, such as a mouse and keyboard,
to your device.

Transferring data from your previous device

You can connect your previous device to your device with the USB connector and a USB
cable to easily and quickly transfer data without installing an app in the previous device.
Refer to Transferring data via a USB connection for more information.

Connecting a USB peripheral device

Plug the USB connector into the multipurpose jack of your device and connect the USB
peripheral device to the USB connector.

Some USB peripheral devices may not be compatible with your device.

Turning the device on and off

Press and hold the Power key for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow

the onscreen instructions to set up your device.
To turn off the device, press and hold the Power key, and then tap Power off.

Follow all posted warnings and directions from authorised personnel in areas

where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Restarting the device

If your device is frozen and unresponsive, press and hold the Power key and the Volume
Down key simultaneously for more than 7 seconds to restart it.

Basics

20

Volume Down key

Touchscreen

• Do not allow the touchscreen to come into contact with other electrical

devices. Electrostatic discharges can cause the touchscreen to malfunction.

• To avoid damaging the touchscreen, do not tap it with anything sharp or apply

excessive pressure to it with your fingertips.

• The device may not recognise touch inputs close to the edges of the screen,

which are outside of the touch input area.

• Leaving the touchscreen idle for extended periods may result in afterimages

(screen burn-in) or ghosting. Turn off the touchscreen when you do not use
the device.

• It is recommended to use fingers when you use the touchscreen.

Tapping

To open an app, to select a menu item, to press an on-screen button, or to enter a
character using the keyboard on the screen, tap it with your finger.

Tapping and holding

Tap and hold an item or the screen for more than 2 seconds to access available options.

Basics

21

Dragging

To move an item, tap and hold it and drag it to the target position.

Double-tapping

Double-tap on a webpage or image to zoom in. Double-tap again to return.

Swiping

Swipe to the left or right on the Home screen or the Apps screen to view other panels.
Swipe upwards or downwards to scroll through a webpage or a list of items, such as
contacts.

Basics

22

Spreading and pinching

Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom
out.

Home screen

Home screen

The Home screen is the starting point for accessing all of the device’s features. It
displays widgets, shortcuts to apps, and more.

To view other panels, swipe to the left or right.

The Home screen may appear differently depending on the region or service

provider.

Basics

23

A folder

Screen indicators

Apps screen icon

Home screen options

On the Home screen, tap Apps → Settings → Home screen to access the available
options. Alternatively, on the Home screen, tap and hold an empty area. Customise the
Home screen by adding, deleting, or rearranging Home screen panels. You can also set
the Home screen wallpaper, add widgets to the Home screen, and more.

• Wallpapers: Change the wallpaper settings for the Home screen and the locked

screen.

• Widgets: Add widgets to the Home screen. Widgets are small apps that launch

specific app functions to provide information and convenient access on your Home
screen.

• Themes: Change the device’s theme. Visual elements of interface, such as colours,

icons, and wallpapers, will change depending on the selected theme.

• Screen grid: Change the size of the grid to display more or less items on the Home

screen and the Apps screen.

Basics

24

Tap and hold an app or a folder from the Apps screen, and then drag it to the Home
screen.

To add widgets, tap and hold an empty area on the Home screen, tap Widgets, tap and
hold a widget, and then drag it to the Home screen.

Moving items

Tap and hold an item on the Home screen, and then drag it to a new location.
You can also move frequently used apps to the shortcuts area at the bottom of the

Home screen.
To move the item to another panel, drag it to the side of the screen.
To move an item more easily, tap and hold an item, and drag it to Move apps at the top

of the screen. The item will move to the panel at the top of the screen. Swipe to the left
or right to move to another panel and drag the item to a new location.

Removing items

Tap and hold an item, and then drag it to Remove at the top of the screen.

Creating folders

Create folders and gather similar applications to quickly access and launch apps.

Basics

25

1 On the Home screen, tap and hold an app, and then drag it over another

app. 2 Drop the app when a folder frame appears around the apps.

A new folder containing the selected apps will be created.

3 Tap Enter folder name and enter a folder name.

To change the folder colour, tap
To add more apps to the folder, tap , tick the apps, and then tap ADD. You can

also add an app by dragging it to the folder on the Home screen.

To move apps from a folder to the Home screen, tap the folder, and then drag an app to
the Home screen.

To delete apps in a folder, tap the folder, and then drag the app you want to delete to

Remove at the top of the screen.

Managing panels

On the Home screen, tap and hold an empty area to add, move, or remove a panel.
To add a panel, swipe to the left, and then tap .
To move a panel, tap and hold a panel preview, and then drag it to a new location.
To remove a panel, tap and hold a panel preview, and then drag it to Remove at the top

of the screen.
To set a panel as the main Home screen, tap .

Apps screen

The Apps screen displays icons for all apps, including newly installed apps.

Basics

26

On the Home screen, tap Apps to open the Apps screen. To view other panels, swipe to
the left or right.

Moving items

This feature may not be available depending on the region or service provider.

On the Apps screen, tap EDIT. Tap and hold an item and drag it to a new location.
To move the item to another panel, drag it to the side of the screen.

Creating folders

Create folders and gather similar applications to quickly access and launch apps you
want.

This feature may not be available depending on the region or service provider.

1 On the Apps screen, tap EDIT.
2 Tap and hold an app, and then drag it over another app.

3 Drop the app when a folder frame appears around

the apps.

A new folder containing the selected apps will be created.

4 Tap Enter folder name and enter a folder name.

To change the folder colour, tap

Basics

27

To add more apps to the folder, tap , tick the apps, and then tap ADD. You can
also add an app by dragging it to the folder on the Apps screen.

To delete a folder, select a folder with . Only the folder will be deleted. The folder’s
apps will be relocated to the Apps screen.

Rearranging items

You can rearrange items in alphabetical order on the Apps
screen. On the Apps screen, tap A-Z → SAVE.

Searching for items

You can search for items on the Apps screen.
On the Apps screen, tap SEARCH and enter characters. The device will search for and

display the items containing the characters you entered.

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the
table below are most common.

The status bar may not appear at the top of the screen in some apps. To display

the status bar, drag down from the top of the screen.

Icon

Meaning

No signal

Signal strength

/

Currently accessing SIM or USIM card (dual SIM models)

Roaming (outside of normal service area)

GPRS network connected

EDGE network connected

UMTS network connected

HSDPA network connected

HSPA+ network connected

LTE network connected (LTE-enabled models)

Wi-Fi connected

Basics

28

Bluetooth feature activated

GPS activated

Icon

Meaning

Call in progress

Missed call

New text or multimedia message

Alarm activated

Mute mode activated

Vibration mode activated

Flight mode activated

Error occurred or caution required

Battery power level

Lock screen

Pressing the Power key turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.

The screen is locked with Swipe, the default screen lock method.
Press the Power key or the Home key and swipe in any direction to unlock the screen.

To change the screen lock method, on the Apps screen, tap Settings → Lock screen and
security → Screen lock type, and then select a method.

When you set a pattern, PIN or password for the screen lock method, you can protect
your personal information by preventing others from accessing your device. After
setting the screen lock method, the device will require an unlock code whenever
unlocking it.

Basics

29

• Swipe: Swipe in any direction on the screen to unlock it.

• Pattern: Draw a pattern with four or more dots to unlock the screen.

• PIN: Enter a PIN with at least four numbers to unlock the screen.

• Password: Enter a password with at least four characters, numbers, or symbols to

unlock the screen.

• None: Do not set a screen lock method.

• If the unlock code is forgotten, contact WESTECH.

• You can set your device to perform a factory data reset if you enter the

unlock code incorrectly several times in a row and reach the attempt limit. On the
Apps screen, tap Settings → Lock screen and security → Secure lock settings and
tap the Auto factory reset switch to activate it.

Notification panel

Using the notification panel

When you receive new notifications, such as messages or missed calls, indicator icons
appear on the status bar. To see more information about the icons, open the
notification panel and view the details.

To open the notification panel, drag the status bar downwards. To close the notification
panel, swipe upwards on the screen.

You can use the following functions on the notification panel.

► Single SIM models:

Basics

30

Quick setting buttonsLaunch Settings.

View more quick setting

buttons.

Adjust the brightness. Launch Quick

connect.

Tap a notification and
perform

various

actions.

Clear all notifications.

Access the notification settings.

► Dual SIM models:

View more quick setting

buttons.

Quick setting
buttons

Launch Settings.

Adjust the brightness. Launch Quick

connect.

SIM and USIM card feature
preferences. Tap to access the
SIM card manager.

Tap a notification and

perform
various actions.

Clear all notifications.

Access the notification settings.

Basics

31

Using quick setting buttons

Tap quick setting buttons to activate some features. Swipe to the left or right on the
buttons area, or tap to view more buttons. To view more detailed settings, tap and
hold a button. To rearrange buttons, tap → EDIT, tap and hold a button, and then
drag it to another location.

S Finder

Search for a wide variety of content with a keyword.

Searching for content on the device

Open the notification panel and tap → S Finder.
Enter a keyword in the search field or tap and say a keyword.
To get more refined results, tap Filter under the search field, and then select filter

details.

Setting search categories

You can set search categories to search for content in specific search
fields. Tap MORE → Select search locations and select categories.

Entering text

Keyboard layout

A keyboard appears automatically when you enter text to send messages, create
memos, and more.

Text entry is not supported in some languages. To enter text, you must change

the input language to one of the supported languages.

Enter uppercase. For all caps, tap Delete a preceding
character.

it
twice.

Enter punctuation marks.Break to the next line.

Basics

32

Change the keyboard settings.Enter a space.

Changing the input language

Tap → Add input languages, and then select the languages to use. When you select
two or more languages, you can switch between the input languages by swiping to the
left or right on the space key.

Changing the keyboard layout

, select a language under Languages and types, and then select a keyboard

layout to

On 3x4 keyboard, a key has three or four characters. To enter a character, tap

the corresponding key repeatedly until the desired character appears.

Additional keyboard functions

Tap and hold to use various functions. Other icons may appear instead of the
icon depending on the last function that was used.

• : Enter text by voice.

Open the keyboard.

• : Add an item from the clipboard.

• : Enter emoticons.

• : Change the keyboard settings.

Copying and pasting

1 Tap and hold over text.
2 Drag or to select the desired text, or tap Select all to select all text.

3 Tap Copy or Cut.

Basics

33

The selected text is copied to the clipboard.

4 Tap and hold where the text is to be inserted and tap Paste.

To paste text that you have previously copied, tap Clipboard and select the text.

Dictionary

Look up definitions for words while using certain features, such as when browsing

webpages. 1 Tap and hold over a word that you want to look up.

If the word you want to look up is not selected, drag or to select the desired text.

2 Tap Dictionary on the options list.

If a dictionary is not preinstalled on the device, tap Manage dictionaries → next

to a dictionary to download it. 3 View the definition in the dictionary pop-up window.

To switch to the full screen view, tap . Tap the definition on the screen to
view more definitions. In the detailed view, tap to add the word to your
favourite words list or tap Search Web to use the word as a search term.

Screen capture

Capture a screenshot while using the device.

Capturing screenshots

Press and hold the Home key and the Power key simultaneously. You can view captured
images in Gallery.

You can also capture screenshots by swiping your hand to the left or right across the
screen.
If this feature is not activated, open the Apps screen, tap Settings → Advanced features
→ Palm swipe to capture and tap the switch to activate it.

It is not possible to capture a screenshot while using some apps and features.

Basics

34

Smart capture

You can capture the current screen and scrollable area. You can also immediately crop
and share the captured screen.

If this feature is not activated, open the Apps screen, tap Settings → Advanced features
→ Smart capture, tap the switch to activate it, and then capture a screenshot. On the
screen you are capturing, use one of the following options:

• Capture more: Capture more content that continues across multiple screens, such

as a web page. The screen will automatically scroll down and more content will be
captured.

• Share: Share the screenshot.

• Crop: Crop a portion from the screenshot.

Opening apps

On the Home screen or the Apps screen, select an app icon to open it.
To open an app from the list of recently used apps, tap and select a recent app

window.

Closing an app

Tap and drag a recent app window to the left or right to close it. To close all running
apps, tap CLOSE ALL.

Multi window

Introduction

Multi window lets you run two apps at the same time in the split screen view. You can
also run multiple apps at the same time in the pop-up view.

Some apps may not support this feature.

Basics

35

Split screen view Pop-up view

Split screen view

1 Tap to open the list of recently used apps. 2 Swipe

upwards or downwards and tap on a recent app window.

The selected app will launch in the upper window.

3 Swipe to the left or right to select another app to launch.

You can also launch the split screen view by tapping and holding .

Basics

36

Using additional options

When using apps in the split screen view, select an app window and tap the circle
between the app windows to access the following options:

• : Switch locations between app windows.

• : Drag and drop text or copied images from one window to another. Tap and hold

an item in the selected window and drag it to a location in another window.

Some apps may not support this feature.

• : Minimise the window.

• : Maximise the window.

• : Close the app.

Basics

37

Adjusting the window size

Drag the circle between the app windows up or down to adjust the size of the windows.

Pop-up view

1 On the Apps screen, launch an app to use in the pop-up

view. 2 Drag down diagonally from either end of the top edge.

The app screen will appear in the pop-up view.

Moving pop-up windows

To move a pop-up window, tap and hold the circle on a window and drag it to a new
location.

Basics

38

WESTECH account

Introduction

Your WESTECH account is an integrated account service that allows you to use a variety
of
WESTECH services provided by mobile devices, TVs, and the WESTECH website. Once
your WESTECH account has been registered, you can use apps provided by WESTECH,
without signing in to your account.

Create your WESTECH account with your email address.
To check the list of services that can be used with your WESTECH account, visit

account.WESTECH.com. For more information on WESTECH accounts, open the Apps

screen and tap Settings → Accounts → WESTECH account → Help.

Registering your WESTECH account

Registering a new WESTECH account

If you do not have a WESTECH account, you should create one.

1 On the Apps screen, tap Settings → Accounts → Add account.
2 Tap WESTECH account → CREATE ACCOUNT.

3 Follow the on-screen instructions to complete creating your account.

Registering an existing WESTECH account

If you already have a WESTECH account, register it to the device.

1 On the Apps screen, tap Settings → Accounts → Add account.
2 Tap WESTECH account.

3 Enter your email address and password, and then tap SIGN IN.

If you forget your account information, tap Forgotten your ID or password? You can
find your account information when you enter the required information and
security code displayed that is on the screen.

Basics

39

Transferring data from your previous device

Transferring data via a USB connection

You can connect your previous device to your device with the USB connector and a USB
cable to easily and quickly transfer data without installing an app in the previous device.

1 Plug the USB connector into the multipurpose jack of your device.
2 Connect your device and the previous device using the USB cable.

3 When the app selection pop-up window appears, tap Smart Switch → START. Your

device will recognise the previous device and a list of data you can transfer will

appear. 4 Follow the on-screen instructions to transfer data from the previous

device.

Do not disconnect the USB cable or USB connector from the device when you are

transferring files. Doing so may cause data loss or device damage.

Transferring data with the USB connector increases the battery power

consumption. Ensure that the battery is fully charged before transferring data. If
the battery power is low, data transfer may be interrupted.

Transferring data wirelessly

Transfer data from your previous device to your device.

1

2

Basics

40

1 On the previous device, download and install Smart Switch from Galaxy Apps or

Play Store. Then, launch Smart Switch.

2 Place the devices near each other.
3 On your device, open the Apps screen and tap Settings → Backup and reset →

Open Smart Switch.

4 On your device, select the previous device type from the list and tap START.
5 Follow the on-screen instructions to transfer data from your previous device.

Transferring backup data from a computer

Back up data from your previous device to a computer and import the data to your
device.

1 On the computer, visit www.WESTECH.com/smartswitch to download Smart

Switch. 2 On the computer, launch Smart Switch.

Basics

41

If your previous device is not a WESTECH device, back up data to a computer

using a program provided by the device’s manufacturer. Then, skip to the fifth

step.

3 Connect your previous device to the computer using the USB cable. 4 On the

computer, follow the on-screen instructions to back up data from the device.

Then, disconnect your previous device from the computer.

5 Connect your device to the computer using the USB cable.
6 On the computer, follow the on-screen instructions to transfer data to your device.

Device and data management

Connecting the device to a computer for data transfer

Move audio, video, image, or other types of files from the device to the computer, or
vice versa.

Do not disconnect the USB cable from the device when you are transferring files.

Doing so may cause data loss or device damage.

The devices may not connect properly if they are connected via a USB hub.

Directly connect the device to the computer’s USB port.

1 Connect the device to the computer using the USB cable.
2 Open the notification panel, and then tap USB for file transfer → Transferring

media files.
If the computer cannot recognise your device, tap Transferring images.

3 Tap ALLOW to permit the computer to access your device’s data.

When the computer recognises your device, the device will appear in My PC.

4 Transfer files between your device and the computer.

Basics

42

Updating the device

The device can be updated to the latest software.

Updating over the air

The device can be directly updated to the latest software by the firmware over-the-air
(FOTA) service.

On the Apps screen, tap Settings → About device → Download updates manually.

When you tap the Download updates automatically switch to activate it, updates

will be downloaded when the device is connected to a Wi-Fi network.

Updating with Smart Switch

Connect the device to a computer and update the device to the latest software.

1 On the computer, visit www.WESTECH.com/smartswitch to download and install

Smart Switch.

2 On the computer, launch Smart Switch.
3 Connect the device to the computer using a USB cable. 4 If a software update is

available, follow the on-screen instructions to update the device.

• Do not turn off the computer or disconnect the USB cable while the device is

updating.

• While updating the device, do not connect other media devices to the

computer. Doing so may interfere with the update process. Before updating,
disconnect all other media devices from the computer.

Backing up and restoring data

Keep your personal information, app data, and settings safe on your device. You can
back up your sensitive information to a backup account and access it later. You must
sign in to your Google account to back up or restore data. Refer to Accounts for more
information.

Basics

43

Using a Google account

On the Apps screen, tap Settings → Backup and reset → Back up my data for the
Google account, and then tap the switch to activate it. Tap Backup account and select
an account as the backup account.

To restore data using a Google account, tap the Automatic restore switch to activate it.
When you reinstall apps, backed up settings and data will be restored.

Performing a data reset

Delete all settings and data on the device. Before performing a factory data reset,
ensure you back up all important data stored on the device. Refer to Backing up and

restoring data for more information.

On the Apps screen, tap Settings → Backup and reset → Factory data reset → RESET

DEVICE → ERASE EVERYTHING. The device automatically restarts.

Quick connect

Introduction

Quickly search for and connect with nearby devices, such as Bluetooth headsets or TVs,
using the Quick connect feature.

• If the device you want to connect does not support the Quick connect feature,

activate its Wi-Fi Direct or Bluetooth feature before launching Quick connect
on your device.

• Connection methods may vary depending on the type of connected devices or

the shared content.

Connecting to other devices

1 Open the notification panel and tap Quick connect.

The Wi-Fi and Bluetooth features are activated automatically.

If Quick connect is not visible on the notification panel, tap → EDIT and tap

the Quick connect switch to activate it.

Basics

44

2 Tap Scan for nearby devices.

If there is no previously connected device, the device will automatically search for

nearby devices. 3 Select a device from the list and connect to it by following the on-

screen instructions.

The next steps may vary depending on the connected device.

To change your device’s visibility setting, tap MORE → Settings → Device visibility, and
then select an option.

Sharing content

Share content with the connected devices.

1 Open the notification panel and tap Quick connect.
2 Tap Scan for nearby devices.
3 Select a device from the list of detected devices.
4 Tap Share content and select a media category. 5 Follow the on-screen

instructions to send content to the connected device.

The next steps may vary depending on the selected media category.

Connecting to a TV

Connect your device and a TV to view the device’s content on the larger screen. You

may be able to use more features depending on the connected TV.

1 Turn on the TV and place your device close to the TV.
2 Open the notification panel and tap Quick connect → Scan for nearby

devices. 3 Select the TV.
The list of features you can use with the TV appears. 4 Select a

feature and follow the on-screen instructions to use the feature.

Basics

45

Available features may vary depending on the TV and software and the

version of the phone you have.

• Smart View: View your device’s content on the TV screen. You may need to

activate the Screen Mirroring feature on the TV depending on the TV you want to
connect. If the TV does not support the Screen Mirroring feature, use compatible
accessories to enable the feature. Compatible accessories include HomeSync and
an AllShare Cast dongle.

• TV to mobile device: Watch TV on your device’s screen. You can continue

watching TV within the allowed connection range.

• Control TV: Use your device as a remote control for the TV.

• TV sound to mobile device: Listen to the sound via the device’s speaker while

watching the TV. You can connect a headset to the device so that others do not
hear the TV sound.

• Briefing on TV: Set the TV to turn on automatically according to the preset time

set on your device and to display the time, weather, and your schedule
information on the screen. To use this feature, your device and the TV must be
connected to the same access point.

• Register TV / Deregister TV: Register the TV to your device to use additional

features, such as Control TV and Briefing on TV.

• Some files may be buffered during playback, depending on the connection.

• If the TV does not support High-bandwidth Digital Content Protection

(HDCP), you cannot view Digital Rights Management (DRM)-protected content on
the TV.

Streaming content on the registered TV

If you register a TV to your device, you can more easily connect to the TV while playing
content.

When your device recognises the registered TV while you are watching content, the
icon will appear on the device. Tap the icon to stream the content from your device to
your TV.

• This feature is supported only by the device’s default gallery app.

• When the registered TV is connected to an electric socket, you can use this

feature even if the TV screen is turned off.

Basics

46

Sharing features

Share content by using various sharing options. The following actions are an example of
sharing images.

You may incur additional charges when sharing files via the mobile network.

1 Tap Gallery on the Apps screen.
2 Select an image.

3 Tap Share and select a sharing method, such as Bluetooth and email. You can also

use the following options:

• Simple sharing: Share content with your contacts. To use this feature, your

phone number must be verified.

•This feature may not be available depending on the region or service provider.

• If the recipients have not verified their phone numbers or if their devices do not

support the feature, a link to the files will be sent to them via text message. The
link will expire after a certain period.

• Smart View: View your device’s displayed content on a larger screen via a

wireless connection.

• Nearby sharing: Share content with nearby devices via Wi-Fi Direct, Bluetooth,

and more.

• Print: Print content using the printer plug-ins installed on the device.

4 Follow the on-screen instructions to share the image with others.

When the image is sent to the recipients’ devices, a notification will appear on their

devices.
Tap the notification to view or download the image.

Emergency mode

Emergency mode changes the screen to grey tones to reduce battery consumption.
Some apps and functions will be restricted. In emergency mode, you can make an

Basics

47

emergency call, send your current location information to others, sound an emergency
alarm, and more. Press and hold the Power key, and then tap Emergency mode.

Access additional

options.

Turn on the

flash.Sound alarms.

Send your current location Make a call.

information in a message.

Browse the Internet.Add more

apps to use.

Remaining battery power

and usage
time left

Make an emergency call.

The usage time left shows the time remaining before the battery power runs

out. Usage time left may vary depending on your device settings and
operating conditions.

Deactivating emergency mode

To deactivate emergency mode, tap MORE → Disable Emergency mode. Alternatively,
press and hold the Power key, and then tap Emergency mode.

48

Applications

Installing or uninstalling apps

Galaxy Apps

Purchase and download apps. You can download apps that are specialised for WESTECH
Galaxy devices.

Tap WESTECH → Galaxy Apps on the Apps screen.

This app may not be available depending on the region or service provider.

Installing apps

Browse apps by category or tap SEARCH to search for a keyword.
Select an app to view information about it. To download free apps, tap INSTALL. To

purchase and download apps where charges apply, tap the price and follow the on­screen instructions.

To change the auto update settings, tap MORE → Settings → Auto update apps,

and then select an option.

Play Store

Purchase and download apps.
Tap Play Store on the Apps screen.

Installing apps

Browse apps by category or search for apps by keyword.
Select an app to view information about it. To download free apps, tap INSTALL. To

purchase and download apps where charges apply, tap the price and follow the on­screen instructions.

Applications

49

To change the auto update settings, tap → Settings → Auto-update apps,

and then select an option.

Managing apps

Uninstalling or disabling apps

On the Apps screen, tap EDIT. The icon appears on the apps that you can disable or
uninstall. Select an app and tap DISABLE or OK. Alternatively, on the Apps screen, tap
Settings → Applications → Application manager, select an app, and then tap DISABLE
or UNINSTALL.

• DISABLE: Disable selected default apps that cannot be uninstalled from the device.

• UNINSTALL: Uninstall downloaded apps.

Enabling apps

On the Apps screen, tap Settings → Applications → Application manager → →
Disabled, select an app, and then tap ENABLE.

Setting app permissions

For some apps to operate properly, they may need permission to access or use
information on your device. When you open an app, a pop-up window may appear and
request access to certain features or information. Tap ALLOW on the pop-up window to
grant permissions to the app.

To view your app permission settings, open the Apps screen and tap Settings →
Applications → Application manager. Select an app and tap Permissions. You can view
the app’s permissions list and change its permissions.

To view or change app permission settings by permission category, open the Apps
screen, tap Settings → Privacy and safety → App permissions. Select an item and tap
the switches next to apps to grant permissions.

If you do not grant permissions to apps, the basic features of the apps may not

function properly.

Phone

Introduction

Applications

50

Make or answer voice and video calls.

Making calls

1 Tap Phone on the Apps screen.
2 Enter a phone number.

If the keypad does not appear on the screen, tap to open the keypad.

3 ► Single SIM models:

Tap to make a video call.

Access additional

options.

Add the number to the

contacts

list.

Preview the phone number.

Delete a preceding character.

Applications

51

Hide the keypad.

Add the number to the contacts

Using speed dial

Set speed dial numbers to quickly make calls.
To set a number to speed dial, tap MORE → Speed dial, select a speed dial number, and

then select a contact.
To make a call, tap and hold a speed dial number on the keypad. For speed dial numbers

10 and up, tap the first digit(s) of the number, and then tap and hold the last digit.
For example, if you set the number 123 as a speed dial number, tap 1, tap 2, and then

tap and hold 3.

Making calls from the locked screen

On the locked screen, drag outside the large circle.

Making calls from call logs or contacts list

Tap LOG or CONTACTS, and then swipe to the right on a contact or a phone number to
make a call.

►

Applications

52

Making an international call

1 Tap to open the keypad if the keypad does not appear on the screen.
2 Tap and hold 0 until the + sign appears.
3 ► Single SIM models: Enter the country code, area code, and phone number, and

then tap .
► Dual SIM models: Enter the country code, area code, and phone number, and

then tap or .

Receiving calls

Answering a call

When a call comes in, drag outside the large circle.

Rejecting a call

When a call comes in, drag outside the large circle.
To send a message when rejecting an incoming call, drag the reject message bar

upwards.
To create various rejection messages, open the Apps screen, tap Phone → MORE →

Settings → Call blocking → Call-reject messages, enter a message, and then tap .

Missed calls

If a call is missed, the icon appears on the status bar. Open the notification panel to
view the list of missed calls. Alternatively, on the Apps screen, tap Phone → LOG to
view missed calls.

Blocking phone numbers

Block calls from specific numbers added to your block list.

1 On the Apps screen, tap Phone → MORE → Settings → Call blocking → Block list.

Applications

53

2 Tap LOG or CONTACTS to select contacts and tap .

To manually enter a number, tap Enter phone number, and then enter a phone
number.

When blocked numbers try to contact you, you will not receive notifications. The calls
will be logged in the call log.

You can also block incoming calls from people that do not show their caller ID.

Tap the Block anonymous calls switch to activate the feature.

Options during calls

During a voice call

The following actions are available:

• HOLD: Hold a call. Tap RESUME CALL to retrieve the held call.

• Add call: Dial a second call.

• Extra volume: Increase the volume.

• Bluetooth: Switch to a Bluetooth headset if it is connected to the device.

• Speaker: Activate or deactivate the speakerphone. When using the speakerphone,

speak into the microphone at the top of the device and keep the device away from
your ears.

• Keypad / Hide: Open or close the keypad.

• Mute: Turn off the microphone so that the other party cannot hear you.

• Email: Send an email.

• Message: Send a message.

• Internet: Browse webpages.

• Contacts: Open the contacts list.

• S Planner: Open the calendar.

• Memo: Create a memo.

• : End the current call.

During a video call

Tap the screen to use the following options:

Applications

54

• MORE: Access additional options.

• Switch: Switch between the front and rear cameras.

• : End the current call.

• Mute: Turn off the microphone so that the other party cannot hear you.

Contacts

Introduction

Create new contacts or manage contacts on the device.

Adding contacts

Creating contacts manually

1 Tap Contacts on the Apps screen.
2 Tap and select a storage location.

3 Enter contact information.

• : Add an image.

• / : Add or delete a contact field.

4 Tap SAVE.

To add a phone number to the contacts list from the keypad, open the Apps screen and
tap Phone. If the keypad does not appear on the screen, tap to open the keypad.

Enter the number and tap Add to Contacts.

To add a phone number to the contacts list from received calls, open the Apps screen
and tap Phone → LOG → a contact.

Applications

55

Importing contacts

Import contacts from storage services to your device.
On the Apps screen, tap Contacts → MORE → Settings → Import/Export contacts →

IMPORT and select an import option.

Searching for contacts

On the Apps screen, tap Contacts.
Use one of the following search methods:

• Scroll up or down the contacts list.

• Drag a finger along the index at the right side of the contacts list to scroll through

it quickly.

• Tap the search field at the top of the contacts list and enter search criteria.

Once a contact is selected, take one of the following actions:

• : Add to favourite contacts.

• / : Make a voice or video call.

• : Compose a message.

• : Compose an email.

Sharing profile

Share your profile information, such as your photo and status message, with others
using the profile sharing feature.

• This feature may not be available depending on the region or service

provider.

• This feature is only available for contacts who have activated the profile sharing

feature on their device.

On the Apps screen, tap Contacts → your profile → Profile sharing, and then tap the
switch to activate it. To use this feature, your phone number must be verified. You can
view your contacts’ updated profile information in Contacts.

To set additional items to share, tap Shared profile info and select items.
To set a contact group to share your profile with, tap Share with and select an option.

Applications

56

Sharing contacts

You can share contacts with others by using various sharing options.

1 Tap Contacts on the Apps screen.
2 Tap MORE → Share.

3 Tick contacts and tap SHARE.
4 Select a sharing method.

Messages

Introduction

Send and view messages by conversation.

Sending messages

You may incur additional charges for sending messages when you are roaming.

1 Tap Messages on the Apps screen.
2 Tap .

3 Add recipients and enter a message.

► Single SIM models:

Applications

57

Access additional

options.

Select contacts from the
contacts list.

Send the

message.

Enter emoticons.

► Dual SIM models:

Access additional options.

Select contacts from the
contacts list.

4 ► Single SIM models: Tap SEND to send the message.

► Dual SIM models: Tap or to send the message.

Applications

58

Viewing messages

Messages are grouped into message threads by contact.

You may incur additional charges for receiving messages when you are roaming.

1 Tap Messages on the Apps screen.
2 On the messages list, select a contact.
3 View your conversation.

Blocking unwanted messages

Block messages from specific numbers or messages that contain phrases added to your
block list.

1 Tap Messages on the Apps screen.
2 Tap MORE → Settings → Block messages.

3 Tap Block list.

To add phrases to block, tap Blocked phrases.

4 Tap INBOX or CONTACTS to select contacts and tap .

To manually enter a number, tap Enter number, and then enter a phone number.

When you receive messages from the blocked numbers or messages including blocked
phrases, you will not be notified. To view blocked messages, tap MORE → Settings →

Block messages → Blocked messages.

Setting the message notification

You can change notification sound, display options, and more.

1 Tap Messages on the Apps screen.

Applications

59

2 Tap MORE → Settings → Notifications, and then tap the switch to activate

it. 3 Change the notification settings.

• Notification sound: Change the notification sound.

• Vibrate: Set the device to vibrate when you receive messages.

• Pop-up display: Set the device to display messages in pop-up windows.

• Preview message: Set the device to display message content on the locked

screen and in pop-up windows.

Setting a message reminder

You can set an alert at an interval to let you know that you have unchecked
notifications.
If this feature is not activated, open the Apps screen, tap Settings → Accessibility →
Notification reminder, and then tap the switch to activate it. Then, tap the Messages
switch to activate it.

Internet

Introduction

Browse the Internet to search for information and bookmark your favourite webpages
to access them conveniently.

Browsing webpages

1 Tap WESTECH → Internet on the Apps screen.
2 Tap the address field.

3 Enter the web address or a keyword, and then tap Go.

To view the toolbars, drag your finger downwards slightly on the screen.

Applications

60

Open the homepage.

Move to the previously

visited page.

Access additional options.

Refresh the current
webpage.

View your bookmarks, saved
webpages, and recent
browsing history.

Open the browser's tab
manager.

Using secret mode

In secret mode, you can separately save and manage open tabs, bookmarks, and saved
pages. You can lock secret mode using a password.

Activating secret mode

In the toolbar at the bottom of the screen, tap Tabs → ENABLE SECRET. If you are using
this feature for the first time, set whether to use a password for secret mode.

In secret mode, you cannot use some features, such as screen capture.

In secret mode, the device will change the colour of the toolbars.

Changing security settings

You can change your password or the lock method.
Tap MORE → Settings → Privacy → Secret mode security → Change password.

Deactivating secret mode

In the toolbar at the bottom of the screen, tap Tabs → DISABLE SECRET. Alternatively,
close the Internet app.

Applications

61

Email

Setting up email accounts

Set up an email account when opening Email for the first time.

1 Tap WESTECH → Email on the Apps screen.
2 Enter the email address and password, and then tap SIGN IN.

To manually register a company email account, tap MANUAL SETUP.

3 Follow the on-screen instructions to complete the setup.

To set up another email account, tap MORE → Settings → Add account.

If you have more than one email account, you can set one as the default account. Tap
MORE → Settings → MORE → Set default account. Sending emails

1 Tap to compose an email.
2 Add recipients and enter an email text.
3 Tap SEND to send the mail.

Reading emails

When Email is open, the device will automatically retrieve new emails. To manually
retrieve emails, swipe downwards on the screen. Tap an email on the screen to read
it.

If email syncing is disabled, new emails cannot be retrieved. To enable email

syncing, tap MORE → Settings → your account name, and then tap the Sync

account switch to activate it.

Camera

Introduction

Take photos and record videos using various modes and settings.

Applications

62

Basic shooting

You can take photos or record videos. View your photos and videos in

Gallery. Tap Camera on the Apps screen.

Camera etiquette

• Do not take photos or record videos of other people without their permission.

• Do not take photos or record videos where legally prohibited.

• Do not take photos or record videos in places where you may violate other people’s

privacy.

Taking photos or recording videos

1 Tap the image on the preview screen where the camera should focus.
2 Tap to take a photo or tap to record a video. To take a series of photos, tap and

hold .

• Spread two fingers apart on the screen to zoom in, and pinch to zoom out.

• To adjust the brightness of photos or videos, tap the screen. When the

adjustment bar appears, drag the adjustment bar towards or .

• To capture an image from the video while recording, tap Capture.

• To change the focus while recording a video, tap where you want to focus. To

focus on the centre of the screen, tap .

On the preview screen, swipe to the right to access the list of shooting modes. Or, swipe
to the left to view photos and videos you have captured.

Applications

63

• The preview screen may vary depending on the shooting mode and which

camera is being used.

• The camera automatically shuts off when unused.

• Make sure that the lens is clean. Otherwise, the device may not work properly in

some modes that require high resolutions.

• The front camera features a wide-angle lens. Minor distortion may occur in

wideangle photos and does not indicate device performance problems.

• The maximum recording time may reduce when you record video at high

resolution.

Launching Camera on the locked screen

To quickly take photos, launch Camera on the locked screen.

On the locked screen, drag outside the large circle.

• This feature may not be available depending on the region or service

provider.

• Some camera features are not available when you launch Camera from the locked

screen while the security features are activated.

Launching Camera quickly

Press the Home key twice quickly to launch Camera.

Some camera features are not available when you launch Camera from the

locked screen or when the screen is turned off while the security features are
activated.

HDR (High Dynamic Range)

Take photos with rich colours and reproduce details even in bright and dark areas.
To activate or deactivate HDR mode, open the preview screen and tap until you

reach the desired option.

• Auto: The device automatically activates HDR mode depending on the shooting

conditions.

• On: HDR mode is activated.

• Off: HDR mode is deactivated.

Applications

64

Locking the focus and exposure

Strong light/dark contrast and the subject being outside the auto focus area may make
it difficult to achieve an appropriate exposure. Lock the focus or exposure and then take
a photo. Tap and hold the area to focus, the AF/AE frame will appear on the area and
the focus and exposure setting will be locked. The setting remains locked even after you
take a photo.

This feature is only available in some shooting modes.

Customising shooting modes

On the preview screen, tap MODE and select a mode.
To view information for each mode, tap INFO.
To rearrange modes, tap MORE → Edit, tap and hold a mode icon, and then drag it to a

new location.
To add mode shortcuts to the Home screen, tap MORE → Add shortcut on home

screen.

Auto mode

Auto mode allows the camera to evaluate the surroundings and determine the ideal
mode for the photo.

On the preview screen, tap MODE → Auto.

Pro mode

Take photos while manually adjusting various shooting options, such as exposure value
and ISO value.

On the preview screen, tap MODE → Pro. Select options and customise the settings,
and then tap to take a photo.

• : Select a colour tone. To create your own colour tone, tap Tone 1 or Tone 2.

• : Change the focus mode. Drag the adjustment bar towards or to manually

adjust the focus. To switch to auto focus mode, drag the adjustment bar towards
Auto.

• : Select an appropriate white balance, so images have a true-to-life colour

range. You can set the colour temperature. Tap and drag your finger on the
colour temperature bar.

Applications

65

• : Select an ISO value. This controls camera light sensitivity. Low values are for

stationary or brightly lit objects. Higher values are for fast-moving or poorly lit
objects. However, higher ISO settings can result in noise in photos.

If the shutter speed is set manually, you cannot set the ISO setting to Auto.

: Adjust the shutter speed. A slow shutter speed allows more light in, so the
photo becomes brighter. This is ideal for photos of scenery or pictures taken at
night. A fast shutter speed allows less light in. This is ideal for taking photos of fast­moving subjects.

• : Change the exposure value. This determines how much light the camera’s

sensor receives. For low-light situations, use a higher exposure.
If the shutter speed is set manually, you cannot change the exposure value. The

exposure value will change and be displayed based on the shutter speed setting.

Saving the current setting as a custom setting

On the preview screen, tap Custom → Save current settings, select a name, and then
tap SAVE.

To apply the saved settings to the camera, open the preview screen, tap Custom, and
then select a name.

Separating the exposure area and the focus area

If bright light affects the contrast or the subject is outside the auto focus area, use this
feature to achieve an appropriate exposure. You can separate the exposure and focus
areas and select the exposure level you want for the subject.

This feature is only available when you set the shutter speed and the focus to

Auto in pro mode. 1 On the preview screen, tap and hold the area to focus.

The AF/AE frame will appear on the focus area.

Applications

66

2 Drag the AF/AE frame to the exposure area.

The exposure area will be separated from the focus area.

Selective focus

Use the out-of-focus effect to make specific objects stand out in a photo.

1 On the preview screen, tap MODE → Selective focus.
2 Tap the image on the preview screen where the camera should focus.

3 Tap to take a photo.
4 Tap the preview thumbnail. 5 Tap and select one of the following:

Applications

67

• Near focus: Make the subject stand out and blur the background around the

subject.

• Far focus: Blur the subject and make the background stand out around the

subject.

• Pan focus: Make the subject and its background stand out.

6 Tap SAVE.

• It is recommended that you position subjects within 50 cm of the device.

Position the subject that you want to focus on close to the device.

• When taking photos, ensure there is sufficient distance between the subject

and the background. The distance should be more than three times the
distance between the device and the subject.

• Hold the device steady and remain still while taking a photo.

• The quality of photos taken by the device can be affected in the following

conditions:

– The device or the subject is moving.
– There is strong background light, low levels of light, or you are taking

photos indoors.

– The subject or background has no pattern, or consists of a plain colour.

Panorama

Take a series of photos horizontally or vertically and then stitch them together to create
a wide scene.

On the preview screen, tap MODE → Panorama. To take a motion panorama, tap →
On to activate the motion panorama feature.

To get the best shots using panorama mode, follow these tips:

• Move the camera slowly in one direction.

• Keep the image within the frame on the camera’s viewfinder. If the preview

image is out of the guide frame or you do not move the device, the device will
automatically stop taking photos.

• Avoid taking photos of indistinct backgrounds, such as an empty sky or a plain

wall.

• When taking motion panoramas, sound will not be recorded.

Applications

68

Viewing a motion panorama

View a motion panorama. You can view the photo from different angles by tilting the
device or swiping on the screen.

1 On the preview screen, tap the preview thumbnail.
2 Tap .

The captured motion panorama will be played. 3 Tilt the device or swipe

on the screen to rotate the captured motion panorama. To save the motion

panorama as a video file, tap SAVE VIDEO.

Video Collage

Record videos to create a unique video collage. You can edit the videos and share them
with others.

1 On the preview screen, tap MODE → Video Collage. 2 Tap and

select a collage type under the screen ratio you want to use.

To record a video to view it in a slow motion video collage, select a collage type
under Slow motion collage.

You can also select a recording time for videos. Tap and select an

option.

to start recording.

After you record a video, an editing screen appears.

3

Applications

69

4 Edit the video using the available options.

• Audio: Adjust the recorded sound or insert background music.

• Slow parts: Select sections of the video in each frame to be played in slow

motion. This option appears when you select the Slow motion video option.

• End tags: Display the recording date and time on the video.

5 When you are finished editing, tap SAVE to save the video.

To share the video with friends, tap SHARE.

Live broadcast

Record and share live videos of your special moments. Invite your family and friends to
watch your live broadcast. For more information about the YouTube broadcast feature,

refer to YouTube’s help menu.

• This feature may not be available depending on the region or service

provider.

• You may incur additional charges for broadcasting via the mobile network.

Before you start

• You must sign into your Google account to use this feature.

• To automatically save your broadcast on your device when it ends, open the

preview screen, tap Settings, and then tap the Auto save switch to activate it. You
can view your videos in Gallery.

Applications

70

• You can set the device to share your broadcast link via social network services while

broadcasting. On the preview screen, tap Settings → SNS settings and tap the
switch next to social network services you want to use.

Starting your broadcast

1 On the preview screen, tap MODE → Live broadcast.
2 Read the terms and conditions, and then tap CONFIRM.
3 To change your channel’s name, tap the default name and enter a new name.

4 To set your broadcast as public or private, tap Settings → Privacy.
5 Tap Invite, and select contacts or manually enter phone numbers.

When the broadcast starts, the video link will be sent to the selected

contacts via message. The invited contacts can watch the broadcast by tapping

the link. 6 Tap to start broadcasting.

To invite more people during your broadcast, tap Share and select a sharing
method. While inviting people, your broadcast will be paused. To start recording
again, tap
RESUME.

7 Tap to end your broadcast.

The broadcast will be automatically uploaded to YouTube. To share the link with
others, tap SHARE LINK.

Applications

71

You can create a shortcut to this feature on the Home screen by tapping Settings →

Add shortcut on home screen.

Watching a live broadcast

Invited contacts can watch the broadcast by tapping the video link they received. For
public broadcasts, viewers can search for your channel name on YouTube.

Slow motion

Record a video for viewing it in slow motion. You can specify sections of your videos to
be played in slow motion.

1 On the preview screen, tap MODE → Slow motion.
2 Tap to start recording.

3 When you are finished recording, tap to stop.
4 On the preview screen, tap the preview thumbnail.

5 Tap .

The video will start playing with a randomly set slow motion section.

Editing slow motion sections

1 On the preview screen, tap the preview thumbnail.
2 Tap .

The video will start playing with a randomly set slow motion section.

3 Tap to pause playback.
4 Drag the start bracket and the end bracket to the desired points to set the duration

of the video to be played. 5 Drag to select the area of the video to be played in

slow motion.

Applications

72

To set a slow motion section more precisely, tap and hold , and then drag your
finger to the left or right to move through the section frame by frame.

6 Tap the slow motion section and use the following options:

• : Divide the section into two parts.

• : Delete one of the divided section.

• 1/8: Change the playback speed of the selected section.

7 Tap to preview the video.
8 Tap EXPORT to save the video.

Virtual shot

Take a series of photos while circling a subject to create a view of the subject from multi
angles. You can view the subject from different angles by dragging your finger left or
right on the photo.

1 On the preview screen, tap MODE → Virtual shot.
2 Place a subject in the centre of the preview screen and tap . 3 Move the

device around the subject slowly in one direction to take more photos. When the

arrow becomes completely yellow or when you stop circling the subject, the

device will automatically stop taking photos.

Applications

73

Viewing virtual shot photos

1 On the preview screen, tap the preview thumbnail.
2 Tap .
3 Drag your finger left or right on the screen, or slowly swivel the device left or right

to view the subject from different angles.

Food

Take photos of food with more vibrant colours.

1 On the preview screen, tap MODE → Food. 2 Tap the screen

and drag the circular frame over the area to highlight.

The area outside the circular frame will be blurred.

To resize the circular frame, drag a corner of the frame.

Applications

74

3 Tap and drag the adjustment bar to adjust the colour tone.
4 Tap to take a photo.

Hyperlapse

Record scenes, such as passing people or cars, and view them as fast-motion videos. The
frame rate is automatically adjusted to record smoother, less shaky fast-motion videos
while walking, travelling by vehicle, and more.

In this mode, auto focusing will not operate.

1 On the preview screen, tap MODE → Hyperlapse.
2 Tap and select a frame rate option.

If you set the frame rate to Auto, the device will automatically adjust the frame rate
according to the changing rate of the scene.

3 Tap to start recording.
4 Tap to finish recording.
5 On the preview screen, tap the preview thumbnail and tap to view the video.

Selfie

Take self-portraits with the front camera. You can preview various beauty effects on the
screen.

1 On the preview screen, tap to switch to the front camera for self-portraits.
2 Tap MODE → Selfie.

3 Face the front camera lens.

Applications

75

4 When the device detects your face, tap the sensor on the back of the device to take

a photo of yourself.
Alternatively, show your palm to the front camera. After recognising your palm, a

countdown timer will appear. When the time is up, the device will take a photo.
To use various shooting options for the front camera, tap → Shooting methods

(front), and then tap the switches to activate them.

Using the selfie flash

When taking self-portraits with the front camera in low-light situations, the touchscreen
can serve as a flash.

On the preview screen, tap repeatedly until you reach On. When you take a photo,
the touchscreen will flash.

Applying beauty effects

You can apply the spotlight effect or modify facial features, such as your skin tone or
face shape, before taking self-portraits.

This feature is available only in Selfie mode.

1 On the preview screen, tap .
2 Select the options below to apply beauty effects to your face on the preview screen

and take a photo of yourself.

• Skin tone: Make your skin appear brighter and clearer.

Applications

76

• Spotlight: Adjust the brightness and location of the spotlight. To set the location

of the spot to highlight or to adjust the brightness, drag the adjustment bar
towards the desired level.

• Slim Face: Adjust the face shape and make your face appear slimmer.

• Large eyes: Make your eyes appear bigger.

• Shape correction: When your face is at the edges of the preview screen, it will

appear distorted. Enable this option to correct your face shape. After shape
correction, the background may appear slightly distorted.

Wide selfie

Take a wide self-portrait to include more people in the photo and avoid leaving people

out. 1 On the preview screen, tap to switch to the front camera for self-portraits.

2 Tap MODE → Wide selfie.
3 Face the front camera lens.

4 When the device detects your face, tap the sensor on the back of the device to take

a photo of yourself.
Alternatively, show your palm to the front camera. After recognising your palm, a

countdown timer will appear. When the time is up, the device will take a photo.
To use various shooting options for the front camera, tap → Shooting

methods (front), and then tap the switches to activate them. 5 Slowly swivel the

device left and then right or vice versa to take a wide self-portrait. The device will
take additional photos when the white frame moves to each end of the viewfinder
window.

Applications

77

• Make sure to keep the white frame inside the viewfinder window.

• The subjects should remain still while taking wide self-portraits.

• The top and bottom parts of the image displayed on the preview screen may be cut

out of the photo depending on the shooting conditions.

Downloading modes

Download more shooting modes from Galaxy Apps.
On the preview screen, tap MODE → DOWNLOAD.

Some downloaded shooting modes do not have access to every feature.

Camera settings

Quick settings

On the preview screen, use the following quick settings.

The available options may vary depending on the shooting mode and which
camera is being used.

: Select a filter effect to use when taking photos or recording videos. To set

whether to display certain effects on the list or rearrange the order of effects, tap
Manager. To download more effects, tap Download.

• : Use this to take photos with rich colours and reproduce details, even in bright

and dark areas.

Applications

78

• : Change the focus area. focuses on several areas within the frame. Multiple

rectangles will appear to indicate the focused areas. focuses on the centre
within the frame.

• : Select a metering method. This determines how light values are calculated.

Centreweighted uses the light in the centre portion of the shot to calculate the
exposure of the shot. Spot uses the light in a concentrated centre area of the shot to
calculate the exposure of the shot. Matrix averages the entire scene.

• : Create motion panorama photos that can be played as videos. You can view

the motion panorama photos at different angles by tilting the device or swiping on
the screen.

• : Select a video recording time.

• : Change the video collage type or screen ratio. You can also record video collages

featuring the slow motion effect.

• : Select a frame rate.

• : Select the length of the delay before the camera automatically takes a photo.

• : Activate or deactivate the flash.

: Select a resolution for photos. Using a higher resolution will result in

higher quality photos, but they will take up more memory.
The resolution of a photo may be affected by lighting conditions when taking

photos with the front camera.

: Adjust the colour tone.
: Focus on a subject inside the circular frame and blur the image outside the

frame.

Camera settings

On the preview screen, tap .

The available options may vary depending on the shooting mode and which
camera is being used.

• Video size (rear) / Video size (front): Select a resolution for videos. Using a higher

resolution will result in higher quality videos, but they will take up more memory.

• Motion photo: Set the device to take a video clip for a few seconds before tapping

. This allows you to capture a moment you might have missed. To view the video,

Applications

79

tap the preview thumbnail and tap . To capture a still image from the video clip,
tap the screen to stop playback and tap CAPTURE.

• Save pictures as previewed: Invert the image to create a mirror-image of the

original scene, when taking photos with the front camera.

• Tracking AF: Set the device to track and automatically focus on a selected subject.

When you select a subject, the device will focus on the subject even if the subject is

moving or you change the camera’s position.

• When this feature is activated, you cannot use the Video stabilisation

feature.

• Tracking a subject may fail in the following conditions:
– The subject is too big or too small.
– The subject moves excessively.
– The subject is backlit or you are shooting in a dark place.
– Colours or patterns on the subject and the background are the same.
– The subject includes horizontal patterns, such as blinds.
– The camera shakes excessively.
– The video resolution is high.

• Video stabilisation: Activate anti-shake to reduce or eliminate blurry image

resulting from camera shake while recording a video.

• Grid lines: Display viewfinder guides to help composition when selecting subjects.

• Location tags: Attach a GPS location tag to the photo.

• GPS signal strength may decrease in locations where the signal is

obstructed, such as between buildings or in low-lying areas, or in poor weather

conditions.

• Your location may appear on your photos when you upload them to the Internet. To

avoid this, deactivate the location tag setting.

• Shooting methods (rear) / Shooting methods (front): Select shooting options to

use.

• Review pictures: Set the device to show photos after capturing them.

• Quick launch: Set the device to launch the camera by pressing the Home key twice

quickly.

Applications

80

• Save as RAW file: Set the device to save photos as uncompressed RAW files (DNG

file format) in pro mode. RAW files retain all of a photo’s data for the best image

quality, but they will take up more memory. To view RAW files, an image viewer app
is required.

• When using this feature, each photo is saved in two formats, DNG and JPG.

Burst shot photos are only saved as JPG files.

• You can view JPG files in Gallery. DNG files can be viewed or deleted in the DCIM →

Camera folder.

• Storage location: Select the memory location for storage.

• Volume keys function: Set the device to use the Volume key to control the shutter

or zoom function.

• Reset settings: Reset the camera settings.

Gallery

Introduction

View and manage photos and videos stored in the device.

Viewing images

1 Tap Gallery on the Apps screen.
2 Select an image.

Applications

81

Move to the previous screen.Access additional
options.

Add the image to

favourites.

Share the image with others.Modify the image.

Automatically adjust the image.Delete the image.

To hide or show the menus, tap the screen.

Viewing videos

options.

1

2

Applications

82

Rewind or

playback.

fast-forward by

Drag your finger up or down on the left side of the playback screen to adjust the
brightness, or drag your finger up or down on the right side of the playback screen to
adjust the volume. To rewind or fast-forward, swipe to the left or right on the playback
screen.

Deleting images or videos

Deleting an image or a video

Select an image or a video and tap Delete at the bottom of the screen.

Deleting multiple images and videos

1 On the main Gallery screen, tap and hold an image or a video to delete.
2 Tick the images or videos to delete.

3 Tap DELETE.

Sharing images or videos

Select an image or a video, tap Share at the bottom of the screen, and then select a
sharing method.

Sharing event albums

View photos and videos by time and location. You can share event albums with your
contacts.

Applications

83

1 On the main Gallery screen, tap

→ Event.

You can view photos and videos sorted by event.

To manually create event albums, tap and select photos or videos to add.

2 Select an event album to share.

3 Tap and select contacts.

When your contacts accept the share request, the event album will be shared and
more photos and videos can be added to the event album by your contacts.

•To use this feature, your phone number must be verified.

• You may incur additional charges when sharing files via the mobile network.

• If the recipients have not verified their phone numbers or if their devices do

not support the feature, a link to the files will be sent to them via text
message. Link recipients may not be able to use some features. The link will
expire after a certain period.

Gear

WESTECH S7 is compatible with some ‘Gear’ devices. You will need the Gear app that
allows you to manage your Gear wearable device. When you connect your device to the
Gear, you can customise the Gear’s settings and apps.

On the Apps screen, tap WESTECH Gear.
Tap CONNECT TO GEAR to connect your device to the Gear. Follow the on-screen

instructions to finish the setup. Refer to the Gear’s user manual for more information

about how to connect and use the Gear with your device.

Game Launcher

Introduction

Game Launcher gathers your games downloaded from Play Store and Galaxy Apps into
one place for easy access. You can set the device to game mode to play games more
easily.

Applications

84

Access the Game Launcher
settings.

A list of downloaded

games

Reduce the battery usage

for playing
games.

Mute and hide all notifications Turn on or off

the Game

Tools during games.icon.

View a list of the most popular View game videos

from YouTube. games for Galaxy users.

Using Game Launcher

1 On the Apps screen, tap Settings →

Advanced features → Games → Game
Launcher and tap the switch to activate

it.
Game Launcher will be added to the Home screen and the Apps screen.

When you deactivate the feature, Game Launcher will be removed from the
Home screen and the Apps screen.

2 On the Apps screen, tap Game Launcher.

3 Tap a game from the games list.

Games downloaded from Play Store and Galaxy Apps will be automatically
shown on the game launcher screen. If you cannot see your games, tap Tap here

to add unlisted games.

Removing a game from Game Launcher

Tap and hold a game and drag it to Remove at the top of the screen.

Applications

85

Activating game power saving mode

When you activate game power saving mode, the device will lower games’ resolution

and frame rate to reduce battery consumption.
On the Apps screen, tap Game Launcher → Save power during game. Select one of the

following options:

• Off: Power saving mode is not used.

• Save power: Decrease battery power consumption by lowering the resolution and

frame rate.

• Save maximum power: Dramatically decrease the battery power consumption by

lowering the resolution and frame rate.

Battery power efficiency may vary by game.

Using Game Tools

You can set the Game Tools icon to be displayed as a floating icon on game screens.
On the Apps screen, tap Settings → Advanced features → Games → Game Tools and
tap the switch to activate it.

While playing a game, tap to display the game tools.
To move the icon, tap and drag it to a new location.

To remove the icon from the current game screen, tap and hold and drag it to
Remove at the top of the screen.

Mute notification sounds and
display only notifications for
incoming calls and emergency
alerts.

Lock the Recents and Back
keys.

Minimise the game screen.

Capture screenshots.

Record your game session.

Applications

86

Access the Game Tools
settings.

Blocking notifications during games

Tap → to mute notification sounds and display only notifications for incoming
calls and emergency alerts, so that you can enjoy your games without being disturbed. If
you receive an incoming call, a small notification will appear at the top of the screen.

S Planner

Introduction

Manage your schedule by entering upcoming events or tasks in your planner.

Creating events

1 Tap S Planner on the Apps screen.
2 Tap or double-tap a date.

If the date already has saved events or tasks in it, tap the date and tap

.

3 Enter event details.

Applications

87

4 Tap SAVE to save the

event.

Select a calendar to use or
sync with.

Attach a map showing the
location of the event.

Creating tasks

1 Tap S Planner on the Apps screen.
2 Tap → Tasks.
3 Enter task details and tap TODAY or TOMORROW to set a due date.

To add more details, tap .

4 Tap SAVE to save the task.

Syncing events and tasks with your accounts

On the Apps screen, tap Settings → Accounts, select an account service, and then tap
the Sync Calendar switch to sync events and tasks with the account.

To add accounts to sync with, open the Apps screen and tap S Planner → MORE →
Manage calendars → Add account. Then, select an account to sync with and sign in.
When an account is added, it will appear on the list.

S Health

Introduction

S Health helps you manage your wellness and fitness. Set fitness goals, check your
progress, and keep track of your overall wellness and fitness.

Starting S Health

When running this app for the first time or restart it after performing a data reset,
follow the on-screen instructions to complete the setup.

Applications

88

1 Tap WESTECH → S Health on the Apps screen.
2 Follow the on-screen instructions to complete the setup.

Using S Health

You can view the key information from S Health menus and trackers to monitor your
wellness and fitness.

Tap WESTECH → S Health on the Apps screen.

Goals and programmes

To add trackers, goals, or programmes to the S Health screen, tap MORE → Manage
items, and then select items under the TRACKERS, GOALS, or PROGRAMMES tab.

• GOALS: Set your daily fitness goals and view your progress.

• PROGRAMMES: Use customisable exercise programmes.

• TRACKERS: Monitor your activities, food intake, and body measurements.

To access more information about S Health functions, tap MORE → Settings →

Help.

Applications

89

Additional information

• S Health is intended for fitness and wellness purposes only and is not intended for

use in the diagnosis of disease or other conditions, or in the cure, mitigation,
treatment, or prevention of disease.

• The available functions, features and addable applications for S Health may vary

from country to country due to different local laws and regulations. You should
check the features and applications available in your specific region before use.

• S Health applications and its service can be changed or discontinued without prior

notice.

• The purpose for data collection is limited to providing the service that you have

requested, including providing additional information to enhance your wellness,
sync data, data analysis and statistics or to develop and provide better services. (But
if you sign in to your WESTECH account from S Health, your data may be saved on
the server for data backup purposes.) Personal information may be stored until the
completion of such purposes. You can delete personal data stored by S Health by
using the Reset data option in the Settings menu. To delete any data you have
shared with social networks or transferred to storage devices, you must delete
them separately.

• You may share and/or sync your data with additional WESTECH services or

compatible third party services that you select, as well as with any of your other
connected devices. Access to S Health information by such additional services or
third party devices will only be permitted with your express approval.

• You assume full responsibility for the inappropriate use of data shared on social

networks or transmitted to others. Use caution when sharing your personal data
with others.

• If the device is connected to measuring devices, verify the communication protocol

to confirm proper operation. If you use a wireless connection, such as Bluetooth,
the device may be affected by electronic interference from other devices. Avoid
using the device near other devices that transmit radio waves.

• Please read Terms and Conditions and Privacy Policy of S Health carefully before

using it.

Applications

90

S Voice

Introduction

Perform various tasks simply by speaking.

Setting a wake-up command

You can launch S Voice using your own wake-up command.
When launching S Voice for the first time, tap START and set your own wake-up

command.
To change the wake-up command, open the Apps screen and tap S Voice. Then, tap

→ Voice wake-up → Change wake-up command → START, and then follow the on-
screen instructions.

To set the device to launch S Voice using the wake-up command while the device is
locked, tap and tap the Wake up in secured lock switch to activate it.

Using S Voice

1 Say the preset wake-up command.

Alternatively, on the Apps screen, tap WESTECH → S Voice.
When S Voice is launched, the device begins voice recognition.

This app may not be available depending on the region or service provider.

S Voice settings View examples of voice

commands.

2 Say a voice command.

If the device recognises the command, the device will perform the corresponding
action. To repeat a voice command or say a different command, tap or say the
preset wake-up command.

Applications

91

This app will close automatically if the device is not used for a specified period.

Tips for better voice recognition

• Speak clearly.

• Speak in quiet places.

• Do not use offensive or slang words.

• Avoid speaking in dialectal accents.

The device may not recognise your commands or may perform unwanted commands
depending on your surroundings or how you speak.

Setting the language

On the Apps screen, tap WESTECH → S Voice → → Language, and then select a
language.

The selected language is applied to S Voice only, not to the language displayed on
the device.

Voice Recorder

Introduction

Use different recording modes for various situations, such as in an interview. The device
can convert your voice to text and distinguish between sound sources.

Making voice recordings

1 On the Apps screen, tap WESTECH → Voice

Recorder. 2 Tap to start recording. Speak

into the microphone.

Tap to pause recording.

Applications

92

While making a voice recording, tap BOOKMARK to insert a bookmark.

Change the recording mode.

3 Tap SAVE to finish recording.

Changing the recording mode

On the Apps screen, tap WESTECH → Voice Recorder.
Select a mode from the top of the voice recorder screen.

• STANDARD: This is the normal recording mode.

• INTERVIEW: The microphone is sensitive to sounds from two directions. In this

mode, both the top and the bottom of the device pick up equal amounts of sound.

• VOICE MEMO: The device records your voice and simultaneously converts it to on-

screen text. For best results, keep the device near your mouth and speak loudly and
clearly in a quiet place.

If the voice memo system language does not match the language you are
speaking, the device will not recognise your voice. Before using this feature, tap

the current language to set the voice memo system language.

Applications

93

Playing selected voice recordings

When you review interview recordings, you can mute or unmute certain sound sources
in the recording.

1 On the Apps screen, tap WESTECH → Voice Recorder.
2 Tap Recordings and select a voice recording made in interview mode.
3 To mute certain sound sources, tap for the corresponding direction that sound is

to be muted.
The icon will change

to

Muted sound

source Unmuted

sound source

My Files

Access and manage various files stored in the device or in other locations, such as cloud
storage services.

On the Apps screen, tap WESTECH → My Files.
View files by category or view files stored in the device or a cloud storage service.
To check the status of used and available memory, tap STORAGE
USAGE. To search for files or folders, tap SEARCH.

Applications

94

Memo

Create memos and organise them by category.
On the Apps screen, tap Memo.

Composing memos

Tap on the memos list and enter a memo. While composing a memo, use the
following options:

• Category: Create or set a category.

• Tasks: Add tick boxes at the beginning of each row to create a list of tasks.

• Image: Insert images.

• Drawing: Write or draw memos to insert. You can select pen thickness and colour.

• Voice: Make a voice recording to insert.

To save the memo, tap SAVE.
To edit a memo, tap a memo, and then tap the content of the memo.

Searching for memos

Tap SEARCH on the memos list and enter a keyword to search for memos that include
the keyword.

Clock

Introduction

Set alarms, check the current time in many cities around the world, time an event, or
set a specific duration.

Alarm

On the Apps screen, tap Clock → Alarm.

Setting alarms

Set an alarm time and tap SAVE.
To open the keypad to enter an alarm time, tap the time input field.

Applications

95

To set an alarm with various alarm options, tap OPTIONS, set alarm options, and then
tap SAVE.

To activate or deactivate alarms, tap the clock icon next to the alarm in the alarms list.

Stopping alarms

Tap DISMISS to stop an alarm. If you have previously enabled the snooze option, tap
SNOOZE to repeat the alarm after a specified length of time.

Deleting alarms

Tap on an alarm in the list of alarms.

World clock

On the Apps screen, tap Clock → World clock.

Creating clocks

Enter a city name or select a city from the globe, and then tap .

Deleting clocks

Tap on a clock.

Stopwatch

1 On the Apps screen, tap Clock → Stopwatch.
2 Tap START to time an event.

To record lap times while timing an event, tap LAP.

3 Tap STOP to stop timing.

To restart the timing, tap

RESUME. To clear lap times, tap
RESET.

Applications

96

Timer

1 On the Apps screen, tap Clock → Timer.
2 Set the duration, and then tap START.

To open the keypad to enter the duration, tap the duration input field.

3 Tap DISMISS when the timer goes off.

Calculator

Perform simple or complex calculations.
Tap Calculator on the Apps screen.
Rotate the device to landscape orientation to display the scientific calculator. If Auto

rotate is disabled, tap to display the scientific calculator.
To see the calculation history, tap HISTORY. To close the calculation history panel, tap

KEYPAD.

To clear the history, tap HISTORY → CLEAR HISTORY.

Google apps

Google provides entertainment, social network, and business apps. You may require a
Google account to access some apps. Refer to Accounts for more information. To view
more app information, access each app’s help menu.

Some apps may not be available or may be labelled differently depending on the
region or service provider.

Chrome

Search for information and browse webpages.

Gmail

Send or receive emails via the Google Mail service.

Applications

97

Maps

Find your location on the map, search for locations, and view location information for
various places.

Play Music

Discover, listen to, and share music on your device. You can upload music collections
stored on your device to the cloud and access them later.

Play Movies & TV

Download videos to watch from Play Store.

Drive

Store your content on the cloud, access it from anywhere, and share it with others.

YouTube

Watch or create videos and share them with others.

Photos

Search for, manage, and edit all your photos and videos from various sources in one
place.

Hangouts

Chat with your friends individually or in groups and use images, emoticons, and video
calls while you are chatting.

Google

Search quickly for items on the Internet or your device.

98

Settings

Introduction

Customise settings for functions and apps. You can make your device more personalised
by configuring various setting options.

On the Apps screen, tap Settings.
To search for settings by entering keywords, tap SEARCH.
To edit the list of frequently used settings, tap EDIT. Then, tick items to add or deselect

items to remove.

Wi-Fi

Connecting to a Wi-Fi network

Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or
other network devices.

• Your device uses a non-harmonised frequency and is intended for use in all

European countries. The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors.

• Turn off Wi-Fi to save the battery when not in use.

1 On the Settings screen, tap Wi-Fi, and then tap the switch to activate

it. 2 Select a network from the Wi-Fi networks list.

Networks that require a password appear with a lock icon.

3 Tap CONNECT.

• Once the device connects to a Wi-Fi network, the device will reconnect to that

network each time it is available without requiring a password. To prevent the
device connecting to the network automatically, select it from the list of
networks and tap FORGET.

Settings

99

• If you cannot connect to a Wi-Fi network properly, restart your device’s Wi-Fi

feature or the wireless router.

Wi-Fi Direct

Wi-Fi Direct connects devices directly via a Wi-Fi network without requiring an access
point.

1 On the Settings screen, tap Wi-Fi, and then tap the switch to activate it.
2 Tap Wi-Fi Direct.

The detected devices are listed.

If the device you want to connect to is not in the list, request that the device turns

on its Wi-Fi Direct feature. 3 Select a device to connect to.

The devices will be connected when the other device accepts the Wi-Fi Direct
connections request.

Sending and receiving data

You can share data, such as contacts or media files, with other devices. The following
actions are an example of sending an image to another device.

1 Tap Gallery on the Apps screen.
2 Select an image.

3 Tap Share → Wi-Fi Direct and select a device to transfer the image to. 4 Accept

the Wi-Fi Direct connection request on the other device.

If the devices are already connected, the image will be sent to the other device

without the connection request procedure. Ending the device connection

1 Tap Wi-Fi on the Settings screen.
2 Tap Wi-Fi Direct.

The device displays the connected devices in the list.
