West Control Solutions 6500 Data Sheet

Brand

INSTRUMENTS

• Large Three Digit Single Display.

• A special tuning algorithm developed for
electric heater applications, which com­bines West’s Pre-tune and Self-tune
algorithms.

• Continuous indication of both process and
alarm status via LEDs.

• Security via a setpoint lock.

• Optional alarm output.

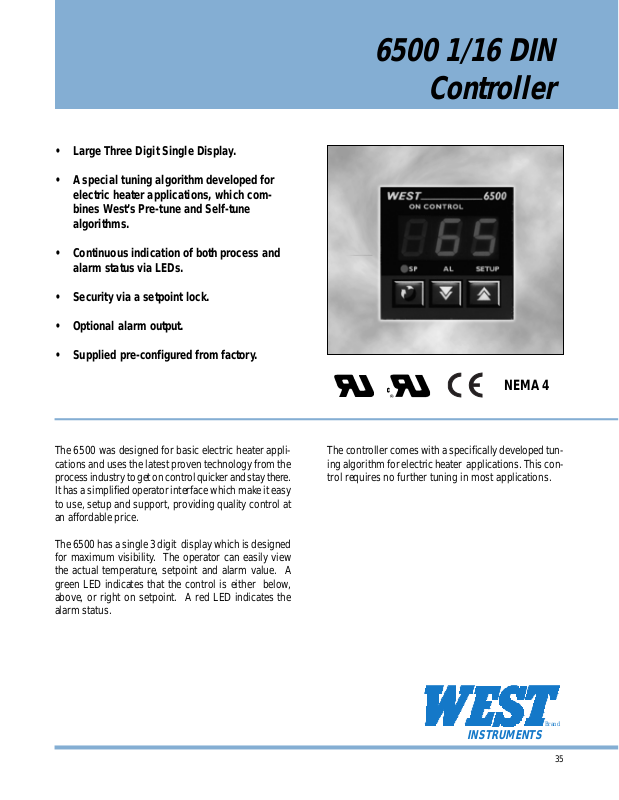

6500 1/16 DIN

Controller

• Supplied pre-configured from factory.

The 6500 was designed for basic electric heater appli­cations and uses the latest proven technology from the
process industry to get on control quicker and stay there.
It has a simplified operator interface which make it easy
to use, setup and support, providing quality control at
an affordable price.

The 6500 has a single 3 digit display which is designed
for maximum visibility. The operator can easily view
the actual temperature, setpoint and alarm value. A
green LED indicates that the control is either below,
above, or right on setpoint. A red LED indicates the
alarm status.

NEMA 4

The controller comes with a specifically developed tun­ing algorithm for electric heater applications. This con­trol requires no further tuning in most applications.

35
