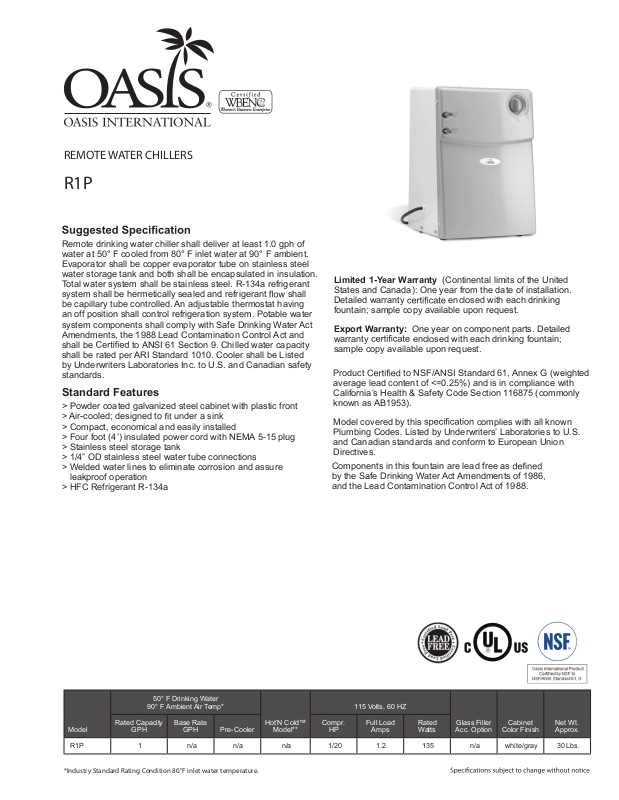

REMOTE WATER CHILLERS
R1P
Remote drinking water chiller shall deliver at least 1.0 gph of
water at 50° F cooled from 80° F inlet water at 90° F ambient.
Evaporator shall be copper evaporator tube on stainless steel
water storage tank and both shall be encapsulated in insulation.
Total water system shall be stainless steel. R-134a refrigerant
system shall be hermetically sealed and refrigerant
be capillary tube controlled. An adjustable thermostat having
an off position shall control refrigeration system. Potable water
system components shall comply with Safe Drinking Water Act
Amendments, the 1988 Lead Contamination Control Act and
shall be
to ANSI 61 Section 9. Chilled water capacity
shall be rated per ARI Standard 1010. Cooler shall be Listed
by Underwriters Laboratories Inc. to U.S. and Canadian safety
standards.
Standard Features
> Powder coated galvanized steel cabinet with plastic front
> Air-cooled; designed to
> Compact, economical and easily installed
> Four foot (4’) insulated power cord with NEMA 5-15 plug
> Stainless steel storage tank
> 1/4” OD stainless steel water tube connections
> Welded water lines to eliminate corrosion and assure
leakproof operation
> HFC Refrigerant R-134a
under a sink
shall
Limited 1-Year Warranty (Continental limits of the United
States and Canada): One year from the date of installation.
Detailed warranty
enclosed with each drinking
fountain; sample copy available upon request.
Export Warranty: One year on component parts. Detailed
warranty
enclosed with each drinking fountain;
sample copy available upon request.
Product
to NSF/ANSI Standard 61, Annex G (weighted
average lead content of <=0.25%) and is in compliance with
California’s Health & Safety Code Section 116875 (commonly
known as AB1953).
Model covered by this
complies with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to U.S.
and Canadian standards and conform to European Union
Directives.
Components in this fountain are lead free as
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.
50° F Drinking Water
90° F Ambient Air Temp*
Model
R1P 1 n/a n/a n/a 1/20 1.2 135 n/a white/gray 30 Lbs.
*Industry Standard Rating Condition 80° F inlet water temperature.
Rated Capacity
GPH
Base Rate
GPH Pre-Cooler
Hot’N Cold™
Model**
Compr.
HP
115 Volts, 60 HZ
Full Load
Amps
Rated
Watts
Glass Filler
Acc. Option
Cabinet
Color Finish
Net Wt.
Approx.
Page 2
Form 4061 | Rev. 06/11
Oasis International • 222 East Campus View Blvd • Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
OASIS
www.oasiscoolers.com
OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International
®
REMOTE WATER CHILLER R1P
