Page 1

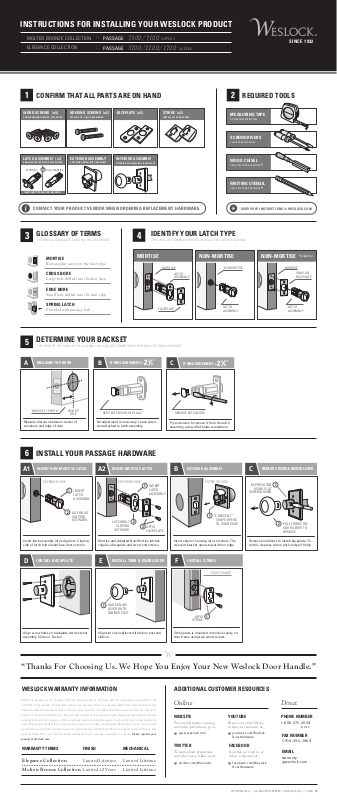

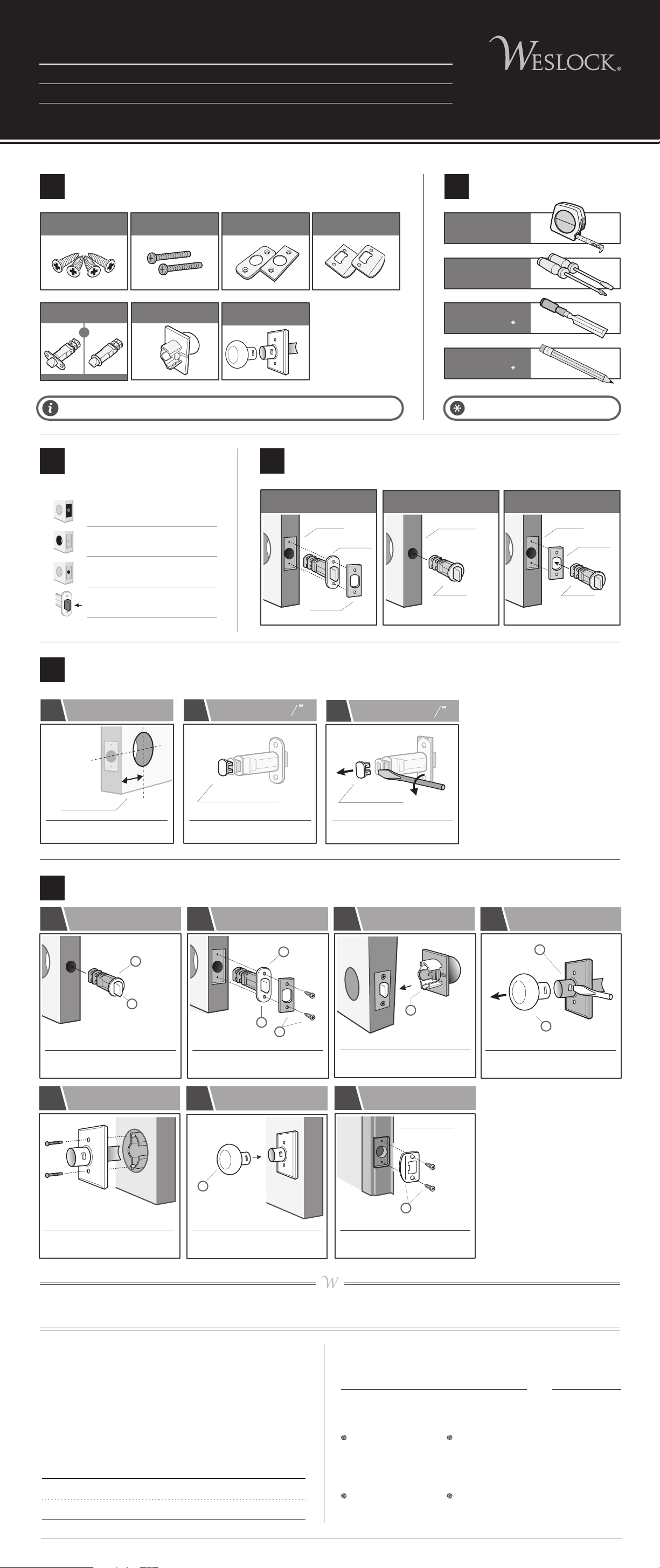

INSTRUCTIONS FOR INSTALLING YOUR WESLOCK PRODUCT

MOLTEN BRONZE COLLECTION

ELEGANCE COLLECTION

CONFIRM THAT ALL PARTS ARE ON HAND REQUIRED TOOLS

WOOD SCREWS (x4)

FOR MOUNTING STRIKE & FACEPLATE

LATCH ASSEMBLY (x1)

ENGAGES STRIKE WITH DOOR CLOSED

MORTISE NON-MORTISEOR

ONLY ONE TYPE WILL BE INCLUDED.

ATTACH EXT. & INT. ASSEMBLIES

EXTERIOR ASSEMBLY

EXTERIOR KNOB/LEVER ASSEMBLY

PASSAGE

7300/7100 series

3700/2700/1700 series

FACEPLATE (x2)HOUSING SCREWS (x2)

INTERIOR ASSEMBLY

INTERIOR KNOB/LEVER & BACKPLATE

STRIKE (x2)

INSTALL ON DOOR FRAME

MEASURING TAPE

OR OTHER MEASURING TOOL

SCREWDRIVERS

PHILLIPS AND FLAT BLADE

WOOD CHISEL

ONLY IF PREPPING A NEW DOOR

WRITING UTENSIL

ONLY IF PREPPING A NEW DOOR

SINCE 1932

CONTACT YOUR PRODUCT VENDOR WHEN ORDERING REPLACEMENT HARDWARE.

GLOSSARY OF TERMS

TECHNICAL LANGUAGE USED IN THIS DOCUMENT

IDENTIFY YOUR LATCH TYPE

THIS WILL DETERMINE HOW YOU INSTALL THE LATCH ASSEMBLY

MORTISE

Rectangular cavity on the door edge.

CROSS BORE

Large hole drilled into the door face.

MORTISE

LATCH ASSEMBLY

EDGE BORE

Small hole drilled into the door edge.

SPRING LATCH

Provided with passage lock.

DETERMINE YOUR BACKSET

THE LENGTH OF YOUR LATCH ASSEMBLY WILL BE DETERMINED BY YOUR BACKSET MEASUREMENT.

MEASURE THE DOOR

IF MEASUREMENT =

FACEPLATE

IF MEASUREMENT =

NO MORTISE

LATCH ASSEMBLY

DOOR PREP INSTRUCTIONS @ WESLOCK.COM

MORTISE

LATCH ASSEMBLY

*Adapted

SNAP-ON FACEPLATE

NON-MORTISENON-MORTISEMORTISE

BACKSET LENGTH

Measure distance between center of crossbore and edge of door.

INSTALL YOUR PASSAGE HARDWARE

INSERT NON-MORTISE LATCH INSERT MORTISE LATCH

EXTERIOR SIDE EXTERIOR SIDE

Insert latch assembly into edge bore. Sloping side of latch bolt should face door exterior .

INSTALL BACKPLATE

CENTER

LINE

INSERT LATCH ASSEMBLY

LATCHBOLT

SLOPING OUTWARD

KEEP EXTENSION IN PLACE

No adjustment is necessary. Leave extension attached to latch assembly.

A2A1

LATCHBOLT

SLOPING

OUTWARD

Mortise and Adapted Non-Mortise latches require a faceplate and two wood screws.

INSTALL TRIM & KNOB/LEVER

REMOVE EXTENSION

Pry extension to remove it from the latch assembly, using a flat blade screwdriver.

EXTERIOR ASSEMBLY

INSERT LATCH ASSEMBLY

AFFIX

FACEPLATE

Insert exterior housing into crossbore. The crescent bracket opens toward door edge.

INSTALL STRIKE

EXTERIOR SIDE

“CRESCENT” SHAPE OPENS TO DOOR EDGE

REMOVE INSIDE KNOB/LEVER

DEPRESS TAB

USING FLAT

SCREWDRIVER

Remove knob/lever to install backplate. To do this, depress tab on post and pull firmly.

PULL FIRMLY ON

KNOB/LEVER TO REMOVE

DOOR FRAME

SLIDE KNOB/

LEVER ONTO

Align screw holes on backplate with exterior assembly. Slide on. Fasten.

TABBED POST

Align slot on knob/lever with tab on post and slide on.

Strike plate is mounted in mortise cavity on door frame using two wood screws.

AFFIX

STRIKE

“Thanks For Choosing Us. We Hope You Enjoy Your New Weslock Door Handle.”

WESLOCK WARRANTY INFORMATION

WESLOCK warrants to the purchaser that the products shall be free from defects in material workmanship for the

LIFETIME of the product. Provided the product was purchased from an authorized WESLOCK dealer, Weslock's sole

obligation under this warranty shall be to repair or replace product which WESLOCK determines to be defective. After such

product is returned to WESLOCK by the purchaser with proof of purchase and with shipping charges prepaid, will this

warranty be honored. Homeowner - if the product was installed as original equipment on a new home, you must provide the

name of the builder, the date the home was built and your move-in date. If a mechanical defect has occurred, it is your right

by this warranty to contact Customer Service in Tulsa, Oklahoma at (800) 575-2658 to arrange the return of the lock. This

warranty DOES NOT cover products which malfunction due to improper installation or misuse. Please register your

product at Weslock.com.

WARRANTY TERMS MECHANICAL FINISH

Elegance Collection

Molten Bronze Collection

Limited Lifetime

Limited 10 Years

Limited Lifetime

ADDITIONAL CUSTOMER RESOURCES

Online Direct

WEBSITE

For our full product catalog, and video instructions, go to;

www.weslock.com

To learn about promotions, and other news, follow us at;

twitter.com/Weslock1

YOUTUBE

Browse our video library, or leave us comments at;

youtube.com/Weslock DoorHardware

FACEBOOKTWITTER

See what we’re up to, or ask us a question at;

facebook.com/Weslock DoorHardware

PHONE NUMBER

1-800-575-2658

FAX NUMBER

1-918-294-3869

warranty @weslock.com
