Model No. WLEVEX71417.0
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
USER’S MANUAL
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
iconeurope.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
MAINTENANCE AND TROUBLESHOOTING ....................................................13
EXERCISE GUIDELINES ....................................................................14
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WESLO is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervision or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a commercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
8. Inspect and properly tighten all parts
each time the exercise bike is used. Replace
any worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 242 lbs.
(110 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the new WESLO® X BIKE
exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The X BIKE exercise bike provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
Handlebar
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Resistance Knob
Seat
Seat Knob
Pedal/Strap
Transport Wheel
Length: 2 ft. 8 in. (79 cm)
Width: 1 ft. 7 in. (48 cm)
Weight: 33 lbs. (15 kg)
4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has been preassembled. Extra parts may be
included.
M4 x 12mm
Screw (20)–4
M8 Curved Washer
(4)–6
M8 x 35mm Screw
(16)–2
M8 Acorn Nut
(5)–4
M8 x 50mm Carriage Bolt
(3)–4
5
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to iconsupport.eu on your computer and
register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2. Attach the Rear Stabilizer (1) to the Handlebar
Frame (2) with two M8 x 50mm Carriage Bolts
(3), two M8 Curved Washers (4), and two M8
Acorn Nuts (5).
2
2
5
4
1
3
5
4
6
3. Orient the Front Stabilizer (6) so that the Wheels
(7) are in the locations shown.
Attach the Front Stabilizer (6) to the Seat Frame
(8) with two M8 x 50mm Carriage Bolts (3), two
M8 Curved Washers (4), and two M8 Acorn
Nuts (5).
3
8
4. Attach the Seat (9) to the Seat Post (10)
with three M8 Locknuts (11) and three M8
Washers (12). Note: The Locknuts and Washers
may be preattached to the Seat.
5
4
4
9
10
12
11
7
7
6
3
12
11
5. Insert the Seat Post (10) into the Seat Frame (8).
Next, insert the Seat Knob (14) into the Seat
Frame (8) and into one of the adjustment holes
in the Seat Post (10); make sure that the Seat
Knob is in one of the adjustment holes in the
Seat Post. Then, tighten the Seat Knob.
5
10
8
14
7
6. Attach the Handlebar (15) to the Handlebar
Frame (2) with two M8 x 35mm Screws (16) and
two M8 Curved Washers (4).
6
16
7. The Console (18) can use two AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may damage
the Console or other electronic components.
Remove the battery cover from the back of the
Console (18), and insert batteries into the battery compartment (A). Make sure to orient the
batteries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
15
2
7
18
4
A
8. While a second person holds the Console (18)
near the Handlebar (15), connect the wire on the
Console to the Handlebar Frame Wire (19).
Insert the excess wire into the Handlebar Frame
(2) or into the Console (18).
Tip: Avoid pinching the wires. Attach the
Console (18) to the Handlebar (15) with four
M4 x 12mm Screws (20); start all the Screws,
and then tighten them.
8
18
15
19
20
Avoid pinching
the wires
2
8
9. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (22).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
10. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor.
9
22
21
9
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the height
of the seat, first
loosen and remove
the seat knob (A).
Next, slide the seat
post (B) upward or
downward and align
one of the adjustment holes in the
seat post with the
hole in the frame.
Insert the seat knob
into the frame and
the seat post, and then tighten the seat knob. Make
sure that the seat knob is inserted into one of the
adjustment holes in the seat post.
HOW TO ADJUST THE PEDALING RESISTANCE
A
B
HOW TO FOLD THE EXERCISE BIKE
When the exercise bike is not in use, it can be folded
to a compact position. Hold the handlebar (D) with one
hand, hold the seat (E) with the other hand, and push
the handlebar and the seat towards each other.
D
E
To increase the
resistance of the
pedals, turn the
resistance knob
(C) clockwise;
to decrease the
resistance, turn the
knob counterclockwise. IMPORTANT:
Stop turning the
knob when turning
becomes difficult,
or you may damage the exercise bike.
C
10
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The easy-to-use console features five modes that
provide instant exercise feedback during your
workouts.
Scan (SCAN)—This mode displays the time, speed,
distance, and calories modes, for a few seconds each,
in a repeating cycle.
Time (TMR)—This mode displays the elapsed time.
Note: If you set a time goal (see step 2 on page 12),
this mode will show the time remaining in your workout.
Speed (SPD)—This mode displays your pedaling
speed, in miles per hour.
Distance (DST)—This mode displays the distance you
have pedaled during your workout, in miles. Note: If
you set a distance goal (see step 2 on page 12), this
mode will show the distance remaining in your workout.
Calories (CAL)—This mode displays the approximate
number of calories you have burned during your workout. Note: If you set a calorie-burning goal (see step
2 on page 12), this mode will show the number of
calories still to be burned in your workout.
11
HOW TO USE THE CONSOLE
Make sure that batteries (not included) are installed
in the console (see assembly step 7 on page 8). If
there is a sheet of plastic on the console, remove the
plastic.
1. Turn on the console.
To turn on the console, press any button on the
console or simply begin pedaling.
2. Set a workout goal if desired.
To set a time, distance, or calorie-burning goal for
your workout, press the MODE button repeatedly
until the letters TMR, DST, or CAL appear in the
display. Make sure that the word SCAN does not
appear in the display.
Next, press the SET button repeatedly to set a
goal. To set a goal quickly, hold down the SET button. To reset the goal, press the RESET button.
Time, speed, distance, calories mode—To select
one of these modes for continuous display, press
the MODE button repeatedly until the name of the
desired mode appears in the display. Make sure
that the word SCAN does not appear in the display.
As you exercise, the console will provide instant
feedback about your workout. If you have set a
workout goal, the display will show zeros and the
console will beep when you reach your goal; if you
continue to exercise, the display will begin to count
upward.
To pause the console, stop pedaling. The word
STOP will appear in the display. To continue your
workout, simply resume pedaling.
To reset the display and all the modes to zero,
press and hold the RESET button for several
seconds.
4. When you are finished exercising, the console
will turn off automatically.
3. Begin pedaling and follow your progress with
the display.
Scan mode—To select the scan mode, press the
MODE button repeatedly until the word SCAN
appears in the display.
If the pedals do not move for a few seconds, the
console will pause.
The console has an auto-off feature. If the ped-
als do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
12
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace the
batteries (see assembly step 7 on page 8); most
console problems are the result of low batteries.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Before adjusting the
reed switch, turn the resistance knob to the lowest
setting.
Next, loosen the
screws (not shown)
in the Shields (23, 24),
and carefully pull the
Shields apart.
Next, locate the Reed
Switch (17), and slide
it upward or downward slightly. Then,
turn the pedals for
a moment and see
whether the console
displays correct feedback. Repeat this
step until the console
displays correct feedback.
17
23, 24
When the console displays correct feedback, reattach
the Shields (23, 24).
13

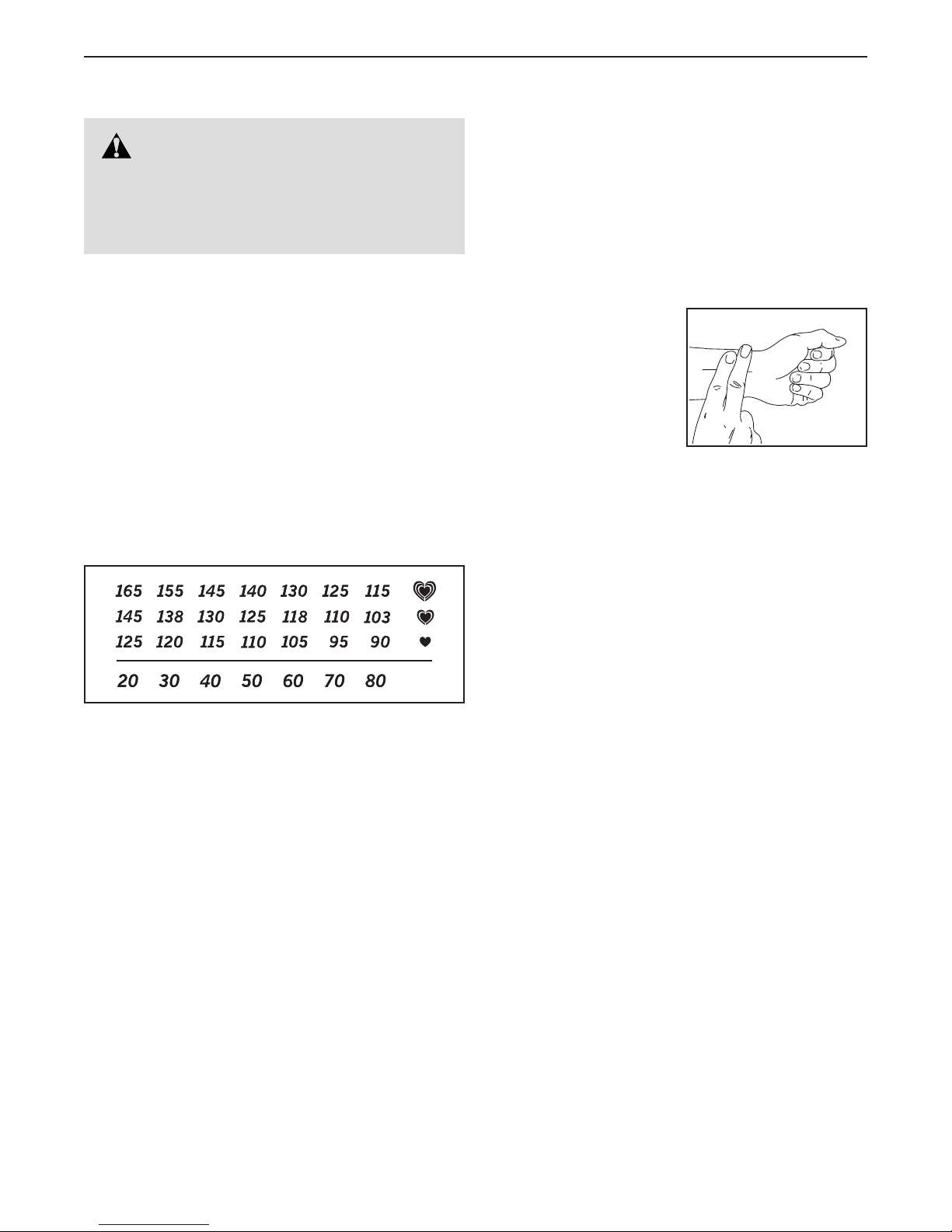

EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at least
four minutes. Then, stop
exercising and place
two fingers on your wrist
as shown. Take a sixsecond heartbeat count,
and multiply the result
by 10 to find your heart
rate. For example, if your six-second heartbeat count is
14, your heart rate is 140 beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
14
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg.
To cause further stretching of the achilles tendons, bend your back
leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
1
2
3
4
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
15
ORDERING REPLACEMENT PARTS
For information about available replacement parts, see the front cover of this manual. To help us assist you, be
prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see ASSEMBLY on pages 7 through 10)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or the
establishment where you purchased this product.
Part No. 390621 R0717A Printed in China © 2017 ICON Health & Fitness, Inc.
Loading...
