USER’S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
256835
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT .............................................................13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TROUBLESHOOTING ......................................................................20
EXERCISE GUIDELINES ....................................................................22
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible,
call the telephone number on the front
cover of this manual and request a free
replacement decal. Apply the decal in the
location shown. Note: The decals may not be
shown at actual size.
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
7. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
8. Keep children under age 12 and pets away
from the treadmill at all times.
9. The treadmill should be used only by persons weighing 250 lbs. (113 kg) or less.
10. Never allow more than one person on the
treadmill at a time.
11. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
12. Plug the power cord into a surge suppressor
(not included), and plug the surge suppressor into an appropriate outlet (see page 13).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
13. Use only a surge suppressor that meets all of
the specifications described on page 13. To
purchase a surge suppressor, see your local
WESLO dealer, call the telephone number on
the front cover of this manual, or see your
local electronics store.
14. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
15. Keep the power cord and the surge suppressor away from heated surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 20 if the treadmill is not working properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 15).
18. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
19. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
3
20. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
21. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
22. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 6 and HOW TO FOLD AND MOVE
THE TREADMILL on page 19.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Do not change the incline of the treadmill by
placing objects under the treadmill.
25. Never insert any object into any opening on
the treadmill.
26. Inspect and properly tighten all parts of the
treadmill regularly.
27. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
28. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new WESLO® CADENCE
R 7.2 treadmill. The CADENCE R 7.2 treadmill offers a
selection of features designed to make your workouts
at home more effective. And when you’re not exercising, the unique treadmill can be folded up, requiring
less than half the oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
Length: 5 ft. 10 in. (178 cm)
Width: 2 ft. 9 in. (84 cm)
Handrail
Storage Latch
Upright
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Tray
Console
Heart Rate
Monitor
Key/Clip
Power Switch
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Cord
Platform Cushion
5
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly
requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of
the packing materials until assembly is completed. Note: After shipping, there may be an oily substance on the
exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, simply wipe it off with a soft
cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , wire cutters , and needlenose pliers .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the
key number of the part, from the PART LIST near the end of this manual. The number after the parentheses is the
quantity needed for assembly. Note: Some small parts may have been pre-assembled. To avoid damaging
parts, do not use power tools for assembly. Extra parts may be included.
1/4" Star
Washer (11)–6
#8 x 1/2"
Screw (12)–1
1/4" Washer
(31)–2
1/4" Nut (4)–4
#8 x 3/4"
Screw (7)–6
3/8" x 2 1/4" Bolt (8)–6
5/16" Star
Washer (5)–4
3/8" Nut (13)–4
1/4" x 1/2"
Screw (6)–4
3/8" Star
Washer (9)–4
Wheel Spacer
(83)–4
1/4" x 1 1/2" Bolt (3)–6
3/8" x 2 1/2" Bolt (1)–2
3/8" Washer
(10)–2
5/16" x 3/4"
Screw (2)–4
6
1. Have a second person hold the Base (85) in the
position shown.
Identify the Right Upright (78), which has a
square hole near the lower end.
Orient the Right Upright (78) as shown, and
attach it to the Base (85) with two 3/8" x 2 1/4"
Bolts (8) and two 3/8" Star Washers (9); do not
tighten the Bolts yet.
1
78
85
2. Orient the Left Upright (77) as shown, and attach
it to the Base (85) with two 3/8" x 2 1/4" Bolts (8)
and two 3/8" Star Washers (9); do not tighten
the Bolts yet.
Square
Hole
2
Latch
Holes
85
77
9
8
9
8
9
8
9
3. Attach a Wheel (84) to one side of the Base (85)
with a 3/8" x 2 1/4" Bolt (8), two Wheel Spacers
(83), and a 3/8" Nut (13) as shown. Do not over-
tighten the Bolt; the Wheel should turn freely.
Attach the other Wheel (84) in the same way.
3
85
84
83
13
84
83
8
7

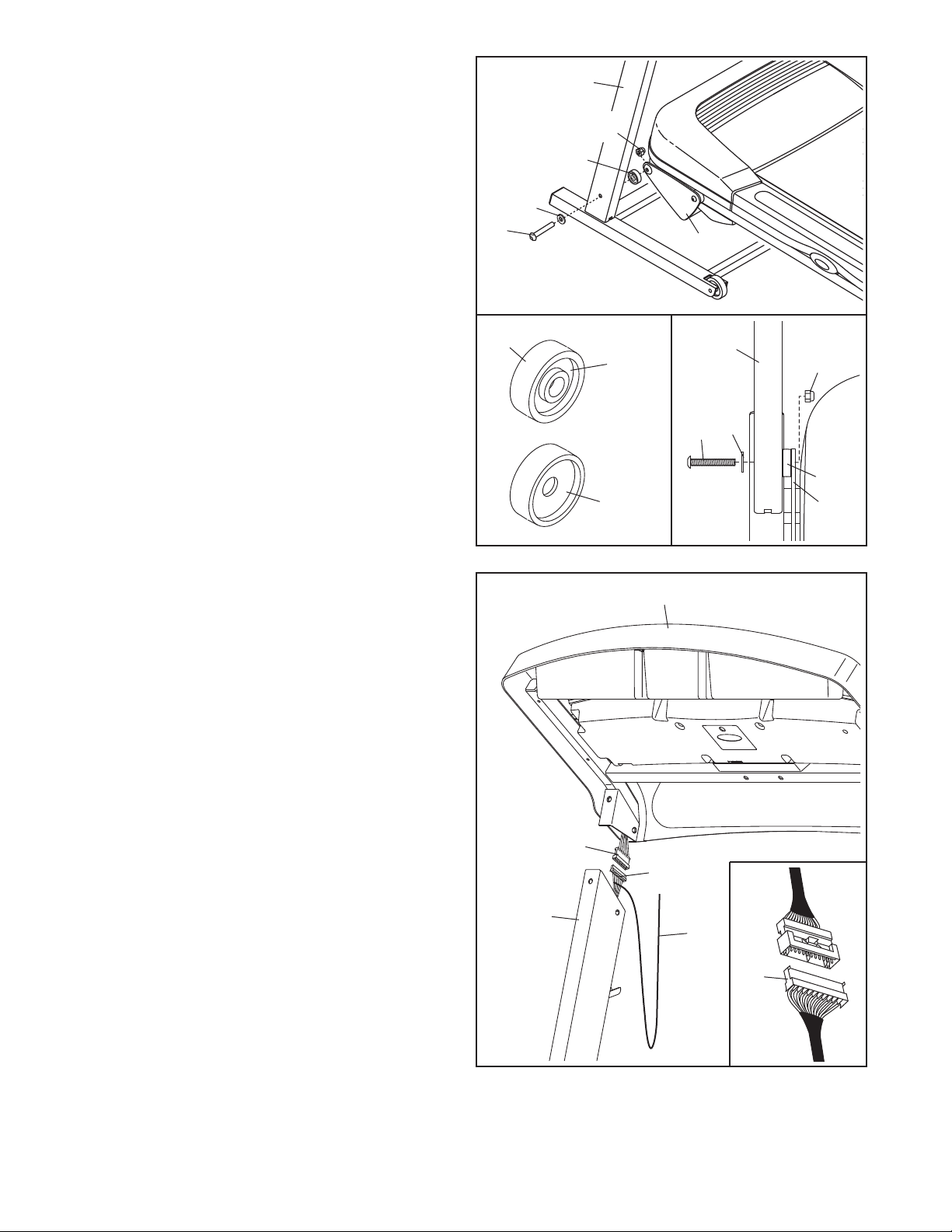

4. Raise the Uprights (77, 78), and position the
Base (85) near the treadmill as shown.
4
74
See the far right drawing. Tie the wire tie in the
lower end of the Right Upright (78) around the
Upright Wire (74). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Right Upright.
Make sure that the end of the Upright Wire
(74) does not fall into the Right Upright (78).
5. See the left inset drawing. Identify the two
Frame Spacers (79). Open the included packet
of grease, and apply grease to both sides of both
Frame Spacers. Then, identify the outer side of
each Frame Spacer.
Hold a Frame Spacer (79) between the Right
Upright (78) and the Lift Frame (65), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a 3/8" x 2 1/2" Bolt (1), a 3/8"
Washer (10), and a 3/8" Nut (13); do not tighten
the Bolt yet.
Wire Tie
5
77
78
74
Large
Hole
Wire
Tie
85
78
13
79
10
1
65
Grease
13
79
79
65
Outer Side
78
10
1
8
6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (79).
6
77
Hold the Frame Spacer (79) between the Left
Upright (77) and the Lift Frame (65), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the
Lift Frame with a 3/8" x 2 1/2" Bolt (1), a 3/8"
Washer (10), and a 3/8" Nut (13); do not tighten
the Bolt yet.
79
13
79
10
1
Outer
Side
Inner
Side
65
1
77
13
10
79
65
7. Have a second person hold the console assembly near the Right Upright (78).
Connect the wire harness on the console assem-
bly to the Upright Wire (74) as shown in the inset
drawing. The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. IF YOU DO NOT
CONNECT THE CONNECTORS PROPERLY,
THE CONSOLE MAY BECOME DAMAGED
WHEN YOU TURN ON THE POWER.
Remove the wire tie from the Upright Wire (74).
7
Wire
Harness
78
Console Assembly
74
Wire
Tie
74
9
Loading...
