USER'S MANUAL
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. WLTL27081
Serial No.
Write the serial number in the
space above for future reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART LIST and an EXPLODED DRAWING are attached in the center of this manual. Remove the PART
LIST and EXPLODED DRAWING before beginning assembly.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose
clothing that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
10. When connecting the power cord (see HOW
TO PLUG IN THE POWER CORD on page 7),
plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector
away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 4 if the treadmill is not working properly.)
14. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read
the following important precautions and information before operating the treadmill.
3
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key when the
treadmill is not in use.
18. Do not change the incline of the treadmill by
placing objects under the treadmill.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO MOVE
THE TREADMILL on page 10.) You must be
able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.
20. When storing the treadmill, make sure that
the storage latch is fully closed.
21. Inspect and tighten all parts of the treadmill
every three months.
22. Never drop or insert any object into any
opening.
23. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown at the right has
been placed on your treadmill. If the
decal is missing, or if it is not legible,
please call our Customer Service
Department, toll-free, to order a free
replacement decal (see ORDERING
REPLACEMENT PARTS on the back
cover of this manual). Apply the decal
in the location shown.
4
BEFORE YOU BEGIN
Thank you for selecting the WESLO¨CADENCE 1010
treadmill. The CADENCE 1010 treadmill combines
advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
the convenience and privacy of your home. And when
youÕre not exercising, the unique CADENCE 1010 can
be folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is WLTL27081. The serial
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Handrails
Console
Storage Latch
Speed Control
Key/Clip
Circuit Breaker
Walking Belt
Foot Rails
Power Cord
Cushioned Deck
FRONT
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts
Incline Leg
Water Bottle Holder
(Bottle not included)
Accessory Tray
Book Rack

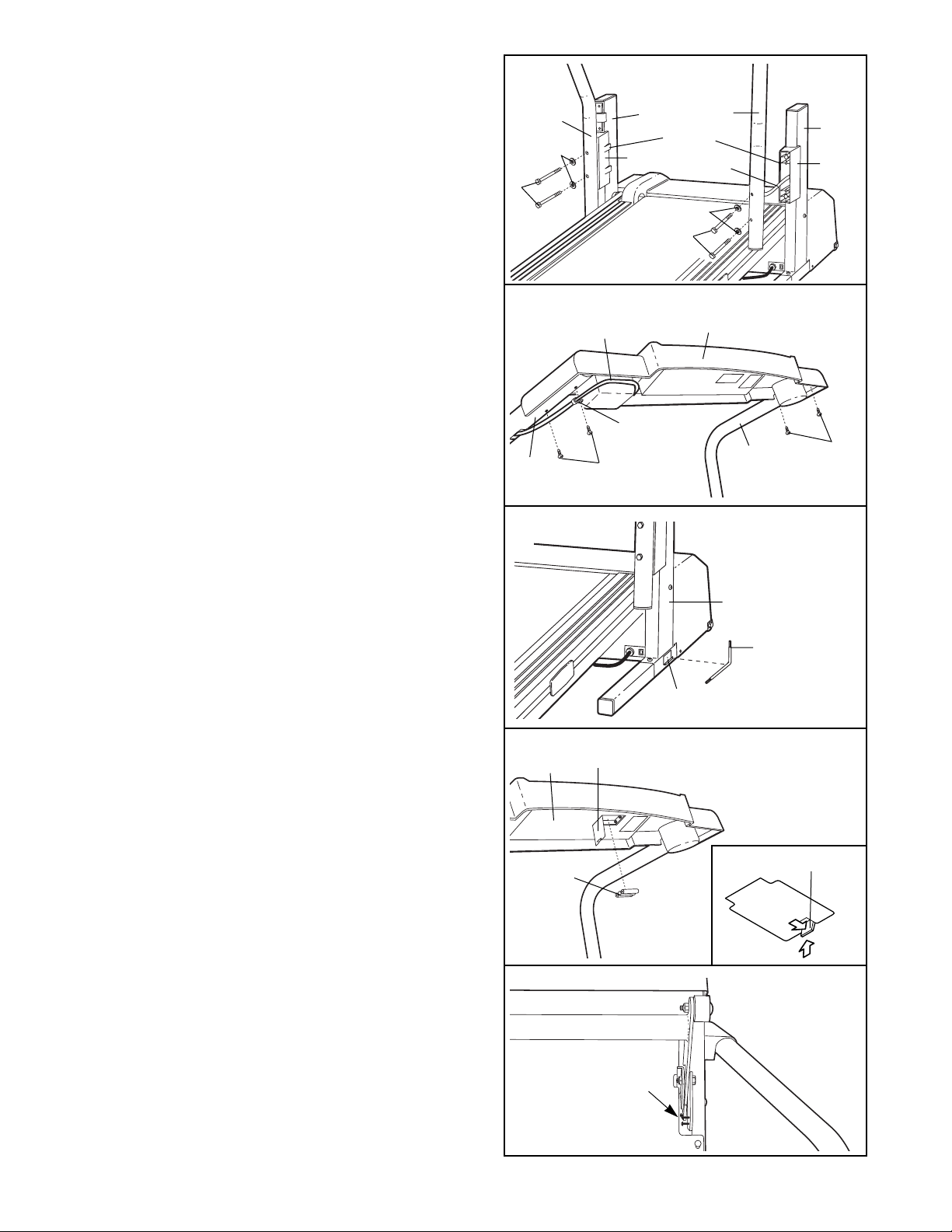

1. Note that the Right Handrail (32) and the Console
Base (not shown) are connected to the treadmill by
the Wire Harness (53). During assembly steps 1
through 5, be careful to avoid pulling on or damaging the Wire Harness.
With the help of a second person, carefully lay the
treadmill onto one side. Insert one of the Base Legs
(44) into the Upright (38) as shown. Make sure that
the Base Leg Pad (33) is in the indicated position.
Using the included Allen Wrench (81), attach the
Base Leg with a Base Leg Screw (39).
Attach the other Base Leg (44) as described above.
With the help of a second person, carefully raise the
treadmill to the upright position so that both Base
Legs (44) are resting flat on the floor.
2. Carefully lower the treadmill. Remove the two indicated Latch Screws (14) and the shipping bracket
from the left Upright (38). Save the Latch Screws
for use in assembly step 3; discard the shipping
bracket.
3. Remove the two remaining Latch Screws (14) from
the left Upright (38).
Without removing the tape from the Latch Bracket
(16) and the Latch Spacer (13), attach both parts to
the left Upright (38) with the four Latch Screws (14).
Make sure that the Latch Screws are tight, but
do not overtighten them; if the Latch Screws are
overtightened, the Storage Latch (17) will not
slide smoothly. Remove any visible tape from the
Latch Bracket and the Latch Spacer.
Note: The inset drawing shows how the Latch
Bracket (16), Latch Springs (15), Storage Latch (17),
and Latch Spacer (13) fit together.
2
1
5
81
44
39
38
44
33
33
39
32
53
Shipping
Bracket
14
38
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver , adjustable wrench , and
scissors .
14
16
17
13
38
3
13
16
17
15
4. Remove the shipping tie from the Left Handrail (4)
and Handrail Spacer (3). Attach the Left Handrail and
Handrail Spacer to the left Upright (38) with two
Handrail Bolts (1) and Handrail Washers (70) as
shown. Make sure that the ramps on the Handrail
Spacer is on the inside as shown. Do not tighten the
Handrail Bolts until step 5 is completed.
Remove the shipping tie from the Right Handrail (32)
and Handrail Spacer (3). Hold the Handrail Spacer
against the right Upright (38) and feed the excess
Wire Harness (53) into the right Upright. Attach the
Right Handrail and Handrail Spacer to the right
Upright with two Handrail Bolts (1) and Handrail
Washers (70). Do not tighten the Handrail Bolts
until step 5 is completed.
5. Set the Console Base (67) on the Handrails (4, 32).
Route the Wire Harness (53) as shown. Attach the
Wire Harness to the Right Handrail (32) with the
Harness Clip (103) and a Handrail Screw (5); do not
fully tighten the Handrail Screw yet. Then loosely
thread the other three Handrail Screws (5) into the
Console Base. After all four Screws are threaded, firmly tighten the Screws. Be careful not to overtighten
the Screws. Insert the excess Wire Harness (53) into
the Right Handrail.
Tighten the four Handrail Bolts (1) used in step 4.
6. Remove the backing from the Adhesive Clip (80).
Press the Adhesive Clip onto the right Upright (38) in
the indicated location. Press the Allen Wrench (81)
into the Adhesive Clip.
7. The Console (11) requires three "AA" batteries (not
included); alkaline batteries are recommended.
Open the Battery Cover (12) as shown. Press three
batteries into the battery compartment, with the negative (Ð) ends of the batteries touching the springs.
Close the battery cover, push up on the battery cover
tab, and then push the tab forward as shown in the
inset drawing. Be sure that the tab locks into place.
8. Make sure that all parts are tight before you use
the treadmill. (Note: The ratchet screws shown at the
far right are factory set and should not be adjusted.)
To protect the floor or carpet from damage, place a
mat under the treadmill.
4
6
70
1
4
3
32
3
38
38
Ramps
53
70
1
6
7
81
38
80
11
12
Batteries
Battery Cover Tab
5
67
32
4
5
53
103
5
Ratchet
Screws
Loading...
