CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. WLEX29190
Serial No.
Patent Pending
Write the serial number in the
space above for reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
¨
3
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the WESLO¨PURSUIT 720s.
1. Read all instructions in this manual before
using the exercise cycle.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions. Use the
exercise cycle only as described in this
manual.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the exercise cycle.
Always wear athletic shoes when using the
exercise cycle.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercising, stop immediately and cool down.
10. The exercise cycle is intended for in-home
use only. Do not use the exercise cycles in
a commercial, rental, or institutional setting.
11. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. CAUTION DECAL PLACEMENT: The decal
shown below has been placed on the exercise cycle. If the decal is missing, or if it is
not legible, please call our Customer Service
Department toll-free at 1-800-999-3756 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. ICON assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
Decal is shown at
75% of actual size
4
BEFORE YOU BEGIN
Thank you for selecting the innovative WESLO
¨
PURSUIT 720s. The PURSUIT 720s offers a unique
form of low-impact exercise that offers greater cardiovascular benefits and increased muscle toning. And
the 720s features adjustable resistance to let you tailor your exercise to the level thatÕs perfect for you.
For your benefit, read this manual carefully before
you use the PURSUIT 720s. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number and serial number
when calling. The model number is WLEX29190. The
serial number can be found on a decal attached to the
PURSUIT 720s (see the front cover of this manual for
the location of the decal).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Seat Handle
Handlebar
FRONT
Seat
Seat Upright
Wheel
Frame Knob
Seat Frame
Backrest
Pedal
Pedal
Strap
Console
Resistance Knob
Handlebar Post
LEFT SIDE
5
ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and phillips
screwdriver .
PART CHART
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the part list on page 14; the second number refers to the
quantity used in assembly. Note: Some small parts may have been pre-attached for shipping. If a part is
not in the parts bag, check to see if it has been pre-assembled.
M8 Flat
Washer (51)Ð8
M10 x 70mm Carriage Bolt (27)Ð2
M4 x 16mm
Screw (43)Ð4
M10 x 97mm Hex Head Bolt (12)Ð2
M8 x 65mm Carriage Bolt (52)Ð4
M8 x 54mm Carriage Bolt (11)Ð4
M10 Nylon
Locknut (26)Ð4
M8 Nylon
Locknut (55)Ð8
M6 x 16mm
Screw (46)Ð8
M10 x 25mm Button
Head Screw (53)Ð3
M10 Split
Washer (54)Ð3
6
29
1
2
2
2. Loosen the Frame Knob (29) on the right side of the
Frame (1). Slide the Seat Frame (2) out until it
stops. Tighten the Frame Knob.
1. Carefully slide the Handlebar Post (3) onto the
Frame (1) while pulling the excess Reed Switch
Wire (42) up through the Handlebar Post. Attach the
Handlebar Post with three M10 x 25mm Button
Head Screws (53) and three M10 Split Washers
(54). Be careful not to pinch the Reed Switch
Wire or the Resistance Cable.
1
3
54
54
53
53
42
4
3
42
33
43
43
4. Connect the Reed Switch Wire (42) to the console
wire. Next, attach the Console (33) to the Handlebar
Post (3) with four M4 x 16mm Screws (43).
3. The Console (33) requires two ÒAAÓ batteries (not
included)Ñalkaline batteries are recommended.
Open the battery door on the back of the Console.
Press two batteries into the Console. Make sure
that the negative (Ð) ends of the batteries are
touching the springs. Close the battery door.
53
3
Back of
Console
Console
Wire
Battery Door
Batteries
33
1
7

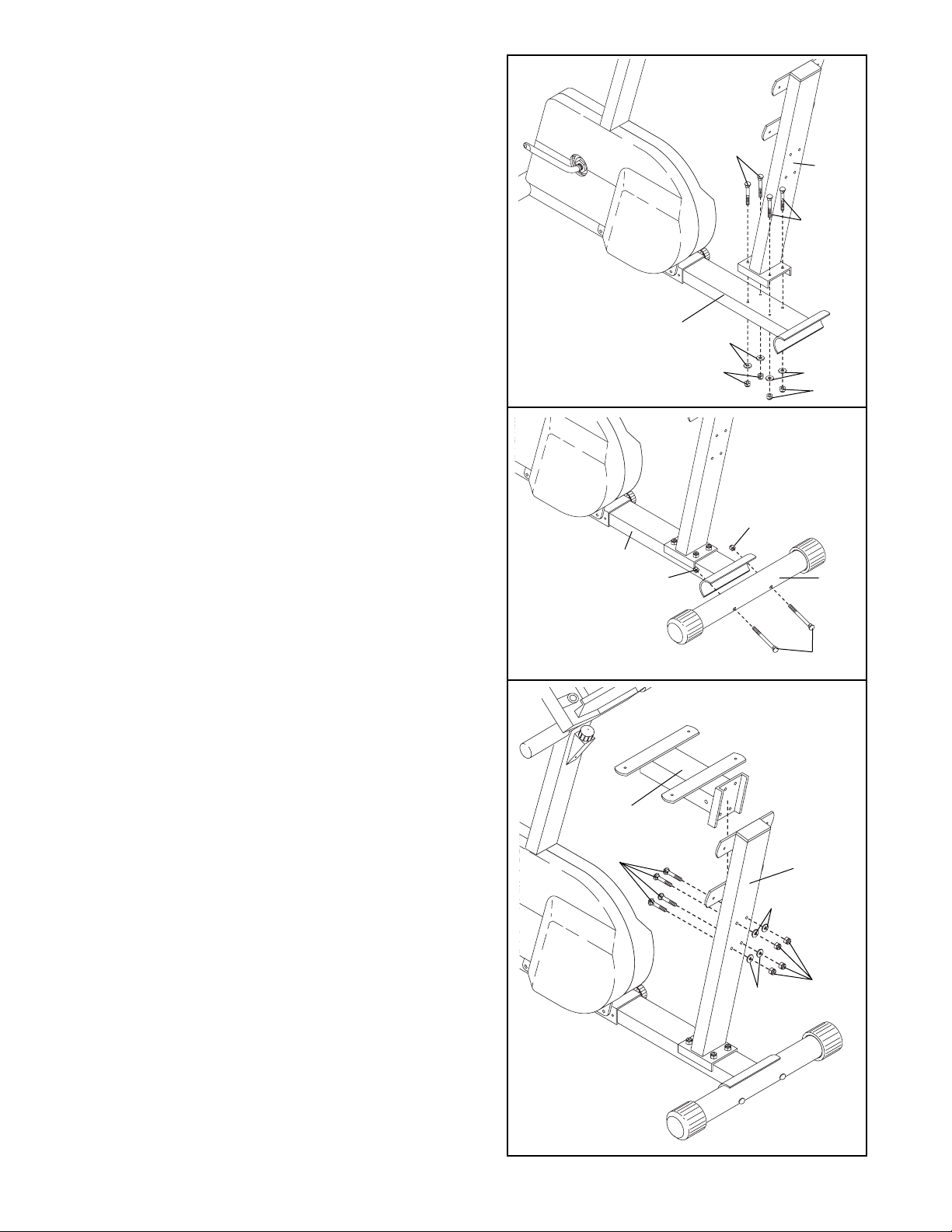

6. Attach the Stabilizer (30) to the Seat Frame (2) with
two M10 x 70mm Carriage Bolts (27) and two M10
Nylon Locknuts (26).
7. Attach the Seat Bracket (63) to the Seat Upright
(64) with four M8 x 65mm Carriage Bolts (52), four
M8 Flat Washers (51), and four M8 Nylon Locknuts
(55).
52
63
55
51
51
64
2
30
27
7
26
26
5. Attach the Seat Upright (64) to the Seat Frame (2)
with four M8 x 54mm Carriage Bolts (11), four M8
Flat Washers (51), and four M8 Nylon Locknuts (55).
Note: It may be helpful to tip the exercise cycle on
its side to attach the Seat Upright.
11
11
64
2
55
51
51
55
5
6
10. Attach the Backrest (45) to the Seat Upright (64)
with four M6 x 16mm Screws (46).
8
45
46
64
12
12
25
63
25
26
9
9. Attach the Seat Handles (25) to the Seat Bracket
(63) with two M10 x 97mm Hex Head Bolts (12)
and two M10 Nylon Locknuts (26).
8. Attach the Seat (44) to the Seat Bracket (63) with
four M6 x 16mm Screws (46).
44
63
46
8
10

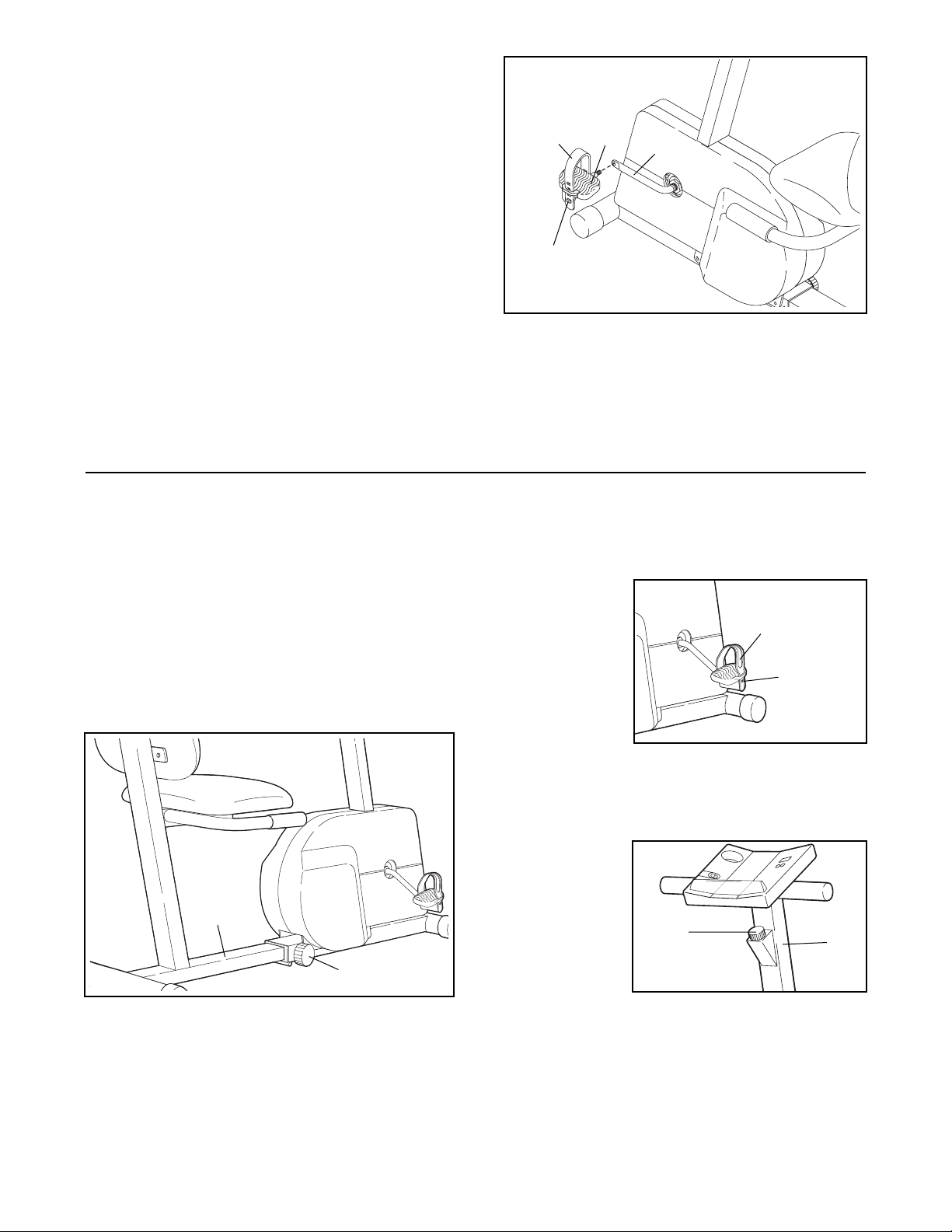

HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE POSITION OF THE SEAT
FRAME
The Seat Frame (2) can be adjusted to the position
that is the most comfortable for you. To adjust the
Seat Frame, first loosen the Frame Knob (29) on the
right side of the Frame. Slide the Seat Frame forward
or backward to the desired position. Tighten the
Frame Knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust each
pedal strap, first
pull the pedal
strap off the
adjustment tab
on the pedal.
Align a different
hole in the pedal
strap with the
adjustment tab.
Press the pedal strap onto the adjustment tab.
HOW TO ADJUST THE PEDALING RESISTANCE
The pedaling
resistance can
be adjusted with
the Resistance
Knob (32) located on the
Handlebar Post
(3). To increase
the resistance,
turn the
Resistance Knob clockwise; to decrease the resistance, turn the Resistance Knob counterclockwise.
Adjustment
Ta b
Pedal Strap
32
3
29
2
8
71
39
11
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: There may
be some hardware left over after assembly is completed. Place a mat under the exercise cycle to protect
the floor or carpet.
9
11. Identify the Left Pedal (39) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, firmly tighten the Left Pedal counterclock-
wise into the left arm of the Crank (8).
Firmly tighten the Right Pedal (not shown) clockwise into the right arm of the Crank (8).
Adjust the Pedal Strap (71) on the Left Pedal (39) to
the desired position. Press the Pedal Strap onto the
adjustment tab on the Left Pedal.
Adjust the Pedal Strap on the Right Pedal (not
shown) in the same manner.
Adjustment
Tab
10
DIAGRAM OF THE CONSOLE
The console is designed to help you get the most from
your workouts. As you exercise, you can watch your
progress around the LED ÒtrackÓ in the center of the
console. In addition, the upper LCD display will show
how many calories you have burned, the number of
laps you have completed, your current speed, the
elapsed time, and the distance you have pedaled. The
lower LCD display will show your heart rate when the
pulse sensor is used. The modes of the displays are
described below.
CalorieÑThis mode displays the approximate
number of calories you have burned.
LapsÑThis mode displays the total number of
1/4-mile laps you have completed.
SpeedÑThis mode displays your pedaling
speed, in kilometres per hour.
TimeÑThis mode displays the length of time
you have exercised.
DistanceÑThis mode displays the total number
of kilometres you have pedaled during your
workout.
PulseÑThis mode displays your heart rate
when the pulse sensor is used.
HOW TO OPERATE THE CONSOLE
1. To turn on the power, press the on/reset button or
simply begin pedalling. When the power is turned
on, the entire display will appear for two seconds.
The console will then be ready for use.
2. When the power is turned on, the upper LCD
display will begin displaying the Calories, Laps,
Speed, Time, and Distance modes. Each mode will
be displayed for five seconds in a repeating cycle.
Flashing arrows in the display will show which
mode is currently displayed.
3. The LED track represents a distance of 1/4 mile. As
you exercise, the indicators around the track will
light one at a time until you have completed 1/4
mile. A new lap will then begin.
4. To measure your pulse, stop pedalling and place
your thumb on the pulse sensor as shown. The
pulse sensor is
pressure-activatedÑfully press
down the pulse
sensor. Do not
press too hard,
or the circulation in your
thumb will be
restricted, and your pulse will not be detected.
Next, slightly raise your thumb until the heartshaped indicator in the lower LCD display flashes
steadily. Hold your thumb at this level. After 5 to 10
seconds, three dashes will appear in the display
and your pulse will be shown. Hold your thumb on
the sensor for another 15 seconds for the most
accurate reading. Try the sensor several times until
you become familiar with it. If the displayed pulse
appears to be too high or too low, or if your pulse is
not displayed, lift your thumb off the sensor and
allow the display to reset. Press down again on the
sensor as described above.
5. To reset the upper LCD display, press the on/reset
button.
6. To turn off the power, simply wait for about six
minutes. Note: The console has an Òauto-offÓ
feature. If the pedals are not moved and the
console buttons are not pressed for six minutes,
the power will turn off automatically in order to
conserve the batteries.
WARNING: The pulse sensor
is not a medical device. Various factors
may affect the accuracy of heart rate
readings. The pulse sensor is intended
only as an exercise aid in determining
heart rate trends in general.
On/Reset Button
Lower
LCD
Display
Upper
LCD
Display
LED Track
11
Tighten all parts of the exercise cycle regularly. The
exercise cycle can be cleaned with a soft, damp cloth.
To prevent damage to the console, keep liquids away
and keep the console out of direct sunlight.
CRANK ADJUSTMENT
If the arms of the
Crank (8) become
loose, they should
be tightened in
order to prevent
excessive wear.
Loosen the Hex
Crank Nuts (14)
on the left arm of
the Crank. Place
the tip of a standard screwdriver in one of the slots in the slotted
crank nut. Tap the screwdriver with a hammer to turn
the slotted crank nut counterclockwise until the arms
are no longer loose. Do not overtighten the slotted
crank nut. When the slotted crank nut is properly
tightened, tighten the Hex Crank Nuts.
HOW TO ADJUST THE REED SWITCH
If the console
does not display correct
feedback, the
reed switch
may need to
be adjusted.
To adjust the
reed switch,
you must first
remove the
Left Side
Shield (20).
Using an adjustable wrench, turn the Left Pedal (39)
clockwise and remove it. Next, remove the indicated
M4 x 12mm Screws (72) and M4 x 38mm Self-tapping
Screws (13). Grasp both Side Shields and gently pull
them apart. Turn the left arm of the Crank (8) to the
position shown, and then carefully slide the Left Side
Shield forward and remove it.
With the left side shield removed, locate the Reed
Switch (42) (see the drawing below). Turn the Crank
(8) until the Magnet (61) is aligned with the Reed
Switch. Loosen but do not remove the M4 x 16mm
Screw (43). Slide the Reed Switch slightly closer to or
away from the Magnet. Retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the left side shield and the left
pedal.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. See assembly step 3 on page 6.
MAINTENANCE AND STORAGE
14
Slotted
Crank Nut
8
42
61
43
8
72
20
39
13
13
13
8
View from the Front
HOW TO SELECT KILOMETERS AND MILES
The console can display distance and speed in either
kilometers or miles. The letters ÒKPHÓ or ÒMPHÓ will
appear in the upper LCD display to show which unit
of measurement is selected.
To change the unit
of measurement,
first look underneath the console
and locate the
square hole. Look
inside the square
hole and locate the small
switch on the printed circuit
board. Move the switch to
the opposite side to
change the unit of measurement.
After changing the unit
of measurement, remove
one of the batteries from the console for about
five seconds and then reinsert it. This will reset
the console.
Square Hole
+
-
SW2
Printed Circuit
Board
Switch
12
The following guidelines will help you to plan your
exercise program. For more information about exercise, consult your physician or obtain a reputable book.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic
exercise.
To find the proper heart
rate for you, first find
your age at the left side
of the chart (ages are
rounded off to the nearest ten years). Next,
find the three numbers
to the right of your age.
The three numbers
define your Òtraining
zone.Ó The lowest two
numbers are recommended heart rates for
fat burning; the highest
number is the recommended heart rate for
aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the intensity of your exercise until your heart rate
is near the lowest number in your training zone.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle of your
training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart rate
is near the highest number in your training zone.
HOW TO MEASURE YOU HEART RATE
To measure your heart rate, first exercise for at least
four minutes. Then, stop pedalling and measure your
heart rate using the pulse sensor on the console.
WORKOUT GUIDELINES
Each workout should include the following three
important parts:
A Warm-UpÑBegin each workout with five to ten minutes of stretching and light exercise to warm up. A
proper warm-up increases your body temperature,
heart rate and circulation in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exerciseÑnever hold your
breath.
A Cool-downÑFinish each workout with 5 to 10 minutes of stretching. This will increase your flexibility and
will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
CONDITIONING GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
individuals over the age of 35 or individuals
with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings, back
of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps
and hip muscles.
1
2
3
4
5
14

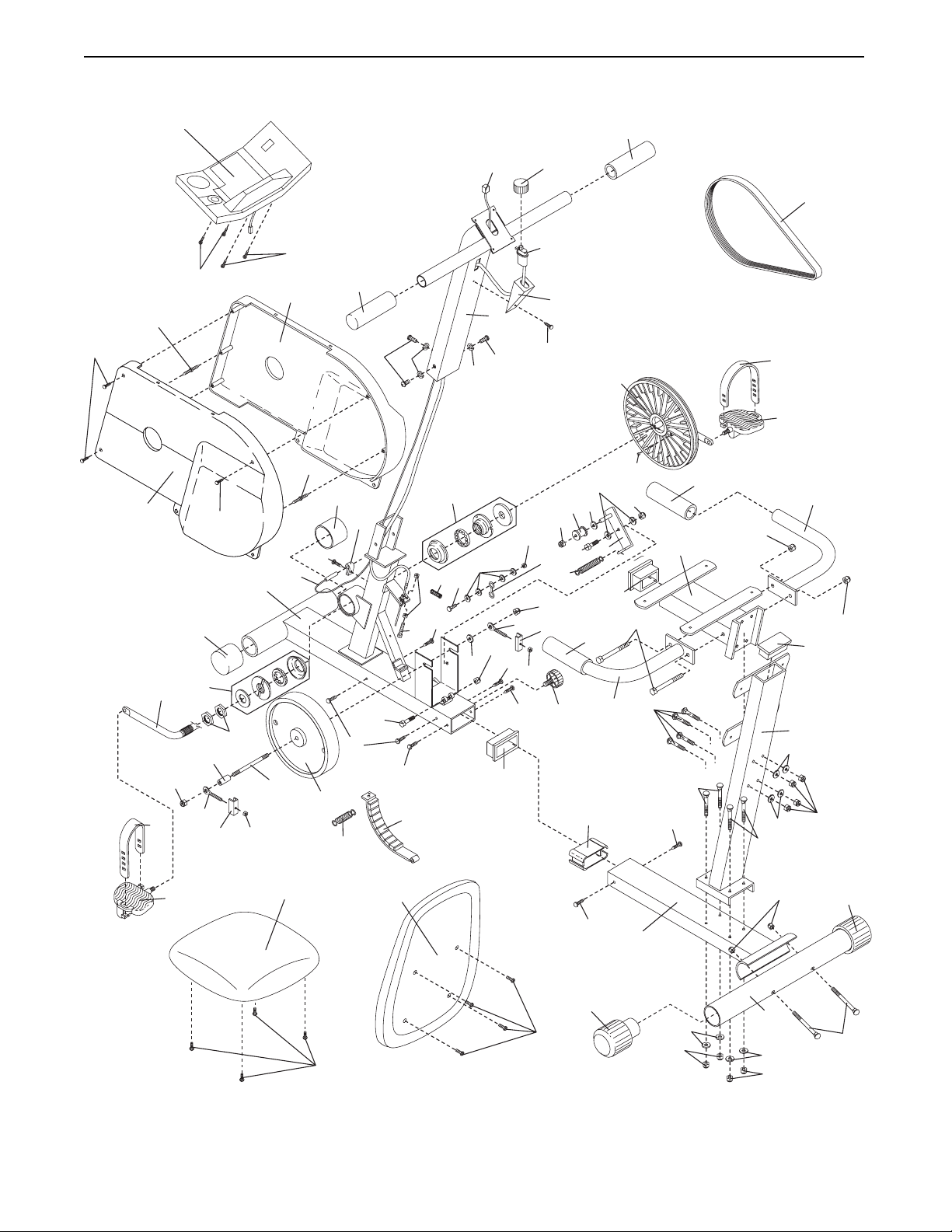

PART LISTÑModel No. WLEX29190 R1099A
Note: Ò#Ó refers to a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
1 1 Frame
2 1 Seat Frame
3 1 Handlebar Post
4 1 Idler Arm
5 1 Idler Wheel
6 1 Drive Belt
7 1 Knob Housing
8 1 12Ó Pulley/Crank
9 1 Bearing Assembly
10 1 M8 x 62mm Bolt
11 4 M8 x 54mm Carriage Bolt
12 2 M10 x 97mm Hex Head Bolt
13 3 M4 x 38mm Self-tapping Screw
14 2 Hex Crank Nut
15 1 Flywheel Assembly
16 1 Flywheel Axle
17 1 Flywheel Spacer
18 2 5/16Ó Nylon Jam Nut
19 1 5/16Ó Flat Washer
20 1 Left Side Shield
21 1 Right Side Shield
22 2 M4 x 8mm Screw
23 2 Tree Fastener
24 2 Wheel Assembly
25 2 Seat Handle
26 6 M10 Nylon Locknut
27 2 M10 x 70mm Carriage Bolt
28 4 Foam Grip
29 1 Frame Knob
30 1 Stabilizer
31 1 Resistance Control/Cable
32 1 Resistance Knob
33 1 Console
34 2 Stabilizer Endcap
35 1 Seat Frame Bushing
36 1 Frame Bushing
37 2 M4 x 16mm Black Screw
38 1 Right Pedal
39 1 Left Pedal
40 1 Idler Arm Spring
41 1 M6 x 64mm Bolt
42 1 Reed Switch w/Wire
43 6 M4 x 16mm Screw
44 1 Seat
45 1 Backrest
46 8 M6 x 16mm Screw
47 2 2Ó x 3Ó Endcap
48 1 M10 Washer
49 1 Idler Arm Screw
50 2 Idler Arm Washer
51 8 M8 Flat Washer
52 4 M8 x 65mm Carriage Bolt
53 3 M10 x 25mm Button Head Screw
54 3 M10 Split Washer
55 9 M8 Nylon Locknut
56 1 ÒCÓ Magnet Spring
57 1 ÒCÓ Magnet
58 2 M6 Eyebolt
59 2 Adjustment Bracket
60 4 M6 Nut
61 1 Magnet
62 1 Cable Clip
63 1 Seat Bracket
64 1 Seat Upright
65 1 Clamp Screw
66 1 Tension Spring
67 4 1/4Ó Washer
68 1 Clamp Nut
69 1 Resistance Spring
70 1 Right Pedal Strap
71 1 Left Pedal Strap
72 4 M4 x 12mm Screw
# 1 UserÕs Manual
Key No. Qty. Description Key No. Qty. Description
EXPLODED DRAWINGÑModel No. WLEX29190 R1099A
15
30
40
28
28
47
63
6
67
60
21
20
23
23
34
34
1
43
42
9
8
39
14
9
18
17
16
15
60
72
22
65
72
19
18
58
72
22
36
29
50
49
26
5
4
61
41
8
38
47
52
55
11
11
37
35
37
46
46
2
55
64
44
45
27
24
24
55
26
26
26
26
12
25
25
66
33
32
28
53
54
53
54
3
28
57
43
43
59
56
62
7
58
59 60
69
68
13
13
51
51
51
51
48
70
71
42
31
43
10
55
Part No. 161093 R1099A Printed in China © 1999 ICON Health & Fitness, Inc.
WESLO¨is a registered trademark of ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information:
¥ The MODEL NUMBER of the product (WLEX29190)
¥ The NAME of the product (WESLO¨PURSUIT 720s exercise cycle)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14 of this manual).
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products
used for commercial or rental purposes, or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
