IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
4. Place the exercise cycle on a level surface.
Use the exercise cycle indoors, away from
moisture and dust. Cover the floor beneath
the exercise cycle to protect the floor or carpet from damage.
5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
8. Wear appropriate clothing when exercising; do
not wear loose clothing that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
9. When adjusting the seat, insert the seat pin
into one of the holes in the seat post (see the
drawing on page 5). Do not insert the seat
knob under the seat post.
10.Always keep your back straight when using
the exercise cycle; do not arch your back.
11.If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
12.The exercise cycle does not have a free
wheel; the pedals and the handlebars will
continue to move until the flywheel stops.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. ICON assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Handlebars
Resistance Knob
FRONT
Flywheel
BACK
LEFT SIDE
Seat
Seat Post
Pedal
Side Shield
Seat Pin
Console
Thank you for selecting the new WESLO PURSUIT
®
200 exercise cycle. The PURSUIT200 blends
advanced engineering with contemporary styling to
provide you with effective, low-impact workouts in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number. The model number is WLEX08210.

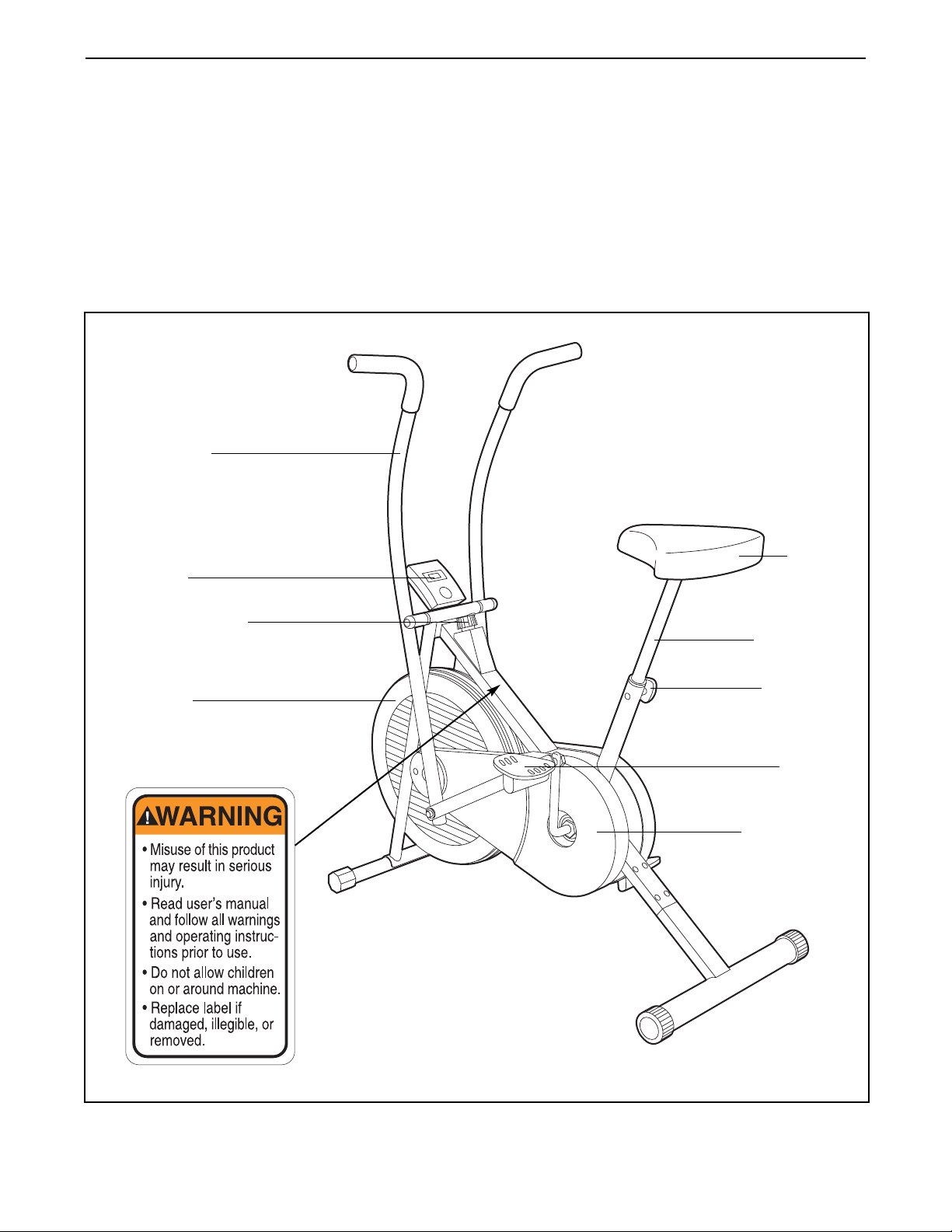

Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
The decal shown at the left has been
placed on the exercise cycle. If the
decal is missing, or if it is not legible,
please call our Customer Service
Department toll-free at 1-800-999-3756
to order a free replacement decal.
Apply the decal in the location shown.
ASSEMBLY
4
2
5
14
1
9
18
Square
Holes
2
Slot
1
32
2. Align the Front Stabilizer (5) with the saddle bracket
on the front of the Frame (1). Make sure that the
Front Stabilizer is turned so the square holes
are facing away from the saddle bracket. Attach
the Front Stabilizer with two M8 x 40mm Carriage
Bolts (18), two M8 Curved Washers (14), and two
M8 Nylon Locknuts (9).
3
40
1
32
Hole
38
9
41
55
55
42
42
3
50
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Assembly requires a phillips screwdriver
and an adjustable wrench (not included). A small amount of liquid soap is also required.
1. Refer to the inset drawing. Remove the Shipping
Insert (54) from the Frame (1) and discard it.
Turn the Rear Stabilizer (2) so that the slot is down,
and insert the Rear Stabilizer into the Frame (1).
Attach the Rear Stabilizer with four M5 x 10mm
Machine Screws (32).
3. Remove all parts from the Pivot Axle (3). Insert the
Pivot Axle into the Frame (1). Align the hole in the
center of the Pivot Axle with the hole in the center of
the Frame. Tighten an M5 x 10mm Machine Screw
(32) into the Frame and the Pivot Axle.
Slide the Left and Right Handlebars (40, 41) onto
the ends of the Pivot Axle (3). Slide an M8 Flat
Washer (38) onto each end of the Pivot Axle, and
then thread an M8 Nylon Locknut (9) onto each end
of the Pivot Axle. Tighten each Nylon Locknut until
at least two threads on the end of the Pivot Axle
extend past the Nylon Locknut. Make sure that the
Handlebars move freely.
Press a Pivot Endcap (50) onto each end of the
Pivot Axle (3).
Apply a small amount of liquid soap to the upper
end of each Handlebar (40, 41). Slide a Foam Grip
(42) onto each Handlebar. Make sure that there is
a Handlebar Endcap (55) in each Handlebar.
1
1
54
9
38
50
