Weslo WCTL39320 User Manual

www.weslo.com
Visit our website at
Model No. WCTL39320 Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call:
1-888-936-4266
USER'S MANUAL
Monday though Friday from 8h00 to 18h30 EST (excluding holidays).
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
WESLO is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least 2 m (8 ft.) of clearance behind it and 0.5 m (2 ft.) on each side. Do not place the tread­mill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 115 kg (250 lbs.).
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread mill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
Never leave the treadmill unattended while it
18. is running. Always remove the key, and un­plug the power cord when the treadmill is not in use.
19. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 20.) You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
20. Do not change the incline of the treadmill by placing objects under the treadmill.
-
11. Use only a CUL-listed surge suppressor of 450 joules minimum surge dissipation with voltage rating of 400 volts or less, rated at 15 amps, with a 1 mm (5 ft.) or less in length. Do not use an exten sion cord.
2
(14-gauge) cord of 1.5 m
21. When folding or moving the treadmill, make sure that the storage latch is fully closed.
22. When using iFIT.com CDs and videos, an
­electronic “chirping” sound will alert you
3
when the speed of the treadmill is about to
!
!
change. Always listen for the “chirp” and be prepared for speed changes. In some in­stances, the speed may change before the personal trainer describes the change.
When using iFIT.com CDs and videos, you
23. can manually override the speed setting at any time by pressing the speed buttons. However, when the next “chirp” is heard, the speed will change to the next settings for the CD or video program.
24. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
25. Inspect and properly tighten all parts of the treadmill regularly.
26. Never insert or drop any object into any opening.
DANGER: Always unplug the power
27. cord immediately after use, before cleaning the treadmill, and before performing the main tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
28. This treadmill is intended for in-home use only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
-
The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see the front cover of this manual). Apply the decal in the location shown. Note: The de­cals are not all shown at actual size.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new WESLO®CADENCE C62 treadmill. The CADENCE C62 treadmill combines advanced technology with innovative design to help you get the most from your exercise program in the convenience of your home. And when you’re not exer­cising, the unique CADENCE C62 treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. IIf you have additional questions,
Water Bottle Holder (Bottle not included)
Thumb Pulse Sensor
Latch Knob
please call our Customer Service Department at 1-888-936-4266, Monday through Friday 8h00 until 18h30 eastern time (excluding holidays).To help us as­sist you, please note the product model number and serial number before calling. The model number of the treadmill is WCTL39320. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Book Holder
Console
Handrail
Key/Clip
LEFT SIDE
Foot Rail
Walking Belt
Rear Roller Adjustment Bolts
RIGHT SIDE
Reset/Off
Circuit Breaker
Power Cord
Front Wheel
Cushioned Walking Platform
5
ASSEMBLY
3/4” Tek Screw
(76)–4
Wheel Nut (125)–2
Washer (29)–8
Silver Screw
(107)–1
1 1/2” Screw (79)–4
Console Screw (68)–2
4” Bolt (89)–4
Wheel Bolt (86)–2
3” Bolt (47)–4
!
!
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screw-
driver , adjustable wrench , wire cutters , and needlenose pliers .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
To identify small parts during assembly, use the part identification drawings below.
1. Make sure that the power cord is not plugged in.
With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the Frame (12) so the treadmill will be more stable; do not fully fold the
treadmill until it is completely assembled.
Attach two Base Pads (97) to the bottom of the Base (82) with two 3/4” Tek Screws (76). Attach a Wheel (95) to the outside of the Base with a Wheel Bolt (86) and a Wheel Nut (125).
1
6
76
97
82
86
95
76
97
125
12
2. Identify the Right Upright (10), which has a large rectan­gular hole near the upper end (see drawing 2b). Have a second person hold the Right Upright near the Wire Harness (17). Feed the end of the Wire Harness into the Right Upright and out of the rectangular hole near the upper end as shown. If necessary, use needlenose pliers to pull the Wire Harness out of the hole.
2a
10
17
See drawing 2b. Locate the Left Upright (9). If the Latch Housing (77) is not attached to the Left Upright, remove the two Screws (68) from the Left Upright. Attach the Latch Housing as shown with the two Screws. Firmly tighten—but do not overtighten—the Screws.
3. Make sure that the Right Upright (10) is turned so it bends in the direction shown. Insert two 3” Bolts (47) with Washers (29) through the Base (82), and the Bolts into the lower end of the Right Upright.
With the help of a second person, tip the treadmill onto its other side and repeat steps 1 through 3.
Note: There is not a wire harness in the Left Upright (not shown). One extra Base Pad my be included.
4. With the help of a second person, set the treadmill flat on the floor so the Right Upright (10) and the Left Upright (not shown) are vertical.
Hold one of the Handrails (85) near the Right Upright (10). Feed the end of the Wire Harness (17) into the bottom of the Handrail and out of the indicated hole. Using the Silver Screw (107), attach the end of the ground wire to the small hole in the side of the Handrail.
hand tighten
2b
3
4
68
Bend
Ground
77
Wire
Hole
9
Large
17
Hole
82
10
107
85
10
Rectangular
Hole
47
29
17
5. Have a second person hold the Console Base (87) and the Handrail (85) in the position shown. Touch the Right Upright (10) to discharge any static. Insert the Wire Harness (17) through the two Plastic Ties (124) on the Console Base. Find the 3-wire connector on the end of the Wire Harness, and insert the connector into the red socket beneath the Console Base.
should slide easily into the socket and snap into place. If the connector does not slide easily and snap into place, turn the connector and then insert it. If the connectors are not inserted properly, the Console may be damaged when the power is turned on.
Insert the 5-wire connector into the black socket beneath the Console Base (87) in the same way. Make sure that the connectors and wires appear as shown in the inset draw­ing. Insert the excess Wire Harness (17) down through the Handrail (85).
prevent the Wire Harness from slipping.
the ends of the Plastic Ties.
Securely tighten the Plastic Ties (124) to
The connector
Then, cut off
7
5
10
10
85
87
124
17
5-wire
3-wire
17
6. Attach the Handrail (85) to the Console Base (87) with two 1 1/2” Screws (79) as shown. Attach the other Handrail (not shown) to the other side of the Console Base in the same way.
Insert the excess Wire Harness (17) down into the Right Upright (10) as you set the right Handrail (85) on the Right Upright. through the Right Upright into the right Handrail. Be careful
not to pinch the Wire Harness. Do not tighten the Bolts yet.
Attach the left Handrail (not shown) to the Left Upright (not shown) in the same way. Note: There is not a wire harness in the Left Upright.
Hand tighten two 4” Bolts (89) with Washers (29)
6
29
89
87
79
17
85
10
7. Hold the Connector Cover (110) on the Console Base (87) in the position shown. Attach the Connector Cover with two 3/4” Screws (68).
8. Remove the Latch Knob (105) from the Latch Pin (11). Make sure that the Latch Pin Collar (14) and the Spring (56) are on the Latch Pin as shown. Insert the Latch Pin into the Storage Latch (77) and tighten the Latch Knob onto the Latch Pin.
7
110
68
8
85
105
77
9
56
14
87
11
9. Lower the Uprights (9, 10) until the Handrails (not shown) touch the floor. Make sure that the treadmill Frame (12) is centered between the Uprights. See step 3. Firmly tighten the four 3” Bolts (47). See step 6. Firmly tighten the four 4” Bolts (89). Raise the Uprights back to the ver­tical position.
Make sure that the two Cup Holders (118) are pressed into the round holes in the top of the Console Base (87).
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 23). To protect the floor or carpet from damage, place a mat under the treadmill.
9
10
Top View
87
118
12
8
9
OPERATION AND ADJUSTMENT
PERFORMANT LUBE
THE
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
TM
WALKING BELT
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appli­ances being turned on or off. To decrease the possi-
bility of your treadmill being damaged, always use a surge suppressor with your treadmill (see draw­ing 1 at the right).
Plug the power cord into a surge suppressor,
plug.
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with
-
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec trician to determine if the outlet box cover is grounded before using an adapter.
9
-

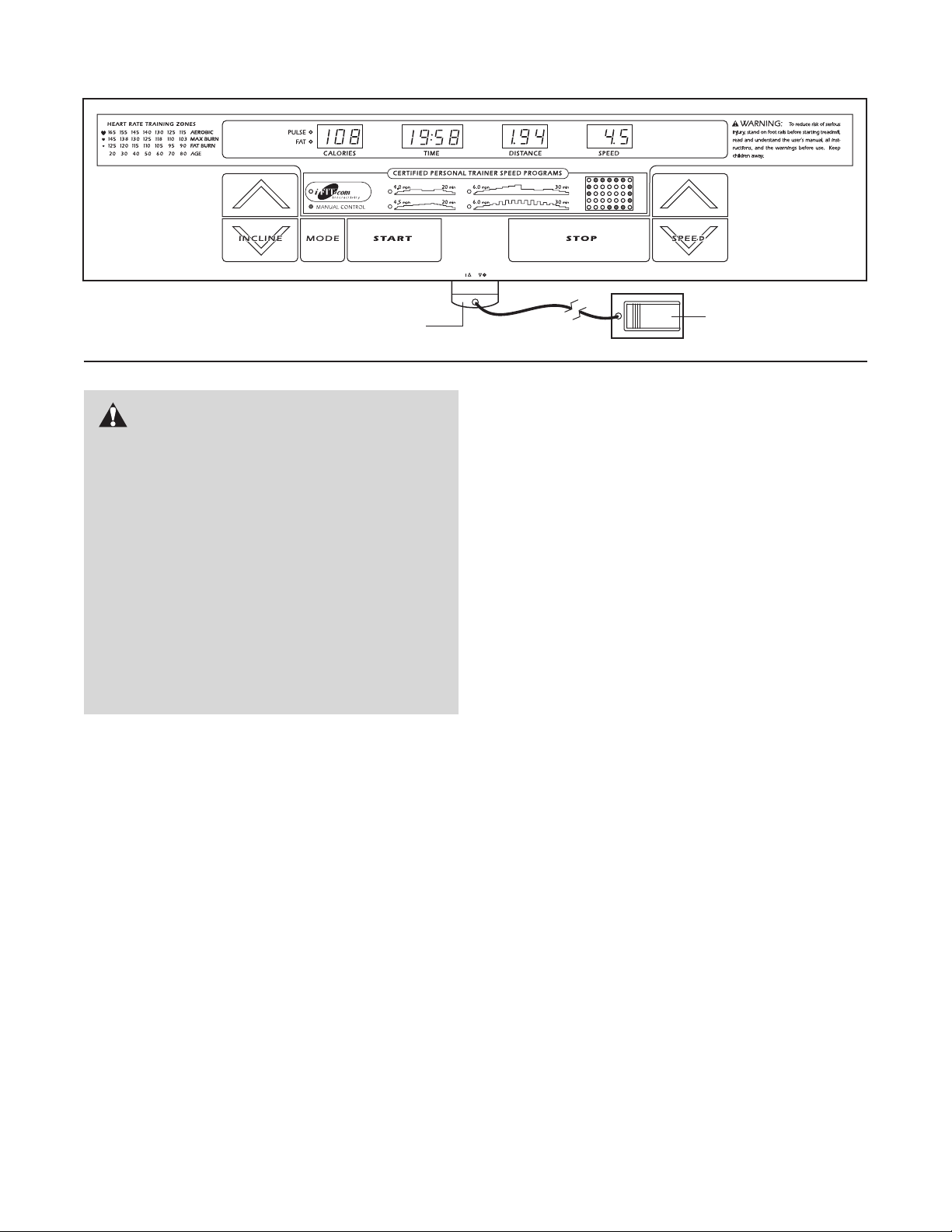

CONSOLE DIAGRAM
Note: If there is a thin sheet of plastic on the console, remove it.
Key
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing above) while operating the treadmill.
• Adjust the speed in small increments to avoid sudden jumps in speed.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
FEATURES OF THE CONSOLE
The console offers a selection of features designed to help you get the most from your exercise. When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in pulse sensor.
Clip
speed of the treadmill as it guides you through an effective workout.

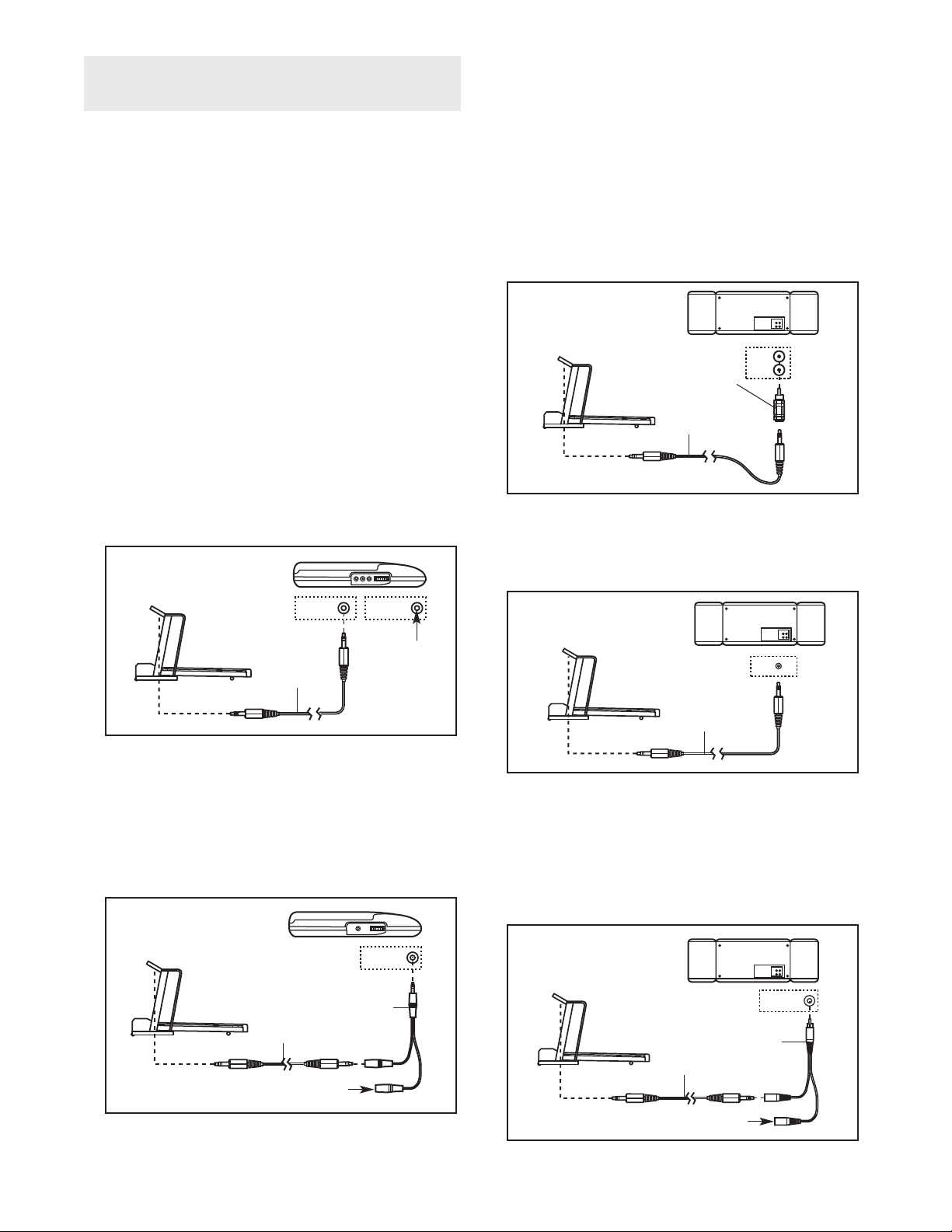

The console also features new iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
chase iFIT.com CDs or videocassettes, call toll­free 1-888-936-4266.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available. See www.iFIT.com for
more information.
To use the manual mode of the console steps beginning on page 11. To use a personal trainer speed program, see page 12.To use an iFIT.com CD or video program directly from our Web site, see page 18.
program
, see page 17. To use an iFIT.com
To pur-
, follow the
Four certified personal trainer speed programs are also offered. Each program automatically controls the
10
HOW TO TURN ON THE POWER
Plug in the power cord (see page 9).
1
Stand on the foot rails of the treadmill.
2
Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments
Note: The console can display speed and
mph.
distance in either miles or kilometers (see SPEED DISPLAY on page 12). For simplicity, all instructions in this section refer to miles.
of 0.5
Find the clip attached to the key (see the drawing
3
on page 10), and slide the clip onto the waistband of your clothes. Next, insert the key into the con­sole. After a moment, the displays and various in­dicators will light.
ing a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
Test the clip by carefully tak-
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected and the Manual Control indicator will light. If a program has been selected, press the Mode button repeatedly to res­elect the manual mode.
Press the Start button or the Speed
3
start the walking belt.
A moment after the but­ton is pressed, the walking belt will begin to move. Hold the handrails and begin walking. As you exer cise, change the speed of the walking belt as de­sired by pressing the Speed buttons.
-
ss
button to
To stop the walking belt, press the Stop button. The Time display will begin to flash. To restart the walking belt, press the Start button or the Speed button.
Note: The first time you use the treadmill, periodi­cally inspect the alignment of the walking belt, and align it if necessary (see page 23).
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press either of the Incline buttons until the desired incline level is reached.
Follow your progress with the LED track and
5
the displays.
The LED Track—When
the manual mode or the iFIT.com mode is se­lected, the LED display will show a track repre­senting 1/4 mile. As you exercise, the indicators around the track will light in sequence until you have completed 1/4 mile. A new lap will then begin.
Calories/Fat Calories/ Pulse display—This dis-
play shows the approxi­mate numbers of calories and fat calories you have burned (see FAT BURN­ING on page 24). The display will change from one number to the other every few seconds. The FAT indicator will light when the number of fat calories is shown. The display will also show your heart rate when you use the pulse sensor (see step 6 on page 12).
s
s
1
1
Time display—When
the manual mode or the iFIT.com mode is se lected, this display will show the elapsed time. When a personal trainer program is selected, the display will show the time remaining in the program.
Distance display—This display shows the dis­tance that you have walked or run.
Speed display—This display shows the speed of the walking belt.
Note: The console can display speed and dis­tance in either miles or kilometers. To see which unit of measurement is selected, hold down the Stop button, insert the key into the console, and continue to hold the Stop button for a few seconds. An “E” for English miles or an “M” for metric kilo­meters will appear in the display. Press the Speed
button to change the unit of measurement.
ss
When the desired unit of measurement is selected, remove the key and then reinsert it.
To reset the displays, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate, if desired.
-
6
To measure your heart rate, stand on the foot rails and place your thumb on the pulse sensor.
Do not press too hard, or the circulation in your thumb will be restricted and your pulse will not be detected.
onds, the PULSE indicator beside the Calories/Fat Calories/Pulse display will light and then your heart rate will be shown. Hold your thumb on the pulse sensor for about 15 seconds for the most accurate reading.
Pulse Sensor
After a few sec-
If the displayed heart rate appears to be too high or too low, or if your heart rate is not displayed, lift your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor as de­scribed above. suring your heart rate.
When you are finished exercising, remove the
7
key.
Step onto the foot rails and press the Stop button.
Adjust the incline of the treadmill to the lowest setting. Next, remove the key from the console and
put it in a secure place.
HOW TO USE PERSONAL TRAINER PROGRAMS
Insert the key fully into the console.
Remember to stand still while mea-
1
See HOW TO TURN ON THE POWER on page
11.
Select a personal trainer program.
2
When the key is in­serted, the manual mode will be selected. To select a personal trainer program, press the Mode button repeat­edly until one of the four personal trainer program indicators lights. When a personal trainer program is selected, the Time dis­play will show how long the program will last and the Speed display will flash the maximum speed setting for the program for a few seconds.
The profiles in the cen­ter of the console show how the speed of the treadmill will change during the programs. The first four speed set­tings for the selected program will be shown in the LED display.
12
Press the Start button or the Speed
3
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed set­ting for the program. walking.
Each program is divided into several time periods of different lengths. One speed setting is pro­grammed for each period. (The same speed set­ting may be programmed for consecutive periods.) The speed setting for the first period will be shown in the flashing Current Period column of the LED display. The speed settings for the next four periods will be shown in the four columns to the right.
When only three seconds remain in the first period of the program, the Speed display will flash, the Current Period column and the column to the right will flash, and a series of tones will sound. When the first period is completed, all speed settings will move one column to the left. The speed setting for the second period will then be shown in the flash­ing Current Period column and the treadmill will automatically adjust to the speed setting for the second period. (When the same speed setting is programmed for consecutive periods, the Speed display will not flash and the column to the right of the Current Period column will not flash during the last three seconds of the current period.)
Note: If all of the indicators in the Current Period column are lit after the speed settings have moved to the left,
so only the highest indicators in the columns ap­pear in the LED display. If some indicators in the
Current Period column are not lit settings have moved to the left again, settings
the speed settings will move downward
will move back up.
Hold the handrails and begin
ss
button to
Current Period
after the speed
the speed
The program will continue until the speed setting for the last period is shown in the Current Period column and no time remains in the Time display. The walking belt will then slow to a stop.
Note: If the speed setting for the current period is too high or too low, you can manually override the setting by pressing the Speed buttons. Every few times a button is pressed, an additional indicator will light or darken in the Current Period column. (If any of the columns to the right of the Current Period column have the same number of lit indica­tors as the Current Period column, an additional indicator may light or darken in those columns as well.) Important: When the current period of the
program ends, the treadmill will automatically adjust to the speed setting for the next period.
To stop the program temporarily, press the Stop button. The Time display will begin to flash. To restart the program, press the Start button or the Speed Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
button. To end the program, press the
s
s
4
See step 5 on page 11.
Measure your heart rate, if desired.
5
See step 6 on page 12.
When the program is completed, remove the
6
key from the console.
When the program has ended, adjust the incline of the treadmill to the lowest setting. Next, re-
move the key from the console and put it in a safe place.
To change the incline of the treadmill during the
buttons until the de
program, press the I sired incline level is reached.
ncline
-
13
A
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
A
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
HOW TO CONNECT THE
A
LINE OUT
AUDIO OUT
RIGHT
LEFT
TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmill must be con-
nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 14 and 15 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be con­nected to your VCR. See page 16 for connecting in­structions.
To use iFIT.com programs directly from
our internet site, the treadmill must be connected to
your home computer. See page 15 for connecting in­structions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack beneath
the console. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack
Audio Cable
Head-
phones
on your CD player. Plug your headphones into the other side of the Y-adapter.
B
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
B
Audio Cable
C. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
Audio Cable
Headphones
3.5mm
Y-adapter
14
C
3.5mm
Audio
Y-adapter
Cable
Headphones
HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
A
LINE OUT
CD
VCR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
A
PHONES
LINE OUT
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y­adapter into the LINE OUT jack on your stereo.
If your computer has a 3.5mm LINE OUT jack,
Note: see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speak­ers into the other side of the Y-adapter.
B
B
Audio Cable
3.5mm
Y-adapter
Headphones/Speakers
Audio Cable
RCA
Y-adapter
Adapter
Wire removed from
LINE OUT jack
15
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH 3
4
VIDEO
AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 15.
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
A
Adapter
Audio
Cable
B
RCA Y-adapter
Audio Cable
Adapter
Wire removed from
AUDIO OUT jack
16
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page
14. Note: IFIT.com CD and video programs will con-
trol only the speed of your treadmill.
To purchase iFIT.com CDs or videocassettes, call toll-free 1-888-936-4266.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
If the speed setting is too high or too low, you can manually override the setting at any time by pressing the Speed buttons on the console. However,
speed will change or video program.
To stop the walking belt at any time, press the Stop button on the console. The Time display will begin to flash. To restart the program, press the Start button or the Speed ment, the walking belt will begin to move.
the next “chirp” is heard, the speed will change to the next setting of the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Time display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1.
when the next “chirp” is heard, the
to the next setting of the CD
button. After a mo-
s
s
When
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To use iFIT.com CDs or videocassettes, press the Mode button repeatedly until the iFIT.com indicator lights.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time display is flashing, press the Start button or the Speed the console. The treadmill will not respond to a CD or video program when the Time display is flashing.
button on
s
s
Note: If the speed of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time display is not flashing. If the Time display is flashing, press the Start but­ton or the Speed
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the LED track and
5
the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
button on the console.
s
s
6
See step 6 on page 12.
When the program is completed, remove the
7
key.
See step 6 on page 13.
During the CD or video program, an electronic “chirping” sound the treadmill is about to change. CAUTION:
Always listen for the “chirp” and be prepared for speed speed may change before the personal trainer describes the change.
will alert you when the speed of
changes. In some instances, the
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player or VCR when you are finished using them.
17
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access programs directly from the internet. See www.iFIT.com for details. Note: Programs will control only the
speed of your treadmill.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 15. In addition, you must have an internet connection and an internet service provider. A list of specific system re­quirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To use a program from our Web site, press the Mode button repeatedly until the iFIT.com indicator lights.
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic “chirping” sound will alert you when the speed of the treadmill is about to change.
Always listen for the “chirp” and be prepared for speed changes.
If the speed setting is too high or too low, you can manually override the setting at any time by press­ing the Speed buttons on the console.
when the next “chirp” is heard, the speed will change to the next setting for the program.
To stop the walking belt at any time, press the Stop button on the console. The Time display will begin to flash. To restart the program, press the Start button or the Speed ment, the walking belt will begin to move. When
the next “chirp” is heard, the speed will change to the next setting for the program.
When the program is completed, the walking belt will stop and the Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time display is not flashing. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
CAUTION:
However,
s
s
button. After a mo-
Follow the desired links on our Web site to se
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count down will begin.
­Follow your progress with the LED track and
8
the displays.
See step 5 on page 11.
Measure your heart rate, if desired.
9
See step 6 on page 12.
-
18
When the program is completed, remove the
10
key.
See step 6 on page 13.
THE INFORMATION MODE
The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also al­lows you to switch the console from miles per hour to kilometers per hour.
To select the information mode, hold down the Stop button, insert the key into the console, and continue to hold the Stop button for a few seconds. When the infor­mation mode is selected, the following information will be shown:
The Time display will show the total number of hours the treadmill has been used.
The Distance/Laps display will show the total number of miles (or kilometers) that the walking belt has moved.
An “E” for english miles or an “M” for metric kilometers will appear in the Speed display.
ss
Press the Speed change the unit of measure­ment.
To exit the information mode, remove the key from the console.
button to
19
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at the right.
injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
to the vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the catch is past the pin on the latch knob. Slowly release the latch knob.
pin.
CAUTION: To decrease the possibility of
Make sure that the catch is securely held by the
Next, unplug the power cord.
Raise the treadmill about halfway
Open
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the catch
is securely held by the pin on the latch knob.
1. Hold the handrails as shown and place one foot against a wheel.
2. Tilt the treadmill back until it rolls freely on the wheels. Carefully move the treadmill to the desired location.
Never move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
Latch Knob
Pin
Catch
Closed
3. Place one foot on a wheel, and carefully lower the tread­mill until it is resting in the storage position.
20
Base
Wheels
HOW TO LOWER THE TREADMILL FOR USE
Hold the upper end of the treadmill with your right hand
1.
as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame
to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
Latch Knob
Pin
Catch
Open
21
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department at 1-888-936-4266, Monday through Friday 8h00 until 18h30 eastern time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see c.
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our toll-free Customer Service Department.
c
Off
Reset
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key and UNPLUG THE POWER CORD.
Remove the hood from the treadmill. Locate the Reed Switch (21) and the Magnet (43) on the left side of the Pulley (42). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap be-
tween the Magnet and the Reed Switch is about 1/8”.
If necessary, loosen the 3/4” Screw (76) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.
a
1/8”
76 21
Top
View
42
43
22
PROBLEM: The walking belt slows when walked on
Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
SOLUTION:
PROBLEM: The walking belt is off-center or slips when walked on
a.
If the walking belt is overtightened, treadmill perfor-
b.
mance may decrease and the walking belt may be­come damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 5 –7 cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tight­ened.
c. If the walking belt still slows when walked on, please call our toll-free Customer Service
Department.
UNPLUG THE
b
5–7 cm
Rear Roller Adjustment Bolts
SOLUTION:
a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 5 –7 cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
b
23
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
-
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
-
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex ercise problems.
EXERCISE FREQUENCY
-
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
24
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to­ward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
25
PART LIST—Model No. WCTL39320 R0804A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key
No. Qty. Description
1 1 Motor Belt 2 1 Pulley/Flywheel/Fan 3 4 Motor Nut
4* 1 Motor/Pulley/
Flywheel/ Fan 5 1 Incline Motor Bolt 6 2 Incline Motor Spacer 7 1 Incline Motor 8 1 Stop Bracket 9 1 Left Upright
10 1 Right Upright 11 1 Latch Pin 12 1 Frame 13 1 Pin Clip 14 1 Latch Pin Collar 15 2 Incline Motor Nut 16 4 Belt Guide Screw 17 1 Wire Harness 18 2 Hood Bracket 19 1 Front Hood Bracket 20 2 Warning Decal 21 1 Reed Switch 22 1 Reed Switch Clip 23 1 Power Board 24 1 Controller 25 1 Electronics Bracket 26 1 Reset/Off Circuit
Breaker
27 1 Power Cord 28 1 Power Cord Grommet 29 8 Washer 30* 1 Latch Assembly 31 1 Incline Frame 32 2 Frame Pivot Bolt
2 Frame Pivot Spacer
33 34 1 Tension Bushing 35 1 Front Roller Adj. Bolt
1 Foot Rail Cap (Right)
36 37 2 Motor Tension Nut 38 4 Motor Bolt 39 4 Plastic Standoff 40 1 Foot Rail Cap (Left) 41 1 Left Foot Rail 42 1 Front Roller/Pulley 43 1 Magnet 44 4 Platform Screw 45 2 Isolator 46 4 Isolator Fastener
Key
No. Qty. Description
47 4 3” Bolts 48 1 Incline Warning Decal 49 2 Belt Guide 50 1 Battery Cover 51 1 Front Belly Pan 52 8 U-nut 53 3 Cable Tie Clamp 54 4 Cable Tie 55 1 Walking Belt 56 1 Spring 57 1 Rear Roller 58 4 Hood Screw 59 2 Rear Foot 60 1 iFIT Jack 61 1 Ground Wire 62 13 Screw 63 1 Left Rear Endcap 64 1 Right Rear Endcap 65 2 Rear Roller Adj. Bolt 66 1 Motor 67 1 Latch Decal 68 17 Console Screw 69 2 Latch Catch Screw 70 1 Latch Catch 71 1 Walking Platform 72 5 Plastic Tie 73 1 Incline Bolt 74 1 Motor Tension Bolt 75 1 Right Foot Rail 76 23 3/4” Screw 77 1 Storage Latch Bracket 78 1 Console 79 4 1 1/2” Screw 80 4 Incline Pivot Nut
4 Motor Star Washer
81 82 1 Base 83 2 Incline Frame Bolt
1 Motor Tension
84
Washer 85 2 Handrail 86 2 Wheel Bolt 87 1 Console Base 88 1 Console Crossbar 89 4 4” Bolt 90 1 Key/Clip 91 1 Incline Motor Belly Pan 92 4 Roller Adj. Washer
Book Holder
1
93
Key
No. Qty. Description
94 1 Motor Hood 95 2 Front Wheel 96 1 Incline Motor Shield 97 4 Base Pad 98 1 iFIT Wire
99 1 Upright Grommet 100 1 Allen Wrench 101 2 1 1/4” Tek Screw 102 2 Handrail Endcap 103 1 Power Board Plate 104 4 Base Cap 105 1 Latch Knob 106 1 Choke 107 1 Silver Screw 108 1 Warning Decal 109 2 Lift Spacer 110 1 Connector Cover 111 1 Hood Spacer 112 2 Bumper 113 1 Edge Guard 114 2 Upright Endcap 115 2 Metal Plate 116 2 Foam Tape 117 2 Rear Foot Spacer 118 2 Cup Holder 119 1 Power Board Bracket 120 1 Controller Wire 121 4 Railcap Screw 122 2 Bracket Starwasher 123 1 Large Decal French 124 2 Plastic Tie Clamp 125 2 Wheel Nut
# 1 Pulse Plate Cover # 1 8” Blue Wire, 2F
1 4” Blue Wire, 2F
# # 1 8” White Wire, 2F # 1 4” White Wire, M/F
1 8” Green Wire, 2 Ring
# # 1 User's Manual
* Includes all parts shown in the
box.
# These parts are not illustrated.
Specifications are subject to change without notice.
26
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-936-4266, Monday through Friday, 8h00 until 18h30 Eastern Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (WCTL39320)
• The NAME OF THE PRODUCT (WESLO
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING in the center of this manual and the PART LIST on page 26)
®
CADENCE C62 treadmill)
PLACE STAMP
HERE
ICON OF/DU CANADA, Inc. 900 de l’Industrie St-Jérôme, Québec Canada, J7Y 4B8
27
LIMITED WARRANTY
®
of/du Canada Inc.
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential dam­ages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an im­plied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment.
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE NAME:
PHONE: ADDRESS: COUNTY: MODEL NO.
SERIAL NO.
RETAILER NAME:
1) Primary user(s) of product:
o Male o Female o Family
2) Age of primary user:
o 0–24 o 35–44 o 55–64 o 25–34 o 45–54 o 65 and over
3) Annual household income:
o 0–9,999 o 15,000–19,999 o 10,000–14,999 o 20,000+
4) How many times a week do you exercise?
o Less than 3 times o 3 times or more
5) Have you ever purchased an ICON product before?
o Yes o No
6) Where did you first see or hear about ICON products?
o Magazine o Friend/relative o Newspaper Ad o Store o Other
7) What was the primary reason for purchasing this ICON product?
o Store Employee o Television Ads o Colour o Electronic Features o Magazine Ads o Price o Product Design o Product Innovation o Other Features
POSTCODE:
RETAILER ADDRESS:
8) Did you consider purchasing fitness equipment from another
9) Based on your impression of what you have purchased,
10) What other type of exercise equipment do you own?
11) Which type of magazines do you read regularly?
12)
PRODUCT WARRANTY REGISTRATION
PURCHASE DATE:
manufacturer?
o No o Yes
What other manufacturer?
product?
would you buy another
o Yes o No o No Opinion
If not, what other brand equipment would you purchase?
o Bicycle o Exercise Cycle o Treadmill o Home Gym o Weight Bench o Stepper o Cardio Glide o Other
o Sports o Fitness o Motoring o Business o Computer o General
Do you wish to be sent further bulletins about
o Yes o No
ICON
ICON products?
THANK YOU FOR YOUR TIME
© 2004 ICON IP, Inc. Printed in Canada
Part No. 213789 R0804A
Printed in Canada
2004 ICON IP, Inc.
©
106
62
41
18
76
15
8
5
7
6
19
76
73
80
35
32
33
80
31
38
121
80
76
18
76
22
21
3
1
3
4*
2
121
40
36
33
43
42
32
45
71
55
76
45
62
53
54
59
101
62
61
64
57
67
76
51
15
66
44
76
12
49
75
37
74
81
25
27
28
62
26
34
84
76
76
16
49
16
59
101
65
92
65
92
69
70
44
44
44
81
38
24
62
100
46
63
46
116
117
117
76
103
62
23
119
111
39
109
109
116
123
80
92
37
122
EXPLODED DRAWING—Model No. WCTL39320 R0804A
To identify parts shown on this EXPLODED DRAWING,
see the PART LIST on page 26 of the user’s manual.
90
79
79
30*
114
114
83
83
76
91
72
82
104
97
76
17
99
62
17
86
95
125
125
95
86
97
76
97
76
104
104
104
97
76
77
68
105
56
11
13
14
79
85
102
79
85
102
89
89
47
29
47
29
58
58
58
94
58
87
68
88
76
96
78
68
68
68
68
93
50
9
10
20
20
52
52
29
29
110
118
118
68
113
52
115
115
98
120
60
112
112
124
107
108
48
76
76
52
68
EXPLODED DRAWING—Model No. WCTL39320 R0804A
Loading...
