Weslo WATL13906.0 User Manual

Model No. WATL13906.0
Serial No.

Serial Number

Decal

QUESTIONS?

If you have questions, or if any
parts are missing or damaged,
PLEASE CONTACT OUR CUS­TOMER SERVICE DEPARTMENT
DIRECTLY.

Call toll-free:

800-830-7240

USER'S MANUAL

E-mail:
[e-mail]

Goodfamily’s Web site:
www.goodfamily.cc

ICON’s Web site:
www.iconfitness.com

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Goodfamily is an authorized dealer of this treadmill in the
territory of mainland China. This treadmill is designed and
manufactured by ICON Health & Fitness, Inc.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.

WESLO is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING:

ollowing important precautions and information before operating the treadmill.

f

1. It is the responsibility of the owner to ensure
hat all users of this treadmill are adequately

t
informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place the treadmill on a level surface, with at

least 2.5 m (8 ft.) of clearance behind it and

0.5 m (2 ft.) on each side. Do not place the
treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being
administered.

To reduce the risk of burns, fire, electric shock, or injury to persons, read the

11. If an extension cord is needed, use only a 3­onductor, 1mm

c
longer than 1.5 m (5 ft.).

12. Keep the power cord away from heated sur-

faces.

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See MAIN­TENANCE AND TROUBLESHOOTING on page
17 if the treadmill is not working properly.)

14. Read, understand, and test the emergency

stop procedure before using the treadmill (see
OPERATION AND ADJUSTMENT on page 10).

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the
handrails while using the treadmill.

2

14-gauge) cord that is no

(

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 113 kg (250 lbs.) or less.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.

Always wear athletic
shoes; never use the treadmill with bare feet,
wearing only stockings, or in sandals.

10. When connecting the power cord (see page

10), plug the power cord into an earthed cir­cuit. No other appliance should be on the
same circuit. When replacing the fuse, an
ASTA approved BS1362 type should be fitted
to the fuse carrier. A 13 amp fuse should be
used.

16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.

17. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in use.

18. The pulse sensor is not a medical device.
Various factors, including your movement, may
affect the accuracy of heart rate readings. The
pulse sensor is intended only as an exercise
aid in determining heart rate trends in general.

19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW
AND MOVE THE TREADMILL on page 15.)
You must be able to safely lift 20 kg (45 lbs.) to
raise, lower, or move the treadmill.

20. When folding or moving the treadmill, make
sure that the frame is securely held by the
lock pin.

TO FOLD

3

1. Do not change the incline of the treadmill by

2

placing objects under the treadmill.

22. Inspect and properly tighten all parts of the
readmill regularly.

t

23. Never drop or insert any object into any

opening.

24.

DANGER: Always unplug the power

cord immediately after use, before cleaning
the treadmill, and before performing the main-

enance and adjustment procedures de-

t
scribed in this manual. Never remove the

otor hood unless instructed to do so by an

m
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.

25. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer­cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown at the right has been placed on the
treadmill. If the decal is missing, or if it is not legible,
call the toll-free telephone number on the front cover of
this manual and order a free replacement decal. Apply
the decal in the location shown. Note: The decal is not
shown at actual size.

4

BEFORE YOU BEGIN

Thank you for selecting the new WESLO®CADENCE
S5 treadmill. The CADENCE S5 treadmill combines
advanced technology with innovative design to make
your workouts at home more effective and enjoyable.

nd when you’re not exercising, the CADENCE S5

A
treadmill can be folded up, requiring less than half the
floor space of other treadmills.

For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-

Water Bottle Holder
(Bottle is not included)

Handrail

Storage Latch

ing this manual, please see the front cover of this man­ual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number of the treadmill is WATL13906.0.

he serial number can be found on a decal attached to

T
the treadmill (see the front cover of this manual for the
location).

Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.

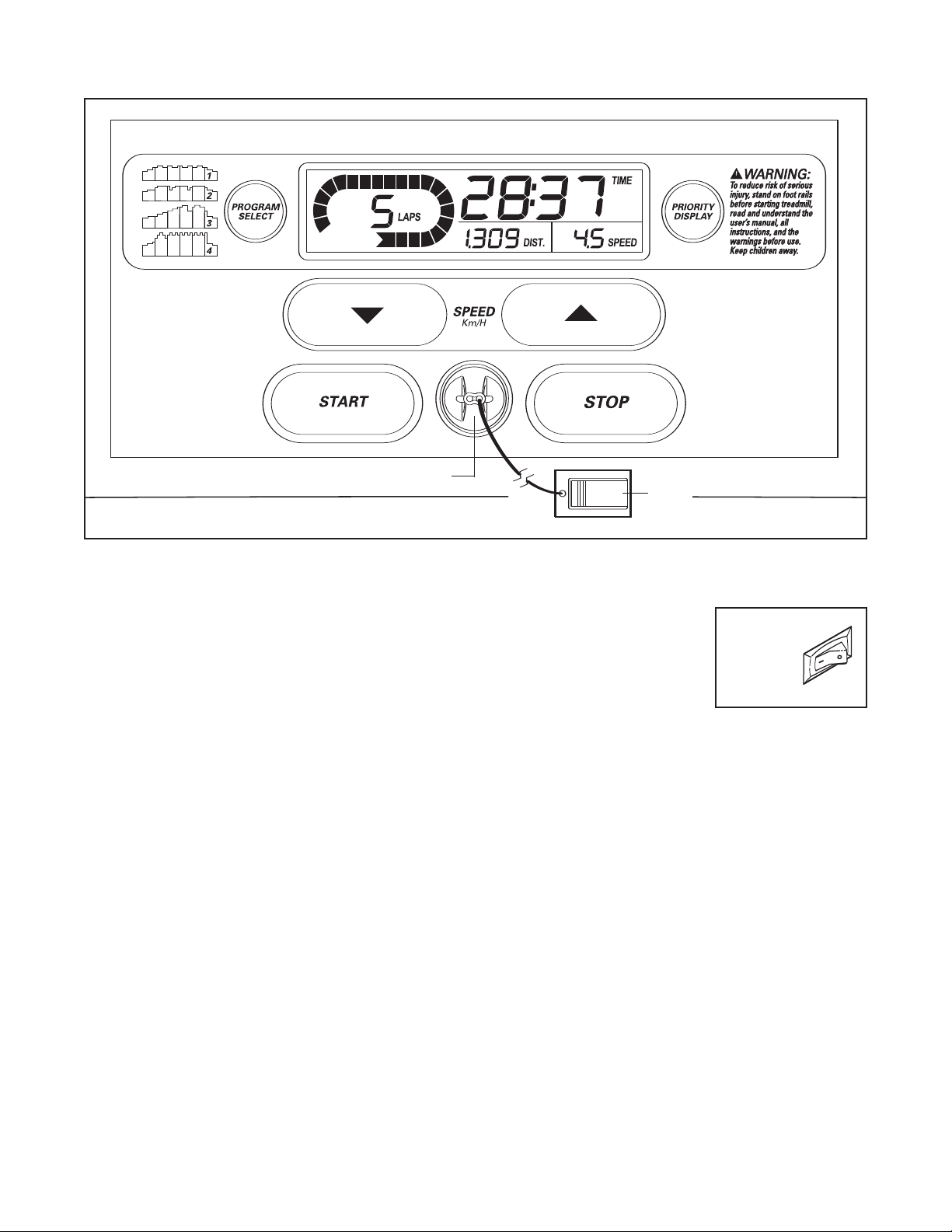

Console

Key/Clip

Walking Belt

Foot Rail

Rear Roller
Adjustment Bolts

Hood

On/Off Switch

Circuit Breaker

Wheel

RIGHT SIDE

Incline Leg/Pin

5

ASSEMBLY

ssembly requires two persons.Set the treadmill in a cleared area and remove all packing materials; do not

A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

In addition to the included hex key , assembly requires a phillips screwdriver , two
spanners , and wire cutters .

Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of
this manual. Some parts may be preassembled.

1. Have a second person hold the Base (52) in the position
shown.

Identify the Left Upright (53) (the Right Upright [54] has a
large hole near the lower end).

Hold the Left Upright (53) so the bend is in the posi­tion shown. Insert two Upright Bolts (2) into the
bracket on the Left Upright. Attach the Left Upright to

the Base (52) with the Upright Bolts and two Upright Nuts
(16). Do not tighten the Upright Nuts yet.

Attach the Right Upright (54) to the Base (52) in the same
way.

2. Slide the two Wheel Housings (62) onto the Base (52) with
the head of the Wheel Bolts (35) on the outside as shown.
Attach each Wheel Housing with two Wheel Housing Bolts
(6), two Wheel Housing Washers (11), and two Wheel
Housing Nuts (15).

1

52

15

16

Large

Hole

16

2

35

54

2

53

Bend

2

35

62

6

11

52

62

6

15

11

6

3. With the help of a second person, raise the Uprights
(53, 54) so the Base (52) is flat on the floor as shown.

ext, position the front of the treadmill Frame (51) between

N
the Uprights.

See the inset drawing. Locate the wire inside of the lower
end of the Right Upright (54). Secure the wire to the Wire
Harness (98) using the included plastic tie. Then, pull the
upper end of the wire until the end of the Wire Harness is
extending from the indicated hole in the upper end of the
Right Upright.

3

53

ole

H

4

5

Have a second person lift and hold the front end of the
Frame (51). Hold a Frame Spacer (111) between the Right
Upright (54) and the Frame. Attach the Right Upright and
the Frame Spacer to the Frame with a Frame Bolt (1), a
Frame Washer (14), and a Frame Star Washer (9).

Repeat this step on the left side of the treadmill.

4. Turn the Console Assembly (91) face-down. Be careful

not to scratch the face of the Console Assembly.

Identify the Right Handrail (55), which has a large hole in
one side.

111

Large

Hole

51

4

98

Wire

Tie

98

12

4

5

52

14

9

1

54

Attach the Right Handrail (55) to the Console Assembly
(91) with two Console Screws (4), a Crossbar Screw (5),
and a Crossbar Star Washer (12).

7

Large Hole

91

55
