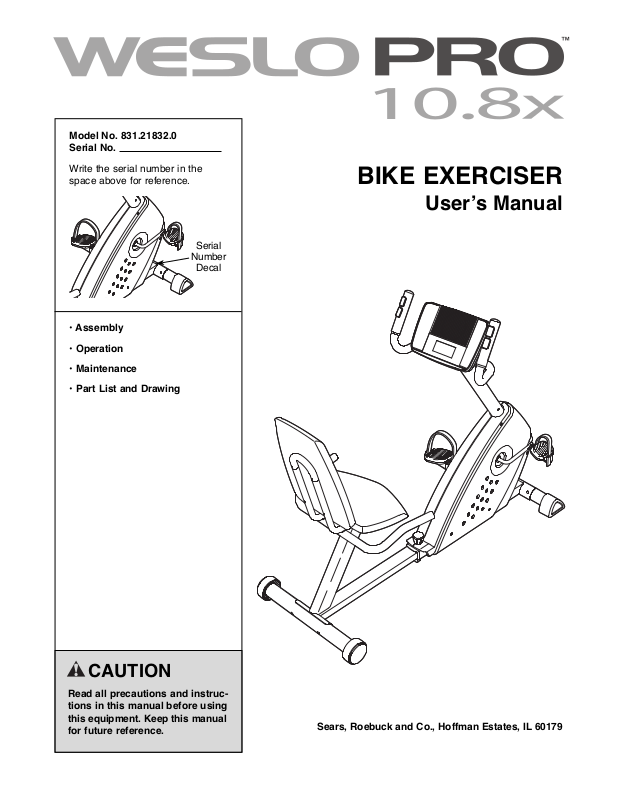

Page 1
Model No. 831.21832.0
Serial No.
Write the serial number in the
space above for reference.
Number
• Assembly
• Operation
• Maintenance
• Part List and Drawing
BIKE EXERCISER
Userʼs Manual
Serial
Decal
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

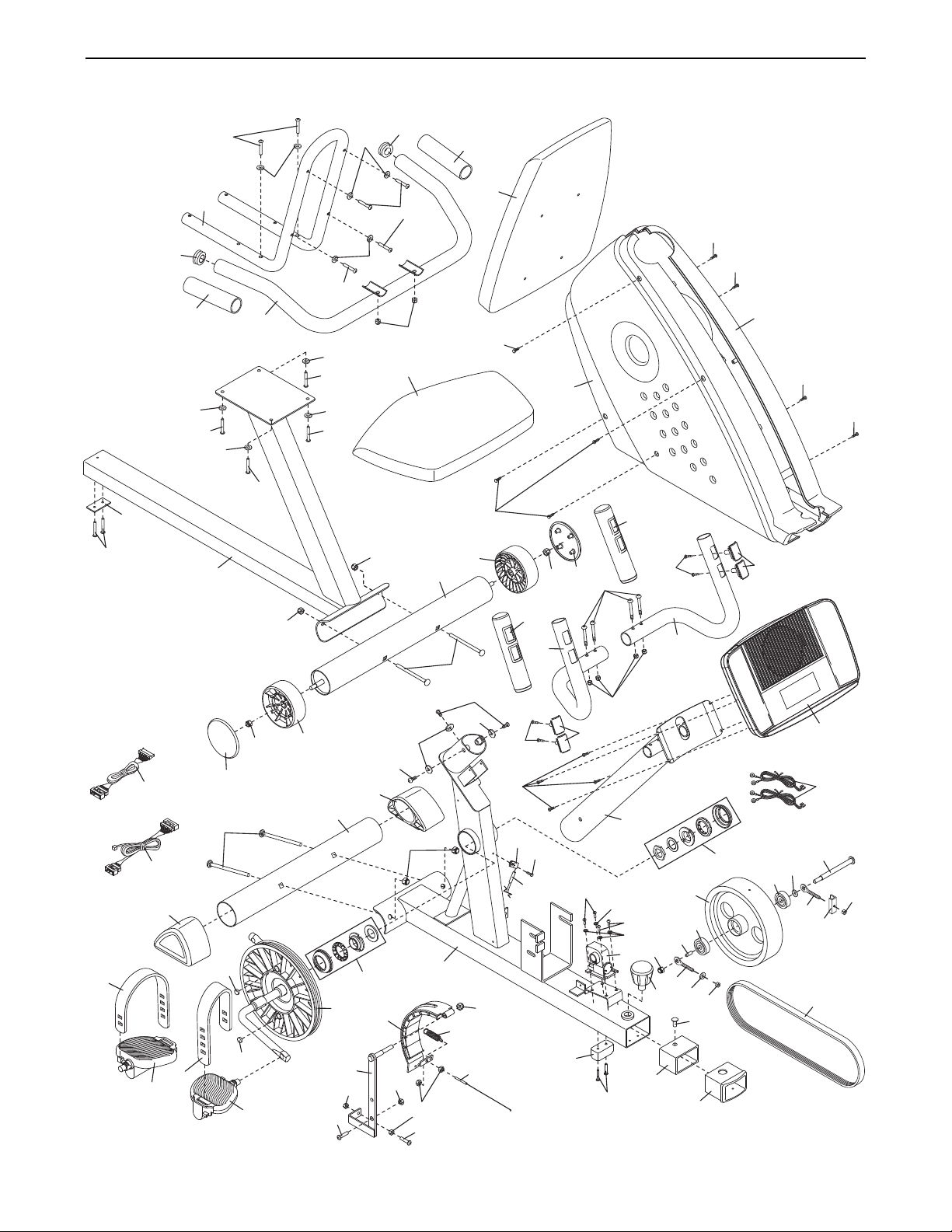

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, call 1-866-699-3756 and
request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown at
actual size.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. Sears assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around your exercise cycle to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
8. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise
cycle. Always wear athletic shoes for foot
protection while exercising.
10. Keep your back straight while using your
exercise cycle; do not arch your back.
11. When you stop exercising, allow the pedals
to slowly come to a stop.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. Use your exercise cycle only as described in
this manual.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
3
Page 4
BEFORE YOU BEGIN
hank you for selecting the new WESLO PRO™
T
10.8X exercise cycle. Cycling is one of the most effective exercises for increasing cardiovascular fitness,
building endurance, and toning the body. The 10.8X
xercise cycle offers a selection of features designed
e
to let you enjoy this healthful exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Fan
Console
fter reading this manual, please see the back cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Backrest
Wheel
Pedal/Strap
Seat
Adjustment Knob
Handlebar
4
Page 5
ASSEMBLY
M10 Locknut
(63)–4
M8 Locknut
(60)–4
M8 Split
Washer (59)–5
M6 Washer
(55)–8
M8 x 25mm Button
Screw (33)–3
M8 x 70mm Button
Bolt (54)–2
M6 Locknut
(72)–4
M10 x 75mm Carriage Bolt (51)–4
M6 x 42mm Button
Screw (49)–4
M6 x 38mm Patch
Screw (48)–4
M6 x 38mm Button
Bolt (69)–4
M4 x 16mm
Screw (52)–4
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
n addition to the included tools, assembly requires a Phillips screwdriver and an adjustable
I
wrench .
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a part is missing, call 1-866-699-3756.
5
Page 6
1.
To make assembly easier, read the information
on page 5 before you begin assembling the
xercise cycle.
e
While another person lifts the front of the Frame (1),
ttach the Front Stabilizer (3) to the Frame with two
a
M10 x 75mm Carriage Bolts (51) and two M10
Locknuts (63).
1
3
51
1
63
2. Slide the Rear Frame (2) out of the Frame (1), and
then tighten the Adjustment Knob (17) into the
Frame.
3. Attach the Wheels (18) to the Rear Stabilizer (4)
with two M8 Locknuts (60). Press a Wheel Cap (19)
onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame (2)
with two M10 x 75mm Carriage Bolts (51) and two
M10 Locknuts (63).
2
17
1
2
3
18
4
51
19
63
2
63
60
18
6
Page 7
4. Attach the Seat Frame (7) to the Handlebar (6) with
wo M8 x 70mm Button Bolts (54), two M8 Split
t
Washers (59), and two M8 Locknuts (60). Do not
tighten the Button Bolts yet.
4
4
5
9
5
59
7
6
60
5. Attach the Backrest (5) to the Seat Frame (7) with
four M6 x 38mm Patch Screws (48) and four M6
Washers (55). Do not tighten the Patch Screws
yet.
5
5
7
55
48
55
48
7
Page 8
6. Have another person hold the Seat Frame (7) under
he Rear Frame (2) as shown. Attach the Seat
t
Frame and the Seat (12) to the Rear Frame with
four M6 x 42mm Button Screws (49) and four M6
Washers (55).
See step 4. Tighten the two M8 x 70mm Button
Bolts (54).
6
12
See step 5. Tighten the four M6 x 38mm Patch
Screws (48).
7. The Console (16) can use four 1.5V “D” batteries
(not included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed
to cold temperatures, allow it to warm to room
temperature before inserting batteries.
Otherwise, you may damage the console displays or other electronic components. Remove
the battery cover, insert the batteries into the battery compartment, and reattach the battery cover.
Make sure to orient the batteries as shown by
the diagram inside the battery compartment.
2
55
7
55
49
55
49
7
Battery Cover
Batteries
To purchase an optional AC adapter, contact the
store where you purchased this product or call
the telephone number on the cover of this manual. To avoid damaging the console, use only a
manufacturer-supplied AC adapter. Plug one end
of the AC adapter into the jack on the console; plug
the other end into an outlet installed in accordance
with all local codes and ordinances.
16
8
Page 9

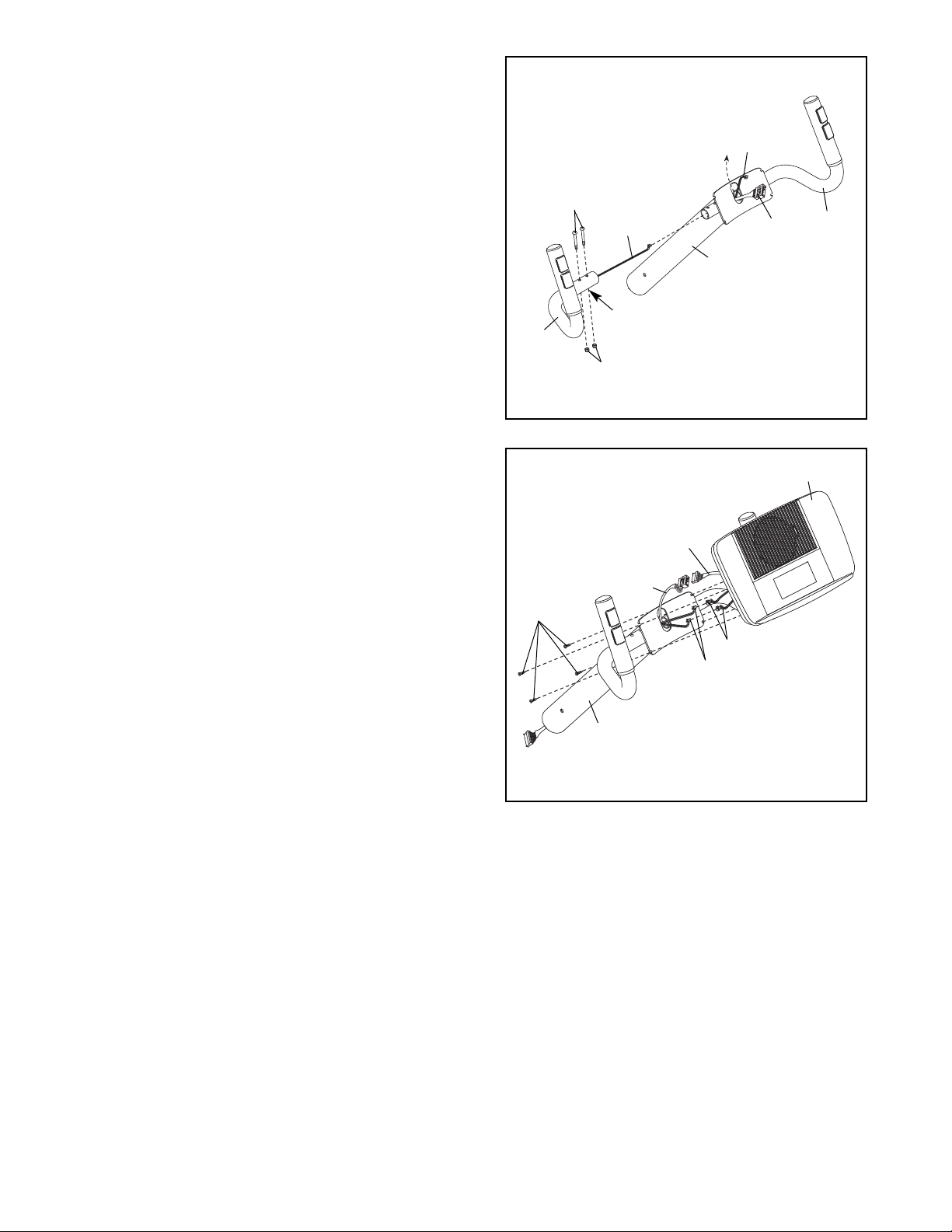

8. Identify the Left Pulse Bar (65), which is marked
with a “Left” sticker.
Have another person hold the Left Pulse Bar (65)
near the left side of the Upright (13). Make sure
that the hexagonal holes are in the indicated
ocation.
l
Insert the left Pulse Wire (71) into the Upright (13)
and pull it upward out of the top of the Upright.
8
o not pinch
D
the wires during
1
this step
69
71
7
36
66
Tip: Do not pinch the wires. Slide the Left Pulse
Bar (65) onto the Upright (13). Attach the Left Pulse
Bar with two M6 x 38mm Button Bolts (69) and two
M6 Locknuts (72). Make sure that the Locknuts
are in the hexagonal holes.
Repeat this step for the Right Pulse Bar (66).
9. While another person holds the Console (16) near
the Upright (13), connect the console wire to the
Upper Wire Harness (36). Then, connect the console pulse wires to the Pulse Wires (71). Insert the
excess wire downward into the Upright.
Tip: Do not pinch the wires. Attach the Console
(16) to the Upright (13) with four M4 x 16mm
Screws (52).
13
Hexagonal
65
9
52
Holes
72
16
Console
Wire
36
Pulse Wires
71
13
Do not pinch
the wires during
this step
9
Page 10

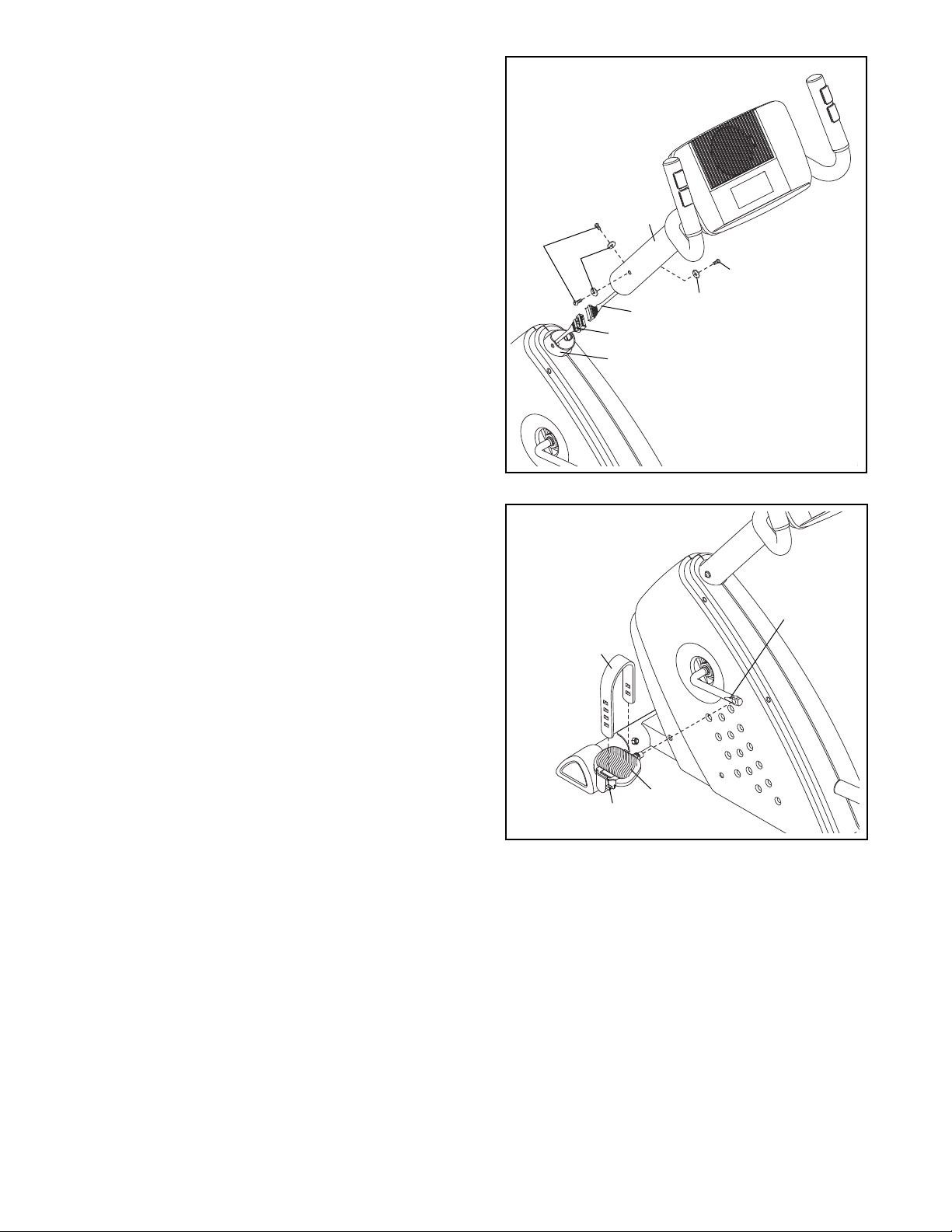

0. While another person holds the Upright (13) near
1
the Frame (1), connect the Upper Wire Harness
(36) to the Lower Wire Harness (8).
ip: Do not pinch the Wire Harnesses (8, 36).
T
Slide the Upright (13) onto the Frame (1). Attach
he Upright with three M8 x 25mm Button Screws
t
(33) and three M8 Split Washers (59).
0
1
13
33
59
33
11. Identify the Left Pedal (24), which is marked with a
“Left” sticker. Firmly tighten the Left Pedal counter-
clockwise into the left arm of the Crank (31).
Tighten the Right Pedal (not shown) clockwise into
the right arm of the Crank. IMPORTANT: Tighten
both pedals as firmly as possible. After using
the exercise cycle for one week, retighten the
pedals. For best performance, keep the pedals
tightened.
Adjust the Left Pedal Strap (25) to the desired position, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (24). Adjust the Right
Pedal Strap (not shown) in the same way.
11
25
8
1
Tab
36
59
Do not pinch the
Wire Harnesses (8, 36)
during this step
24
31
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware
may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.
10
Page 11
HOW TO USE THE EXERCISE CYCLE

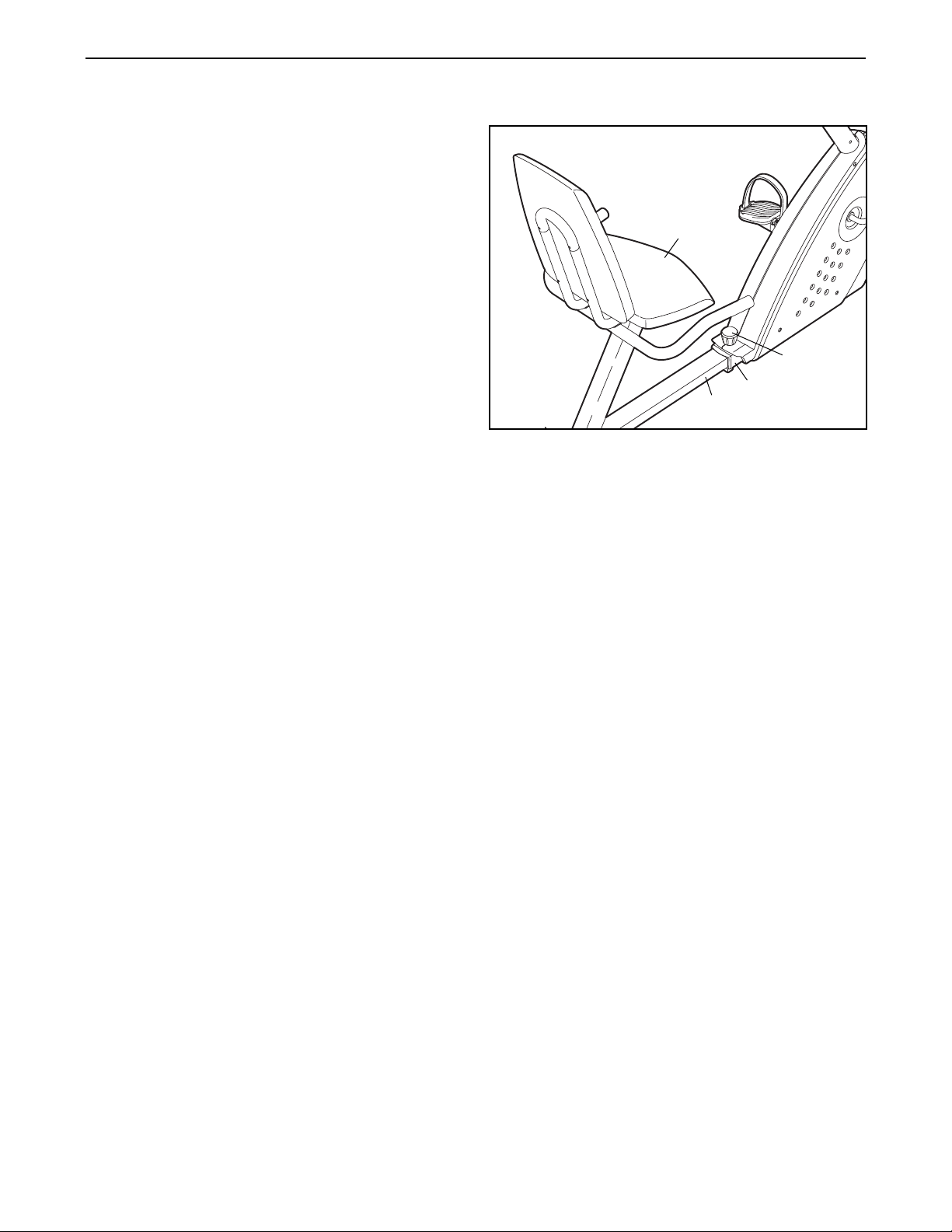

HOW TO ADJUST THE SEAT
After the exercise cycle is assembled, adjust the Seat
(12) to the proper position. As you pedal, there should
e a slight bend in your knees when the pedals are in
b
the most forward position. To adjust the Seat, loosen
the Adjustment Knob (17), slide the Rear Frame (2)
forward or backward in the Frame (1), and then tighten the Adjustment Knob.
12
17
1
2
11
Page 12

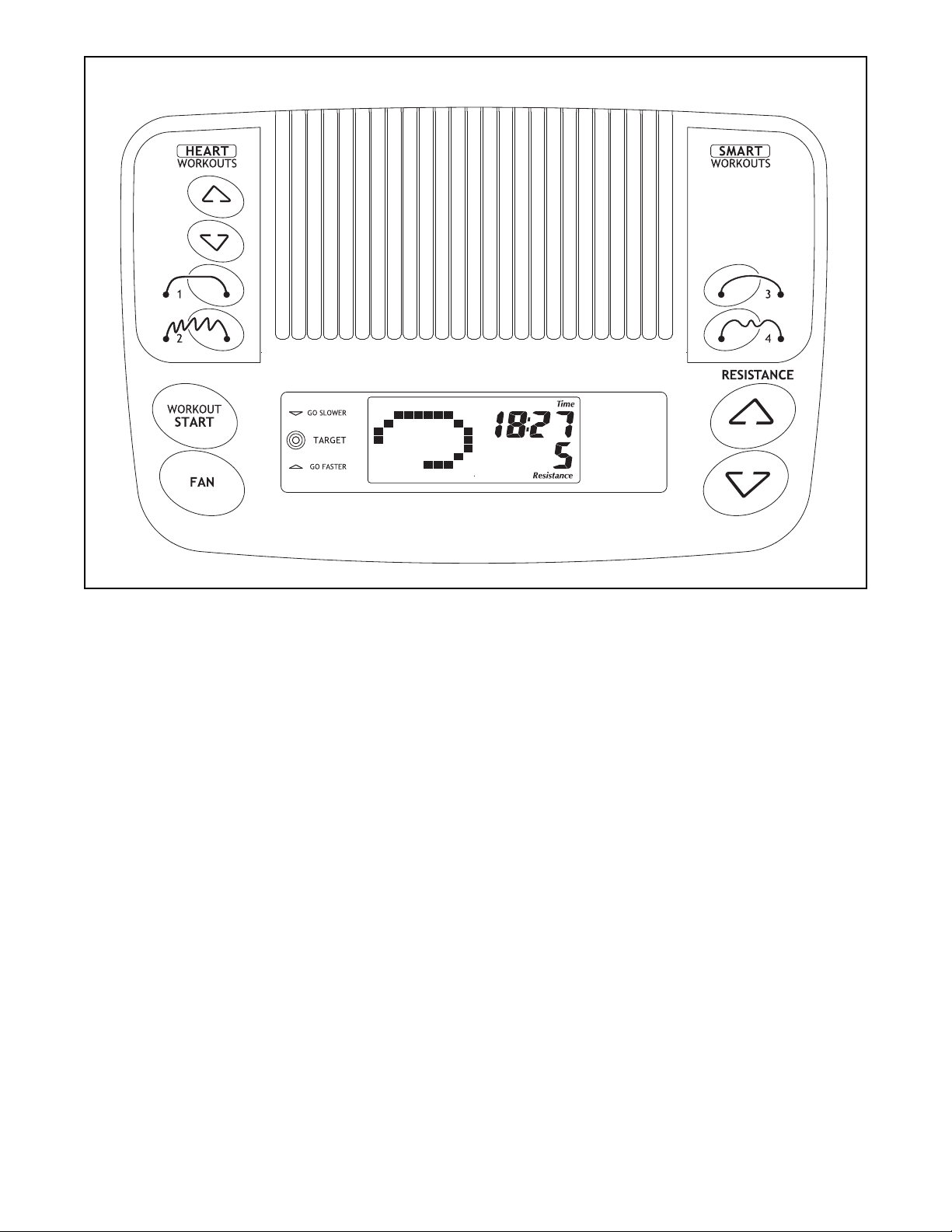

CONSOLE DIAGRAM

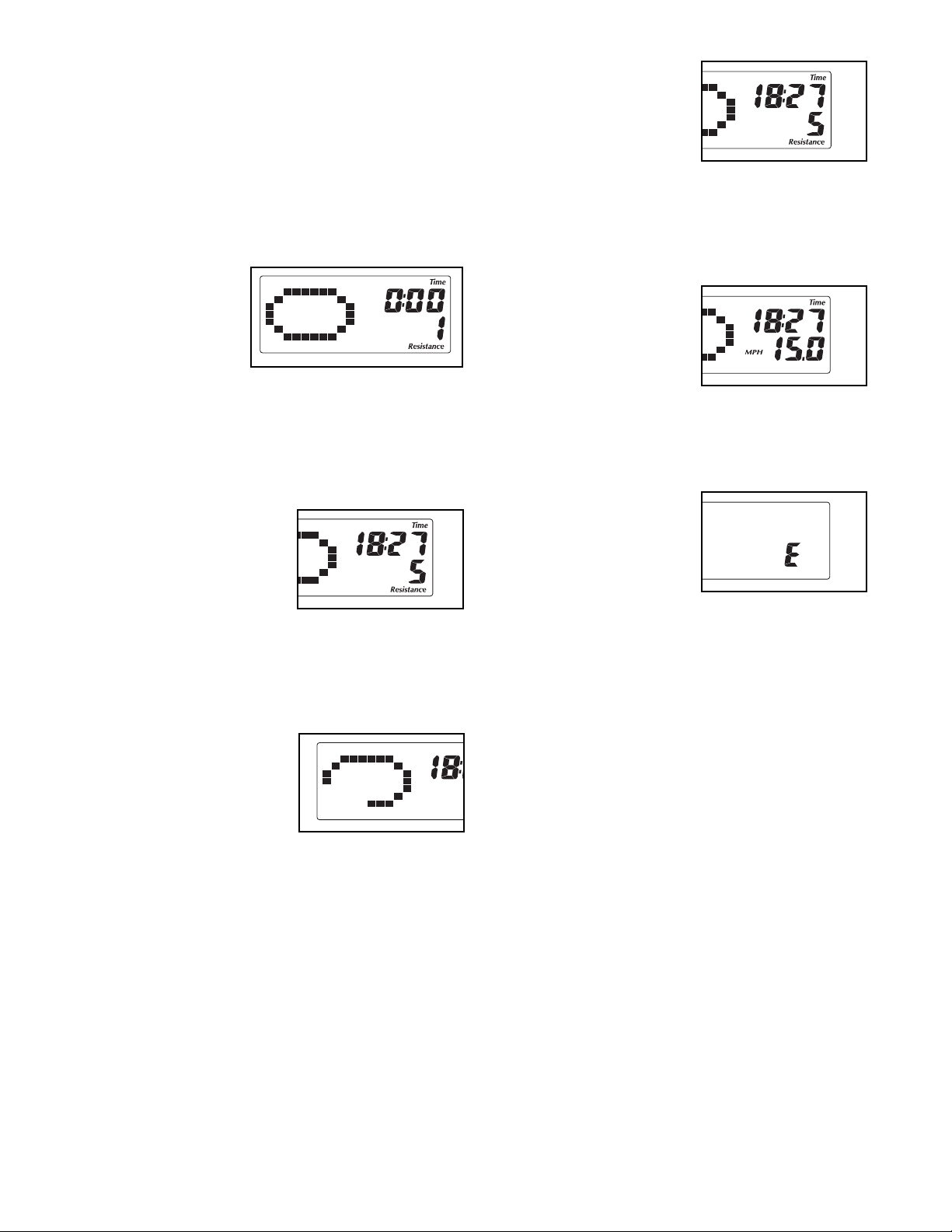

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When you use the manual mode of the console, you can change the resistance of the pedals with
the touch of a button. As you exercise, the console will
provide continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse
sensor.

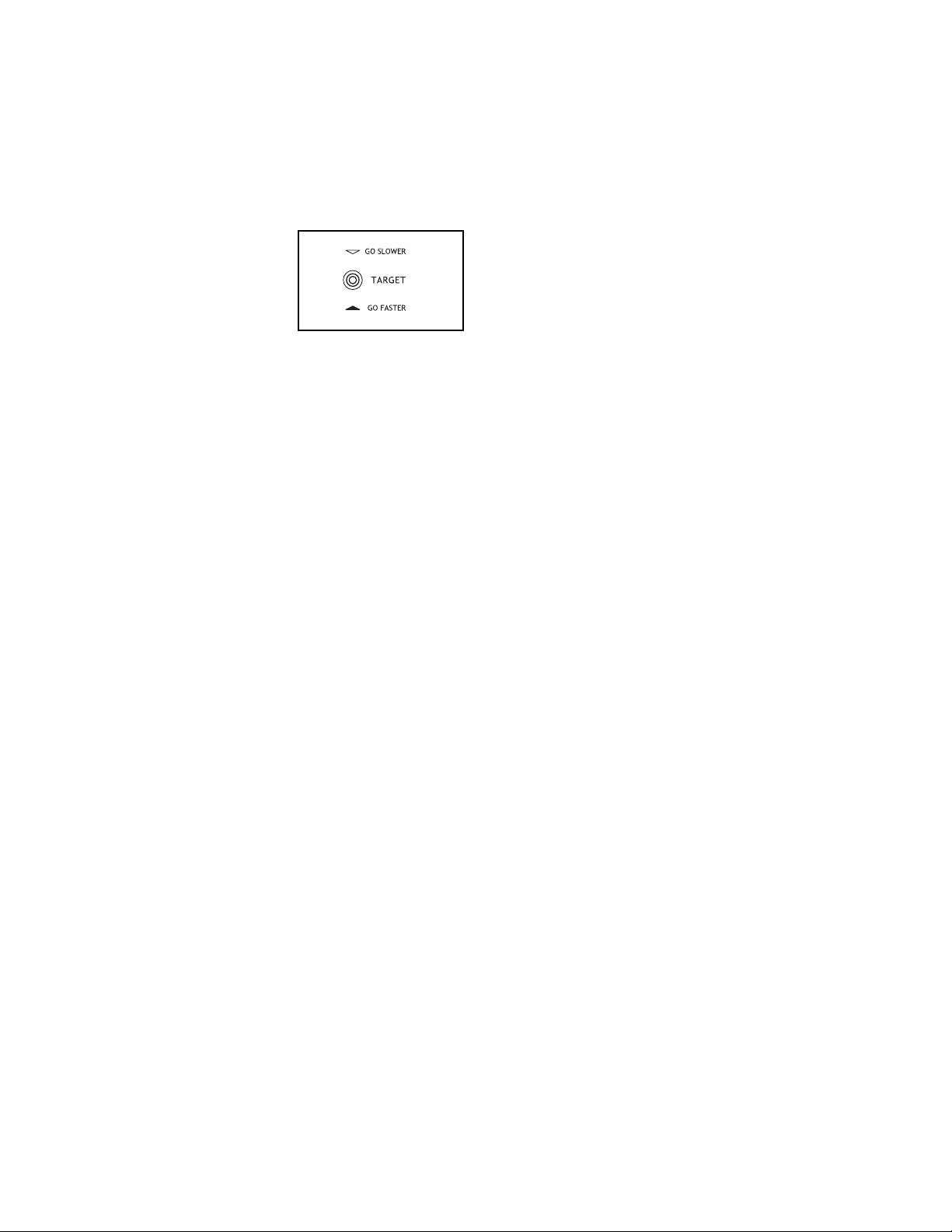

The console also offers two smart workouts that automatically change the resistance of the pedals and
prompt you to increase or decrease your pace while
guiding you through an effective workout.

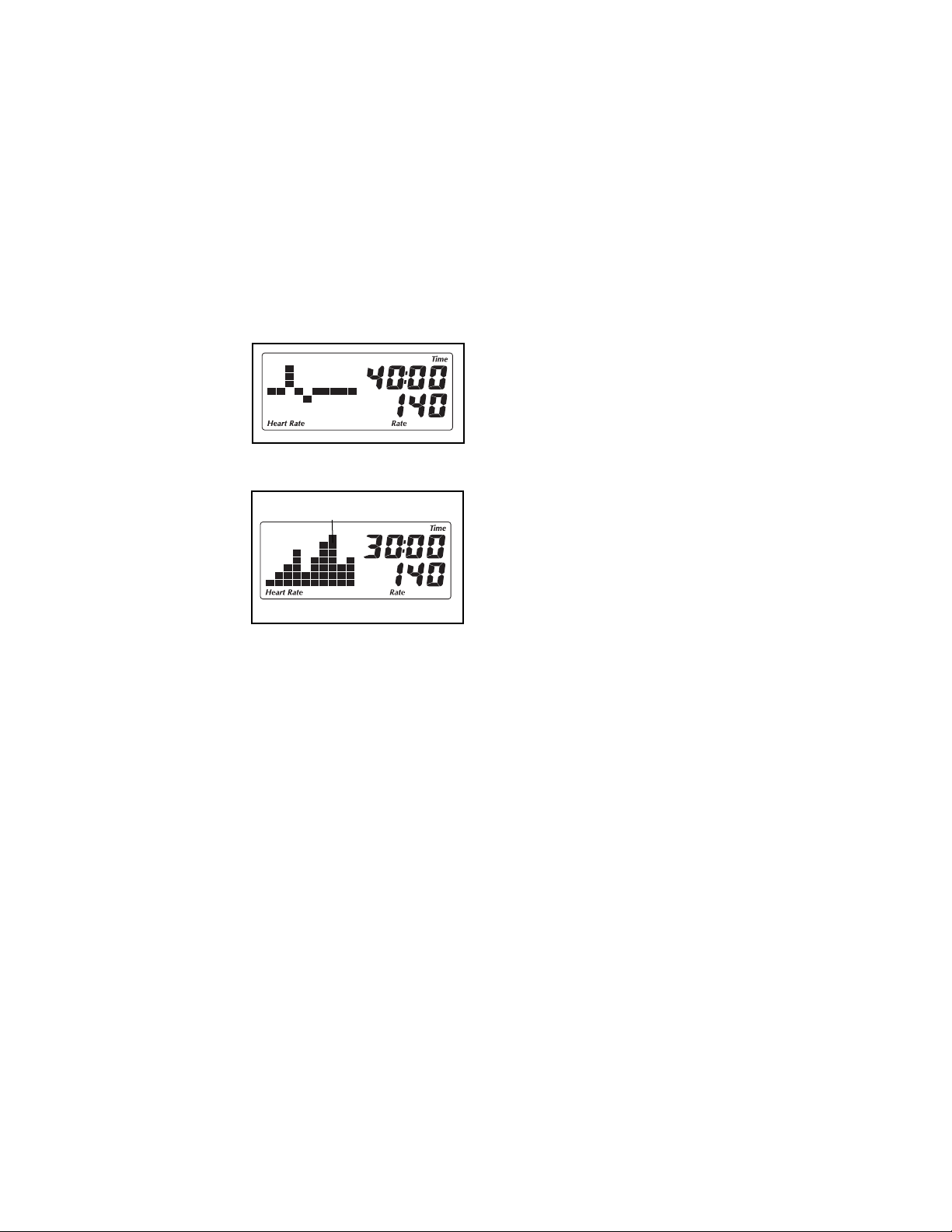

In addition, the console features two heart rate workouts that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate while you exercise.
To use the manual mode, see page 13. To use a
smart workout, see page 15. To use a heart rate
workout, see page 16.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
12
Page 13
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin
edaling to turn on the console.
p
few seconds after the console is turned on, the
A
displays will light. A tone will then sound and the
console will be ready for use.
2. Select the manual mode.
If you have
selected a workout, reselect the
manual mode
by pressing a
Smart Workouts
button once or
twice until a track appears in the left display and
the time is reset to zero.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
Resistance increase or
decrease buttons.
Note: After you press
the Resistance, it will
take a moment for the pedals to reach the selected resistance level.
4. Follow your progress with the displays.
The left display—will
show a track representing 1/4 mile (400
meters). As you exercise, indicators will
appear in succession
around the track until
the entire track appears. The track will then disappear and the indicators will again begin to appear
in succession.
The upper display—
This display will show
the approximate num-
er of calories you
b
have burned, the dis-
ance you have ped-
t
aled, and the elapsed
time. The display will change modes every few
seconds. Note: When a workout is selected, the
display will show the time remaining in the workout
instead of the elapsed time.
The lower display—
This display will show
your pedaling pace, in
miles per hour (MPH),
and the resistance
level of the pedals. The
display will change
modes every few seconds. The display will also
show your heart rate when you use the handgrip
pulse sensor.
Note:
The console can
show pedaling pace
and distance in either
miles or kilometers.
The letters MPH or
Km/H will appear in the
display to show which
unit of measurement is selected. To change the
unit of measurement, first press and hold down the
Workout Start button for several seconds. An “E”
for English miles or an “M” for metric kilometers
will appear in the lower display. Press the
Resistance increase button to select the desired
unit of measurement. Then, press the Workout
Start button to save your selection.
13
Page 14
5. Measure your heart rate if desired.
If there are sheets of
ontacts
lear plastic on the
c
metal contacts on
he handgrip pulse
t
sensor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor, with your
palms resting against
the metal contacts. Avoid moving your hands or
gripping the contacts tightly.
C
increase or decrease your pedaling speed. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
or about thirty seconds, the fan will turn off auto-
f
matically.

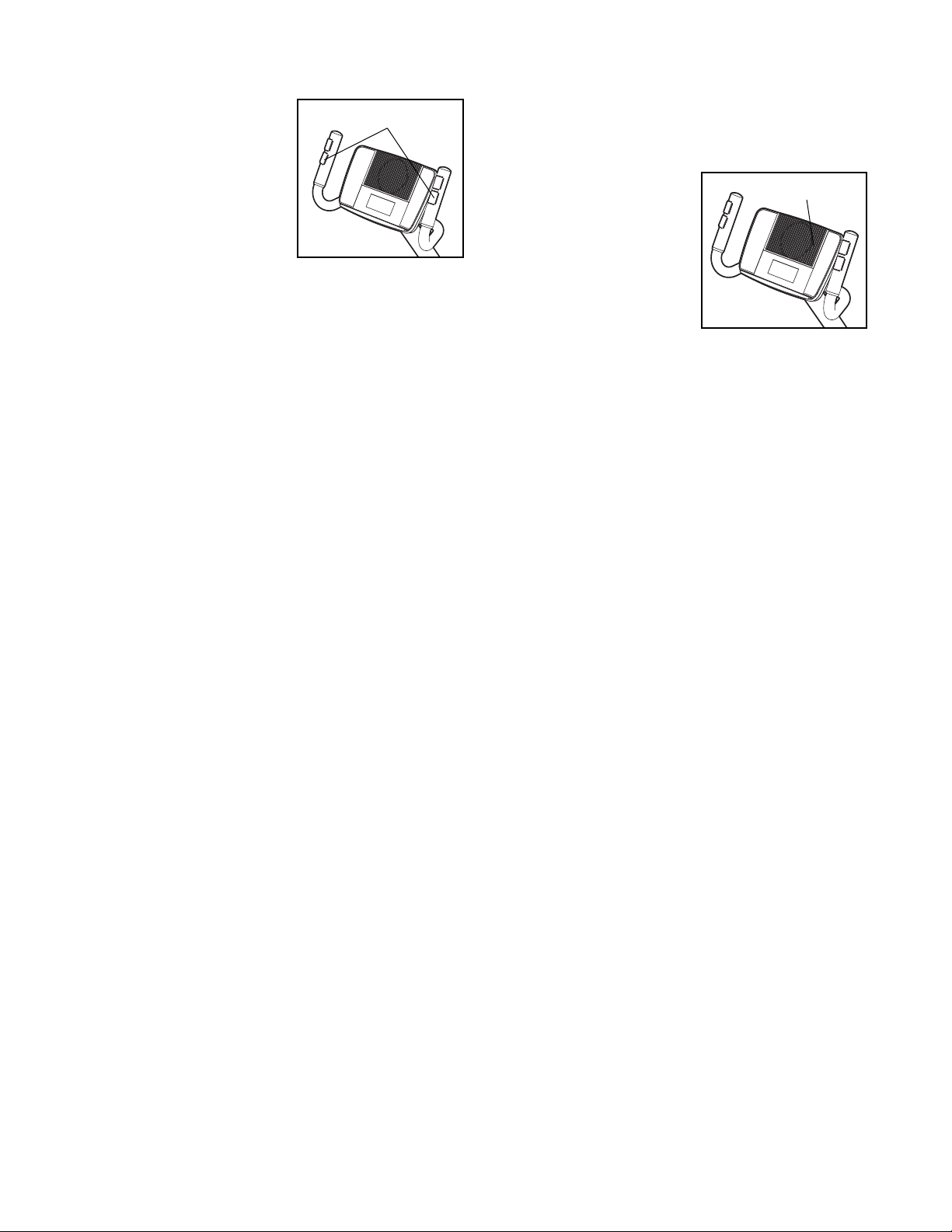

Slide the thumb tab on
the right side of the fan
to pivot the fan to the
desired angle.
Thumb Tab
When your pulse is detected, your heart rate will
be shown in the lower display. For the most accurate heart rate reading, hold the contacts for at
least 15 seconds. Note: If you continue to hold the
handgrip pulse sensor, the lower display will show
your heart rate for up to 30 seconds. The display
will then show your heart rate along with the other
modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts tightly.
6. Turn on the fan if desired.
The fan has high, low, and auto speed settings;
while the auto mode is selected, the speed of the
fan will automatically increase or decrease as you
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will begin to flash in the upper display.
If the pedals do not move for a few minutes, the
console will turn off and the displays will be reset.
14
Page 15
HOW TO USE A SMART WORKOUT
1. Press any button on the console or begin
edaling to turn on the console.
p
few seconds after the console is turned on, the
A
displays will light. A tone will then sound and the
console will be ready for use.
2. Select a smart workout.
To select a smart workout, press one of the Smart
Workouts buttons on the right of the console.
When you
select a smart
workout, a profile of the resistance settings of
the workout will
scroll across the
left display. In
addition, the
maximum resistance setting of the workout will
flash in the lower display for a moment and the
workout time will appear in the upper display.
3. Press the Workout Start button or begin
pedaling to start the workout.
Each workout is divided into 20 one-minute segments. One resistance setting and one pace setting are programmed for each segment. Note: The
same resistance setting and/or pace setting may
be programmed for two or more consecutive segments.

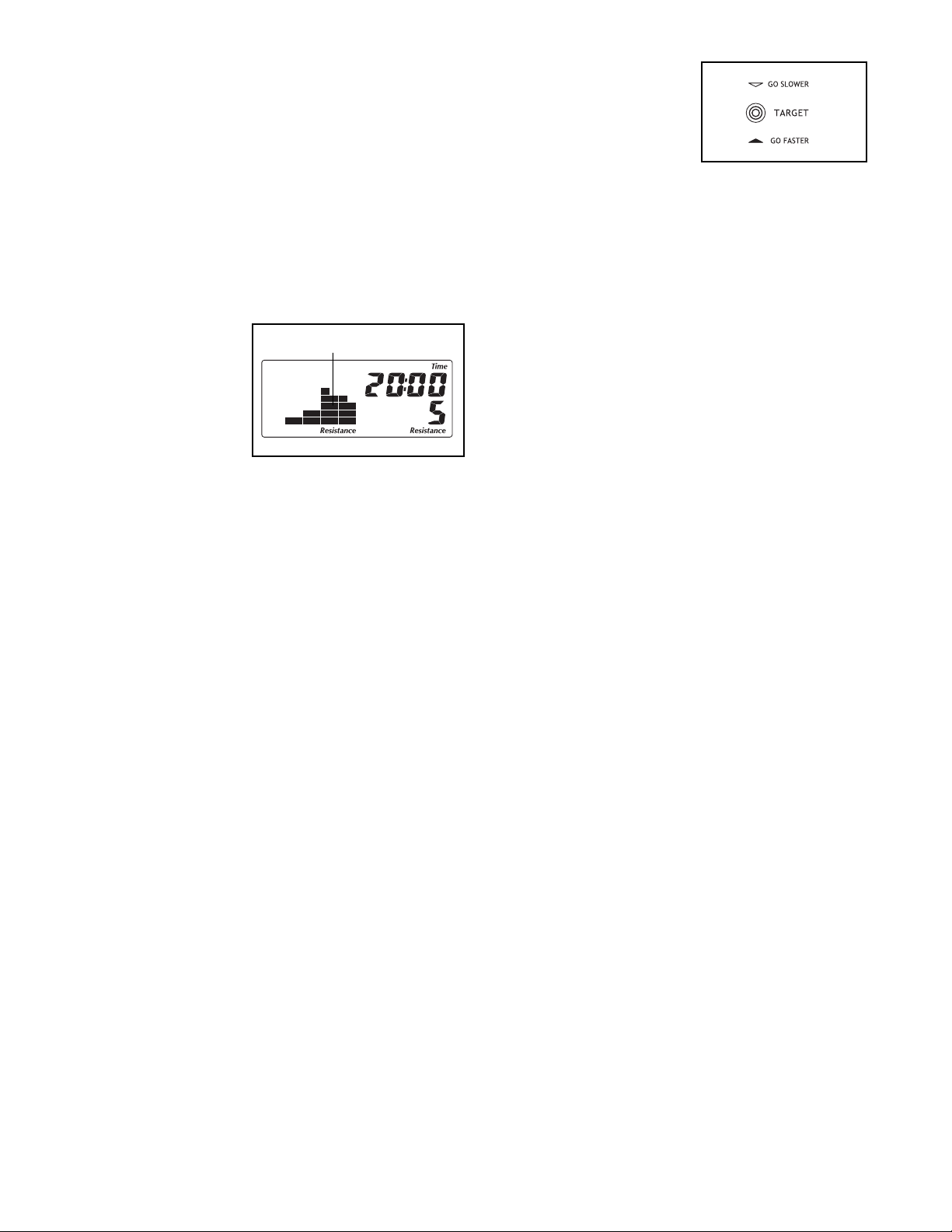

During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.
Profile
As you exercise, the
target pace guide will
help you to keep your
edaling pace near the
p
pace setting for the
urrent segment. When
c
the “Go Faster” indicator lights, increase your pace; when the “Go
Slower” indicator lights, decrease your pace; when
the “Target” indicator lights, maintain your current
pace.
IMPORTANT: The pace settings are intended
only to provide motivation. Your actual pace
may be slower than the pace settings. Make
sure to exercise at a pace that is comfortable
for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Resistance buttons. However, when the current segment ends,
the resistance of the pedals will automatically
adjust to the resistance level programmed for the
next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
4. Follow your progress with the displays.
See step 4 on page 13.
5. Measure your heart rate if desired.
See step 5 on page 14.
6. Turn on the fan if desired.
See step 6 on page 14.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
15
Page 16
HOW TO USE A HEART RATE WORKOUT
1. Press any button on the console or begin
edaling to turn on the console.
p
few seconds after the console is turned on, the
A
displays will light. A tone will then sound and the
console will be ready for use.
2. Select a heart rate workout.
To select a heart rate workout, press either of the
Heart Workouts buttons on the left side of the console.
If you select
heart rate
workout 1, a
heart rate symbol will appear
in the left display.
If you select
heart rate
workout 2, a
profile of the
target heart rate
settings of the
workout will
scroll across the
left display and
the workout time will appear in the upper display.
Profile
If you select heart rate workout 2, the maximum
target heart rate setting of the workout will flash in
the lower display. If desired, press the increase
nd decrease buttons in the upper left corner of
a
the console to change the maximum target heart
ate setting (see EXERCISE INTENSITY on page
r
19). Note: If you change the maximum target heart
rate setting, the intensity level of the entire workout will change.
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrips continuously during the workout. However, you should
hold the handgrips frequently for the workout to
function properly. Each time you hold the hand-
grip pulse sensor, keep your hands on the
metal contacts for at least 30 seconds.
5. Press the Workout Start button to start the
workout.
The heart rate workout 1—This workout is divid-
ed into 40 one-minute segments. The same target
heart rate is programmed for all segments. Note:
For a shorter workout, stop exercising or select a
different workout before the workout ends.
The heart rate workout 2—This workout is divided into 30 one-minute segments. One target heart
rate setting is programmed for each segment.
Note: The same target heart rate setting may be
programmed for consecutive segments.
3. Enter a target heart rate setting.
If you select heart rate workout 1, the target
heart rate setting for the workout will flash in the
lower display. If desired, press the increase and
decrease buttons in the upper left corner of the
console to change the target heart rate setting
(see EXERCISE INTENSITY on page 19). Note:
The same target heart rate setting will be programmed for all segments.
During the workout, the workout profile will show
your progress (see the drawing at the left). The
flashing segment of the profile represents the current segment of the workout. The height of the
flashing segment indicates the target heart rate
setting for the current segment. At the end of each
segment of the workout, a series of tones will
sound and the next segment of the profile will
begin to flash.
16
Page 17
Both heart rate workouts—As you pedal, the
console will regularly compare your heart rate to
the target heart rate setting for the current seg-
ent. If your heart rate is too far below or above
m
the target heart rate setting, the resistance of the
edals will automatically increase or decrease to
p
bring your heart rate closer to the target heart rate
setting.
Note: During the workout, you can manually override the resistance setting for the current segment,
if desired, with the Resistance buttons. However,
hen the console compares your heart rate to the
w
target heart rate setting, the resistance of the ped-
ls may automatically increase or decrease to
a
bring your heart rate closer to the target heart rate
setting.
As you exercise, the
target pace guide will
help you to keep your
pedaling pace near the
pace setting for the
current segment.
When the “Go Faster”
indicator lights, increase your pace; when the “Go
Slower” indicator lights, decrease your pace; when
the “Target” indicator lights, maintain your current
pace.
IMPORTANT: The target heart rate settings are
intended only to provide motivation. Your actual heart rate may be slower than the target
heart rate settings. Make sure to exercise at a
pace that is comfortable for you.
If you stop pedaling for several seconds, a tone
will sound and the workout will pause. To restart
the workout, simply resume pedaling.
6. Follow your progress with the displays.
See step 4 on page 13.
7. Turn on the fan if desired.
See step 6 on page 14.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
17
Page 18
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dish soap. IMPORTANT: To
avoid damaging the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 7 on page 8. If the handgrip pulse sensor does not function properly, see step 5 on page 14.

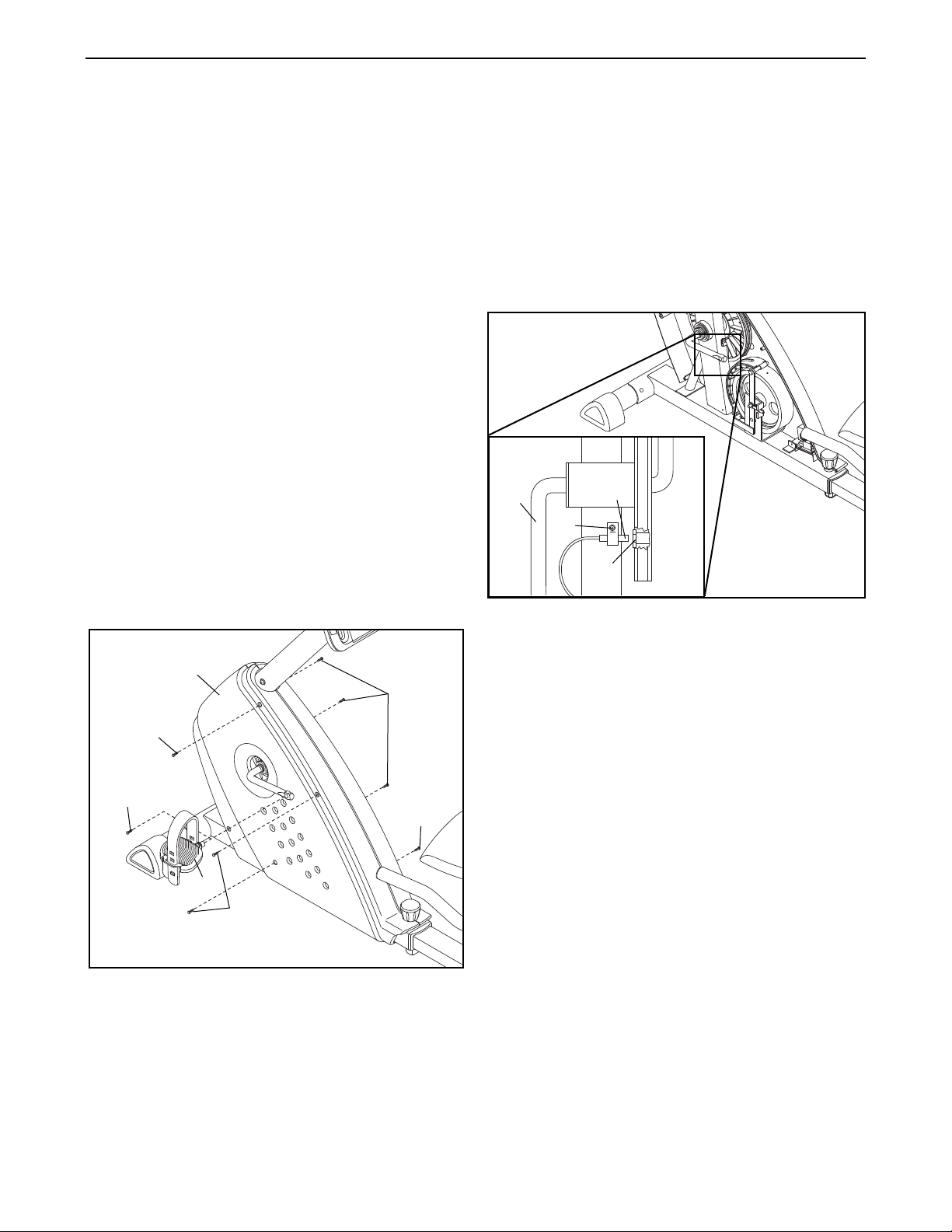

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Left Shield (9).
Using an adjustable wrench, turn the Left Pedal (24)
clockwise and remove it. Next, remove the seven M4
x 16mm Screws (57) and the M4 x 25mm Screw (45).
Then, carefully remove the Left Shield.
With the left shield removed, locate the Reed Switch
(43). Turn the Crank (31) until the Magnet (38) is
aligned with the Reed Switch. Next, loosen, but do not
remove, the indicated M4 x 16mm Screw (57). Slide
the Reed Switch slightly closer to or away from the
Magnet, and then retighten the Screw. Turn the Crank
for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly
adjusted, reattach the left shield and the left pedal.
31
57
43
38
57
9
57
57
45
24
57
18
Page 19
EXERCISE GUIDELINES
WARNING: B
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

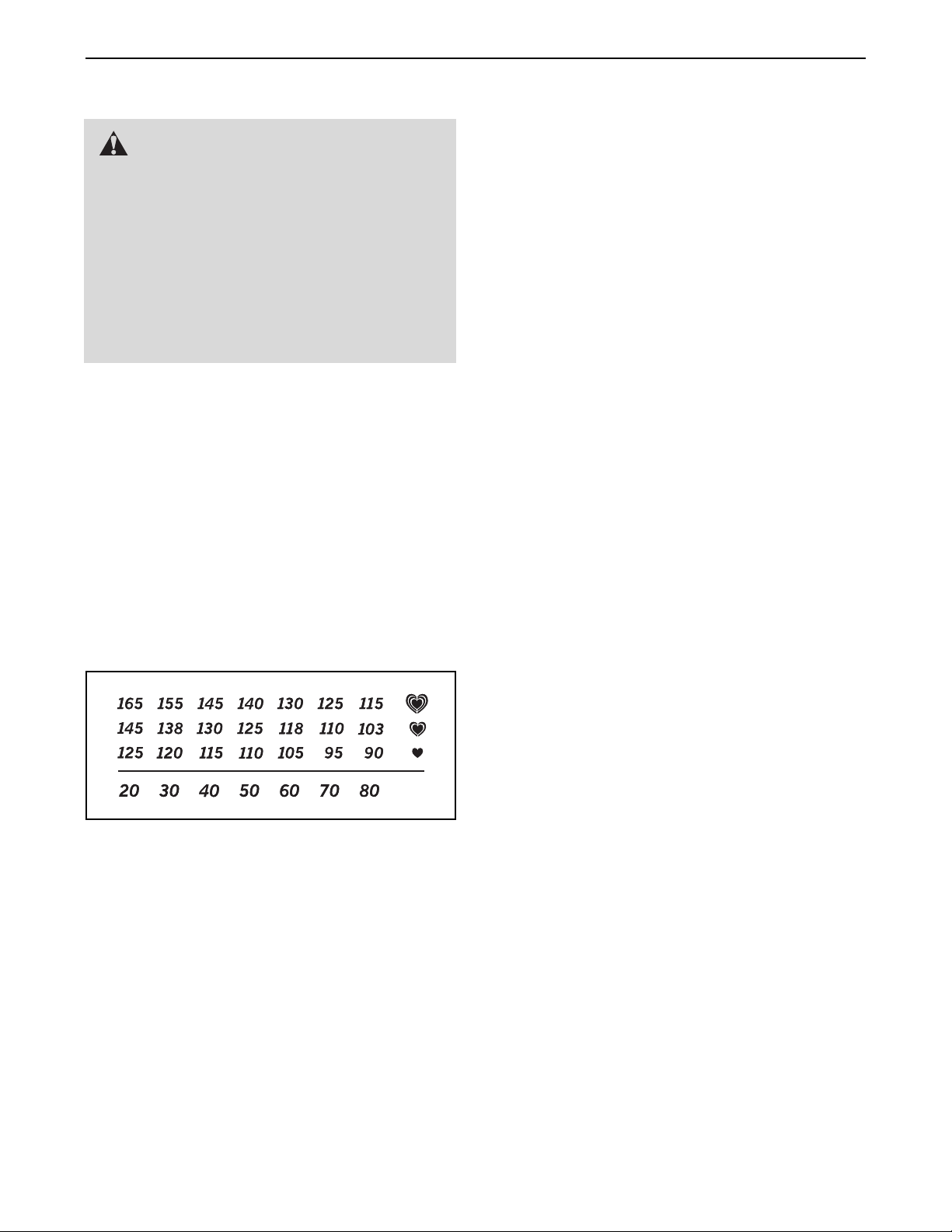

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
19
Page 20
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, backs of
knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward, and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
20
Page 21
NOTES
21
Page 22
PART LIST—Model No. 831.21832.0 R0708A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Rear Frame
31Front Stabilizer
41Rear Stabilizer
51Backrest
61Handlebar
71Seat Frame
81Lower Wire Harness
91Left Shield
10 1 Right Shield
11 2 Stabilizer Cap
12 1 Seat
13 1 Upright
14 1 Front Bushing
15 1 Rear Bushing
16 1 Console
17 1 Adjustment Knob
18 2 Wheel
19 2 Wheel Cap
20 1 Frame Pad
21 1 Frame Stop
22 1 Reed Switch Clamp
23 1 C-magnet Bracket
24 1 Left Pedal
25 1 Left Pedal Strap
26 1 Right Pedal
27 1 Right Pedal Strap
28 1 Resistance Motor
29 1 Flywheel Axle
30 1 Belt
31 1 Pulley/Crank
32 1 C-magnet
33 3 M8 x 25mm Button Screw
34 1 Flywheel
35 1 Crank Bearing Assembly
36 1 Upper Wire Harness
37 2 Bearing
38 2 Magnet
39 2 Tension Bolt
40 1 Tension Bracket
41 1 M8 Washer
42 1 Flywheel Washer
43 1 Reed Switch/Wire
44 2 Handlebar Cap
45 3 M4 x 25mm Screw
46 1 Resistance Cable
47 1 Return Spring
48 4 M6 x 38mm Patch Screw
49 4 M6 x 42mm Button Screw
50 3 M4 x 16mm Flat Head Screw
51 4 M10 x 75mm Carriage Bolt
52 4 M4 x 16mm Screw
53 1 5mm Spacer
54 2 M8 x 70mm Button Bolt
55 8 M6 Washer
56 1 M8 x 20mm Button Bolt
57 12 M4 x 16mm Screw
58 4 M5 Washer
59 5 M8 Split Washer
60 5 M8 Locknut
61 6 M6 Nut
62 2 M8 Jam Nut
63 4 M10 Locknut
64 1 M6 x 38mm Bolt
65 1 Left Pulse Bar
66 1 Right Pulse Bar
67 4 Pulse Sensor
68 2 Pulse Grip
69 4 M6 x 38mm Button Bolt
70 4 M4 x 20mm Screw
71 2 Pulse Wire
72 4 M6 Locknut
73 2 Foam Grip
*–Userʼs Manual
*–Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-866-699-3756.
22
Page 23
16
24
25
34
32
35
46
47
63
61
51
36
12
35
33
26
27
30
33
52
13
37
37
22
57
62
43
58
58
57
57
17
63
63
51
45
38
31
62
3
1
2
4
18
19
18
19
11
11
6
7
5
9
10
14
15
20
23
28
29
39
39
40
41
44
44
57
57
57
45
48
48
49
49
49
49
50
5
5
55
55
55
55
55
54
59
60
60
60
60
61
64
21
59
59
57
57
61
42
61
53
56
50
8
65
66
67
67
68
68
69
70
70
72
71
7
3
73
38
EXPLODED DRAWING—Model No. 831.21832.0 R0708A
23
Page 24
Your Home
For repair—in your home—of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655
(U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Get it fixed, at your home or ours!
® Registered Trademark / TMTrademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
Marca de Fábrica /
SM
Marca de Servicio de Sears Brands, LLC
90 DAY FULL WARRANTY
If this Sears bike exerciser fails due to a defect in material or workmanship within 90 days of the date of
purchase, call 1-800-4-MY-HOME®(1-800-469-4663) to arrange for free repair (or replacement if repair
proves impossible).
This warranty does not apply when the bike exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Part No. 267277 R0708A Printed in China © 2008 ICON IP, Inc.
Loading...
