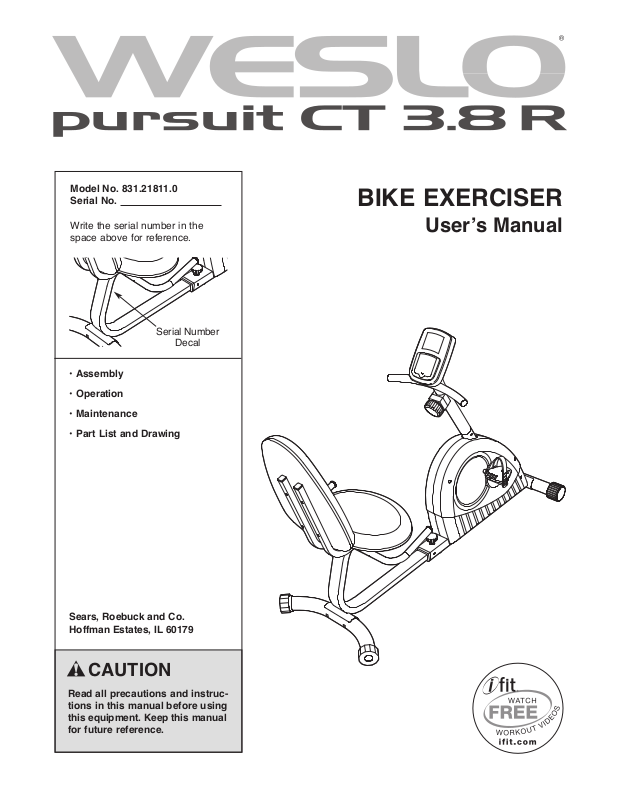

Page 1
Model No. 831.21811.0
Serial No.
BIKE EXERCISER
Write the serial number in the
space above for reference.
Serial Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
Userʼs Manual
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
H

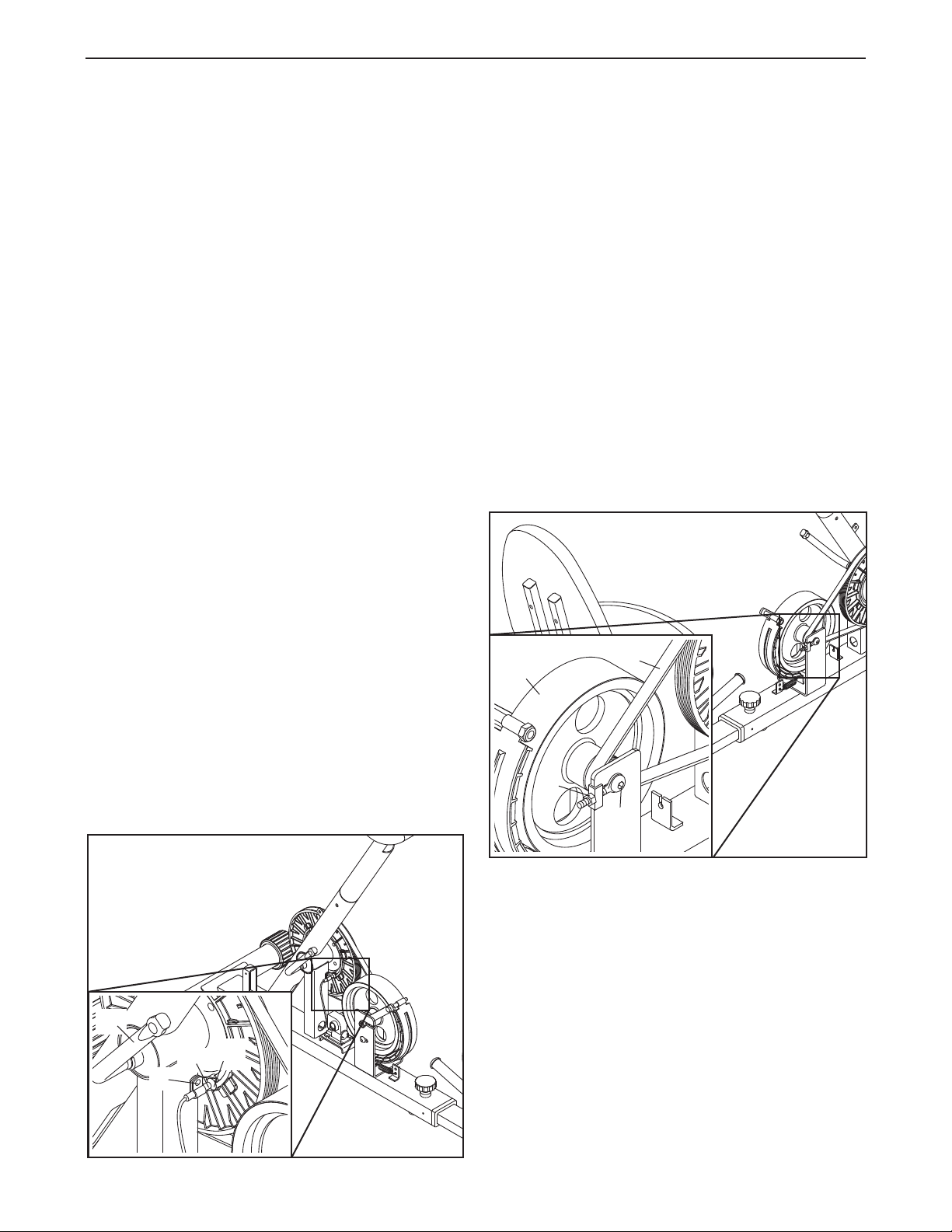

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

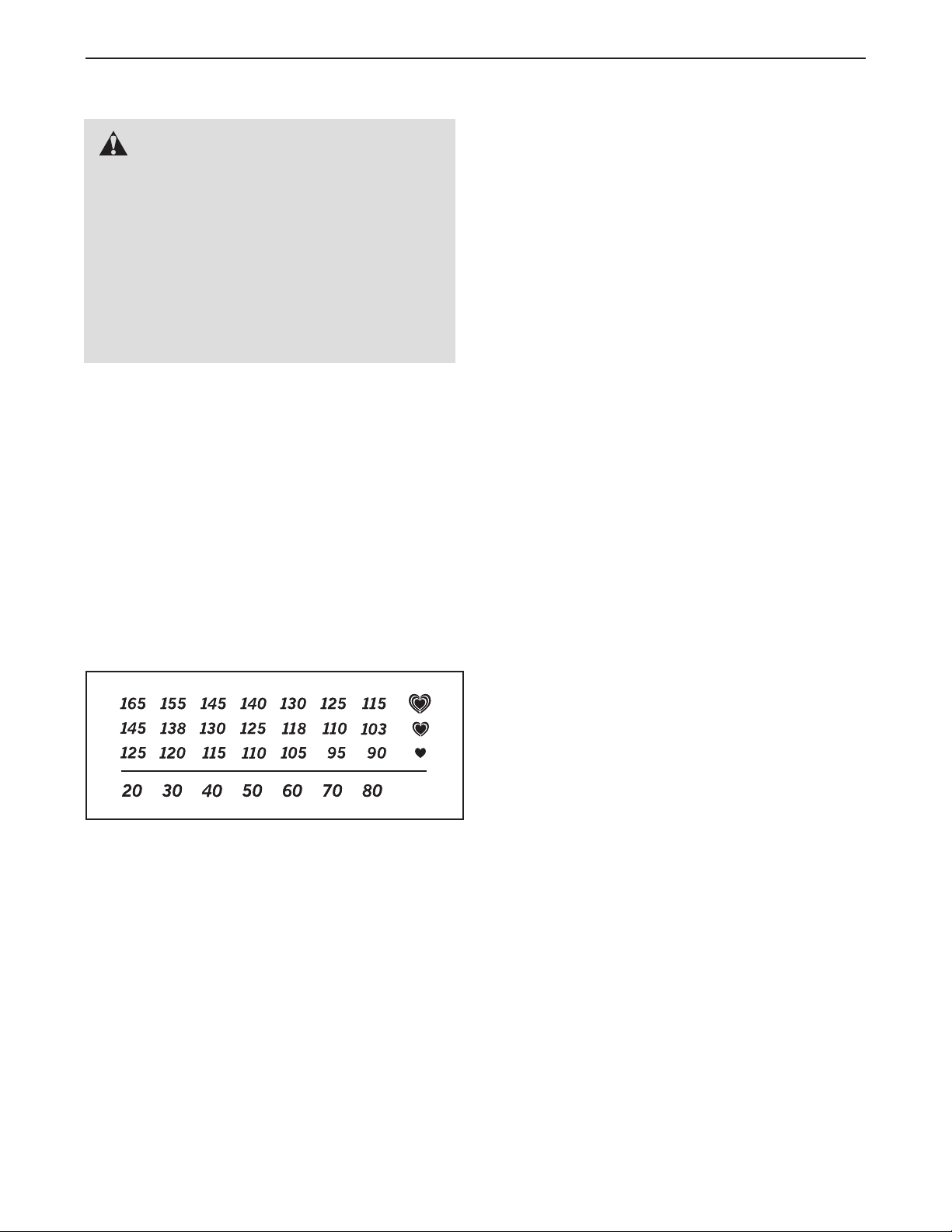

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

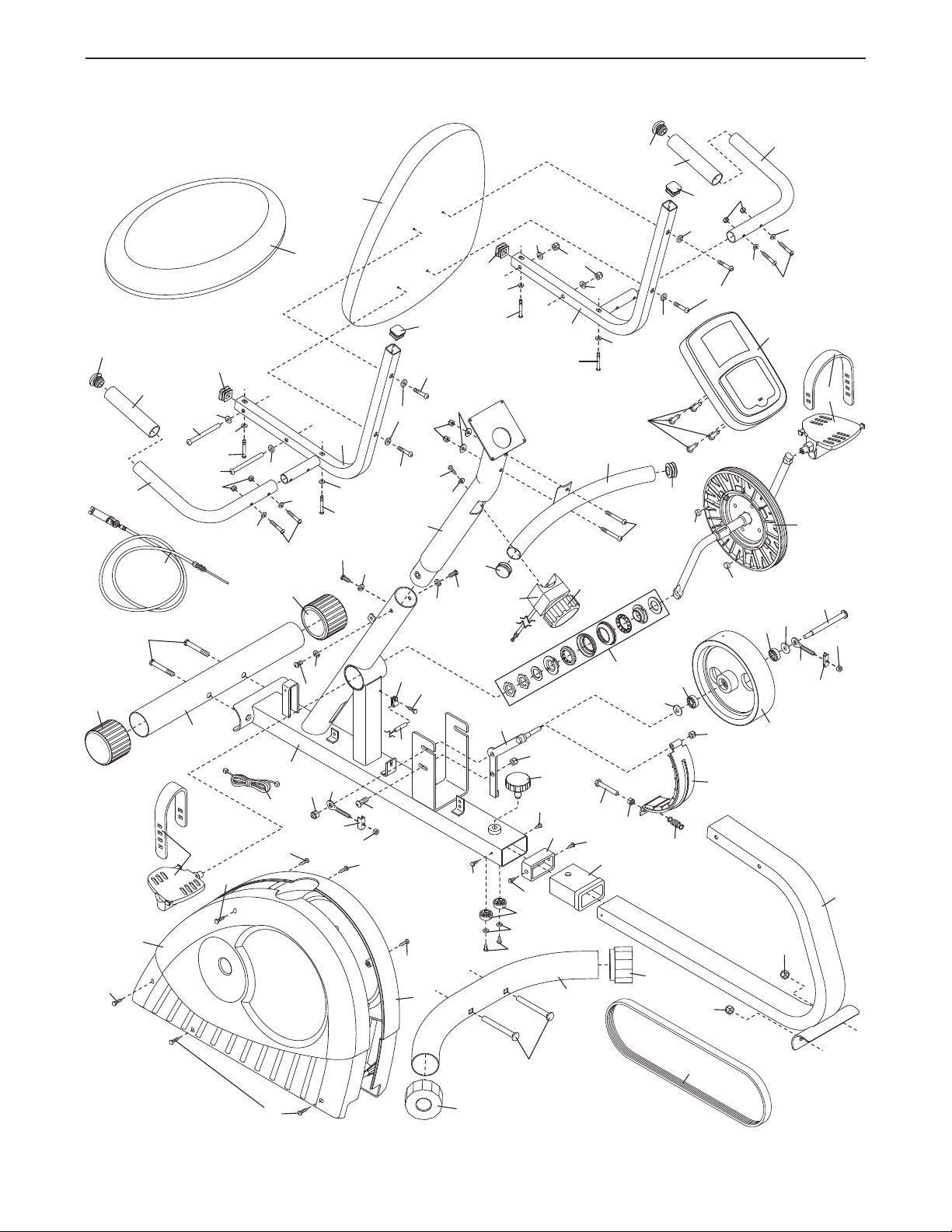

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, call 1-866-699-3756 and
request a free replacement decal.
Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. Sears assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
8. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise
cycle. Always wear athletic shoes for foot
protection while exercising.
10. When adjusting the seat, insert the seat pin
into one of the holes in the seat post. Do not
insert the seat pin under the seat post.
11. Keep your back straight while using your
exercise cycle; do not arch your back.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. Use your exercise cycle only as described in
this manual.
3
Page 4
BEFORE YOU BEGIN
hank you for selecting the new WESLO
T
CT 3.8 R exercise cycle. Cycling is an effective exercise for increasing cardiovascular fitness, building
endurance, and toning the body. The PURSUIT CT 3.8
exercise cycle provides a selection of features
R
designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Handlebar
Backrest
®
URSUIT
P
fter reading this manual, please see the back cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Thumb Pulse Sensor
Resistance Knob
Seat
Seat Frame
Pedal/Strap
Adjustment Knob
Seat Handle
4
Page 5
M10 Locknut
(65)–2
M8 Locknut
(10)–4
M8 Split
Washer (42)–3
M8 Washer
(54)–4
M6 Washer
(68)–8
M6 Locknut
(63)–4
M4 x 5mm
Self-tapping
Screw (66)–2
M6 x 35mm Button
Screw (61)–8
M10 x 75mm Carriage Bolt (30)–2
M10 x 60mm Button Screw (33)–2
M8 x 20mm Button
Screw (34)–3
M6 Curved
Washer (69)–4
M4 Washer
(70)–2
M6 x 30mm Button
Bolt (64)–4
M8 x 125mm Bolt (62)–2
M8 Curved
Washer (46)–2
M4 x 15mm
Self-tapping
Screw (47)–4
M8 x 65mm Button Bolt (72)–2
M4 x 9mm
Screw (29)–2
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , two adjustable
wrenches , and pliers .
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a part is missing, call 1-888-533-1333.
5
Page 6
1.
To make assembly easier, read the
nformation on page 5 before you begin.
i
urn the Front Stabilizer (2) so that the large
T
holes are facing the Frame (1). Attach the Front
Stabilizer to the Frame with two M10 x 60mm
Button Screws (33).
1
Large
Holes
2
1
33
2. Attach the Rear Stabilizer (6) to the Seat Frame
(5) with two M10 x 75mm Carriage Bolts (30)
and two M10 Locknuts (65).
3. Insert the end of the Seat Frame (5) into the
Frame (1).
Firmly press the Frame Bushing (56) into the
Frame (1).
Attach the Frame Bushing (56) to the Frame (1)
with two M4 x 5mm Self-tapping Screws (66).
Tighten the Adjustment Knob (9) into the Frame
(1). Carefully tip the exercise cycle onto its side.
Attach the two Bumpers (57) to the Frame (1)
with two M4 x 9mm Screws (29) and two M4
Washers (70). Then, tip the exercise cycle
upright.
2
65
5
65
3
9
1
66
56
66
57
70
70
29
5
6
30
6
Page 7

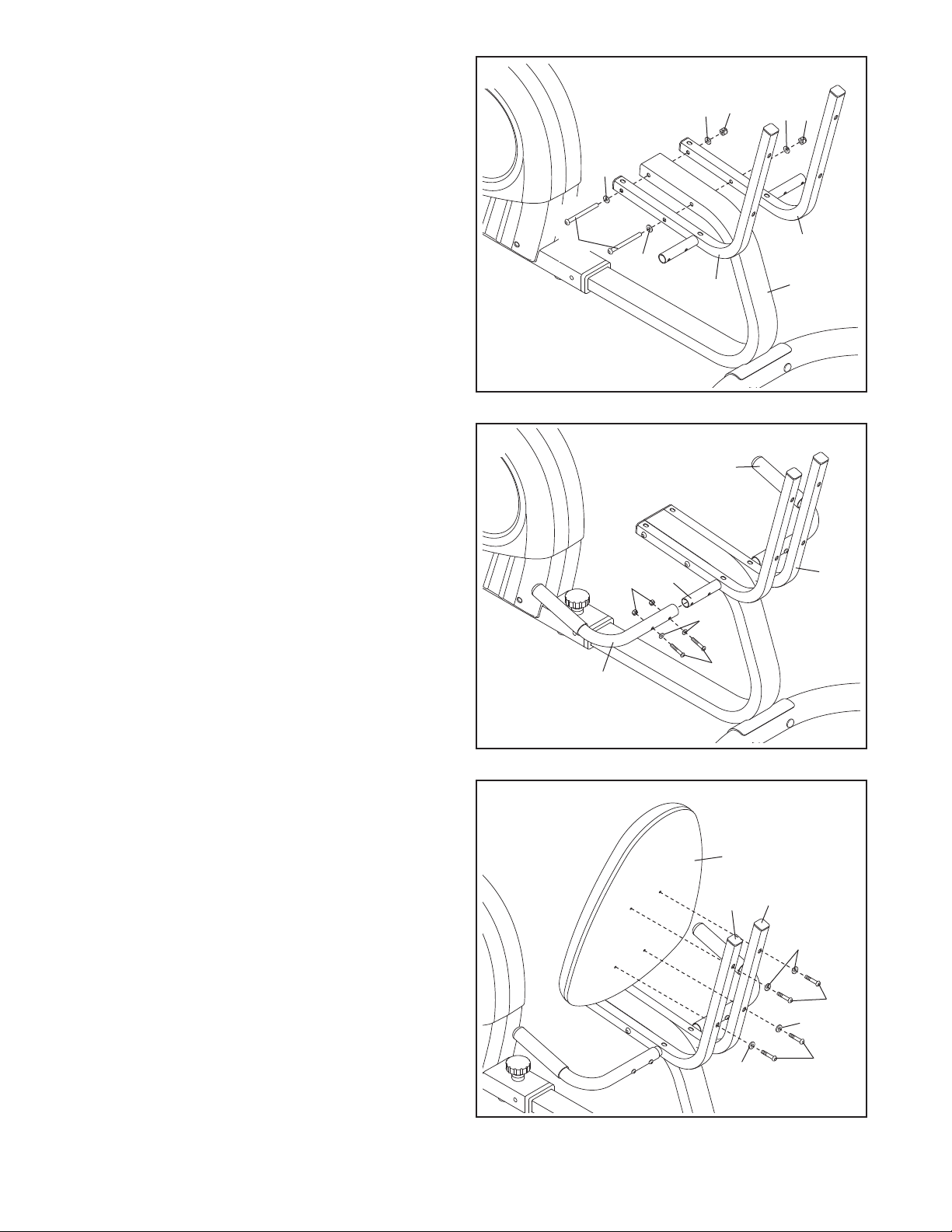

4. Attach the Left and Right Seat Brackets (14, 15)
o the Seat Frame (5) with two M8 x 125mm
t
Bolts (62), four M8 Washers (54), and two M8
Locknuts (10) as shown. Do not tighten the
Locknuts yet.
4
10
54
54
54
10
5. Attach a Seat Handle (59) to the round tube on
the Left Seat Bracket (14) with two M6 x 30mm
Button Bolts (64), two M6 Curved Washers (69),
and two M6 Locknuts (63).
Attach the other Seat Handle (59) to the
Right Seat Bracket (15) in the same way.
62
5
59
63
54
14
59
14
69
64
15
5
15
6. Attach the Backrest (60) to the Seat Brackets
(14, 15) with four M6 x 35mm Button Screws
(61) and four M6 Washers (68).
See step 4. Tighten the two M8 Locknuts (10).
6
60
15
14
68
61
68
68
61
7
Page 8

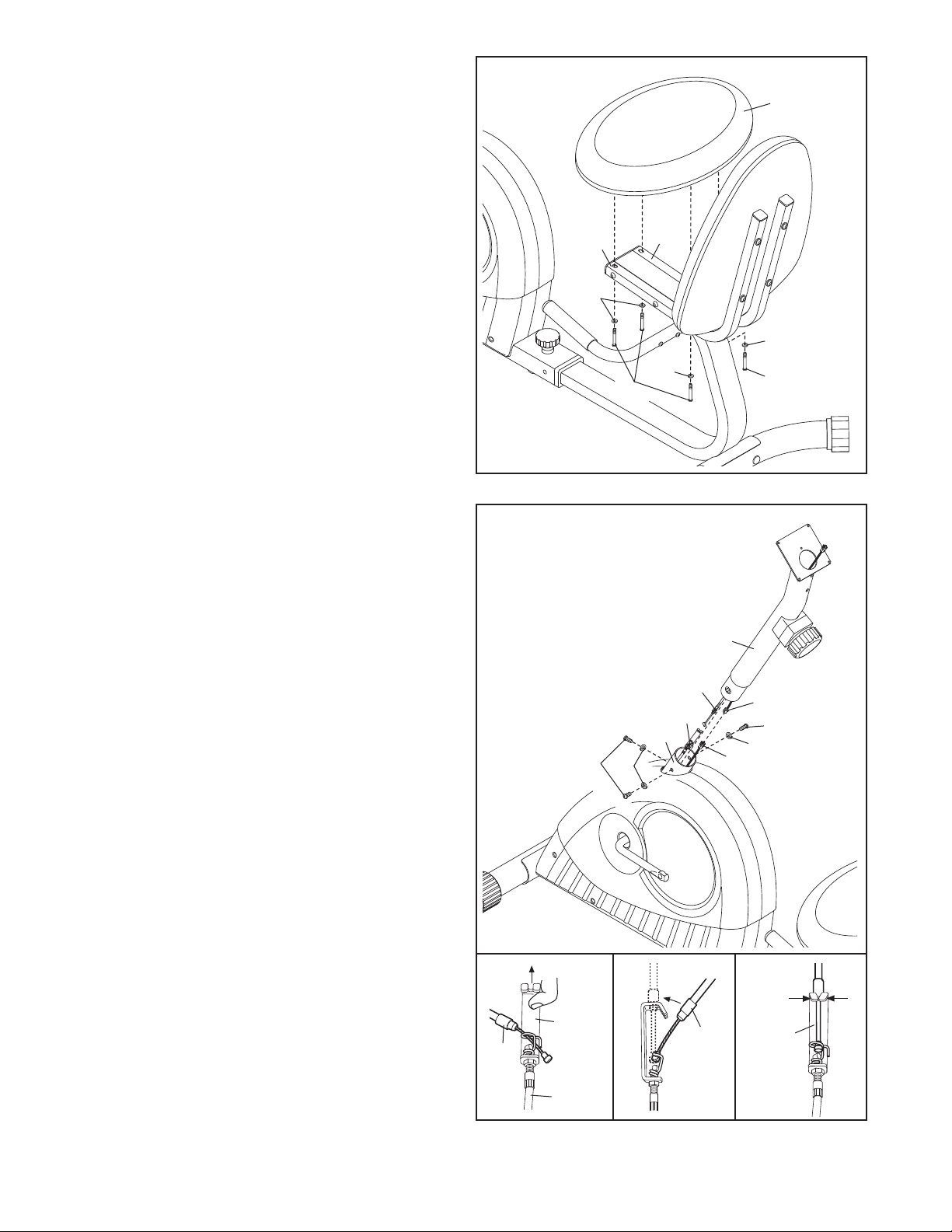

7. Attach the Seat (12) to the Seat Brackets (14,
15) with four M6 x 35mm Button Screws (61)
and four M6 Washers (68).
7
12
8. While another person holds the Upright (13) in
the position shown, connect the Extension Wire
(52) to the Reed Switch Wire (43).
Connect the Resistance Cable (19) to the
Lower Cable (45) in the following way:
• See drawing A. Pull upward on the metal
bracket on the Lower Cable (45), and insert
the tip of the Resistance Cable (19) into the
wire clip inside the metal bracket as shown.
• See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
8
Avoid pinching the
wires and cables
68
34
14
42
61
15
68
68
61
13
19
45
1
52
34
42
43
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the excess wire and cable downward into
the Frame (1), and insert the Upright (13) into
the Frame.
Tip: Avoid pinching the wires and cables.
Attach the Upright (13) to the Frame (1) with
three M8 x 20mm Button Screws (34) and three
M8 Split Washers (42).
A
Metal
Bracket
19
45
B
19
C
Metal
Bracket
8
Page 9

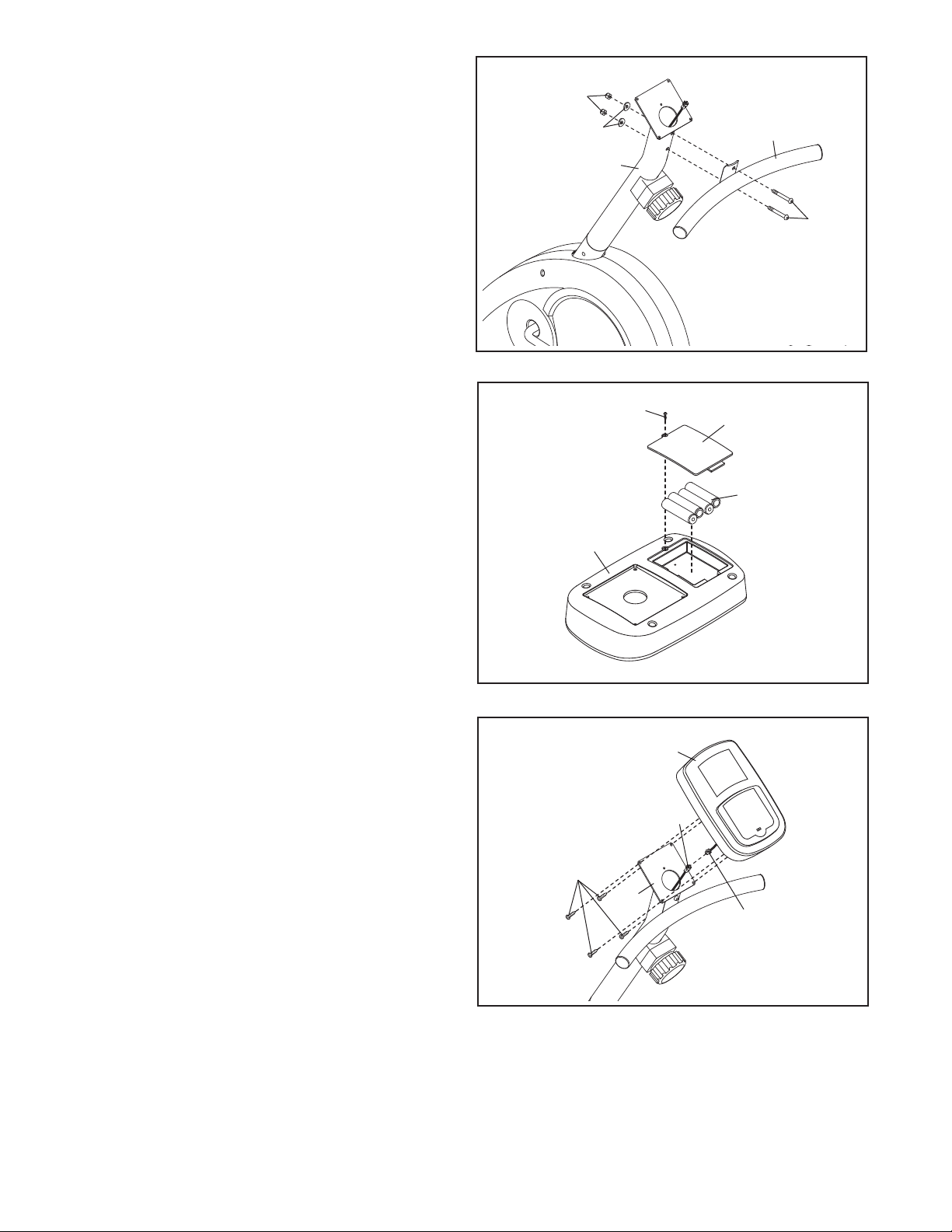

9. Attach the Handlebar (53) to the Upright (13)
with two M8 x 65mm Button Bolts (72), two M8
Curved Washers (46), and two M8 Locknuts
10).
(
9
0
1
46
13
53
72
10. The Console (16) requires four “AA” batteries
(not included); alkaline batteries are recommended. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before inserting batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the screw, remove the
battery cover, and insert the batteries into the
battery compartment. Make sure to orient the
batteries as shown by the diagram inside
the battery compartment. Then, reattach the
battery cover.
11. While another person holds the Console (16)
near the Upright (13), connect the console wire
to the Extension Wire (52).
Insert the wires downward into the Upright (13).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
15mm Self-tapping Screws (47).
10
11
Avoid pinching
the wires
47
16
Screw
13
Battery Cover
Batteries
16
52
Console
Wire
9
Page 10

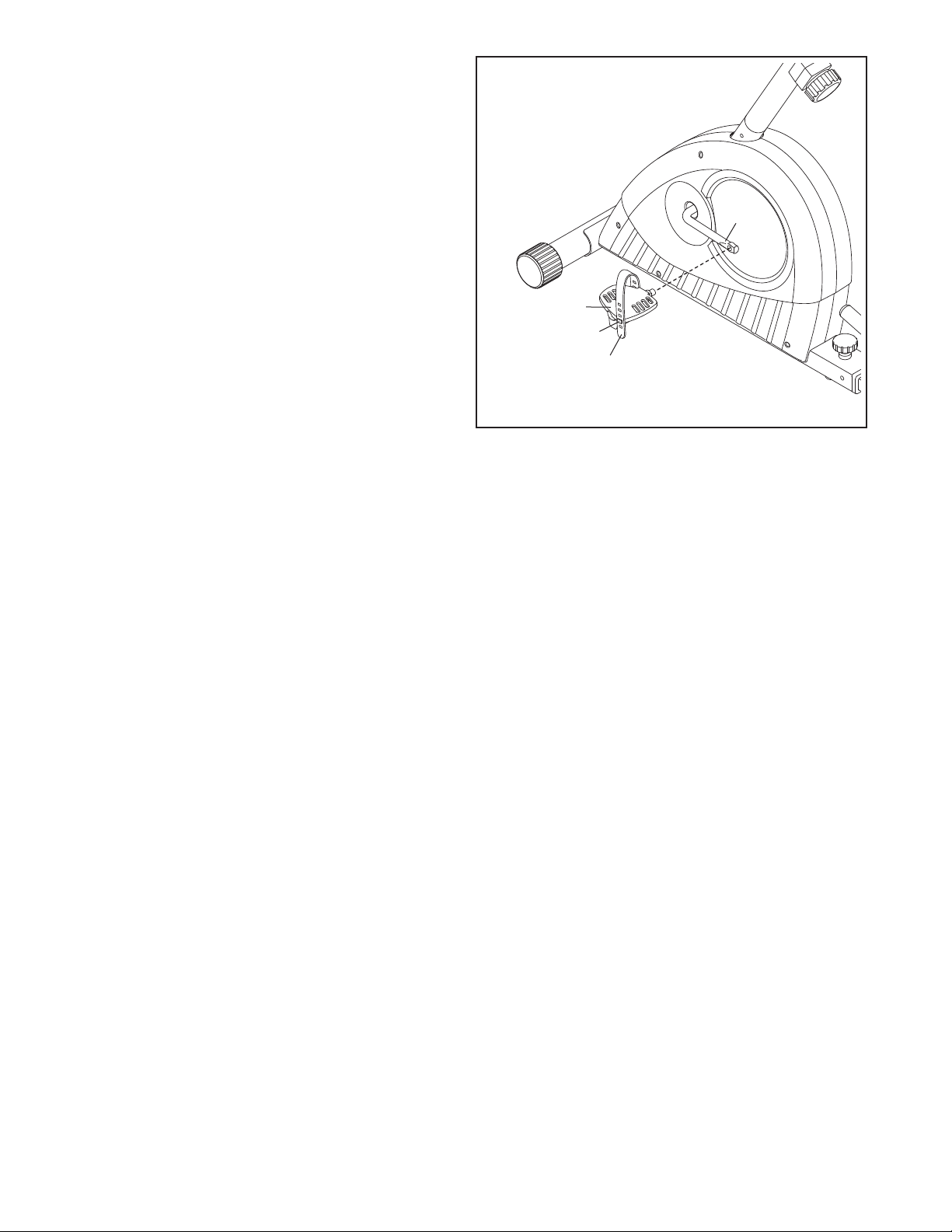

12. Identify the Left Pedal (24), which is marked
with an “L” sticker.
sing an adjustable wrench, firmly tighten the
U
Left Pedal (24) counterclockwise into the left
rm of the Crank (21).
a
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the pedals. For best
performance, keep the pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the Left Pedal (24). Adjust the
strap on the Right Pedal (not shown) in the
same way.
13. Make sure that all parts are properly tightened before you use the exercise cycle. After assembly is
completed, some extra parts may be left over. Place a mat under the exercise cycle to protect the floor.
12
21
24
Tab
Strap
10
Page 11
HOW TO USE THE EXERCISE CYCLE

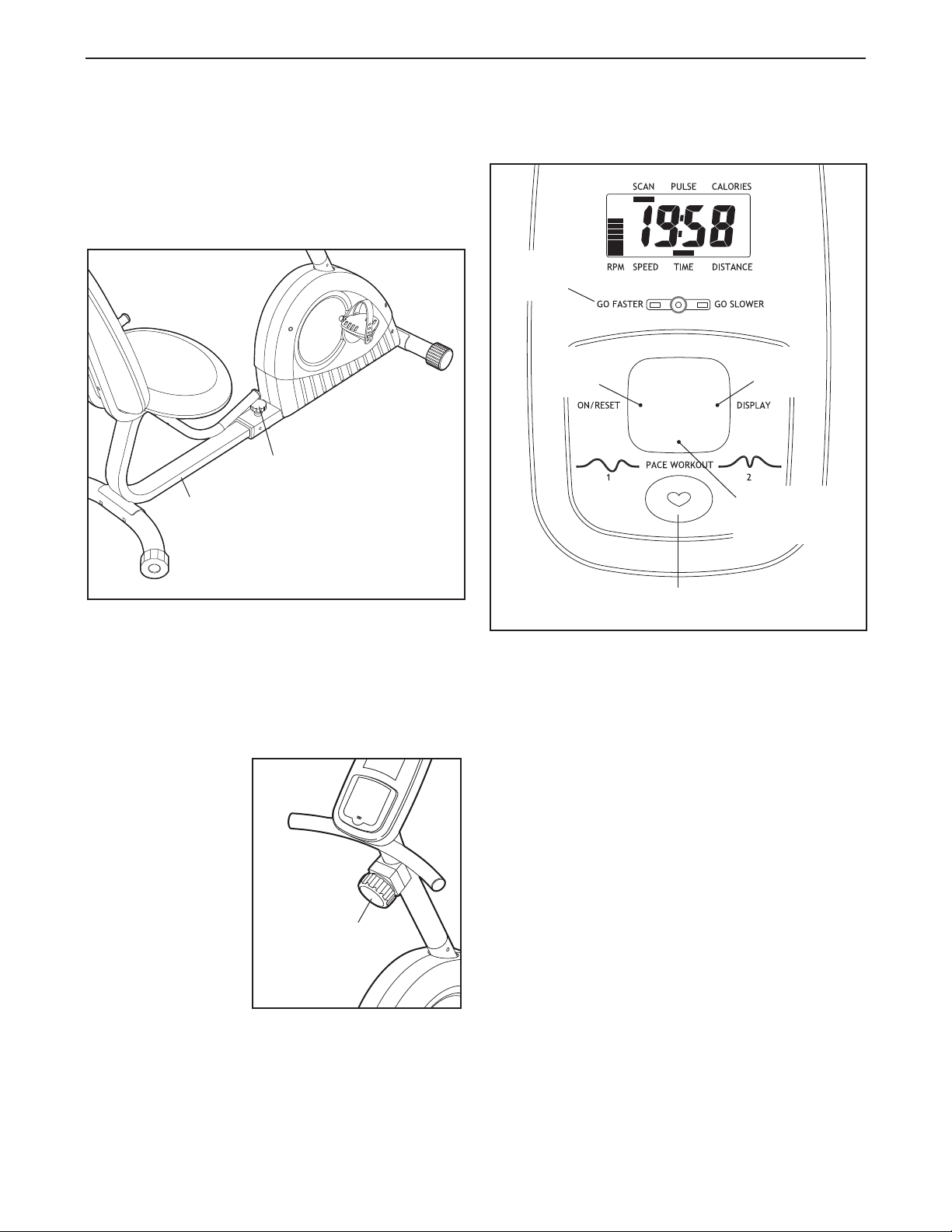

OW TO ADJUST THE SEAT FRAME
H
or effective exercise, the seat should be in the proper
F
position. As you pedal, there should be a slight bend
in your knees when the pedals are in the most forward
position.

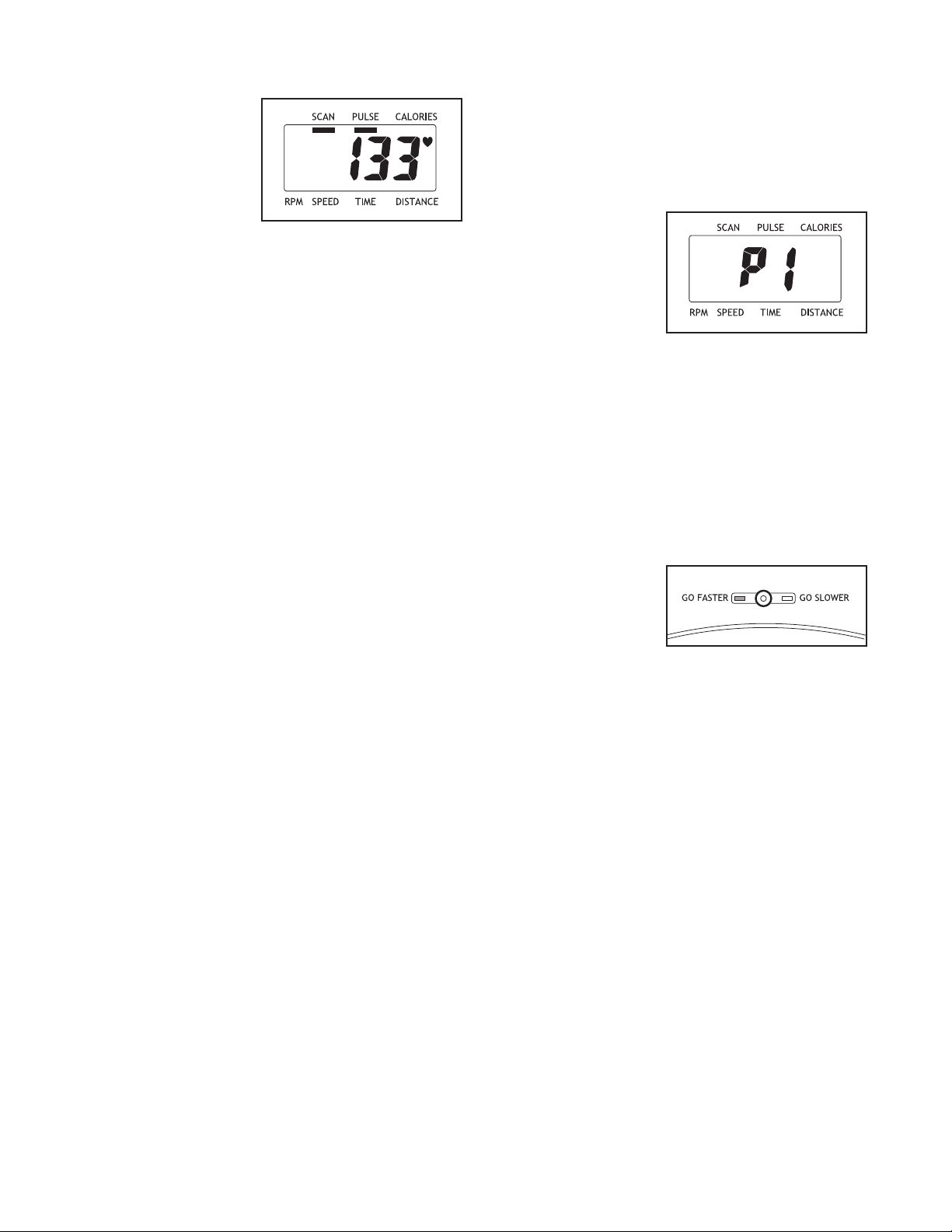

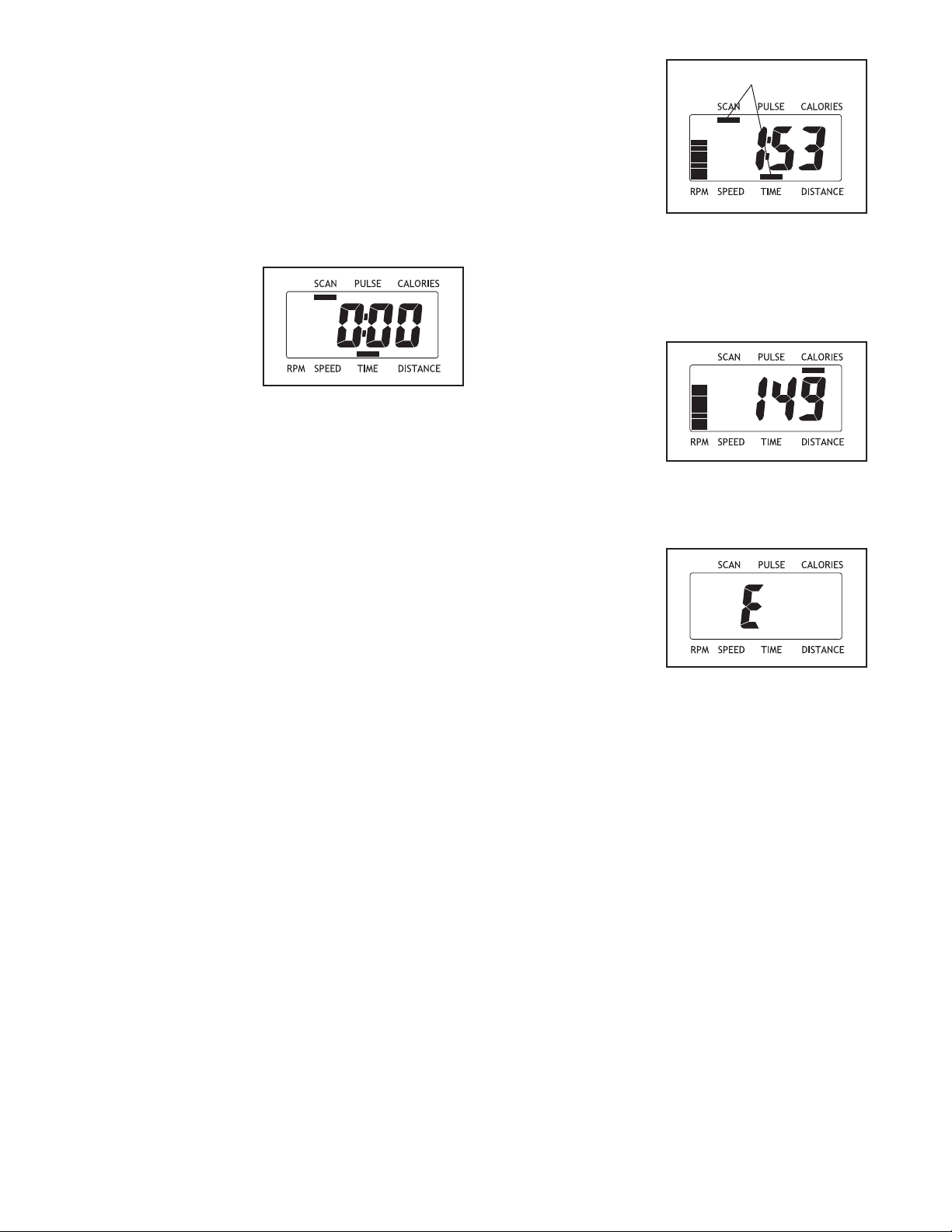

EATURES OF THE CONSOLE
F
Pace
Guide
Knob
Seat
Frame
To adjust the seat frame, first loosen the adjustment
knob on the frame. Slide the seat frame forward or
backward to the desired position. Then, retighten the
adjustment knob.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resistance, turn the
knob counterclockwise. IMPORTANT:
Stop turning the
knob when turning becomes difficult, or damage
may result.
Resistance
Knob
On/Reset
Button
Thumb Pulse Sensor
The console offers a selection of features designed to
make your workouts more effective. As you pedal, the
console will provide continuous exercise feedback.
You can even measure your heart rate using the builtin thumb pulse sensor.
The console also offers two pace workouts that
prompt you to vary your pedaling pace while guiding
you through an effective workout.
To use the manual mode, see page 12. To use a
pace workout, see page 13.
Before using the console, make sure that batteries are
installed (see assembly step 10 on page 9). If there is
a sheet of clear plastic on the display, remove the
plastic.
Display
Button
Pace Workout
Button
11
Page 12
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the On/Reset button
r begin pedaling. The entire display and the pace
o
guide will light for a moment; the console will then
be ready for use.
2. Select the manual mode.
When you turn
on the console,
the manual mode
will be selected.
If you have
selected a pace
workout, reselect
the manual mode
by pressing the Pace Workout button repeatedly
until zeros appear in the display.
3. Follow your progress with the display.
The display can show the following workout information:
RPM—The RPM meter on the left side of the display indicates your approximate pedaling pace
(revolutions per minute).
Speed—This mode shows your pedaling speed, in
miles per hour (mph) or kilometers per hour
(km/h).
Time—This mode shows the elapsed time. Note:
When a pace workout is selected, the display
shows the time remaining in the workout instead of
the elapsed time.
Distance—This mode shows the distance you
have pedaled, in miles or kilometers.
When you turn on
the console, the
scan mode will be
elected automat-
s
ically. One indica-
or will appear
t
below the word
Scan to show that
the scan mode is
selected, and a
second indicator will show which information is
currently displayed. Note: If you have selected a
different mode, press the Display button repeatedly to reselect the Scan mode.
To select the
speed, time, distance, or calories
mode for continuous display, press
the Display button repeatedly.
The indicators will
show which mode is selected. Make sure there is
not an indicator below the word Scan.
Note: The console can show
speed and distance in either
miles or kilometers. The letters
“mph” or “km/h”
will appear in the
display to show which unit of measurement is
selected. To change the unit of measurement, first
hold down the On/Reset button for a few seconds.
An “E” (for English) or an “M” (for metric) will
appear in the display. Press the Display button to
change the unit of measurement. Note: When the
batteries are replaced, it may be necessary to reselect the desired unit of measurement.
Indicators
Calories—This mode shows the approximate
number of calories you have burned.
Pulse—This mode shows your heart rate when
you use the thumb pulse sensor.
Scan—This mode shows the speed, time, distance, calories, and pulse modes, for a few seconds each, in a repeating cycle. Note: The pulse
mode will appear only when you are using the
pulse sensor.
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. If the time is
displayed, it will flash. To continue your workout,
simply resume pedaling.
12
Page 13
4. Measure your heart rate if desired.
HOW TO USE A PACE WORKOUT
To measure your
eart rate, stop
h
pedaling and
lace your thumb
p
on the pulse sensor. Do not
press too hard,
or the circulation in your thumb will be restricted and your
pulse will not be detected. After a few seconds,
the heart-shaped indicator in the display will flash
steadily, two dashes will appear, and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most
accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as
described above.
Make sure you are applying the proper amount of
pressure to the pulse sensor. Try the pulse sensor
several times until you become familiar with it.
Remember to stand still while measuring your
heart rate.
5. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console will pause. If the pedals do not move for a
few minutes, the console will turn off and the display will be reset.
1. Turn on the console.
See step 1 on page 12.
2. Select a pace workout.
To select a pace
workout, press the
Pace Workout button repeatedly
until P1 or P2
appears in the display. A few seconds after you
select a pace workout, the display will show the
duration of the workout.
3. Begin pedaling to start the workout.
Each pace workout consists of 30 one-minute segments. One target pace is programmed for each
segment. Any time the target pace is about to
change, the display will flash for a few seconds to
alert you.
During the workout, the pace
guide will prompt
you to keep your
pedaling pace
near the target
pace setting for the current segment. When the left
indicator lights, increase your pace; when the right
indicator lights, decrease your pace. When the
center indicator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The display can show the time remaining in the
workout. If you stop pedaling for a few seconds,
the workout will pause and the time will flash if it is
displayed. To restart the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 3 on page 12.
5. Measure your heart rate if desired.
See step 4 at the left.
6. When you are finished exercising, the console
will turn off automatically.
See step 5 at the left.
13
Page 14
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 10 on page 9.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left pedal and the
left shield. Using an adjustable wrench, turn the left
pedal clockwise and remove it. Next, remove all the
screws from the left and right shields; there are two
sizes of screws in the shields–note which size of
screw you remove from each hole. Then, gently pull
the left shield away from the frame.
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
drive belt may need to be adjusted.
To adjust the drive belt, you must first remove the right
pedal and the right shield. Using an adjustable
wrench, turn the right pedal counterclockwise and
remove it. Next, remove all the screws from the left
and right shields; there are two sizes of screws in
the shields–note which size of screw you remove
from each hole. Then, gently pull the right shield
away from the frame.
Loosen the Flywheel Axle (39). Next, tighten the M6
Locknuts (63), one on each side of the Flywheel (37),
until the Drive Belt (35) is tight. Then, tighten the
Flywheel Axle and reattach the right shield and the
right pedal.
Locate the Reed Switch (43). Turn the Crank (21) until
the Magnet (38) is aligned with the Reed Switch.
Loosen, but do not remove, the M4 x 15mm Self-tapping Screw (47). Slide the Reed Switch slightly closer
to or away from the Magnet, and then retighten the
Screw. Turn the Crank for a moment. Repeat until the
console displays correct feedback. When the Reed
Switch is correctly adjusted, reattach the left shield
and the left pedal.
21
38
43
47
35
37
63
39
14
Page 15
EXERCISE GUIDELINES
WARNING: B
this or any exercise program, consult your
physician. This is especially important for
persons over age 35 or persons with preexisting health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
15
Page 16
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
16
Page 17
NOTES
17
Page 18
PART LIST—Model No. 831.21811.0 R0610A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Front Stabilizer
3–Not Used
42Front Stabilizer Cap
51Seat Frame
61Rear Stabilizer
72Seat Handle Cap
82Rear Stabilizer Cap
91Adjustment Knob
10 7 M8 Locknut
11 1 C-magnet
12 1 Seat
13 1 Upright
14 1 Left Seat Bracket
15 1 Right Seat Bracket
16 1 Console
17 1 Left Shield
18 1 Right Shield
19 1 Resistance Control/Cable
20 1 Seat Frame Bushing
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 1 M8 x 20mm Bolt
24 1 Left Pedal/Strap
25 2 6000Z Bearing
26 1 Right Pedal/Strap
27 1 Resistance Knob
28 2 U-bracket
29 2 M4 x 9mm Screw
30 2 M10 x 75mm Carriage Bolt
31 2 Eyebolt
32 1 M6 Nut
33 2 M10 x 60mm Button Screw
34 3 M8 x 20mm Button Screw
35 1 Belt
36 – Not Used
37 1 Flywheel
38 2 Magnet
39 1 Flywheel Axle
40 2 M10 Small Washer
41 5 M4 x 25mm Screw
42 3 M8 Split Washer
43 1 Reed Switch/Wire
44 1 Crank Bearing Set
45 1 Lower Cable
46 2 M8 Curved Washer
47 9 M4 x 15mm Self-tapping Screw
48 1 Spring
49 1 Bracket
50 2 Foam Grip
51 1 M6 x 45mm Bolt
52 1 Extension Wire
53 1 Handlebar
54 4 M8 Washer
55 1 M5 x 40mm Screw
56 1 Frame Bushing
57 2 Bumper
58 4 Square Cap
59 2 Seat Handle
60 1 Backrest
61 8 M6 x 35mm Button Screw
62 2 M8 x 125mm Bolt
63 6 M6 Locknut
64 4 M6 x 30mm Button Bolt
65 2 M10 Locknut
66 2 M4 x 5mm Self-tapping Screw
67 1 M5 Curved Washer
68 8 M6 Washer
69 4 M6 Curved Washer
70 2 M4 Washer
71 2 Handlebar Cap
72 2 M8 x 65mm Button Bolt
*–Userʼs Manual
*–Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-888-533-1333.
18
Page 19
18
47
41
41
7
15
16
13
27
19
17
41
35
2
4
30
45
9
38
1
33
22
43
20
5
10
12
68
21
24
26
44
34
42
47
53
8
6
14
52
47
47
41
4
8
31
63
37
39
25
28
31
63
28
25
11
23
10
40
48
32
51
10
10
56
55
42
34
42
34
68
68
68
68
68
68
57
58
58
58
58
59
59
61
61
61
61
61
61
62
62
63
64
63
64
60
65
65
66
47
29
47
66
7
50
50
40
69
69
69
69
54
54
54
54
49
70
67
38
61
71
71
72
10
46
EXPLODED DRAWING—Model No. 831.21811.0 R0610A
19
Page 20
Your Home
For repair—in your home—of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Get it fixed, at your home or ours!
® Registered Trademark / TMTrademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
Marca de Fábrica /
SM
Marca de Servicio de Sears Brands, LLC
90 DAY FULL WARRANTY
If this Sears bike exerciser fails due to a defect in material or workmanship within 90 days of the date of
purchase, call 1-800-4-MY-HOME
proves impossible).
This warranty does not apply when the bike exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
®
(1-800-469-4663) to arrange for free repair (or replacement if repair
to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Part No. 266633 R0610A Printed in China © 2010 ICON IP, Inc.
Loading...
