Model No. 831.21800.0
Serial No.
BIKE EXERCISER
Write the serial number in the
space above for reference.
Serial Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
Userʼs Manual
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call
1-866-699-3756 and request a free replacement decal. Apply the decal in the location
shown. Note: The decal(s) may not be shown at
actual size.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. Sears assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
8. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise
cycle. Always wear athletic shoes for foot
protection while exercising.
10. When adjusting the seat, insert the seat pin
into one of the holes in the seat post. Do not
insert the seat pin under the seat post.
11. Keep your back straight while using your
exercise cycle; do not arch your back.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
14. Use your exercise cycle only as described in
this manual.
3
Page 4
BEFORE YOU BEGIN
ongratulations for selecting the new WESLO
C
PURSUIT S 2.8 exercise cycle. Cycling is one of the
most effective exercises for increasing cardiovascular
fitness, building endurance, and toning the body. The
URSUIT S 2.8 exercise cycle offers a selection of
P
features designed to let you enjoy this healthful exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Handlebar
Thumb Pulse Sensor
®
fter reading this manual, please see the back cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Seat
Seat Knob
Resistance Knob
Pedal/Strap
4
Page 5
M8 Split
Washer (42)–9
M8 Locknut
(10)–6
M8 x 15mm Button
Screw (34)–3
M8 x 60mm Button
Screw (30)–4
M8 x 65mm Button
Bolt (50)–2
M8 x 73mm Button
Screw (33)–2
M4 x 16mm
Screw (46)–4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver , two adjustable
wrenches , and pliers .
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled. If a part is missing, call 1-866-699-3756.
5
Page 6
.
1
o make assembly easier, read the
T
information on page 5 before you begin
ssembling the exercise cycle.
a
Insert the Rear Stabilizer (6) into the Frame (1).
Attach the Rear Stabilizer with four M8 x 60mm
utton Screws (30).
B
1
1
6
30
2. Orient the Front Stabilizer (2) with the large
holes facing the Frame (1). Attach the Front
Stabilizer to the Frame with two M8 x 73mm
Button Screws (33).
3. Attach the Seat (12) to the Seat Post (5) with
four M8 Split Washers (42) and four M8
Locknuts (10). Note: The Split Washers and
the Locknuts may be preattached to the
underside of the Seat.
2
33
2
Large
Holes
1
3
12
42
10
5
42
42
10
6
Page 7

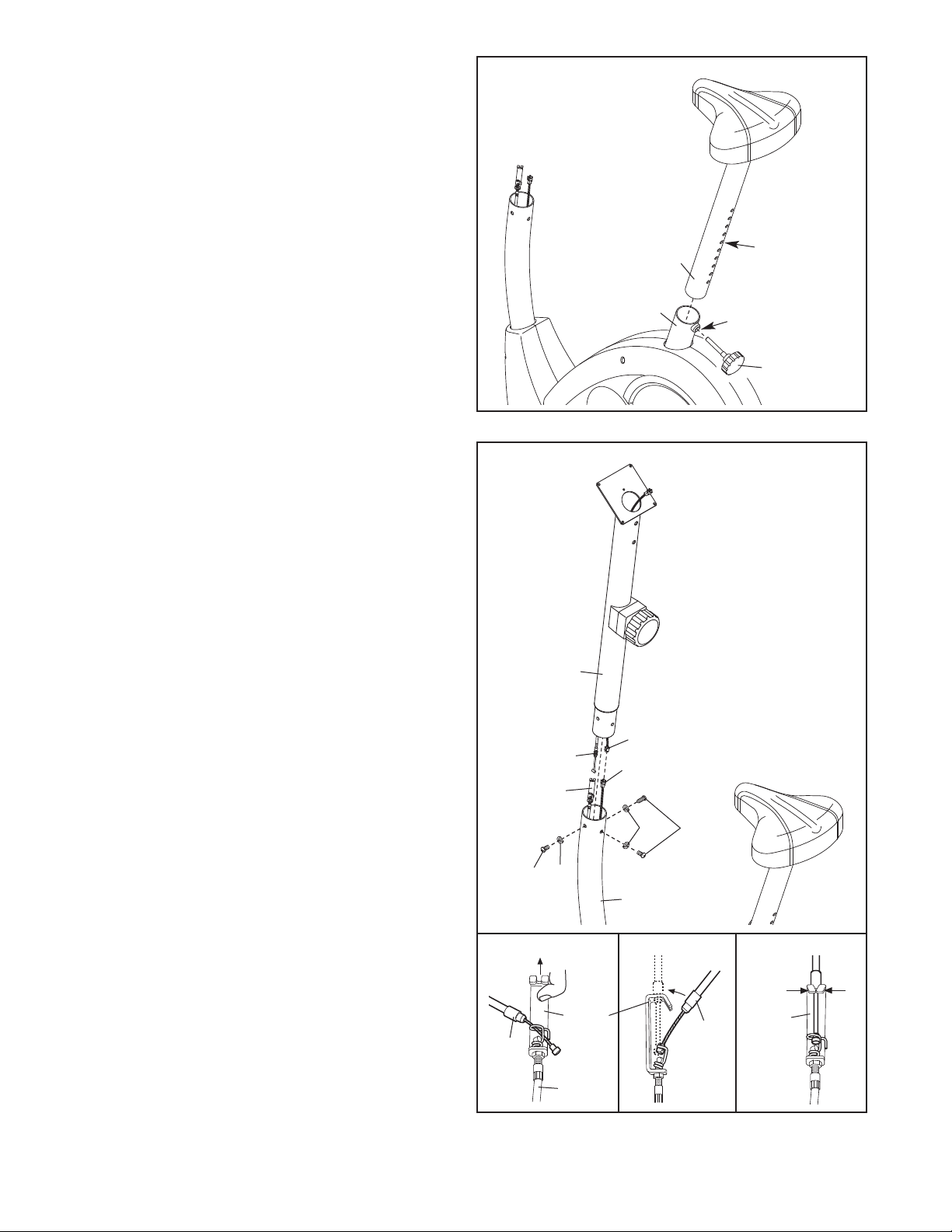

. Turn the Seat Knob (9) counterclockwise and
4
remove it from the Frame (1). Next, insert the
Seat Post (5) into the Frame. Adjust the Seat
Post to the desired height and insert the Seat
nob through the indicated hole in the Frame
K
into one of the adjustment holes in the Seat
ost. Then, turn the Seat Knob clockwise until it
P
is tight. Make sure that the Seat Knob is firm-
ly engaged in one of the adjustment holes in
the Seat Post.
4
5
Adjustment
Holes
5. While another person holds the Upright (13)
near the Frame (1) as shown, connect the
Extension Wire (23) to the Reed Switch Wire
(39). Next, connect the Resistance Cable (19)
to the Lower Cable (29) in the following way:
• See drawing A. Pull up on the metal bracket
on the Lower Cable (29), and insert the tip of
the Resistance Cable (19) into the wire clip
inside of the metal bracket as shown.
• See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the Wires (23, 39) and the Cables (19, 29)
downward into the Frame (1).
Tip: Do not pinch the wires and cables. Next,
insert the Upright (13) into the Frame (1). Attach
the Upright with three M8 x 15mm Button
Screws (34) and three M8 Split Washers (42).
1
5
13
23
34
19
29
42
39
42
1
Hole
9
Do not pinch the
wires and cables
during this step
34
A
Metal
Bracket
19
29
B
19
C
Metal
Bracket
7
Page 8

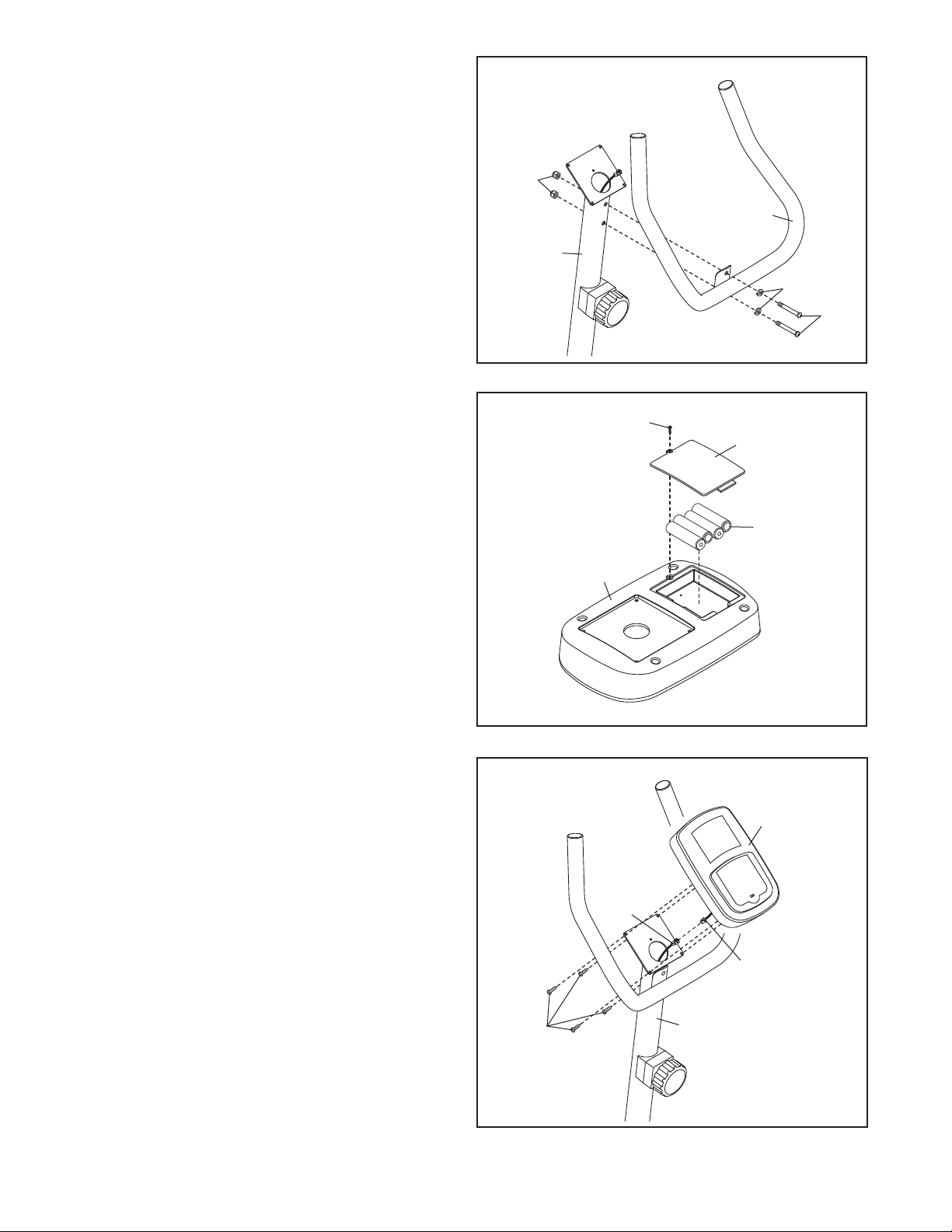

6. Attach the Handlebar (49) to the Upright (13)
ith two M8 x 65mm Button Bolts (50), two M8
w
Split Washers (42), and two M8 Locknuts (10).
6
10
9
4
13
42
50
7. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic components. Remove the battery cover, insert the
batteries into the battery compartment, and
reattach the battery cover. Make sure to orient
the batteries as shown by the diagram
inside the battery compartment.
8. While a second person holds the Console (16)
near the Upright (13), connect the console wire
to the Extension Wire (23). Then, insert the
wires downward into the Upright.
7
8
Screw
16
Battery
Cover
Batteries
16
Tip: Do not pinch the wires. Attach the
Console (16) to the Upright (13) with four M4 x
16mm Screws (46).
23
Console Wire
46
13
Do not pinch
the wires
during this step
8
Page 9

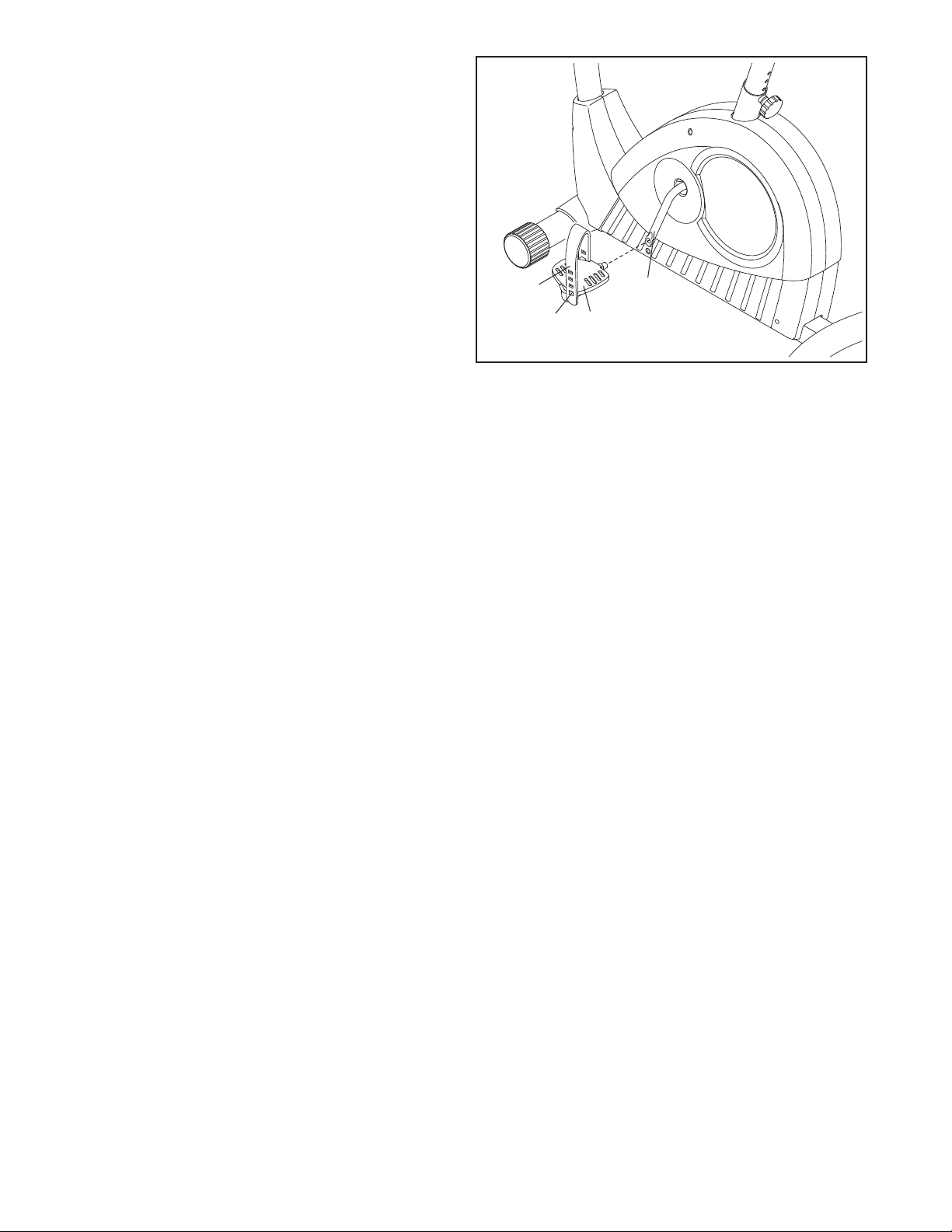

9. Identify the Left Pedal (24), which is marked
with a “Left” sticker. Using an adjustable
wrench, firmly tighten the Left Pedal counter-
lockwise into the left arm of the Crank (21).
c
Tighten the Right Pedal (not shown) clockwise
nto the right arm of the Crank. IMPORTANT:
i
Tighten both Pedals as firmly as possible.
After using the exercise cycle for one week,
retighten the Pedals. For best performance,
keep the Pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal.
Adjust the strap on the Right Pedal (not shown)
in the same way.
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9
Strap
Tab
21
24
9
Page 10
HOW TO USE THE EXERCISE CYCLE

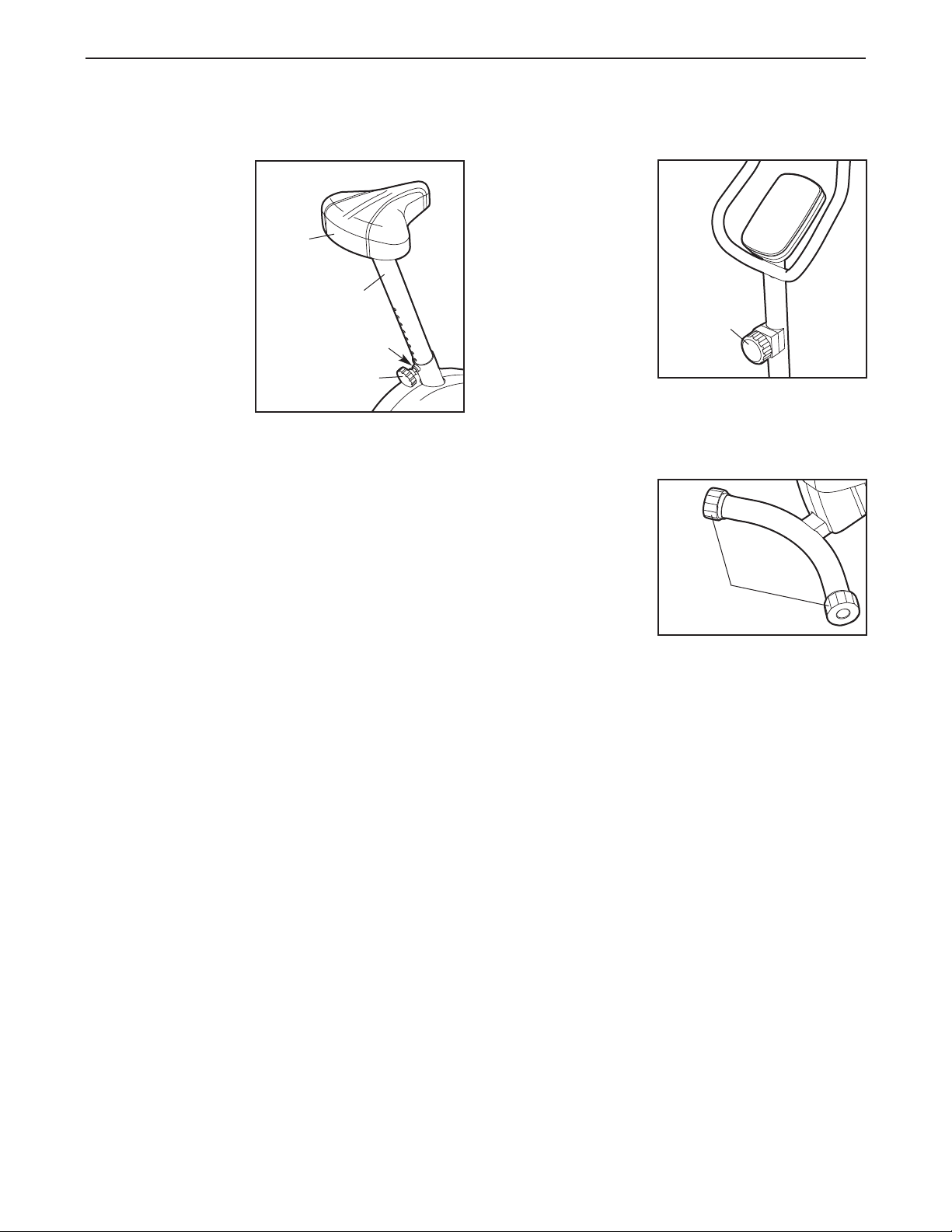

OW TO ADJUST THE SEAT POST
H
or effective exer-
F
cise, the seat should
be at the proper
height. As you pedal,
there should be a
slight bend in your
knees when the pedals are in the lowest
position. To adjust
the height of the
seat, first turn the
seat knob counterclockwise and
remove it. Next, slide
the seat post upward
or downward and align one of the adjustment holes in
the seat post with the indicated hole in the frame.
Then, insert the seat knob into the frame and the seat
post, and turn the seat knob clockwise until it is tight.
Make sure that the seat knob is inserted through
one of the adjustment holes in the seat post.
Seat
Seat Post
Hole
Seat Knob
OW TO ADJUST THE PEDALING RESISTANCE
H
o increase the
T
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resistance, turn the
resistance knob
counterclockwise.
IMPORTANT: Stop
turning the knob
when turning
becomes difficult,
or you may damage the exercise cycle.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle
rocks on your floor
during use, turn one
or both of the leveling caps until the
rocking motion is
eliminated.
Resistance
Knob
Leveling
Caps
10
Page 11

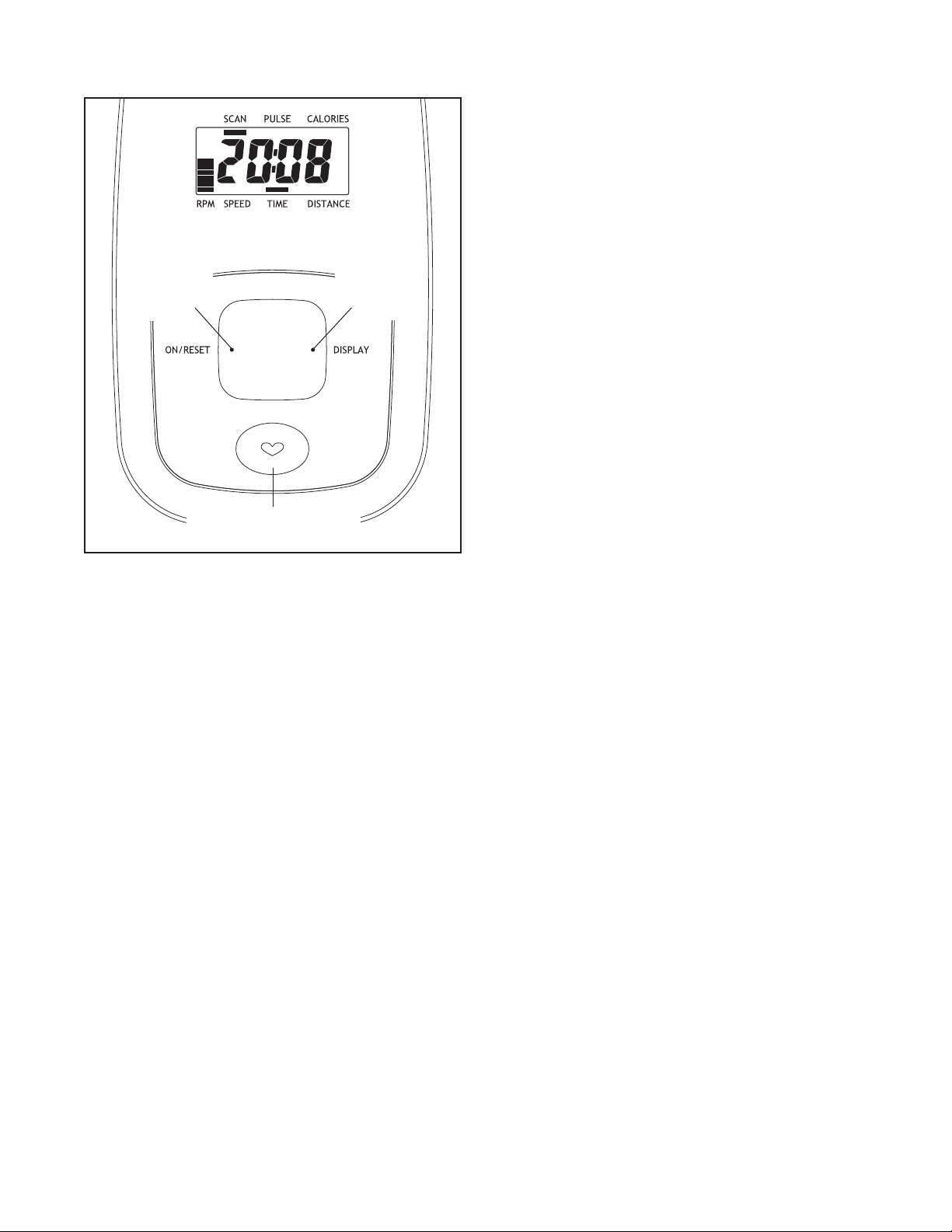

FEATURES OF THE CONSOLE
On/Reset
Button
Thumb Pulse Sensor
Display
Button
HOW TO USE THE CONSOLE
1. Turn on the console.
To turn on the console, press the On/Reset button
r begin pedaling. The display will light for a
o
moment; the console will then be ready for use.
2. Follow your progress with the display.

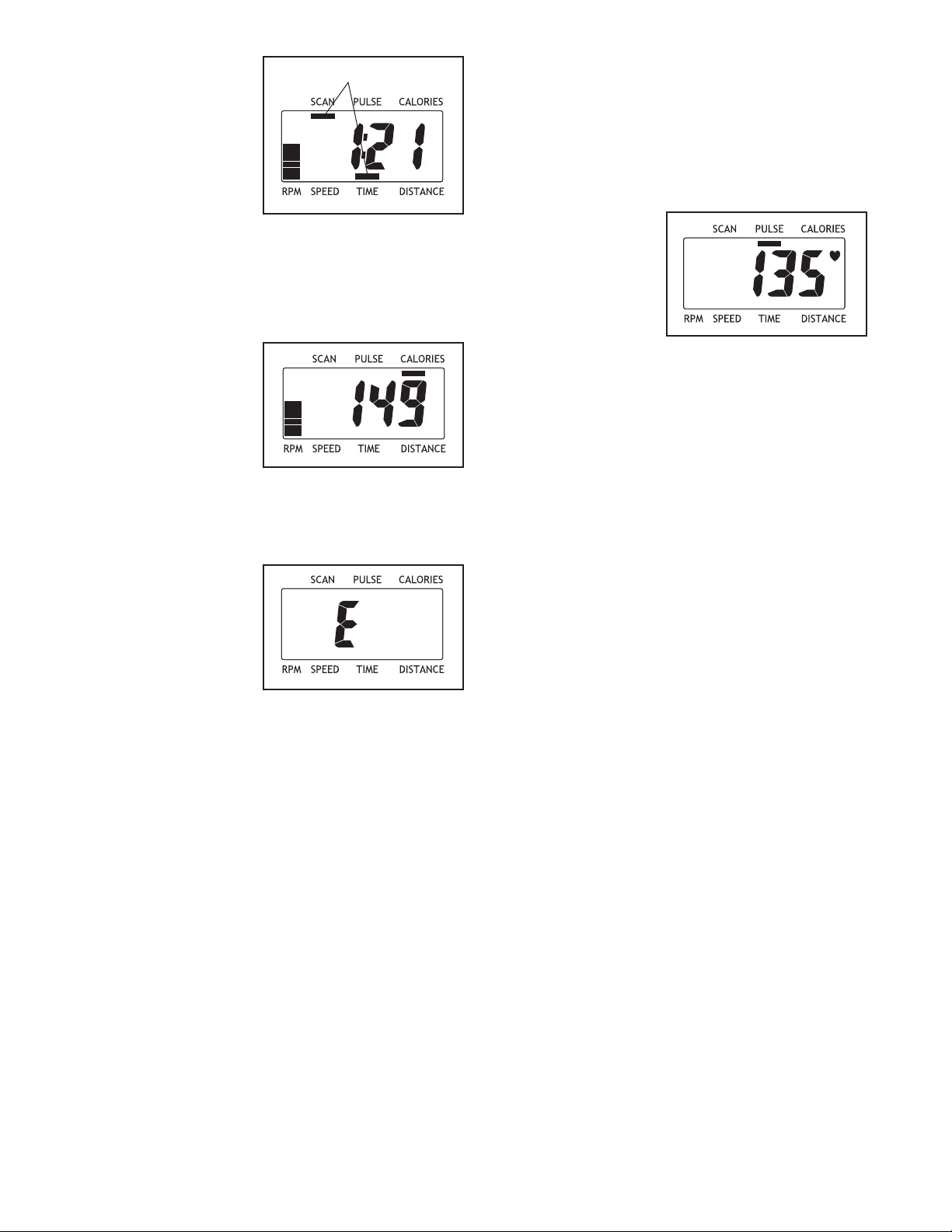

The display can show the following workout information:
RPM—The RPM meter on the left side of the display indicates your approximate pedaling pace
(revolutions per minute).
Speed—This mode shows your pedaling speed, in
miles per hour (mph) or kilometers per hour
(km/h).
Time—This mode shows the elapsed time.
Distance—This mode shows the distance you
have pedaled, in miles or kilometers.
The console offers a selection of features designed to
make your workouts more effective. As you pedal, the
console will provide continuous exercise feedback.
You can even measure your heart rate using the builtin thumb pulse sensor.
Before using the console, make sure that batteries are
installed (see assembly step 7 on page 8). If there is a
sheet of clear plastic on the display, remove the plastic.
Calories—This mode shows the approximate
number of calories you have burned.
Pulse—This mode shows your heart rate when
you use the thumb pulse sensor.
Scan—This mode shows the speed, time, distance, calories, and pulse modes, for a few
seconds each, in a repeating cycle. Note: The
pulse mode will be displayed only when you are
using the pulse sensor.
11
Page 12
When you turn
on the power, the
scan mode will
e selected auto-
b
matically. One
ndicator will
i
appear below the
word Scan to
show that the
scan mode is
selected, and a second indicator will show which
information is currently displayed. Note: If you
have selected a different mode, press the Display
button repeatedly to reselect the Scan mode.
To select the
speed, time, distance, or calories
mode for continuous display,
press the Display
button repeatedly. Indicators will
show which
mode is selected. Make sure that there is not an
indicator below the word Scan.
Note: The console can show
speed and distance in either
miles or kilometers. The letters
“mph” or “km/h”
will appear in the
display to show which unit of measurement is
selected. To change the unit of measurement, first
hold down the On/Reset button for a few seconds.
An “E” (for English) or an “M” (for metric) will
appear in the display. Press the Display button to
change the unit of measurement. Note: When the
batteries are replaced, it may be necessary to
reselect the desired unit of measurement.
Indicators
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. If the time is
isplayed, it will flash. To continue your workout,
d
simply resume pedaling.
3. Measure your heart rate if desired.
To measure your
heart rate, stop
pedaling and
place your thumb
on the pulse sensor. Do not press
too hard, or the
circulation in
your thumb will be restricted and your pulse
will not be detected. After a few seconds, the
heart-shaped indicator in the display will flash
steadily, two dashes will appear, and then your
heart rate will be shown. Hold your thumb on the
pulse sensor for about 15 seconds for the most
accurate reading.
If the displayed heart rate appears to be too high or
too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as
described above.
Make sure you are applying the proper amount of
pressure to the pulse sensor. Try the pulse sensor
several times until you become familiar with it.
Remember to stand still while measuring your
heart rate.
4. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console will pause. If the pedals do not move for a
few minutes, the console will turn off and the display will be reset.
12
Page 13
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim or if the console
does not function correctly, the batteries should be
replaced; most console problems are the result of low
batteries. To replace the batteries, see assembly step
7 on page 8.

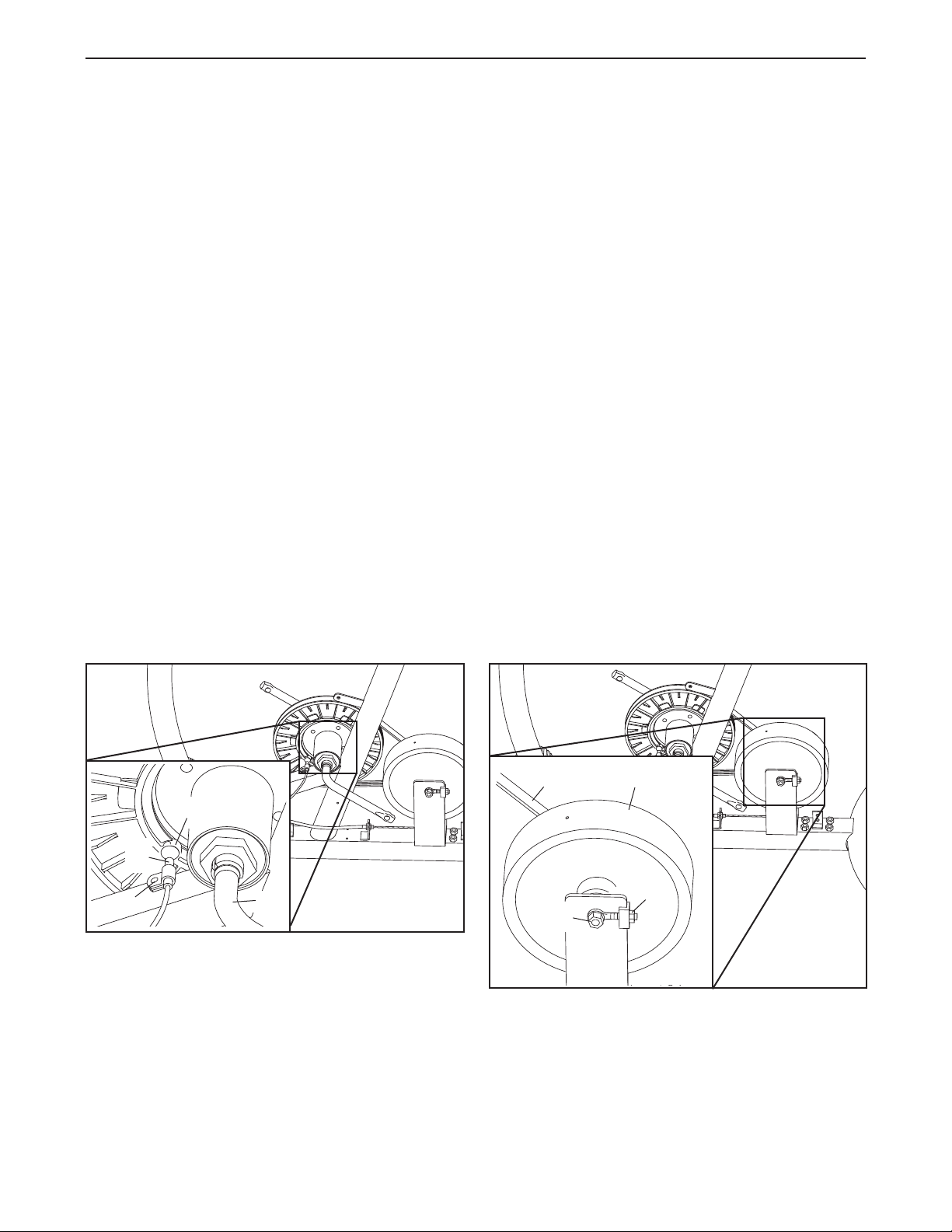

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal, the upright covers, and the left
shield must be removed.
Using an adjustable wrench, turn the left pedal clockwise and remove it. Next, remove the screws from the
upright covers and the shields. Then, carefully remove
the upright covers and the left shield.
aligned with the Reed Switch. Loosen, but do not
remove, the M5 x 15mm Screw (47). Then, slide the
Reed Switch slightly closer to or away from the
Magnet, and tighten the Screw. Turn the Crank for a
moment. Repeat until the console displays correct
feedback. When the Reed Switch is correctly adjusted,
reattach the left shield, the upright covers, and the left
pedal.
HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
belt may need to be adjusted. See HOW TO ADJUST
THE REED SWITCH at the left and remove the left
pedal, the upright covers, and the left shield.
To adjust the belt, you must also remove the right
pedal and the right shield. Using an adjustable
wrench, turn the right pedal counterclockwise and
remove it. Then, carefully remove the right shield.
Next, loosen the two 3/8" Nuts (27), one on each side
of the Flywheel (37). Then, tighten the M6 Locknuts
(32), one on each side of the Flywheel, until the Belt
(35) is properly tightened. Finally, tighten the 3/8” Nuts
(27) and reattach the shields, the upright covers, and
the pedals.
38
39
47
Next, turn the resistance knob to the lowest setting.
With the left shield removed, locate the Reed Switch
(39). Turn the Crank (21) until the Magnet (38) is
21
13
35
37
32
27
Page 14
EXERCISE GUIDELINES
WARNING: B
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

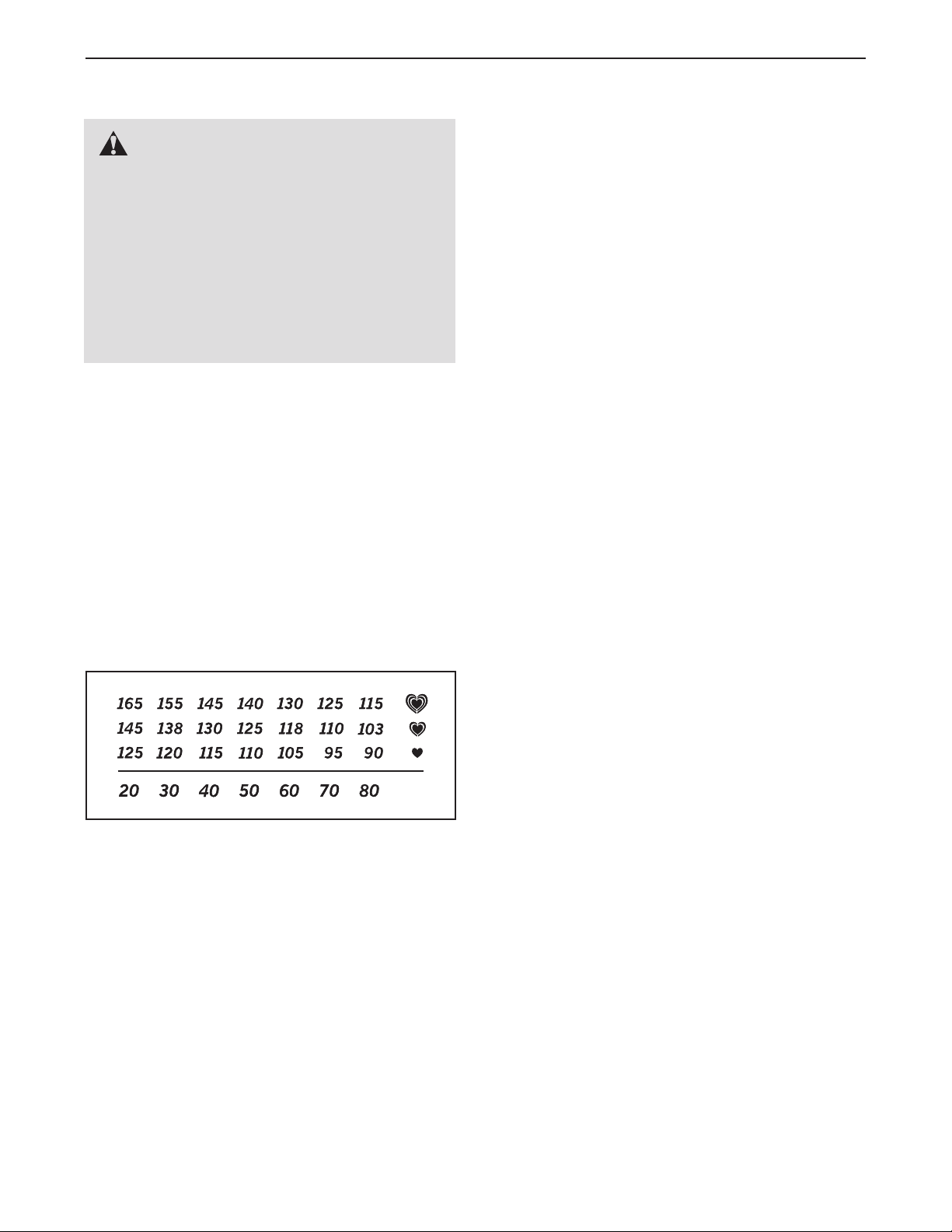

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
14
Page 15
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
15
Page 16
NOTES
16
Page 17
NOTES
17
Page 18

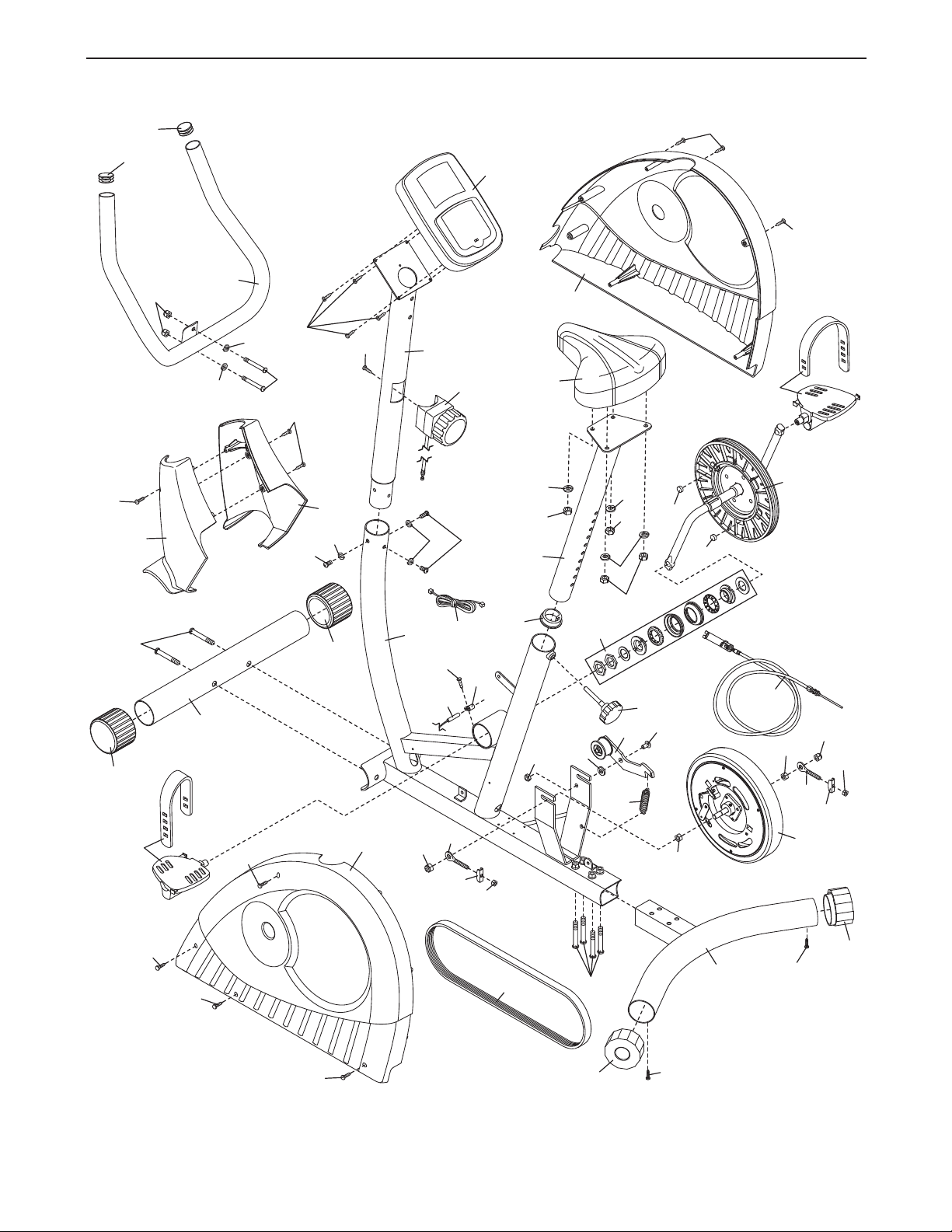

PART LIST—Model No. 831.21800.0 R0309A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Front Stabilizer
3
42Front Stabilizer Cap
51Seat Post
61Rear Stabilizer
72Handlebar Cap
82Leveling Cap
91Seat Knob
10 6 M8 Locknut
11 1 Idler
12 1 Seat
13 1 Upright
14 1 Left Upright Cover
15 1 Right Upright Cover
16 1 Console
17 1 Left Shield
18 1 Right Shield
19 1 Resistance Control/Cable
20 1 Seat Post Bushing
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 1 Extension Wire
24 1 Left Pedal/Strap
25 1 Spring
26 1 Right Pedal/Strap
1 M8 Nut
27 2 3/8" Nut
28 2 U-bracket
9 1 Lower Cable
2
30 4 M8 x 60mm Button Screw
31 2 Eyebolt
32 2 M6 Locknut
33 2 M8 x 73mm Button Screw
34 3 M8 x 15mm Button Screw
35 1 Belt
36 1 Crank Bearing Set
37 1 Flywheel
38 2 Magnet
39 1 Reed Switch/Wire
40 1 M8 x 20mm Bolt
41 10 M4 x 25mm Round Head Screw
42 9 M8 Split Washer
43 2 Flywheel Nut
44 1 M5 x 50mm Button Screw
45 1 M8 Washer
46 4 M4 x 16mm Screw
47 1 M5 x 15mm Screw
48 2 M4 x 15mm Screw
49 1 Handlebar
50 2 M8 x 65mm Button Bolt
*–Userʼs Manual
*–Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated. If a part is missing, call 1-866-699-3756.
18
Page 19
7
7
1
6
34
42
13
19
17
41
18
35
2
4
30
29
9
31
32
37
38
28
31
32
28
11
1
33
41
22
39
20
5
10
10
12
42
42
21
24
26
36
34
42
42
10
46
8
27
6
43
23
47
41
41
41
41
4
8
15
14
41
41
44
43
27
45
25
3
40
48
48
49
10
42
42
50
38
EXPLODED DRAWING—Model No. 831.21800.0 R0309A
19
Page 20
Your Home
For repair—in your home—of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(
1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Get it fixed, at your home or ours!
® Registered Trademark / TMTrademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
Marca de Fábrica / SMMarca de Servicio de Sears Brands, LLC
90 DAY FULL WARRANTY
If this Sears bike exerciser fails due to a defect in material or workmanship within 90 days of the date of
purchase, call 1-800-4-MY-HOME®(1-800-469-4663) to arrange for free repair (or replacement if repair
proves impossible).
This warranty does not apply when the bike exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Part No. 266589 R0309A Printed in China © 2008 ICON IP, Inc.
Loading...
