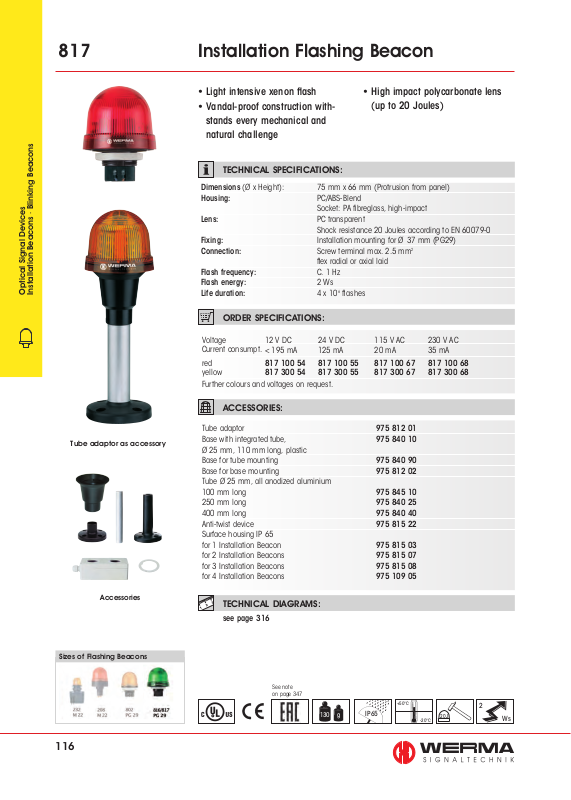

Installation Flashing Beacon
Blinking Beacons
•
Optical Signal Devices
Installation Beacons
• Light intensive xenon fl ash
• Vandal-proof construction with-
• High impact polycarbonate lens
(up to 20 Joules)
stands every mechanical and
natural challenge
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 75 mm x 66 mm (Protrusion from panel)
Housing: PC/ABS-Blend
Socket: PA fi breglass, high-impact
Lens: PC transparent
Shock resistance 20 Joules according to EN 60079-0
Fixing: Installation mounting for Ø 37 mm (PG29)
Connection: Screw terminal max. 2.5 mm
fl ex radial or axial laid
Flash frequency: C. 1 Hz
Flash energy: 2 Ws
Life duration: 4 x 10
6
fl ashes
ORDER SPECIFICATIONS:
Voltage 12 V DC 24 V DC 115 V AC 230 V AC
Current consumpt.
red 817 100 54 817 100 55 817 100 67 817 100 68
yellow 817 300 54 817 300 55 817 300 67 817 300 68
Further colours and voltages on request.
< 195 mA 125 mA 20 mA 35 mA
2
Tube adaptor as accessory
Accessories
Sizes of Flashing Beacons
ACCESSORIES:
Tube adaptor 975 812 01
Base with integrated tube, 975 840 10
Ø 25 mm, 110 mm long, plastic
Base for tube mounting 975 840 90
Base for base mounting 975 812 02
Tube Ø 25 mm, all anodized aluminium
100 mm long 975 845 10
250 mm long 975 840 25
400 mm long 975 840 40
Anti-twist device 975 815 22
Surface housing IP 65
for 1 Installation Beacon 975 815 03
for 2 Installation Beacons 975 815 07
for 3 Installation Beacons 975 815 08
for 4 Installation Beacons 975 109 05
TECHNICAL DIAGRAMS:
see page 316
