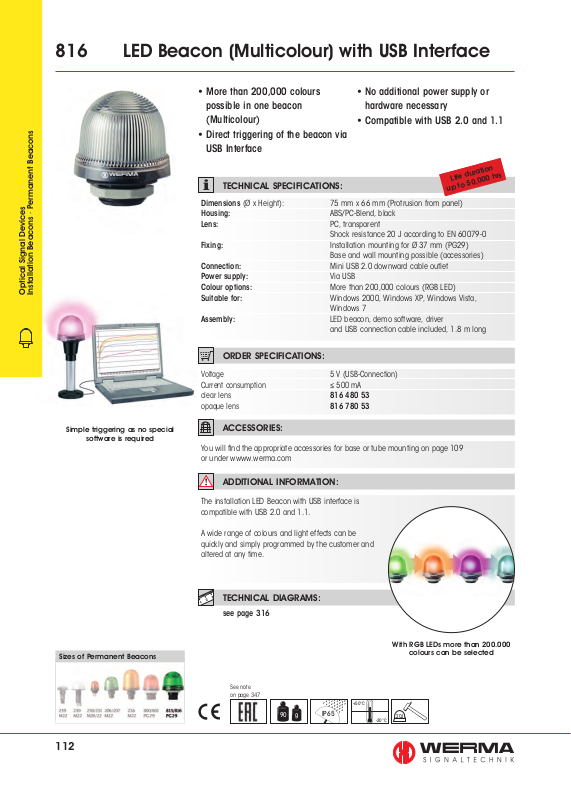

816
LED Beacon (Multicolour) with USB Interface
Permanent Beacons
•
Optical Signal Devices
Installation Beacons
• More than 200,000 colours
possible in one beacon
(Multicolour)
• No additional power supply or
hardware necessary
• Compatible with USB 2.0 and 1.1
• Direct triggering of the beacon via
USB Interface
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 75 mm x 66 mm (Protrusion from panel)
Housing: ABS/PC-Blend, black
Lens: PC, transparent
Shock resistance 20 J according to EN 60079-0
Fixing: Installation mounting for Ø 37 mm (PG29)
Base and wall mounting possible (accessories)
Connection: Mini USB 2.0 downward cable outlet
Power supply: Via USB
Colour options: More than 200,000 colours (RGB LED)
Suitable for: Windows 2000, Windows XP, Windows Vista,
Windows 7
Assembly: LED beacon, demo software, driver
and USB connection cable included, 1.8 m long
ORDER SPECIFICATIONS:
Life duration
up to 50,000 hrs
Simple triggering as no special
software is required
Sizes of Permanent Beacons
Voltage 5 V (USB-Connection)
Current consumption ≤ 500 mA
clear lens 816 480 53
opaque lens 816 780 53
ACCESSORIES:
You will fi nd the appropriate accessories for base or tube mounting on page 109
or under wwww.werma.com
ADDITIONAL INFORMATION:
The installation LED Beacon with USB interface is
compatible with USB 2.0 and 1.1.
A wide range of colours and light effects can be
quickly and simply programmed by the customer and
altered at any time.
TECHNICAL DIAGRAMS:
see page 316
With RGB LEDs more than 200.000
colours can be selected
112
See note
on page 347
90 g
IP 65
+50°C
-20°C
20J
