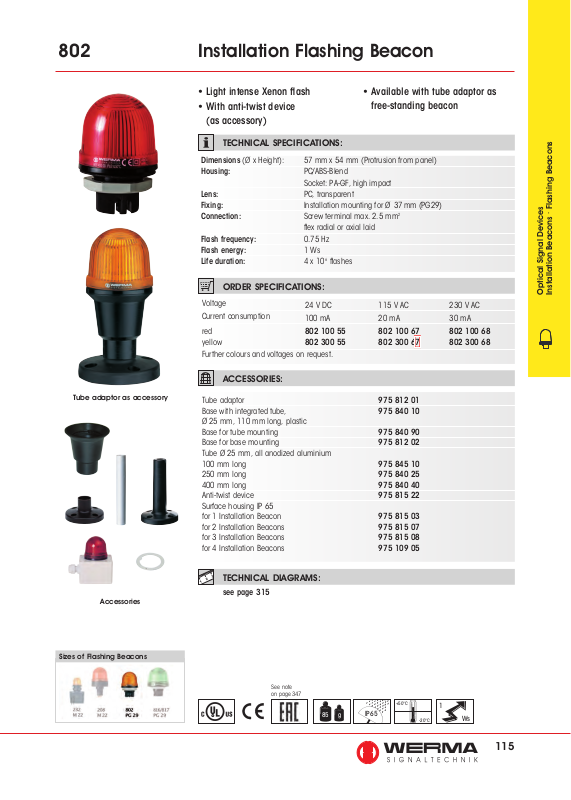

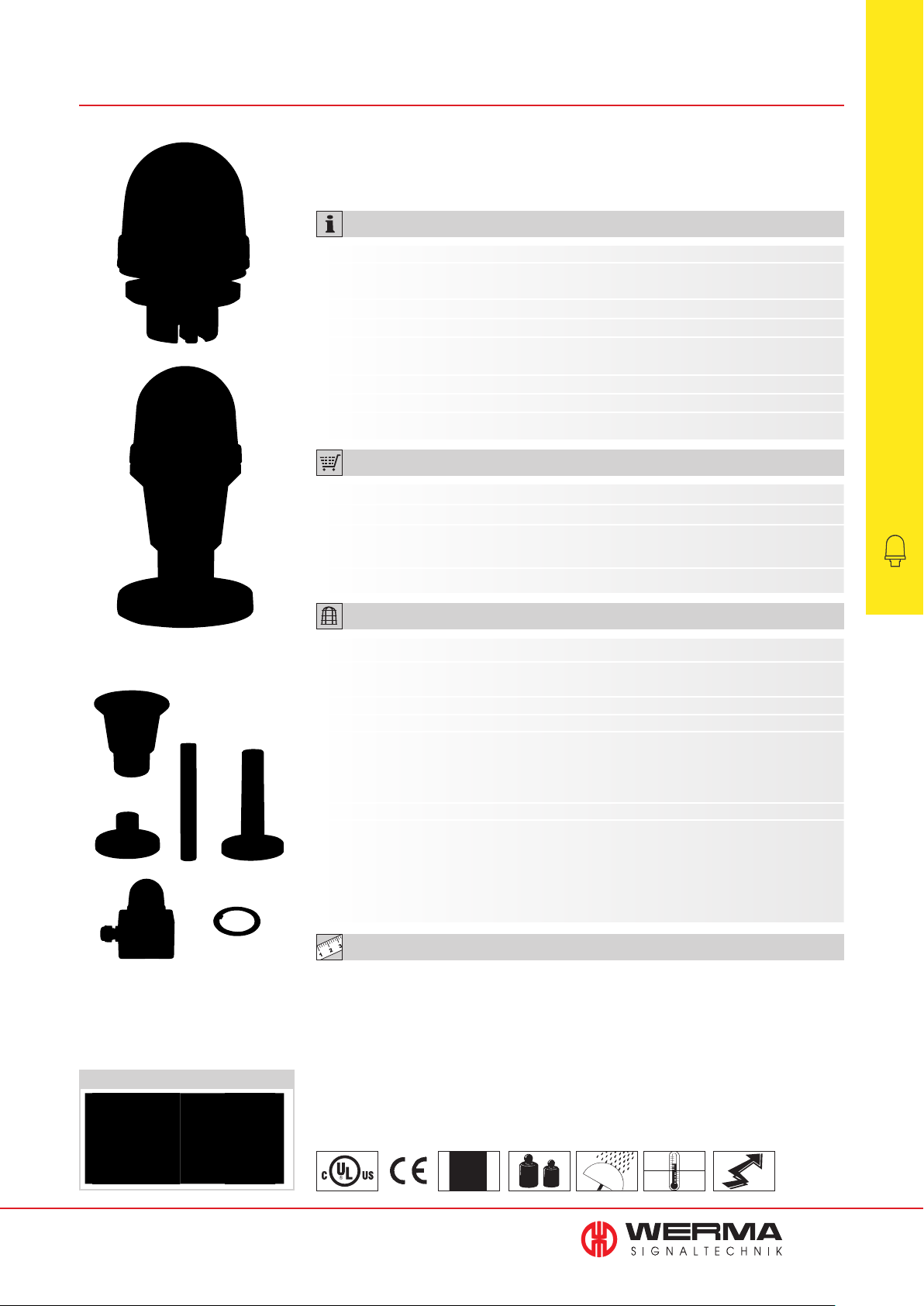

802
Installation Flashing Beacon
• Light intense Xenon fl ash
• With anti-twist device
• Available with tube adaptor as
free-standing beacon
(as accessory)
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 57 mm x 54 mm (Protrusion from panel)
Housing: PC/ABS-Blend
Socket: PA-GF, high impact
Lens: PC, transparent
Fixing: Installation mounting for Ø 37 mm (PG29)
Connection: Screw terminal max. 2.5 mm
fl ex radial or axial laid
Flash frequency: 0.75 Hz
Flash energy: 1 Ws
Life duration: 4 x 10
6
fl ashes
ORDER SPECIFICATIONS:
Voltage
24 V DC 115 V AC 230 V AC
Current consumption
red 802 100 55 802 100 67 802 100 68
yellow 802 300 55 802 300 67 802 300 68
Further colours and voltages on request.
100 mA 20 mA 30 mA
2
Flashing Beacons
•
Optical Signal Devices
Installation Beacons
Tube adaptor as accessory
Accessories
ACCESSORIES:
Tube adaptor 975 812 01
Base with integrated tube, 975 840 10
Ø 25 mm, 110 mm long, plastic
Base for tube mounting 975 840 90
Base for base mounting 975 812 02
Tube Ø 25 mm, all anodized aluminium
100 mm long 975 845 10
250 mm long 975 840 25
400 mm long 975 840 40
Anti-twist device 975 815 22
Surface housing IP 65
for 1 Installation Beacon 975 815 03
for 2 Installation Beacons 975 815 07
for 3 Installation Beacons 975 815 08
for 4 Installation Beacons 975 109 05
TECHNICAL DIAGRAMS:
see page 315
Sizes of Flashing Beacons
See note
on page 347
85 g
IP 65
+50°C
-20°C
1
Ws
115
