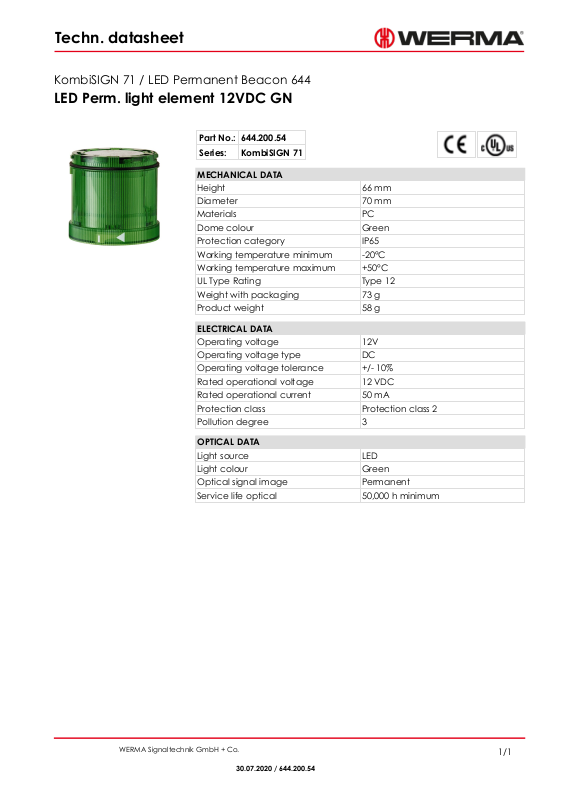

Techn. datasheet
KombiSIGN 71 / LED Permanent Beacon 644
LED Perm. light element 12VDC GN
Part No.: 644.200.54
Series: KombiSIGN 71
MECHANICAL DATA
Height 66 mm
Diameter 70 mm
Materials PC
Dome colour Green
Protection category IP65
Working temperature minimum -20°C
Working temperature maximum +50°C
UL Type Rating Type 12
Weight with packaging 73 g
Product weight 58 g
ELECTRICAL DATA
Operating voltage 12V
Operating voltage type DC
Operating voltage tolerance +/- 10%
Rated operational voltage 12 VDC
Rated operational current 50 mA
Protection class Protection class 2
Pollution degree 3
OPTICAL DATA
Light source LED
Light colour Green
Optical signal image Permanent
Service life optical 50,000 h minimum
WERMA Signaltechnik GmbH + Co.
1/1
30.07.2020 / 644.200.54
