OPERATOR’S MANUAL
IMPORTANT:
Read before using your new WerkMaster Burnisher
6932 Greenwood Street, Burnaby, BC V5A 1X8
tel: 604.629.8700 | toll free: 1.866.373.WERK | fax: 604.444.4231
www.werkmaster.com | email: support@werkmaster.com
WerkMaster Grinders and Sanders Inc.
!!LIABILITY LIMITATIONS
The remedies of the user set forth under provisions of warranty outlined at
the end of this manual are the exclusive and total liability of WerkMaster
Grinders and Sanders Inc, herein referred to as WerkMaster. with the
respect to their sale of the equipment and service furnished hereunder, in
connection with the performance or breach thereof, or from the sale,
delivery, installation, repair or technical direction covered by or furnished
under the sale, whether based on contract, warranty, negligence,
indemnity, strict liability, or otherwise shall not exceed the purchase price
of the unit of equipment upon which such liability is based.
WerkMaster will not in any event be liable to the user, any successors in
interest or any beneficiary or assignee relating to this sale for any
consequential, incidental, indirect, special or punitive damages arising out
of this sale or any breach thereof, or any defects on, or failure of, or
malfunction of the equipment under this sale based upon loss of use, lost
profits or revenue, interest, lost goodwill, work stoppage, impairment of
other goods, loss by reason of shutdown or non-operation, increased
expenses of operation of the equipment, cost of purchase or replacement
power of claims of users or customers of the user for service interruption
whether or not such loss or damage is based on contract, warranty,
negligence, indemnity, strict liability, or otherwise.
WerkMaster reserves the right to modify, alter and improve any part or
parts without incurring any obligation to replace any part or parts
previously sold without such modified, altered or improved part or parts.
No person is authorized to give any other warranty or to assume any
additional obligation on WerkMaster’s behalf unless made in writing and
signed by an officer of WerkMaster.
USE ONLY GENUINE WERKMASTER PARTS AND ACCESSORIES
FOR YOUR OWN SAFETY, THE SAFETY OF OTHERS AND THE LIFE
OF YOUR MACHINE.
!
OPERATOR’S MANUAL
1
CONTENTS
Introduction...........................................................................................................3
Machine Descriptions...........................................................................................4
Specifications .......................................................................................................4
Safety Precautions................................................................................................5
Danger...................................................................................................................5
Warning.................................................................................................................7
Caution..................................................................................................................7
Operator Responsibilities......................................................................................8
Propane Safety Information.................................................................................9
Facts About Liquid Propane Gas (LPG)................................................................9
Facts About Propane Tanks..................................................................................9
Recommended Purge Procedures....................................................................... 9
Filling Propane Tanks..........................................................................................10
Storing Propane Tanks........................................................................................11
Storing Machine...................................................................................................11
Transporting Machine..........................................................................................11
Engine Emissions and Carbon Monoxide Safety.............................................12
CO Exposure Limits.............................................................................................12
Methods To Reduce the Risks of CO Poisoning..................................................12
Machine Components.........................................................................................13
Controls and Instruments.....................................................................................13
Engine Ignition Switch.........................................................................................14
Stealth ACCU-Sense Emissions Monitoring System...........................................15
Spectre AUTO-Sense Emissions Monitoring System..........................................17
Hour Meter/Tachometer.......................................................................................18
EZ Bak Tilt Operation...........................................................................................19
Fuses...................................................................................................................20
Machine Operation..............................................................................................21
Pre-Operation Checklist.......................................................................................21
Installing the Propane Tank..................................................................................21
Starting the Machine............................................................................................22
Burnishing............................................................................................................23
Idling and Stopping the Machine.........................................................................24
Maintenance.........................................................................................................24
General................................................................................................................24
Inspecting the Oil Level.......................................................................................24
Changing the Oil..................................................................................................25
Replacing the Oil Filter.........................................................................................26
Inspecting and Replacing the Spark Plug............................................................27
Inspecting and Replacing the Oil Filter................................................................27
Inspecting and Replacing the Fuel Hose.............................................................28
Changing the Engine Dust Filter..........................................................................29
Maintaining the Cooling Fin.................................................................................29
Inspecting and Changing the Pad and Pad Holders............................................30
Maintaining the Belt.............................................................................................30
Maintaining the Battery........................................................................................31
Adjusting the Wheels...........................................................................................32
Cleaning the Dust Bag STEALTH ONLY..............................................................32
Maintenance Schedule........................................................................................33
Troubleshooting...................................................................................................34
Limited Warranty..................................................................................................36
Warranty...............................................................................................................37
Safety Awareness Form for Propane Machines................................................39
OPERATOR’S MANUAL
2
NTRODUCTION
Congratulations on your purchase of a WerkMaster Propane Burnisher.
WerkMaster machines allow professional surface prep, polishing,
grinding, edging, buffing and restoration of virtually any surface material,
concrete, terrazzo, and stone. This manual is provided to assist you in the
operation and maintenance of your WerkMaster machine.
WerkMaster is dedicated to our customers, their safety, and to providing
information, services, and products that meet their needs.
IMPORTANT
Read this manual and all safety precautions before attempting to
operate or perform service on your WerkMaster machine. Failure to
follow the safety precautions may result in damage to the machine,
severe personal injury or death.
If you or your operator cannot read English, have this manual explained
fully before attempting to operate the machine.
It is the owner/operator’s responsibility to ensure the air exchange system
installed in any location where a propane burnisher is being operated is of
sufficient capacity and quality to support the use of such a machine.
OSHA/WCB and other county, state, federal or provincial agencies publish
guidelines on the subject that are usually found in the in the possession of
the respective owners and/or parent companies of any location or chain of
locations. Failure on the part of the owner/operator to ensure that a
propane grinder/polisher can be operated safely in a given location may
lead to sickness or even loss of life.
This Operator’s Manual has been prepared for instructional purposes
only. WerkMaster does not claim or assume any responsibility for the
operator’s action or safety.
To be completely aware of what local authorities require, contact the
OSHA or WCB agency in your community.
OPERATOR’S MANUAL
3
MACHINE DESCRIPTIONS
MODEL
STEALTH
21”
STEALTH
28”
SPECTRE
21”
SPECTRE
28”
Dimensions
(l x w in)
(l x w cm)
58 x 24.5
148 x 62.25
65.6 x 31.5
167 x 80
56 x 24.5
142.25 x 62.25
61.5 x 31.5
156 x 80
Weight (lb/kg)
242 / 110
262 / 119
215 / 97
234 / 106
Pad Size (in/cm)
21 / 53
28 / 71
21 / 53
28 / 71
Pad Speed (RPM)
2000
1700
2000
1700
WerkMaster Propane Burnishers include the Stealth and the Spectre
models. The WerkMaster family of machines include the Scarab, Termite
XT, Viper XT, Raptor XT, TITAN XT and the COLOSSOS XT models. To
see the complete family of WerkMaster machines, informational videos,
tooling guide, chemicals and accessories visit our website at
www.werkmaster.com.
STEALTH
■ Accu-Sense™ Emissions Monitoring System with ClearSKY
Technology
■ Ergonomic design improves form and function
■ Catalytic muffler exceeds EPA and OSHA minimum requirements
■ Adjustable handle and soft tread wheels for optimal comfort and
results
■ Easy access battery and oil reservoir for no fuss maintenance
■ EZ Bak™ action allows for easy pad change
■ Improved engine dust filter reduces filter cleaning by 50%
■ Bail throttle with electric clutch for easy start-up and smooth
operation
■ DustMizer™ centrifugal dust collection system
■ American made aluminum castings with durable steel skirt
■ Featuring an 18HP 603cc engine from Kawasaki with a 2 Year
Warranty
SPECIFICATIONS
SPECTRE !
■ Auto-Sense™ Emissions Monitoring System with ClearSKY
Technology
■ Catalytic muffler exceeds EPA and OSHA minimum requirements
■ Adjustable handle and soft tread wheels for optimal comfort and
results
■ Easy access battery and oil reservoir for no fuss maintenance
■ EZ Bak™ action allows for easy pad change
■ American made aluminum castings with durable steel skirt
■ Standard electric clutch
■ Featuring an 18HP 603cc engine from Kawasaki with a 2 Year
Warranty
OPERATOR’S MANUAL
4
SAFETY PRECAUTIONS
Failure to read this manual and all safety precautions before attempting
operate your WerkMaster machines may result in severe personal injury
or death.
This machine is manufactured for commercial use only.
This machine is designed and manufactured for indoor use in burnishing
hard floor surfaces. WerkMaster does not recommend use of this machine
in any environment other than an indoor environment. The machine is
designed to burnish most modern types of flooring including composition
tile, stone, marble, terrazzo, and resilient floor covering, and some coated
wood floors. Even though NFPA 11.13.2.3 (b) says,”the use of floor
maintenance machines in buildings frequented by the public, including the
times when such buildings are occupied by the public, shall require the
approval of the authority having jurisdiction” WerkMaster suggests usage
when occupancy of a given work area is minimal.
DO NOT use:
In occupied nursing homes, hospitals, daycare centers, etc.
•
By unqualified or untrained personnel
•
Unless properly maintained and adjusted
•
On areas with obstructions such as thresholds, floor outlet boxes,
•
etc.
In areas where loose debris or other objects are present
•
In rooms and areas without proper ventilation
•
IMPORTANT
DANGER
DANGER indicates severe bodily injury or death may occur to you or
other persons if safety precautions are ignored or not adhered to.
Read and observe all DANGER statements found in the Operator’s
Manual and on the machine.
Operate this machine in a well-ventilated area. It is the responsibility of
‣
the machine operator, machine owner, and the site manager to ensure
that the air exchange system where the machine is to be used is in
compliance with local building codes and is operated properly. Failure to
operate the machine in a well-ventilated area could lead to sickness,
injury, or death from carbon monoxide (CO) exposure
This machine emits CO, a colorless, odorless, non-irritating gas. The
‣
first symptoms of CO exposure include headache, drowsiness,
dizziness, and nausea. If you should experience any of these symptoms
while operating this machine, shut off the machine and move to a wellventilated area. Have the machine tested for CO emissions by a
qualified service technician before using it again.
OPERATOR’S MANUAL
5
Prolonged or high exposure to CO may result in vomiting, confusion,
‣
and collapse in addition to loss of consciousness and muscle
weakness. If such symptoms occur, call 911 for emergency medical
attention. If you have experienced these symptoms DO NOT operate
this machine or any other propane machine until cleared by a physician.
Excessive exposure to CO may result in death.
Propane is highly flammable. If you smell propane, immediately shut the
‣
machine off and take it outside the building.
DO NOT:
• Use the machines again until a qualified service technician
has corrected the propane leak.
• Use an ignition source such as a cigarette lighter near the
propane machine.
• Smoke near the propane machine.
• Vent a propane tank inside a building.
• Store propane tanks inside a building.
The machine has parts, including the pad assemblies, that can cause
‣
severe injury if touched while they are moving.
DO NOT:
Allow any part of the body or clothing to come into
•
contact with the machine while parts are moving
Try to change attachments while the machine is running
•
Allow other people to come near the machine while it is in
•
operation
Allow the machine to run attended
•
Leave the machine in a place where unauthorized or
•
untrained personnel could use the machine
Run the machine with the pad center damaged or missing
•
Operate the machine if the machine has loose parts
•
Run the machine with unsecured guards or shields
•
Federal law and California State law prohibits the following acts or the
‣
causing thereof:
1) the removal or rendering inoperative by any person other than
for purposes of maintenance, repair, or replacement of any
device or element of design incorporated into any new engine for
the purpose of emission control prior to its sale or delivery to the
ultimate purchaser or while it is in use, or
2) the use of the engine after such device or element of design
has been removed or rendered inoperative by any person.
Among the acts presumed to constitute tampering involve the
parts/systems listed below:
Throttle body and internal parts
•
Spark plugs
•
Magneto or electronic ignition system
•
Air cleaner elements
•
Crankcase
•
Cylinder heads
•
Breather chamber and internal parts
•
Intake pipe and tube
•
Regulator
•
Fuel lock-off
•
Carburetor and internal parts
•
Fuel filter element
•
NOT an all-inclusive list.
OPERATOR’S MANUAL
6
DO NOT tamper with the original emission related parts.
Tampering with the Emission Control System is prohibited and will
VOID THE WARRANTY.
WARNING
WARNING indicates injury may occur to you or other persons if
safety precautions are ignored or are not adhered to. Read and
observe all WARNING statements found in the Operator’s manual
and on the machine.
Modifications or alterations to the machine can lead to personal
‣
injury or damage to the machine. DO NOT make unauthorized
modifications or alterations to the machine; this VOIDS ALL
WARRANTIES.
The muffler and engine become hot while in operation and remain
‣
hot long after the machine is shut off; this can cause severe burns.
DO NOT touch these parts of the machine until they have
cooled.
To avoid injury safety goggles, safety shoes and safety clothing are
‣
recommended while operating the machine.
Continuous exposure to high noise levels can cause hearing loss.
‣
Hearing protection is recommended while the machine is in operation.
Machine vibration may cause tingling or numbness in the fingers or
‣
hands. Gloves are recommended to reduce machine vibration. If tingling
or numbness persists, shut off the machine. If the vibration is caused by
loose parts, adjust or tighten these parts before using the machine
again.
CAUTION
CAUTION indicates damage may occur to the machine or to other
property if safety precautions are ignored or are not adhered to. Read and
observe all CAUTION statements found in the Operator’s manual and on
the machine.
NEVER overfill the propane tank. ONLY fill to 80%. Overfilling the
‣
propane tank is the number one cause of problems with a propane
machine. Overfilling may cause the engine to run poorly or not at all.
A dirty engine filter can cause overheating. Check and replace following
‣
recommended maintenance schedule page .
Overheating can be caused by dirty or insufficient or low levels of oil.
‣
Check oil before each use, and fill or change as needed.
OPERATOR’S MANUAL
7
NEVER overfill the engine with oil. Overfilling can cause irreparable
‣
damage to the engine.
DO NOT engage starter for more than 5 seconds. Allow a 10 section
‣
cool down for second failed start-up attempt.
Perform all recommended scheduled maintenance. Regular
‣
maintenance of your propane powered floor machine is necessary to
keep it safe working condition.
Before starting machine ensure all safety devices are in place and
‣
functioning properly. Before starting machine do a maintenance and
safety check. See page .
When using machine, go slowly on inclines and slippery surfaces. Use
‣
care when operating machine in reverse.
When servicing machine, stay clear of moving parts. DO NOT wear
‣
loose clothing when working on machine. Block machine wheels before
raising or jacking up machine. Use hoist stands that will support the
weight of the machine. Wear eye and ear protection when using
pressurized air or water. Disconnect battery connections before
servicing machine. Only use replacement parts supplied by WerkMaster
or a WerkMaster Authorized Distributor or Service Center.
Operator
Responsibilities
DO NOT operate this machine before carefully reading and understanding
the operation manual.
The operator is responsible for performing the recommended daily
maintenance and checkups of the machine to keep it in good working
condition. The operator must inform the service mechanic or supervisor
when recommended maintenance procedures are required as described
in the MAINTENANCE section of this manual.
We recommend taking advantage of a service contract from your
WerkMaster Authorized Distributor or Service Center. Order parts and
supplies only from an Authorized WerkMaster Distributor.
During and after operation, perform the recommended daily and hourly
procedures outlined in the Maintenance Chart.
OPERATOR’S MANUAL
8
PROPANE SAFETY INFORMATION
Facts About
Liquid Propane
Gas (LPG)
Facts About
Propane Tanks
As a fuel, propane gas is unmatched for both safety and dependability. It
has been used a a domestic household fuel for over half a century, and for
over thirty years as an internal combustion engine fuel.
Propane is a highly flammable fuel that is contained under pressure as a
liquid. Vaporized gas has a similar explosive force to gasoline and
mixtures as low as 2% LP gas to air may be ignited in a closed
environment. Care should be exercised to avoid escaping vapor as it can
freeze skin and cause frost bite. Vaporized fuel is heavier than air and will
collect in the lowest confined space available.
Propane tanks are constructed according to ASME or Federal DOT
#4ET20 pressure safety codes. Including the tank, all valves and fittings
are UL listed. Propane gas is noncorrosive and will not rust the inside of a
tank. Should the tank exterior become damaged or rusted, discontinue
use. DO NOT tamper with the tank gauges or safety relief valves. NEVER
use a tank not intended for use with a propane burnisher. DO NOT
substitute tanks that are used with a barbecue grill, etc. WerkMaster
recommends having propane tanks tested once a year by an authorized
National LP Gas Association propane dealer.
The fuel tank is supplied directly from the manufacturer and is void of fuel.
The tank must be purged at the time of the first fill. Local propane fuel
vendors should be familiar with this operation and will provide this service.
Recommended
Purge Procedures
WARNING
DO NOT attempt to repair the tank. Return the tank to your propane if
necessary.
!! ! ! !
New containers may contain vapor, air, or other contaminants. It is
essential that these be removed before filling the container and putting it
into service. Air in the container will cause abnormally high pressure, with
the result that the pressure relief valve may open. Air in the system is also
likely to cause a lean mixture, making ignition difficult. If a tank is
suspected of being depressurized or open to the atmosphere for a period
of time, it must be re-purged.
See an authorized propane dealer for proper purging of your new tank.
Symptoms of a non-purged propane tank:
Relief valve opens due to over-pressurized propane tank creating
•
hazardous situation
Moisture in the propane tank
•
Burnisher operates initially but shuts down when the fuel mixture
•
becomes too lean.
OPERATOR’S MANUAL
9
Filling Propane
Tanks
WARNING
ALWAYS have an authorized propane dealer fill your tank.
NEVER OVERFILL THE PROPANE TANK. ONLY FILL TO 80%.
OVERFILLING PROPANE TANKS IS HAZARDOUS. EXPANSION
MUST BE ALLOWED FOR.
FILL THROUGH THE SERVICE VALVE ONLY.
These machines use a 20 lb (9.1 kg) capacity aluminum or steel cylinder,
which meets the DOT4E240 standards. These standards are also listed
by UL. In addition, the steel cylinder meets meets European TPED
specifications and is CE compliant.
The engine and the fuel system on your WerkMaster machine are
designed to run on vapor propane NOT liquid propane. Liquid propane
and vapor propane are NOT interchangeable. Interchanging the fuel will
VOID THE WARRANTY.
Use a vapor withdraw cylinder NOT a liquid withdraw cylinder on this
machine. The use of a liquid withdraw cylinder on a vapor withdraw
system could freeze the regulator and create a fire hazard.
If the regulator freezes, stop the burnisher and take the tank outside and
inspect. Use gloves or pliers to open the bleeder valve and purge the tank
until only vapor is escaping.
Pressure Liquid Level
Relief Gauge Sight Gauge
Bleeder Service Valve Service Valve
Valve
ONLY authorized, trained personnel should have access to propane tanks
and machines.
OPERATOR’S MANUAL
10
Storing Propane
Tanks
Propane tanks should NOT be stores in buildings used by employees, the
public or frequented by anyone passing through.
When not in use tanks should always be stored outside in an upright position
in a secure, tamper-proof, steel mesh storage cabinet. The cabinet may be
located next to the building, but with at least five (5) feet (1.5 m) of space
between the cabinet and the nearest building opening (door or window).
NEVER store spare propane tanks in an enclosed van or trailer, or near
an open flame or heat-producing device..
PROPANE TANKS SHOULD ALWAYS BE INSTALLED, USED.
TRANSPORTED AND STORED IN AN UPRIGHT POSITION.
The National Fire Protection Association (NFPA) Standard for Storage and
Handling of LP Gas is the appropriate authority for safe propane use. A
copy of this publication is available through the National Fire Protection
Association (1.800.344.3555) or www.NFPA.org.
Storing Machine
Transporting
Machine
Store the machine in a dry location, temperature not to exceed 120º F
(50º C), away from objects that may fall and damage it, and away from
open flames or heat-producing devices.
NEVER store machine with propane tanks installed.
Make sure the machine is properly cleaned before storing.
When transporting a propane-powered machine with the propane tank
installed, the tank should be securely fastened and the service valve
closed. Any propane tanks not installed should be upright and securely
fastened to avoid movement and damage.
Check the propane tanks for over-filling BEFORE transporting; If overfilled, use the bleeder valve to vent the excess propane outside in a safe
area.
When loading onto or unloading off of a truck or trailer, turn the machine
OFF.
ONLY use a truck or trailer that will support the weight of the machine.
Block the wheels and tie the machine securely to the truck or trailer.
OPERATOR’S MANUAL
11
ENGINE EMISSIONS AND CARBON MONOXIDE SAFETY
DANGER
All engines powered by by LPG (Liquid Propane Gas), including this engine,
Carbon Monoxide (CO). it is a FATAL POSION gas that is colorless, odorless,
tasteless, and non-irritating. It is produced by incomplete combustion of
carbonaceous material such as LPG.
Failure to provide for proper venting of CO produced during the operation
of combustion powered engines may result in SERIOUS INJURY OR
DEATH to the operator and those in the contaminated area.
The effects of CO can experienced at different exposure levels,
depending on the health of the individual. Conditions that affect the
tolerance of the individual are smoking, age, temperature, humidity, and
other conditions.
Symptoms include lightheadedness, confusion, headaches, vertigo,
drowsiness, dizziness and nausea.
If the operator experiences any of these symptoms STOP USING THE
MACHINE IMMEDIATELY. Move to a well-ventilated area. If symptoms
persist, get medical attention.
CO Exposure
Limits
Methods to Reduce
the Risks of CO
Poisoning
Prolonged or high exposure to CO may result in vomiting, confusion, and
collapse in addition to loss of consciousness and muscle weakness; call
911 for emergency medical attention. If you have experienced these
symptoms DO NOT operate the machine or any other propane machine
until cleared by a doctor. Excessive exposure to CO may result in death.
All distributors, owners, and operators should be aware of the potential
effects of CO and the methods used to prevent over-exposure.
Please refer to OSHA, WCB or local workplace industry guidelines for CO
exposure limits.
Air Exchange and CO Diffusion
CO does not mix with air on its own. Air currents can “stir” the CO and
dilute the concentration values by mixing it with the available air. Stirring
can occur by walking around and with the use of fans and ventilation
systems.
Application Considerations
Consider the operation you are performing and the size of the area to be
worked. A low movement operation in a smaller area will increase the
build-up of the CO, while a much quicker operation over the same area
may not have the same potential for CO build-up.
Stirring or CO mixing MUST be forced by the use of fans in order to
reduce the high concentration of CO when activity is concentrated to a
smaller area while performing a low movement operation.
OPERATOR’S MANUAL
12
Air Quality Monitoring
Use of a monitor/detector is essential for the safe operation of any
equipment that has the potential to produce CO. See local regulations for
the approved monitors/detectors and their correct methods of use.
Room Size and Time Estimations
The concentration and volume of CO production, the size of the area, and
the amount of air exchange are factors involved with determining safe
time limits for operation in a specific room size.
The smaller the work area and the slower the movement, the greater the
build-up of CO. Fans MUST be used to stir the air and reduce the
concentration of CO.
Maintenance of Equipment
LPG engines are dependent on engine tune-ups and air filter
replacements. CO concentration (production) increases when the air to
fuel ration becomes fuel rich. Follow the recommended Maintenance
SChedule for the engine.
CO Safety Equipment Available
WerkMaster propane machines are equipped with a catalytic muffler and
an ACCU-Sense monitoring system on the Stealth and an AUTO-Sense
monitoring system on the Spectre to reduce the CO emissions and
promote a safer work environment.
MACHINE COMPONENTS
Controls and
Instruments
System
For the STEALTH:
Bail Throttle Hour Meter Key Switch
Handle Pivot Knob ACCU-Sense Light Display
For the SPECTRE:
AUTO-Sense
Emissions
Monitoring
!!!!!!! Engine
Throttle
!
OPERATOR’S MANUAL
13

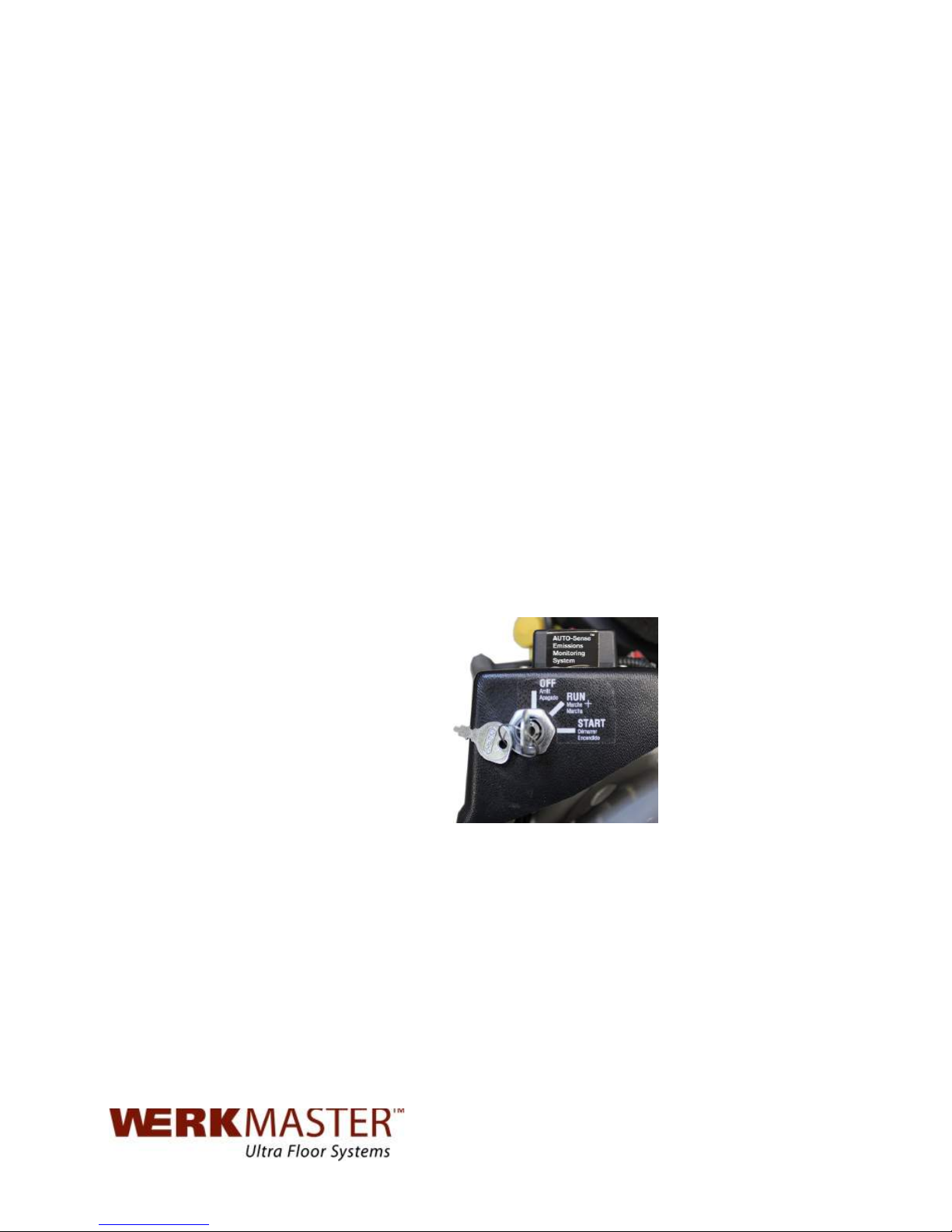

Engine Ignition
Switch
The STEALTH and SPECTRE feature a key switch ignition.
For the STEALTH:
START: Turn the key clockwise to START to engage the engine starter
•
motor. Once the engine starts release the key. ALWAYS start the
machine with the bail throttle in the SLOW IDLE position.
RUN: This is the position of the key when the engine is running.
•
OFF: Turn the ignition key to the OFF position to stop the engine.
•
ALWAYS close the propane tank valve to stop the engine, then turn
the ignition switch OFF.
WARNING
DO NOT try to start machine with the bail throttle in the operating position.
After the engine has started, pull the bail throttle to the operating position.
The clutch will engage automatically and the engine will throttle to the
right speed. DO NOT pull the bail throttle with the burnishing head to the
floor.
Release the bail throttle; the clutch will automatically disengage and the
engine speed will return to idle.
OPERATOR’S MANUAL
14
For the SPECTRE:
START: Turn the key clockwise to START to engage the engine starter
•
motor. Once the engine starts release the key. ALWAYS start the
machine with the engine throttle in the SLOW idle position.
RUN: This is the position of the key when the engine is running.
•
OFF: Turn the ignition key to the OFF position to stop the engine.
•
ALWAYS close the propane tank valve to stop the engine, then turn
the ignition switch OFF.
STEALTH
ACCU-Sense
Emissions
Monitoring System
The engine throttle controls the engine speed. To increase the engine
speed, move the hand lever forward. For the idle position pull the lever
back.
The Stealth ACCU-Sense is an emissions monitoring device that monitors
the exhaust emissions and will shut the engine down if the emission levels
are too low or too high.
After engine starts, the YELLOW alert light will flash for a 3 minute warmup cycle of the ACCU-Sense system. The machine may be operated
during the warm-up period. After the warm-up cycle, the alert light will go
out. None of the ACCU-Sense lights will be illuminated as long as the
machine is running safely.
Any light that is on when the engine stops will remain illuminated for 20
seconds to indicate the reason for the machine shut down.
OPERATOR’S MANUAL
15
OIL: The light will come on when there is low oil pressure. If the engine
looses oil pressure, the engine shuts down until the condition is corrected.
The light comes on each time the engine is stopped.
TILT/IDLE: The light will come on when the machine is tilted to the pad
change position and the engine shuts down. If the machine is allowed to
idle for more than 4 minutes, the light flashes for 1 minute, then the
engine shuts down.
RED ACCU-SENSE SERVICE: If carbon monoxide levels exceed a preset level, the light will flash. The machine will shut down after the light
flashes continuously for 1 minute. If the machine does not operate
normally after the engine air filter is checked and cleaned, it must be
serviced by a qualified technician.
YELLOW ACCU-SENSE ALERT: If the light comes on during normal
operation, check and clean the engine air filter. Check the carburetor air
filter for holes, tears, or punctures and replace if damaged. If the light still
remains on, the machine must be serviced by a qualified technician.
OXYGEN SENSOR: If light comes on during normal operation, check the
oxygen sensor wire for a snug fit into the harness and for a snug fit of the
harness into the ACCU-Sense board. If the light still remains on, the
machine must be serviced by a qualified technician.
TURN GAS OFF: Light comes on to remind the operator to turn off the
gas after the engine shuts down.
BATTERY: The light comes on when the battery voltage is low indicating
the need to service the charging system.
The oxygen sensor must reach operating temperature before it will start to
send signals to the ACCU-Sense module. This warm-up period is
approximately 3 minutes. After the initial 3 minutes, the module will start
evaluating the signal from the oxygen sensor. If the module receives an
abnormal reading for a period of 1 minute, the unit will shut down.
If the machine is also allowed to idle for more than 4 minutes, an indicator
light will flash for 1 minute and then the engine will shut down. If this
happens, turn the key to the OFF position for several seconds to clear the
ACCU-Sense module and restart the machine.
Once the engine has started, advance the bail throttle to operating
position and start the operation. With the engine at full throttle, under load,
the signal from the oxygen sensor should be within the normal operating
ranges for safe operation.
If the engine’s air intake filter needs to be serviced, or an over-filled
propane tank has been installed by mistake, or there is a problem with the
fuel system that causes the oxygen sensor’s signal to be out of range,
ACCU-Sense will shut the unit down after 1 minute. The unit can be restarted after clearing the module by turning the key switch OFF. If
corrections have not been made to the unit, ACCU-Sense will continue to
shut the unit down until the problem is corrected.
OPERATOR’S MANUAL
16
Engines tend to go to a lean burn if allowed to idle for even short periods.
Even at high idle speeds most engines will continue to lean downward. it
is always best to shut the engine off when it is not being used to do work.
Remember, the engine is always creating emissions as long as it is
running.
The best manner to operate a unit equipped with ACCU-Sense is as
follows:
With the bail throttle in the idle position, turn the key switch to the
•
START position. Once the engine starts, advance the bail throttle to
the operating position.
When ready to stop operation, release the bail throttle. If the unit will not
•
be used within 45 seconds, turn the key switch to the OFF position, or
if the unit will not be returned to service within a few minutes it is best
to turn the gas valve on the tank off first and let the engine consume
all fuel that is in the lines. Once the engine dies, turn the key switch to
the OFF position.
When ready to restart, open the gas valve on the tank and turn the key
•
switch to the START position. Once the engine has started, move the
bail throttle to the operating position and return to operation.
SPECTRE
AUTO-Sense
Emissions
monitors the exhaust emissions and will shut the engine down if
the emission levels are too low or too high.
The Spectre AUTO-Sense is an emissions monitoring device that
Monitoring System
The monitor must receive a signal from the oxygen sensor in order to
function. The oxygen sensor must reach operating temperature before
it will start to send signals to the AUTO-Sense module. This warm-up
period is approximately 3 minutes. After the initial 3 minutes, the
module will start evaluating the signal from the oxygen sensor. If the
module receives an abnormal reading for a period of 1 minute, the
unit will shut down.
If the machine is also allowed to idle for more than 4 minutes, an indicator
light will flash for 1 minute and then the engine will shut down. If this
happens, turn the key to the OFF position for several seconds to clear the
AUTO-Sense module and restart the machine.
OPERATOR’S MANUAL
17
Once the engine has started, advance the bail throttle to operating
position and start the operation. With the engine at full throttle, under load,
the signal from the oxygen sensor should be within the normal operating
ranges for safe operation.
If the engine’s air intake filter needs to be serviced, or an over-filled
propane tank has been installed by mistake, or there is a problem with the
fuel system that causes the oxygen sensor’s signal to be out of range,
AUTO-Sense will shut the unit down after 1 minute. The unit can be restarted after clearing the module by turning the key switch. If corrections
have not been made to the unit, AUTO-Sense will continue to shut the unit
down until the problem is corrected.
Engines tend to go to a lean burn if allowed to idle for even short periods.
Even at high idle speeds most engines will continue to lean downward. it
is always best to shut the engine off when it is not being used to do work.
Remember, the engine is always creating emissions as long as it is
running.
The best manner to operate the machine is:
With the engine throttle in the SLOW position, turn the key switch to the
START position. Once the engine starts, advance the throttle to full
throttle FAST.
When ready to stop the machine, move the engine throttle to the SLOW
position. If the machine will not be used within 45 seconds, turn the key
switch to the OFF position, or if the machine will not be used within a few
minutes, it is best to turn the gas valve off first and let the engine consume
all fuel that is in the lines. Once the engine dies, turn the key switch to the
OFF position.
Hour Meter/
Tachometer
When ready to restart, open the gas valve on the tank, put the engine
throttle in the SLOW position and turn the key switch to the START
position. Once the engine has started, move the engine throttle to the
FULL position and return to operation.
The hour meter/tachometer records the number of hours the machine has
been powered ON. The hour meter reading is used to mark the
recommended maintenance intervals. It also displays the engine speed.
The meter displays hours when the machine is turned OFF and the
engine speed when the machine is turned ON.
STEALTH SPECTRE
OPERATOR’S MANUAL
18
EZ Bak Tilt
Operation
The handle on both the STEALTH and the SPECTRE is designed to be
positioned upright to allow for the machine to be tilted back.
STEALTH SPECTRE
For the STEALTH:
1. Close the valve on the propane tank. Allow the engine to stop and turn
the machine OFF.
2. Remove the propane tank.
3. Loosen the handle pivot knobs so that the handle can slide.
4. Pull the handle out until it stops.
OPERATOR’S MANUAL
19
5. Rotate handle towards the front of the machine until it is vertical
6. Push downward on the handle until it stops.
7. Tighten the handle pivot knobs so that the handle cannot move.
8. Lift up on the front of the deck, rocking the machine back until it rests
on the handle grips.
9. When lowering the machine down, DO NOT drop the machine.
SLOWLY lower the machine to the floor until the wheels are on the
ground.
10. With the handle in the operating position, the height of the handle can
be adjusted. Loosen the handle pivot knobs and position the handle
to the desired height, then tighten the handle pivot knobs.
For the SPECTRE:
1. Close the valve on the propane tank. Allow the engine to stop and turn
the machine OFF.
2. Remove the propane tank.
3. Raise the handle to the upright position (about a 45° angle).
Fuses
4. Lift up on the front of the deck, rocking the machine back until it rests
on the handle grips.
5. When lowering the machine down, DO NOT drop the machine.
SLOWLY lower the machine to the floor until the wheels are on the
ground.
The machine’s electrical circuit is protected by fuses
STEALTH: a 20A and a 7.5A,
‣
SPECTRE: a 20A
‣
which stop the flow of current in the event of a circuit overload. Once a
fuse blows, it must be replaced. If the overload that caused the fuse to fail
is still present, the new fuse will fail. The problem must be corrected. DO
NOT bypass any fuse.
STEALTH SPECTRE
20A
7.5A
20A
OPERATOR’S MANUAL
20
MACHINE OPERATION
Pre-operation
Checklist
Before using any type of power equipment, proper safety dictates that you
should check the machine.
1. Adjust the handle of the STEALTH to a comfortable height by turning
the knobs, positioning the handle and tightening the bolts.
Adjust the handle of the SPECTRE by loosening the handle adjustment
lever on the side of the handle, positioning and tightening the lever.
2. Check the engine oil level before starting the machine and every 4
hours thereafter. Add oil if needed. DO NOT screw the dipstick in to
get the reading.
3. Inspect the engine dust filter and clean off any debris or dust build-up.
4. Check the fuel lines for signs of wear and tear such as cracks and
corrosion.
5. Inspect the drive belt. Replace if necessary.
6. Check the machine for leaks or loose parts.
7. Inspect the pad holder for cracks or damage. Replace if necessary.
DANGER
A damaged pad holder rotating at high speeds may be an extreme
hazard if it should disintegrate.
Installing the
Propane Tank
WARNING
BEFORE bringing a propane tank indoors, ALWAYS check for over-filling.
If necessary, purge by opening the bleeder valve.
ALWAYS connect or change propane tanks in a well-ventilated area.
1. Place the propane tank in the shroud housing at the back of the
machine.
2. Connect the fuel hose coupling to the service valve. HAND TIGHTEN
ONLY. It is sometimes easier to install the tank if the connection to
the service valve is made before strapping the tank in place.
3. Make sure the coupling is not cross-threaded and check for leakage
by noting any propane odors immediately after the tank is connected.
4. ALWAYS open the service valve slowly to allow pressure to equalize
in the hoses. Opening quickly may cause the flow check valve to
engage, limiting fuel flow.
OPERATOR’S MANUAL
21
5. Secure the tank to the machine using the adjustable strap. Remove
slack by pulling on the loose end and securing back to strap.
Pressure Liquid Level Sight Valve
Relief
Valve
Bleeder Valve Service Valve
TO REMOVE THE PROPANE TANK, unstrap the tank, disconnect the
hose coupling and remove the tank from the shroud housing.
Starting the Machine
Catalytic mufflers require a few minutes to warm up before effectively
removing harmful emissions. Make sure there is proper ventilation during
the warm-up period.
1. Check oil and fuel levels.
2. Check and clean engine dust filter. NEVER run continuously for
more than 1 hour without cleaning or changing engine dust filter.
3. Check carburetor air filter. Change if necessary.
4. Open the propane service valve SLOWLY to allow pressure to
equalize in hoses. Opening quickly may cause the flow check valve
to engage, limiting fuel flow.
For the STEALTH:
1. Allow machine to tilt backward (pad off floor).
2. With the bail throttle in the IDLE position, engage the starter by turning
the ignition key switch to the starting position for approximately 5
seconds.
3. If the engine does not start, release the key switch for 10 seconds,
then try to start again by turning the key switch for 5 seconds.
4. After the engine has started, allow the engine to warm up for
approximately 30 seconds.
OPERATOR’S MANUAL
22
For the SPECTRE:
1. Allow the machine to tile backward (pad off floor) and move throttle to
SLOW position.
2. With the engine throttle in the IDLE SLOW position, engage the starter
by turning the key switch to the starting position for approximately 5
seconds.
3. If the engine does not start, release the key switch for 10 seconds,
then try to start again by turning the key switch for 5 seconds.
4. After the engine has started, allow the engine to warm up for
approximately 30 seconds.
If the engine refuses to start see the Troubleshooting Guide page 34.ƒ
For both the STEALTH and SPECTRE:
It is recommended to start burnishing on the right side of the aisle, turn
and come back down the aisle in the opposite direction, overlapping the
previous path slightly. Continue this pattern until the floor area to be
burnished has been covered with the last pass being on the right side of
the machine. The forward speed is generally at normal walking speed.
Burnishing
DO NOT
run the burnisher without moving the machine. If the machine is
allowed to run in one spot, damage to the floor may occur.
‣
add weight to the burnisher head.
‣
lift up on the handle to add pressure while burnishing.
‣
For the STEALTH:
1. After the engine has started, allow approximately 30 seconds for
the engine to warm up.
2. Pull the bail throttle to the operating position.
3. Lower the burnishing head to the floor while moving the machine
slowly forward.
4. To stop burnishing, release the bail throttle and push down on the
handle to raise the burnishing head off the floor.
5. When done burnishing, push the machine to the desired location.
6. Turn OFF the propane tank service valve. When the fuel is depleted
and the engine stops, turn the key switch OFF. Remove the propane
tank and store properly.
OPERATOR’S MANUAL
23
For the SPECTRE:
1. After the engine has started, allow approximately 30 seconds for
the engine to warm up. Once the engine has started the pads
begin to spin.
2. Advance the engine throttle to operating speed.
3. Lower the burnishing head to the floor, gently squeeze
either clutch lever.
4. Using the engine throttle, adjust the speed as necessary.
6. To stop burnishing, release the clutch lever, push down on the
handle to raise the burnishing head off the floor.
7. When done burnishing, push the machine to the desired location.
8. Turn OFF the propane tank service valve. When the fuel is depleted
and the engine stops, turn the key switch OFF. Remove the propane
tank and store properly.
Idling and Stopping
the Machine
MAINTENANCE
General
Inspecting the
Oil Level
1. Push the machine to a level surface.
DANGER
Allowing the engine to idle excessively will increase carbon
monoxide emissions.
1. stop the engine, close the service valve on the propane tank. The
engine will stop when the fuel in the line is used up.
2. Once the engine stops, turn the ignition key switch OFF.
Fuel control system: To ensure personal safety, adjustments should
ONLY be made by a qualified LPG system technician or an authorized
service center using an exhaust gas analyzer. DO NOT operate the
machine if carbon monoxide levels exceed OSHA/WCB/local standards.
Follow the Periodic Maintenance Schedule for the operator’s safety and to
extend the life of your machine. Not following the schedule may result in
VOIDING THE WARRANTY.
2. The machine should be in an upright level position. If necessary, place
a block under the back of the machine or apply weight to the front of
the deck to maintain the upright, level position.
OPERATOR’S MANUAL
24
3. Turn off the propane tank and and remove it.
4. Clean the area around the oil gauge before removing it. Remove the oil
gauge and wipe it with a clean cloth.
STEALTH SPECTRE
5. Insert the oil gauge into the tube. DO NOT tighten the oil gauge.
6. Check the oil level. It should be between the FULL and ADD marks
on the oil gauge. If the oil level is near or below the ADD mark,
remove the oil gauge and add enough engine oil to bring the level to
the FULL mark.
CAUTION
DO NOT fill above the FULL mark. Excess oil will cause a smoking
condition and may cause the engine to overheat.
Changing the Oil
DANGER
Hot oil can cause severe burns. Be careful when changing the oil.
Dispose of used oil properly.
Change the oil after the first 8 hours of operation and every 50 hours
thereafter.
1. Start and warm the engine so the oil will drain easily and completely.
Push the machine to a level surface. Stop the engine.
2. Turn off the propane tank and remove it.
3. Locate the drain hose inside the shroud housing compartment. Lower
the drain hose from the clamp and remove the cap on the end of the
drain hose.
OPERATOR’S MANUAL
25
STEALTH SPECTRE
4. Place a suitable container under the end of the oil drain hose.
5. Slowly turn the valve counter-clockwise until the oil starts to drain. In
order for the oil to drain, it may be necessary to loosen the oil fill cap.
6. Close the drain valve. Place the cap back on the end of the hose and
place hose back in clamp.
7. Remove oil fill cap and add clean SH or SJ SAE 30 oil. Use
1.6 US qt (1.5 L) when the filter is not changed
‣
1.8 US qt (1.7 L) when filter is changed.
‣
8. Screw in the oil gauge. Reconnect the propane tank to the fuel hose.
Replacing the
OIl Filter
9. Run the engine at low idle for 2 minutes. Check for leaks around the
engine.
10. Stop the engine. Check the oil level. Add oil if needed.
DANGER
Hot oil can cause severe burns. Be careful when changing the oil.
Dispose of used oil properly.
1. After draining the engine oil, place a suitable container underneath the
oil filter.
2. Using a strap wrench or oil filter wrench, remove the oil filter by turning
it counter-clockwise.
Oil Filter
OPERATOR’S MANUAL
26
3. Apply a thin coat of new oil or grease to the oil filter seal.
4. Install the new filter by turning it clockwise until the seal contacts the
mounting surface of the engine. Give the filter a further 3/4 turn BY
HAND.
5. Refill engine oil.
6. Reconnect the propane tank to the fuel hose.
7. Run the engine at low idle for 2 minutes. Check for leaks around the
engine. Stop the engine. Check the oil level.
Inspecting and
Replacing the
Spark Plug
1. Turn off the propane tank and remove it.
2. Pull the spark plug cap off the spark plug.
3. Remove the spark plug by turning counter-clockwise and inspect it. If
the plug is oily or has carbon build-up on it, clean the plug using a
high flash-point solvent and a wire brush or other suitable tool.
4. If the spark plug electrodes are corroded or damaged, or if the insulator
is cracked, replace the plug.
5. Measure the gap with a wire-type thickness gauge. The correct gap is
.025 in (.635 mm). If the gap is incorrect, carefully bend the side
electrode with a suitable tool to obtain the correct gap.
Inspecting and
Replacing the Air
Filter

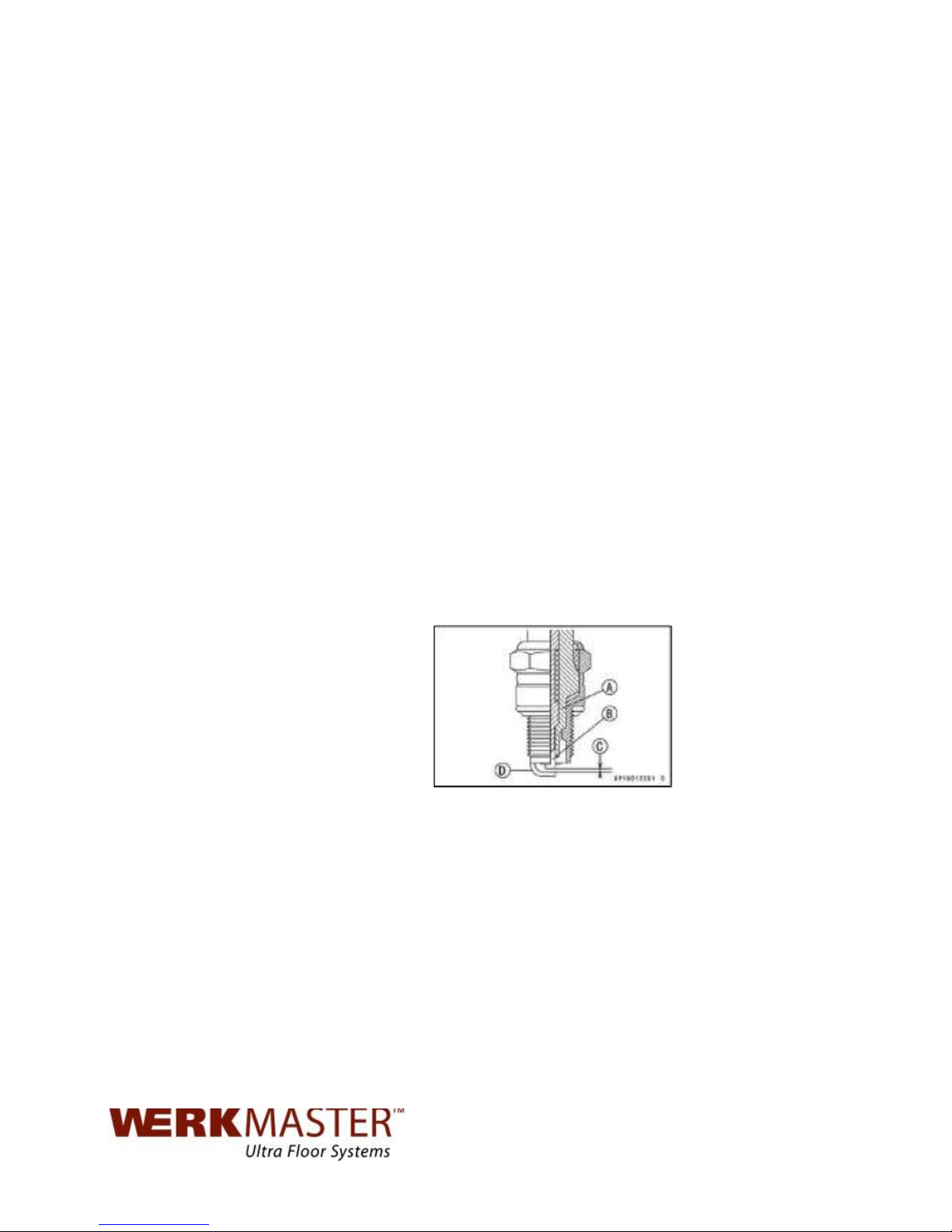

A: Insulator C: Plug Gap
B: Center Electrode D: Side Electrode
1. Push the machine to level surface.
2. Turn off the propane tank and remove it.
For the STEALTH ONLY:
3. Remove the hood to allow the filter cover to be removed.
OPERATOR’S MANUAL
27
For both the STEALTH and SPECTRE:
4. Turn the two knobs a 1/4 turn counter-clockwise and remove the filter
cover.
5. Loosen the clamp that retains the filter and remove the air filter.
STEALTH SPECTRE
6. Inspect both primary and secondary air filters. If necessary, clean
primary filter by lightly tapping and wiping seal ends with a clean cloth.
If the primary filter cannot be cleaned, is bent, or damaged, it MUST be
replaced. If secondary filter is dirty, replace it. DO NOT clean.
7. Check the intake hose for cracks or damage.
8. Install filters and replace cover.
Inspecting the
Fuel Hose and
Connections
DO NOT
wash the air cleaner filters
‣
oil the air filters
‣
use pressurized air to clean the air filters.
‣
1. Push machine to level surface.
2. Turn off the propane tank and remove it.
3. Inspect hoses for abrasions and other signs of wear. Replace all worn
or damaged hoses.
4. Check for gas leaks by spreading a soapy water solution around all the
connections while the propane tank is reconnected and the service
valve is turned ON.
STEALTH SPECTRE
OPERATOR’S MANUAL
28
5. If a leak is detected, turn off the propane tank. If the leak is in a hose,
replace it. If the leak is in a fitting, loosen and clean it. Apply pipe sealing compound and retighten it.
6. Recheck for leaks using a soapy water solution. If the leaks persist at
fittings, replace them and recheck with a soapy water solution once
more
Cleaning the
Engine Dust Filter
1. The engine dust filter should be cleaned each hour and after each use
by shaking out the dust and then rinsing with mild detergent. The filter
can also be vacuumed with a wet/dry vacuum.
2. Squeeze out the excess water. DO NOT wring. Allow the filter to air
dry.
STEALTH SPECTRE
CAUTION
Failure to maintain a clean engine filter will cause the engine to
overheat. It may cause the exhaust emissions to elevate to harmful
levels. Replace,If necessary.
Maintaining the
Cooling Fin
1. Remove blower housing and any other shrouds.
2. Clean cooling fins as necessary using compressed air or pressure
washer.
3. Reinstall all housings and shrouds.
OPERATOR’S MANUAL
29
Inspecting and
Changing the
Pads and Pad
Holders
DANGER
A damaged pad holder rotating at a high rate of speed may be an
extreme hazard if it should come apart.
1. Push machine to level surface.
2. Turn off the propane tank and remove it.
3. Place the machine in the EZ-Bak position.
4. Remove centering device and inspect the pad. If the pad has worn to
less than 1/4 in (6 mm), replace it.
5. Inspect the pad holder for cracks or damage. If the pad holder does
not have any damage proceed to Step 9.
For both the STEALTH and SPECTRE:
Maintaining the
Belt
6. If the pad holder needs to be removed, a 3/4 in wrench will be
required. Locate the wrench flats on top of the spindle shaft. With the
spindle shaft secure, turn the pad holder counter-clockwise until it is
free of the spindle shaft.
7. Save the washer and/or spacer that is on the spindle shaft. Be sure
they are in place when the pad holder is re-installed.
8. When threading the pad holder onto the spindle shaft, use the wrench
to keep the shaft from turning. Be sure the pad holder is tight before
proceeding.
9. Secure the pad with the centering device.
10. Lower the machine.
1. Push the machine to a level surface.
2. Turn off the propane tank and remove it.
3. Place the machine in the EZ Bak position.
4. Rotate the pad driver and inspect the belt.
5. If cracks or excessive wear are present, replace the belt.
OPERATOR’S MANUAL
30
6. To check for the proper tightness, squeeze the belt together. The belt
should depress between 1/4 in (6 mm) and 1/2 in (13 mm).
To change the belt:
1. Remove the pad holder by holding the end of the shaft on the top of
the machine with a 3/4 in wrench and turn the pad holder counter clockwise.
2. Use the wrench to turn the end of the spindle shaft on top of the
machine while removing the old belt from the spindle pulley.
3. Check engine pulley or clutch for correct alignment with the spindle
pulley. Check hardware attaching pulleys and/or clutch for proper
tightness.
4. Install the new belt onto the engine pulley or clutch.
5. Re-install the new belt onto the spindle pulley using the wrench to turn
the spindle clockwise. Make sure the belt is correctly placed on the
idler pulley.
6. Re-install the pad holder onto the spindle shaft.
7. Turn the machine upright in the burnishing position.
8. Check belt for correct operation. Check all hardware for proper
tightness.
Maintaining the
Battery
The battery supplied with this machine is a sealed, absorbed glass mat
(AGM), maintenance-free type. It never needs servicing.
1. Push machine to level surface.
2. Turn off the propane tank and remove it.
3. Disconnect the BLACK negative battery (-) cable first, then disconnect
the RED positive (+) battery cable.
4. Loosen battery retaining strap.
5. Lift out old battery and replace with new battery.
6. Secure battery with battery retaining strap.
7. Connect the RED positive (+) battery cable first, then connect the
BLACK negative (-) battery cable.
Dispose of the old battery in the proper manner. Most auto parts stores
accept used batteries for recycling.
Battery posts, terminals, and related accessories contain lead and lead compounds,
•
chemicals known to the State of California to cause cancer and reproductive harm.
Batteries also contain other chemicals known to the State of California to cause cancer.
•
Wash hands after handling.
PROPOSITION 65 WARNING
OPERATOR’S MANUAL
31
Adjusting the
Wheels
1. Close the valve on the propane tank, allow the engine to stop and turn
the machine OFF.
2. Remove the propane tank.
3. Place the machine in the Ez-Bak position.
4. Remove the clevis pin that retains each wheel and relocate to the
desired wheel position.
To increase pad pressure (more aggressive), move wheels to rear of the
machine. To decrease pad pressure (less aggressive), move the wheels
toward the front of the machine.
Cleaning the
Dust Bag
STEALTH
ONLY
1. Remove the dust bag cover by lifting upward on the back of the cover.
2. Pull dust bag downward off the dust tube by holding at the front pulling
down and to the rear to remove.
3. Empty bag by rubbing or gently tapping on sides in a downward motion
to loosen soil trapped on the sides of the bag. For heavy soil, turn bag
inside out to clean.
4. Reinstall bag by hooking elastic edge onto back of dust tube lip and
fitting elastic around the dust tube.
5. Feed the dust bag into the bottom of the cover.
6. Using the clips on the side of the deck, lower the cover into place.
OPERATOR’S MANUAL
32
MAINTENANCE SCHEDULE
OPERATION
INTERVAL
INTERVAL
INTERVAL
INTERVAL
Daily
First
8 hrs
Every
50 hrs
Every
100 hrs
Every
200 hrs
Every
300 hrs
Every
400 hrs
Every
500 hrs
Check and add engine oil
Check for loose or lost fasteners
Check for oil leakage
Inspect fuel hose and connections
Clean engine dust filter
Inspect pad holder
Change engine oil
Change engine oil filter
Check and clean air cleaner paper element
Check and clean air cleaner foam element
Inspect battery and battery connections
Replace air cleaner paper element
Replace air cleaner foam element
Inspect, clean, and re-gap spark plugs and
replace if needed
Check and adjust valve clearance*
Re-torque heads*
Clean and lap valve seating surface*
Check engine emissions*
Clean cooling fins*
Inspect drive belt
Inspect burnishing head assembly
Replace drive belt
As required
* Check FS481V Service Manual. Contact WerkMaster at www.werkmaster.com for Authorized Certified Technician.
OPERATOR’S MANUAL
33
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
Propane tank is not properly connected.
Check connection and open service valve slowly.
Engine is hard to start
Battery is weak.
Charge or replace battery.
Engine is hard to start
Oil level is too low.
Check the oil level and add oil if necessary.
Engine is hard to start
Insufficient vacuum.
Put the throttle in the ‘slow’ idle position.
Engine is hard to start
Coil air gap out of adjustment.
Adjust the air gap (see FS481V manual).
Engine is hard to start
Spark plug or head bolts loose.
Re-torque (see FS481V manual).
Engine is hard to start
Head gasket blown or valves need adjusting.
Replace head gasket. Adjust valves, replace if necessary
(see FS481V manual).
Engine will not start.
Propane tank is empty.
Install properly filled tank.
Engine will not start.
Machine is in the pad change position.
Lower the machine to the operating position.
Engine will not start.
Main fuse is blown.
Inspect fuse and replace if blown.
Engine will not start.
Insufficient vacuum.
Place the engine throttle in the ‘slow’ idle position.
Engine will not start.
Insufficient vacuum.
Check the regulator vacuum hose for breaks, pinched hose,
or a bad connection.
Engine will not start.
Head gasket is blown or valves need adjusting.
Replace head gasket. Adjust valves, replace if necessary
(see FS481V manual).
Engine will not start.
Wires broken or disconnected.
Reconnect or replace wires.
Engine will not start.
Coil(s) defective.
Replace coil (see FS481V manual).
Engine will not start.
Spark plug is incorrect.
Adjust gap to 0.025 in (0.64 mm).
Engine will not start.
Spark plug is defective.
Replace spark plug.
Engine will not start.
ACCU-Sense or AUTO-Sense shut the machine
down.
If the light is on, turn the key switch off and wait 30 seconds.
Try again.
Engine will not start.
ACCU-Sense or AUTO-Sense shut the machine
down.
Bad module.
Engine will not start.
Oil level is low.
Check the oil level and add oil if necessary.
Engine stops running.
Propane tank is empty.
Install properly filled tank.
Engine stops running.
Engine oil level is low.
Check the oil level and add oil if necessary.
Engine stops running.
Dirty air filter.
Clean both filters and replace if necessary.
Engine stops running.
ACCU-Sense or AUTO-Sense shut the machine
Check close loop vacuum line.
Engine stops running.
ACCU-Sense or AUTO-Sense shut the machine
down.
Clean air filters and replace if necessary.
Engine stops running.
ACCU-Sense or AUTO-Sense shut the machine
down.
Check for any loose wiring or fuel line connections.
Engine stops running.
ACCU-Sense or AUTO-Sense shut the machine
down.
Service machine and check fuel settings.
OPERATOR’S MANUAL
34
PROBLEM
POSSIBLE CAUSE
SOLUTION
Smell of burned
rubber.
Belt out of adjustment.
Check the automatic tensioner.
Machine vibrates.
Loose fasteners.
Check the engine, tensioner, spindle and pad holder
fasteners. Tighten any fasteners that are loose.
Machine vibrates.
Pad is not centered on the pad holder.
Remove pad and re-center on pad holder. Replace the pad
with a new pad if necessary.
Machine vibrates.
Pad holder is out of balance.
Remove pad holder from the machine and clean both sides.
Check for cracks or tears. Replace if necessary.
Machine is burnishing
Wheels are set too far back.
Move wheels forward in the wheel bracket.
Machine is burnishing
too aggressively.
Incorrect pads.
Only use recommended burnishing pads.
Machine pulls to one
Bent wheel bracket.
Replace wheel bracket.
Machine pulls to one
side.
Wheel is worn or has a bad bearing.
Replace wheel.
Machine pulls to one
side.
Wheels are set too far back.
Move wheels forward in the wheel bracket.
Engine lacks power.
Insufficient vacuum.
Put the engine in the idle ‘slow’ position.
Engine lacks power.
Insufficient vacuum.
Check the regulator vacuum hose for breaks, pinched hose,
or a bad connection.
Engine lacks power.
Dirty air filter(s).
Clean or replace the primary filter (paper element).
Engine lacks power.
Dirty air filter(s).
Clean or replace the secondary filter (foam element).
Engine lacks power.
Governor out of adjustment or malfunctioning.
Adjust governor and replace if necessary (see FS481V
manual).
Engine lacks power.
Head gasket leaking.
Replace head gasket (see FS481V).
Engine lacks power.
No compression.
Worn piston ring(s) and/or cylinder head(s) need replacing
(see FS481V manual).
Engine lacks power.
Fuel mixture too lean.
Check and adjust fuel mixture if necessary.
Engine lacks power.
Valves need adjusting or replacing.
Adjust valves (see FS481V manual).
Clutch will not
Loose connection.
Check wiring for bad connection or broken wire.
Clutch will not
engage.
Clutch is bad.
Replace if necessary.
Dust collection not
Dust collection bag is not collecting dust.
Empty dust bag.
Dust collection not
working properly.
Dust collection bag is not collecting dust.
Check the dust scoop and/or the dust bag for obstructions.
Dust collection not
working properly.
Dust skirt is not sealing to the floor.
Skirt is bent or damaged. Replace if necessary.
Dust collection not
working properly.
Dust skirt is not sealing to the floor.
Adjust the skirt to fit tightly against the seal but still able to
move freely.
Dust collection not
working properly.
Dust skirt is not sealing to the floor.
Check wear edge on bottom of the dust skirt and replace if
necessary.
OPERATOR’S MANUAL
35
LIMITED WARRANTY
STEALTH 21” AND 28”
SPECTRE 21” AND 28”
To qualify for this warranty:
1) The machine must be registered at the time of purchase on a form provided by WerkMaster at
www.werkmaster.com. WerkMaster is responsible for the registration of your machine. Please cooperate
with your Distributor in supplying the necessary information on the form.
2) The machine must have been purchased from aN Authorized WerkMaster Dealer/Distributor.
3) This warranty extends to the original purchaser ONLY and is not transferable to subsequent owners.
TIME PERIODS
1) The propane engine is warranted by the engine manufacturer for two (2) years. The batteries are
warranted by the battery manufacturer for one (1) year.
2) The valve trail is warranted by WerkMaster for one (1) year.
3) The Stealth 21” and 28” and Spectre 21” and 28” models will be warranted to be free from defects in
material and workmanship for a period of one (1) year from the date of purchase by the original owners.
See Exclusions.
EXCLUSIONS (Not Covered by Warranty)
1) Parts that fail through normal wear by reason of their characteristics (cords, pads, belts, wheels, or other
consumable parts).
2) This warranty does not extend to parts affected by misuse, neglect, abuse or improper maintenance. All
defective parts must be returned to the Distributor for credit.
WARRANTY SERVICE
To obtain warranty service, contact WerkMaster at 1.866.373.WERK.
DISCLAIMER OF CONSEQUENTIAL
WerkMaster disclaims any responsibility for loss of user time of the WerkMaster machine or other incidental
or consequential damage except as stated in the Warranty applicable to each machine. Except as stated in
such warranties, the company does not otherwise warrant any machine and no warranty, express, implied, or
statutory is made by the company.
OPERATOR’S MANUAL
36
WARRANTY
WerkMaster Grinders & Sanders Inc., herein referred to as WerkMaster,
warrants that each new machine manufactured by WerkMaster to be free
from defects in material and workmanship in normal use and service for a
period of one (1) year from date of shipment to the original Purchaser or
Distributor. Accessories or equipment furnished and installed on the
product by WerkMaster but manufactured by others, including but not
limited to engines, motors, electrical components, transmissions, etc such
as Kawasaki motor, shall carry the accessory manufacturer’s own
warranty.
Terms & Conditions
WerkMaster will, at its option, repair or replace, at the WerkMaster or a
point designated by WerkMaster, any part which shall appear to the
satisfaction of WerkMaster inspection to have been defective in material
or workmanship. WerkMaster reserves the right to modify, alter, and
improve any part or parts without incurring any obligation to replace any
part or parts previously sold without such modified, altered or improved
part or parts.
The warranty is in lieu of and excludes all other warranties, expressed,
implied, statutory, or otherwise created under applicable law including, but
not limited to the warranty of merchantability and the warranty of fitness
for a particular purpose. In no event shall the Seller or the Manufacturer of
the product be liable for special, incidental, or consequential damages,
including loss of profits, whether or not caused by or resulting from the
negligence of the Seller and/or the Manufacturer of the product unless
specifically provided herein.
In addition, this warranty shall not apply to any products or portions
thereof which, at WerkMaster’s discretion, have been subjected to abuse,
misuse, improper installation, maintenance, or operation, electrical failure
or abnormal conditions, and to products which have been tampered with,
altered, modified, repaired, reworked by anyone not approved by the
Seller, or used in any manner inconsistent with the provisions of the
above or any instructions or specifications provided with or for the
product.
Delivery, Damages,
Shortages
Except for conditions or warrantied which may not be excluded by law, the
Seller makes no warranty of its own on any item warranted by
WerkMaster, and makes no warranty on other items unless it delivers to
the Purchaser a separate written warranty document specifically
warranting the item. The Seller has no authority to make any
representation or promise on behalf of WerkMaster or to modify the terms
or limitations of this warranty in any way.
Seller shall use reasonable efforts to attempt to cause the Products to be
delivered as provided in these Terms & Conditions. Delivery to the initial
common carrier shall constitute the delivery to the Purchaser. Seller’s
responsibility, in so far as transportation risks are concerned, ceases upon
the delivery of the Products in good condition to such carrier at the F.O.B.
OPERATOR’S MANUAL
37
point and all the Products shall be shipped at the Purchaser’s risk. Seller
shall not be responsible or liable for any loss of income and/or profits, or
incidental, special, consequential damages resulting from Seller’s delayed
performance in shipment and delivery.
Shipping of goods and/or products to and/or from WerkMaster or a
WerkMaster representative is the sole responsibility of the Purchaser and
is not covered under the terms of this warranty.
Defective or failed material shall be held at the Purchaser’s premises until
authorization has been granted by Seller to return or dispose of Products.
Products that are to be returned for final inspection must be returned
Freight Prepaid in the most economical way. Credit will be issued for
material found to be defective upon Seller’s inspection based on prices at
the time of purchase/
FORCE MAJEURE
Seller’s obligation hereunder are subject to, and Seller shall not be held
responsible for, any delay or failure to make delivery of all or any part of
the of the Product due to labor difficulties, fires, casualties, accidents, acts
of the elements, acts of God, transportation difficulties, delays by a
common carrier, inability to obtain Product, materials or components or
qualified labor sufficient to timely perform part of or all of the obligations
contained in these terms and conditions, governmental regulations or
actions, strikes, damage to or destruction in whole or part of
manufacturing plant, riots, terrorist attacks or incidents, civil commotions,
warlike conditions, flood, tidal waves, typhoon, hurricane, earthquake,
lightning, explosion or any other causes, contingencies or circumstances
within CANADA not subject to the Seller’s control which prevent or hinder
the manufacture or delivery of the Products or make the fulfillment of
these terms and conditions impracticable. In the event of the occurrence
of any of the foregoing, at the option of Seller, Seller shall be excused
from the performance under these Terms and Conditions, or the
performance of the Seller shall be correspondingly extended. This
document sets forth the terms and conditions pursuant to which the
purchaser (“Purchaser”) will purchase and WerkMaster Grinders &
Sanders Inc. (“Seller”) will sell the products, accessories, attachments
(collectively “the Products”) ordered by the Purchaser. These terms and
conditions shall govern and apply to the sale of Seller’s Products to
Purchaser, regardless of any terms and conditions appearing on any
purchase order forms submitted by Purchaser to Seller, or the
inconsistency of any terms therein and herein.
OPERATOR’S MANUAL
38
SAFETY AWARENESS FORM FOR PROPANE MACHINES
The following MUST be completed before an employee may use a propane machine.
I have read the Operator’s Manual and understand it.
Name: Date:
Demonstrate to your instructor that you can do the following properly and safely:
How to prepare the propane machine for operation:
A. Install pads, brushes, and/or heads
B. Check oil
C. Adjust handle
D. Check propane tank for overfilling
E. Install propane tank
F. Have an MSDS for propane
How to operate a propane machine:
A. Start and stop the engine
B. Emergency stop
C. Clean air filter
Cautions:
A. Allow only qualified, trained personnel to operate this machine.
B. Use only DOT approved propane tanks supplied by WerkMaster or an
Authorized WerkMaster Distributor.
C. ALWAYS store propane tanks outside in a proper enclosure.
D. NEVER vent a propane tank inside.
E. ALWAYS wear a CO detector badge.
F. NEVER leave the machine running unattended.
G. Know what to do and whom to call in case of emergency.
When all items are checked off and this form is signed by an instructor or supervisor, you may
operate a propane machine.
!
Employee Signature:!! !! ! ! Date:
!
OPERATOR’S MANUAL
39
Loading...
