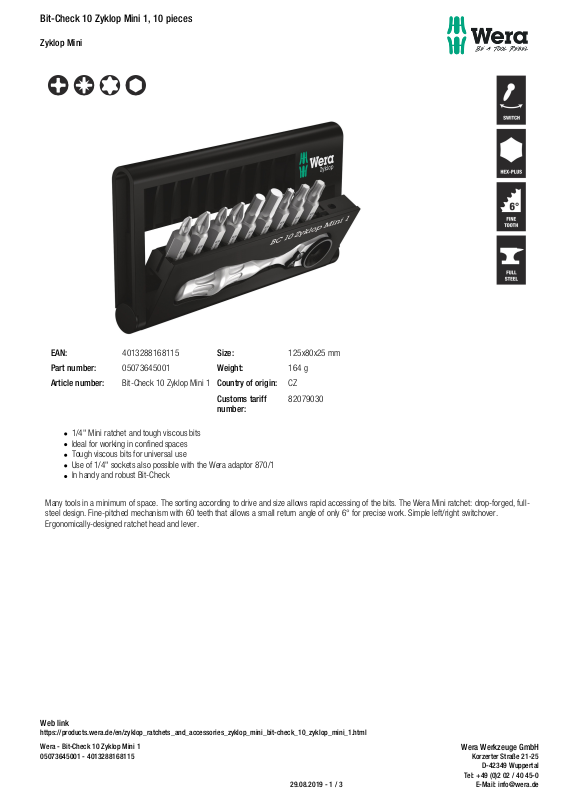

Page 1
Bit-Check 10 Zyklop Mini 1, 10 pieces
Zyklop Mini
EAN: 4013288168115 Size: 125x80x25 mm
Part number: 05073645001 Weight: 164 g
Article number: Bit-Check 10 Zyklop Mini 1 Country of origin: CZ
Customs tariff
82079030
number:
1/4" Mini ratchet and tough viscous bits
Ideal for working in confined spaces
Tough viscous bits for universal use
Use of 1/4" sockets also possible with the Wera adaptor 870/1
In handy and robust Bit-Check
Many tools in a minimum of space. The sorting according to drive and size allows rapid accessing of the bits. The Wera Mini ratchet: drop-forged, fullsteel design. Fine-pitched mechanism with 60 teeth that allows a small return angle of only 6° for precise work. Simple left/right switchover.
Ergonomically-designed ratchet head and lever.
Web link
https://products.wera.de/en/zyklop_ratchets_and_accessories_zyklop_mini_bit-check_10_zyklop_mini_1.html
Wera - Bit-Check 10 Zyklop Mini 1
05073645001 - 4013288168115
Wera Werkzeuge GmbH
Korzerter Straße 21-25
D-42349 Wuppertal
Tel: +49 (0)2 02 / 40 45-0
E-Mail: [email protected] 29.08.2019 - 1 / 3
Page 2
Bit-Check 10 Zyklop Mini 1, 10 pieces
Zyklop Mini
Set contents:
8001 A
05073999001 1 x 1/4" x 87 mm
855/1 Z PZ
05072080001 1 x PZ 1 x 25 mm
05072082001 1 x PZ 2 x 25 mm
840/1 Z Hex-Plus
05056320001 1 x 4 x 25 mm
05056325001 1 x 5 x 25 mm
851/1 Z PH
05072070001 1 x PH 1 x 25 mm
05072072001 1 x PH 2 x 25 mm
867/1 TORX®
05066486001 1 x TX 15 x 25 mm
05066487001 1 x TX 20 x 25 mm
05066488001 1 x TX 25 x 25 mm
The Zyklop Mini Ratchets Small return angle Simple direction change
Zyklop Mini For all difficult-to-access
applications.
The fine tooth mechanism, with its
60 teeth, allows a small return
angle of only 6° – ideal for
precision work.
Web link
https://products.wera.de/en/zyklop_ratchets_and_accessories_zyklop_mini_bit-check_10_zyklop_mini_1.html
Wera - Bit-Check 10 Zyklop Mini 1
05073645001 - 4013288168115
Simple switching between left/right
operations.
Wera Werkzeuge GmbH
Korzerter Straße 21-25
D-42349 Wuppertal
Tel: +49 (0)2 02 / 40 45-0
E-Mail: [email protected] 29.08.2019 - 2 / 3
Page 3
Bit-Check 10 Zyklop Mini 1, 10 pieces
Zyklop Mini
Rapid screwdriving Slim design Is such a small tool sufficiently
resilient?
What parts can be connected to
the Zyklop Mini 1?
High working speeds can be
attained with the Zyklop Mini 1.
The thumb wheel is important,
enabling more rapid screwdriving,
and the Zyklop Mini hande only
needs to be used for the final
tightening of the screw.
Its slim design makes it ideal for
all particularly confined working
situations.
The Zyklop Mini 1 can withstand at
least 65 Nm. That is far more
power than can normally be
transferred to such a small tool.
Bits and sockets. Bits can be
connected directly. However, a
holder can be connected first and
then the bit can be attached to
this. This then serves as an
extension with a free-turning
sleeve. An adaptor e.g. Wera
870/1 is needed for sockets –
1/4" hexagonal on a square drive
(included in the Bit-Check and with
the individual Zyklop Mini 1 in the
set).
Web link
https://products.wera.de/en/zyklop_ratchets_and_accessories_zyklop_mini_bit-check_10_zyklop_mini_1.html
Wera - Bit-Check 10 Zyklop Mini 1
05073645001 - 4013288168115
Wera Werkzeuge GmbH
Korzerter Straße 21-25
D-42349 Wuppertal
Tel: +49 (0)2 02 / 40 45-0
E-Mail: [email protected] 29.08.2019 - 3 / 3
