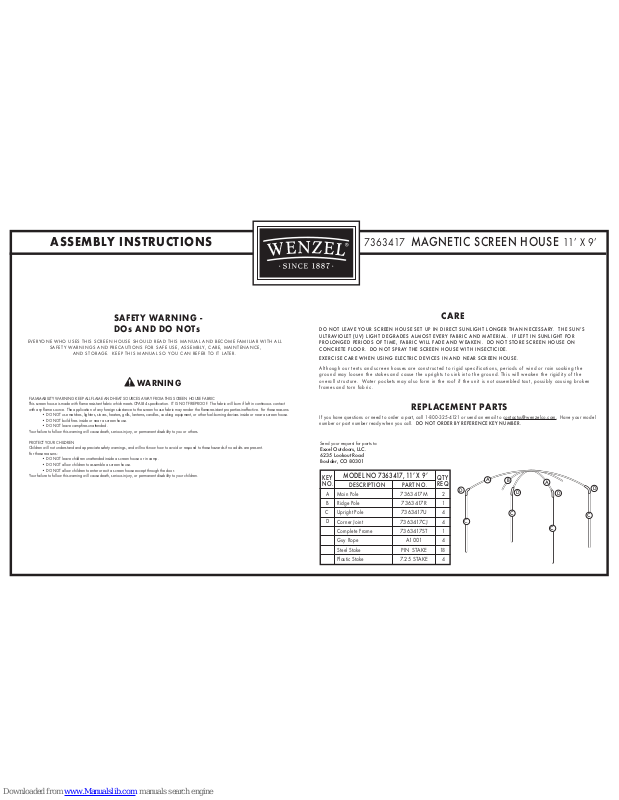

Page 1
ASSEMBLY INSTRUCTIONS
7363417 MAGNETIC SCREEN HOUSE 11’ X 9’
DO NOT LEAVE YOUR SCREEN HOUSE SET UP IN DIRECT SUNLIGHT LONGER THAN NECESSARY. THE SUN’S
ULTRAVIOLET (UV) LIGHT DEGRADES ALMOST EVERY FABRIC AND MATERIAL. IF LEFT IN SUNLIGHT FOR
PROLONGED PERIODS OF TIME, FABRIC WILL FADE AND WEAKEN. DO NOT STORE SCREEN HOUSE ON
CONCRETE FLOOR. DO NOT SPRAY THE SCREEN HOUSE WITH INSECTICIDE.
EXERCISE CARE WHEN USING ELECTRIC DEVICES IN AND NEAR SCREEN HOUSE.
Although our tents and screen houses are constructed to rigid specifications, periods of wind or rain soaking the
ground may loosen the stakes and cause the uprights to sink into the ground. This will weaken the rigidity of the
overall structure. Water pockets may also form in the roof if the unit is not assembled taut, possibly causing broken
frames and torn fabric.
If you have questions or need to order a part, call 1-800-325-4121 or send an email to [email protected]. Have your model
number or part number ready when you call.
DO NOT ORDER BY REFERENCE KEY NUMBER.
CARE

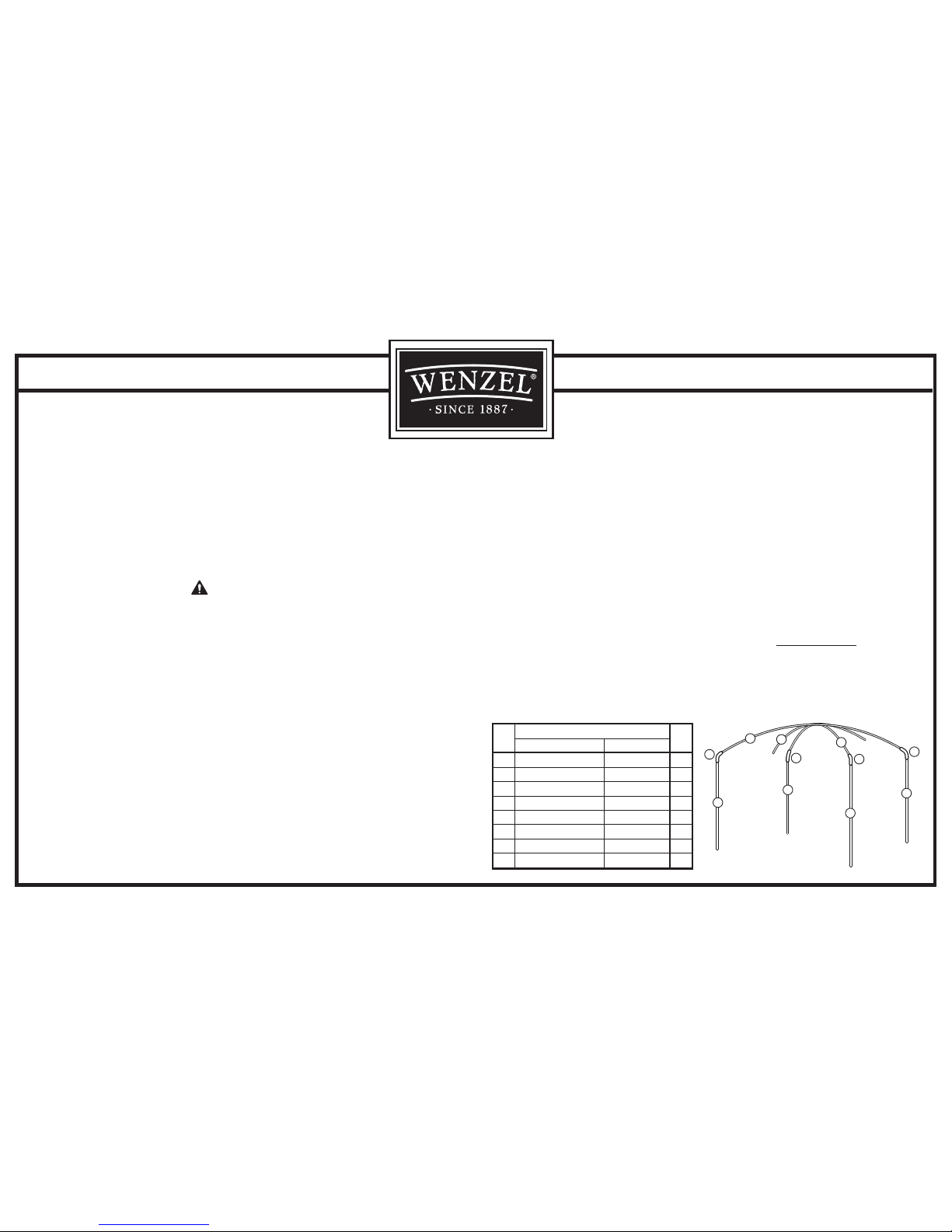

REPLACEMENT PARTS
MODEL NO 7363417, 11’ X 9’
DESCRIPTION PART NO.
KEY
NO.
QTY
REQ
Main Pole
Ridge Pole
Upright Pole
Corner Joint
Complete Frame
Guy Rope
Steel Stake
Plastic Stake
7363417M
7363417R
7363417U
7363417CJ
7363417ST
A1001
PIN STAKE
7.25 STAKE
2
1
4
4
1
4
18
4
A
B
C
D
SAFETY WARNING DOs AND DO NOTs
EVERYONE WHO USES THIS SCREEN HOUSE SHOULD READ THIS MANUAL AND BECOME FAMILIAR WITH ALL
SAFETY WARNINGS AND PRECAUTIONS FOR SAFE USE, ASSEMBLY, CARE, MAINTENANCE,
AND STORAGE. KEEP THIS MANUAL SO YOU CAN REFER TO IT LATER.
WARNING
FLAMMABILITY WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS SCREEN HOUSE FABRIC
This screen house is made with flame resistant fabric which meets CPAI-84 specification. IT IS NOT FIREPROOF. The fabric will burn if left in continuous contact
with any flame source. The application of any foreign substance to the screen house fabric may render the flame-resistant properties ineffective. For these reasons:
• DO NOT use matches, lighters, stoves, heaters, grills, lanterns, candles, cooking equipment, or other fuel-burning devices inside or near a screen house.
• DO NOT build fires inside or near a screen house.
• DO NOT leave campfires unattended.
Your failure to follow this warning will cause death, serious injury, or permanent disability to you or others.
PROTECT YOUR CHILDREN
Children will not understand and appreciate safety warnings, and will not know how to avoid or respond to these hazards if no adults are present.
For these reasons:
• DO NOT leave children unattended inside a screen house or in camp.
• DO NOT allow children to assemble a screen house.
• DO NOT allow children to enter or exit a screen house except through the door.
Your failure to follow this warning will cause death, serious injury, or permanent disability to your children.
C
D
D
D
D
C
C
C
B
A
A
Send your request for parts to:
Exxel Outdoors, LLC.
6235 Lookout Road
Boulder, CO 80301
Page 2
ASSEMBLY INSTRUCTIONS
7363417 MAGNETIC SCREEN HOUSE 11’ X 9’
IMPORTANT: WE ADVISE YOU TO ASSEMBLE THE SCREENHOUSE
BEFORE USE TO BECOME FAMILIAR WITH THE ASSEMBLY. IT IS RECOMMENDED TWO ADULTS BE INVOLVED IN SET UP.
NOTE: PLEASE LOOK AT THE REPLACEMENT PARTS DIAGRAM TO SEE
HOW YOUR FRAME IS ASSEMBLED. TO PROLONG THE LIFE OF THE
SCREENHOUSE, SELECT A LEVEL, CLEAN AREA FOR SET UP.

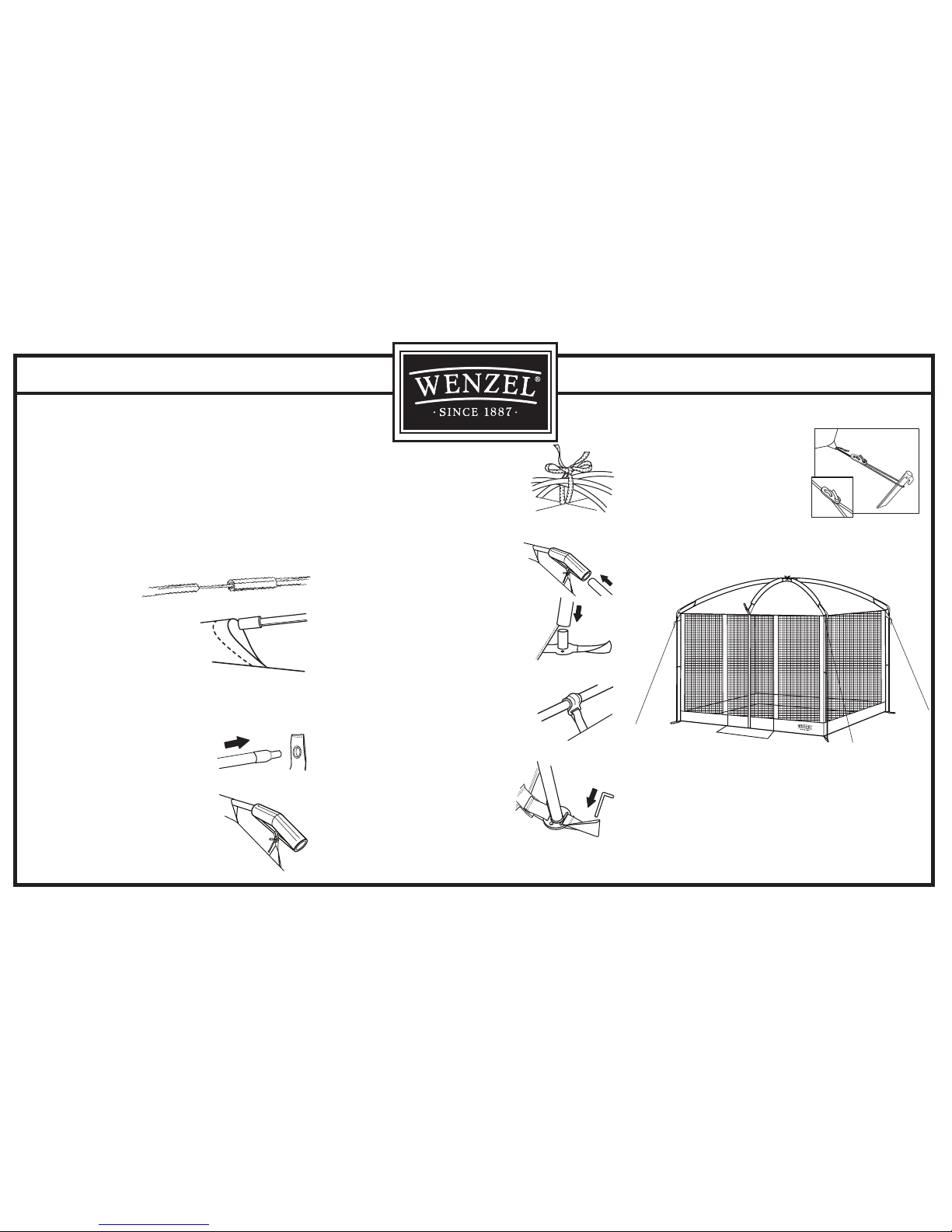

STEP 1: Spread screen house out flat with the black and grey pole
sleeves facing up.
STEP 2: Extend the three fiberglass frame poles by pulling out each section
and placing pole ends into the metal ferrule connectors. You will have
two black poles (A) and one grey pole (B).
STEP 3: While leaving screen house on the ground, make certain the pole
s
leeves are in line with each other and slide each
fiberglass pole through the corresponding colored
sleeves (black and grey) that are opposite each
other on the roof of the screen house.
STEP 4: Straighten the pole sleeves along the fiberglass poles and position
the poles so that they are laid out even across the top of the screen house.
STEP 5: Locate the grommets on the webbing that are attached to the
screen house above the two doors. Place one end of the grey fiberglass
pole into one grommet. Go to the other side of the
screen house and flex the fiberglass pole and place
the other end into the corresponding grommet. The
tension of the webbing can be adjusted to optimize the magnetic door
function once the screen house is set up.
STEP 6: Locate the plastic corner joints (D) that
are attached to the screen house. Attach them
to the ends of the black fiberglass poles. The
smaller opening of the corner joints with “teeth”
fit over the end ferrules on fiberglass poles.
STEP 7:
Where the three poles cross at the
center of roof there is a tie that goes over
the poles to hold them together.
STEP 8:
Extend each of the four steel poles (C), by pulling out each wire-
corded section and placing the jointed ends into the connected pole sections.
STEP 9:
With an adult on each side at one end
of the screen house, insert the end of the steel
poles into the bottom opening of the plastic
joint at the roof corner of the screen house.
STEP 10:
Each adult should lift up on the steel poles
and while raising the end portion of the screen house,
place the bottom ends of the steel poles over the fast
feet at the base of the screen house.
STEP 11:
Using the two remaining steel poles, repeat the previous step at
other side of the screen house.
STEP 12: Clip the screen house to the steel upright
poles with the plastic clips sewn to the screen
house walls.
STEP 13: Stake the screen house to the ground by inserting the stakes
through the stake loops at each corner. Hammer
stakes into the ground at a 45° angle, making
sure the screen house is pulled out even and
tight. Continue to stake down the screen house
by staking down the stake loops at all four
corners of the door mats under each door.
NOTE:
For the magnetic doors to open and close properly it is important
to stake down the door mats.
STEP 14: Guy ropes have been provided
for added stability. Extend each of the guy
ropes which are attached to the four corners
of the screen house. Make a loop at the
opposite end of the guy rope, by using slider
as shown and place loop over plastic tent
stake. Adjust slider to make guy rope tight
and stake to the ground.
NOTE: To take down screen house, follow steps above in the reverse
order. Place stakes into stake bag and poles into pole bag, which are
provided. The screen house should be folded into equal parts toward
the center of the screen house to distribute the bulk. Place frame on
folded screen house and start a small tight roll, the width of your carry
bag. Once rolled, tie a string or rope around screen house to hold it in
place. Place screen house and stake bag into carry bag. Make sure
screen house is clean and dry before storing.
Assembled screeen house should
appear as shown.
