Page 1
TX-900 Instruction Manual P.1
Version
Date
Changes
V1.01
July. 1, 2010
1st Edition
WENSHING®©

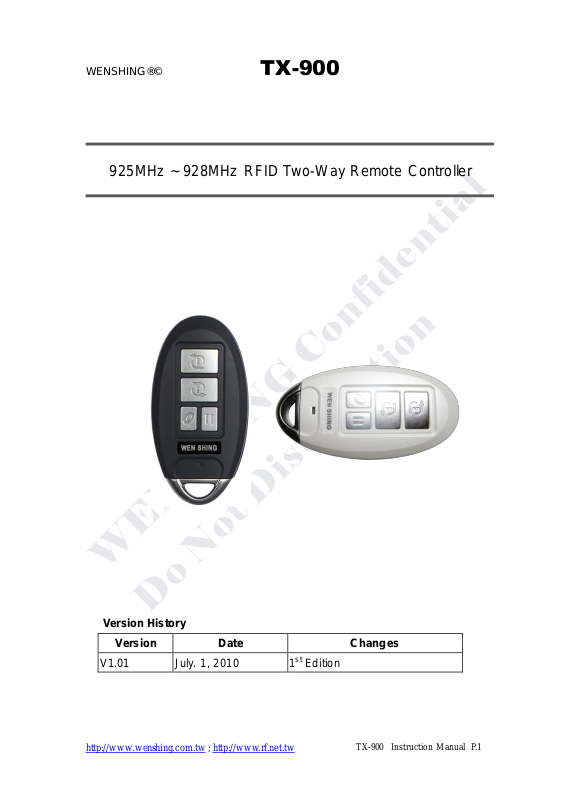

TX-900
925MHz ~ 928MHz RFID Two-Way Remote Controller
Version History
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 2
TX-900 Instruction Manual P.2
Content
Important Event……………………………………………….……………………3
Declaration …………………………………………………………………………3
Warranty……………………………………………………………… ……………3
Un-warranty Scope Description…………………………………………………3
Contact Us…………………………………………………………………………3
Products Instruction ………………………………………………………………4
Feature …………………………………… …………………………………………4
Application……………………………………………………………………………4
Family Garage Door Control……………………………………………………. 4
Auto-Door Control…………………………………………………………………4
Building, Store Rolling Door Control……………………………………………5
Place of Parking Lot Remote Control…………………………………………. 5
Community Access Into/Out Management……………………………………. 5
Motorcycle Anti-Thief Device……………………………………………………. 5
Industry System Control…………………………………………………………. 5
Specification Parameter………………………………………... …. ……………6
Dimension Diagram…………………………………………….... ……………6
Top View…………………………………………………… ………………………6
Side View……………………………………………………………………………6
Button View …… …………………………………………………………………6
CE Caution Note (European Union)…………………………….... ……………7
FCC Consistent Declaration( U.S.A. Only)………………….... ………………7
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 3
TX-900 Instruction Manual P.3
Important Event
This product is in general use for the equipment on the premise of the development, design,
manufacture. Do not use that require high security purposes, such as machinery or medical,
aviation equipment, machinery and transport-related deaths are directly or indirectly related
to the system.
This product should be in this brochure by the instructions of the types and rated voltage
power under the current proper use. If violation of this statement by the safety records of the
supply operation, I am afraid our company cannot afford any of the responsibility.
Do not self-decomposition, alteration, repair of the products also will cause fire, electric shock,
fault, and dangerous. In addition, their decomposition, alteration, repair the product, failure is
not within the scope of warranty.
The products are not waterproof, so please do not use and touch water. Take off and on also
please note. Rain, spray, drinks, steam, sweat may be a failure.
Use of this product, please be sure to use according to the statement recorded by the use of
methods to operate. Please do not violate particular attention to the matter reminded to use.
Please respect this statement recorded by the note. When consumers in contravention of this
statement recorded note of the operation, I am afraid our company could not shoulder any
responsibility.
Products are defective, the Company will be responsible for free to amend the flaws, or to the
same flawless product or its equivalent products in exchange. However, the Company does
not assume based on the requirements of the flaw and loss responsibility.
The Company reserves the right to retain without notice to users of the cases, the product of
hardware / software (version upgrade) is with the right to edit.
Declaration
This product provides different frequency for user selection to meet different telecommunication
regulation and FCC/CE on different countries.
Warranty
The warranty time is within one year from purchased date. The warranty scope are used in
normal situation and none vandalism. (Some function harmful out of warranty scope and
Vandalism are Un-warranty).
Un-warranty Scope Description
Because the natural disaster, accident or human factor to cause the bad damage.
Violate the product instruction manual to cause the damage of the products.
The improper assemble causes damage.
The products used the unsanctioned accessory to cause damaged.
Overstep the allowed used environment to cause the products damaged.
Contact Us
WENSHING ELECTRONICS CO., LTD.
No.82, Chong De St. 11054 Shin Yi Dist, Taipei, Taiwan
Tel: +886-2-27353055
Fax: +886-2-27328813
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 4
TX-900 Instruction Manual P.4
Product Instruction
TX-900 wireless remote control is a two-way RFID remote control and wide
applications; it can collocate with many types of host for different application.
Use in family garage door control, RFID auto-door, building, rolling door control,
place of parking lot control, access into/out of community management, industry
system control. You can set various function and let it to be humanized facilities.
Feature
Two-way communication
Automatically feedback system
Low voltage search
Long standby time
Waterproof design
Application
Family Garage Door Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control can use in family garage door control. There are two ways for your
best choices: one is touch and another is sensor. You can select one of them
and start to step up according to our manual. It is not only can control garage
door open and close, also can control garage door and light on/off
automatically during effective distance which you set. When the distance is
over effective distance, it will close garage door and light to save your times
for key finding also save the electronic power to achieve energy and carbon
saving for environmental protection.
Auto-Door Control
TX-900 wireless remote control collocates with RD-747 active RFID garage
door control.
Use in auto-door control, it can set distance of TX-900 to automatically open
and close.
Building, Store Rolling Door Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control can use in building, store and rolling door of store control.
Place of Parking Lot Remote Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control and use in parking lot under underground parking lot control.
It can reach the floor from elevator during the effective distance which you set
so that you can save much times.
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 5
TX-900 Instruction Manual P.5
Frequency
925MHz ~ 928MHz
Battery
DC 3V CR2032
Key
4
Modulation mode
GFSK
Transmitting power
≦+10dBm
Current work
22mA
Standby current
10uA
Operating temperature
-10~+70℃
Community Access Into/Out Management
TX-900 wireless remote control pair collocate with RD-485 wireless modem
controller system, it can use in communicate access into/out management.
It can automatically open and close door during effective distance or use the
key to open and close the door.
Motorcycle Anti-Thief Device
TX-900 wireless remote control pair with RD-747 can two-way communicates.
When person touch the anti-thief device, TX-900 wireless remote control will
get the news back to RD-747 active RFID garage door control to notice
motorcycle owner.
Industry System Control
TX-900 wireless remote control pair with RD-485 wireless modem controller
system can combine with PLC( programmable logic control) as factory
automatically control system. TX-900 wireless remote control has four keys to
control four machines and identify function for every key. It also has strong
detected function; it can open or close the machine during effective distance.
Specification Parameter
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 6
TX-900 Instruction Manual P.6
33.5mm
66 mm
12.3 mm
Waterproof rubber design

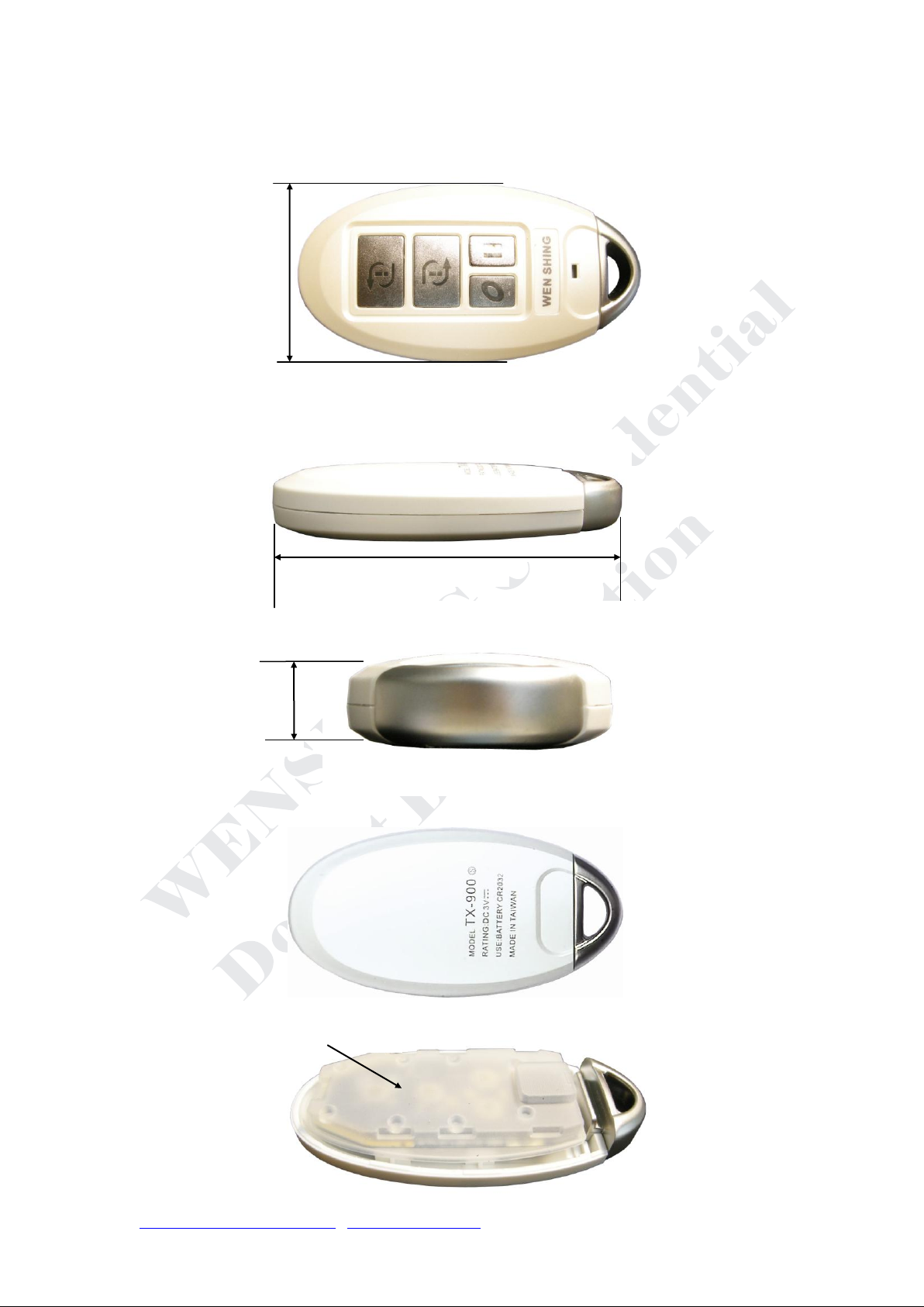

Dimension Diagram
Top View
Side View
Button View
http://www.wenshing.com.tw ; http://www.rf.net.tw
Page 7
TX-900 Instruction Manual P.7
CE Caution Note (European Union)
Symbol of it accords with EMC regulation (89/336 / EEC) to represent this device,
and the low-voltage regulation of European Union (73/23/EEC). It represents to follow
the following standard regulations of European Union (The bracket is a reciprocal
international standard reciprocal international standard and regulation).
EN 60950/A11: 1997/(IEC 60950/A4: 1996),The ones that includes information
science and technology of apparatus of e-commerce safe.
EN 55024: 1998 (IEC 1000-4-2, 1000-4-3, 1000-4-4, 1000-4-5, 1000-4-6, 1000-4-8,
1000-4-11) -' scientific and technological apparatus of information - The
characteristic of interfere avoided - Restrain and test method '
Chapter 2 -Static release (ESD) Demand
Chapter 3 -Radiate the static field demand
Chapter 4 -The electron is transmitted / produced and washed (EFT) fast
Demand.
Chapter 5 -surge demand
Chapter 6 -Resistance demand caused in field of wireless frequency.
Chapter 8 -Magnetic field demand of electric frequency.
Chapter 11 –Shortly cut off the demand of making a variation with the voltage
transiently under the voltage.
EN 55022:1998/(CISPR 22:1997) ,Class B, ' “To assess information scientific and
technological apparatus wireless restriction and way of interfering with the
characteristic.”
FCC Consistent Declaration ( U.S.A. Only)
Attention: FCC rule regulation, modified and changed must allowed by WENSHING
Electronics company, otherwise that would make you operate this apparatus invalid.
This apparatus adopted test, according to chapter 15 that FCC regulation, accord with
Class B digital restrictions of device. These limits are designed to provide reasonable
protection, avoid to having harmful interference at home’s environment.
This device may have radiated wireless frequency energy. If don’t allow the instruction
manual, then may will interfere wireless communication. However, there is no any way
to guarantee, it will not be interfered in particular installed. If this device really causes
harmful interference, (It could be confirmed by turning on or off this device.) Advise
you to try to use the following ways modifying the interference situation.
Relocation receiving antenna or altering its direction.
Increase the distance between device and receiver.
Please connect this device to the outlet in the circuit different from the receiver.
The following manuals is published by Federal Communications Commission, they
must be helpful to all users.
How to Identify and Resolve Radio-TV Interference Problems. (This manual can be
obtained by relevant departments of publication of the U.S. government.)
Government Printing Office, Washington D.C., 20402. Stock No. 004-00398-5
http://www.wenshing.com.tw ; http://www.rf.net.tw
