User Manual
3 Port HDMI Switcher
Model NO:HDSW0013M1
Introduction
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Our series of converters, switchers, extenders, matrixes and splitters are designed to
make your A/V device use more convenient, more comfortable, more productive and
more cost-efficient.
The device can switch 3 HDMI Inputs to one HDMI Output, It can easily switch three
routes of HD Source to any one HD display or projector.
The deice also supports 4K feature to make more easier connection between the home
entertainment device.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
INTRODUCITON
Feature：
Three HDMI Inputs switch to one HDMI Output
Support 4K
Support Remote control and HDMI auto switch.
LED Status Light shows clearly the working state.
HDMI Input and Output distance can be up to 6m using the AWG26 standard HDMI
Cable.
Easy-Install
Accessories Content:
1、Manual
2、Remote
3、IR Extender Cable
Physical Connect Port:

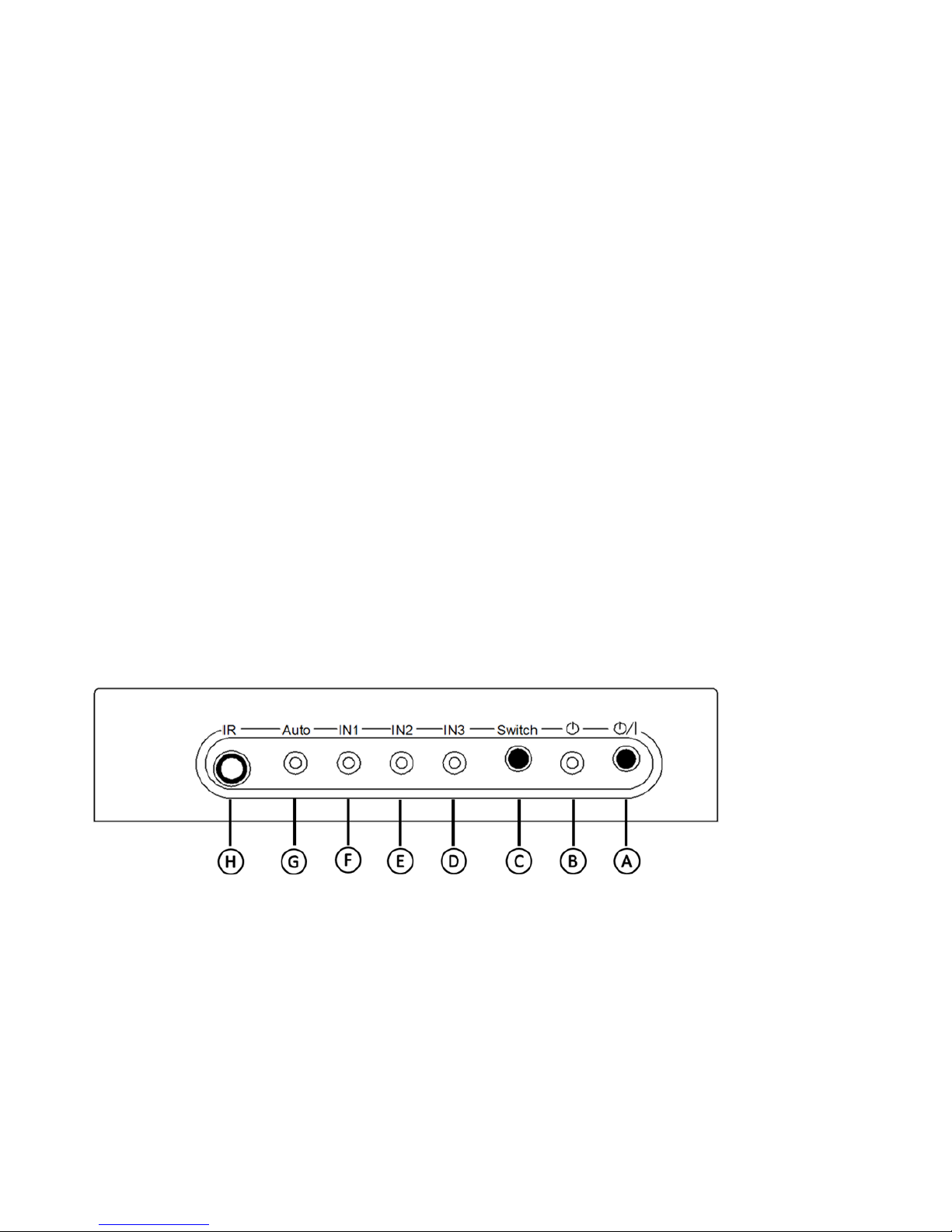

Picture 1.0 Front Panel Showing
A：Standby and Start Button
B： Standby Status LED, when light goes bright, the device goes to Standby State.
C： HDMI Input Channel Switch Button
D： HDMI Input Channel Three LED Status Light
E： HDMI Input Channel Two LED Status Light
F： HDMI Input Channel One LED Status Light
G： HDMI Input channel audio switch LED Status Light, when Light goes bright, Auto
Switch function on.
H： IR Extender cable Input port.

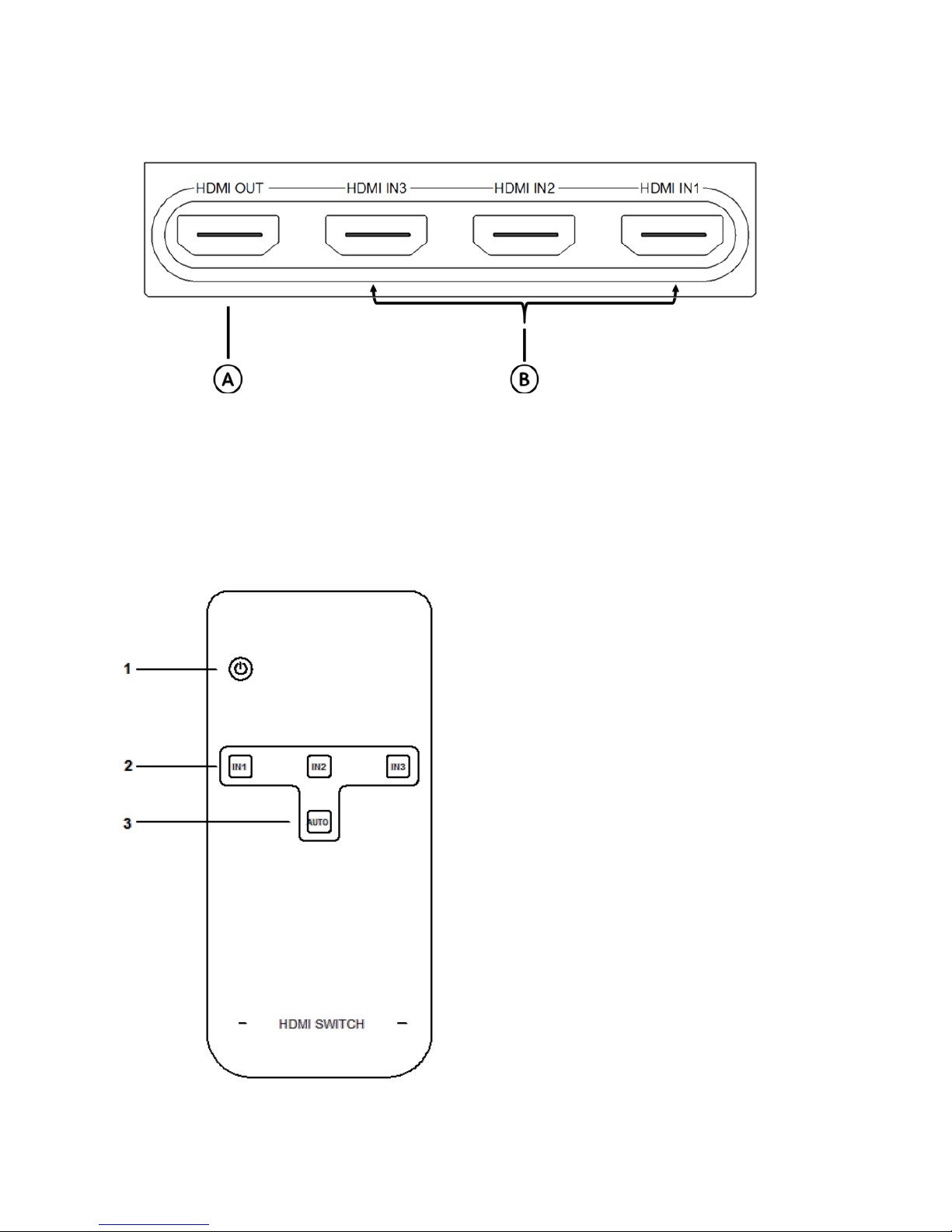

Picture 1.1 Rear Panel Showing
A: HDMI Output Port
B：HDMI Input One, Two, Three Port
Remote Button Function Showing
Standby and Start Button, when device is working normally, it will go to Standby
status if you press the button and also the Standby Led Status Light will go bright; when
press the button again, the device will back to normal working status and the Standby LED
Light at device will also off.
HDMI Input Channel Switch Button. When you press the “IN1” Button, the device will
goes to the matched input 1 channel.
Auto: HDMI Input Channel Auto Switch Function On/Off Button, when you press the
button, HDMI Input channel Auto function on and the Auto LED Light at device will go bright;
When press second time, Auto function will off and Auto LED Light will off. When Auto
Function turns on, the device will jumps to the new connected input source. Pls make sure
that your want input source has been started.
* Pls take out the film at the rear of the remote before you use. Pls insert the film to remote
rear if you do not use the remote for long time.

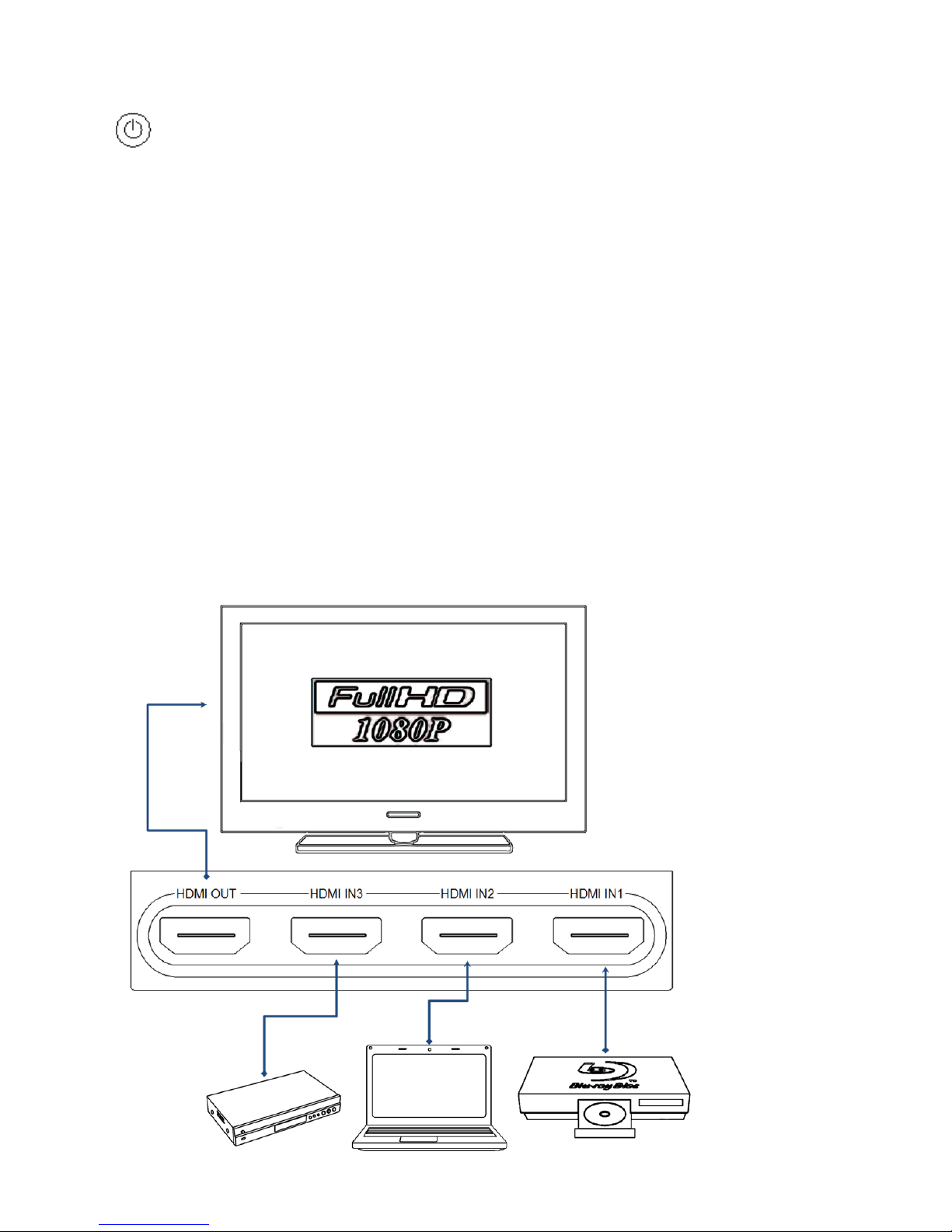

Connection and Operation:
1. To use one HDMI Cable to connect the HD Source with the HDMI Input port of
device.
2. To use HDMI Cable to connect the HDMI Output port of device with the Display.
3. To press button“ ” at remote or the button“ ”at device to turn on the device and
turn off the device.
4. When you press the “AUTO” button, HDMI Input channel Auto function on and the
Auto LED Light at device will go bright. When press second time or other button, Auto
function will off and Auto LED Light will off.
5. Note: This device gets the power from the HDMI Source and HDMI Sink. Some
special HD Sources may have very small working current, so it may can not supply
enough power to the device 3x1,if meet that situation, pls connect more than one HD
Sources to keep enough power to the device.
Spec: HDSW0013M1
HDMI Resolution……24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
Deep Color …………24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
HDMI In/Out Supported Audio Format…………………………………………………………
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Channel Max Bandwidth………………………………………………………225MHz
Input / Output DDC signal…………………………………………………….… 5Vp-p(TTL)
HDMI Input Cable Length……………….…………..…≤6m AWG26 HDMI standard cable
HDMI Output Cable Length……………………..….….≤6m AWG26 HDMI standard cable
Max Working Current…………………………………..……………………..…………350mA
Working Temperature Range…………………………………….....……………(-0 to +40℃)
Working Humidity Range……………………….……..…5 to 85%RH（No Condensation）
Size………………………………………………………..………………95.2x52.9x20.8 (mm)
Weight……………………………………………………….…………..……………………122g
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the
machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature,
Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from
the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
8. .It does not support the conversion between DVI and HDMI signal Pls use your
signal source and display following the correct process.
Before power on, pls check the connection line carefully. And make sure that all
interfaces are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-Conn
ected
1、Check the HD Source is truly and correctly inserted.
2、Check the HD Source is in on status.
2
No Picture
1、Pls to make sure that the TV is on and has been
connected with the machine,.
2、 To check if the signal source is on and well
connected.
3、Check the system connection quality.
4、Check if the line is all good quality.
5、Check the cable quality.
3
Obscure Picture
1、To try again to connect the cable to be free from the
unsuccessful connection.
2、HDMI Cable Quality
4
No sound
1、Please confirm the setting position of audio mode
switch
5
Remote
1、Pls check if the film that stops the current has been
taken out.
2、To check if the remote battery is working well.
