Oscillating Spindle Sander
Model: 6510
Table of Contents
Technical data…………………………………………………………….. 2
General safety rules………………………………………………………. 3
Specific safety rules for the spindle sander………………………………. 5
Electrical information…………………………………………………….. 6
Know your spindle sander………………………………………………... 8
Assembly and adjustments……………………………………………….. 9
Operation…………………………………………………………………. 13
Maintenance………………………………………………………………. 14
Troubleshooting...………………………………………………………… 15
Exploded view and parts list ……………………………………………... 16
Warranty………………………………………………………………….. 20
Technical data
Oscillating Spindle Sander Model: 6510
Motor: 120 V AC, 60 Hz, 3.5 A, 7/16 HP
Speed: 2000 RPM (no load)
Oscillations: 58 OPM with 5/8" of travel
Spindle size: 1/2"
Sanding sleeve sizes: 1/2", 3/4", 1", 1-1/2", 2", 3"
Maximum sanding height: 3-5/8"
Weight: 35 lb
2
General safety rules
Safety is a combination of common sense, staying alert and knowing how your oscillating spindle
sander works. SAVE THESE SAFETY INSTRUCTIONS.
WARNING: To avoid mistakes that could cause serious injury, do not plug in the sander
until the following steps have been read and understood.
1. READ and become familiar with this entire instruction manual. LEARN the tool’s applications,
limitations, and possible hazards.
2. AVOID DANGEROUS CONDITIONS. Do not use power tools in wet or damp areas or expose
them to rain. Keep work areas well-lit.
3. DO NOT use power tools in the presence of flammable liquids or gases.
4. KEEP your work area clean, uncluttered, and well-lit. DO NOT work on floor surfaces that are
slippery.
5. KEEP BYSTANDERS AT A SAFE DISTANCE from the work area, especially when the tool
is operating. NEVER allow children or pets near the tool.
6. DO NOT FORCE THE TOOL to do a job for which it was not designed.
7. DRESS FOR SAFETY. Do not wear loose clothing, gloves, neckties, or jewelry (rings, watches,
etc.) when operating the tool. Inappropriate clothing and items can get caught in moving parts
and draw you in. ALWAYS wear non-slip footwear and tie back long hair.
8. WEAR A FACE MASK OR DUST MASK as the sanding operation produces dust.
WARNING: Dust generated from certain materials can be hazardous to your health.
Always operate this tool in a well-ventilated area and provide for proper dust removal. Use dust
collection systems whenever possible.
9. ALWAYS remove the power cord plug from the electrical outlet when making adjustments,
changing parts, cleaning or working on the tool.
10. KEEP GUARDS IN PLACE AND IN WORKING ORDER.
11. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFF position
before plugging in the power cord.
12. REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from
this tool before turning it on.
3
General safety rules (continued)
13. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to OFF. Do
not leave the tool until it has come to a complete stop.
14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit.
DO NOT store anything above or near the tool.
15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant
rubber-soled footwear. Keep the floor clear of oil, scrap, and other debris.
16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order.
Follow instructions for lubricating and changing accessories.
17. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming, breakage,
improper mounting, or any other conditions that may affect the tool’s operation. Any part that is
damaged should be properly repaired or replaced before use.
18. MAKE THE WORKSHOP CHILDPROOF. Use padlocks and master switches and ALWAYS
remove starter keys.
19. DO NOT operate the tool if you are under the influence of drugs, alcohol, or medication that
could affect your ability to use the tool properly.
20. USE SAFETY GOGGLES AT ALL TIMES--that comply with
ANSI Z87.1. Normal safety glasses only have impact resistant
lenses and are not designed for safety. Wear a face or dust mask
when working in a dusty environment. Use ear protection, such as
plugs or muffs, during extended periods of operation.
4
Specific safety rules for the spindle sander
WARNING: Do not operate the spindle sander until it is fully assembled and you
have read and understood the following instructions and the warning labels on the
spindle sander.
1. Know the condition of the spindle sander. If any part is missing, bent, or does not operate
properly, replace the part before using the sander.
2. Determine the type of work you are going to be doing before operating the spindle sander.
3. Secure your work. Support the workpiece securely on the table, and hold it with both hands.
4. Be aware of the direction of feed. Feed the workpiece into the sanding sleeve against the
direction of rotation of the sanding sleeve.
5. Always keep your hands out of the path of the sander and away from the sanding sleeves.
Avoid hand positions where a sudden slip could cause your hand to move into the spindle. Do
not reach underneath the workpiece or around the sanding sleeve while the spindle is rotating.
6. Disconnect the sander after turning off the power switch. Wait for the spindle to stop rotating
before performing maintenance. The sander must be disconnected when not in use or when
changing accessories, sanding sleeves, rubber spindles, or other items.
7. Make sure there are no nails or other foreign objects in the area of the workpiece to be sanded.
8. Never use this sander for wet sanding. Failure to comply may result in electric shock causing
serious injury or worse.
9. Use only identical replacement parts when servicing this spindle sander.
10. Make sure the spindle has come to a complete stop before touching the workpiece.
11. Take precautions when sanding painted surfaces. Sanding lead-based paint is NOT
RECOMMENDED. The contaminated dust is too difficult to control, and could cause lead
poisoning. When sanding paint:
• Protect your lungs. Wear a dust mask or respirator.
• Do not allow children or pregnant women in the work area until the paint sanding job is
finished and the clean-up is completed.
• Do not eat, drink, or smoke in an area where painted surfaces are being sanded.
• Use a dust collection system when possible. Seal the work area with plastic. Do not track paint
dust outside of the work area.
• Thoroughly clean the area when the paint sanding project is completed.
5
Electrical information
Grounding Instructions
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of
least resistance for electric current and reduces the risk of electric shock. This tool is equipped with
an electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST
be plugged into a matching outlet that is properly installed and grounded in accordance with ALL
local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet
installed by an electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in electric shock.
The conductor with the green insulation (with or without yellow stripes) is the equipment
grounding conductor. If repair or replacement of the electric cord or plug is necessary, DO NOT
connect the equipment grounding conductor to a live terminal.
CHECK with a licensed electrician or service personnel if you do not completely understand the
grounding instructions, or if you are not sure if the tool is properly grounded.
Double insulated
This tool has a plug that looks like the one shown in Fig. A.
The tool is double insulated in order to provide a double thickness of insulation between you and
the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor
components with protecting insulation.
WARNING: Double insulation does not take the place of normal safety precautions
when operating this tool.
6
Electrical information (continued)
Guidelines for using extension cords
WARNING: This tool is for indoor use only. Do not expose to rain or use in damp
locations.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use
one heavy enough to carry the current your product will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating. The table below shows the correct size to
be used according to cord length and nameplate amperage rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(When using 120 V only)
Ampere Rating Total Length of Cord in feet
More Than Not More Than 25 feet 50 feet 100 feet 150 feet
0 6 18 gauge 16 gauge 16 gauge 14 gauge
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and
should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line,
make sure the switch is in the OFF position and the electric current is rated the same as the current
stamped on the motor nameplate. Running at a lower voltage will damage the motor.
WARNING: Although this tool is double insulated, the extension cord and receptacle
must still be grounded while in use in order to protect the operator from electric shock.
7
Know your spindle sander
A Spindle
B Sanding sleeves (6)
C Throat plates (6)
D Upper spindle washer and hex nut
E Table top
F Rubber sanding drums (5)
G Sanding drum storage peg
H Dust port
I ON/OFF switch
8
Assembly and adjustments

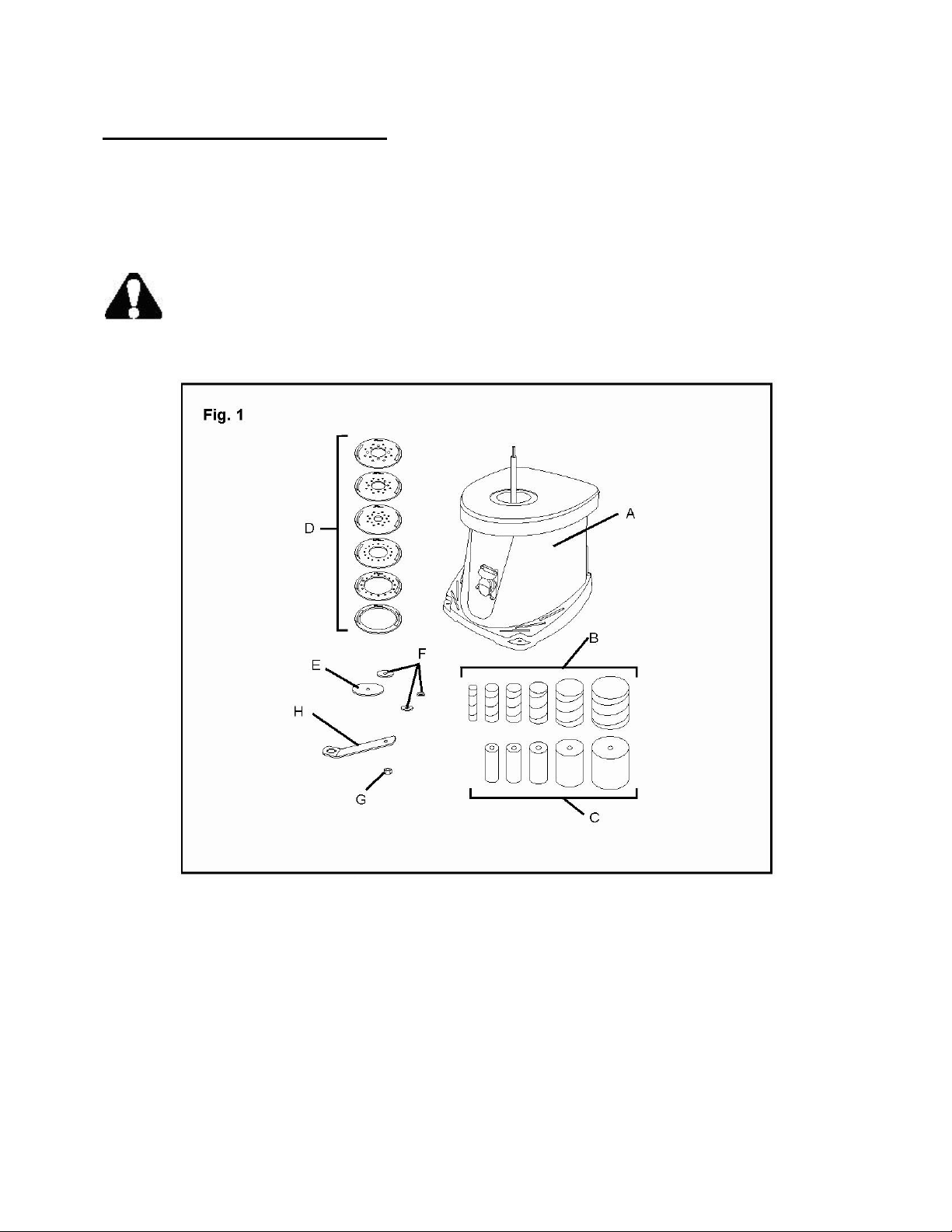

Unpacking (Fig. 1)
Carefully unpack the spindle sander and all its parts, and compare against the list below. Do not
discard the carton or any packaging until the spindle sander is completely assembled.
WARNING: To avoid injury from accidental starting, turn switch OFF and remove plug
from power source outlet before making any adjustments.
A Spindle sander
B Sanding sleeves (6)
C Rubber drums (5)
D Throat plates (6)
E lower spindle washer (1)
F Upper spindle washers (3)
G Spindle lock nut
H Wrench
9
Assembly and adjustments (continued)
This spindle sander requires some assembly. For your safety, completely assemble the spindle
sander prior to plugging it in.
Dust collection (Fig. 2)
A 2-1/2" dust port is located at the back of the spindle sander. This port can be connected to a dustcollection system (not provided).
Mount the spindle sander (Fig. 3 and 4)
To mount the spindle sander in a permanent location, secure the base to a solid benchtop. If the
sander is to be used for portable applications, permanently secure the sander to a mounting board
(2). Use clamps (3) to hold the mounting board to a work bench or other supporting surface.
1. Use the four holes (1) in the base of the sander as a template.
2. Secure the sander to a mounting board, or directly to a workbench, using the appropriate
hardware (not provided).
• If using machine bolts, make sure they are long enough to go through the base and the
benchtop.
• If using lag bolts, make sure they are long enough to go through the base and far enough
into the benchtop to hold securely.
10
Assembly and adjustments (continued)
Sanding sleeve selection
Select and install a sanding sleeve that is close in size to the workpiece that you will be sanding,
and then select the matching throat plate.
Throat plate selection (Fig. 5)
WARNING: Failure to use the correct throat plate with its matching sanding sleeve
could result in pinched fingers or the workpiece being pulled down between the throat
plate and the sanding sleeve.
Use the throat plate (1) that provides the least amount of clearance between the sanding sleeve (2)
and the opening in the throat plate. Use the following chart to determine the correct throat plate and
upper spindle washer to use with each sanding sleeve.
Sanding Throat plate Upper spindle
sleeve diameter size washer size
1/2" .5" small
3/4" .75" medium
1" 1" medium
1 1/2" 1.5" large
2" 2" large
3" 3" large
11
Assembly and adjustments (continued)
Install a sanding sleeve (Fig. 6 and 7)
All of the sanding sleeves, except the smallest 1/2" sleeve, fit over a similar sized rubber sanding
drum.
1. Place the lower spindle washer (2) over the spindle (1) with the fin side facing down.
2. Select a sanding sleeve (5) for the job that you are planning. Select the corresponding rubber
sanding drum (4).
Note: Do not use a sanding drum with the 1/2" sanding sleeve.
3. Select the throat plate (3) that provides the smallest clearance between the sanding sleeve (5)
and the opening in the throat plate.
4. Place the throat plate (3) over the spindle (1), and fit it into the opening in the table.
5. Place the sanding drum (4) over the spindle.
6. Slide the sanding sleeve (5) over the sanding drum (4).
7. Place the upper spindle washer (6) over the spindle (1).
• Use the large washer with the 3", 2", and 1 1/2" sanding drums.
• Use the medium washer with the 1" and 3/4" sanding drums.
• Use the small washer with the 1/2" sanding sleeve.
8. Place the hex nut (7) on the spindle (1). Tighten the hex nut only enough to expand the rubber
sanding drum (4) against the sanding sleeve (5). Do not overtighten.
12
Operation
ON/OFF switch (Fig. 8)
1. To turn the sander ON, insert the safety key (1) in the switch (2), and then move the switch
upward to the ON position.
2. To turn the sander OFF, move the switch (2) 1 downward to the OFF position.
3. To lock the switch in the OFF position, pull the safety key (1) out of the switch (2). The switch
will not operate with the safety key removed.
Note: If the safety key is removed while the sander is running, the sander can be turned OFF, but it
cannot be restarted without inserting the safety key.
Operate the sander (Fig. 9)
WARNING: Do not sand metal with this sander. Sanding metal will cause sparks that
may ignite wood and dust particles on the sander or in the workshop.
The spindle rotates in a counterclockwise (1) direction.
1. Make sure the hex nut (2) on top of the spindle is fastened securely.
2. Turn the sander ON, and let the motor reach full speed.
3. Feed the workpiece gradually against the sanding sleeve.
• Do not force the workpiece.
• Guide the workpiece from the right to left (3). If you guide the workpiece in the opposite
direction, the rotation forces of the spinning sanding sleeve will tend to throw or bounce the
workpiece away from the sanding sleeve.
13
Maintenance
WARNING: Turn the switch to the OFF position and unplug the power cord from the
electric outlet before adjusting or performing maintenance on the spindle sander.
Lubrication
Ball bearings are grease packed at the factory, and require no further lubrication. Use a spray
lubricant on all moving table parts to ensure smooth operation.
General Maintenance
Before each use, check for damaged, missing, or worn parts. Check for proper alignment of moving
parts, moving parts that are jammed, broken, or improperly mounted. If any of these conditions
exist, do not use the spindle sander until it is properly repaired or the parts are replaced.
Cleaning
Frequently blow or vacuum dust away from all sander parts and the motor housing.
Periodically remove the throat plate and lower washer from the spindle and remove any dust
accumulation in the throat plate area.
WARNING: Never use flammable or combustible solvents around tools. When servicing,
use only identical WEN
product failure.
®
replacement parts. Use of any other parts may create a hazard or cause
14
Troubleshooting
1. Over time, if the performance of the tool diminishes, or it stops working completely, it may be
necessary to replace the Carbon Brushes (34) by removing the Brush Holder (33). This
procedure should be completed by a qualified technician. If the Carbon Brushes are not worn
down, try cleaning the Carbon Brush tips with an ink eraser.
2. If the Sanding sleeve stops rotating when you touch it or press the stock material against it, turn
off the machine at once. Unplug the machine and check to make sure that the Hex Nut (1) s
threaded on tight to the Spindle (55).
15

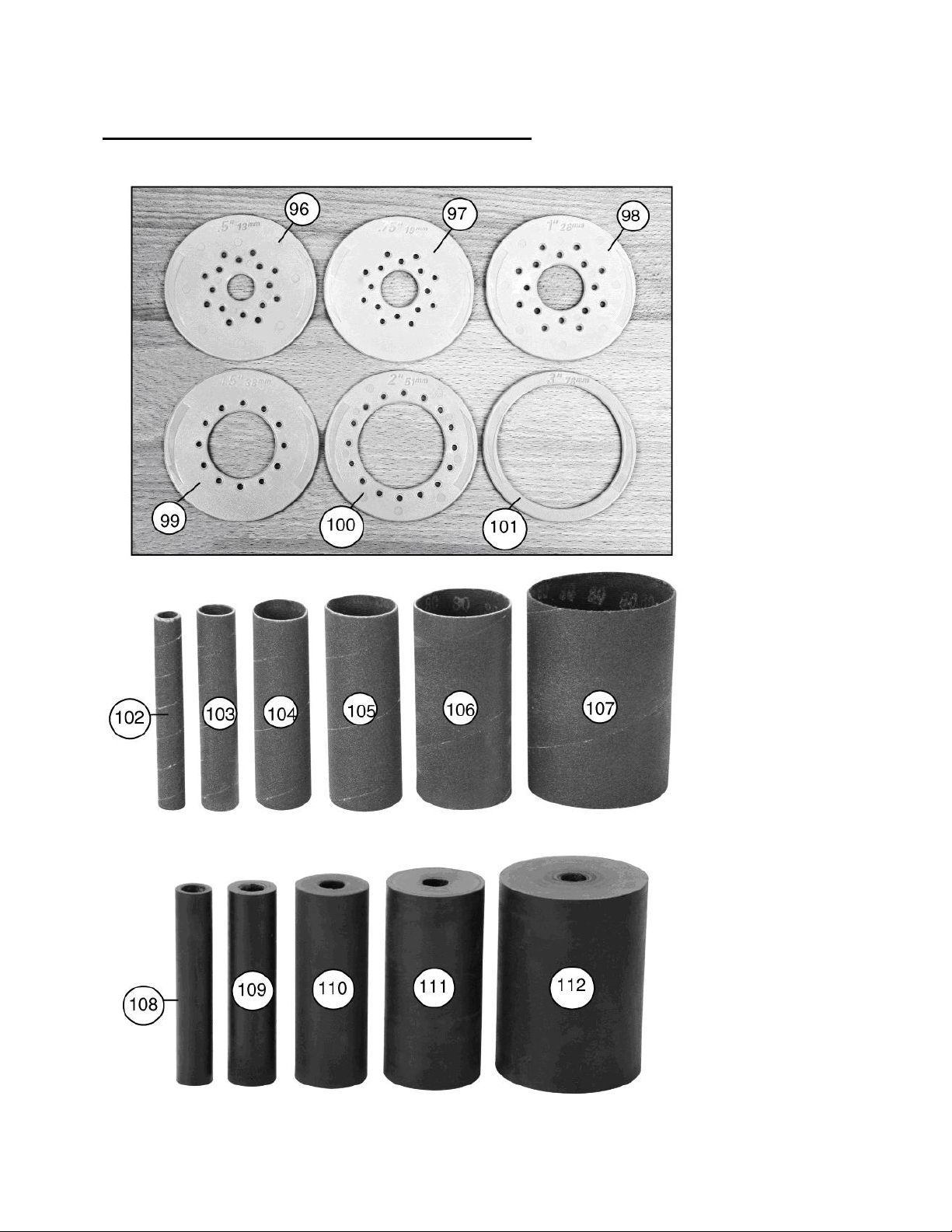

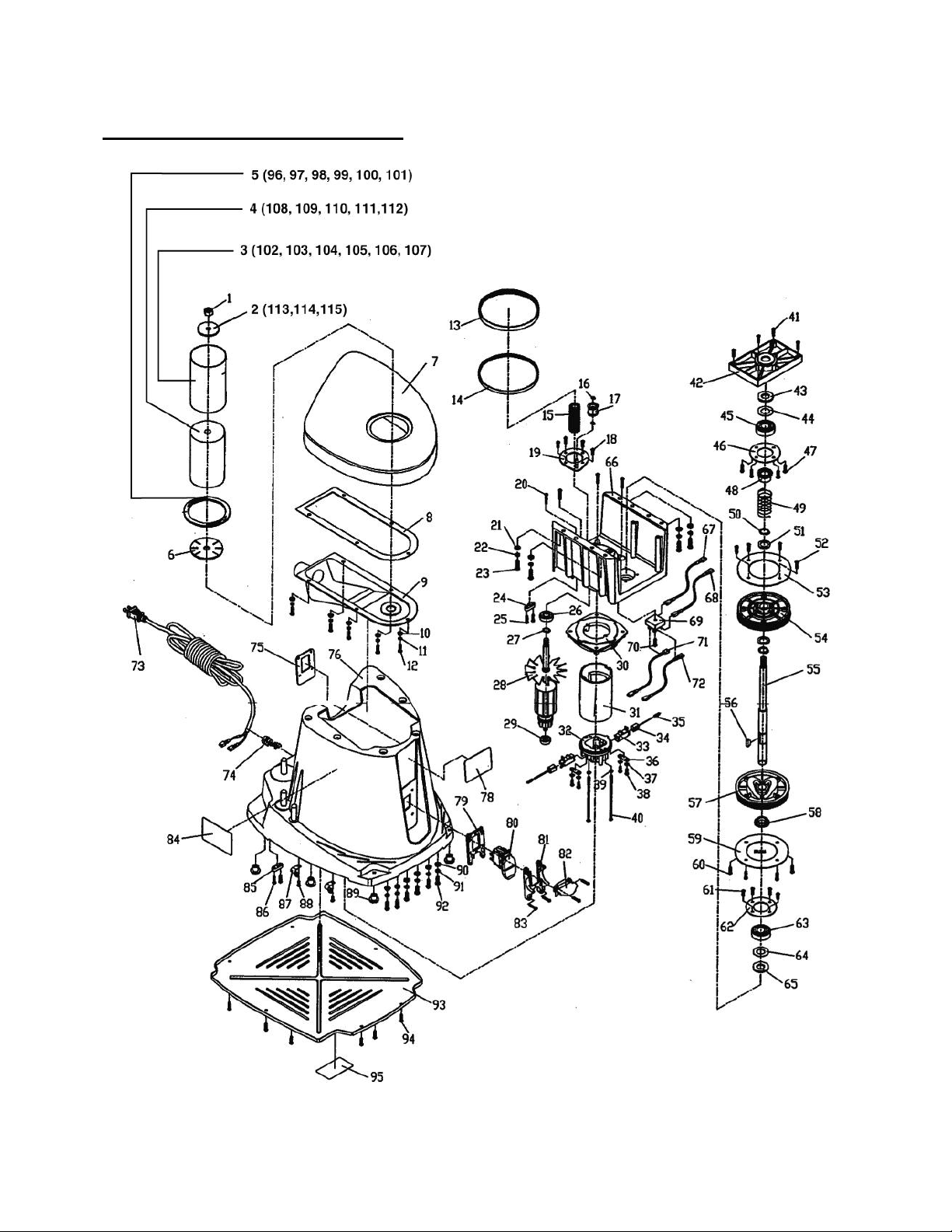

Exploded view and parts list
16
Exploded view and parts list (continued)
17
Exploded view and parts list (continued)
Part# Stock # Description Part# Stock # Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
90225‐001
90225‐002
90225‐003
90225‐004
90225‐005
90225‐006
90225‐007
90225‐008
90225‐009
90225‐010
90225‐011
90225‐012
90225‐013
90225‐014
90225‐015
90225‐016
90225‐017
90225‐018
90225‐019
90225‐020
90225‐021
90225‐022
90225‐023
90225‐024
90225‐025
90225‐026
90225‐027
90225‐028
90225‐029
90225‐030
90225‐031
90225‐032
90225‐033
90225‐034
90225‐035
90225‐036
90225‐037
90225‐038
90225‐039
90225‐040
90225‐041
Hex nut 10 42
Upper spindle washer 43
Sander sleeve 44
Rubber spindle 45
Throat plate 46
Lower spindle washer 47
Cast iron table 48
Dust washer 49
Dust cover 50
Washer 5 51
Spring washer 5 52
Screw 5x12 53
Belt 54
Belt Ⅱ
Belt wheel 56
Spring washer 57
Tension roller assembly 58
Screw 4.2x13 59
Orientation plate assembly 60
Screw 4.2x22 61
Washer 6 62
Spring washer 6 63
Screw 6x16 64
Cord clamp 65
Screw 4.2x15 66
Bearing 6001zz 67
Spring washer 68
Armature assembly 69
Bearing 608zz 70
Connection plate 71
Field assembly 72
Rear cover 73
Brush holder 74
Carbon brush 75
Brush spring 76
Cord clamp 78
Washer 4 79
Screw 4.2x13 80
Washer 4 81
Screw 4.2x110 82
Screw 4.2x22 83
55
90225‐042
90225‐043
90225‐044
90225‐045
90225‐046
90225‐047
90225‐048
90225‐049
90225‐050
90225‐051
90225‐052
90225‐053
90225‐054
90225‐055
90225‐056
90225‐057
90225‐058
90225‐059
90225‐060
90225‐061
90225‐062
90225‐063
90225‐064
90225‐065
90225‐066
90225‐067
90225‐068
90225‐069
90225‐070
90225‐071
90225‐072
90225‐073
90225‐074
90225‐075
90225‐076
90225‐078
90225‐079
90225‐080
90225‐081
90225‐082
90225‐083
Bearing Cover
Felt
Rubber washer
Bearing 6203zz
Bearing support
Screw 4.2x15
Bearing sleeve
Spring
Spring washer
Spindle washer
Screw 4.2x13
Wheel plate
Wheel(Ⅰ)
Spindle
Pin
Wheel(Ⅱ)
Bearing sleeve
Wheel plate
Screw 4.2x13
Screw 4.2x13
Bearing support
Bearing 6203zz
Rubber washer
Felt
Wheel support
Wire assembly(Ⅰ)
Wire assembly(Ⅱ)
Rectifier
Screw 4.2x19
Wire assembly(Ⅲ)
Wire assembly(Ⅳ)
Power cord
Cord clamp
Switch orientation plate
Housing base
Logo label
Switch orientation(Ⅰ)
Switch
Switch orientation(Ⅱ)
Switch assistant orientation
Screw 4x16
18
Exploded view and parts list (continued)
Part# Stock # Description Part# Stock # Description
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
90225‐084
90225‐085
90225‐086
90225‐087
90225‐088
90225‐089
90225‐090
90225‐091
90225‐092
90225‐093
90225‐094
90225‐095
90225‐096
90225‐097
90225‐098
90225‐099
Warning label(Ⅰ)
Cord clamp 101
Screw 4.2x15 102
Thread 103
Screw 4.2x10 104
Rubber foot 105
Washer 6 106
Spring washer 6 107
Screw 6x16 108
Bottom plate 109
Screw 4.2x13 110
Warning label(Ⅱ)
1/2”Throat plate 112
3/4”Throat plate 113
1” Throat plate 114
1-1/2” Throat plate 115
100
111
90225‐100
90225‐101
90225‐102
90225‐103
90225‐104
90225‐105
90225‐106
90225‐107
90225‐108
90225‐109
90225‐110
90225‐111
90225‐112
90225‐113
90225‐114
90225‐115
2”Throat plate
3” Throat plate
1/2”Sanding sleeve(80 grit)
3/4” Sanding sleeve(80 grit)
1” Sanding sleeve(80 grit)
1-1/2” Sanding sleeve(80 grit)
2” Sanding sleeve(80 grit)
3” Sanding sleeve(80 grit)
3/4”Rubber spindle
1” Rubber spindle
1-1/2” Rubber spindle
2” Rubber spindle
3” Rubber spindle
5/8”OD Rubber spindle
7/8” OD Rubber spindle
1-3/4” OD Rubber spindle
19
Warranty
WEN Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our
dedication to quality.
LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all WEN consumer power tools
will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety days for all WEN
products, if the tool is used for professional use.
SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted
by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in
material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or
Authorized Service Center. To make a claim under this Limited Warranty, please contact us at 1-800-232-1195.. To acquire service,
you will have to provide proof of purchase and may be asked to ship the tool back to us freight prepaid.
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL
BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE.
SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE ELECTRIC TOOLS, BENCH POWER TOOLS, OUTDOOR
POWER EQUIPMENT AND PNUMATIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND
THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
20
Loading...
