MODEL 40410
40V MAX LITHIUM ION
CORDLESS BLOWER
For replacement parts visit
WENPRODUCTS.COM
IMPORTANT:
Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.
If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.
Page 2
TABLE OF CONTENTS
Specifications .................................................................................. 2
Introduction .................................................................................... 3
General Safety Rules ....................................................................... 4
Specific Safety Rules for the Blower ................................................ 6
Specific Safety Rules for the Battery & Charger ............................... 8
About the Battery .......................................................................... 10
About the Charger ......................................................................... 11
Electrical Information .................................................................... 12
Know Your Blower ......................................................................... 13
Assembly & Adjustments .............................................................. 14
Operation ...................................................................................... 15
Maintenance .................................................................................. 16
Storage ......................................................................................... 17

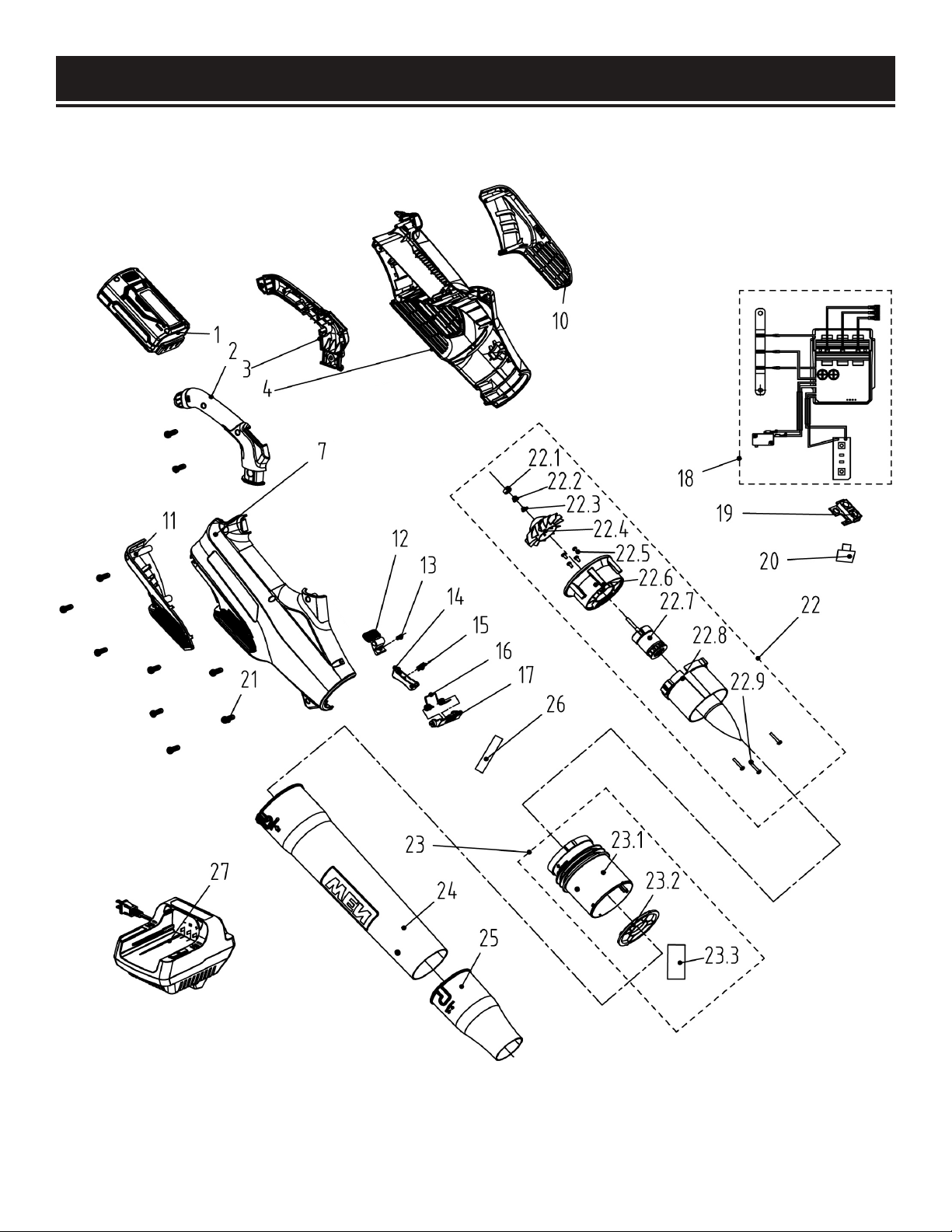

Exploded View & Parts List ........................................................... 18
Warranty Statement ....................................................................... 20
SPECIFICATIONS
Model Number 40410
Motor 40V Brushless Motor
Air Speed 92, 114, or 124 MPH
Air Flow 370, 450, or 480 CFM
Battery 40V Max Lithium Ion, 2Ah
Charger Input 100-120V AC, 60Hz, 100W
Charger Output 42V DC, 2A
Battery Model 40401
Charger Model 40400C
Weight with Battery 8.5 pounds
WEN plans to continue to add more and more items to our 40V line. For an up-to-date list of the
40V cordless tools compatible with the included battery and charger, visit wenproducts.com and
search model number 40401 (2Ah) or 40404 (4Ah). In the battery’s description, there will be a
list of current products that this battery can be used with.
2
Page 3
INTRODUCTION
Thanks for purchasing the WEN 40V Max Lithium Ion Cordless Blower. We know you are excited to
put your tool to work, but first, please take a moment to read through the manual. Safe operation
of this tool requires that you read and understand this operator’s manual and all the labels affixed
to the tool. This manual provides information regarding potential safety concerns, as well as helpful
assembly and operating instructions for your tool.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and
For replacement parts visit
the explanations with them deserve your careful attention and understanding. Always follow the
safety precautions to reduce the risk of fire, electric shock and personal injury. However, please
WENPRODUCTS.COM
note that these instructions and warnings are not substitutes for proper accident prevention
measures.
NOTE: The following safety information is not meant to cover all possible conditions and situations
that may occur. WEN reserves the right to change this product and specifications at any time without
prior notice.
Keep this manual available to all users during the entire life of the tool and review it frequently
to maximize safety for both yourself and others.
3
Page 4
GENERAL SAFETY RULES
Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: Read and understand all warnings, cautions and operating instructions before
using this tool. Failure to follow all instructions listed below may result in personal injury and tool
damage. To reduce the risk of fire, electric shock, or injury, follow the below precautions.
WORK AREA SAFETY
1. Remove the battery when the power tool is not in use and before servicing. Turn off all controls on
the tool before removing the battery.
2. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control. Do not allow this tool to be used as a toy.
4. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Do not put any objects into the tool’s openings. Do not use the tool with any opening blocked;
keep openings free of dust, lint, hair, or any other object that may reduce air flow.
7. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and fingers away
from openings and moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
8. Be aware of your environment. It is not recommended to use this tool on stairs, slippery inclines,
wet surfaces, etc.
9. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
4
Page 5
GENERAL SAFETY RULES
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes and hearing protection used for appropriate conditions will reduce
the risk of personal injury.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energizing power tools that have the switch on invites accidents.
4. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
BATTERY USE AND CARE
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
5
Page 6
SPECIFIC SAFETY RULES FOR THE BLOWER
Safety is a combination of common sense, staying alert and knowing how your item works.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: Read and understand all warnings, cautions and operating instructions before
using this tool. Failure to follow all instructions listed below may result in personal injury and tool
damage.
WARNING: Do not let comfort or familiarity with the product replace strict adherence to
product safety rules. Failure to follow the safety instructions may result in serious personal injury.
1. TOOL PURPOSE. The blower has been designed to clear light debris and leaves from hard surfaces
– not for clearing grassed areas. This blower is intended for household use only. Commercial use of
this product is prohibited and will void the manufacturer’s warranty. Do not push it beyond its limits
or its capacities. Using the blower in a way for which it was not designed can result in serious injuries,
machine damage and voiding of the warranty. Only use with WEN 40V Max Lithium Ion battery 40401.
2. CHARGING. Do not charge the battery outdoors. Do not charge battery in rain, or in wet locations.
Only use the charger supplied by the manufacturer to recharge.
3. DO NOT OVERREACH. Keep firm footing and maintain good balance at all times. Overreaching can
result in loss of balance.
4. Do not use the tool if the power switch does not turn it ON or OFF. Any tool that cannot be controlled
with the switch is dangerous and must be repaired.
5. Carefully inspect your appliance prior to use and follow all label and marking instructions.
6. Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
7. Do not put any object into the tool’s openings. Do not use the tool with any opening blocked; keep
openings free of dust, lint, hair, or any other object that may reduce air flow.
8. Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or
string, which can be thrown or become entangled in the machine.
9. Service on the product must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.
10. Never run the unit without the proper equipment attached. Always ensure the blower tube is properly installed.
11. Always grasp the handle when operating the unit, only operate the machine in its intended orientation.
12. Do not handle charger, including charger plug, and charger terminals with wet hands.
13. Do not use battery-operated appliance in rain.
6
Page 7
SPECIFIC SAFETY RULES FOR THE BLOWER
WARNING: To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault
Circuit Interrupter (GFCI) to reduce shock hazards.
14. Remove or disconnect the battery before servicing, cleaning, or removing material from the appliance.
15. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.
16. Do not open or mutilate the battery. Release electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
17. Exercise care in handling batteries in order not to short the battery with conducting materials such
as rings, bracelets, and keys. The battery or conductor may overheat and cause burns
18. When operating the unit, never point the blower nozzle in the direction of people or pets or in the
direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles, and walls.
19. Be sure to secure the unit when transporting it.
20. Never get the unit wet with water or any other liquid. Clean the unit after each use as described in
the cleaning and storage section.
21. When operating the unit, never point the blower nozzle in the direction of people or pets or in the
direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles, and walls.
7
Page 8
SPECIFIC SAFETY RULES FOR THE BATTERY & CHARGER
WARNING: Do not let comfort or familiarity with the product replace strict adherence to
product safety rules. Failure to follow the safety instructions may result in serious personal injury.
Despite all the safety precautions, caution must always be exercised when handling batteries. The
following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if
undamaged cells are used. Incorrect handling of the battery pack can cause cell damage.
1. TOOL PURPOSE. This charger is designed for recharging WEN 40V Max Lithium Ion batteries (model numbers 40401 and 40404). Charging any other battery or using a different charger to charge these
batteries could result in fire, injury, or damage. Using the charger for any other purpose for which it is
not designed may result in serious injuries, machine damage and voiding of the warranty.
2. AVOID DANGEROUS ENVIRONMENTS. Do not charge the battery pack in rain, snow or in damp or
wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a fire. Do not charge the unit indoors.
3. CHARGE IN A WELL-VENTILATED AREA. Do not block the charger vents. Keep them clear to allow
for proper ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases
may explode.
NOTE: The safe temperature range for charging the battery is 50°F to 104°F. Do not charge the battery
outside in freezing weather; charge it at room temperature.
4. MAINTAIN CHARGER CORD. When unplugging the charger, pull the plug, not the cord, from the
receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its
cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and
sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress
when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged
charger immediately.
5. DO NOT USE AN EXTENSION CORD UNLESS IT IS ABSOLUTELY NECESSARY. Using the wrong,
damaged or improperly wired extension cord poses a risk of fire and electric shock. If an extension
cord must be used, plug the charger into a properly-wired 16AWG or larger extension cord with the
female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.
6. CHARGER IS RATED FOR 120V, 60Hz AC ONLY. The charger must be plugged into an appropriate
receptacle.
7. USE ONLY RECOMMENDED ATTACHMENTS. Use of an attachment not recommended or sold by
WEN Products may result in risk of fire, electric shock or personal injury.
8. UNPLUG CHARGER WHEN NOT IN USE. Make sure to remove battery packs from unplugged chargers.
8
Page 9
SPECIFIC SAFETY RULES FOR THE BATTERY & CHARGER
WARNING: To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault
Circuit Interrupter (GFCI) to reduce shock hazards.
9. DO NOT BURN OR INCINERATE BATTERY PACKS. Battery packs may explode, causing personal
injury or damage. Toxic fumes and materials are created when battery packs are burned.
10. DO NOT CRUSH, DROP OR DAMAGE BATTERY PACKS. Do not use the battery pack or charger
if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (e.g.
pierced with a nail, hit with a hammer, stepped on, etc.).
11. DO NOT DISASSEMBLE. Incorrect reassembly may pose a serious risk of electric shock, fire or
exposure to toxic battery chemicals. If the battery or charger are damaged, call WEN customer service
at 1-800-232-1195 for assistance.
12. BATTERY CHEMICALS CAUSE SERIOUS BURNS. Never let a damaged battery pack contact the
skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves
to safely dispose of it. If skin is exposed to battery fluids, wash the affected area with soap and water
and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20
minutes and seek medical attention. Remove and dispose of contaminated clothing.
13. DO NOT SHORT CIRCUIT. A battery pack will short circuit if a metal object makes a connection
between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as paper clips, coins, keys, screws, nails and other metallic
objects. A short-circuited battery pack poses a risk of fire and severe personal injury.
14. STORE YOUR BATTERY PACK AND CHARGER IN A COOL, DRY PLACE. Do not store the battery
pack or charger where temperatures may exceed 104°F, such as in direct sunlight or inside a vehicle or
metal building during the summer.
9
Page 10
ABOUT THE BATTERY
WARNING: Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
WARNING: To reduce risk of injury, charge only WEN batteries with this charger. Other types
of batteries may burst causing personal injury and damage.
ABOUT THE BATTERY
1. The battery pack supplied with your cordless tool is only partially charged. The battery pack has to
be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the
latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery
pack are no longer capable of meeting the high power requirements needed for the proper operation of
your tool, and therefore pose a safety risk.
4. Do not throw battery packs into an open fire as this poses a risk of explosion. Do not ignite the battery pack or expose it to fire.
5. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The
most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.
6. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell
damage inside the battery housing even if this overheating is not apparent externally.
7. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of
more than one meter or those that have been exposed to violent shocks, even if the housing of the
battery pack appears to be undamaged. The battery cells inside the battery may have suffered serious
damage. In such instances, please read the waste disposal information for proper battery disposal.
8. If the battery pack suffers overloading and overheating, the integrated protective cutoff will switch
off the equipment for safety reasons.
9. Use only original battery packs. The use of other batteries poses a fire risk and may result in injuries
or an explosion.
10. You must fully charge the battery every 3 months. See the tables on pages 13 & 14 to understand
what the LED lights on your battery and charger indicate.
10
Page 11
ABOUT THE CHARGER
WARNING: Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
WARNING: To reduce risk of injury, charge only WEN batteries with this charger. Other types
of batteries may burst causing personal injury and damage.
ABOUT THE CHARGER
Protect the battery charger and its cord from damage. Keep the charger and its cord away from heat,
oil and sharp edges. Electrical plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with grounded appliances. Unmodified plugs and matching outlets will reduce
the risk of electric shock.
Keep the battery charger, battery pack(s) and the cordless tool out of the reach of children. Do not use
the supplied battery charger to charge other cordless tools. During periods of heavy use, the battery
pack will become warm. Allow the battery pack to cool to room temperature before inserting it into the
charger to recharge.
Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only
apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will
result in overcharging and cell damage. Do not leave battery in the charger for days on end. Never use
or charge a battery if you suspect that it has been more than 12 months since the last time they were
charged. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge). Do not use battery that have been exposed to heat during the charging process, as
the battery cells may have suffered dangerous damage. Do not use battery that have suffered curvature
or deformation during the charging process or those that exhibit other atypical symptoms (gassing,
hissing, cracking, etc.)
11
Page 12
ELECTRICAL INFORMATION
1. POLARIZED PLUGS. To reduce the risk of electric shock, this equipment has a polarized plug (one blade
is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do
not modify the machine plug or the extension cord in any way.
2. GROUND FAULT CIRCUIT INTERRUPTER PROTECTION (GFCI) should be provided on the circuit or outlet
used for this power tool to reduce the risk of electric shock.
3. SERVICE AND REPAIR. To avoid danger, electrical appliances must only be repaired by qualified service
technician using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The
table below shows the correct size to be used according to cord length and ampere rating. When in doubt,
use a heavier cord. The smaller the gauge number, the heavier the cord.
AMPERAGE
25 ft. 50 ft. 100 ft. 150 ft.
2.5A 18 gauge 16 gauge 14 gauge 12 gauge
1. EXAMINE EXTENSION CORD BEFORE USE. Make sure your extension cord is properly wired and in
good condition. Always replace a damaged extension cord or have it repaired by a qualified person before
using it.
2. DO NOT ABUSE EXTENSION CORD. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord. Protect your extension cords from sharp objects, excessive heat and damp/
wet areas.
3. USE A SEPARATE ELECTRICAL CIRCUIT FOR YOUR TOOL. This circuit must not be less than a
12-gauge wire and should be protected with a 15A time-delayed fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and the electric current is rated the same as the
current stamped on the motor nameplate. Running at a lower voltage will damage the motor.
REQUIRED GAUGE FOR EXTENSION CORDS
12
Page 13
KNOW YOUR BLOWER
TOOL PURPOSE
This blower is designed for blowing leaves. Refer to the diagram below to become familiarized with the
parts and controls of your 40V Max Lithium Ion Cordless Blower.
1
2
NOTE:
the high velocity nozzle tip from inside blower tube before operation.
The high velocity nozzle tip comes packaged inside the blower tube. Remove
3
4
5
1 Carrying Handle
2 Power Trigger
3 High Speed Button
4 Turbo Speed Button
5 Blower Tube
6 High Velocity Nozzle Tip
6
Red
Light
On Off Standby
On Flashing Charging The battery is charging.
Off On Fully Charged The battery is fully charged and should be removed from the charger.
Flashing Off Error
Flashing Flashing
Green
Light
Status Charger LED Light Details
The battery is not connected and charger is in standby mode.
There is a problem with the battery. Contact customer service at
1-800-232-1195 for assistance in replacing the battery.
The temperature is either too high or too low. If the battery is warm, re-
Temperature
Error
move it from the charger for a few minutes to let it cool down. Once the
temperature returns to the normal temperature range (50°F - 104°F),
you can continue charging the battery.
Table A
13
Page 14
ASSEMBLY AND ADJUSTMENTS
WARNING: Do not plug in or turn on the tool until it is fully assembled according to the
instructions. Failure to follow the safety instructions may result in serious personal injury.
REMOVING AND CHARGING THE BATTERY
1. Press the battery release button (on top of the battery compartment) and slide the battery out of the
blower.
2. Slide the battery into the charger. Refer to Tables A (p. 12) & B (below) to understand what the
lights on the battery and charger indicate.
3. If using the battery, take the battery off of the charger and place it in your desired WEN tool. If
storing the battery, unplug the charger and leave the battery in the charger.
4. Unplug the charger from the power source when charging is complete. Never leave your charger
plugged in if it is not charging a battery.
ATTACH/REMOVE THE BATTERY
Note: The battery is not fully charged at the time of purchase. Before using the blower for the first
time, place the battery in the charger and charge it fully.
To insert the battery (Fig. 1), slide it into the battery compartment until a “click” is heard. Make sure
the battery is fully inserted and latched into position. To remove the battery, press the battery release
button (on top of the battery compartment) and slide the battery out of the blower.
Fig. 1
Number of Lights On Battery LED Light Details
All 4
3 - 2 The battery is partially charged.
The battery is fully charged and ready for use.
14
1 Blinking
The battery is dead and needs to be immediately recharged. If you do
not charge the battery right away, the battery’s lifetime will be drastical-
ly shortened. You should not let your battery go below a 20% charge;
this will preserve your battery’s life.
Table B
Page 15
OPERATION
WARNING: Always wear safety glasses. Wear a filter mask if the operation is dusty. Use of
proper gloves and substantial footwear is recommended when working outdoors.
NOTE:
the high velocity nozzle tip from inside blower tube before operation.
The high velocity nozzle tip comes packaged inside the blower tube. Remove
ON/OFF SWITCH (FIG. 2)
To turn the tool ON: press the power trigger. The blow-
er will run at LOW SPEED (92 MPH).
To turn the tool OFF: release the power trigger.
CHANGING THE SPEED (FIG. 2)
There are two speed buttons on top of the 40V blower.
The lower button changes the speed to HIGH SPEED
(114 MPH). The upper button changes the speed to
TURBO SPEED (124 MPH).
High
Speed
Turbo
Speed
Trigger
Switch
Pressing either button once will engage said speed.
Pressing it a second time will disengage the speed,
bringing the blower back to its original LOW SPEED
(92 MPH).
Fig. 2
NOTE: Turbo speed has been designed to auto-shut off after 35 seconds, reverting the blower back to
its low speed.
15
Page 16
MAINTENANCE
WARNING: In order to avoid personal injury and the risk of fire and electric shock, remove
the battery pack before adjusting, inspecting, or cleaning the blower.
WARNING: Any attempt to repair or replace electrical parts on this tool may be hazardous.
Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.
WARNING: Fully charge your battery every 3 months to preserve your battery’s life. Do not
let your battery get below 20% charge; this will cause your battery to prematurely fail. See Tables
A and B below to understand what the LED lights on your charger and battery indicate.
CLEANING & STORAGE
1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air
vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in
water.
2. Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong
solvents or detergents on the plastic housing or plastic components. Certain household cleaners may
cause damage, and may cause a shock hazard.
STORING THE BATTERY AND CHARGER
See charging instructions on page 14.
• Make sure the battery is fully charged before storage in order to maximize the life of the battery.
• Do not store the battery pack on the tool. Remove the battery from the tool before storage.
• After charging, the battery pack may be stored in the charger, as long as the charger is not
plugged in.
• Store the charger at normal room temperature. Do not store it in excessive heat. Do not use the
charger in direct sunlight or in damp conditions. Do not charge outside. Recharge at room temperature.
• Keep the charger clean and clear of debris. Do not allow foreign material to get into the recessed
cavity or onto the contacts. Wipe the charger clean with a dry cloth. Do not use solvents or water,
and do not place the charger in wet conditions.
• Always unplug the charger when charging is complete. Never leave your charger plugged in if it is
not charging a battery.
16
Page 17
STORAGE
Examine the blower thoroughly for worn, loose or damaged parts. If you need assistance, contact
WEN customer service at 1-800-232-1195.
Remove the battery from the tool before storing and unplug the charger before storing.
Store your blower, battery pack and charger in a cool, dry place – do not store the battery pack or
charger where temperatures may exceed 104°F, such as in direct sunlight or inside a vehicle or metal
building during the summer. Always store battery and charger indoors.
THIS SHIPMENT CONTAINS LITHIUM ION BATTERIES:
Please handle with care. Fragile contents. Keep dry.
A flammable hazard exits if this package becomes damaged.
Special procedures must be followed in the event this package becomes damaged. Call the number
below for a Safety Data Sheet.
For more information call 800-232-1195.
17
Page 18
EXPLODED VIEW & PARTS LISTEXPLODED VIEW & PARTS LIST
18
Page 19
EXPLODED VIEW & PARTS LISTEXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 40401 2.0Ah Battery 1
2 40410-002 Right Handle 1
3 40410-003 Left Handle 1
4 40410-004 Left Housing 1
7 40410-007 Right Housing 1
10 40410-010 Left Air Inlet 1
11 40410-011 Right Air Inlet 1
12 40410-012 Battery Latch 1
13 40410-013 Spring 1
14 40410-014 Switch 1
15 40410-015 Spring 1
16 40410-016 Reset Spring 1
17 40410-017 Spring Support 1
18 40410-018 Electrical Components 1
19 40410-019 Speed Control 1
20 40410-020 Button 2
21 40410-021 Screw 10
22 40410-022 Fan Assembly 1
23 40410-023 Diffusion Assembly 1
22.1 40410-022.1 Plug 1
22.2 40410-022.2 Hex Nuts with Flange 1
22.3 40410-022.3 Washer 1
22.4 40410-022.4 Fan 1
22.5 40410-022.5 Screw 4
22.6 40410-022.6 Gear 1
22.7 40410-022.7 Brushless Motor 1
22.8 40410-022.8 Rectifier 1
22.9 40410-022.9 Screw 3
23.1 40410-023.1 Diffusion Tube 1
23.2 40410-023.2 Damper Screen 1
23.3 40410-023.3 Insulator 2
24 40410-024 Blow Tube 1
25 40410-025 Nozzle 1
26 40410-026 Heat Shrink Tube 1
27 40400C Charger 1
19
Page 20
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent
with this commitment and our dedication to quality.
LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of two (2) years from
date of purchase. Ninety days for all WEN products if the tool is used for professional or commercial use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the
extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of
parts, without charge, which are defective in material or workmanship and which have not been misused,
carelessly handled, or misrepaired by persons other than Seller or Authorized Service Center. To make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly defines the Date of Purchase (month and year) and the Place of Purchase. Place of purchase must
be a direct vendor of Great Lakes Technologies, LLC. Third party vendors such as garage sales, pawn
shops, resale shops, or any other secondhand merchant void the warranty included with this product.
Contact [email protected] or 1-800-232-1195 to make arrangements for repairs and transportation.
When returning a product for warranty service, the shipping charges must be prepaid by the purchaser.
The product must be shipped in its original container (or an equivalent), properly packed to withstand
the hazards of shipment. The product must be fully insured with a copy of the warranty card and/or the
proof of purchase enclosed. There must also be a description of the problem in order to help our repairs
department diagnose and fix the issue. Repairs will be made and the product will be returned and shipped
back to the purchaser at no charge.
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS THAT WEAR OUT FROM REGULAR
USAGE OVER TIME INCLUDING BELTS, BRUSHES, BLADES, ETC. ANY IMPLIED WARRANTIES SHALL
BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S.,
SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE
OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND
FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE ELECTRIC TOOLS, BENCH POWER TOOLS,
OUTDOOR POWER EQUIPMENT AND PNEUMATIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN
OTHER COUNTRIES, CONTACT THE WEN CUSTOMER SUPPORT LINE.
THANKS FOR REMEMBERING
20
Loading...
