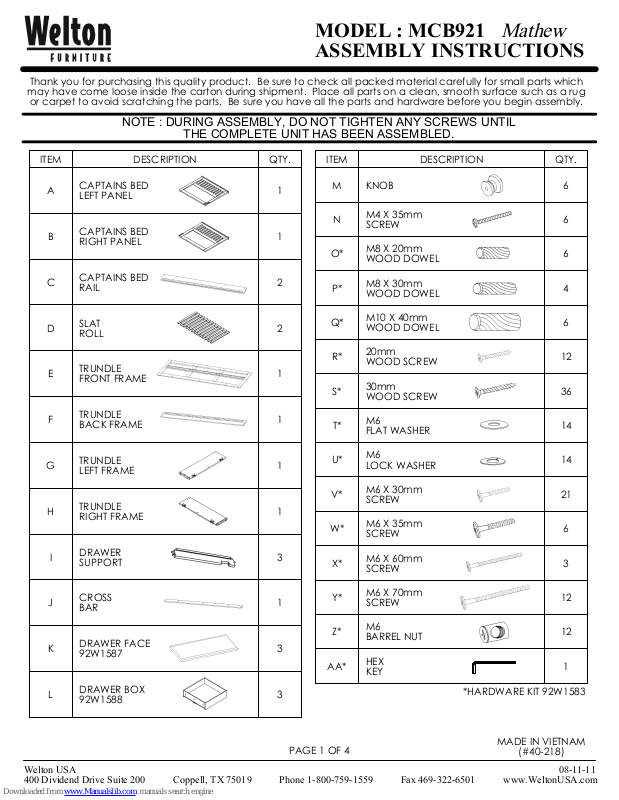

Page 1
MODEL : MCB921
Mathew
ASSEMBLY INSTRUCTIONS
Thank you for purchasing this quality product. Be sure to check all packed material carefully for small parts which
may have come loose inside the carton during shipment. Place all parts on a clean, smooth surface such as a rug
or carpet to avoid scratching the parts. Be sure you have all the parts and hardware before you begin assembly.
NOTE : DURING ASSEMBLY, DO NOT TIGHTEN ANY SCREWS UNTIL
THE COMPLETE UNIT HAS BEEN ASSEMBLED.

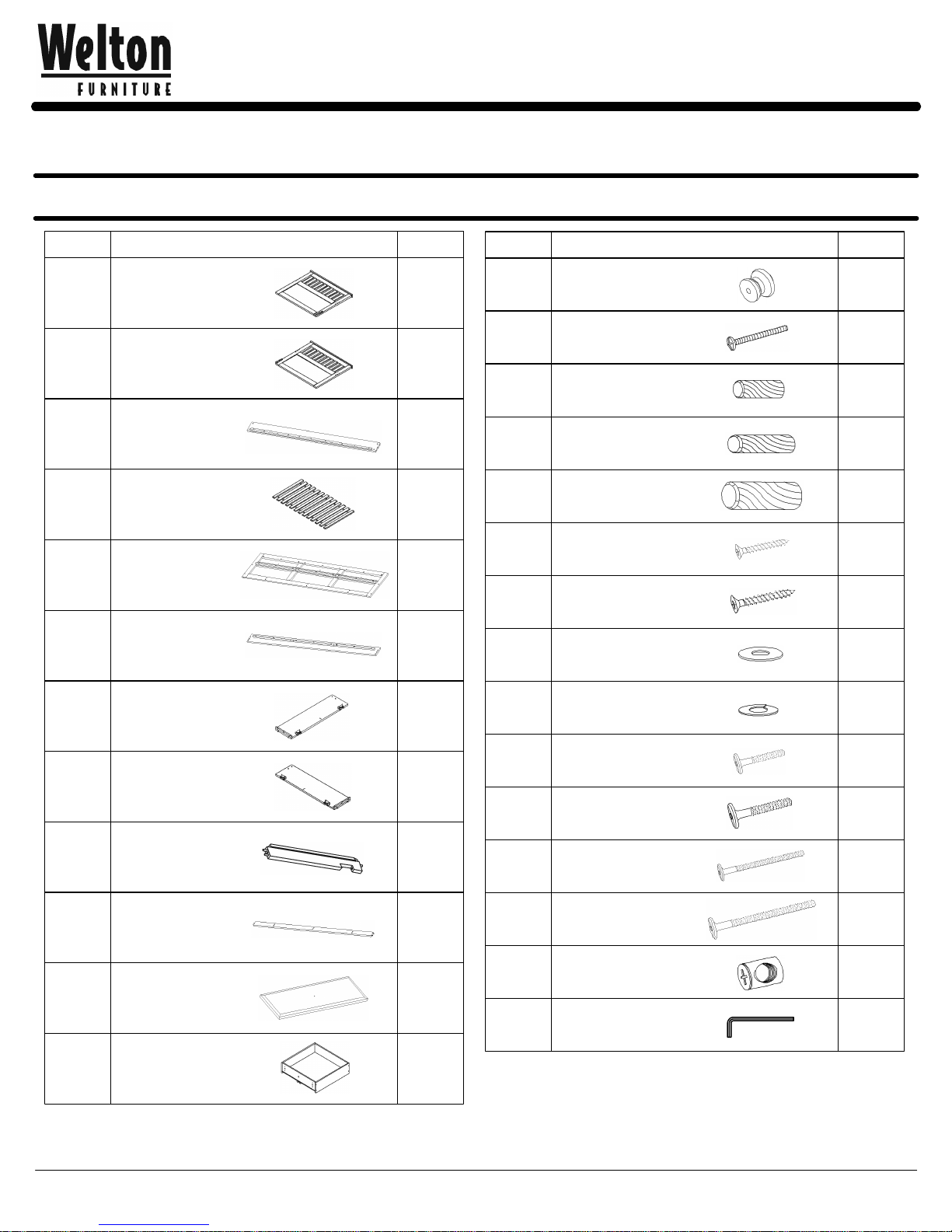

ITEM
A
B
C
D
E
F
DESCRIPTION
CAPTAINS BED
LEFT PANEL
CAPTAINS BED
RIGHT PANEL
CAPTAINS BED
RAIL
SLAT
ROLL
TRUNDLE
FRONT FRAME
TRUNDLE
BACK FRAME
QTY.
1
1
2
2
1
1
ITEM
M
N
O*
P*
Q*
R*
S*
T*
DESCRIPTION
KNOB
M4 X 35mm
SCREW
M8 X 20mm
WOOD DOWEL
M8 X 30mm
WOOD DOWEL
M10 X 40mm
WOOD DOWEL
20mm
WOOD SCREW
30mm
WOOD SCREW
M6
FLAT WASHER
QTY.
6
6
6
4
6
12
36
14
TRUNDLE
G
LEFT FRAME
TRUNDLE
H
RIGHT FRAME
DRAWER
I
SUPPORT
CROSS
J
BAR
DRAWER FACE
K
92W1587
DRAWER BOX
L
92W1588
1
1
3
1
3
3
PAGE 1 OF 4
U*
V*
W*
X*
Y*
Z*
AA*
M6
LOCK WASHER
M6 X 30mm
SCREW
M6 X 35mm
SCREW
M6 X 60mm
SCREW
M6 X 70mm
SCREW
M6
BARREL NUT
HEX
KEY
14
21
6
3
12
12
1
*HARDWARE KIT 92W1583
MADE IN VIETNAM
(#40-218)
Welton USA 08-11-11
400 Dividend Drive Suite 200 Coppell, TX 75019 Phone 1-800-759-1559 Fax 469-322-6501 www.WeltonUSA.com
Page 2
MODEL : MCB921
Mathew
ASSEMBLY INSTRUCTIONS

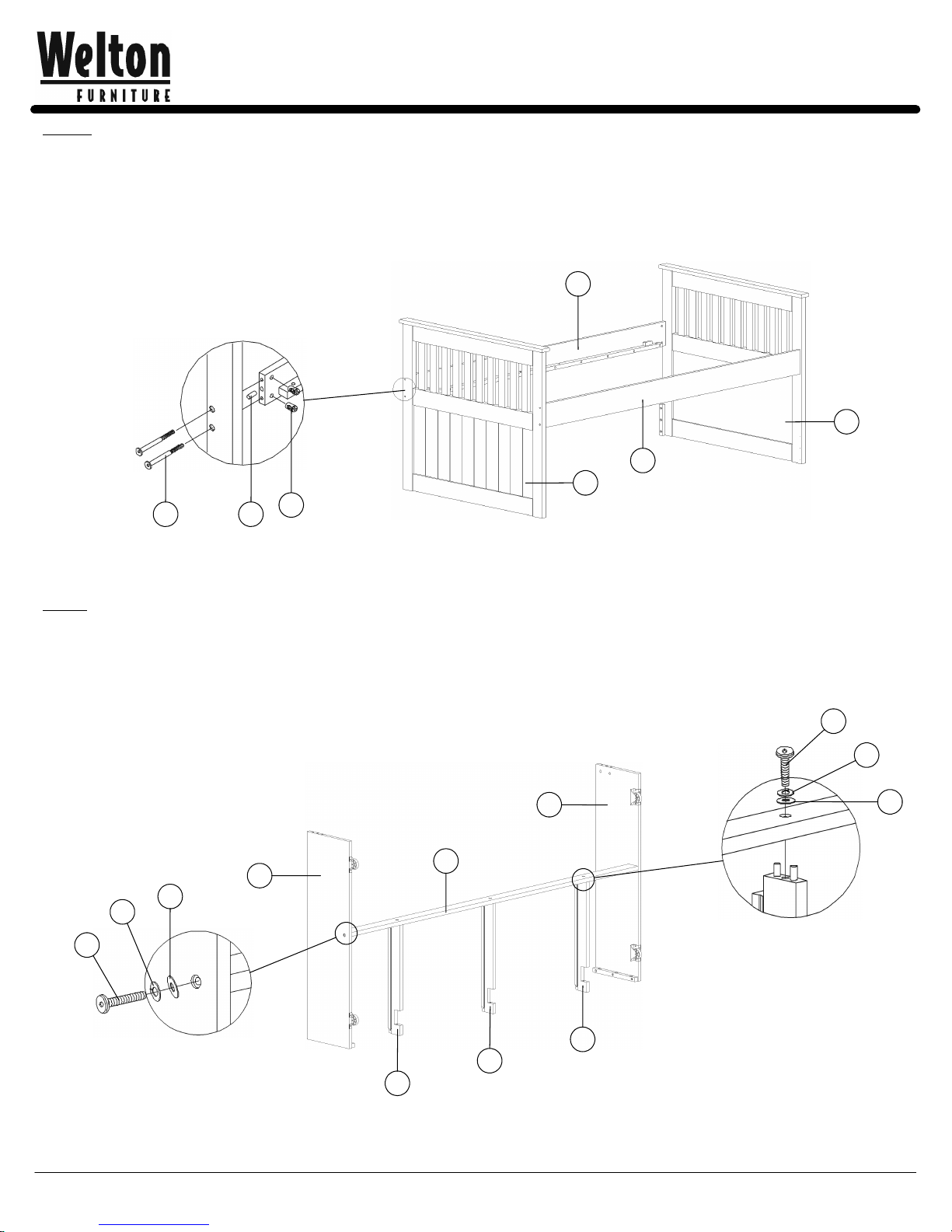

STEP 1:
ATTACH 2 RAILS(C) TO LEFT AND RIGHT PANELS(A,B) WITH 4 DOWELS(Q), 8 SCREWS(Y) AND 8 BARREL NUTS(Z) USING
HEX KEY(AA) AS SHOWN.
C
B
C
A
Z
Y
Q
STEP 2
ATTACH LEFT AND RIGHT FRAMES(G,H) TO CROSS BAR(J) WITH 2 FLAT WASHERS(T), 2 LOCK WASHERS(U) AND
2 SCREWS(V).
ATTACH 3 DRAWER SUPPORTS(I) TO THE ASSEMBLY WITH 3 FLAT WASHERS(T), 3 LOCK WASHERS(U) AND 3 SCREWS(V).
V
U
G
J
H
T
U
V
I
I
I
T
PAGE 2 OF 4
Welton USA
400 Dividend Drive Suite 200 Coppell, TX 75019 Phone 1-800-759-1559 Fax 469-322-6501 www.WeltonUSA.com
Page 3
MODEL : MCB921
Mathew
ASSEMBLY INSTRUCTIONS

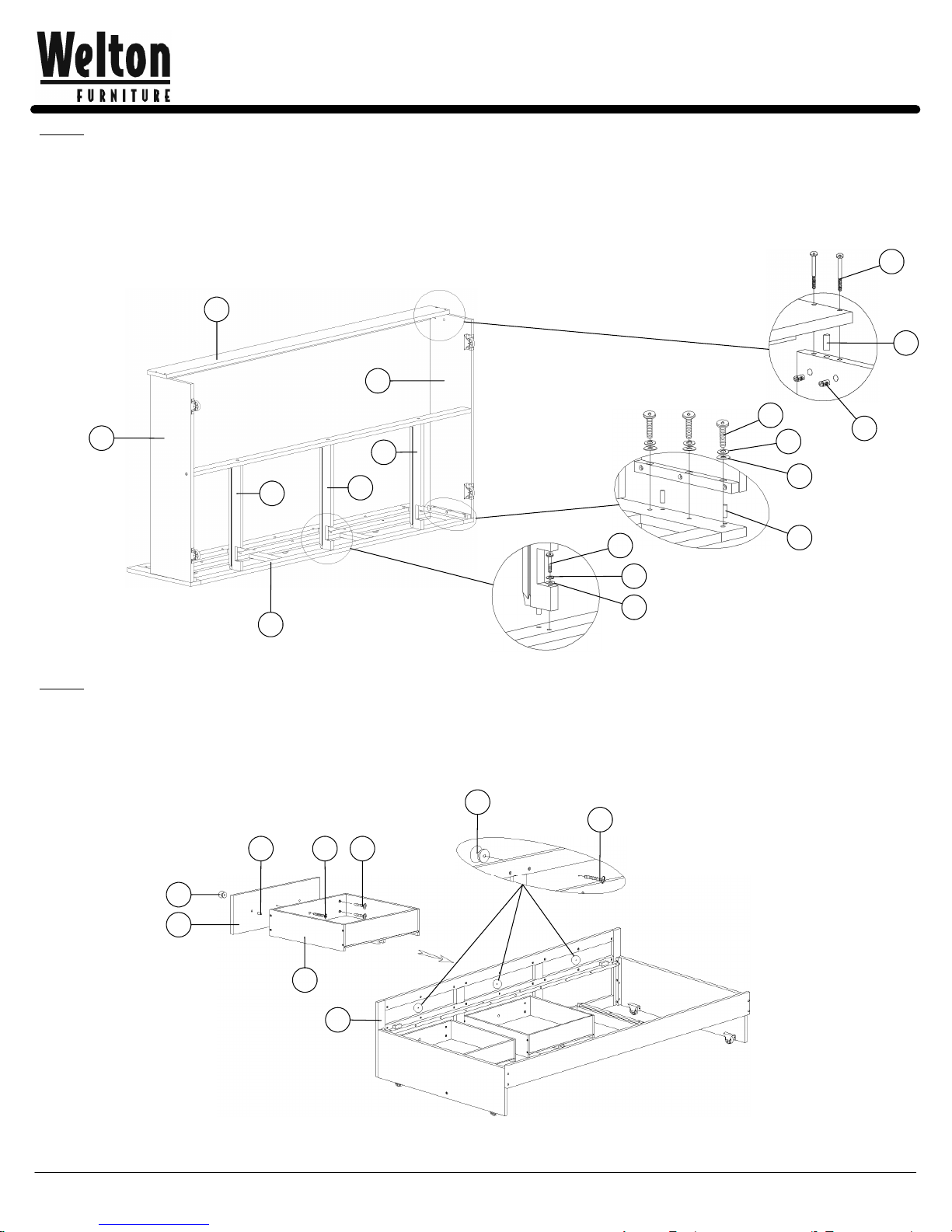

STEP 3
ATTACH LEFT AND RIGHT FRAME(G,H) TO FRONT FRAME(E) WITH 4 DOWELS(P), 6 FLAT WASHERS(T), 6 LOCK WASHERS(U)
AND 6 SCREWS(W).
ATTACH EACH DRAWER SUPPORT(I) TO FRONT FRAME(E) WITH 1 FLAT WASHER(T), 1LOCK WASHER(U) AND 1 SCREW(X).
ATTACH BACK FRAME(F) TO LEFT AND RIGHT FRAME(G,H) WITH 2 DOWELS(Q), 4 SCREWS(Y) AND 4 BARREL NUTS(Z).
Y
F
Q
G
W
H
I
I
I
X
U
T
P
Z
U
T
E
STEP 4
ATTACH EACH DRAWER FACE(K) TO A DRAWER BOX(L) WITH 2 WOOD DOWELS(O) AND 4 WOOD SCREWS(R).
ATTACH 1 KNOB(M) TO EACH DRAWER FACE(K) WITH 1 SCREW(N). ATTACH 3 KNOBS(M) TO FRONT FRAME(E) WITH
3 SCREWS(N).
SLIDE EACH DRAWER INTO PLACE AS SHOWN.
M
N
O
N
R
M
K
L
E
PAGE 3 OF 4
Welton USA
400 Dividend Drive Suite 200 Coppell, TX 75019 Phone 1-800-759-1559 Fax 469-322-6501 www.WeltonUSA.com
Page 4
MODEL : MCB921
ASSEMBLY INSTRUCTIONS

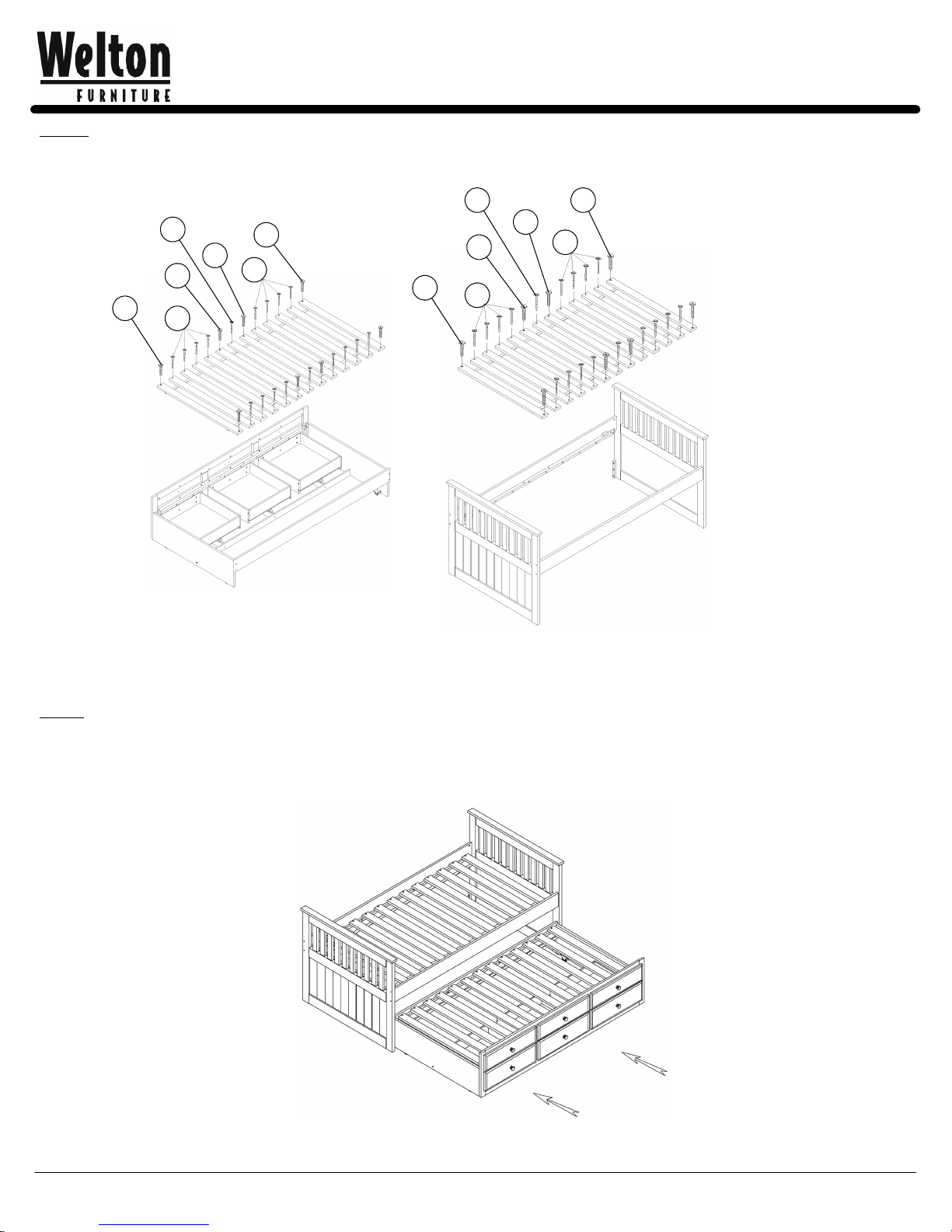

STEP 5:
ATTACH A SLAT ROLL(D) TO EACH BED WITH 18 WOOD SCREWS(S) AND 8 SCREWS(V) AS SHOWN.
Mathew
V
S
S
V
V
S
V
S
V
V
V
S
V
S
STEP 6
SLIDE THE TRUNDLE BED UNDERNEATH THE CAPTAINS BED AS SHOWN.
PAGE 4 OF 4
Welton USA
400 Dividend Drive Suite 200 Coppell, TX 75019 Phone 1-800-759-1559 Fax 469-322-6501 www.WeltonUSA.com
