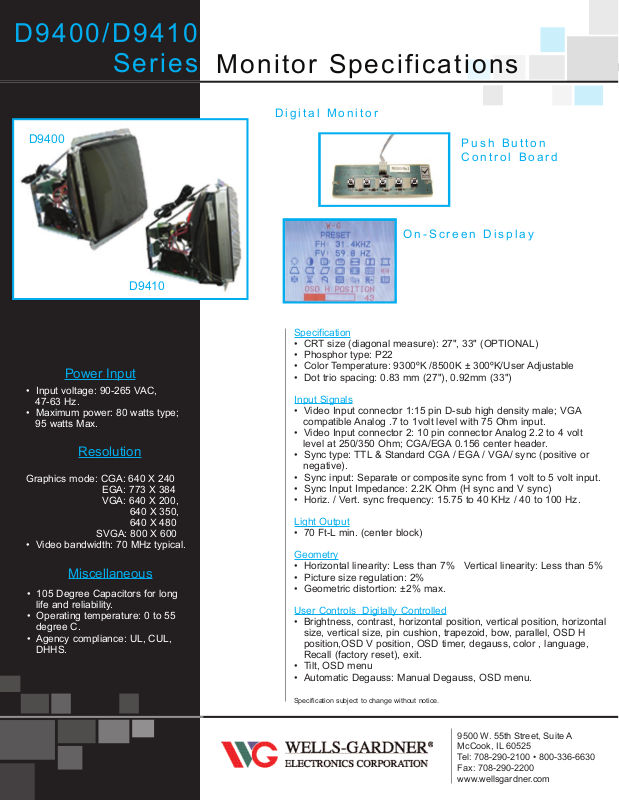

Wells-Gardner D9410, D9400 User Manual
Specification
• CRT size (diagonal measure): 27", 33" (OPTIONAL)
• Phosphor type: P22
• Color Temperature: 9300ºK /8500K ± 300ºK/User Adjustable
• Dot trio spacing: 0.83 mm (27"), 0.92mm (33")
Input Signals
• Video Input connector 1:15 pin D-sub high density male; VGA
compatible Analog .7 to 1volt level with 75 Ohm input.
• Video Input connector 2: 10 pin connector Analog 2.2 to 4 volt
level at 250/350 Ohm; CGA/EGA 0.156 center header.
• Sync type: TTL & Standard CGA / EGA / VGA/ sync (positive or
negative).
• Sync input: Separate or composite sync from 1 volt to 5 volt input.
• Sync Input Impedance: 2.2K Ohm (H sync and V sync)
• Horiz. / Vert. sync frequency: 15.75 to 40 KHz / 40 to 100 Hz.
Light Output
• 70 Ft-L min. (center block)
Geometry
• Horizontal linearity: Less than 7% Vertical linearity: Less than 5%
• Picture size regulation: 2%
• Geometric distortion: ±2% max.
User Controls Digitally Controlled
• Brightness, contrast, horizontal position, vertical position, horizontal
size, vertical size, pin cushion, trapezoid, bow, parallel, OSD H
position,OSD V position, OSD timer, degauss, color , language,
Recall (factory reset), exit.
• Tilt, OSD menu
• Automatic Degauss: Manual Degauss, OSD menu.
Specification subject to change without notice.
Monitor Specifications
Resolution
Graphics mode: CGA: 640 X 240
EGA: 773 X 384
VGA: 640 X 200,
640 X 350,
640 X 480
SVGA: 800 X 600
• Video bandwidth: 70 MHz typical.
Power Input
• Input voltage: 90-265 VAC,
47-63 Hz.
• Maximum power: 80 watts type;
95 watts Max.
9500 W. 55th Street, Suite A
McCook, IL 60525
Tel: 708-290-2100 • 800-336-6630
Fax: 708-290-2200
www.wellsgardner.com
Miscellaneous
• 105 Degree Capacitors for long
life and reliability.
• Operating temperature: 0 to 55
degree C.
• Agency compliance: UL, CUL,
DHHS.
Push Button
Control Board
Digital Monitor
On-Screen Display
D9400/D9410
Series
D9400
D9410
MM.
IN.
DIM.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
21.893
20.644
20.644
24.390
16.187
3.292
4.812
9.812
1.812
12.375
4.438
.900
4.250
20.187
556.08
524.36
524.36
619.51
411.15
83.62/66.67(Flat)
122.23
249.23
46.02
314.33
112.73
22.86
107.95
512.75
27” Digital Monitor (Curved)
Monitor Specifications
Dimensions shown are for reference only. Specifications subject to change without notice.
MM.
IN.
DIM.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
28.274
25.281
27.104
21.344
24.031
24.030
5.268
13.736
22.601
23.406
4.108
2.075
16.700
3.625
11.437
3.880
718.16
642.14
688.44
542.14
610.39
610.36
133.81
348.89
574.07
594.51
104.34
52.781
424.18
92.075
290.50
98.552
33” Digital Monitor
9500 W. 55th Street, Suite A
McCook, IL 60525
Tel: 708-290-2100 • 800-336-6630
Fax: 708-290-2200
www.wellsgardner.com
D9400/D9410
Series
27” Digital Monitor (Flat)
