PARTS LIST

PL502

502

WVG-136 VENTLESS GRIDDLE

WITH OR WITHOUT ROLL WARMER

CONTENTS

Description page

Parts List ………………………………………………….. 2
WVG-136 Hood Section
Cabinet ………………………………………………… 4
Hood Electrical and Vacuum ………………….…….. 5
WVG-136 Griddle Section
Elements ……………...……………………….……… 6
Cabinet & Electrical ………………………………….. 7
WVG-136RW Roll Warmer Section ……………….…… 8
Ansul© Fire Detection & Suppression …….…………... 9

PRINTED IN UNITED STATES OF AMERICA

p/n PL502 Rev. D 080602 cps

PART # DESCRIPTION

OPTIONAL ACCESSORIES

20624 HUMITROL RACK, ROLL WARMER
20632 SPLASHGUARD ASSY, G13-6
20804 SET, CASTER, (2 FIXED, 2 SWIVEL)
21488 INSERT PAN, ROLL WARMER
22618 PREFILTER
22619 FILTER PACK
22649 LEG, OPTIONAL REAR (pk 2)
22682 POWER CORD NEMA 15-60P 4’
22683 CAGE, PRE-FILTER
22684 GREASE BAFFLE (TYPE 3)
64475 OPTIONAL THERMOMETER, RW

LITERATURE & DOCUMENTATION

48929 WIRING DIAGRAM G13-6
300959 WIRING DIAGRAM 2-DWR WARMER
302670 FILTER ASSY DWG
302731 PLUMBING LAYOUT, VAC
302802 WIRING DIAGRAM UNIV HOOD
303082 INSTR 2000 VCS LEG OR CASTER
303368 VIDEO OPERATING VCS2000
303541 ANSULEX BOX DIST NOTE DRWG
304986 OPMANUAL WVG-136
305933 PLUMBING LAYOUT WVG-136

SV502 SERVICE MANUAL WVG-136

PART #

50279 ASSY, GREASE DRAWER W/HANDLE
50372 KNOB, TEMP CONTROL RW
50471 ASSY, DRAWER CATCH RW
50483 BEARING, ROLLER (pk 6)
51476 ASSY, GRIDDLE TOP G136
51968 CLAMP, GRIDDLE ELEM SMALL CTR
51969 CLAMP, GRIDDLE ELEM SMALL END
51973 HANDLE, DRAWER
51974 SHIELD THERMO GRIDDLE
51989 SHROUD DRAWER G13-6
51995 COVER, GREASE DRAWER G13-6
51997 OUTLET BOX, GRIDDLE
52028 CLAMP, THERMO BULB GRIDDLE
52112 HANDLE RW DRAWER
53474 CLIP, TIEDOWN INSUL GRDL (pk 12)
53565 PANEL CONTROL LOWER RWS
53948 PANEL, GREASE DRAWER FRONT
54437 SPLASHGUARD REAR G13-6
55677 BRKT ELEM MTG RW
55678 DRAWER ASSY RW
55683 BRKT THERMO BULB RW
55726 SLIDE VENT ASSY RWS
55780 SPLASHGUARD RIGHT G13-6
55781 SPLASHGUARD LEFT G13-6
55988 STOP DRWR RWS
56050 INSUL FG SR26 1” (pk 300 sq ft)

DESCRIPTION

MECHANICAL

PART #

60223 CAVITY ASSY RWS
63263 KNOB LEG RW/WB W/8-32 SCREW
63271 CLIP RETAINER PILOT LIGHT (pk10)
65337 KIT, DRWR STOP RWS
65405 SPACER, DRAWER STOP RW

66502 MAGNET, DOOR
501389 REMOTE PULL STA ASSY
502642 DOOR ASSY LEFT, NON-RW
502646 DOOR ASSY RIGHT, NON-RW
502588 TUBING ASSY VACUUM UNIV HOOD
502772 GASKET SILICONE .25X.5X15.25
502773 GASKET SILICONE .25X.5X18.5
502782 FACEPLATE FRNT PNL UNIV HOOD
502826 KNOB TEMP CONTROL GRIDDLE
502829 CLAMP THERMO BULB G13-6
502974 FACEPLATE GRIDDLE DECAL
503037 FUSIBLE LINK 165ºF
504405 TRAY GREASE DRIP HOOD
505099 GLASS GLOBE VCS HOOD

DESCRIPTION

MECHANICAL

PL502 Service Parts List - WVG-136 Ventless Griddle

2

PART # DESCRIPTION

ELECTRICAL

50131 TERMINAL BLOCK 3P 85A
50482 ELEM, ROLL WARMER 240V 450W
50496 ELEM, GRIDDLE 240V 2250W
50516 LIGHT, INDICATOR AMBER 240V
51157 LIGHT, INDICATOR RED 240V
51997 OUTLET BOX, GRIDDLE
52054 JUMPER ELEM GRDL, SHORT (pk 10)
53068 TERMINAL BLOCK 2P (FIRE ALARM)
54005 JUMPER, FLAME SENSOR
55687 LIGHT SIGNAL RED RWS
55697 LIGHT, INDICATOR GREEN 240V
58936 THERMO CTRL RW W/O AUX
63880 RELAY, 208/240V
64514 RELAY, BLDG FIRE ALARM
64834 BUZZER 240V

67273 SWITCH ELECTRIC (FIRE ALARM)
500407 SWITCH FILTER INTERLOCK
502584 ASSY, BLOWER FAN & MOTOR
502590 VACUUM SWITCH #1
502591 VACUUM SWITCH #2
502592 VACUUM SWITCH #3
502593 VACUUM SWITCH #4
502789 CONTACTOR 208/240V 3ø 50A
502825 THERMO 400ºF GRIDDLE
505098 HOUSING, LIGHT SOCKET
505100 LIGHT BULB APPLIANCE 240V 100W
8528-40 SWI T CH, POWER (NO LIGHT)

PL502 Service Parts List - WVG-136 Ventless Griddle

PART # DESCRIPTION

HARDWARE

51040 GROMMET INSULATION 7/8D HEYCO
51053 NUT, 8-32 KEPS SS (pk 100)
51253 NUT 1/4-20 Ni (pk 100)
51674 SAPCER, 1/2” LONG
51718 SCREW, 6-32x3/16 (pk 10)
52040 SLEEVING GLASS 5/16 ID (pk 6ft.)
53302 SEALANT 1/4x37” GRIDDLE
53308 SEALANT 1/4x96” GRIDDLE
53977 SCREW, 8-32x3/8PHBD (pk 100)
54131 CONNECTOR WIRE 12-14 GA
54284 RIVET, POP 3/32Dx1/8
54285 SCREW, 8-32x3/8 (pk 50)
54910 SCREW 8-32x3/8 Ni
55135 SCREW, 6-32x1/4 RD (pk 25)
55487 SCREW, 8-32x11/16 (pk 50)
55530 SCREW, 8-32x3/8 )pk 100)
55565 WASHER 2-1/4 DRWR BACK RWS
55736 NUT, 8-32 KEPS GREEN (pk 10)
56718 TAPE CORK 1/16x2” (pk 15 ft rl)
57748 FTG CONDUIT STRAIGHT 1/2IN
60612 SCREWS, 1/4-20x1/2
60680 NUTS, 10-32 KEPS SS (pk 10)
61734 SCREW 8-32x2-1/4 SS (pk 100)
61974 NUT, 8-32x7/8 LONG AL (pk 10)
62392 INSUL, BUSHING HEYCO SHORTY
62896 CONNECTOR WIRE 12-14 GA (pk 5)
63271 CLIP RETAINER PILOT LIGHT (pk 10)

65405 SPACER DRWR STOP SS RWS
500102 STRAIN RELIEF
504420 STRAIN RELIEF 1 1/4NPT

18-302 NUT, 8-32 HEX SS

8543-74 NUT, 4-40 HEX SS

PART # DESCRIPTION

ANSUL© COMPONENTS

NOTE: Provided for reference only

All servicing of the fire detection and suppression

system must be performed by an authorized Ansul

53068 TERMINAL BLOCK 2P (no Ansul p/n)
67273 SWITCH ELECTRIC (Ansul p/n 423575)

501389

502583

503037

ASSY, PULL STATION ANSUL©
(Ansul p/n 4835)

FUSIBLE LINK 165ºF Model K
(no Ansul p/n)

FUSIBLE LINK 212ºF Model K
(no Ansul p/n)

CABLE, WIRE ROPE , 50 FT/15m
(Ansul p/n 15821)

ANSULEX® FIRE EXTINGUISHING
MEDIA, 1.5 GAL. (Ansul p/n 79694)

EXPELLANT GAS CARTRIDGE ASSY
LT-20-R (Ansul p/n 67099)

QUICK-SEAL ADAPTER, 3/8”
(Ansul p/n 77284)

QUICK-SEAL ADAPTER, 1/4”
(Ansul p/n 78195)

MOUNTING BRACKET, RELEASE
MECH. R-102 (Ansul p/n 79493)

CABLE, WIRE ROPE , 500 FT/152m
(Ansul p/n 79653)

DESIGN, INSTALLATION, RECHARGE
AND MAINTENANCE MANUAL FOR
R-102 RESTAURANT FIRE
SUPPRESSION SYSTEM (STD. UL 300
LISTED) (Ansul p/n 418087-05)

NOZZLE 1W (Ansul p/n 419336)
NOZZLE 290 (Ansul p/n 419342)
PULLEY ELBOW, COMPRESSION

ENDS (Ansul p/n 423250)
TANK, 1.5 GAL ANSULEX®

(Ansul p/n 429864)

technician

3

WVG-136 CABINET AND HOOD SECTION COMPONENTS

INTERNAL BRACKETS

LABEL, CONTROL

PANEL 502782

GASKET, SILICONE

15-1/4” 502772 (2 pl)

GASKET, SILICONE

18-1/2” 502773 (2 pl)

ASSY, FILTER

PACK 22619

PREFILTER

22618

CAGE,

PRE-FILTER

22683

BAFFLE, GREASE

FILTER (TYPE 3)

22684

FIRE DAMPER ASSY
280ºF (ref. 301187)

HOUSING, LIGHT
SOCKET 505098

BULB, APPLIANCE
100W 505100

GLASS GLOBE, LIGHT
BULB COVER 505099

GREASE CUP
504405

ASSY, DOOR

LEFT 502642

CABINET DOORS
(NON -RW UNITS)

MAGNET, DOOR

CATCH 66502 (2 pl)

-RW UNITS

ASSY, DOOR
RIGHT 502646

PL502 Service Parts List - WVG-136 Ventless Griddle

ASSY, PULL STATION
ANSUL 501389

SET, CASTERS
20804
(2 swivel, 2 fixed)

LEG, ADJUSTABLE
VCS 22649 (pk 2)
(REAR LEG OPTION)

4

WVG-136 HOOD SECTION ELECTRICAL AND VACUUM COMPONENTS

FITTING, 1/2” CONDUIT

STRAIGHT 57748

VACUUM SWITCH
#4 502593

VACUUM SWITCH

#1 502590

VACUUM SWITCH

#3 502592

VACUUM SWITCH
#2 502591

SWITCH, POWER

8528-40

LIGHT, INDICATOR

GREEN 240V 55697

BUZZER, 240V

64834

LIGHT, INDICATOR

AMBER 240V 50516 (3 pl)

ASSY, BLOWER

240V 502584

ASSY, VAC TUBE
MANIFOLD 502588

ref Ansul®

77284
ref Ansul®
77284

SWITCH, FILTER
INTERLOCK
500407 (2 pl)

PL502 Service Parts List - WVG-136 Ventless Griddle

FRONT OF HOOD

HOUSING, LIGHT
SOCKET 505098

BULB, APPLIANCE
230V 100W 505100

GLASS GLOBE
LIGHT BULB
COVER 505099

ELECTRICAL - UNDER HOOD

LIGHT, INDICATOR
RED 240V 51157

(-RW, -RWT ONLY) 63880

CONTACTOR 208/240V

50A 3-PH 502789

STRAIN RELIEF
1-1/4” 504420

TERMINAL BLOCK

2P 250V 53068

JUMPER, FLAME

ELECTRICAL - UPPER HOOD

SENSOR 54005

RELAY, 208/240V

RELAY, BLDG

FIRE ALARM

64514

POWER CORD
NEMA 15-60P
22682
(incl. strain relief)

ELECTRICAL - REAR OF LOWER CABINET

5

COVER, GREASE
DRAWER 51995

WVG-136 GRIDDLE ELEMENT COMPONENTS

INSULATION PAD

57407 (pk 2'x4')

NUT, 1/4-20 HEX Ni

51253 (pk 100)

CLIP, TIE-DOWN INSULATION
53474 (pk 12)

CLAMP, ELEMENT
END 51969

NUT, 10-32
HEX 55313

CLAMP, THERMO
BULB 52028

TUBE, THERMO

BULB 18" 51972

CLAMP, ELEMENT

CENTER 51968

JUMPER, ELEMENT

SHORT 52054 (pk 10)

ELEMENT 2250W

240V 50496

PL502 Service Parts List - WVG-136 Ventless Griddle

FRONT

GRIDDLE (REF.)

shown inverted

6

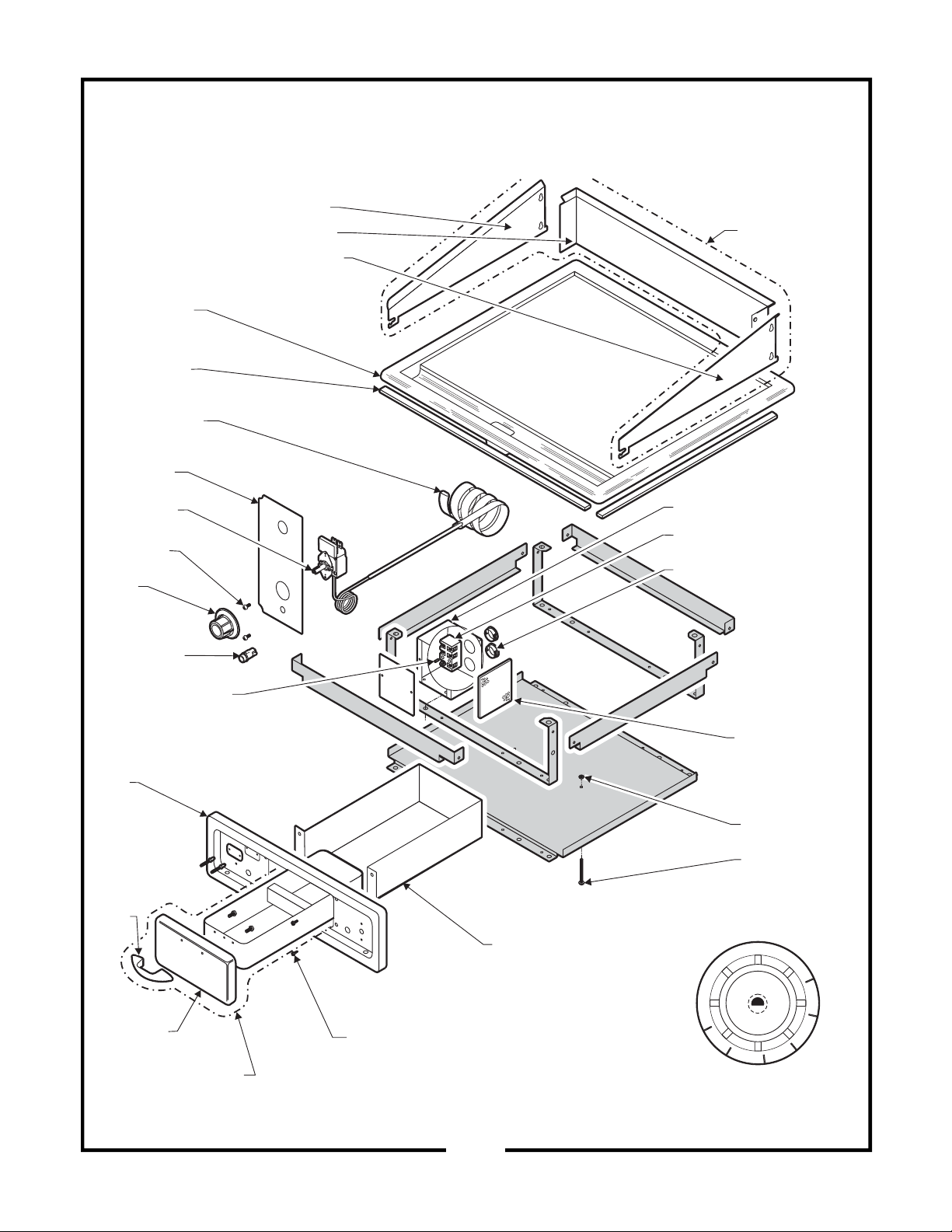

WVG-136 GRIDDLE CABINET COMPONENTS

SPLASHGUARD LEFT 55781

SPLASHGUARD, REAR 54437

SPLASHGUARD, RIGHT 55780

GRIDDLE PLATE
ASSEMBLY 51476

SEALANT, G-136
5/16” x 96” 53308

SLEEVING, 5/16”
52040 (6” rl) (2 reqd)

SHIELD, THERMO
51974 (2 reqd)

THERMO, CONTROL
50257 (2 reqd)

SCREW, 6-32x3/16
51718 (pk10)

KNOB 50259
(2 reqd)

LIGHT, SIGNAL
AMBER
208/240V 50516
480V 60436

NUT, HEX ALUMINUM
8-32 x 7/8” 61974 (pk 10)

SPLASHGUARD G-13
COMPLETE ASSY
20632

OUTLET BOX
51997

TERMINAL BLOCK
50131

BUSHING, HEYCO 7/8”
51040 (2 reqd)

FRONT PANEL
51025

HANDLE
51973

PL502 Service Parts List - WVG-136 Ventless Griddle

TRAY FRONT

53948

GREASE TRAY ASSY
COMPLETE 50279

SCREW 6ABx5/16
53935 (pk100)

SHROUD, GREASE
DRAWER 51989

7

TAPE, CORK
56178 (15’rl)

NUT, 8-32 KEPS
51053 (pk100)

SCREW, 8-32 x 2-1/2”
51734 (pk100)

OFF

WELLS

65

95

120

KNOB 50259

230

205

180

150

WVG-136RW ROLL WARMER COMPONENTS

CLOSED

OPEN

20624
(optional)

21488

67096

heavy-duty

drawer assy

complete

52112

55530 (pk 10)

69251

51796

65923 (set ­includes left
and right)

55683

CLOSED

18-302 (typ.)

55677

OPEN

18-302

55565

50471 (includes
strike and catch)

55487
(pk 50)

50482 (240V)
50519 (120V)

55487 (pk 50)

part of 50471

50483 (pk 6)

64475 OPTIONAL
THERMOMETER

PL502 Service Parts List - WVG-136 Ventless Griddle

65351 (CAVITY ASSEMBLY)

LO

2

3

WELLS

4

50483 (pk 6)

53565 (LOWER)

0

OFF

HI

8

7

6

5

51801(UPPER)

50372

63271
(pk 10)

51808

55687

-RWT ELECTRONIC CONTROL
OPTION (PART NO. PENDING)

58936

8

WVG-136 FIRE DETECTION AND SUPPRESSION SYSTEM COMPONENTS

FOR USE ONLY BY AUTHORIZED

ANSUL© SERVICE PERSONNEL

Refer to Ansul© part no. 418078-05
R-102 Restaurant Fire Suppression

System Design, Installation,
Recharge and Maintenance

ref. NOZZLE 290
ANSUL© p/n 419342

ref. ADAPTER, QUICK-SEAL 3/8”

ANSUL© p/n 77284

ASSY, PULL STATION
ANSUL© 501389

ref. CABLE, WIRE ROPE

ANSUL© p/n 15821 (50’/15m)

79653 (500’/152m) (typical)

ref. PULLEY ELBOW

ANSUL© p/n 423250

(typical)

ref. NOZZLE 1W
ANSUL© p/n 419336

FUSIBLE LINK MODEL K

212ºF 503037

FRONT OF UNIT

ref. MOUNTING BRACKET

RELEASE MECHANISM

R-102 ANSUL© p/n 79493

(NOT SHOWN)

MICROSWITCH 67273

TERM.BLOCK 53068

BACK OF UNIT

PL502 Service Parts List - WVG-136 Ventless Griddle

CARTRIDGE LT-20-R

ANSUL© p/n 67009

ref. TANK 1.5 GAL, ANSULEX® ANSUL© p/n 429864

(NOT SHOWN)

ANSULEX ® EXTINGUISHING AGENT 1.5 GAL

ANSUL© p/n 79694

inside

Seal with
Teflon tape

Fiber
washer
is always
on the inside

ANSUL© p/n 77284

DETAIL

outside

cabinet wall

Seal with
Teflon tape

9

Cable sits in

groove in

pulley

ANSUL© p/n 423250

DETAIL
