Wells WFPE-30F User Manual

WELLS BLOOMFIELD, LLC

2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439

telephone: 775-689-5703

fax: 775-689-5976

www.wellsbloomfield.com

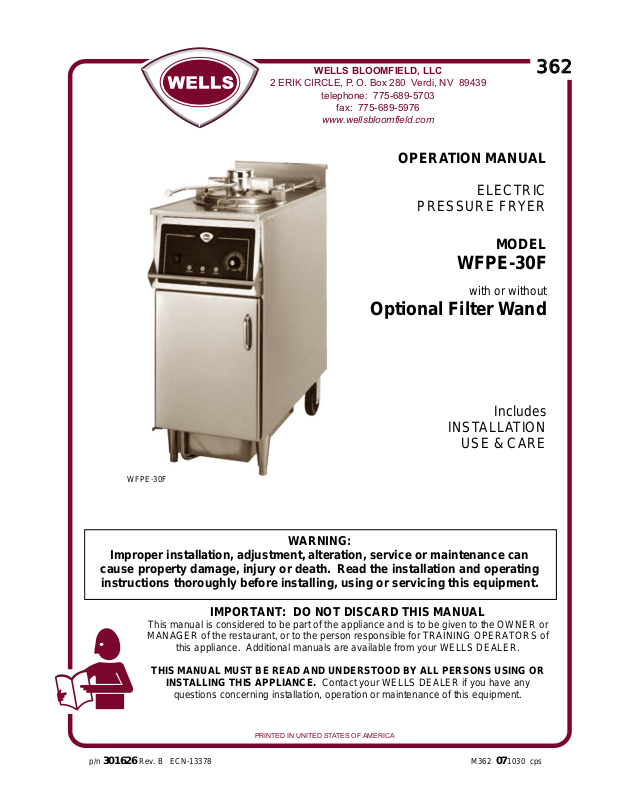

OPERATION MANUAL

ELECTRIC

PRESSURE FRYER

WFPE-30F

with or without

Optional Filter Wand

362

MODEL

Includes

INSTALLATION

USE & CARE

WFPE-30F

WARNING:

Improper installation, adjustment, alteration, service or maintenance can

cause property damage, injury or death. Read the installation and operating

instructions thoroughly before installing, using or servicing this equipment.

IMPORTANT: DO NOT DISCARD THIS MANUAL

This manual is considered to be part of the appliance and is to be given to the OWNER or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of

this appliance. Additional manuals are available from your WELLS DEALER.

THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS U S ING OR

INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any

questions concerning installation, operation or maintenance of this equipment.

PRINTED IN UNITED STATES OF AMERICA

p/n 301626 Rev. B ECN-13378 M362 071030 cps

LIMITED WARRANTY STATEMENT

Unless otherwise specified, all commercial cooking equipment manufactured by WELLS BLOOMFIELD, LLC is warranted against defects in materials and workmanship for a period of one year from the date of original installation or 18 months from the date of shipment from our factory, whichever comes first, and is for the benefit of the original purchaser only. THIS WARRANTY IS THE COMPLETE AND ONLY WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH WELLS BLOOMFIELD PRODUCTS. This warranty is void if it is determined that, upon inspection by an authorized service agency, the equipment has been modified, misused, misapplied, improperly installed, or damaged in transit or by fire, flood or act of God. It also does not apply if the serial nameplate has been removed, or if service is performed by unauthorized personnel. The prices charged by Wells Bloomfield for its products are

based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Wells Bloomfield factory authorized service agency or one of its sub-service agencies. This service will be provided on customer’s premises for non-portable models. Portable models (a device with a cord and plug) must be taken or shipped to the closest authorized service agency, transportation charges prepaid, for service. In addition to restrictions contained in this warranty, specific limitations are shown in the Service Policy and Procedure Guide. Wells Bloomfield authorized service agencies are located in principal cities. This warranty is valid in the United States and Canada and void elsewhere. Please consult your classified telephone directory, your foodservice equipment dealer or contact:

Service Department, Wells Bloomfield, LLC

P.O. Box 280, Verdi, Nevada 89439

phone (775) 689-5707 or fax (775) 689-5976

for information and other details concerning warranty.

SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS

1. Resetting of safety thermostats, circuit breakers, over load protectors, and/or fuse replacements are not covered by this warranty unless warranted conditions are the cause.

2. All problems due to operation at voltages or phase other than specified on equipment nameplates are not covered by this warranty. Conversion to correct voltage and/or phase must be the customer’s responsibility.

3. All problems due to electrical connections not made

in accordance with electrical code requirements and wiring diagrams supplied with the equipment are

not covered by this warranty.

4. Replacement of items subject to normal wear, to include such items as knobs, light bulbs; and, normal maintenance functions including adjustments of thermostats, adjustment of micro switches and replacement of fuses and indicating lights are not covered by warranty.

5. Damage to electrical cords and/or plug due to exposure to excessive heat are not covered by this warranty.

6. Full use, care, and maintenance instructions supplied with each machine. Noted maintenance and

preventative maintenance items, such as servicing and

cleaning schedules, are customer responsibility. Those miscellaneous adjustments noted are customer responsibility. Proper attention to preventative maintenance and scheduled maintenance procedures will prolong the life of the appliance.

7. Travel mileage is limited to sixty (60) miles from an Authorized Service Agency or one of its sub-service agencies.

8. All labor shall be performed during regular working hours. Overtime premium will be charged to the buyer.

9. All genuine Wells replacement parts are warranted for ninety (90) days from date of purchase on nonwarranty equipment. This parts warranty is limited only to replacement of the defective part(s). Any use of

non-genuine Wells parts completely voids any

warranty.

10. Installation, labor, and job check-outs are not

considered warranty and are thus not covered by this warranty.

11. Charges incurred by delays, waiting time or operating

restrictions that hinder the service technician’s ability to perform service are not covered by warranty. This includes institutional and correctional facilities.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

SHIPPING DAMAGE CLAIM PROCEDURE

NOTE: For your protection, please note that equipment in

this shipment was carefully inspected and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes full responsibility for its safe delivery. IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or express receipt, and that the note of loss or damage is signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY:

Regardless of the extent of the damage.

3. CONCEALED LOSS OR DAMAGE: if damage is unnoticed until the merchandise is unpacked, notify the transportation company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This should be done within fifteen (15) days from the date the delivery was made to you. Be sure to retain the container for inspection.

Wells Bloomfield cannot assume liability for damage or loss incurred in transit. We will, however, at your request, supply you with the necessary documents to support your claim.

TABLE OF CONTENTS

WARRANTY xi SPECIFICATIONS 1 FEATURES & OPERATING CONTROLS 2 AGENCY LISTING INFORMATION 4 PRECAUTIONS & GENERAL INFORMATION 5 INSTALLATION 6 PREPARATION PRIOR TO OPERATION 8 OPERATION 11 MAINTENANCE INSTRUCTIONS FILTER OPERATION 12 DISCARDING USED OIL 15 CLEANING 16 TROUBLESHOOTING SUGGESTIONS 18 PARTS & SERVICE 19 CUSTOMER SERVICE DATA 19

INTRODUCTION

Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that

it gives you the very best performance and a long, economical service life. This manual contains the information needed to properly install this appliance, and to use and care for

the appliance in a manner which will ensure its optimum performance.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

DIMENSIONS

CAPACITIES

VOLTAGE

REQUIREMENTS

POWER

CONSUMPTION

AMPERAGE

SPECIFICATIONS

Wide Deep High

15.62” 33.25” 40.0”

Cooking Oil

(Liquid Shortening Only)

Chicken (Fresh) 14 6

Chicken (Frozen) 12 5

ELECTRICAL SPECIFICATIONS

DOMESTIC EXPORT (EU)

208 VAC

NOTE: Shipped from factory 3Ø, field convertible to 1Ø

9,000 watts

43.3 amps (1 ø)

25.0 amps per leg (3ø)

21.7 amps per leg (3ø)

Lbs. Kg.

240VAC

9,000 watts

37.5 amps (1 ø)

L1 = 14,3 amps L2 = 13,0 amps L3 = 13,0 amps

380-415V

3NAC

9.300 watts

N = 2,7 amps

FEATURES & OPERATING CONTROLS

UPPER CONTROL PANEL

WELLS

FRYER

FILTER

OFF

POWER

HEAT

COOK

TIMER

LOWER CONTROL PANEL

HI-LIMIT

RESET

THERMOSTAT

300

250

275

325

350

375

ºF

FILTER

OFF

CAUTION

FRYERMUST BE OFF BEFORE USING FILTER

Fig. 1 WFPE-30F Features & Operating Controls

FRONT VIEW

BACK VIEW

TOP VIEW

POWER SWITCH

(FRYER-OFF-FILTER)

FRYER position energizes the FRYER and POWER LIGHT; de-energizes FILTER PUMP. HEATING ELEMENTS energized and regulate to setting on CONTROL THERMOSTAT (8).

OFF position de-energized FRYER and FILTER PUMP. FILTER position de-energizes FRYER; energizes FILTER PUMP

SWITCH (6).

POWER LIGHT (amber) Glows to indicate FRYER is energized.

HEAT LIGHT (amber)

Glows to indicate HEATING ELEMENT energized; Off when oil temperature reaches setting on CONTROL THERMOSTAT (8).

COOK LIGHT (amber) Glows to indicate COOK LEVER in cook position.

4 5 TIMER

Controls LIFT CRADLE AND BUZZER. Start TIMER by pressing red button at center of knob. Lift CRADLE will lower. Pointer indicates time remaining. When time reaches “0” BUZZER sounds and LIFT CRADLE raises.

FILTER PUMP SWITCH

(ON-OFF)

ON position energizes FILTER PUMP and causes oil in RESERVOIR (10) to be pumped back into frypot.

OFF position de-energizes FILTER PUMP. NOTE: POWER SWITCH (1) must be in FILTER position for

FILTER PUMP to operate.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

FEATURES & OPERATING CONTROLS (continued)

hi-limit bulb and the element to enhance oil flow and facilitate reset. Otherwise, contact your authorized Wells Service Agent for repairs.

HI-LIMIT THERMOSTAT

TEMPERATURE CONTROL

THERMOSTAT

9 FILTER PUMP MOTOR

RESET BUTTON

(located at rear of motor)

10 OIL FILTER RESERVOIR

11 DRAIN VALVE LEVER

WARNING

WARNING:

FIRE HAZARD / HOT OIL

The HI-LIMIT THERMOSTAT is a FIRE PROTECTION DEVICE.

If tripping persists, clean debris from the space between the

DO NOT ATTEMPT TO BYPASS OR HOLD IN THE BUTTON OF

THE HI-LIMIT THERMOSTAT. A SERIOUS FIRE MAY RESULT.

Provides over-temperature protection by de-energizing HEATING ELEMENTS should oil temperature exceed factory pre-set limits.

Controls oil temperature. Range: 250ºF (121ºC) 375ºF (191ºC)

FILTER PUMP MOTOR is equipped with an overheating protection device. RESET must be performed manually. Allow motor to cool for approx. 30 min, then firmly press the red button.

Collects oil from FRYPOT for filtering or disposal. Holds filter screen, filter paper & filter paper holder.

Opens and closes the DRAIN VALVE: Turn counterclockwise (vertical) to OPEN Turn clockwise (horizontal) to CLOSE

12 POWER OUTLET BOX 13 COOK LEVER

14 CONTROL HANDLE 15 PRESSURE GAUGE

16 DRIP PAN

17 BASKET HANDLE

18 FRY BASKET 19 BASKET RACK

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

Electrical service connection TERMINAL BLOCK located here. COOK position allows pressure to build by closing exhaust valve;

also, energizes timer OFF position relieves frypot pressure by opening exhaust valve

Lifts or lowers LID into/out of frypot Rotate fully CCW to lock lid under pressure

Shows steam pressure inside frypot Normal operating pressure is 8—12 psi

Collects liquids that accumulate on top of fryer. Used to manually raise and lower FRY BASKET into and out of

FRYPOT.

REMOVE FROM BASKET BEFORE SLIDING LID FORWARD!

Holds product to be cooked. Prevents FRY BASKET from contacting heating elements

FEATURES & OPERATING CONTROLS (continued)

OPTIONAL FILTER WAND

DRAIN VALVE

SAFETY SWITCH

DRAIN HANDLE

3-WAY VALVE HANDLE

QUICK DISCONNECT MALE FITTING

TO FRYPOT

NOTE: Wand option must be ordered at time of initial build.

FILTER PUMP

INSULATED HANDLE

WAND ASSEMBLY

QUICK DISCONNECT FEMALE FITTING LOCKING RING

AGENCY LISTING INFORMATION

This appliance conforms to NSF Standard 4 for sanitation only if installed in accordance with the supplied Installation Instructions and maintained according to the instructions in this manual.

Domestic fryers are and listed under UL File E6070 for 208V and 240V.

Export (European) fryers comply with standards for 380-415V 3NAC.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

STD 4

E6070

PRECAUTIONS AND GENERAL INFORMATION

This appliance is intended for use in commercial establishments only.

This appliance is intended No other use is agents.

DO NOT open any panel that requires the use of tools for access. Live electric circuits may be exposed by opening such panels. Opening access panels must be performed by an Authorized Service Agent only.

This appliance is equipped with an oil filtration system designed to filter hot liquid shortening only. Water, cleaning agents and/or other liquids will contaminate the oil and may damage the filter pump.

Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions. Operating instructions must be read and understood by all persons using or installing this appliance.

Cleanliness of this appliance is essential to good sanitation. Read and follow all included cleaning instructions and schedules to ensure the safety of the food product.

DO NOT submerge any part of this appliance in water unless specifically instructed to do so. This appliance is not jet stream approved. DO NOT direct water jet or steam jet at this appliance, nor at any control. DO NOT splash or pour water on, in or over any controls. DO NOT wash area around this appliance with water jet. Any part which has become wet must be thoroughly dried before use.

Cooking oil will be very hot when in use. Contact will cause severe injury, and can cause blindness or death. Wear appropriate heatprotective clothing when operating or servicing this appliance.

This appliance operates under pressure. Be sure CONTROL HANDLE is turned fully counterclockwise before initiating a cook cycle. Do not attempt to open FRYPOT LID until all pressure has bled off and pressure gauge reads “0”.

This appliance must be operated with the supplied legs and casters properly installed

The technical content of this manual, including any parts breakdown illustrations and/or adjustment procedures, is intended for use by qualified technical personnel only.

Any procedure which requires the use of tools must be performed by a qualified technician.

This manual is considered to be a permanent part of the appliance. This manual and all supplied instructions, diagrams, schematics, parts breakdown illustrations, notices and labels must remain with the appliance if it is sold or moved to another location.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer

recommended or authorized by the manufacturer or its

to prepare food for human consumption.

DANGER:

BURN HAZARD

Cooking oil in this appliance operates at very high temperatures. Contact with hot oil can cause severe injury or death. Wear appropriate heat-protective clothing when operating or servicing this appliance. Never attempt to open the frypot if the pressure gauge reads anything other than “zero” (0) psi.

Spilled cooking oil is very slippery and can cause falls. Clean up oil spills promptly.

WARNING:

SLIP AND FALL HAZARD

CAUTION:

BURN HAZARD

Exposed surfaces can be hot to the touch and may cause burns.

CAUTION:

HEALTH HAZARD

Old cooking oil can be a breeding ground for bacteria. Clean and sanitize exterior surfaces of fryer regularly.

INSTALLATION

NOTE: DO NOT discard

the carton or other packing materials until you have inspected the appliance for hidden damage and tested it for proper operation. Refer to SHIPPING DAMAGE CLAIM PROCEDURE on the inside front cover of this manual.

WARNING:

FIRE HAZARD

Do not store gasoline or any other flammable or combustible material near this appliance. The area where the fryer is installed must be kept clear of combustibles and flammables. This includes mops, rags, grease, wrapping paper and electric cords.

Installation and startup must be performed by a Wells Manufacturing Authorized Service Agency.

IMPORTANT:

Certain jurisdictions require fryers to be restrained with a TETHER or other approved restraint device. It is the responsibility of the installer to check with the AUTHORITY HAVING JURISDICTION in order to ascertain the applicability of this requirement THIS SPECIFIC INSTALLATION.

Installer must complete the WARRANTY REGISTRATION and FRYER CHECKOUT form, and record the details of the particular installation on the CUSTOMER SERVICE DATA form in this manual.

UNPACKING & INSPECTION

Carefully remove the appliance from the carton. Remove all protective plastic film, packing materials and accessories from the appliance before connecting performing any installation procedure.

Carefully read all instructions in this manual and the Installation Instruction Sheet packed with the appliance before starting any installation.

Read and understand all labels and diagrams attached to the appliance.

Carefully account for all components and accessories before discarding packing materials. Store all accessories in a convenient place for later use.

COMPONENTS

1 ea. FILTER RESERVOIR 1 ea. FILTER SCREEN 1 ea. FILTER PAPER HOLDER 4 ea. OIL FILTER SUCTION TUBE O-RINGS (small, bla c k) 1 ea. O-RING FOR LID (large, red) 1 ea. FRY BASKET 1 ea. BASKET LIFTING HANDLE 1 ea. BASKET RACK

ACCESSORIES

1 ea. LITERATURE PACKAGE 1 pk. FILTER PAPER 1 pk. FILTER POWDER 2 ea. HIGH TEMPERATURE BRUSHES 1 ea. CLEANOUT DOWEL (wood rod)

SETUP

It is the responsibility of the installer to verify that this fryer installation is in compliance with local code authorities and with the specifications listed in this manual.

Certain local or state codes require fryers to be restrained with a tether or other approved restraint device. It is the responsibility of the installer to check with the authority having jurisdiction, in order to ascertain the applicability of this requirement to this specific fryer installation.

Setup the fryer only on a firm, level, non-combustible surface. Verify local codes for requirements. Concrete, tile, terrazzo or metal surfaces are recommended. Metal or tile over combustible material may not meet code for non-combustible surfaces.

Verify that the unit sits firmly ON BOTH CASTERS AND BOTH LEGS. With the adjustable legs, adjust as required to level the appliance. Both legs and both casters must be adjusted to firmly contact the floor in order to prevent tipping.

Refer to the Installation Instruction Sheet for required clearances. Maintain required clearances between the appliance and adjacent combustible surfaces.

362 301626 OpManual for WFPE-30F Electric Pressure Fryer
