Wells SS-10EUTD Installation Manual
ELECTRICAL

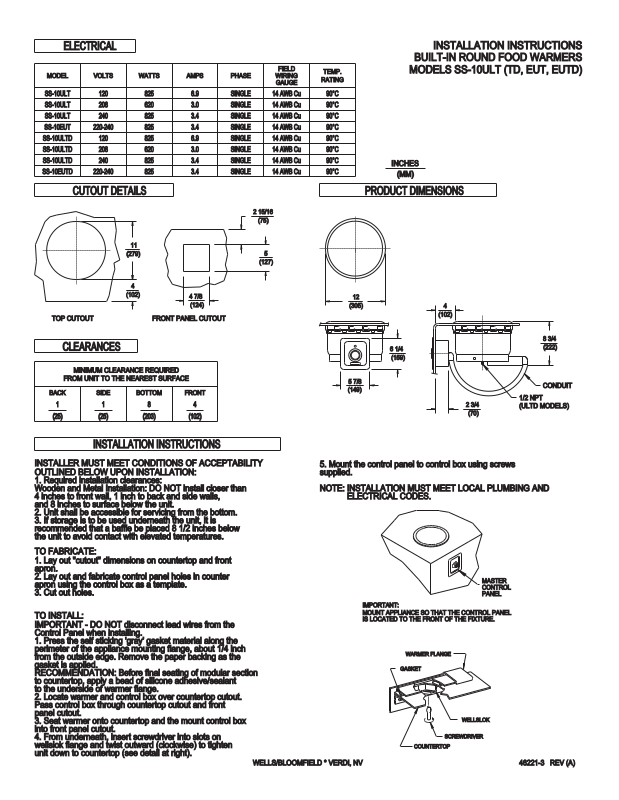

INSTALLATION INSTRUCTIONS
BUILT-IN ROUND FOOD WARMERS
MODEL VOLTS WATTS AMPS PHASE WIRING
SS-10ULT
SS-10ULT
SS-10ULT
SS-10EUT 220-240 825 3.4 SINGLE 14 AWB Cu 90°C
SS-10ULTD
SS-10ULTD
SS-10ULTD 240
120 825
208
240
120
208
620
825
825
620
825
6.9
3.0
3.4
6.9
3.0
3.4 SINGLE
SINGLE 14 AWB Cu
SINGLE
SINGLE
SINGLE
SINGLE
FIELD
GAUGE
14 AWB Cu
14 AWB Cu
14 AWB Cu
14 AWB Cu
14 AWB Cu 90°C
TEMP.
RATING
90°C
90°C
90°C
90°C
90°C
90°C14 AWB CuSINGLE3.4825220-240SS-10EUTD
MODELS SS-10ULT (TD, EUT, EUTD)
INCHES
(MM)
CUTOUT DETAILS PRODUCT DIMENSIONS
2 15/16
(75)
11
(279)
4
(102)
4 7/8
(124)
FRONT PANEL CUTOUTTOP CUTOUT
5
(127)
CLEARANCES
MINIMUM CLEARANCE REQUIRED
FROM UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1
(25)
(25) (203)
8
4
(102)
INSTALLATION INSTRUCTIONS
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required installation clearances:
Wooden and Metal Installation: DO NOT install closer than
4 inches to front wall, 1 inch to back and side walls,
and 8 inches to surface below the unit.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.
TO FABRICATE:
1. Lay out "cutout" dimensions on countertop and front
apron.
2. Lay out and fabricate control panel holes in counter
apron using the control box as a template.
3. Cut out holes.
TO INSTALL:
IMPORTANT - DO NOT disconnect lead wires from the
Control Panel when installing.
1. Press the self sticking 'gray' gasket material along the
perimeter of the appliance mounting flange, about 1/4 inch
from the outside edge. Remove the paper backing as the
gasket is applied.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to the underside of warmer flange.
2. Locate warmer and control box over countertop cutout.
Pass control box through countertop cutout and front
panel cutout.
3. Seat warmer onto countertop and the mount control box
into front panel cutout.
4. From underneath, insert screwdriver into slots on
wellslok flange and twist outward (clockwise) to tighten
unit down to countertop (see detail at right).
WELLS/BLOOMFIELD * VERDI, NV
12
(305)
6 1/4
(159)
5 7/8
(149)
5. Mount the control panel to control box using screws
supplied.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
IMPORTANT:
MOUNT APPLIANCE SO THAT THE CONTROL PANEL
IS LOCATED TO THE FRONT OF THE FIXTURE.
WARMER FLANGE
GASKET
4
(102)
SCREWDRIVER
COUNTERTOP
2 3/4
(70)
MASTER
CONTROL
PANEL
WELLSLOK
8 3/4
(222)
CONDUIT
1/2 NPT
(ULTD MODELS)
46221-3 REV (A)
