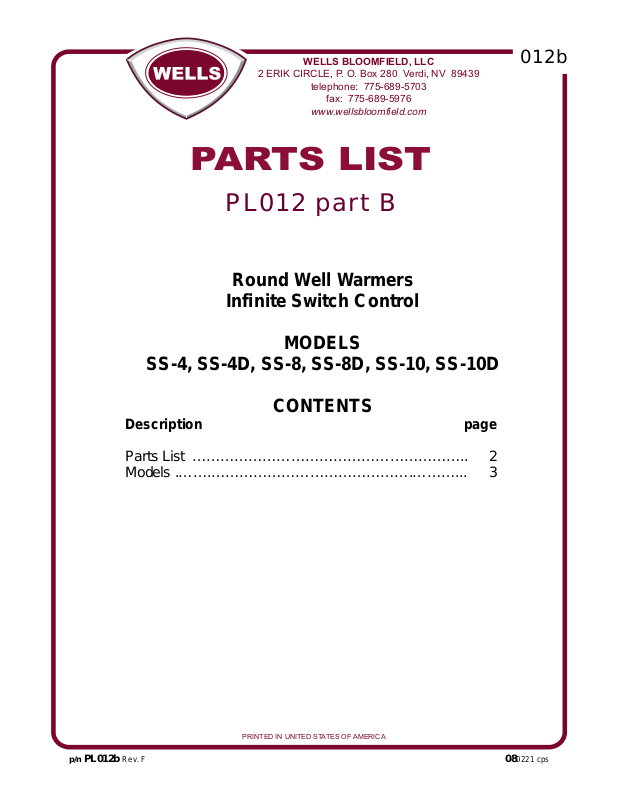

Wells SS-10D Service Manual

WELLS BLOOMFIELD, LLC

2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439

telephone: [phone]

fax: [phone]

www.wellsbloomfield.com

PARTS LIST

PL012 part B

Round Well Warmers

Infinite Switch Control

MODELS

012b

SS-4, SS-4D, SS-8, SS-8D, SS-10, SS-10D

CONTENTS

Description page

Parts List ………………………………………………….. 2
Models .…….…………………………………….………... 3

PRINTED IN UNITED STATES OF AMERICA

p/n PL012b Rev. F 080221 cps

PART # DESCRIPTION

OPTIONAL ACCESSORIES

21709 SCREEN DRAIN ASSY WARM

ELECTRICAL

50374 THERMO SAFETY WARMERS A-164
50385 LIGHT SIGNAL GLO DOT RED 240V
50562 SWITCH INFINITE 240V A CAM
50570 SWITCH INFINITE 120V A CAM

62091

506274 KIT, ELEM & SUPPORT 120V 450W
506275 KIT, ELEM & SUPPORT 240V 450W

JUMPER THERMOSTAT WAFFLE
BAKER (PK 5)

PART # DESCRIPTION

MECHANICAL

50391 PAN ASSY
50392 PAN ASSY
50410 PANEL CONTROL OVAL
50504 PAN ASSY
51232 PAN ASSY
51861 BOX OUTLET WARMERS
51862 COVER OUTLET BOX WARMERS
51878 COVER ELEM
57748 FTG CONDUIT STRAIGHT 3/8
62059 BOX CONTROL WARMERS
63271 CLIP RETAINER PILOT LIGHT (PK 10)
63527 PAN ASSY
63528 PAN ASSY

64373

KNOB ASSY WARMER
PREHEAT/HOLD

PART # DESCRIPTION

HARDWARE, etc.

51040 BUSHING HEYCO 7/8 OD
51053 NUT 8-32 KEPS MS NICKEL (PK 100)

51697

51717 SCREW 8-32X7/8 PH FL ROLOCK NI
53302 SEALANT /14X37 LG

53935

53977

54284 RIVET POP 3/32DX1/8
55455 NUT 8-32 HEX MS SS (PK 50)

55736

57766 SLEEVING SHORT WARMERS (PK 5)

66145

SCREW 8-32X3/16 PH RD HD MS NI
(PK 100)

SCREW 6ABX5/16 PH PAN SMS ZI
(PK 100)

SCREW 8-32X3/8 PH BND HD MS NI
(PK 100)

NUT 8-32 HEX KEPS MS GREEN
(PK 10)

SCREW 6-32X3/16 PH BIND MS NI
(PK 10)

PL012b Service Parts List - Built-In Round Warmers (Infinite Switch)
