Page 1
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com

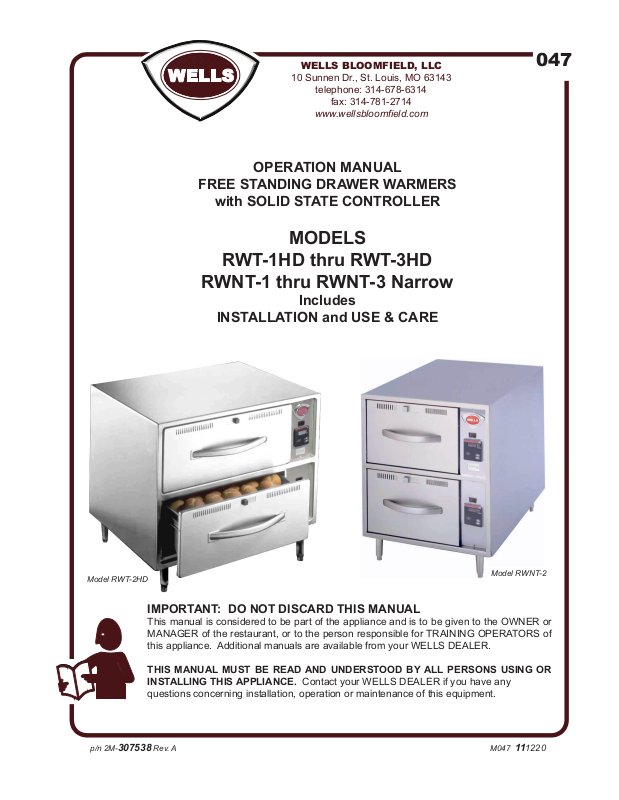

OPERATION MANUAL
FREE STANDING DRAWER WARMERS
with SOLID STATE CONTROLLER
MODELS
RWT-1HD thru RWT-3HD
RWNT-1 thru RWNT-3 Narrow
Includes
INSTALLATION and USE & CARE
047
Model RWT-2HD
Model RWNT-2
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
p/n 2M-307538 Rev. A M047 111220
Page 2
LIMITED WARRANTY STATEMENT
Unless otherwise specied, all commercial cooking equipment manufactured by WELLS BLOOMFIELD, LLC is
warranted against defects in materials and workmanship
for a period of one year from the date of original installation
or 18 months from the date of shipment from our factory,
whichever comes rst, and is for the benet of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR
CONSEQUENTIAL DAMAGES IN CONNECTION WITH
WELLS BLOOMFIELD PRODUCTS. This warranty is void
if it is determined that, upon inspection by an authorized
service agency, the equipment has been modied, misused,
misapplied, improperly installed, or damaged in transit or by
re, ood or act of God. It also does not apply if the serial
nameplate has been removed, or if service is performed
by unauthorized personnel. The prices charged by Wells
Bloomeld for its products are based upon the limitations
in this warranty. Seller’s obligation under this warranty is
limited to the repair of defects without charge by a Wells
Bloomeld factory authorized service agency or one of its
sub-service agencies. This service will be provided on
customer’s premises for non-portable models. Portable
models (a device with a cord and plug) must be taken or
shipped to the closest authorized service agency, transportation charges prepaid, for service. In addition to restrictions
contained in this warranty, specic limitations are shown in
the Service Policy and Procedure Guide. Wells Bloomeld
authorized service agencies are located in principal cities.
This warranty is valid in the United States and Canada and
void elsewhere. Please consult your classied telephone
directory, your foodservice equipment dealer or contact:
Wells Bloomeld, LLC
10 Sunnen Dr., St. Louis MO 63143 USA
phone (314) 678-6314 or fax (314) 781-2714
for information and other details concerning warranty.
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specied on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements and
wiring diagrams supplied with the equipment are not
covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted
for ninety (90) days from date of purchase on nonwarranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of
non-genuine Wells parts completely voids any
warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.
SHIPPING DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment
in this shipment was carefully inspected and packaged by skilled
personnel before leaving the factory. Upon acceptance of
this shipment, the transportation company assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and le
“CONCEALED DAMAGE” claim with them. This
should be done within fteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Bloomeld cannot assume liability for damage or loss
incurred in transit. We will, however, at your request, supply
you with the necessary documents to support your claim.
xi
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
Page 3
TABLE OF CONTENTS
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
CLEANING INSTRUCTIONS 10
TROUBLESHOOTING SUGGESTIONS 11
MAINTENANCE INSTRUCTIONS 12
PARTS & SERVICE 13
CUSTOMER SERVICE DATA 13
INTRODUCTION
Thank You for purchasing this Wells Bloomeld appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.
MODELS
RWT-1HD, RWNT-1
RWT-2HD, RWNT-2
RWT-3HD, RWNT-3
SPECIFICATIONS
VOLTS
50/60 Hz 1ø
120 VAC 450 W 3.8 NEMA-5-15P
208/240 VAC 338/450 W 1.6/1.9 NEMA 6-15P
120 VAC 900 W 7.5 NEMA-5-15P
208/240 VAC 676/900 W 3.3/3.8 NEMA 6-15P
120 VAC 1350 W 11.3 NEMA-5-15P
208/240 VAC 1014/1350 W 4.9/5.6 NEMA 6-15P
WATTS AMPS POWER CORD
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
1
Page 4
FEATURES & OPERATING CONTROLS
DRAWER
SLIDE
DRAWER
SLIDE
DRAWER
STOP
DRAWER
ROLLER
DRAWER
ROLLERS
HEATING
ELEMENT
ROLLER
CATCH
DRAWER
CATCH
DRAWER
GASKET
HUMITROL
RACK
DRAWER
INSERT PAN
AIR VENT

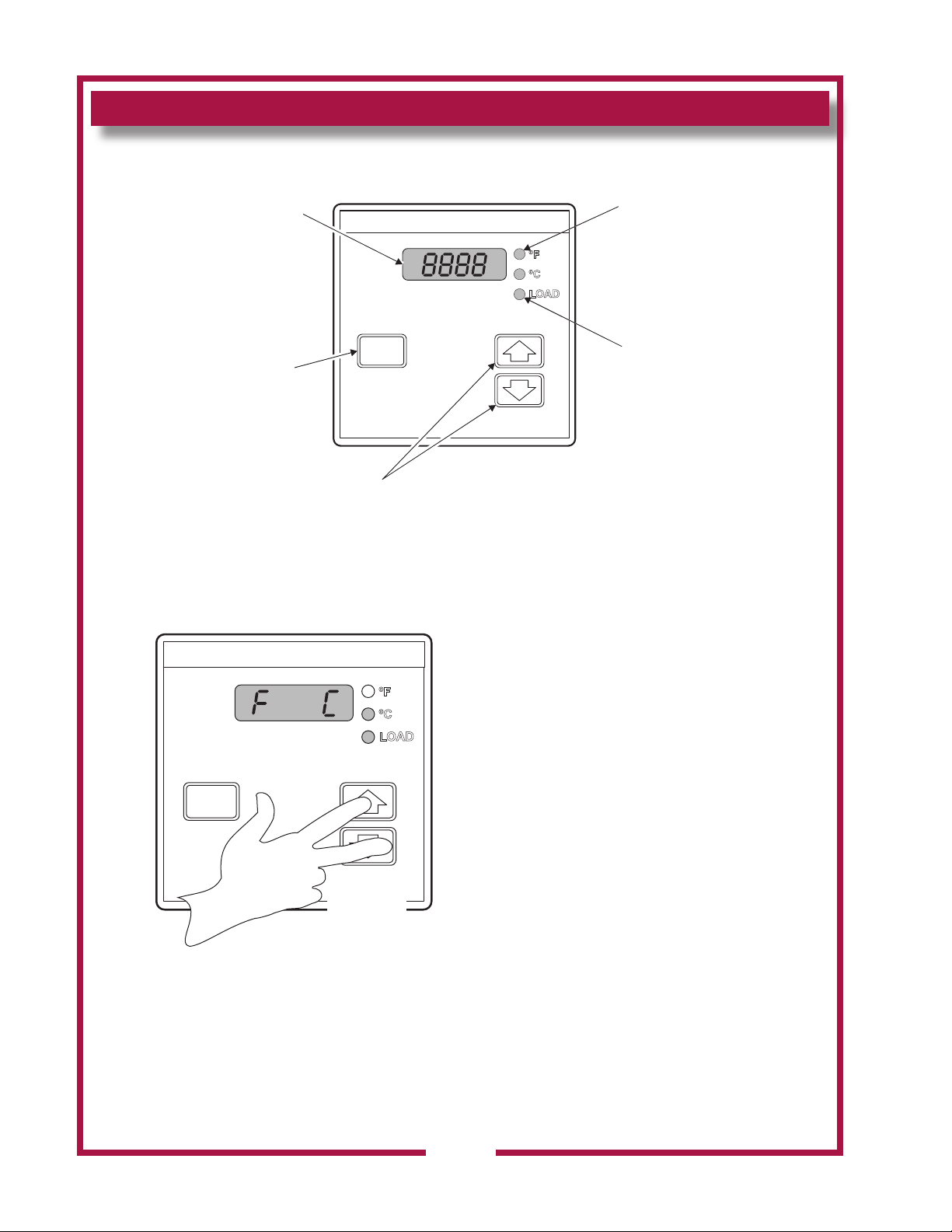

CONTROL

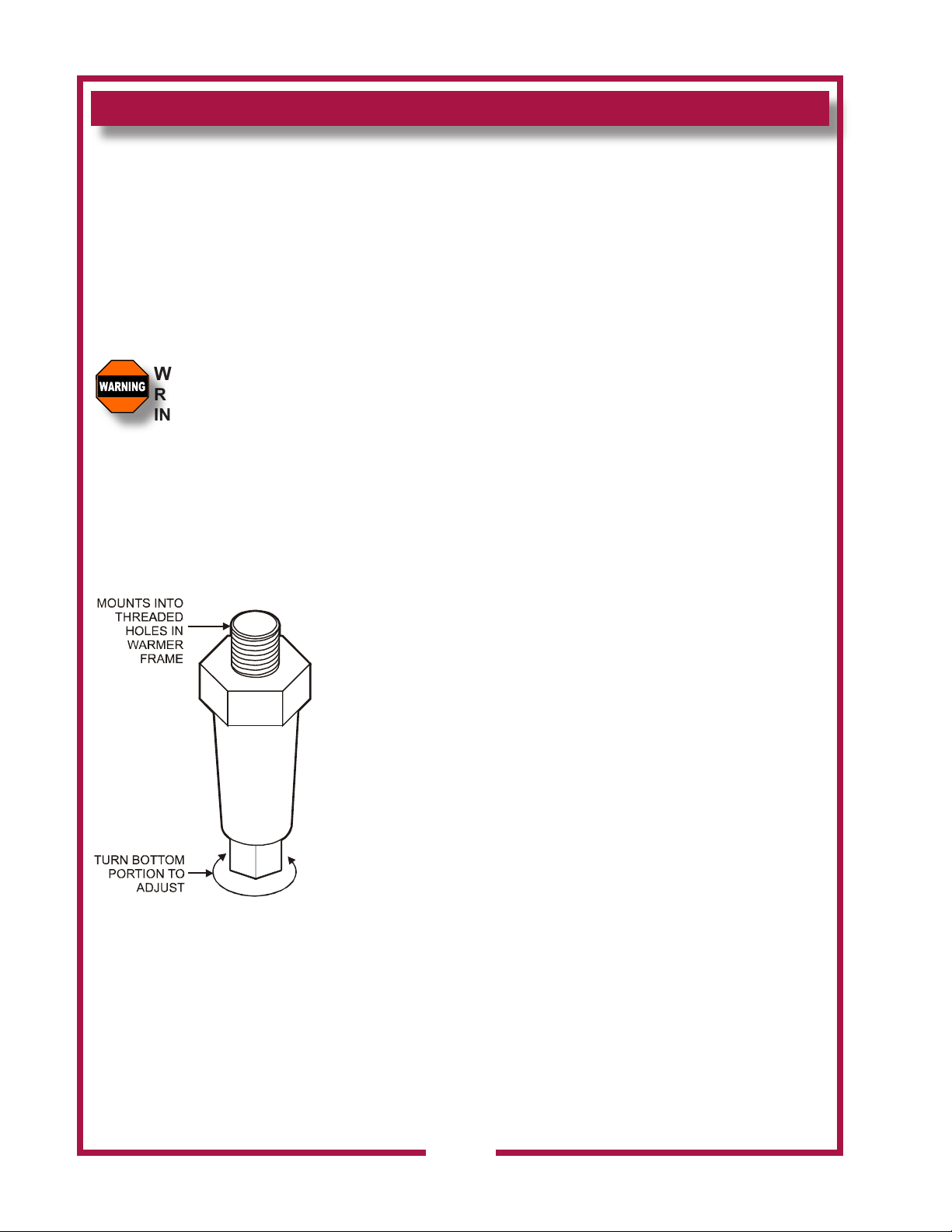

ADJUSTABLE
LEG
POWER CORD
POWER SWITCH
CONTROL MODULE
LED READOUT
"PROCESS" KEY
INCREMENT AND
DECREMENT KEYS
ºF OR ºC
INDICATORS
LOAD
INDICATOR
CONTROL MODULE
PROCESS
IL1937, Rev. -, M047
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
2
Page 5
PRECAUTIONS AND GENERAL INFORMATION
This appliance is intended for use in commercial establishments
only.
This appliance is intended
No other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
DO NOT submerge this appliance in water. This appliance is not jet
stream approved. Do not direct water jet or steam jet at this appliance,
or at any control panel or wiring. Do not splash or pour water on, in or
over any controls, control panel or wiring. Do not wash oor around
this appliance with water or steam jet.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
Heating element will be very hot when in use. Contact may cause
serious burns.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel.
Any procedure which requires the use of tools must be performed by a
qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics, parts
breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
to prepare food for human consumption.
WARNING:
SHOCK HAZARD
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to
follow this warning can
result in severe electrical
shock.
CAUTION:
RIS K OF
DAM A GE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result if
these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions and
maintained according to the instructions in this manual.
This appliance is NSF approved for potentially hazardous foods.
This appliance is and Listed under UL File E6070 for 120V, 208V
and 240V.
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
3
AGENCY LISTING INFORMATION
STD 4
E6070
E6070
Page 6
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on the
inside front cover of this
manual.
WARNING:
RISK OF
INJURY
Installation procedures must
be performed by a qualied
technician with full knowledge
of all applicable electrical and
plumbing codes. Failure can
result in personal injury and
property damage.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all
protective plastic lm, packing materials and accessories from the
Appliance before connecting electrical power or otherwise performing
any installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before
discarding packing materials. Store all accessories in a convenient
place for later use.
COMPONENTS
1 - 3 ea. DRAWERS (qty. depends on model)
1 - 3 ea. HUMITROL RACKS (if ordered with unit)
SETUP
Setup the appliance only on a rm, level, non-combustible surface.
Verify local codes for requirements. Concrete, tile, terrazzo or metal
surfaces are recommended. Metal over combustible material may not
meet code for non-combustible surfaces.
Install adjustable legs or optional casters, one on each corner of the
appliance, in the holes provided.
Verify that the unit sits rmly ON ALL FOUR LEGS. With a spirit level,
check that the appliance is level front-to-back and side-to-side. With
the adjustable legs, adjust as required to level the appliance. All four
legs must be adjusted to rmly contact the oor in order to prevent
tipping.

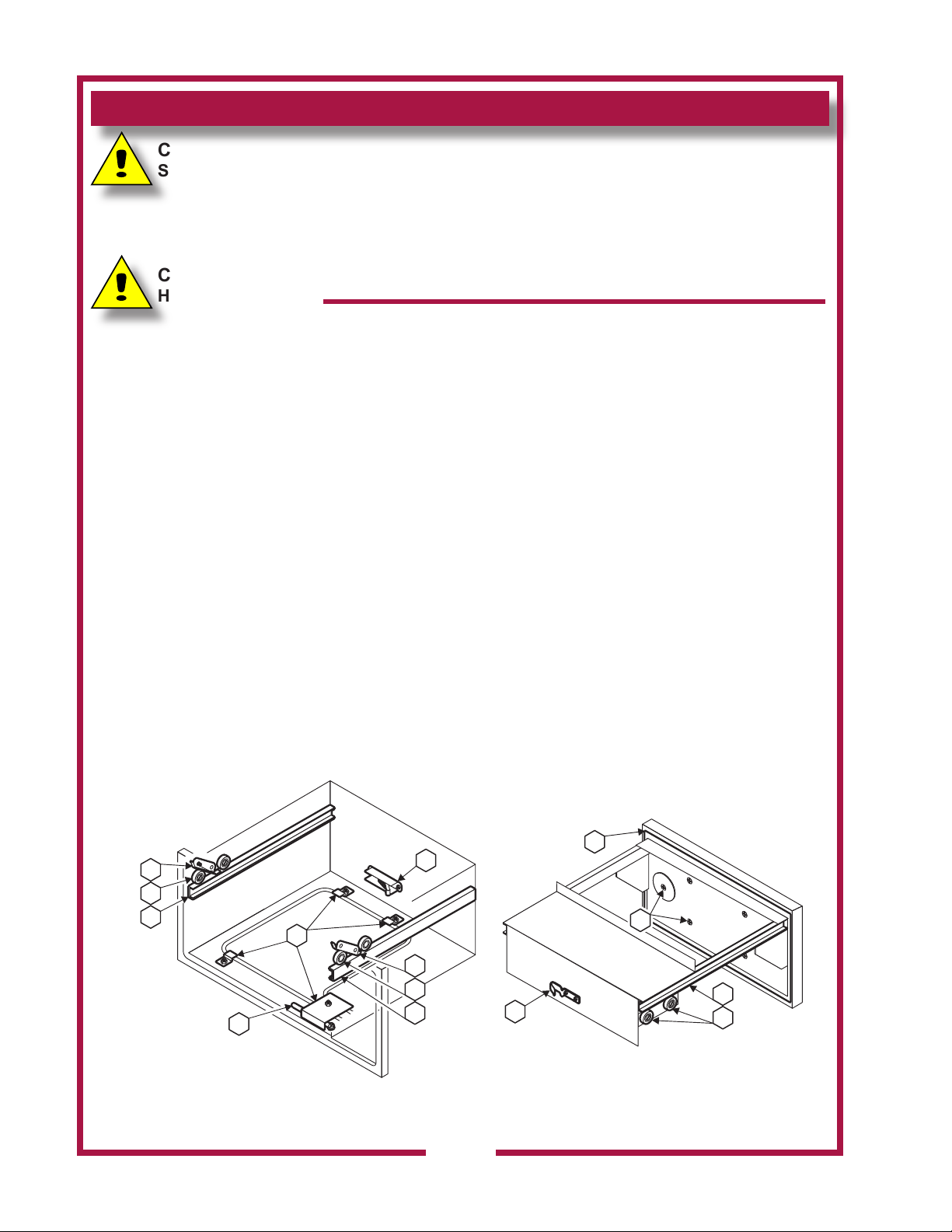

If drawers were removed during installation, install drawer(s) in unit:
a. Check the roller catch inside the cabinet. The spring-loaded
roller arm must be extended.
b. With the front of the drawer assembly tipped downward,
engage the roller on the drawer with the cabinet drawer slide.
c. Raise the drawer to the horizontal position until the drawer-
mounted slide engages the dual roller assembly on the cabinet.
d. Slide the drawer in until the catch engages. The drawer should
remain tightly closed.
e. Slide the drawer out. The drawer stop should prevent the
drawer from coming all of the way out.
f. Install drawer insert pans.
Avoid storing ammable or combustible materials in, on or near the
appliance.
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
4
Page 7
INSTALLATION (continued)
ELECTRICAL
Refer to electrical specications on page 1. Circuit must meet or exceed the amperage and wattage requirements listed.

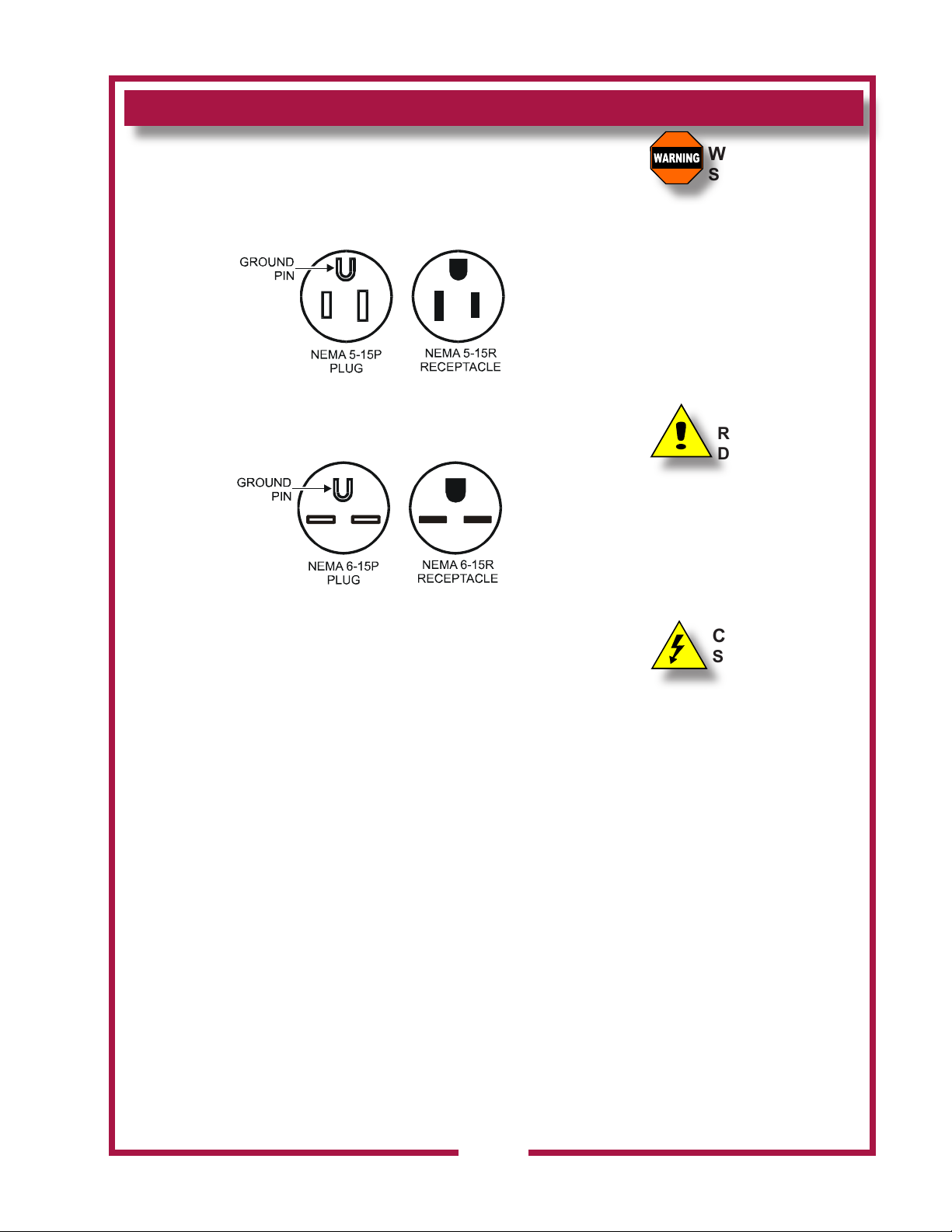

120 Volt units require a properly grounded NEMA 5-15R receptacle:
208/240 Volt units require a properly grounded NEMA 6-15R
receptacle:
WARNING:
SHOCK HAZARD
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RIS K OF
DAM A GE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result
if these instructions are not
followed.
CAUTION:
SHOCK HAZARD
The ground prong of the
power cord is part of a
system designed to protect
you from electric shock in the
event of internal damage.
DO NOT cut off the large
round ground prong, or twist
a blade to t an existing
receptacle.
IMPORTANT:
Contact a licensed electrician
to install and connect
electrical power to the
appliance.
IMPORTANT:
Damage due to being
connected to the wrong
voltage or phase is NOT
covered by warranty.
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
5
Page 8
OPERATION
ºF
ºC
LOAD
4 Character
shows SETPOINT
temperature
LED Display:
Process Key:
Press to view
actual temperature
of cavity
Increment and Decrement Keys:
Press UP arrow to increase
Press DOWN arrow to decrease
ºF or ºC Indicator:
Lit to indicate if unit
is configured for
degrees Fahrenheit or
degrees Celsius
Load Indicator:
Lit when output
is energized
PROCESS
IL1932, Rev.-, M048
ºF
ºC
LOAD
CHANGE DISPLAY MODE:
Press and hold UP arrow and
DOWN arrow keys for 10 seconds.
Release keys when display reads
F C.
Within 3 seconds, press UP arrow
or DOWN arrow key until desired
indicator ( glows.
The new value will lock
into memory 3 seconds after the
last keystroke.
ºF or ºC)
HOLD
10 SEC.
PROCESS
IL1933, Rev. -, M048
CONTROL MODULE
SET DISPLAY MODE ( ºF or ºC)
6
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
Page 9
SET HEATING TEMPERATURE
PROCESS
ºF
ºC
LOAD
is displayed
IL1934, Rev.-, M048

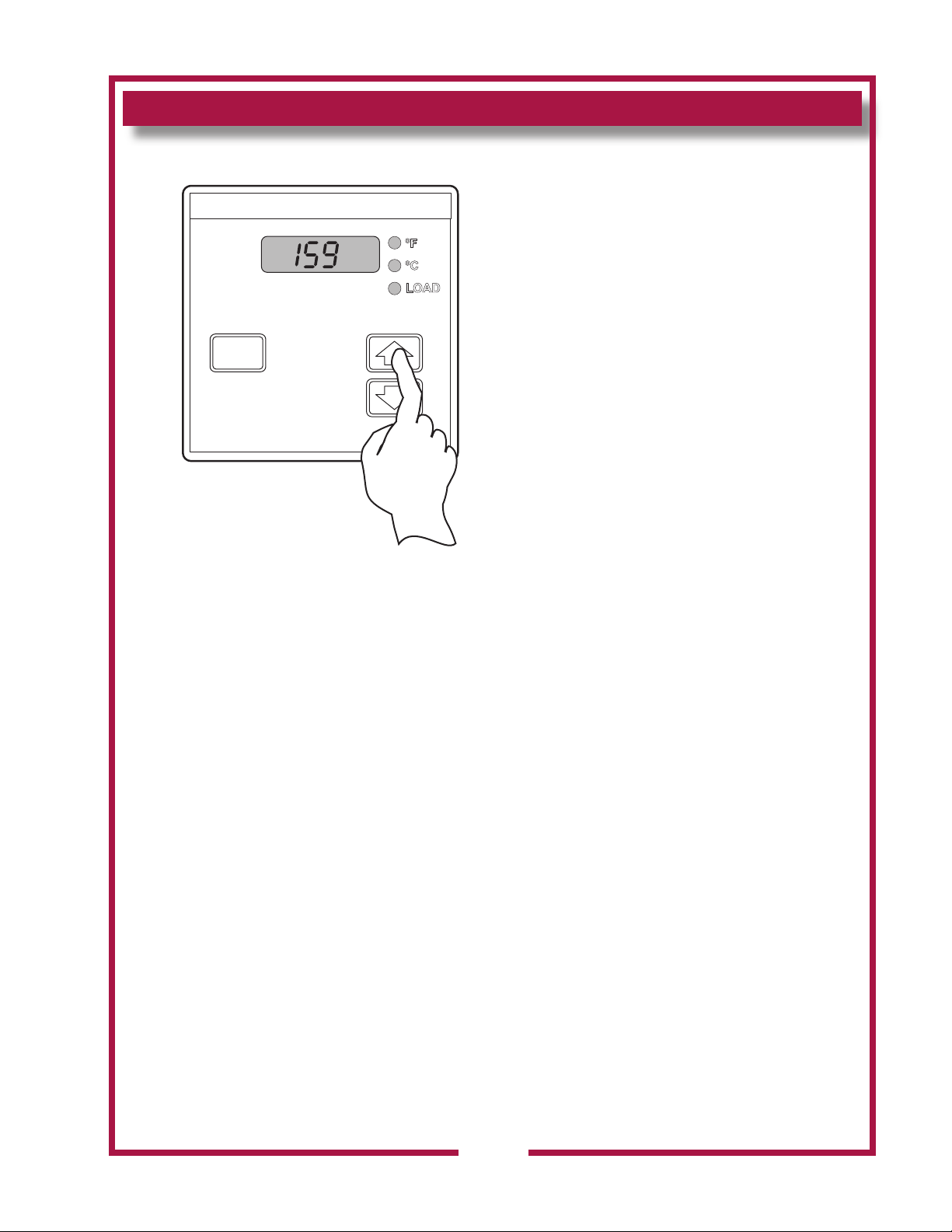

SET SETPOINT TEMPERATURE:
Press an arrow key:
UP arrow to increase
DOWN arrow to decrease
Release key when desired
setpoint temperature
Reading is locked into memory
3 seconds after last key stroke
OPERATION (continued)
NORMAL OPERATION
LED Readout displays the setpoint temperature.
•
Minimum setpoint is 140ºF (60ºC).
•
LOAD indicator glows when heating element is energized.
•
Press “PROCESS” key to view actual temperature inside the warmer cavity
•
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
7
Page 10
OPERATION (continued)
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
NOTE:
The chart below is intended
as a guide ONLY. Your
own experience with this
appliance, type of foods
and method of operation will
enable you to determine the
temperature control and air
vent settings best suited to
your operation.
HEATING OPTIONS
1. Moist heat with Humitrol Rack:
a. MOIST operation prevents food from drying out as heat is
applied to the warming chamber.
b. To set for MOIST operation, remove the Humitrol Rack from
bottom of drawer insert pan and carefully pour approximately
2 quarts of water (½” depth) into the pan. Reinstall rack.
c. When the drawer is closed, the Humitrol Rack allows water
vapor to rise through the stored product in the drawer. The
Humitrol Rack also decreases the sloshing effect of the water
in the pan when the drawer is opened.
d. Place the food directly on the rack. The rack is designed to
support the food off of the steam vents, where water droplets
may form.
e. Check the water level in the pan periodically, and add water
when necessary.
f. Set the front air vent between fully closed and half-open.
Actual setting will depend upon the type and amount of product
stored in the drawer, the temperature setting, and the
frequency with which the drawer is opened.
2. Moist heat with pans:
a. This Wells warmer is designed to accommodate any
combination of standard-size, steam table pans.
b. Place a small amount of water in drawer pan. Place the steam
table pans in the drawer pan.
c. Check the water level in the pan periodically, and add water
when necessary.
3. Dry heat:
a. For some applications, you may want to store previously
prepared foods in a dry-heat environment. To do so, place the
food directly into the empty (i.e. no water) drawer pan.
OPERATING CHART FOR DRAWER WARMERS
PRODUCT RECOMMENDED TYPE CONTROL AIR VENT
TYPE STORAGE TEMP. OF HEAT SETTING SETTING
Hard Rolls 160-185ºF Dry 7-8 Full Open
Soft Rolls 150-175ºF Moist 6-7 Open - ½
Vegetables 175-185ºF Moist 7-8 Open - ½
Meats 165-185ºF Dry 6-8 Full Open
Fish 165-185ºF Moist 6-8 Closed
Casseroles 150-175ºF Dry 6-7 Full Open
Pies, Desserts 160-185ºF Dry 6-7 Full Open
Taco Shells 150-170ºF Dry do not put water 4-6 Full Open
Corn Chips 150-170ºF Dry in the pan 4-6 Full Open
<
8
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
Page 11
OPERATION (continued)
OPERATION
1. Determine the type of food to be warmed.
2. Refer to the chart on page 8 to determine the type of heat required.
3. Press power switch to ON. Set the air vent control for the type of
heat, and set the controller setpoint to the desired temperature.
4. Allow warmer to pre-heat for approximately 30 minutes before use.
DO’S and DON’TS
1. DO Always use a drawer pan.
DO NOT Place food directly into the warmer cavity.
2. DO Check water level in moist-operation warmer
frequently during use.
DO Use a Humitrol Rack or Insets to hold food for moist
operation.
3. DO Use warm water to add to the pan during moist
operation.
DO NOT Put ice into a warmer pan. Ice in the pan will cause
condensation on the inside of the warmer cavity.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
CAUTION:
SHOCK HAZARD
DO NOT splash or
pour water onto control panel
or wiring.
IMPORTANT:
DO NOT place food directly
into the warmer cavity.
Always use a drawer pan.
IMPORTANT:
DO NOT put ice into a warmer
pan. Ice in the pan will
cause condensation on the
inside of the warmer cavity.
Damage caused by this type of
condensation is NOT covered
by warranty.
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
9
Page 12
CLEANING INSTRUCTIONS
IL1935, Rev. -, M048
CAUTION:
SHOCK HAZARD
Disconnect appliance from
electric power before cleaning.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns. Allow appliance to cool
before cleaning.
PRECAUTIONS: Press power switch OFF.
Allow drawers to cool before proceeding.
Remove drawer pans and Humitrol racks.
FREQUENCY: Minimum -Daily
TOOLS: Warm water and mild detergent
Clean cloth or sponge

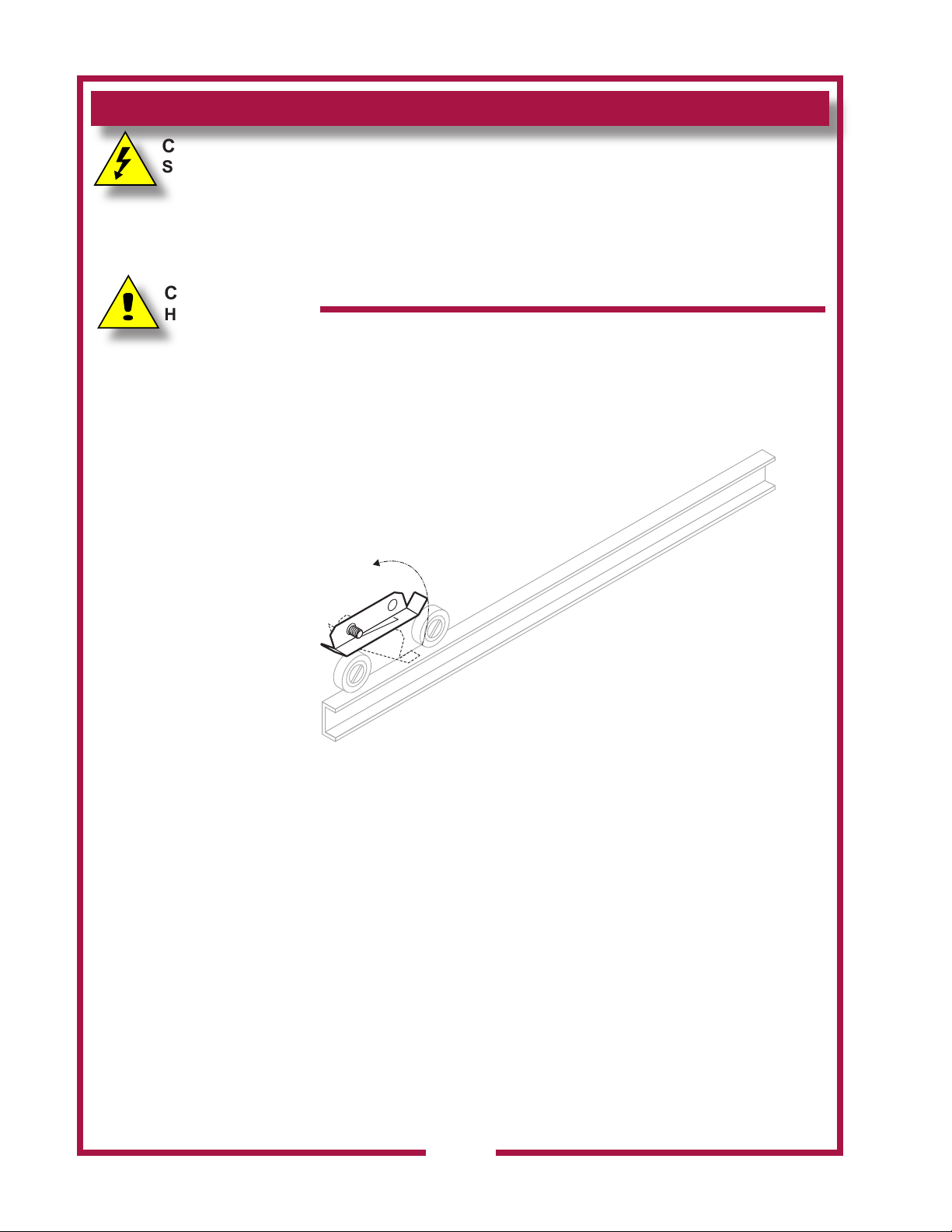

1. Remove drawers from warmer:
a. Pull warmer drawer out until fully extended.
b. Slidengeralongleftandrightsliderailuntilyoureachthe
latches (located at the front end of the cabinet-mounted rails)
Press down on both left and right latch.
c. Pull drawer away from warmer.
2. Clean drawers, drawer pans, Humitrol Racks and/or insets with
warm water and mild detergent.
Rinse all components thoroughly with clear water.
Dry all components prior to reinstalling them in warmer.
3. Sweep crumbs and other debris from warmer cavity.
4. Clean the outside of the unit by wiping with a clean cloth or sponge,
warm water and mild detergent. Dry with a clean cloth,
then wipe with a polish formulated for stainless steel.
5. It is important to keep the slide rails clear and free from debris.
Periodic cleaning of the slide rails and other adjoining parts is
necessary to assure smooth drawer operation.
6. Check drawer rollers. Be sure they roll freely and that the slide
rails are free from debris.
7. Be sure cabinet-mounted drawer catch roller is “up”, then
re-install drawers.
10
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
Page 13
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
No lights or heat (all drawers)
No heat (one drawer)
Food dries out
Food gets soggy
Drawer falls open
Drawer falls out when opened
TROUBLESHOOTING SUGGESTIONS
Warmer unplugged Plug warmer into appropriate receptacle
Circuit breaker off or tripped Reset circuit breaker
Internal damage
Temperature control not set Set for desired temperature.
Internal damage
Humidity control (air vent) not set
Water in pan evaporated or low Add water to pan.
Food contacting water Use a Humitrol Rack
Water level too high Water should be no more than 1/2” deep
Humidity control (air vent) not set
Catch roller not extended before closing
drawer
Drawer catch damaged
Drawer stop dirty Clean and lubricate drawer stop
Drawer stop damaged
Contact an Authorized Wells Service Agency for
repairs.
Contact an Authorized Wells Service Agency for
repairs.
OPEN air vent for dry operation.
CLOSE air vent for moist operation.
OPEN air vent for dry operation.
CLOSE air vent for moist operation.
Be sure catch roller is extended before installing
drawer.
Contact an Authorized Wells Service Agency for
repairs.
Contact an Authorized Wells Service Agency for
repairs.
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
11
Page 14
MAINTENANCE INSTRUCTIONS
1
6
5
4
2
3
1
1
2
2
8
9
3
7
IL1936, Rev. -, M048
CAUTION:
SHOCK HAZARD
Disconnect appliance from
electric power before cleaning.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns. Allow appliance to cool
before servicing.
ADJUSTMENTS AND LUBRICATION
PRECAUTIONS: Turn control knob to OFF. Unplug warmer
Allow drawers to cool before proceeding.
Remove drawer pans and Humitrol racks
FREQUENCY: Minimum - Every 2 weeks recommended.
TOOLS: Screwdrivers, Phillips (+) and at blade (-).
Nut drivers, 3/8” and 7/16”.
Food-grade lubricant.
1. Check slides on cabinet and drawers for cleanliness.
2. Check all rollers on cabinet and drawers for cleanliness and
tightness. Lubricate.
3. Check cabinet drawer stops for operation. Stops must “snap”
down positively. Clean and adjust as required.
4. Check cabinet heating element fasteners for tightness.
5. Check all cabinet drawer catches for tightness and operation.
Lubricate. Be certain roller is “out” before attempting to install
drawer.
6. Check temperature sensor. Sensor must be securely mounted in
the appropriate holder.
7. Check drawer faceplate and handle fasteners for tightness.
8. Check drawer catch clip for tightness.
9. Examine condition of gasket. Arrange repairs for torn or
damaged drawer gaskets.
10. Reinstall drawers and check for proper operation.
Procedure is complete.
12
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
Page 15
PARTS & SERVICE
DESCRIPTION PART NO.
HUMITROL RACK 5C-20624
PAN, STAINLESS (ALL EXCEPT RWN) 5C-21488
PAN, STAINLESS (RWN ONLY) 5C-22228
LEG KIT, 4” PLASTIC (SET OF 4) 5D-20314
LEG KIT, 4” METAL (SET OF 4) 5D-20563
LEG KIT, 6” METAL (SET OF 4) 5C-21607
CASTER KIT 10” HIGH (SET OF 4) 5C-21034
CASTER KIT 3-1/2” HIGH (SET OF 4) 5C-21947
CASTER KIT 2-1/4” HIGH (SET OF 4) 5C-22025
IMPORTANT: Use only
factory authorized service
parts.
For factory authorized
service, or to order factory
authorized replacement parts,
contact your Wells authorized
service agency, or call:
Wells Bloomeld, LLC
10 Sunnen Drive
St. Louis, MO 63143
Service Parts Dept.
phone: (314) 678-6314
fax: (314) 781-2714
Service Parts Department
can supply you with the name
and telephone number of
the WELLS AUTHORIZED
SERVICE AGENCY
nearest you.
CUSTOMER SERVICE DATA
please have this information available if calling for service
RESTAURANT _____________________________ LOCATION _____________
INSTALLATION DATE ________________________ TECHNICIAN ___________
SERVICE COMPANY ________________________________________________
ADDRESS ___________________________ STATE ______ ZIP__________
TELEPHONE NUMBER (_____)_____-_________
EQUIPMENT MODEL NO. _______________
EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
047 p/n 307538 OpM Free-Standing Drawer Warmer w/ Solid State Control
13
Page 16
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com
Loading...
