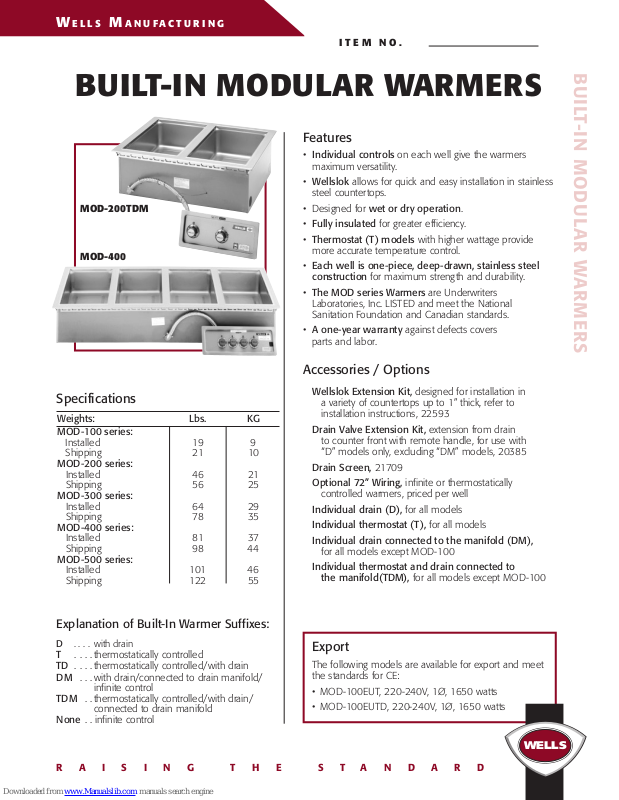

Page 1
BUILT-IN MODULAR WARMERS
BUILT-IN MODULAR WARMERS
I T E M N O .
Features
• Individual controls on each well give the warmers
maximum versatility.
• Wellslok allows for quick and easy installation in stainless
steel countertops.
• Designed for wet or dry operation.
• Fully insulated for greater efficiency.
• Thermostat (T) models with higher wattage provide
more accurate temperature control.
• Each well is one-piece, deep-drawn, stainless steel
construction for maximum strength and durability.
• The MOD series Warmers are Underwriters
Laboratories, Inc. LISTED and meet the National
Sanitation Foundation and Canadian standards.
• A one-year warranty against defects covers
parts and labor.
Accessories / Options
Wellslok Extension Kit, designed for installation in
a variety of countertops up to 1” thick, refer to
installation instructions, 22593
Drain Valve Extension Kit, extension from drain
to counter front with remote handle, for use with
“D” models only, excluding “DM” models, 20385
Drain Screen, 21709
Optional 72” Wiring, infinite or thermostatically
controlled warmers, priced per well
Individual drain (D), for all models
Individual thermostat (T), for all models
Individual drain connected to the manifold (DM),
for all models except MOD-100
Individual thermostat and drain connected to
the manifold(TDM), for all models except MOD-100
Export
The following models are available for export and meet
the standards for CE:
• MOD-100EUT, 220-240V, 1Ø, 1650 watts
• MOD-100EUTD, 220-240V, 1Ø, 1650 watts
W E L L S M A N U F A C T U R I N G
R A I S I N G T H E S T A N D A R D
Specifications
Weights: Lbs. KG
MOD-100 series:
Installed 19 9
Shipping 21 10
MOD-200 series:
Installed 46 21
Shipping 56 25
MOD-300 series:
Installed 64 29
Shipping 78 35
MOD-400 series:
Installed 81 37
Shipping 98 44
MOD-500 series:
Installed 101 46
Shipping 122 55
WELLS
Explanation of Built-In Warmer Suffixes:
D . . . . with drain
T . . . . thermostatically controlled
TD . . . . thermostatically controlled/with drain
DM . . . with drain/connected to drain manifold/
infinite control
TDM . . thermostatically controlled/with drain/
connected to drain manifold
None . . infinite control
MOD-200TDM
MOD-400
Page 2
WELLS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
2 1/4
(57)
23 5/8
(600)
43 1/2
(1105)
18
(457)
6 1/4
(159)
9 3/4
(248)
1 3/4
(44)
7 3/4
(197)
14
(356)
RR
R
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
1 3/4
(44)
9 3/4
(248)
6 1/4
(159)
14
(356)
29 1/2
(749)
23 5/8
(600)
2 1/4
(57)
7 3/4
(197)
14
(356)
WELLS
(175)
6 7/8
(44)
1 3/4
(248)
9 3/4
(159)
6 1/4
(149)
5 7/8
(349)
13 3/4
(552)
21 3/4
(57)
2 1/4
’D’ MODELS ONLY
INTERNAL N.P.T.
1/2 INCH
R
R
R
W E L L S M A N U F A C T U R I N G
WELLS
RR
R
LISTED STD.4 E6070 EXPORT
E6070 MODELS
ONLY
M O D E L S
M O D - 1 0 0 , M O D - 1 0 0 D
M O D - 1 0 0 T, M O D - 1 0 0 T D
B U I LT - I N M O D U L A R W A R M E R S
D I M E N S I O N S :
INCH
(MM)
MINIMUM CLEARANCE REQUIRED FROM UNIT
TO THE NEAREST SURFACE.
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
M O D - 1 0 0 , M O D - 1 0 0 D , M O D - 1 0 0 T A N D M O D - 1 0 0 T D
E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PHASE POWER SUPPLY COR D
MOD-100 120 1200 10.0 SINGLE NONE
MOD-100 208 900 4.3 SINGLE NONE
MOD-100 240 1200 5.0 SINGLE NONE
MOD-100T 120 1650 13.8 SINGLE NONE
MOD-100T 208 1240 6.0 SINGLE NONE
MOD-100T 240 1650 6.9 SINGLE NONE
MOD-100EUT 220-240 1650 6.9 SINGLE NONE
All models with a ‘D' or 'DM' suffix have the same electrical specs as the standard MOD-100 or MOD-100T models.
Denotes export (EU) products.
NOTE: Specifications are subject to change without notice. See installation instruction
sheet prior to installing the unit. This document is not for installation purposes.
WELLS MANUFACTURI NG CO MPANY
2 ERI K CIRCLE, PO BOX 2 80, VERD I, NV 89 439 U.S.A. • USA P HON E: ( 775) 689-5700 • FA X: (775 ) 689-5972
FOR ORDE RS ON LY: (88 8) 356-5362 • FAX: (800) 356-5 142 • www.wellsbloomfield.com
A SP ECIA LTY EQU IP MENT COM PANY • 2000 WELLS M AN UFA CT UR ING • PR IN TE D IN TH E U.S. A. • 7/0 0 • R EV(G ) • PART NO. 370 99
Page 3
WELLS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
2 1/4
(57)
23 5/8
(600)
43 1/2
(1105)
18
(457)
6 1/4
(159)
9 3/4
(248)
1 3/4
(44)
7 3/4
(197)
14
(356)
RR
R
WELLS MANUFACTURI NG CO MPANY
2 ERI K CIRCLE, PO BOX 2 80, VERD I, NV 89 439 U.S.A. • USA P HONE: (775) 689-5700 • FAX : (775) 689-5972
FOR ORDE RS ON LY: (88 8) 356-5362 • FAX: (800) 356-5 142 • www.wellsbloomfield.com
A SP ECIA LTY EQU IP MENT COM PANY • 2000 WELLS M AN UFA CT UR ING • PR IN TE D IN TH E U.S. A. • 7/0 0 • R EV(G ) • PART NO. 370 99
M O D E L S
M O D - 2 0 0 , M O D - 2 0 0 D
M O D - 2 0 0 T , M O D - 2 0 0 T D
M O D - 2 0 0 D M , M O D - 2 0 0 T D M
B U I LT - I N M O D U L A R W A R M E R S
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
1 3/4
(44)
9 3/4
(248)
6 1/4
(159)
14
(356)
29 1/2
(749)
23 5/8
(600)
2 1/4
(57)
7 3/4
(197)
14
(356)
M O D - 2 0 0 , M O D - 2 0 0 D , M O D - 2 0 0 T, M O D - 2 0 0 T D ,
M O D - 2 0 0 D M A N D M O D - 2 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
D I M E N S I O N S :
LISTED STD.4 E6070
E6070
INCH
(MM)
W E L L S M A N U F A C T U R I N G
WELLS
MOD-200 208 1800 8.7 SINGLE NONE
MOD-200 240 2400 10.0 SINGLE NONE
MOD-200T 208 2480 11.9 SINGLE NONE
MOD-200T 240 3300 13.8 SINGLE NONE
MODELS VOLTS WATTS AMPS PHASE POWER SUPPLY COR D
NOTE: Specifications are subject to change without notice. See installation instruction
sheet prior to installing the unit. This document is not for installation purposes.
The Drain Manifold with Valve (1" internal N.P.T.) is supplied for DM & TDM models only.
All models with a ‘D' or 'DM' suffix have the same electrical specs as the standard MOD-200 or MOD-200T models.
MINIMUM CLEARANCE REQUIRED FROM UNIT
TO THE NEAREST SURFACE.
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
RR
R
Page 4
W E L L S M A N U F A C T U R I N G
WELLS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
2 1/4
(57)
23 5/8
(600)
43 1/2
(1105)
18
(457)
6 1/4
(159)
9 3/4
(248)
1 3/4
(44)
7 3/4
(197)
14
(356)
RR
R
LISTED STD.4 E6070
E6070
D I M E N S I O N S :
M O D E L S
M O D - 3 0 0 , M O D - 3 0 0 D
M O D - 3 0 0 T , M O D - 3 0 0 T D
M O D - 3 0 0 D M , M O D - 3 0 0 T D M
B U I LT - I N M O D U L A R W A R M E R S
INCH
(MM)
MINIMUM CLEARANCE REQUIRED FROM UNIT
TO THE NEAREST SURFACE.
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
M O D - 3 0 0 , M O D - 3 0 0 D , M O D - 3 0 0 T, M O D - 3 0 0 T D ,
M O D - 3 0 0 D M A N D M O D - 3 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS
MOD-300 208 2700 7.5 7.5 7.5 13.0 NONE
MOD-300 240 3600 8.7 8.7 8.7 15.0 NONE
MOD-300T 208 3720 10.3 10.3 10.3 17.9 NONE
MOD-300T 240 4950 11.9 11.9 11.9 20.6 NONE
All models with a ‘D' or 'DM' suffix have the same electrical specs as the standard MOD-300 or MOD-300T models.
NOTE: Specifications are subject to change without notice. See installation instruction
sheet prior to installing the unit. This document is not for installation purposes.
The Drain Manifold with Valve (1" internal N.P.T.) is supplied for DM & TDM models only.
WELLS MANUFACTURI NG CO MPANY
2 ERI K CIRCLE, PO BOX 2 80, VERD I, NV 89 439 U.S.A. • USA P HON E: (775) 689-5700 • FAX : (775) 689-5972
FOR ORDE RS ON LY: (88 8) 356-5362 • FAX: (800) 356-5 142 • www.wellsbloomfield.com
A SP ECIA LTY EQU IP MENT COM PANY • 2000 WELLS M AN UFA CT UR ING • PR IN TE D IN TH E U.S. A. • 7/0 0 • R EV(G ) • PART NO. 370 99
AMPS PER LIN E PHASE 3
L1 L2 L3
AMPS POWER
SI NGLE PHASE S UPPLY CORD
Page 5
WELLS
WELLS
’T’ MODELS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
35
(889)
2 1/4
(57)
23 5/8
(600)
71 1/2
(1816)
18
(457)
6 1/4
(159)
9 3/4
(248)
1 3/4
(44)
7 3/4
(197)
14
(356)
RR
R
W E L L S M A N U F A C T U R I N G
WELLS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
’T’ MODELS
35
(889)
1 3/4
(44)
9 3/4
(248)
6 1/4
(159)
18
(457)
57 1/2
(1461)
23 5/8
(600)
2 1/4
(57)
7 3/4
(197)
14
(356)
RR
R
LISTED STD.4 E6070
E6070
D I M E N S I O N S :
M O D E L S
M O D - 4 0 0 , M O D - 4 0 0 D
M O D - 4 0 0 T , M O D - 4 0 0 T D
M O D - 4 0 0 D M , M O D - 4 0 0 T D M
B U I LT - I N M O D U L A R W A R M E R S
INCH
(MM)
MINIMUM CLEARANCE REQUIRED FROM UNIT
TO THE NEAREST SURFACE.
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
M O D - 4 0 0 , M O D - 4 0 0 D , M O D - 4 0 0 T, M O D - 4 0 0 T D ,
M O D - 4 0 0 D M A N D M O D - 4 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS
MOD-400 208 3600 11.2 11.2 7.5 17.3 NONE
MOD-400 240 4800 13.0 13.0 8.7 20.0 NONE
MOD-400T 208 4960 14.5 14.5 9.8 23.8 NONE
MOD-400T 240 6600 17.8 17.8 11.3 27.5 NONE
All models with a ‘D' or 'DM' suffix have the same electrical specs as the standard MOD-400 or MOD-400T models.
NOTE: Specifications are subject to change without notice. See installation instruction
sheet prior
The Drain Manifold with Valve (1" internal N.P.T.) is supplied for DM & TDM models only.
WELLS MANUFACTURI NG CO MPANY
2 ERI K CIRCLE, PO BOX 2 80, VERD I, NV 89 439 U.S.A. • USA P HONE: (775) 689-5700 • FAX: ( 775) 689-5972
FOR ORDE RS ON LY: (88 8) 356-5362 • FAX: (800) 356-5 142 • www.wellsbloomfield.com
A SP ECIA LTY EQU IP MENT COM PANY • 2000 WELLS M AN UFA CT UR ING • PR IN TE D IN TH E U.S. A. • 7/0 0 • R EV(G ) • PART NO. 370 99
to installing the unit. This document is not for installation purposes.
AMPS PER LIN E PHASE 3
L1 L2 L3
AMPS POWER
SI NGLE PHASE S UPPLY CORD
Page 6
WELLS
W E L L S M A N U F A C T U R I N G
WELLS
’T’ MODELS
1/2 INCH
INTERNAL N.P.T.
’D’ MODELS ONLY
35
(889)
2 1/4
(57)
23 5/8
(600)
71 1/2
(1816)
18
(457)
6 1/4
(159)
9 3/4
(248)
1 3/4
(44)
7 3/4
(197)
14
(356)
RR
R
LISTED STD.4 E6070
E6070
D I M E N S I O N S :
M O D E L S
M O D - 5 0 0 , M O D - 5 0 0 D
M O D - 5 0 0 T , M O D - 5 0 0 T D
M O D - 5 0 0 D M , M O D - 5 0 0 T D M
B U I LT - I N M O D U L A R W A R M E R S
INCH
(MM)
MINIMUM CLEARANCE REQUIRED FROM UNIT
TO THE NEAREST SURFACE.
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
M O D - 5 0 0 , M O D - 5 0 0 D , M O D - 5 0 0 T, M O D - 5 0 0 T D ,
M O D - 5 0 0 D M A N D M O D - 5 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS
MOD-500 208 4500 15.0 11.2 11.2 21.6 NONE
MOD-500 240 6000 17.0 13.0 13.0 25.0 NONE
MOD-500T 208 6200 19.5 14.6 14.6 29.8 NONE
MOD-500T 240 8250 22.1 16.9 16.9 34.4 NONE
All models with a ‘D' or 'DM' suffix have the same electrical specs as the standard MOD-500 or MOD-500T models.
NOTE: Specifications are subject to change without notice. See installation instruction
sheet prior
The Drain Manifold with Valve (1" internal N.P.T.) is supplied for DM & TDM models only.
WELLS MANUFACTURI NG CO MPANY
2 ERI K CIRCLE, PO BOX 2 80, VERD I, NV 89 439 U.S.A. • USA P HONE: (775) 689-5700 • FAX : (775) 689-5972
FOR ORDE RS ON LY: (88 8) 356-5362 • FAX: (800) 356-5 142 • www.wellsbloomfield.com
A SP ECIA LTY EQU IP MENT COM PANY • 2000 WELLS M AN UFA CT UR ING • PR IN TE D IN TH E U.S. A. • 7/0 0 • R EV(G ) • PART NO. 370 99
to installing the unit. This document is not for installation purposes.
AMPS PER LIN E PHASE 3
L1 L2 L3
AMPS POWER
SI NGLE PHASE S UPPLY CORD
