OPERATION MANUAL
COUNTERTOP
CERAMIC
HOTPLATES
INSTALLATION
USE & CARE
223
for
Models:
HC-100
HC-125
HC-225
Includes
Model HC-225
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS U S ING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
PRINTED IN UNITED STATES OF AMERICA
p/n 303755 Rev. B ECN-13372 M223 071026 cps
LIMITED WARRANTY STATEMENT
Unless otherwise specified, all commercial cooking
equipment manufactured by WELLS BLOOMFIELD, LLC is
warranted against defects in materials and workmanship for
a period of one year from the date of original installation or
18 months from the date of shipment from our factory,
whichever comes first, and is for the benefit of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN
FACT, INCLUDING BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE, AND/OR FOR DIRECT,
INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH WELLS BLOOMFIELD PRODUCTS.
This warranty is void if it is determined that, upon inspection
by an authorized service agency, the equipment has been
modified, misused, misapplied, improperly installed, or
damaged in transit or by fire, flood or act of God. It also
does not apply if the serial nameplate has been removed, or
if service is performed by unauthorized personnel. The
prices charged by Wells Bloomfield for its products are
based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of
defects without charge by a Wells Bloomfield factory
authorized service agency or one of its sub-service
agencies. This service will be provided on customer’s
premises for non-portable models. Portable models (a
device with a cord and plug) must be taken or shipped to
the closest authorized service agency, transportation
charges prepaid, for service. In addition to restrictions
contained in this warranty, specific limitations are shown in
the Service Policy and Procedure Guide. Wells Bloomfield
authorized service agencies are located in principal cities.
This warranty is valid in the United States and Canada and
void elsewhere. Please consult your classified telephone
directory, your foodservice equipment dealer or contact:
Service Department, Wells Bloomfield, LLC
P.O. Box 280, Verdi, Nevada 89439
phone (775) 689-5707 or fax (775) 689-5976
for information and other details concerning warranty.
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specified on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted for
ninety (90) days from date of purchase on nonwarranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of
non-genuine Wells parts completely voids any
warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.
223 p/n 303755 OpM CT Ceramic Hotplates
SHIPPING DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This
should be done within fifteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Bloomfield cannot assume liability for damage or loss
incurred in transit. We will, however, at your request, supply
you with the necessary documents to support your claim.
xi
TABLE OF CONTENTS
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
INSTALLATION 4
OPERATION 5
CLEANING INSTRUCTIONS 6
SPECIAL CARE INSTRUCTIONS 7
TROUBLESHOOTING 8
PARTS & SERVICE 9
CUSTOMER SERVICE DATA 9
Thank You for purchasing this
Wells Bloomfield appliance
Proper installation, professional
operation and consistent
maintenance of this equipment
will ensure that it gives you the
very best performance and a long,
economical service life.
This manual contains the
information needed to properly
install this equipment, and to use
and care for the equipment in a
manner which will ensure its
optimum performance.
SPECIFICATIONS
MODEL ELEMENT WIDTH DEPTH VOLTS AMPS kW PLUG LEG
HEIGHT
HC-100 Single 7” 12-5/8” 12-5/8” 120 V 11.7 A 1.4 kW NEMA 5-15P 1”
HC-125 Single 9” 14-3/4” 14” 208 V 1ø 9.0 A 1.9 kW NEMA 6-15P 1”
240 V 1ø 10.4 A 2.5 kW NEMA 6-15P 1”
HC-225 Dual 9” 14-3/4” 24-5/8” 208 V 1ø 18.1 A 3.8 kW NEMA 6-30P 1”
240 V 1ø 20.8 A 5.0 kW NEMA 6-30P 1”
SPECIFICATIONS — EXPORT MODELS
MODEL ELEMENT WIDTH DEPTH VOLTS AMPS kW LEGS
HC-125EU Single 9” 14-3/4” 14” 220-240V 1ø 10.4 A 2.5 kW 1”
HC-225EU Dual 9” 14-3/4” 24-5/8” 220-240V 1ø 20.8 A 5.0 kW 1”
223 p/n 303755 OpM CT Ceramic Hotplates
Refer to the Export Manual for this equipment (p/n 301399) for specific information.
1
FEATURES & OPERATING CONTROLS
HEATING ELEMENT
(UNDER CERAMIC TOP)
POWER CORD
ADJUSTABLE LEGS
Ceramic Top Provides smooth, low maintenance heating surface
Heating Element Provides heat for food preparation
Note: elements located under ceramic top
Hot Surface Indicator Glows whenever ceramic top is above 150ºF (66ºC)
Light
Temperature Control Infinite switch to control temperature of heating element
PowerIndicator Light Glows any time temperature control is on
Name Plate Lists manufacturer, model number and serial number
Also lists voltage and wattage rating
Power Cord Connects hotplate to electrical power
Adjustable Legs Provides ventilation under hotplate
Allow hotplate to be leveled
CERAMIC TOP
HOT SURFACE
INDICATOR LIGHT
TEMPARATURE
CONTROL KNOBS
POWER
INDICATOR LIGHT
NAME PLATE
223 p/n 303755 OpM CT Ceramic Hotplates
2
PRECAUTIONS AND GENERAL INFORMATION
This appliance is intended for use in commercial establishments
only.
This appliance is intended
No other use is
agents.
recommended or authorized by the manufacturer or its
to prepare food for human consumption.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect the hotplate from electrical power before performing any
maintenance or servicing.
DO NOT submerge hotplate in water. DO NOT splash or pour
water over, onto or into controls or wiring.
Hotplate must be operated with the supplied legs properly
Installed.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualified technical personnel.
Any procedure which requires the use of tools must be performed by a
qualified technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics, parts
breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
WARNING:
ELECTRIC SHOCK
HAZARD
All servicing requiring access
to non-insulated electrical
components must be
performed by a factory
authorized technician.
DO NOT open any access
panel that requires the use of
tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RISK OF
DAMAGE
DO NOT connect and/or
energize this appliance until
all installation instructions are
read and followed. Damage
to the appliance will result if
these instructions are not
followed.
AGENCY APPROVAL INFORMA TION
This unit complies with NSF Standard 4 only if maintained and
operated per the instructions in this manual.
This unit is listed under E6070.
Export versions (only) of this unit meet standards.
223 p/n 303755 OpM CT Ceramic Hotplates
US
STD 4
E6070
3
EXPORT
MODELS
E6070
ONLY
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on the
inside front cover of this
manual.
CAUTION:
ELECTRIC SHOCK
HAZARD
The ground prong of the power
cord is part of a system
designed to protect you from
electric shock in the event of
internal damage to the
appliance.
NEVER CUT OFF THE
GROUND PRONG
(large round prong).
NEVER TWIST A PRONG TO
FIT AN EXISTING
RECEPTACLE.
Contact a licensed electrician
to install an electrical
receptacle appropriate to
the voltage and amperage
requirements of the
hotplate.
IMPORTANT:
Damage due to being plugged
into the wrong voltage or
phase is NOT covered by
warranty
UNPACKING & INSPECTION
Carefully remove the hotplate from the carton. Remove all
protective plastic film, packing materials and accessories from the
hotplate before plugging the hotplate into electrical power or otherwise
performing any installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the hotplate before starting any
installation.
Read and understand all labels and diagrams attached to the
hotplate.
Carefully account for all components and accessories before
discarding packing materials. Store all accessories in a convenient
place for later use.
SETUP
Supplied legs must be properly installed.
Setup the hotplate only on a firm level surface. Non-combustible
material (e.g. metal, terrazzo) is recommended.
Maintain at least 1” from adjacent surfaces.
ELECTRICAL
Refer to the nameplate. Verify the electrical service power. Voltage
and phase must match the nameplate specifications. Connecting the
hotplate to the wrong voltage can severely damage the equipment or
cause noticeably decreased performance.
Hotplate is equipped with a grounded electric power cord, this cord
must be plugged into a properly grounded electrical receptacle.
223 p/n 303755 OpM CT Ceramic Hotplates
4
OPERATION
GENERAL OPERATIONAL NOTES
Carefully read the description of the hotplate operation on the
specification sheet.
DO NOT attempt to perform any maintenance or service unless the
hotplate is unplugged or disconnected from electrical power.
DO unplug the hotplate from electrical power or turn the circuit
breaker off before cleaning or servicing.
DO NOT use steel wool or abrasive cleansers to clean the ceramic
top.
DO use the supplied scraper to remove burned-on food product.
OPERATION
Each heating element is controlled by an infinite switch
temperature control:
OFF removes power from the element
LOW thru 8 are temperature settings
Higher numbers indicate higher temperatures
There is a continuous range of settings between LOW
and HI
HI is a continuous ON setting
The power indicator light will glow any time the temperature control is
on.
The hot surface indicator light will glow any time the ceramic surface
is approximately 150ºF (65ºC) or higher.
Cooking Recommendations:
Save energy by turning the temperature control off any time the
hotplate is not in use. The heating elements will provide full heat
within 30 seconds, making it unnecessary to leave the unit on during
intermittent use.
Each heating element can hold up to a 16 quart pot or pan. For
efficient heating of food product, pots and pans should be no more
than 10” in diameter. Maximize the efficiency of the ceramic top by
using flat-bottom pots and pans.
Preserve the luster of the ceramic cook surface by wiping up spills
223 p/n 303755 OpM CT Ceramic Hotplates
promptly and by cleaning frequently. Allow the hotplate to cool
completely before cleaning. Use only cook-top cleaning crème on
glass-ceramic cooking surfaces.
Stir thick liquids frequently to maintain a consistent temperature.
CAUTION:
HOT SURFACES
Exposed surfacescan be hot
to the touchand may cause
burns.
CAUTION:
HOT SURFACES
Ceramic cooking surfaces
are hot anytime the HOT
SURFACE indicator light is lit.
DO NOT touch the cooking
surface if the HOT SURFACE
light is lit.
0
OFF
HI
8
7
6
5
IMPORTANT:
The dial markings are an
INDICATION of temperature
only. The temperature of the
food product depends on many
factors, including the size,
shape and material of the food
container, and the quantity and
consistency of the food
product.
LO
2
3
4
5
CLEANING INSTRUCTIONS
15º
CAUTION:
ELECTRIC
SHOCK HAZARD
Unplug hotplate from electric
power before cleaning.
CAUTION:
BURN HAZARD
Allow hotplate to cool
completely before cleaning.
CAUTION:
ELECTRIC SHOCK
HAZARD
Do not submerge hotplate in
water.
IMPORTANT: DO NOT spill
or pour water into controls,
control panel or wiring.
DO NOT submerge hotplate
in water. Damage to internal
components will occur.
Damage to internal
components from water
damage is NOT covered by
warranty.
DO NOT steel wool or
metal scouring pads to clean
ceramic heating surface.
PREPARATION
Unplug or disconnect hotplate from electrical power before cleaning.
Allow hotplate to cool completely before cleaning.
FREQUENCY
Daily
TOOLS
Cleaning Creme
Razor Scraper
Clean Cloth or Sponge
Mild Detergent or Cleaner Formulated for Stainless Steel
Warm Water
CLEANING
Unplug or disconnect hotplate from electrical power before cleaning.
Allow the hotplate to cool until the HOT SURFACE indicator light goes
off before cleaning.

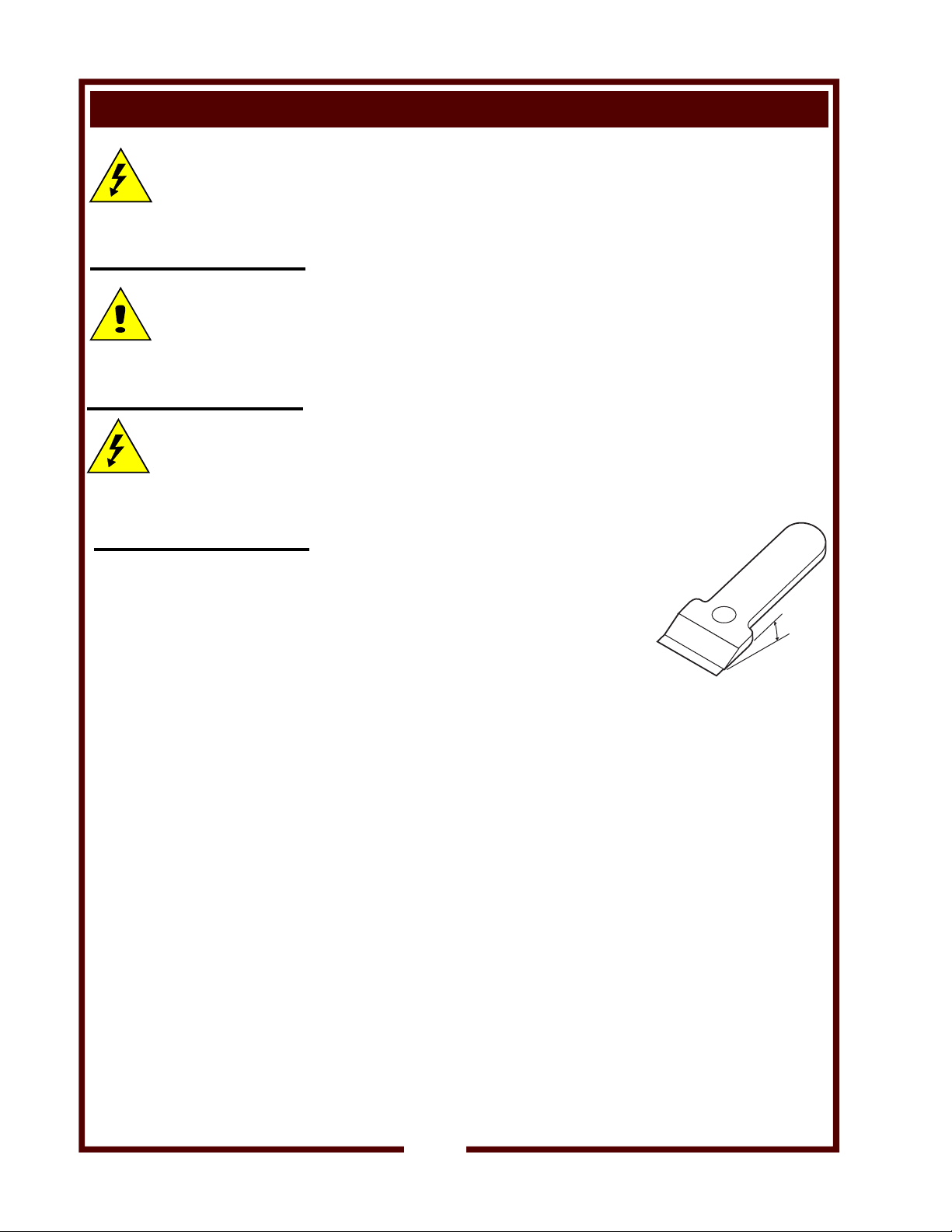

Clean food particles from the ceramic cooking
surface with a razor scraper. Hold the edge
of blade flat against the surface and at a 15º
angle to avoid scratching the ceramic. DO
NOT use metal implements (other than the
razor scraper), steel wool or metal scouring
pads to clean the ceramic cooking surface.
Use only cook-top cleaning creme on glass-ceramic cooking surfaces.
Wipe the ceramic cooking surfaces with cleaning creme and a clean
cloth. The cleaning creme leaves a
protective coating.
Wipe the outer portions of the hotplate cabinet with a clean soft cloth or
sponge dampened with warm water and a mild detergent or cleaner
formulated for cleaning stainless steel. DO NOT use steel wool to
clean hotplate cabinet.
Rinse by wiping hotplate cabinet with a clean soft cloth or sponge
moistened with clean warm water. Dry cabinet by wiping with a clean
soft dry cloth.
223 p/n 303755 OpM CT Ceramic Hotplates
6
SPECIAL CARE INSTRUCTIONS
DO NOT use the hotplate surface as a cutting board.
DO NOT cook directly on the glass-ceramic surface.
Check glass and ceramic cookware to verify suitability for use
on hotplates.
DO NOT drop cookware onto glass-ceramic cook surface.
Carefully place heavy pots and skillets on glass-ceramic cook
surface to avoid damage.
Avoid sliding cookware across hotplate surface.
Remove stains and metal marks from the glass-ceramic cook
surface after use by cleaning with cleaning creme. Allow
hotplate surface to cool completely before cleaning
DO NOT leave empty cookware on a hot cooking surface.
Avoid contacting the hot glass-ceramic surface with plastic or
aluminum foil, which may melt.
CAUTION:
BURN HAZARD
Allow hotplate to cool
completely before cleaning.
CAUTION:
CUT HAZARD
DO NOT attempt to cook on a
broken hotplate surface.
Severe injury may result.
Contact an Authorized Wells
Service Agency immediately
for repairs.
CAUTION:
CUT HAZARD
DO NOT attempt to repair a
broken hotplate surface. The
glass-ceramic surface is
impossible to repair
successfully. A broken
surface can cause severe
injury. Contact an Authorized
Wells Service Agency
immediately for repairs
.
223 p/n 303755 OpM CT Ceramic Hotplates
7
TROUBLESHOOTING
SYMPTOM
Hotplate won’t heat
One or more sections
won’t heat
Hotplate not hot enough
Hot surface indicator does
not light, or stays on
POSSIBLE CAUSE
Not plugged in, damaged plug or cord
or circuit breaker tripped
Temperature control not on
Damaged temperature control,
element or other internal component
Temperature control not set
Operating 208/240V unit at 120V
Damaged temperature control,
element or other internal component
Damaged temperature control,
element or other internal component
SUGGESTED REMEDY
Check plug and cord
Check / reset circuit breaker
Turn temperature control to
desired setting
Contact Authorized Wells
Service Agency for repairs
Adjust for desired temperature
Be sure supply voltage
matches nameplate voltage
Contact Authorized Wells
Service Agency for repairs
Contact Authorized Wells
Service Agency for repairs
NOTE: There are no user
serviceable components in this
appliance. In all cases of
damage or component
malfunction, contact your
Authorized Wells Service
Agency for repairs.
8
223 p/n 303755 OpM CT Ceramic Hotplates
PARTS & SERVICE
DESCRIPTION SERVICE
PART NO.
SCRAPER, CLEANING 22445
CLEANING CREME, CERAMIC HOTPLATE 501124
IMPORTANT: Use only
factory authorized service
parts and replacement
filters.
For factory authorized
service, or to order factory
authorized replacement parts,
contact your Wells authorized
service agency, or call:
Wells Bloomfield, LLC
2 Erik Circle
P. O. Box 280
Verdi, NV 89439
Service Parts Dept.
phone: (775) 689-5707
fax: (775) 689-5976
Service Parts Department can
supply you with the name and
telephone number of the
WELLS AUTHORIZED
SERVICE AGENCY
nearest you.
223 p/n 303755 OpM CT Ceramic Hotplates
CUSTOMER SERVICE DATA
please have this information available if calling for service
RESTAURANT _____________________________ LOCATION _____________
INSTALLATION DATE ________________________ TECHNICIAN ___________
SERVICE COMPANY ________________________________________________
ADDRESS ___________________________ STATE ______ ZIP__________
TELEPHONE NUMBER (_____)_____-_________
EQUIPMENT MODEL NO. _______________
EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
9
Genuine Parts
Protect - YOU - All - Ways
SERVICE TRAINING - QUALITY SERVICE
CUSTOMER SATISFACTION
Commercial Food Equipment Service Association
Wells Bloomfield proudly supports CFESA
Commercial Food Equipment Service Association
SERVICE TRAINING - QUALITY SERVICE
CUSTOMER SATISFACTION
WELLS BLOOMFIELD, LLC
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
telephone: 775-689-5703
fax: 775-689-5976
www.wellsbloomfield.com
PRINTED IN UNITED STATES OF AMERICA
Loading...
