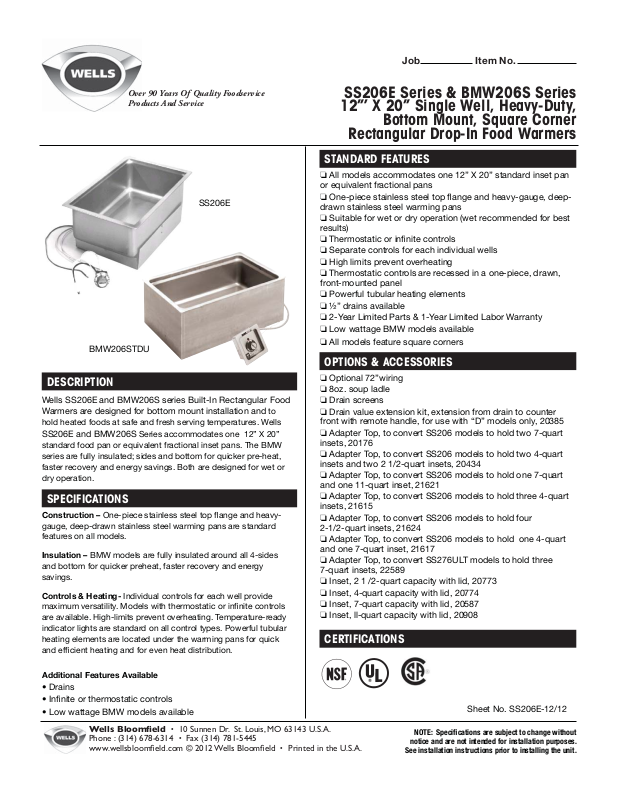

Wells BMW-206SDT User Manual

Job Item No.

Over 90 Years Of Quality Foodservice Products And Service

SS206E

BMW206STDU

DESCRIPTION

Wells SS206E and BMW206S series Built-In Rectangular Food Warmers are designed for bottom mount installation and

hold heated foods at safe and fresh serving temperatures. Wells

SS206E and BMW206S Series accommodates one 12” X 20”

standard food pan or equivalent fractional inset pans. The BMW series are fully insulated; sides and bottom for quicker pre-heat, faster recovery and energy savings. Both are designed for wet or dry operation.

SPECIFICATIONS

Construction – One-piece stainless steel top ﬂ ange and heavy- gauge, deep-drawn stainless steel warming pans are standard features on all models.

Insulation – BMW models are fully insulated around all 4-sides and bottom for quicker preheat, faster recovery and energy savings.

Controls & Heating- Individual controls for each well provide maximum versatility. Models with thermostatic or inﬁ nite controls are available. High-limits prevent overheating. Temperature-ready indicator lights are standard on all control types. Powerful tubular heating elements are located under the warming pans for quick and efﬁ cient heating and for even heat distribution.

SS206E Series & BMW206S Series

12”’ X 20” Single Well, Heavy-Duty,

Bottom Mount, Square Corner

Rectangular Drop-In Food Warmers

STANDARD FEATURES

❏ All models accommodates one 12” X 20” standard inset pan or equivalent fractional pans

❏ One-piece stainless steel top ﬂ ange and heavy-gauge, deep- drawn stainless steel warming pans

❏ Suitable for wet or dry operation (wet recommended for best results)

❏ Thermostatic or inﬁ nite controls ❏ Separate controls for each individual wells ❏ High limits prevent overheating ❏ Thermostatic controls are recessed in a one-piece, drawn,

front-mounted panel

❏ Powerful tubular heating elements ❏ ½” drains available ❏ 2-Year Limited Parts & 1-Year Limited Labor Warranty ❏ Low wattage BMW models available ❏ All models feature square corners

OPTIONS & ACCESSORIES

❏ Optional 72”wiring ❏ 8oz. soup ladle ❏ Drain screens ❏ Drain value extension kit, extension from drain to counter

front with remote handle, for use with “D” models only, 20385 ❏ Adapter Top, to convert SS206 models to hold two 7-quart

insets, 20176 ❏ Adapter Top, to convert SS206 models to hold two 4-quart

insets and two 2 1/2-quart insets, 20434 ❏ Adapter Top, to convert SS206 models to hold one 7-quart

and one 11-quart inset, 21621 ❏ Adapter Top, to convert SS206 models to hold three 4-quart

insets, 21615 ❏ Adapter Top, to convert SS206 models to hold four

2-1/2-quart insets, 21624 ❏ Adapter Top, to convert SS206 models to hold one 4-quart

and one 7-quart inset, 21617 ❏ Adapter Top, to convert SS276ULT models to hold three

7-quart insets, 22589

❏ Inset, 2 1 /2-quart capacity with lid, 20773 ❏ Inset, 4-quart capacity with lid, 20774 ❏ Inset, 7-quart capacity with lid, 20587 ❏ Inset, ll-quart capacity with lid, 20908

CERTIFICATIONS

Additional Features Available

• Drains

• Inﬁ nite or thermostatic controls

• Low wattage BMW models available

Sheet No. SS206E-12/12

NOTE: Speciﬁ cations are subject to change without

notice and are not intended for installation purposes.

See installation instructions prior to installing the unit.

Over 90 Years Of Quality Foodservice Products And Service

SS206ED

BACK

(51)

Minimum Clearance

SIDE

(51)

BOTTOM

6-3/4 (171)

SS206E Series & BMW206S Series

12”’ X 20” Single Well, Heavy-Duty,

Bottom Mount, Square Corner

Rectangular Drop-In Food Warmers

OTE: Specifications are

subject to change without notice and are not intended for installation purposes. See installation instructions prior to installing the unit.

BMW206ST_STD

FRONT*

4-1/8 (105)

Model Number

SS206E-120 Infinite control no

SS206E Infinite control no

SS206ED-120 Infinite control with

SS206ED Infinite control with

SS206ET Thermostatic

SS206EDT-120 Thermostatic

SS206ETD Thermostatic

BMW-206ST Thermostatic

BMW-206SDT Thermostatic

BMW-206STDU Thermostatic

BMW-206STDL-120 Thermostatic

BMW-206STDL-208 Thermostatic

Description Volts Watts Phase AMPS OVERALL

drain

controls no drain

controls with drain

controls no drain

controls with drain

Width

Left to Right

Inches

(MM)

120V 1200 1Ø 10 13-11/16

208/240V 900/1200 1Ø 4.3/5.0 13-11/16

120V 1200 1Ø 10 13-11/16

208/240V 900/1200 1Ø 4.3/5.0 13-11/16

120V 1200 1Ø 10 13-11/16

208/240V 900/1200 1Ø 4.3/5.0 13-11/16

208/240V 1240/1650 1Ø 6/6.9 13-11/16

208/240V 1240/1650 1Ø 4.3/5 13-11/16

120V 1000 1Ø 8.3 13-11/16

208/240V 1000/1300 1Ø 4.8/5.4 13-11/16

(346)

SPECIFICATIONS

OVERALL

Length

Front to Back

Inches

(MM)

21-3/4

(552)

OVERALL

Height Inches

(MM)

8-11/16

(221)

8-11/16

(221)

8-11/16

(221)

8-11/16

(221)

8-11/16

(221)

8-11/16

(221)

8-11/16

(221)

8-15/16

(211)

8-15/16

(211)

8-15/16

(211)

8-15/16

(211)

8-15/16

(211)

CONTROL

PANEL Width Inches

(MM)

3-5/16

(84)

3-5/16

(84)

3-5/16

(84)

3-5/16

(84)

5-7/8 (149)

CONTROL

PANEL Height Inches

(MM)

4-7/16

(113)

4-7/16

(113)

4-7/16

(113)

4-7/16

(113)

6-1/4 (159)

Shipping

Weights

Pounds

(KG)

(6.4)

(6.8)

(10)

(11)

Crate Size

Cubic Feet

(Cubic

Meters)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

4.15

(0.117)

4.15

(0.117)

2.9

(0.082)

2.9

(0.082)

2.9

(0.082)

Approvals

R R R R R R R

U U

U U U

Due to periodic changes in designs, methods, procedures, policies and regulations, the speciﬁ cations contained in this sheet are subject to change without notice. While Wells exercises good faith

efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the speciﬁ cations. By using the

information provided, the user assumes all risks in connection with such use.

NOTE: Speciﬁ cations are subject to change without

notice and are not intended for installation purposes.

See installation instructions prior to installing the unit.
